Type 2+3 Surge Protection

Type 2+3 Surge Protection Device SPD

DIN-rail AC SPD for single and three phase - SLP20 series

Type 2+3 surge protection device SPD SLP20 series is characterized by 8/20 µs and 1.2/50 µs lightning current waveform.

These Type 2+3  surge protection device SPD SLP20 series are designed to be installed at the service entrance of low voltage systems or close to sensitive equipment to protect against transient overvoltages.

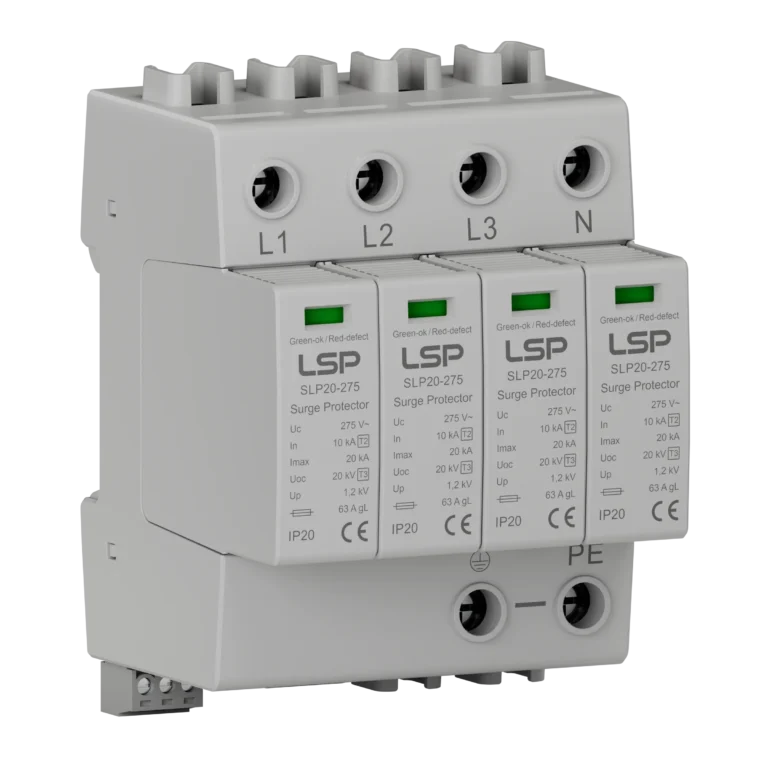

SLP20-275/4+0

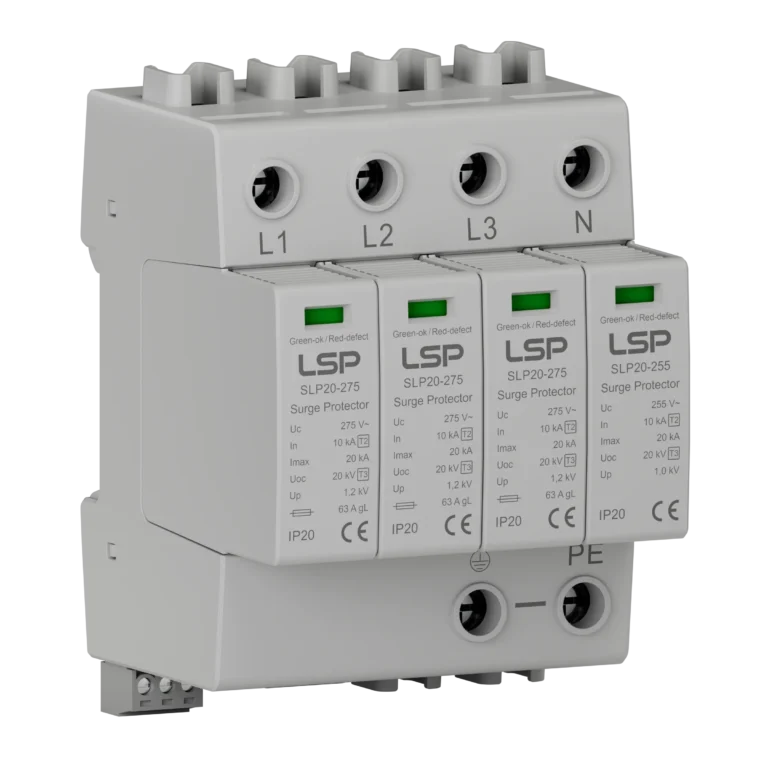

SLP20-275/3+1

SLP20-275/3+0

SLP20-275/2+0

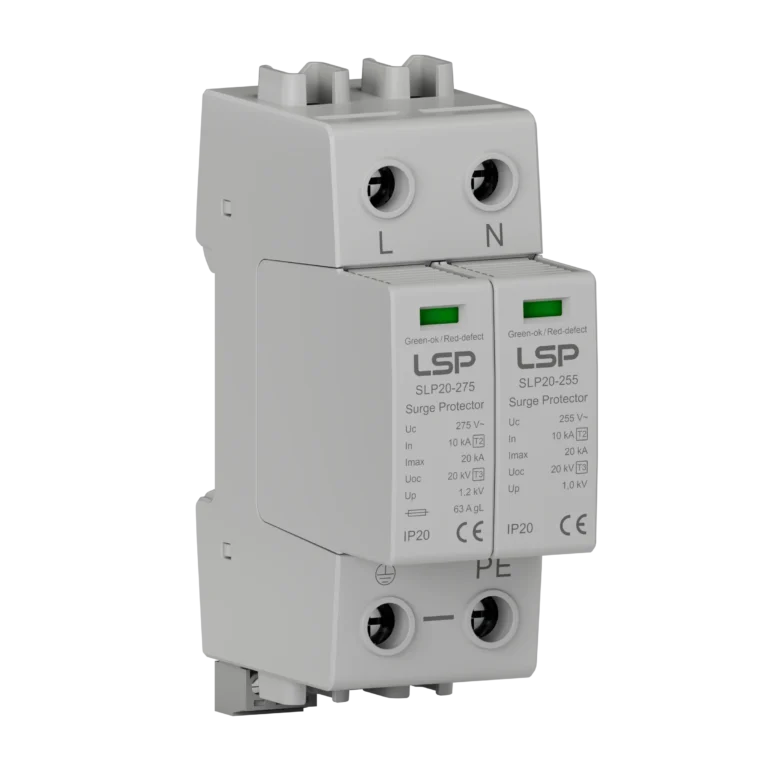

SLP20-275/1+1

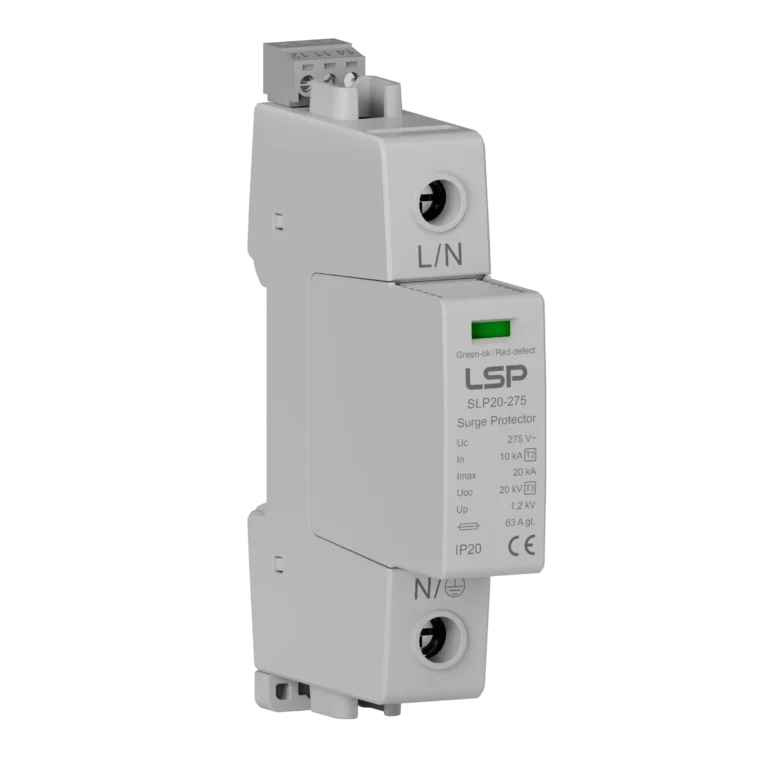

SLP20-275/1+0

Unique Trigger Release Technology

Thanks to unique trigger release, effectively solve the isolation and extinguishing arc

Type 2+3 Surge Protection Device SPD

DIN-rail AC SPD for single and three phase - SLP20 series

Type 2+3 surge protection device SPD SLP20 series is for nominal working voltage (50/60Hz) Un = 120V 230V 400V ac applications,

and for maximum continuous operating voltage (50/60Hz) Uc = 150V 275V 320V 385V 440V ac applications.

Specification:

Nominal voltage Un: 120V 230V 400V

Max. continuous operating voltage Uc: 150V 275V 320V 385V 440V

Type 2+3 / Class II+III / Class C+D

Nominal discharge current (8/20 μs) In = 10kA @ Type 2

Open circuit voltage (1.2/50 μs)  Uoc = 20kV @ Type 3

Protective elements: Metal Oxide Varistor (MOV), Gas Discharge Tube (GDT)

PDF Downloads:

Installation Instructions

Wiring Diagram & Installation

DIN-rail AC SPD for single and three phase - SLP20 series

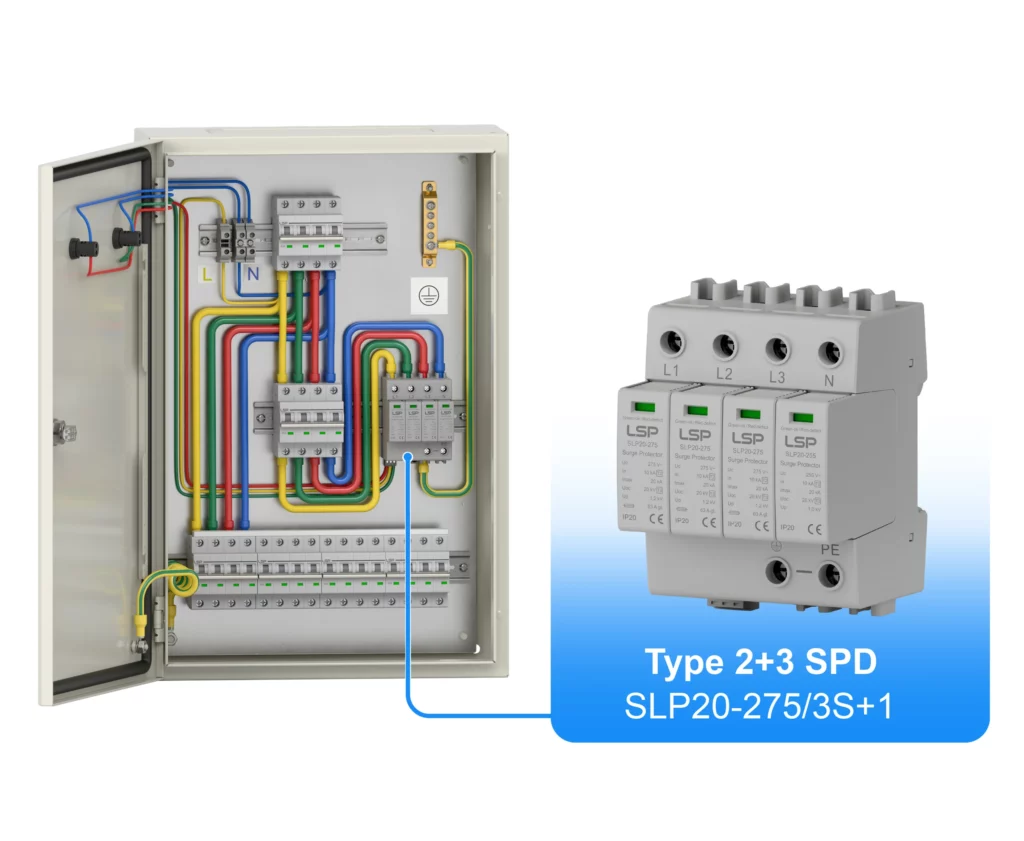

AC Type 2+3 surge protection device SPD SLP20 series is generally installed in sub-distribution or machine control cabinets.

These DIN-Rail AC Type 2+3 surge protection device SPD SLP20 series are rated for indoor use or fixed into a waterproof box for outdoor use.

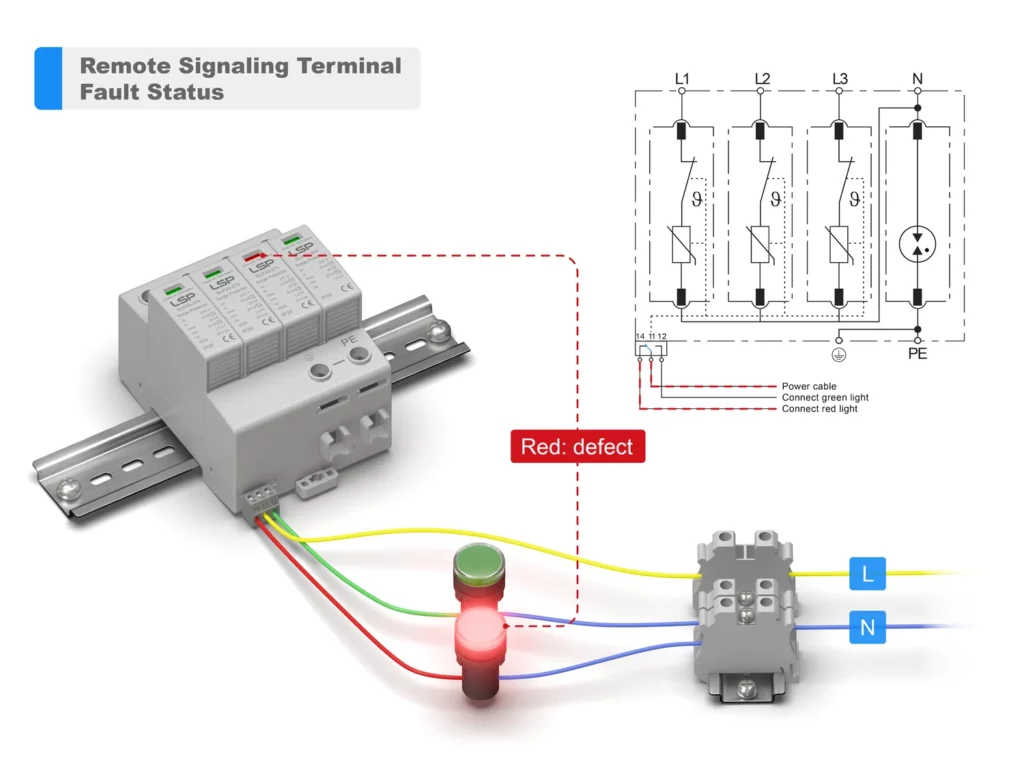

Wiring Diagram:

PDF Downloads:

Wiring Diagram

Type 2+3 Surge Protection Device SPD Price

Reliable Type 2+3 surge protection device SPD is designed to meet the protection needs of installations against lightning and surges. Get Type 2+3 SPD price now!
