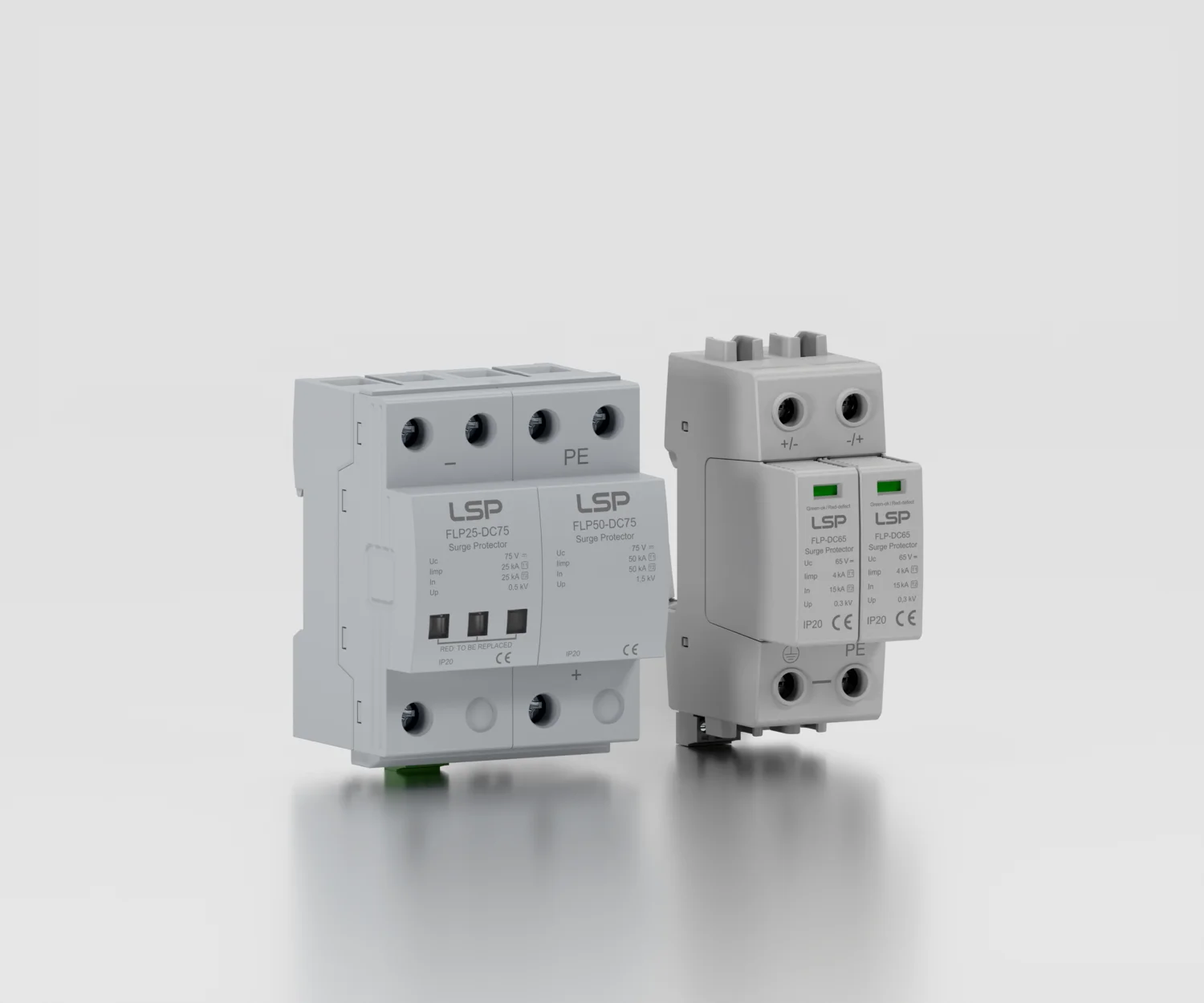

48V DC Surge Protector

Type 1+2 DC SPD for 48V DC power supply system

LSP developed a full range of 48V DC surge protector SPD used to protect equipment connected to DC power against surges due to lightning.

Type 1+2 DC surge protector SPD

FLP25-DC75/1(S)+0 for 48V DC

Type 1+2 DC surge protector SPD

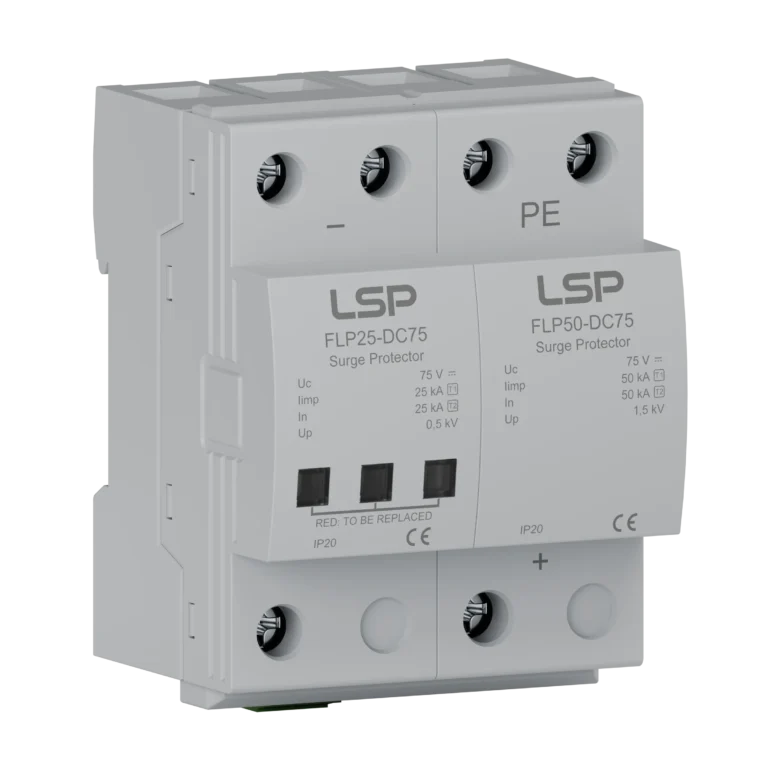

FLP25-DC75/1(S)+1 for 48V DC

Type 1+2 DC surge protector SPD

FLP7-DC65/2(S) for 48V DC

Type 1+2 DC surge arrester SPD

FLP-DC65/2(S) for 48V DC

Type 1+2 DC surge arrester SPD

FLP-DC85/2(S) for 75V DC

48V DC Surge Arrester

Type 1+2 DC SPD for 48V DC power supply system

It was tested Type 1+2 DC surge protector SPD FLP-DC series according to IEC 61643-11:2011 / EN 61643-11:2012.

Specification:

Nominal working voltage U_n: 48V, 75V

Max. continuous operating voltage Uc: 65V, 75V, 85V

Type 1+2 / Class I+II / Class B+C

Impulse discharge current (10/350 μs) I_imp = 4kA / 7kA / 25kA @ Type 1

Nominal discharge current (8/20 μs) I_n = 15kA / 20kA @ Type 2

PDF Downloads:

Datasheet

Installation Instructions

Maximum discharge current (8/20 μs) I_max = 30kA / 50kA / 70kA @ Type 2

Mode of Protection: DC+/PE, DC-/PE

Protective elements: Metal Oxide Varistor (MOV) and/or Gas Discharge Tube (GDT)

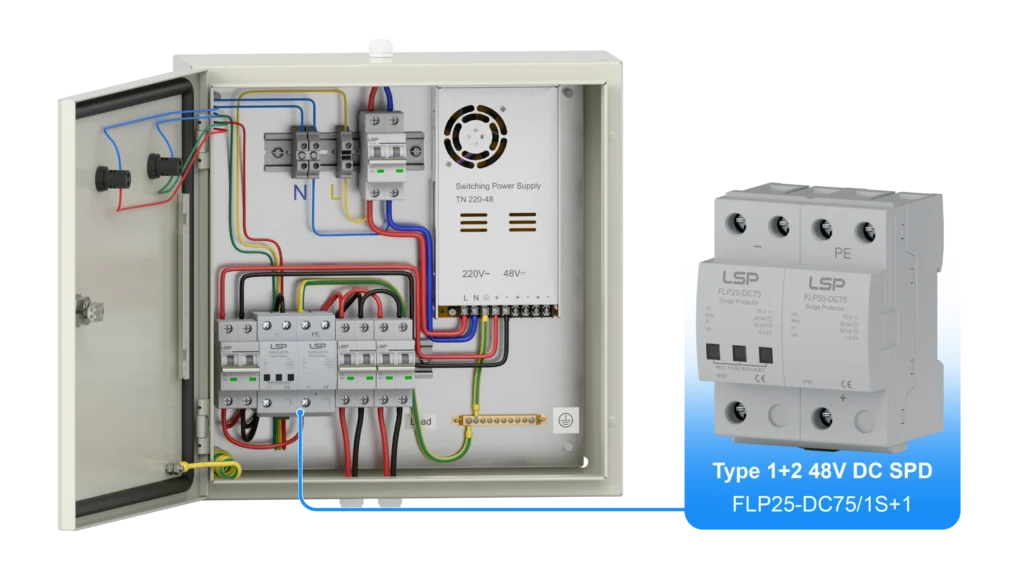

Wiring Diagram & Installation

Type 1+2 DC SPD for 48V DC power supply system

48V DC surge protector SPD FLP-DC series is rated for indoor use or fixed into a waterproof box for outdoor use.

Wiring Diagram:

PDF Downloads:

Wiring Diagram

48V DC Surge Protector SPD Price

Reliable 48V DC surge protector SPD is designed to meet the protection needs of installations against lightning and surges. Get 48V DC SPD price now!

Since 2010, LSP has been dedicated to designing and manufacturing surge protective devices protecting installations from transient overvoltages that result from switching events and lightning strikes.
