PoE Surge Protector

Power over Ethernet Surge Protector

PoE SPD - DT-CAT 6A/EA

The DT-CAT 6A/EA is designed to protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages.

This SPD is qualified with the maximum transmission speed and cabling category used for these Ethernet networks: 10 Gigabit Ethernet and Category 6A.

Obviously, it is applicable for Ethernet networks with lower categories. The DT-CAT 6A/EA surge protector is deployed in signal network applications with data transmission speeds up to 10 Gbps.

The transient protection circuit is based on high-energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.

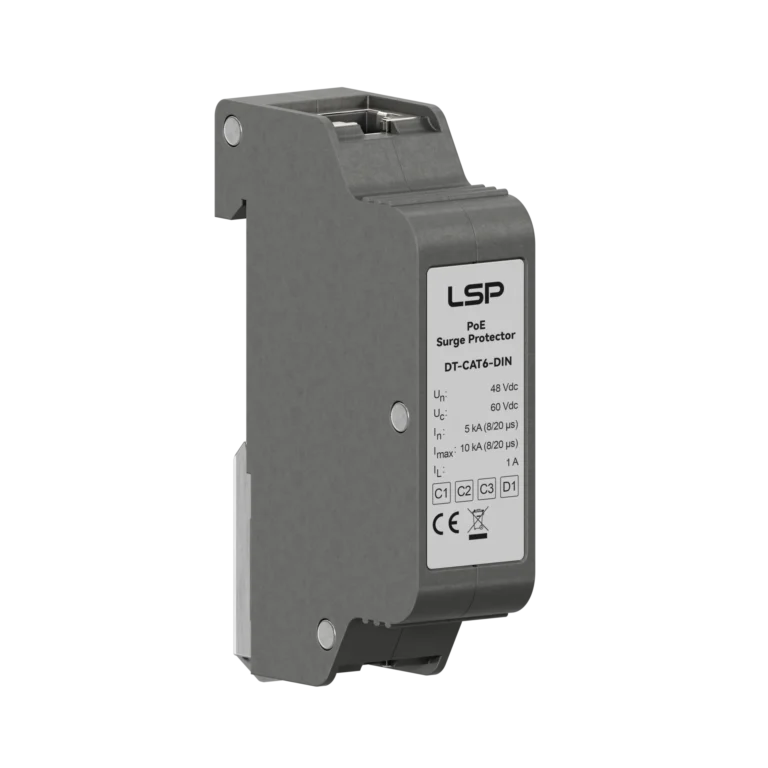

Power over Ethernet PoE Surge Protector SPD

Power over Ethernet Surge Protector

PoE SPD - DT-CAT 6A/EA

Data cable protection device for high-speed networks

Protection class: Fine protection

High-quality RJ45 sockets

Low protection level at high current load

Earthing via DIN rail or connection cable

Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3

Tested transmission quality in networks up to 10 GBit/s (Class EA) or CAT6

Rapid installation through plug-in version

lncl. DIN rail fastening set and earthing cable

Application example: 10 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces

High-quality RJ45 sockets

Support for Power over Ethernet + to 1 A

Tested transmission quality in networks up to 10 GBit (Class EA) or CAT6A

Rapid installation through connectable design

Including fastening set for mounting on the hat rail

Wiring Diagram & Installation

PoE SPD - DT-CAT 6A/EA

The surge protector is housed in a shielded enclosure with high-quality RJ45 shielded jacks.

Wiring Diagram:
PDF Downloads:

Datasheet

Installation Instructions

TUV Certificate

CB Certificate

CE Certificate

Certified by TUV-Rheinland

TUV and CB certification. PoE Surge Protective Devices (SPD) tested accroding to IEC/EN 61643-21
