24V DC Surge Protector

24V DC Surge Protector Manufacturer

DC Surge Protector for EV Charger / Energy Storage System (ESS) / Telcom Communication

The 24V DC surge protector is suitable for DIN rail or panel installation.

This flexible installation method allows the device to be easily integrated into existing electrical systems, maximizing space efficiency.

At the same time, it ensures reliable protection against voltage surges and enhances overall system performance.

24vdc Surge Protector

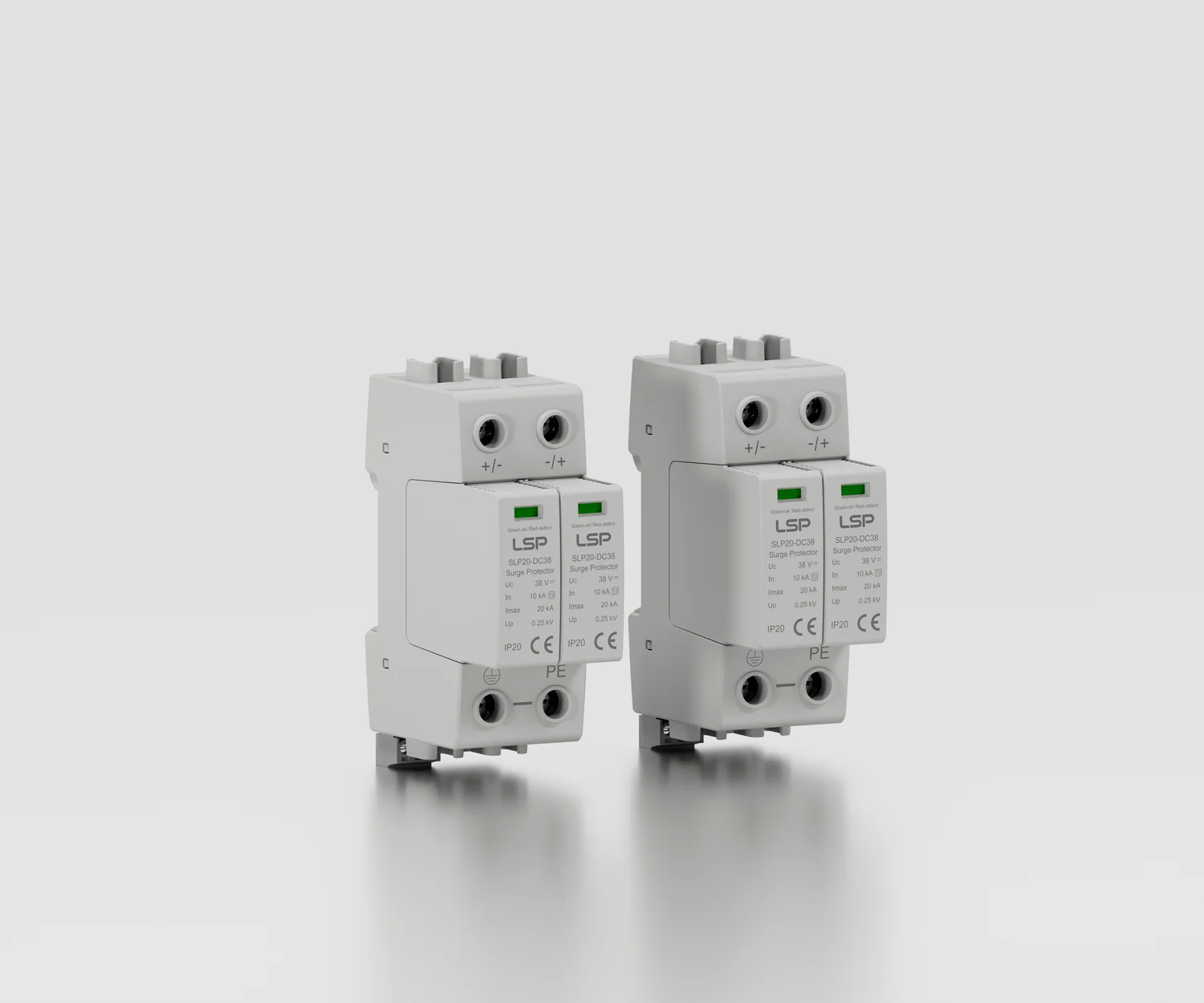

Type 2 24vdc Surge Protector - SLP20-DC38/2S

LSP developed wide range of DC surge protector devices used to protect equipment connected to DC power against surges due to lightning.

24V DC Surge Protector for 24V DC

24V DC SPD for 24V DC

24vdc Surge Protector

Type 2 DC Surge Protection Device - SLP20-DC38/2S

These DC SPD SLP20-DC series according to IEC/EN 61643-41.

Specification:

Nominal working voltage Un: 24V

Max. continuous operating voltage Uc: 38V

Type 2 / Class II / Class C

Nominal discharge current (8/20 μs) In = 10kA @ Type 2

Maximum discharge current (8/20 μs) Imax = 20kA @ Type 2

Mode of Protection: DC+/PE, DC-/PE

Protective Elements: Metal Oxide Varistor (MOV)

24V DC Surge Protector Components

Type 2 24V DC Surge Protective Device - SLP20-DC38/2S

LSP strictly controls the quality of components, dedicated to providing customers with the most reliable 24V DC surge protection device.

24Vdc Surge Suppressor

Type 2 DC SPD for 24V DC power supply system - SLP20-DC38/2S

This Housing of DIN-Rail Type 2 DC surge protection device is a pluggable design.

Wiring Diagram:

PDF Downloads:

Wiring Diagram

Wiring Diagram for Remote Signaling Terminals on 24V DC Surge Protector

The remote signaling terminal is typically connected to the internal detection circuit of the device.

When the surge protector detects an abnormal condition (such as overcurrent or overvoltage), the built-in switch is activated, triggering the signal output from the remote signaling terminal.

Wiring Diagram for Green Light on a SLP20-DC38/2S

Wiring Diagram for Red Light on a SLP20-DC38/2S

24Vdc Surge Protector Price

Reliable 24V Surge Protector is designed to meet the protection needs of installations against lightning and surges. Get 24Vdc Surge Suppressor price now!
