12Vdc Surge Protector

Type 2 DC SPD - SLP20-DC24/2S

LSP developed a full range of DC surge protection devices used to protect equipment connected to DC power against surges due to lightning.

Surge Protection for 12V DC

Surge Protector for 12V DC

12 Volt DC Surge Protector

Type 2 DC Surge Protection Device - SLP20-DC24/2S

These DC SPD SLP20-DC series according to IEC/EN 61643-41.

Specification:

Nominal working voltage U_n: 12V

Max. continuous operating voltage U_c: 24V

Type 2 / Class II / Class C

Nominal discharge current (8/20 μs) I_n = 10kA @ Type 2

Maximum discharge current (8/20 μs) I_max = 20kA @ Type 2

Mode of Protection: DC+/PE, DC-/PE

Protective Elements: Metal Oxide Varistor (MOV)

PDF Downloads:

Datasheet

Installation Instructions

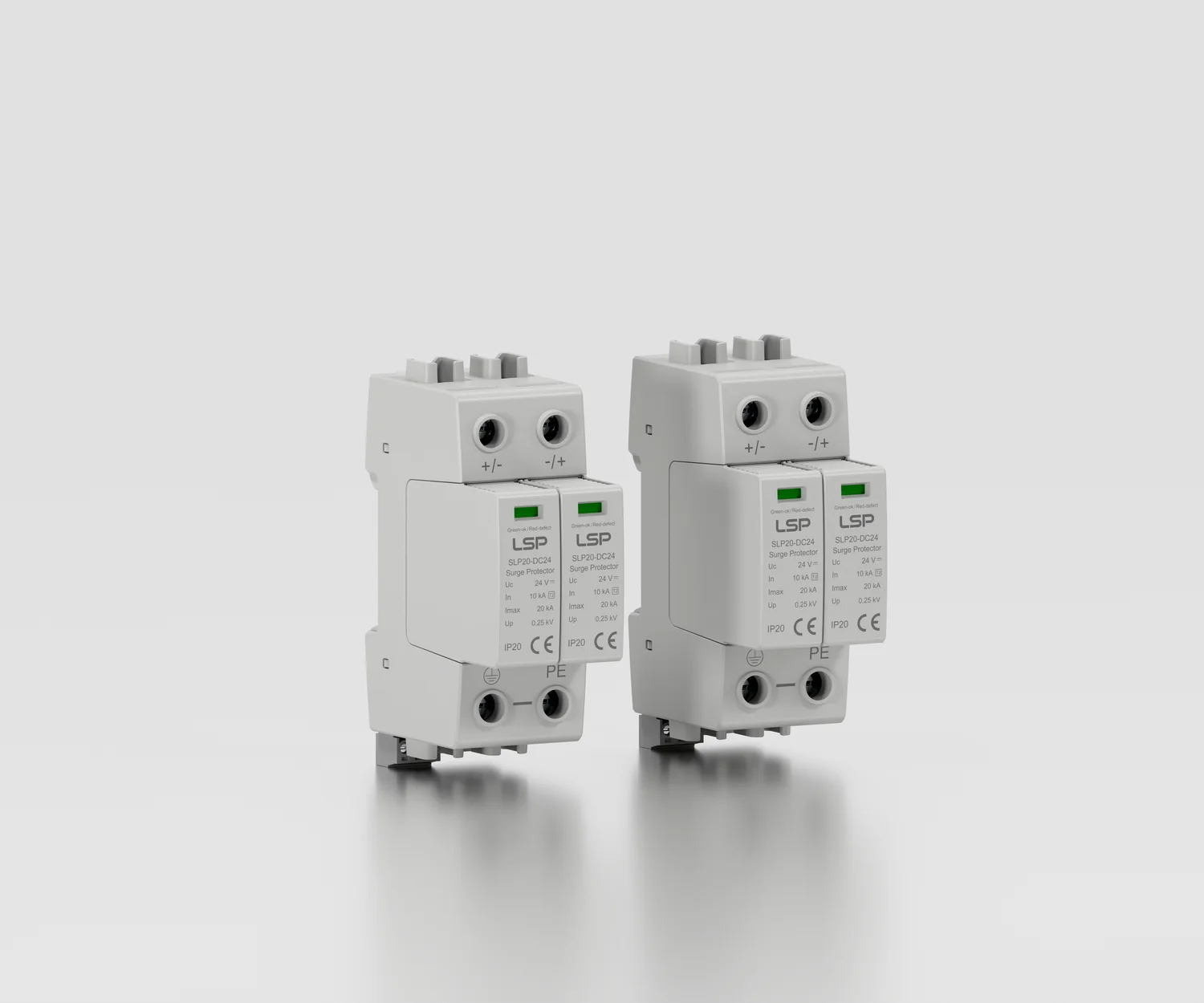

12V DC Surge Protector

Type 2 DC Surge Protective Device - SLP20-DC24/2S

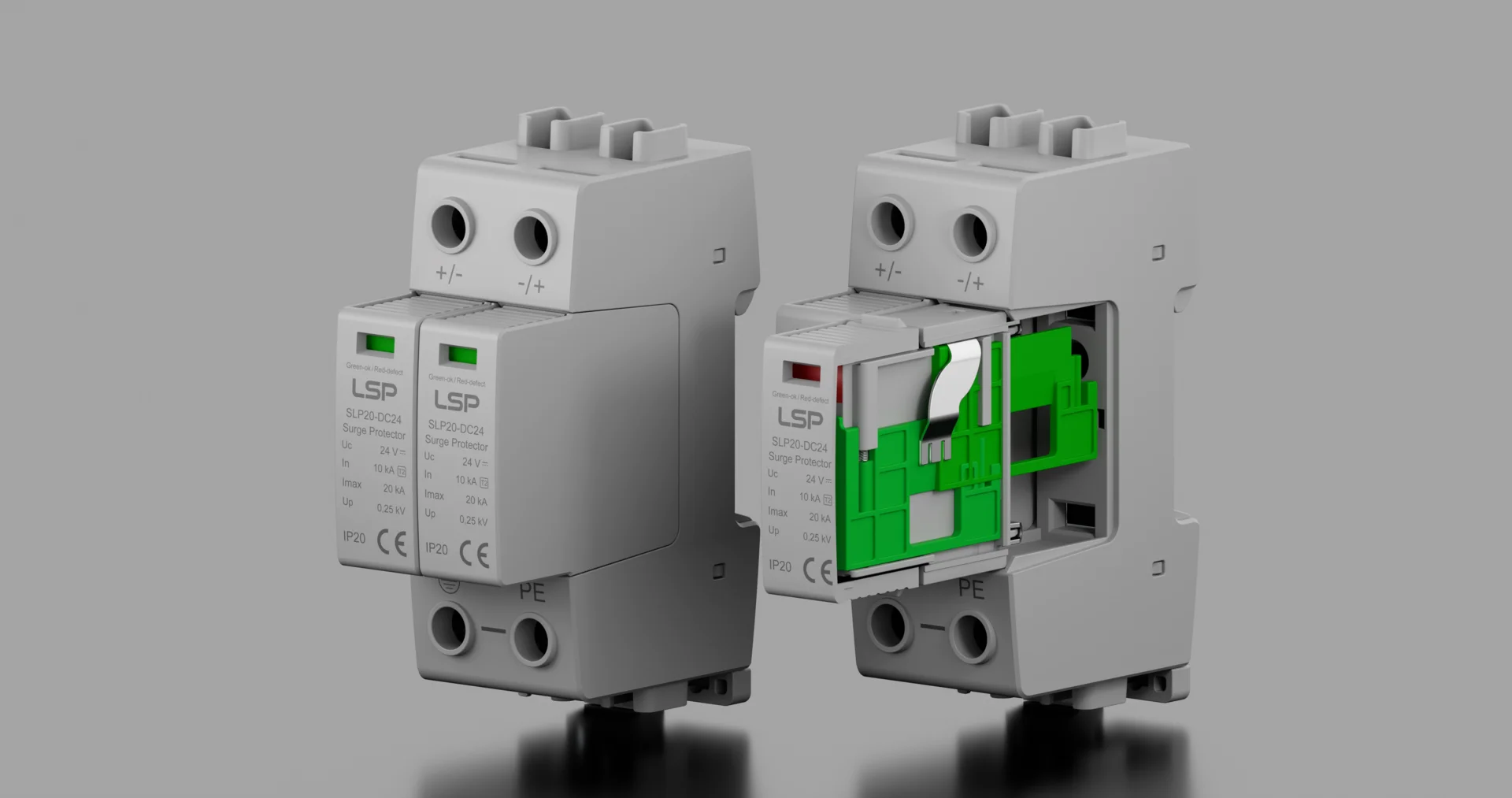

The Housing of DIN-Rail Type 2 DC SPD is a pluggable design.

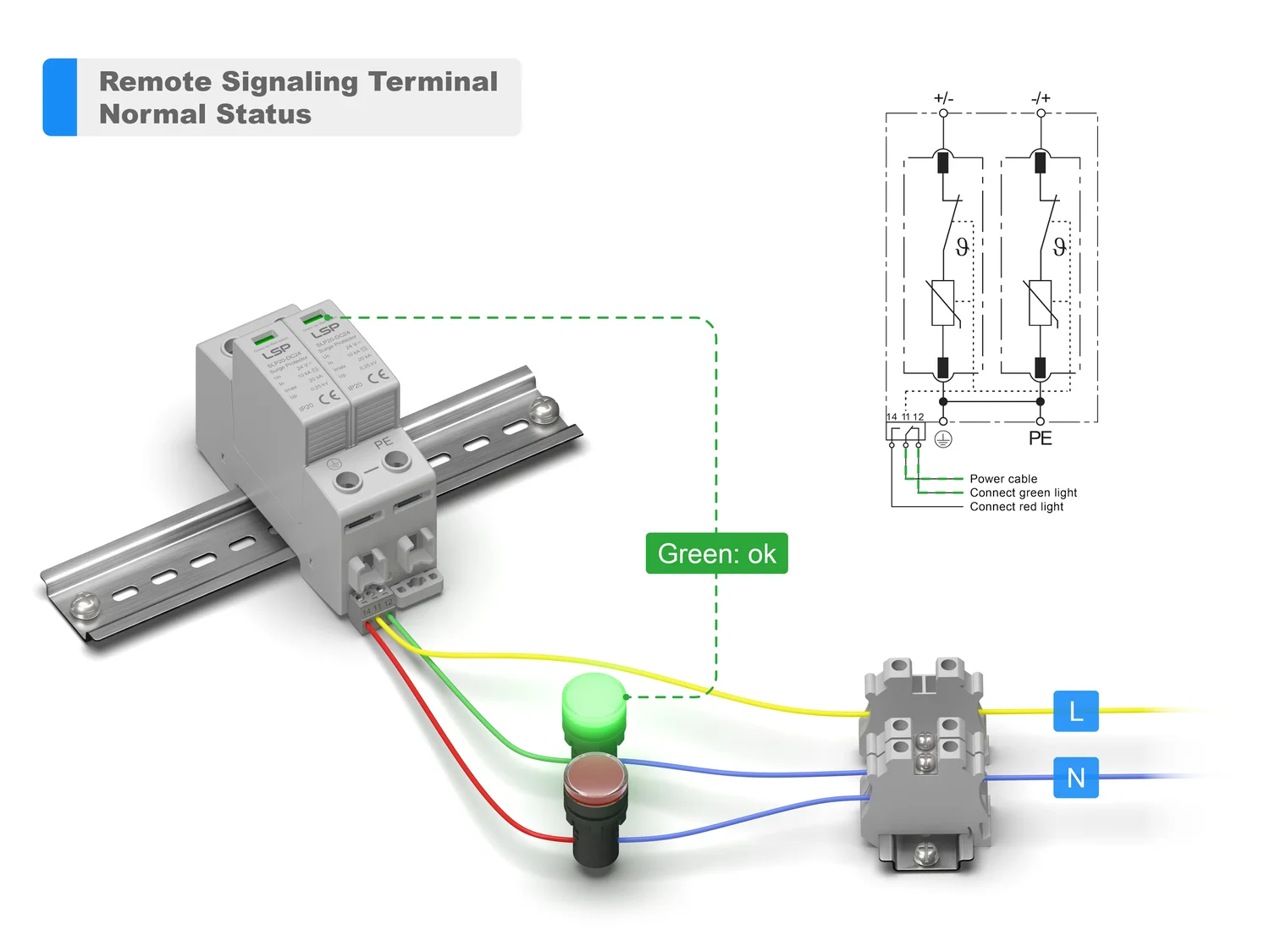

Wiring Diagram:

PDF Downloads:

Wiring Diagram

12Vdc Surge Protector Price

Reliable 12 Volt DC Surge Protector is designed to meet the protection needs of installations against lightning and surges. Get 12V DC Surge Protector price now!

Since 2010, LSP has been dedicated to designing and manufacturing surge protective devices protecting installations from transient overvoltages that result from switching events and lightning strikes.
