Applying Lightning Protection Zones (LPZ) to Decide Where Surge Protection Should Be Installed
Understanding where surge protection should be installed starts with the Lightning Protection Zone (LPZ) model in IEC 62305‑4. LPZs describe how lightning surge energy is progressively reduced inside a building or facility. Installing SPDs at LPZ boundaries ensures each stage absorbs surge energy and protects downstream equipment effectively.
Practical guidance:
LPZ 0A/0B → LPZ 1: Install the upstream SPD at the service entrance or main equipment entry. This device handles the highest energy from incoming lightning or utility surges.
LPZ 1 → LPZ 2: Protect distribution panels and long feeders with downstream SPDs. These devices reduce residual surges before they reach sensitive circuits.
LPZ 2 → LPZ 3: Place point-of-use SPDs close to sensitive loads such as IT equipment, control panels, or precision instruments.

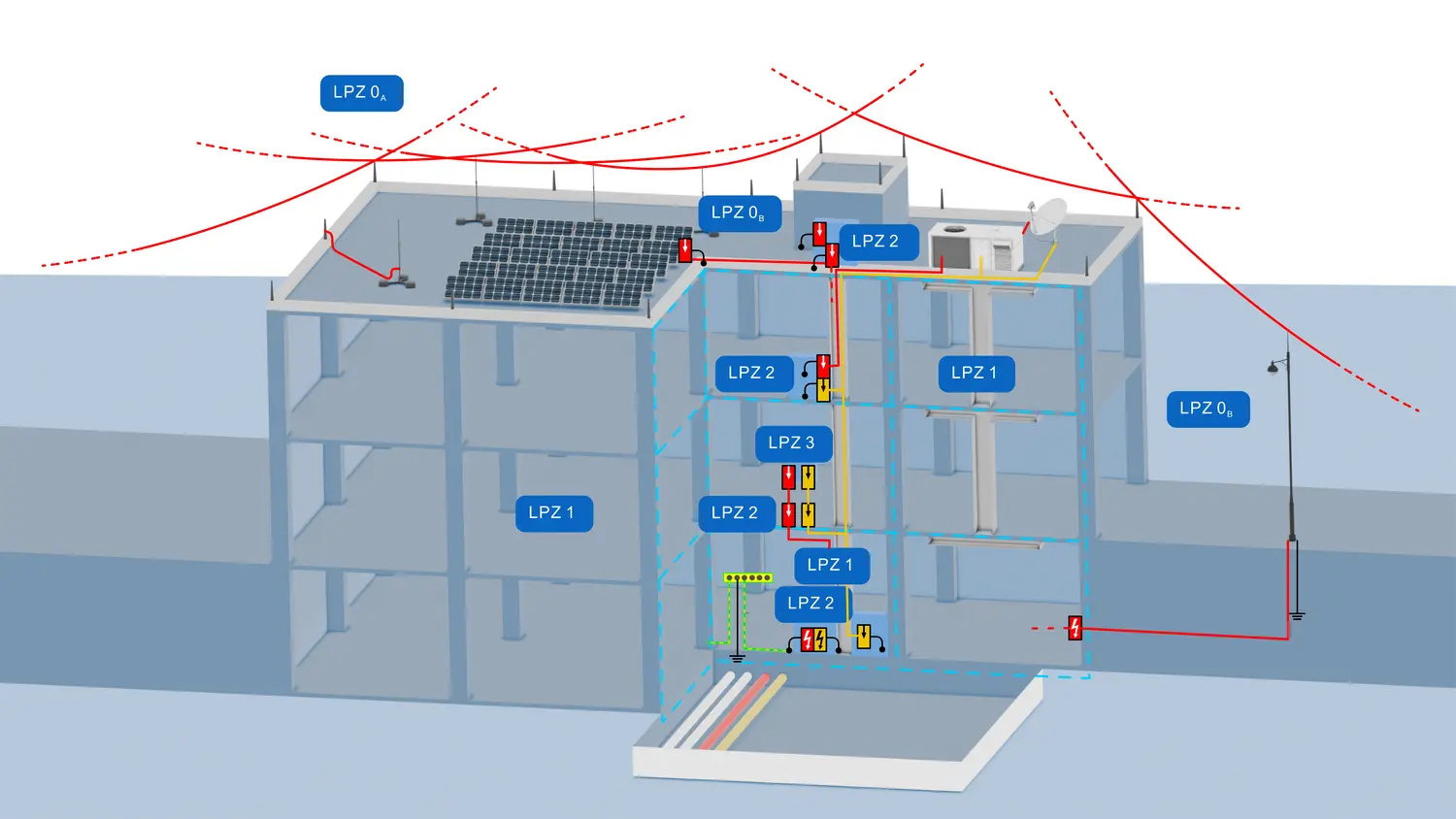

A simplified view: LPZ 0A → main board (LPZ 1) → subpanels (LPZ 2) → equipment sockets (LPZ 3). Place a higher-energy SPD at the LPZ 0→1 boundary, then stage Type 2 and Type 3 devices downstream for a stepped protection strategy.
For technical reference, IEC 62305‑4 maps SPD placement to LPZ boundaries, while IEC/EN 61643 classifies Type 1, 2, and 3 devices for use at each zone. Following these principles answers the practical question of where surge protection should be installed while ensuring reliable protection across your system.
Where Should Surge Protection Be Installed: SPD Types and Practical Placements
Service Entrance — Type 1 SPD
Install a Type 1 SPD at the main incomer where the installation transitions from LPZ 0 to LPZ 1. This upstream device handles the highest energy from lightning or utility surges. Specify Iimp (lightning impulse withstand) according to site risk. Mount the SPD as close as possible to the incoming terminals, and bond its PE conductor directly to the main earthing terminal (MET) using the shortest path. Keep all connection leads very short to reduce residual voltage and ensure maximum protection.
Sub‑distribution Boards — Type 2 SPD
Place Type 2 SPDs at subpanels when feeders from the main board are long (typically ~10 m) or when critical loads are supplied. Specify In and/or Imax according to the device datasheet. In a staged protection strategy, the upstream Type 1 diverts the bulk of surge energy, while the Type 2 clamps residual overvoltage, protecting downstream circuits.
Point‑of‑Use — Type 3 SPD
For sensitive equipment inside LPZ 2/3, install Type 3 SPDs close to sockets, control panels, or the equipment power entry. Select devices that limit voltage to safe levels and place them physically near the load so the final clamping stage is effective. Proper placement ensures the last SPD stage protects sensitive equipment from any remaining surge energy.
Staged Protection Summary
For practical installation, Type 1, Type 2, and Type 3 SPDs serve progressively downstream roles:
Type 1 at the service entrance handles high-energy lightning and utility surges.
Type 2 at subpanels limits residual overvoltages along feeders.
Type 3 near sensitive equipment ensures the final clamping stage protects devices effectively.
This staged approach, aligned with IEC/EN 61643 and Lightning Protection Zone (LPZ) principles, ensures each SPD is placed where it can most effectively divert surge current and protect connected equipment.
Installation Rules to Prevent Failures for Where to Install Surge Protection Device
Lead Length and Routing (≤0.5 m)
Keep the total connecting-lead length from the SPD terminals to the panel bus and to the main earthing terminal (MET) at or under 0.5 m whenever possible. Long leads increase inductance and raise residual voltage during a lightning surge (U = L × di/dt). Use short, straight, parallel conductors and a V/Kelvin-style connection to minimize loop area.
If the ≤0.5 m rule cannot be met, either select an SPD with a lower Up rating or add a downstream SPD close to the sensitive load. This ensures the clamping stage remains effective and prevents equipment exposure to high residual voltages.
Equipotential Bonding and Conductor Sizing
Bond the SPD’s PE conductor directly to the MET via the shortest path. Size bonding conductors according to local regulations and the SPD manufacturer’s instructions; larger cross-sections improve dynamic current-handling capacity. Ensure all lines crossing LPZ boundaries—power and signal/data—are either included in equipotential bonding or protected with appropriate SPDs.
RCD/MCB Coordination and Earthing Schemes
Select SPD connection schemes compatible with the earthing system:
| Earthing System | Typical SPD Connection | Coordination Note |
|---|---|---|
| TN-C / TN-C-S | 3+0 (L‑PE) | Place at or upstream of the PEN split; ensure robust PE bonding |
| TN-S / TT | 3+1 (L‑PE + N‑PE path) | Follow device guidance; maintains N‑PE potential control |
Avoid bonding N to PE downstream of RCDs to prevent nuisance tripping. Confirm SPD behavior with RCDs and always follow manufacturer guidance for allowed installation positions relative to RCDs or RCBOs.
Status and Indicators
Install SPDs with clear status indicators: Green = normal, non-green = abnormal. Modules showing non-green status should be replaced or serviced immediately to maintain continuity of protection. This ensures that the SPD remains effective where surge protection should be installed.
Coordination and decoupling for Where Should Surge Protection Be Installed
Effective surge protection relies on staged energy coordination so that each SPD limits the residual surge reaching the next stage. Two common methods ensure proper decoupling:
Natural cable distance: Feeder lengths of roughly 5–10 m often provide sufficient inductance to prevent downstream devices from being overstressed.
Dedicated decoupling inductors: Where devices are closely co-located or coordination is not guaranteed by design, appropriate inductors can be added according to manufacturer guidance.
For example, if a Type 1 SPD at the main board yields a residual Up of ~2.5 kV and a downstream Type 2 clamps at ~1.2 kV, spacing and coordination must prevent exceeding the downstream device’s nominal discharge rating (In/Imax).
Application guidance: Where Should Surge Protectors Be Placed
PV systems — Where to Install Surge Protection Device on DC and AC sides
- PV Systems:
- DC side: Install SPDs at DC combiners or directly at inverter DC inputs. For high lightning exposure, use Type 1+2 DC SPDs; otherwise Type 2 DC may suffice. Choose Uc per inverter and array maximum open-circuit voltage.
- AC side: Treat inverter output as a sub-distribution node; install a Type 2 AC SPD at the inverter output or nearest panel, coordinated with the upstream service SPD. Keep DC leads short and parallel, and bond conductive parts per IEC 60364‑7‑712.
- EV Charging Infrastructure:
- AC Mode 3 chargers: Use upstream Type 1 SPDs at the service entrance and Type 2 at subpanels feeding wallboxes. Consider Type 3 protection for sensitive electronics if cable runs are long.
- DC fast chargers (HPC): Protect supply entry with Type 1 or Type 1+2; add Type 2 on internal AC/DC buses and protect control/communication circuits according to IEC/EN 61643‑21/22.
- Telecom/Data Systems:
- Primary protection should be installed at building entry integrated with the equipotential bonding system.
- Secondary protection is recommended at equipment racks and near sensitive ports, for both power and data lines crossing LPZ boundaries, while observing proper shielding and separation.
SPD Selection Notes
Near sensitive equipment, Type 3 should limit voltage to safe levels and be placed physically close to the load.
At subpanels, use Type 2 rated for nominal and maximum discharge currents (In/Imax), especially for long feeders or critical loads.
Near sensitive equipment, Type 3 should limit voltage to safe levels and be placed physically close to the load.
For all SPDs, confirm the device status indicators (Green = normal, non-green = abnormal) to ensure continuous protection.
Practical Workflow for Where Should Surge Protectors Be Placed
The following scenario demonstrates a standards‑aligned SPD installation workflow for a commercial building with rooftop PV and EV charging stations. Equivalent IEC‑compliant devices can be used.
Main switchboard (LPZ 0→1): Install a Type 1+2 AC SPD at the service entrance. Keep connecting leads short (≤0.5 m) and bond PE to the main earthing terminal.
Subpanel feeding offices and IT (≈15–20 m feeder): Install a Type 2 SPD with nominal and maximum discharge ratings (In/Imax) per the datasheet. Add Type 3 SPDs at server rack power entries for sensitive equipment.
PV combiner & inverter: Install DC SPDs in the combiner and at inverter DC inputs (Uc per array design). Install Type 2 AC SPDs at the inverter output for coordination with upstream SPDs.
EV subpanel: Use Type 2 SPDs at the subpanel; consider Type 3 modules at sensitive control electronics if cable runs are long.
This staged cascade—Type 1 (service) → Type 2 (distribution) → Type 3 (point-of-use)—illustrates practical LPZ boundary implementation under IEC/EN guidance.
Maintenance and Verification for Where to Install Surge Protection Device
Routine checks should include SPD status indicators, PE bonding continuity, and timely replacement of modules showing abnormal status. Event counters or remote contacts can help log significant surge activity. Follow manufacturer guidance for replacement intervals and environmental conditions.
Where Should Surge Protection Be Installed: Rules and Best Practices
When planning Where Should Surge Protection Be Installed, first map LPZ transitions to understand energy flow. Select the appropriate SPD type for each boundary: Type 1 (specify Iimp) at the service entrance, Type 2 (specify In/Imax) at distribution panels, and Type 3 (voltage-limiting, placed close to sensitive loads) at point-of-use. Keep total connecting leads ≤0.5 m, ensure equipotential bonding to the main earthing terminal (MET), and coordinate stages using natural cable spacing or decoupling inductors to prevent overstressing downstream devices.
Follow IEC/EN 61643‑11/12 guidance for device selection, stage coordination, and earthing, and always verify installation after energization. Safety first: comply with local codes and manufacturer instructions, and have all work performed by qualified personnel.
