Created by: Glen Zhu | Updated Date: April 15th, 2025
Have you ever wondered how a surge protective device shields your electronics from damage? Inside, it has powerful components like the Metal Oxide Varistor (MOV), Gas Discharge Tube (GDT), and Thermal Fuse. These parts work together to absorb and redirect sudden voltage spikes. When excess electricity flows through your system, the device steps in to prevent harm. The SPD doesn’t just protect your gadgets—it ensures their longevity. By managing unexpected surges, it keeps your devices safe and functional.
A surge protector device is your first line of defense against unexpected voltage spikes. It’s a small but powerful tool that shields your electronics from damage caused by sudden surges in electricity. When the voltage in your electrical system exceeds the safe level, the surge protection device intervenes to either block or redirect the excess energy. This keeps your devices safe and functional.
Think of it as a safety net for your gadgets. Whether it’s your computer, TV, or gaming console, a surge protection device ensures they don’t get fried by a sudden power surge. These devices come in various forms, from plug-in models to whole-house systems, making it easy to find one that fits your needs.
Power surges can happen anytime, and they’re more common than you might think. Without a surge protective device, your electronics are vulnerable to damage. Studies show that 31% of electronic failures are caused by power surges. That’s nearly one-third of all issues! For businesses, these surges can cost up to $80 billion annually in damages and downtime.
By using a surge protection device, you’re not just protecting your devices—you’re also saving money in the long run. Surge protection devices can reduce over 90% of surge-related damage and extend the lifespan of your equipment by over 30%. Plus, they provide peace of mind. You won’t have to worry about every thunderstorm or sudden power fluctuation.
Here’s a quick look at the benefits of surge protection devices:
Aspect | Details |
Effectiveness | Surge protection devices can reduce over 90% of surge damage. |
Equipment lifespan | Installation can extend equipment life by over 30%. |
Joule rating | Basic protection: 140-410 joules; Whole-house protection: 3000 joules+. |
Standard | Surge protection devices meeting IEC/EN 61643 standards |
Power surges can come from many sources, and they’re generally classified into two types according to their sources: external structure lighting surges and internal structure lightning surges. Knowing these can help you stay prepared. Here are the most common causes:
Understanding these causes can help you take steps to protect your electronics. For example, using a surge protection device can safeguard your gadgets from these everyday risks.
Power surges might seem like minor inconveniences, but they can wreak havoc on your electronics. When a surge hits, it sends a sudden spike of electricity through your devices. This can cause immediate damage or slowly degrade their performance over time. Let’s break down the risks so you can understand why protecting your gadgets is so important.
1. Permanent Damage to Devices
One of the most common outcomes of a power surge is permanent damage to your electronics. The excess voltage can fry internal circuits, rendering your devices useless. Imagine losing your laptop, gaming console, or even your refrigerator in an instant. Replacing these items can be costly and frustrating.
2. Shortened Lifespan
Even if a surge doesn’t destroy your device outright, it can still take a toll. Repeated exposure to small surges weakens internal components. Over time, this wear and tear can shorten the lifespan of your electronics. You might notice your devices becoming slower or less reliable, which can be incredibly annoying.
Tip: Using a surge protection device can help prevent this gradual damage and keep your gadgets running smoothly for years.
3. Data Loss
For devices like computers and external hard drives, power surges can lead to data loss. A sudden spike can corrupt files or even wipe out entire storage systems. Losing important documents, photos, or work files can be devastating. And recovering that data? It’s often expensive and not always successful.
4. Fire Hazards
In extreme cases, power surges can cause electrical fires. When circuits overload, they can overheat and ignite. This poses a serious safety risk to your home and family. Protecting your electronics isn’t just about saving money—it’s also about ensuring your safety.
5. Disrupted Productivity
If you rely on electronics for work or school, a power surge can disrupt your productivity. Imagine losing hours of work because your computer suddenly shuts down. Or worse, having to replace your equipment entirely. These interruptions can be stressful and time-consuming.
By understanding these hazards, you can take steps to protect your electronics and avoid unnecessary headaches. Investing in a reliable surge protective device is one of the simplest and most effective ways to safeguard your gadgets. It’s a small step that can save you a lot of trouble in the long run.
The primary products in our factory are internal lightning protection devices designed to prevent induced lightning, mostly applicable for internal structures. These products are collectively referred to as lightning arresters, surge protection devices (SPDs), surge protectors, surge suppressors, and transient voltage surge suppressors (TVSS).
Below, we’ll list the main components of a surge protection device and explain in details.
The Metal Oxide Varistor, or MOV, is the heart of any surge protective device. It’s a small but mighty component that acts like a gatekeeper for your electronics. When the voltage is normal, the MOV stays inactive, allowing electricity to flow smoothly. But when a surge occurs, it springs into action, absorbing the excess energy and protecting your devices from harm.
MOVs are known for their non-linear resistance. This means they can handle sudden voltage spikes without breaking down. However, repeated surges can wear them out over time. That’s why choosing a high-quality MOV with low surge degradation is essential for long-term reliability.
Here’s a quick look at the technical specs of an MOV:
| Specification | Description |
| Nonlinear Volt-ampere Characteristic |
|
| Surge Current Capability | Varistors can withstand certain transient high currents, typically expressed by their nominal discharge current (in amperes). |
| Varistor Voltage | The varistor voltage (also known as the threshold voltage) is the voltage at which it begins to conduct significantly, usually determined by design parameters. |
| Leakage Current | Under normal operating voltage, the leakage current of a varistor is extremely low, typically in the microampere range. |
| Response Time | Varistors have an extremely short response time, typically in the nanosecond range, enabling rapid response to transient over-voltages. |
MOVs are fast, reliable, and effective. They’re the first line of defense in most surge protector devices.
The Gas Discharge Tube, or GDT, is another critical component. It uses an inert gas to control voltage spikes. When a surge occurs, the gas inside the tube ionizes, creating a path for the excess energy to flow safely to the ground. This prevents the surge from reaching your electronics.
GDTs are available in two and three-pole configurations, making them versatile for different applications. They’re especially useful for handling high-energy surges, like those caused by lightning strikes. Plus, they have a long lifespan, so you won’t need to replace them often.
Gas Discharge Tube (GDT)
Here’s why GDTs are so effective:
GDTs work best when paired with other components like MOVs, creating a multi-layered defense against surges.
The Transient Voltage Suppressor, or TVS, is like the sprinter of surge protection. It reacts almost instantly to voltage spikes, clamping the excess energy and preventing it from damaging your devices. Its rapid response time makes it ideal for sensitive electronics like computers and medical equipment.
TVS diodes are often used in multi-level protection circuits. They work alongside MOVs and GDTs to provide comprehensive surge protection. While the MOV absorbs energy and the GDT diverts it, the TVS clamps the voltage to a safe level. This teamwork ensures your devices stay safe, no matter the surge.
Here’s a quick comparison of these components:
Component Type | Description |
Gas Discharge Tube (GDT) | Utilizes inert gas to enhance discharge triggering, available in two and three-pole configurations. |
Transient Voltage Suppression (TVS) Diode | Clamps and regulates voltage with rapid response, ideal for multi-level protection circuits. |
Metal Oxide Varistor (MOV) | Exhibits non-linear resistance to voltage fluctuations, protecting against surges. |
Together, these components form a powerful defense system. They absorb, divert, and clamp excess voltage, ensuring your electronics stay safe and functional.
The grounding system is like the unsung hero of a surge protective device. It plays a vital role in keeping your electronics safe by providing a path for excess voltage to flow harmlessly into the ground. Without proper grounding, the surge protection device wouldn’t be able to do its job effectively.
When a power surge occurs, the grounding system steps in to redirect the excess energy. This prevents the surge from damaging your devices or causing electrical fires. Think of it as a safety valve that releases pressure when things get too intense. A well-designed grounding system ensures that the surge protection device can handle even the most unexpected voltage spikes.
Here’s what makes a grounding system effective:
Tip: If you’re unsure about your home’s grounding system, consult a licensed electrician. A small investment in safety can save you from costly repairs later.
The enclosure of a surge protective device might not seem like a big deal, but it’s a critical component. It houses all the internal parts, protecting them from external damage and ensuring the device operates safely during a surge event. A well-designed enclosure can make all the difference in how effectively the surge protection device performs.
Why does the enclosure matter so much? Let’s break it down:
Testing plays a big role in evaluating enclosure designs. For example:
Note: Always check the enclosure for signs of wear or damage. A cracked or poorly sealed enclosure can compromise the entire surge protective device.
In short, the enclosure isn’t just a box—it’s a vital part of the surge protector’s safety and performance. When choosing a surge protective device, don’t overlook this detail. A sturdy, well-designed enclosure ensures your device can handle whatever comes its way.
Role of the MOV
The Metal Oxide Varistor (MOV) is like the first responder in a surge protective device. Its job is to absorb excess voltage and prevent it from reaching your devices. When the voltage stays within a safe range, the MOV remains inactive. But when a spike occurs, it jumps into action, protecting your electronics from damage. This makes the MOV a critical component in handling sudden surges.
How MOVs Function
MOVs work by dynamically adjusting their resistance. Under normal conditions, they offer high resistance, allowing electricity to flow smoothly. When a surge hits, their resistance drops, creating a path for the excess voltage to be absorbed or redirected. This quick response ensures your devices stay safe. However, repeated surges can wear out the MOV over time, which is why high-quality MOVs are essential for long-term protection.
Benefits of MOVs
MOVs bring several advantages to the table:
By including MOVs, surge protective devices can handle a wide range of voltage fluctuations effectively.
Function of the GDT
The Gas Discharge Tube (GDT) acts as a backup system for handling high-energy surges. When the voltage exceeds a certain threshold, the GDT activates to safely divert excess energy to the ground. This prevents the surge from overwhelming the MOV or affecting your devices.
GDT Operation Explained
Inside the GDT, an inert gas remains stable under normal conditions. When a surge occurs, the gas ionizes, creating a conductive path for the excess voltage. This path directs the energy away from your electronics, ensuring their safety. GDTs are especially effective for handling large surges, such as those caused by lightning strikes.
Advantages of Using GDTs
Surge protection devices use GDTs to ensure that even the most intense surges don’t harm your devices.
Importance of the Thermal Fuse
The thermal fuse is like the safety net for your surge protective device. It prevents overheating by disconnecting the circuit when components like the MOV get too hot. This not only protects your devices but also reduces the risk of fire hazards.
Thermal Fuse Mechanism
When the MOV absorbs too much energy, it can overheat. The thermal fuse monitors this and disconnects the MOV before it reaches a dangerous temperature. This ensures the rest of the surge protective device continues to function safely. Modern surge protectors rely on this mechanism to prevent serious damage.
Safety Features of Thermal Fuses
Thermal fuses play a crucial role in maintaining the safety and efficiency of surge protective devices, giving you peace of mind during unexpected power surges.

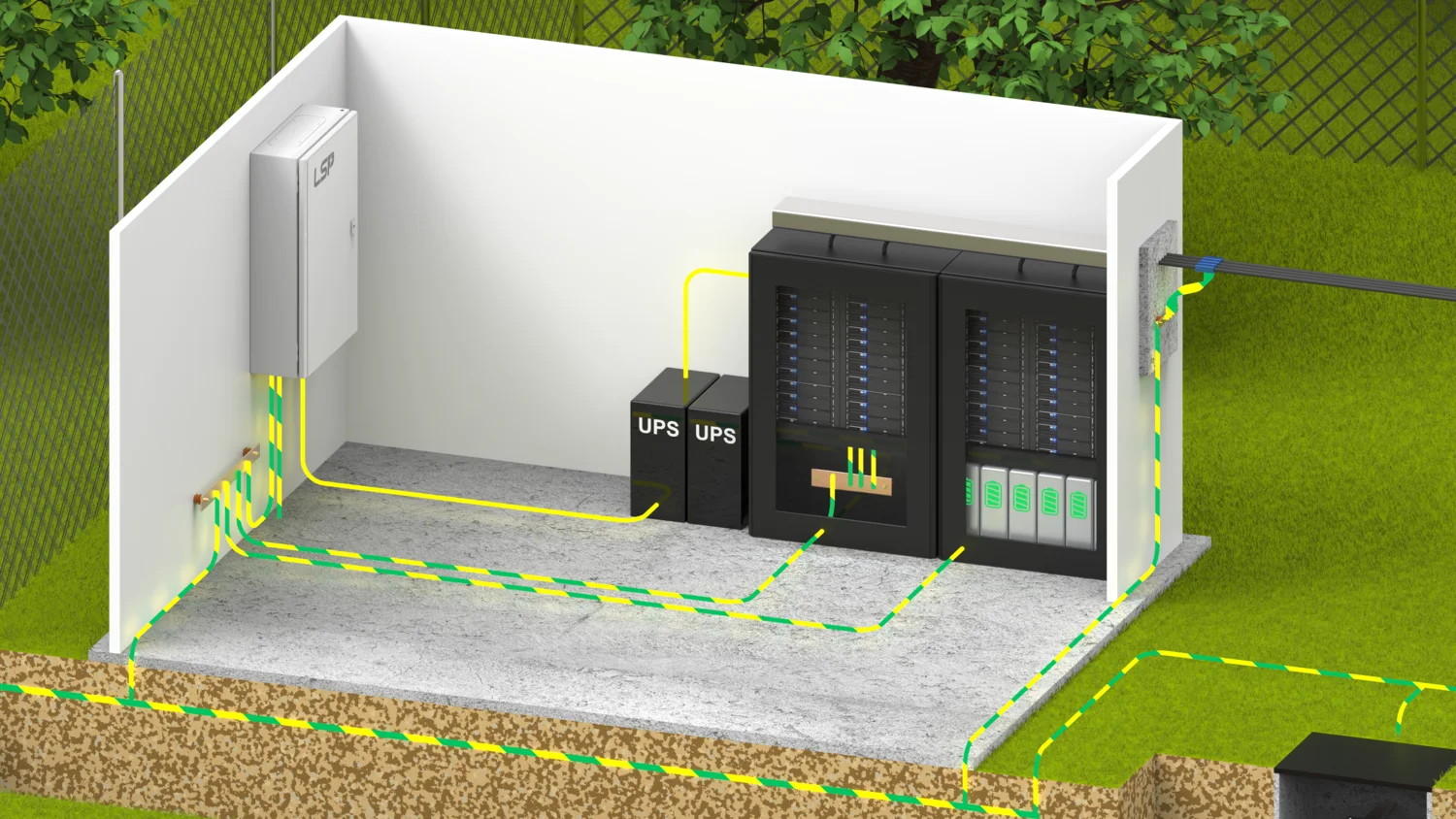

Grounding System Overview
Have you ever wondered how a surge protector safely handles excess electricity? The answer lies in its grounding system. This system acts as a safety net, providing a direct path for unwanted voltage to flow into the ground. Without it, the surge protector wouldn’t be able to protect your devices effectively.
The grounding system includes a wire that connects the surge protective device to the earth. When a power surge occurs, the excess energy is redirected through this wire and safely dissipated into the ground. This process prevents the surge from damaging your electronics or causing dangerous situations like electrical fires.
Think of the grounding system as a pressure release valve. It ensures that when things get intense, the extra energy has somewhere safe to go. Without this feature, your surge protector wouldn’t be nearly as effective.
How Grounding Protects Devices
Grounding plays a crucial role in keeping your electronics safe. Here’s how it works:
Tip: Always check that your home’s electrical system is properly grounded. If you’re unsure, consult a licensed electrician. A small checkup now can save you from big problems later.
Best Practices for Grounding
To get the most out of your surge protective device, you need a solid grounding system. Here are some best practices to follow:
By following these practices, you can ensure your surge protection device works as intended, keeping your devices and home safe.
Purpose of the Enclosure
The enclosure of a surge protector isn’t just there for looks. It serves a vital purpose: protecting the internal components from external damage. Whether it’s dust, moisture, or physical impact, the enclosure acts as a shield, ensuring the device operates safely and effectively.
But that’s not all. The enclosure also contains any sparks or heat generated during a surge event. This reduces the risk of electrical fires and keeps you safe. In short, the enclosure is like the armor of the surge protector, keeping everything inside secure and functional.
Materials Used for Enclosures
Not all enclosures are created equal. The materials used can make a big difference in how well the surge protector performs. Here are some common materials and their benefits:
Material | Benefits |
Plastic | Lightweight, affordable, and resistant to corrosion. |
Metal, e.g., Steel | Durable, fire-resistant, and excellent for heavy-duty applications. |
Polycarbonate | Strong, impact-resistant, and ideal for environments with high wear and tear. |
Each material has its strengths, so the choice depends on where and how you plan to use the surge protective device. For example, a metal enclosure might be better for industrial settings, while plastic works well for home use.
Impact of Enclosure Design
The design of the enclosure isn’t just about aesthetics—it directly affects the performance and safety of the surge protective device. A well-designed enclosure:
Note: When choosing a surge protector, don’t overlook the enclosure. A sturdy, well-designed case can make all the difference in how well the device performs over time.
By understanding the role of the enclosure, you can make a more informed decision when selecting a surge protective device. After all, it’s not just what’s inside those matters—it’s how well it’s protected.
Durability and Longevity
When you invest in a surge protective device, you want it to last, right? High-quality components ensure that your device can handle repeated surges without breaking down. Think of it like buying a sturdy pair of shoes—they might cost more upfront, but they’ll save you money in the long run because they don’t wear out quickly.
Durable components, like a robust Metal Oxide Varistor (MOV) or a well-designed Gas Discharge Tube (GDT), can withstand multiple voltage spikes. This means your surge protective device won’t need frequent replacements. Plus, reliable parts reduce the risk of failure during critical moments, giving you peace of mind.
Tip: Look for surge protectors with a high joule rating. This indicates how much energy the device can absorb over its lifetime, which directly impacts durability.
Effectiveness in Handling High Voltage Spikes
Not all surges are created equal. Some are small and barely noticeable, while others, like those caused by lightning, can be massive. A high-quality surge protection device uses advanced components to handle both types effectively.
For example, the MOV absorbs excess energy, while the GDT diverts high-energy surges safely to the ground. Together, they create a multi-layered defense system. This teamwork ensures that even the most sensitive electronics, like your computer or gaming console, stay safe.
Here’s a quick comparison of how quality impacts performance:
Component | Low-Quality | High-Quality |
MOV | Wears out quickly | Handles repeated surges |
GDT | Limited capacity | Manages high-energy spikes |
Enclosure | Prone to damage | Protects internal parts |
By choosing a surge protective device with high-quality components, you’re not just protecting your devices—you’re also ensuring they perform reliably for years.
Safety Standards and Certifications
Safety should always come first. High-quality surge protection devices meet strict safety standards and certifications, ensuring they perform as promised. These certifications, like UL 1449 or IEC 61643, guarantee that the device has been tested for effectiveness and safety.
Why does this matter to you? Certified devices reduce the risk of electrical fires and other hazards. They also provide consistent performance, so you don’t have to worry about whether your surge protective device will work when you need it most.
Note: Always check for safety labels and certifications before buying a surge protective device. It’s a simple step that can save you from costly repairs or dangerous situations.
In short, high-quality components aren’t just about durability or performance—they’re about keeping you and your home safe.
By demystifying the inner workings of surge protective devices, we hope you now feel empowered to make informed decisions about your home or business’s electrical safety. Remember, a surge protective device isn’t just a power strip; it’s a carefully engineered system designed to safeguard your valuable electronics. Understanding the roles of MOVs, GDTs, TVSs, grounding, and enclosures allows you to choose a device that truly meets your needs, ensuring longevity and reliability for your sensitive equipment.
While surge protective devices offer critical protection, they are not infallible. Regular checks and awareness of their lifespan are essential. By understanding the components inside, you can better monitor your device’s performance and ensure it continues to provide the necessary safeguarding. Don’t wait for a surge to test your protection; proactive maintenance and informed choices are the keys to long-term electrical safety.
LSP’s reliable surge protection devices (SPDs) are designed to meet the protection needs of installations against lightning and surges. Contact our Experts!
