The answer to What Size Circuit Breaker for Solar Inverter starts with applying the 125% rule. This means multiplying the inverter’s maximum output current by 1.25 to determine the correct breaker size. Proper sizing protects against overloads, reduces fire risks, and ensures compliance with electrical codes. Careful calculation and selection are essential for safe solar installations. In the following sections, you will find a clear formula, step-by-step instructions, and practical recommendations to help you choose the right breaker for your system.
What Size Circuit Breaker for Solar Inverter
Sizing Formula Explained
Choosing what size circuit breaker for solar inverter starts with a clear formula. The National Electrical Code (NEC) 690.8 recommends sizing the circuit breaker at 125% of the inverter’s maximum output current. This rule ensures the breaker can handle continuous loads and occasional surges without nuisance tripping.
To calculate what size circuit breaker for solar inverter, use this formula:
Breaker Size (Amps) = Inverter Output Current × 1.25
For example, if the inverter output current is 32A, multiply by 1.25. The result is 40A. Select a circuit breaker rated at 40A. This calculation applies to most residential and commercial solar installations.
Tip: Always round up to the next standard breaker size. Never select a breaker smaller than the calculated value.
Example Sizing Chart
A quick reference chart helps answer what size circuit breaker for solar inverter for common inverter ratings. The chart below shows typical inverter output currents and the recommended breaker sizes using the 125% rule.
Inverter Output (kW) | Output Current (A) | Breaker Size (A) |
|---|---|---|
3 kW | 13 | 16 |
5 kW | 21 | 25 |
7 kW | 30 | 38 |
10 kW | 43 | 54 |
15 kW | 65 | 82 |
Note: Always check the inverter datasheet for exact output current. The values above are typical for single-phase systems. For three-phase systems, calculate the output current based on the inverter’s specifications and apply the same 125% rule.
Using Inverter Specs
Manufacturers provide detailed specifications for each inverter. To determine what size circuit breaker for solar inverter, locate the maximum AC output current in the inverter manual or datasheet. This value is usually listed under “AC Output Current” or “Max Output Current.”
Follow these steps:
Find the inverter’s maximum output current.
Multiply the value by 1.25.
Choose a circuit breaker with a rating equal to or greater than the result.
For solar installations, accuracy is critical. Using the correct breaker size protects the inverter and wiring from overloads. It also ensures compliance with electrical codes and supports safe operation of the solar system.
Always consult the inverter manufacturer’s recommendations. Some models may require a specific breaker type or size due to unique design features.
Why Correct Sizing Matters
Safety and Fire Prevention
Correct circuit breaker sizing is essential for safety in any solar inverter installation. The breaker must match the maximum current that the system can deliver under normal and fault conditions. If the breaker is too small, it may trip unnecessarily, causing interruptions. If the breaker is too large, it may not trip when the maximum current exceeds safe levels, which can lead to overheating of wires and components. Overheating increases the risk of electrical fires. The breaker acts as a first line of defense by disconnecting the circuit when the maximum current rises above the safe threshold. This protection prevents insulation damage and reduces the chance of fire. Installers must always verify that the breaker can handle the maximum current specified by the inverter manufacturer. Proper sizing also ensures that the breaker responds quickly to faults, minimizing the risk of injury or property damage.
Tip: Always check the maximum current rating on both the inverter and the breaker before installation.
Code and Insurance
Electrical codes exist to protect people and property. The National Electrical Code (NEC) requires that breakers be sized for 125% of the inverter’s maximum current. This rule ensures that the breaker can handle continuous operation without nuisance tripping. Insurance companies often require proof of code compliance before issuing or renewing policies. If an inspector finds that the breaker does not match the maximum current requirements, the system may fail inspection. Non-compliance can void insurance coverage in the event of a claim. Installers must document the maximum current calculations and breaker selection for every project. This documentation provides evidence of due diligence and helps avoid disputes with inspectors or insurers. Following code requirements also supports the long-term reliability of the solar installation.
What to check for code compliance:
Breaker matches 125% of inverter maximum current
Breaker type is approved for solar applications
Documentation of maximum current calculations
System Performance
System performance depends on the correct handling of maximum current. An undersized breaker may trip during normal operation, causing unnecessary downtime and loss of energy production. An oversized breaker may allow the system to operate beyond safe limits, risking damage to the inverter and wiring. The breaker must match the maximum current to ensure stable operation and protect sensitive electronics. Proper sizing also supports the inverter’s warranty, as manufacturers often require proof that the breaker matches the maximum current rating. Reliable breaker operation means fewer service calls and lower maintenance costs. Installers should always confirm that the breaker can handle the maximum current under all expected operating conditions, including peak sunlight and high temperatures.
Note: System reliability improves when the breaker is matched to the maximum current, reducing the risk of unexpected shutdowns.
What Happens If Breaker Is Incorrectly Sized? | Impact on System |
|---|---|
Too Small (Below Maximum Current) | Frequent trips, lost energy, possible inverter damage |
Too Large (Above Maximum Current) | Fire risk, failed inspections, voided insurance |
Correct sizing is not just a technical detail. It is a critical factor in the safety, compliance, and performance of every solar inverter system.
Circuit Breaker Sizing Steps
Gather Inverter Data
The first step in sizing circuit breakers for a solar installation is to collect accurate inverter data. You need to locate the inverter’s datasheet or manual. Look for the maximum AC output current and the DC input current. These values are essential for determining the correct circuit breaker size. Record the inverter’s model number, rated output power, and voltage ratings. This information ensures that you select the right protection for both the AC and DC sides of the system.
Tip: Always use the most recent datasheet from the manufacturer. Older documents may not reflect current product specifications.
Calculate AC Breaker Size
Single vs. Three Phase
The next step in sizing circuit breakers is to determine if your solar inverter is single-phase or three-phase. For single-phase inverters, use the output current listed in the datasheet. For three-phase inverters, calculate the output current using the formula:
Output Current (A) = Output Power (W) / (Voltage (V) × √3)
This calculation gives you the base current for sizing circuit breakers on the AC side. Always check the inverter’s label for the correct phase type before proceeding.
Continuous Load Factor
After finding the output current, apply the continuous load factor. The National Electrical Code recommends multiplying the output current by 1.25. This adjustment accounts for continuous operation and ensures the circuit breaker size can handle the load without nuisance tripping. For example, if the output current is 32A, multiply by 1.25 to get 40A. Choose a circuit breaker with a rating equal to or just above this value.
Calculate DC Breaker Size
String vs. Microinverter
Sizing circuit breakers for the DC side depends on the inverter type. For string inverters, use the maximum DC input current from the datasheet. Multiply this value by 1.25 to determine the correct circuit breaker size. For microinverters, each unit typically connects to a single solar panel, so the DC current is much lower. In most cases, microinverters do not require a separate DC breaker, but always check the manufacturer’s recommendations.
Note: Proper circuit breaker sizing on both AC and DC sides protects your solar system from overloads and ensures compliance with safety standards.
Sizing circuit breakers for solar installations requires careful attention to inverter data, phase type, and load factors. Following these steps helps you select the right circuit breaker size and maintain a safe, reliable solar system.
Check Wire Size and Standards
Selecting the correct wire size is a critical step in solar inverter installations. Wire sizing affects both safety and system performance. Undersized wires can overheat, leading to fire hazards and voltage drops. Oversized wires increase material costs and may complicate installation. Installers must follow established standards to ensure reliable operation.
The National Electrical Code (NEC) provides guidelines for wire sizing. NEC Article 310 outlines requirements for conductor ampacity. The ampacity must match or exceed the maximum current calculated for the circuit breaker. Use the 125% rule for continuous loads when determining the minimum wire size. Always consult the inverter datasheet for recommended wire sizes.
To choose right wire, follow these steps:
Identify the maximum current for the circuit, based on the inverter output and breaker size.
Refer to NEC tables for conductor ampacity. Match the current to the appropriate wire gauge.
Consider the installation environment. High temperatures, long cable runs, and conduit type affect ampacity.
Select wire insulation rated for the system voltage and environmental conditions.
Verify compliance with local codes and manufacturer recommendations.
Tip: Always use copper conductors for solar installations unless aluminum is specifically allowed by code and manufacturer.
The following table provides a quick reference for common wire sizes and ampacity ratings:
Wire Gauge (AWG) | Ampacity (Copper, 75°C) | Typical Use |
|---|---|---|
14 | 20 | Small circuits |
12 | 25 | Residential |
10 | 35 | Small inverters |
8 | 50 | Medium inverters |
6 | 65 | Large inverters |
4 | 85 | Commercial systems |
Note: Always check NEC tables and local regulations for exact ampacity values. Environmental factors may require derating.
Wire standards ensure safety and compatibility. Use wires with UL or IEC standard. The insulation must withstand the maximum voltage and temperature expected in the installation. For DC circuits, select wires with appropriate polarity markings and UV resistance.
Installers must document wire sizes and standards used. This record supports code compliance and simplifies future maintenance. Inspectors may request proof of wire sizing calculations and standard.
Proper wire sizing and adherence to standards protect the solar inverter system from electrical faults. Following these steps ensures safe, efficient, and code-compliant installations.
Installation Tips
Breaker Type Selection
Selecting the right circuit breaker type is a critical step in any solar installation. Installers must choose between AC and DC breakers based on the inverter’s connection points. DC miniature circuit breakers are designed for the direct current side of the system, while AC breakers protect the alternating current output. Each breaker type has unique characteristics, including arc suppression and voltage ratings. Installers should always verify that the breaker matches the voltage and current requirements specified by the inverter manufacturer. Using the wrong breaker type can compromise system safety and lead to code violations. For solar applications, it is important to select breakers that carry standard for photovoltaic use. These standard ensure the breaker can handle the unique demands of solar power generation, such as high DC voltages and rapid current changes.
Tip: Always check the product datasheet for compatibility with solar inverters before installation.
Labeling and Documentation
Proper labeling and thorough documentation are essential for safe and compliant solar installations. Every breaker must have a clear label that identifies its function, such as “Solar AC Disconnect” or “PV Array DC Disconnect.” Labels help maintenance personnel and inspectors quickly understand the system layout. Accurate documentation should include breaker ratings, wire sizes, and installation dates. Installers should keep copies of inverter datasheets, breaker specifications, and calculation worksheets. This information supports future troubleshooting and ensures compliance with inspection requirements. Well-organized records also help when expanding or upgrading the solar system. Consistent labeling and documentation reduce confusion and minimize the risk of errors during maintenance or emergency situations.
Documentation Checklist | Purpose |
|---|---|
Breaker ratings | Verifies correct sizing |
Wire sizes | Confirms ampacity compliance |
Inverter datasheets | Reference for specifications |
Installation dates | Tracks maintenance schedules |
When to Call a Pro
Some solar installation tasks require specialized knowledge and experience. Installers should call a licensed electrician when dealing with complex wiring, unfamiliar breaker types, or local code questions. Professionals have the training to interpret electrical codes and ensure all components meet safety standards. Attempting advanced installations without proper expertise can result in unsafe conditions or failed inspections. Homeowners should never attempt to size or install breakers for solar systems without guidance from a qualified professional. In many regions, electrical work on solar projects must be performed or inspected by a certified electrician. Engaging a professional ensures the system operates safely and meets all regulatory requirements.
Note: Professional installation protects your investment and provides peace of mind for the long-term operation of your solar system.
LSP DC MCB for Solar Inverter Protection
Why Choose LSP
LSP stands out as a trusted manufacturer in the field of electrical protection. The company has built a reputation for delivering reliable solutions for solar installations. Its DC Miniature Circuit Breaker (DC MCB) is engineered to meet the demanding requirements of modern solar inverter systems. Installers and project managers select LSP because of its commitment to quality, safety, and compliance with international standards. The brand’s expertise in surge protection and circuit interruption technology ensures that every solar project receives robust and dependable protection.

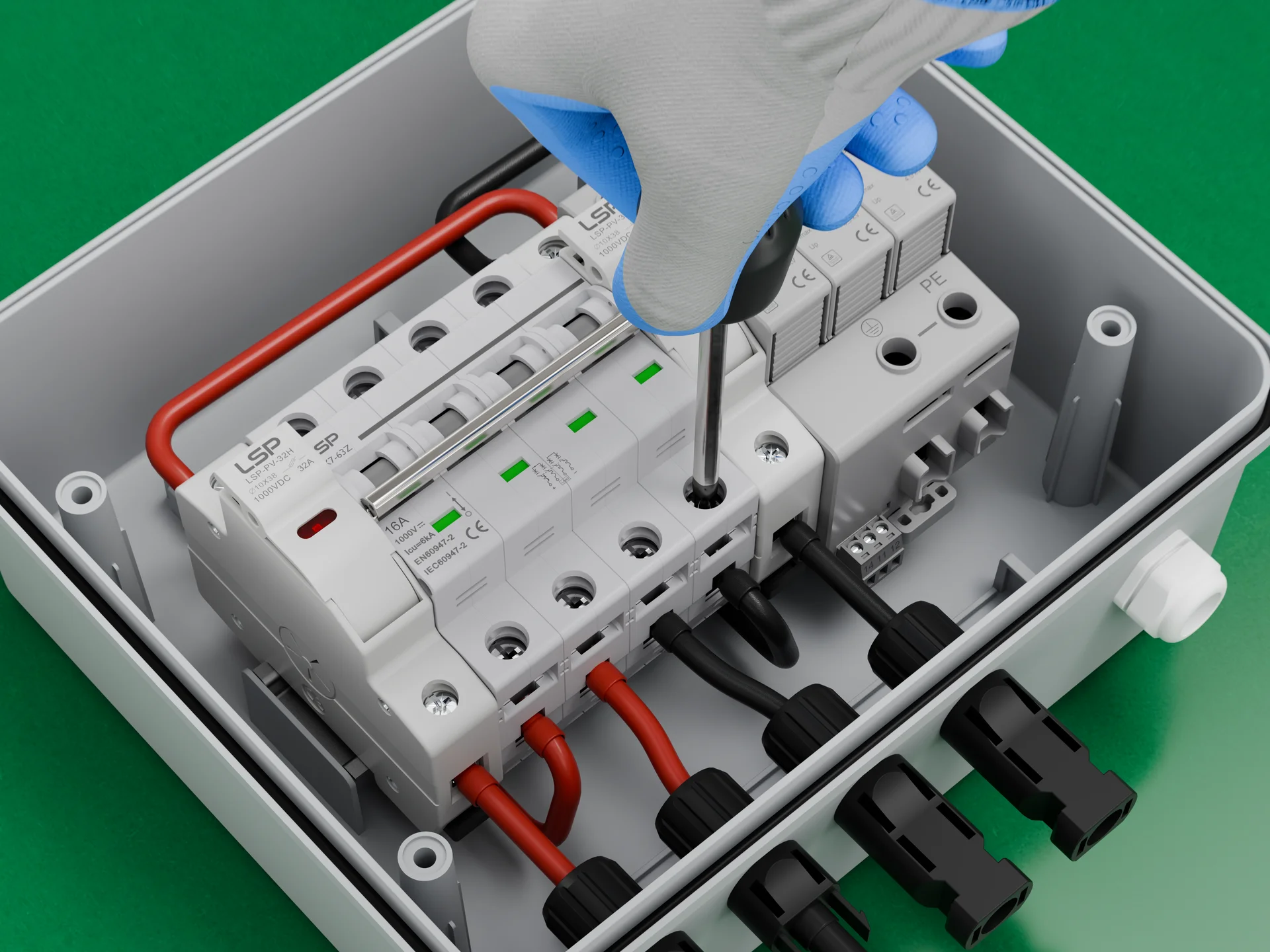

LSP’s DC MCBs are designed specifically for the unique challenges of solar power generation. These devices protect both the inverter and the wiring from overloads, short circuits, and reverse currents. The advanced arc-extinguishing technology used in LSP products minimizes the risk of electrical fires and extends the service life of critical components. Choosing LSP means investing in a solution that supports the long-term reliability of your solar system.
LSP DC MCB Features
LSP DC Miniature Circuit Breakers offer several features that make them ideal for solar inverter protection. The compact design allows for easy integration into solar combiner boxes and inverter cabinets. Each breaker supports standard DIN rail mounting, which simplifies installation and maintenance. The devices are available in a range of voltage ratings, from 500V to 1500V DC, and current ratings up to 63A. This flexibility ensures compatibility with a wide variety of solar inverter configurations.
Key features include:
High breaking capacity (up to 6kA) for enhanced safety
Reliable arc extinction for stable operation under high DC voltages
Compliance with international standards for photovoltaic protection
Clear wiring diagrams for straightforward installation
Durable construction for harsh environments
These features help installers meet code requirements and maintain system performance. LSP DC MCBs provide peace of mind by ensuring that solar breakers operate safely and efficiently.
Product Models and Applications
LSP offers several models tailored to different solar applications. Popular options include the LDCBH-63/4, LDCBH-63/2, LDCB-63/2, and TX7-63Z/4. Each model supports specific voltage and current requirements, making them suitable for residential, commercial, and utility-scale solar projects. The breakers protect photovoltaic arrays, battery banks, and inverter circuits from electrical faults.
LSP DC MCBs are widely used in solar farms, energy storage systems, and off-grid installations. Their robust design and high interrupting capacity make them a preferred choice for professionals seeking reliable protection for solar inverter systems.
FAQ
What is the 125% rule for solar inverter circuit breakers?
The 125% rule requires circuit breakers to be sized at 1.25 times the inverter’s maximum continuous output current. This safety margin, mandated by standards like NEC, prevents nuisance tripping caused by heat buildup during sustained peak solar production. If an inverter outputs 32A, the calculation (32A x 1.25) dictates a 40A breaker, ensuring the system operates safely under continuous load conditions.
What happens if I use the wrong size circuit breaker?
Using an incorrectly sized breaker compromises safety. If the breaker is too small, it will trip frequently during peak production, causing system downtime and wear. If it is too large, it fails to trip during a fault, allowing excessive current to overheat wires. This can lead to insulation failure, permanent inverter damage, or a fire. Always match the breaker to the system’s current and voltage.
What type of circuit breaker should I use for the DC side?
For the DC side, use a dedicated DC Circuit Breaker. Since DC current lacks a zero-crossing point, arcs are harder to extinguish, requiring specialized magnetic quenching features. The breaker must handle the system’s maximum voltage, such as 1000V or 1500V. Non-polarized models are ideal to prevent fire hazards from reverse current, ensuring robust protection for solar arrays and battery systems.
What information do I need to size a circuit breaker?
To size a circuit breaker, you need the inverter’s maximum continuous output current and rated voltage. For DC inputs, check the short-circuit current and open-circuit voltage. You must also identify the wire size, as the breaker’s primary job is protecting the cable. Finally, consider the 125% safety factor and ambient temperature to ensure the rating handles continuous loads without nuisance tripping.
What is the difference between AC and DC circuit breakers?
The main difference lies in arc quenching. AC current crosses zero periodically, making arcs easier to extinguish. DC current is constant and lacks a zero-crossing point, creating sustained, intense arcs that are harder to break. DC breakers use specialized magnetic blowouts to pull and quench these arcs. Using an AC breaker in a DC circuit can lead to catastrophic failure or fire during a fault.
What is the recommended wire size for solar inverter circuits?
Wire size must handle 125% of the inverter’s maximum current and match the circuit breaker’s rating. While 10 AWG or 6mm² is common for residential strings, longer runs require thicker conductors to limit voltage drop to under 3%. Always choose solar-rated cables with appropriate temperature ratings and UV protection to ensure the wires do not degrade or overheat under harsh environmental conditions.
What should I do if local codes differ from national standards?
Always prioritize local regulations, as the Authority Having Jurisdiction (AHJ) has the final say for inspections. If local codes differ from national standards, following the more stringent requirement is the safest path for system reliability. Consult a licensed local professional to ensure your installation meets all regional safety mandates and avoids potential legal or insurance issues.
