What Is the Purpose of a Combiner Box for Solar?
Main Function in Solar Systems
A combiner box is important in solar power systems. It takes power from many solar panel strings. Then, it puts them together into one main line. This helps answer what is the purpose of a combiner box for solar. The box is a place where wires meet. It makes wiring and connections easier to handle. Installers use combiner boxes to keep cables neat. This reduces mess and confusion. The box sends the joined current to the inverter or charge controller.
Tip: Some combiner boxes have a status window. This lets users check the system quickly without opening the box.
Why String Integration Matters
String integration helps with safety and how well the system works. When many strings connect through a combiner box, the system can use more power. This setup makes it easy to add or remove strings. People ask what is the purpose of a combiner box for solar, and string integration is a big reason. It lets the system grow and makes fixing problems easier.
Benefits of String Integration:
Upgrading the system is easier
Wiring is simpler
Monitoring and fixing is better
Feature | With Combiner Box | Without Combiner Box |
|---|---|---|
String Integration | Yes | No |
Maintenance Simplicity | High | Low |
Safety Level | Enhanced | Basic |
Safety and Efficiency Benefits
Combiner boxes make solar systems safer and work better. They have protection devices like DC fuses and circuit breakers. These parts stop too much voltage and send surge current to the ground during lightning. The box protects the system from electrical problems. It lowers the chance of damage. Installers pick combiner boxes to follow IEC safety rules and keep equipment safe.
Note: Many combiner boxes have surge protection devices. These protect against lightning surges and keep the system working well.
The answer to what is the purpose of a combiner box for solar also means better efficiency. By joining strings, the box cuts down on energy loss. It sends power smoothly to the inverter. This keeps the system steady and lowers repair costs over time.

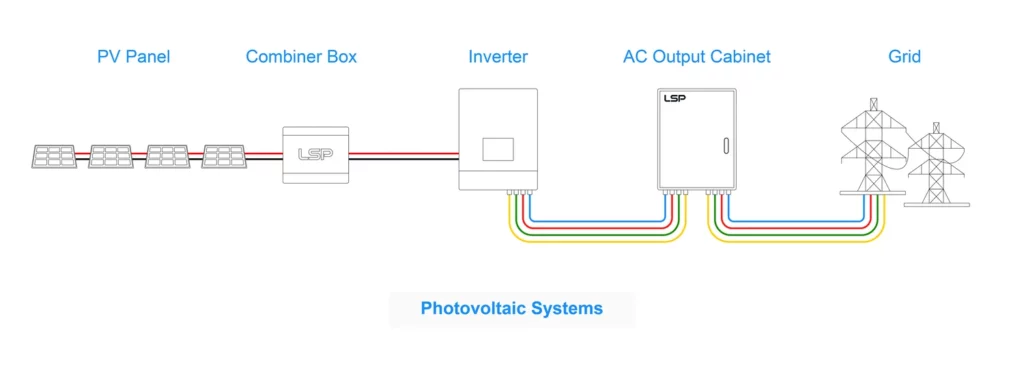

How a Solar Combiner Box Works
Combining Multiple Strings in a Solar PV System
A Solar Combiner Box joins many strings of solar panels. Each string makes direct current (DC) electricity. The box gathers these outputs together. It sends them through one cable to the inverter or charge controller. This setup makes wiring easier and less messy. Installers can handle connections better with a combiner box. The box is the main spot for all the string wires.
The combiner box helps the system get bigger. If someone adds more solar panels, they can connect new strings to the box. This makes it easy to use for both small and large solar setups.
Protection Devices for Solar Combiner Boxes
Safety is very important for every solar combiner box. The box has several protection devices inside. These devices keep the system safe from electrical faults and lightning surges.
DC Fuses and Circuit Breakers
DC fuses and circuit breakers protect each string in the combiner box. If a string gets too much current, the fuse breaks the circuit. This stops damage to the panels and wires. Circuit breakers also stop electricity flow during faults. Installers can reset breakers after fixing the problem. These devices help the system meet IEC safety rules.
Protection Device | Function | Benefit |
|---|---|---|
DC Fuse | Breaks circuit on overcurrent | Prevents equipment damage |
Circuit Breaker | Stops flow during faults | Easy reset after repair |
Surge Protection Devices
Surge Protection Devices (SPDs) block high voltage and send extra current to the ground. These devices protect the system from lightning and sudden voltage jumps. SPDs keep the inverter and other parts safe. The combiner box uses SPDs to keep the system working well during storms or power spikes.
Note: Surge protection devices help the system last longer.
Simplifying Maintenance and Monitoring
A solar combiner box makes repairs and checks easier. Technicians can reach all string connections in one place. This helps them find and fix problems faster. The box often has a status window or ports for checking. These features let users see voltage and current without opening the box.
Regular checks are simple. Installers can spot problems fast and change bad fuses or breakers. The combiner box helps keep the system safe and running well. Homeowners and technicians have less downtime and lower repair costs.
Key Advantages:
Repairs are easier in one place
Faults are found quickly
Upgrades and expansions are simple
A solar combiner box boosts safety, efficiency, and ease for solar PV systems. It joins many strings, protects from faults, and makes maintenance simple for steady energy.
When a Solar Combiner Box Is Necessary
Large Solar Systems and Multiple Solar Panel Strings
Large solar installations often use multiple solar panel strings, with each string producing direct current (DC) power. In commercial rooftops, industrial sites, and solar farms, these strings must be combined safely and efficiently. This is where a solar combiner box becomes essential.
The combiner box collects DC power from each string and merges it into a single output circuit that feeds the inverter. This reduces cable clutter, improves system organization, and lowers the risk of wiring errors. For systems with more than one string, installers typically use a combiner box to simplify connection management and improve long-term reliability.
When people ask about the purpose of a combiner box for solar, the answer often relates to safely managing multiple strings in larger PV systems.
Key reasons to use a solar combiner box in large PV systems:
Combines multiple solar strings into one DC output
Simplifies wiring and installation
Supports future system expansion and upgrades
When a Solar Combiner Box Is Needed by System Size
System Size | Combiner Box Needed | Reason |
|---|---|---|
Small (1 string) | No | Direct connection from the panel to the inverter is sufficient |
Medium (2–3 strings) | Yes | Simplifies wiring and system management |
Large (4+ strings) | Yes | Improves safety, organization, and scalability |
Meeting IEC Safety Standards
Safety is a top priority in solar power systems. The International Electrotechnical Commission (IEC) sets standards to ensure electrical safety. A solar combiner box helps systems comply with these standards. It includes protection devices such as DC fuses, circuit breakers, and surge protection devices (SPD) to prevent overvoltage and safely divert surge currents to the ground during lightning events.
Installers rely on a solar combiner box to isolate faulty strings and protect other system components. IEC guidelines require proper protection for each string, and the combiner box makes compliance straightforward.
Common safety features in a combiner box:
DC fuses for each string
Circuit breakers for rapid shut-off
Surge protection devices to control overvoltage
Protecting Your Inverter and Other Equipment
The inverter is the central component of a solar system, converting DC power from panels into usable AC electricity. A solar combiner box protects the inverter and other equipment by limiting excess current and preventing overvoltage from reaching sensitive devices.
In the event of lightning, the SPD in the combiner box safely diverts surge currents to the ground, protecting the inverter and extending its lifespan. The box also simplifies maintenance, allowing technicians to inspect wiring and replace faulty components without shutting down the entire system.
Key benefits for equipment protection:
Prevents damage from electrical faults
Keeps the inverter safe from lightning
Reduces repair costs and system downtime
Tip: Regularly inspect your solar combiner box to ensure all protection devices are functioning properly.
In short, a solar combiner box is essential for larger PV systems, IEC compliance, and equipment protection. It clearly answers the question What Is the Purpose of a Solar Combiner Box by providing safety, organization, and reliable operation for solar energy systems.
When a Combiner Box Is Not Required
Small Solar Installations
For small solar systems with only one string of panels, a solar combiner box is generally not needed. The string can connect directly to the inverter or charge controller, simplifying the setup and reducing costs. Fewer wires also mean lower risk from overvoltage or lightning.
Key points for small installations:
Only one solar string
Direct connection to the inverter
Lower risk of electrical faults
Tip: Even without a solar combiner box, regularly check wiring to maintain safety and performance.
System Type | Number of Strings | Combiner Box Needed |
|---|---|---|
Small Home System | 1 | No |
Medium System | 2–3 | Yes |
Large Solar Farm | 4+ | Yes |
Microinverter and AC Module Systems
Microinverter systems convert DC to AC at each panel, eliminating the need for a solar combiner box. AC module systems work similarly. Each panel operates independently, simplifying maintenance and system monitoring.
Advantages of microinverter or AC module setups:
No DC string wiring to combine
Each panel works independently
Maintenance is easier
Note: These systems often include built-in monitoring, so a status window on a solar combiner box is unnecessary.
Direct-to-Inverter Wiring Setups
In systems with direct-to-inverter wiring, each string connects straight to an inverter with multiple inputs. Here, a solar combiner box is not required because the inverter manages string combination and protection. This approach suits small or medium systems with only a few strings.
Benefits of direct-to-inverter wiring:
Fewer components in the system
Lower installation cost
Easier maintenance
When a Solar Combiner Box Is Not Required by Scenario
Scenario | Combiner Box Needed | Reason |
|---|---|---|
Single string system | No | Direct connection to the inverter is sufficient |
Microinverter/AC module system | No | No DC strings to combine; each panel works independently |
Inverter with multiple inputs | No | Inverter handles string combination and protection |
This table helps users quickly understand when a solar combiner box is unnecessary based on the system type or wiring setup. Even without a combiner box, small or specialized systems can remain safe and efficient.
Tip: Always verify the inverter specifications to ensure it can safely handle multiple strings and complies with IEC standards. Some inverters include built-in surge protection to handle overvoltage and protect equipment without a separate combiner box.
Summary: Small systems, microinverter setups, AC module systems, and direct-to-inverter wiring may not require a solar combiner box, while larger systems with multiple DC strings still benefit from one.
Installation and Maintenance Tips for a Solar Combiner Box
Choosing the Right Size and Type
Selecting the correct solar combiner box is essential for system safety and reliability. Installers should first count how many solar panel strings the system has, ensuring each string has a dedicated input in the box. For example, a four-string system requires a combiner box with four inputs. The voltage rating should match or exceed the highest system voltage, such as 600V, 1000V, or 1500V.
A quality solar combiner box should include DC fuses, circuit breakers, and surge protection devices (SPD) to prevent overcurrent and overvoltage. A status window allows users to monitor the system without opening the box.
Tip: Choose a box that meets IEC safety standards to improve safety and simplify monitoring.
Checklist for selecting a solar combiner box:
Count the number of solar strings
Ensure the voltage rating matches system requirements
Confirm built-in protection devices (DC fuses, breakers, SPD)
Look for a status window for easy monitoring
Verify IEC certification
Weatherproofing and Proper Placement
A solar combiner box must withstand outdoor conditions. Installers should choose a waterproof box made of durable plastic or metal. The box should be mounted in an accessible location while avoiding direct exposure to water. Installing it under solar panels or a small roof can provide extra protection. Avoid low spots where water can accumulate.
Weatherproofing tips for a solar combiner box:
Step | Why It Matters |
|---|---|
Use waterproof enclosure | Prevents water and dust damage |
Mount above ground level | Avoids flooding |
Avoid direct sunlight | Reduces heat stress on components |
Shelter from heavy rain | Adds extra protection |
Routine Inspection and Troubleshooting
Regular inspection keeps a solar combiner box operating safely and efficiently. Installers should check the box every few months for water, dust, or pests. The status window provides quick access to voltage and current readings.
If a DC fuse blows or a circuit breaker trips, replace it promptly. Surge protection devices may need replacement after significant lightning events. All wire connections should be tightened to prevent overheating.
Alert: Only trained personnel should open the solar combiner box to perform maintenance. This ensures safety and prevents accidents.
Routine maintenance steps:
Check the status window for warnings
Inspect for water, dust, or insects inside the box
Replace blown fuses or tripped breakers
Test surge protection devices after storms
Tighten all wire connections
Proper installation and regular maintenance of a solar combiner box help solar systems remain safe, efficient, and long-lasting.
LSP PV Combiner Box Solutions
LSP Product Overview
LSP is a trusted leader in solar energy, known for high-quality PV combiner boxes. Over 1,200 companies worldwide rely on LSP for safe string integration and strong surge protection. Each solar combiner box meets IEC standards, featuring a waterproof case, a status window for quick monitoring, and built-in surge protection devices to prevent overvoltage and protect equipment.
Certifications like TUV, CB, and CE confirm LSP’s commitment to safety and performance.
Supported System Voltages
LSP PV combiner boxes work for various system voltages, including 600V, 1000V, and 1500V DC, making them suitable for homes, commercial buildings, and utility-scale solar farms.
System Voltage | Typical Application | Key Benefit |
|---|---|---|
600V | Residential, small sites | Easy integration |
1000V | Commercial, mid-size | Enhanced efficiency |
1500V | Utility-scale farms | Maximum power handling |
All models include surge protection devices and a status window for safe and simple monitoring.
Applications: Residential to Utility-Scale
LSP PV combiner boxes are used for:
Rooftops with multiple solar strings
Commercial solar arrays needing neat wiring
Industrial and utility-scale farms requiring high-voltage support
These boxes combine power safely, prevent overvoltage, and protect inverters and equipment. LSP also provides a 5-year warranty and technical support, ensuring reliable performance and peace of mind.
FAQ: What Is the Purpose of a Solar Combiner Box
What is a solar combiner box?
A solar combiner box connects multiple solar panel strings into one main line. It keeps wiring organized, improves safety, and simplifies system monitoring and maintenance.
What protection devices are inside a solar combiner box?
A solar combiner box contains DC fuses, circuit breakers, and surge protection devices (SPD). These devices clamp overvoltage, divert surge current to the ground, and protect inverters and other equipment from faults and lightning.
What systems need a solar combiner box?
Large solar systems with multiple strings require a solar combiner box. It helps meet IEC safety standards and keeps the inverter and other equipment safe from electrical faults.
What maintenance does a solar combiner box require?
Regular checks include monitoring the status window, replacing blown fuses, testing surge protection devices after storms, and tightening all connections. This keeps the solar combiner box safe and efficient.
How does a solar combiner box improve system efficiency?
By combining multiple strings into a single output and using a low-resistance busbar, a solar combiner box reduces energy loss and ensures most power reaches the inverter.
Can a solar combiner box protect against lightning surges?
Yes. Built-in surge protection devices detect overvoltage caused by lightning, clamp the voltage, and divert surge current safely to the ground, protecting sensitive equipment.
Where should a solar combiner box be installed?
Install the solar combiner box close to the solar panels to minimize voltage drop, keep wiring short, and simplify maintenance. Ensure the enclosure has a high IP rating for outdoor use.
