Surge Protective Device (SPD) is a device used to protect electrical equipment from the effects of transient overvoltage. It limits the instantaneous voltage and directs surge currents to the ground, thereby preventing damage to electrical equipment from voltage spikes or surges.
Voltage clamping is one of the core functions of Surge Protective Device (SPD), which quickly limits the voltage to a safe level that the equipment can withstand, thereby preventing damage to the equipment.
Working mechanism:
Key advantages:
Energy Diversion diverts excess transient current to the ground during surge occurrences to prevent overcurrent from entering equipment.
Working mechanism:
Key advantages:
Transient Response is the core performance of SPD in response to sudden voltage fluctuations, able to react in microseconds or nanoseconds.
Working mechanism:
Key advantages:
Self-recovery mechanism ensures that the SPD can automatically recover to a high impedance state after the surge ends, continuing to perform voltage monitoring and protection functions.
Working mechanism:
Key advantages:
Failure Protection mechanism can automatically cut off the protection path when SPD is overloaded or aging, preventing devices from suffering more serious damage.
Working mechanism:
Key advantages:
Multi-Level Protection ensures that devices at different locations are protected from surge impacts by installing multiple SPDs at various electrical system nodes.
Working mechanism:
Type 1 Surge Protective Device: Main protection of power input
Type 1 SPD (primary surge protector) is the first line of defense in the power system, specifically designed to prevent surge currents caused by direct lightning strikes.
Type 1 Surge Protective Device Function:
Type 2 Surge Protective Device: Secondary protection for distribution panel.
Type 2 SPD (secondary surge protector) primarily filters out residual surges in the power system to protect equipment within distribution panels from residual currents.
Type 2 Surge Protective Device Function:
Type 3 Surge Protective Device: Protection of terminal equipment.
Type 3 SPD (tertiary surge protector) is designed to protect sensitive equipment and is typically installed near these devices to provide direct surge protection at their entrance points.
Type 3 Surge Protective Device Function:
Key advantages:
High Energy Absorption allows SPD to withstand multiple high-energy surge impacts while maintaining stable performance.
Working mechanism:
Key advantages:
Leakage Protection (Leakage Protection) is an important function of SPD to protect sensitive electronic devices from leakage current damage.
Working mechanism:
Key advantages:
Thermal Protection mechanism ensures that the SPD will not cause fires or overheating accidents during long-term surges or internal component aging.
Working mechanism:
The SPD is equipped with a temperature sensor, which can detect MOV overheating and automatically cut off the circuit when the temperature is too high.
When the MOV reaches its limit working temperature, the thermal protection device will trigger a disconnect mechanism to prevent further damage to the equipment.
Key advantages:
Metal Oxide Varistor (MOV) is a commonly used key component in Surge Protection Devices (SPD). Its main function is to absorb excessive voltage and limit it within a safe range, effectively protecting electronic devices and power systems.
Another significant feature of MOV is its fast response capability, allowing it to quickly absorb large amounts of surge energy in a short period of time, preventing damage to equipment in the power system.
Metal Oxide Varistor (MOV)
Gas Discharge Tube (GDT)
Gas Discharge Tube (GDT) is a component commonly used in surge protection devices, mainly to protect equipment in power systems from damage by guiding high voltage surges.
One of the main advantages of GDT is its ability to efficiently dissipate large amounts of surge current, even when facing high current surges from lightning or the power grid, it can quickly guide the current to the ground, thus protecting equipment from harm.
A spark gap is an electrical component used in surge protection systems. Its main function is to block transient overvoltages by physical isolation and electrical disconnection, preventing voltage surges from damaging equipment. The working principle of a spark gap is simple and efficient, typically used in high-voltage protection systems, especially in devices operating in environments with high current and voltage requirements.
The spark gap provides a unique protection mechanism to ensure the safety of circuits and equipment by isolating and blocking excess energy.
In industrial systems, especially automation and control equipment, voltage fluctuations can cause significant disruptions to production lines. Surge protectors are crucial in these environments as they can effectively prevent equipment damage caused by external voltage fluctuations, lightning strikes, or power failures.
Downtime in production facilities is very costly and time-consuming, especially for automated control systems where malfunctions can lead to the entire production line coming to a halt. Therefore, surge protectors play a crucial role in ensuring system stability and reducing operational downtime.
Electrical equipment in factories and industrial facilities not only require stable power supply but also need to ensure electrical safety and compliance with industry standards. Surge protectors are an important component in ensuring compliance with relevant standards and safeguarding personnel safety.
In a data center, data loss and downtime are extremely serious issues that can not only lead to financial losses but also affect the company’s reputation. Surge protection devices (SPDs) play a crucial role in this environment by effectively preventing voltage surges, protecting data storage equipment, network devices, and servers from external power interference.
Backup power systems in data centers (such as UPS, uninterruptible power supply systems) are essential for maintaining operations, especially in the event of main power failure. Surge protectors protect these backup power systems to ensure that the data center can quickly resume normal operation in case of sudden power outages or surge events.
In a data center, network connectivity is crucial. Surge protectors not only safeguard power systems but also effectively protect network equipment. When network equipment encounters surge currents, connection interruptions or lost data transmission may occur, which is particularly unacceptable in high-frequency trading, cloud computing, and online services.
Data centers must comply with multiple industry regulations and security standards to ensure the security of user data and systems. Surge protectors are part of achieving these standards, especially when it comes to protecting sensitive data and ensuring uninterrupted system operation.
Although surge protectors require some initial investment, they can help data centers save higher potential costs, especially in terms of equipment damage and downtime costs. By reducing equipment replacement and repair costs caused by surge events, surge protectors can provide significant return on investment.
In photovoltaic (PV) systems, electrical equipment is often exposed to external environments, especially during grid fluctuations, lightning strikes, etc., surge currents may cause serious damage. Photovoltaic systems include key components such as photovoltaic panels, inverters, charge controllers, which are very sensitive to surge currents.
Surge protection devices (SPDs) can effectively suppress these external surges and prevent them from entering the critical components of the PV system. For example, by installing an SPD at the system’s power inlet, it can absorb or divert excessive voltage and safely release it to avoid direct damage to devices like inverters and battery charge controllers. This ensures the long-term stable operation of the PV system and prevents equipment failures caused by surges.

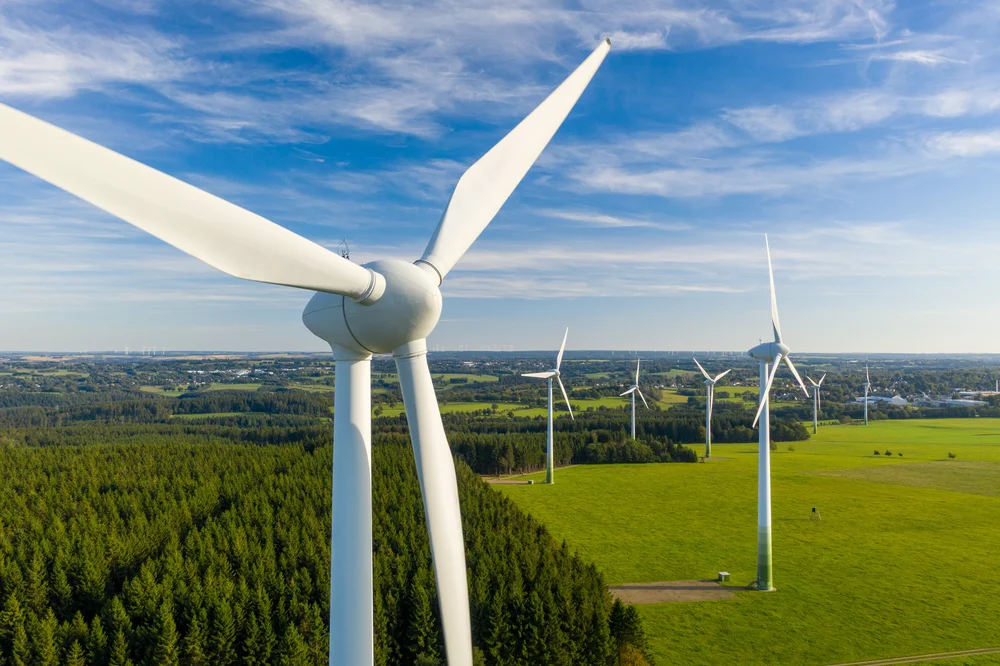

Wind energy systems, such as wind turbines for power generation also face similar threats from surge currents. Especially during the connection or operation process between wind turbines and the grid may generate surges. These surges could damage generator control units in wind energy systems, inverters and power dispatching equipment.
Installing surge protectors at the power inlet of wind energy systems and important power dispatching components can effectively isolate and divert overvoltages to protect wind energy equipment from damage. Surge protectors ensure that devices like wind turbine control units and inverters operate in a stable voltage environment improving system reliability.
With the development of Internet of Things (IoT) technology, Surge Protection Devices (SPDs) are no longer just simple electrical protection devices. By integrating SPDs with smart devices and sensors, users can monitor surge currents in real time, obtain system status promptly, and achieve more efficient protection.
Artificial intelligence (AI) is playing an increasingly important role in surge protection devices (SPDs), especially in predicting surge behavior. Through machine learning and data analysis, AI can accurately predict the occurrence of surge events by utilizing historical data and real-time information.
AI technology is not only used to predict surge behavior but also to adjust response strategies through automated analysis of real-time data, achieving intelligent responses.
The main function of surge protective devices (SPDs) is to prevent electrical systems and equipment from being damaged when encountering surge voltages (such as lightning strikes, power switch operations, etc.).
By limiting the voltage to a safe range, SPD effectively protects power facilities, communication equipment, computers, and other precision equipment from high voltage impacts.
With the development of technology, SPDs not only continuously improve in response speed and protection capability but also integrate advanced technologies such as the Internet of Things (IoT), artificial intelligence (AI), and smart grids to achieve functions such as real-time monitoring, fault prediction, and automatic adjustment of protection strategies.
These innovations enable SPDs to play a more comprehensive, intelligent, and efficient protective role in modern power systems, providing more reliable electrical safety guarantees for various fields such as industrial, commercial, and residential areas.
