Introduction

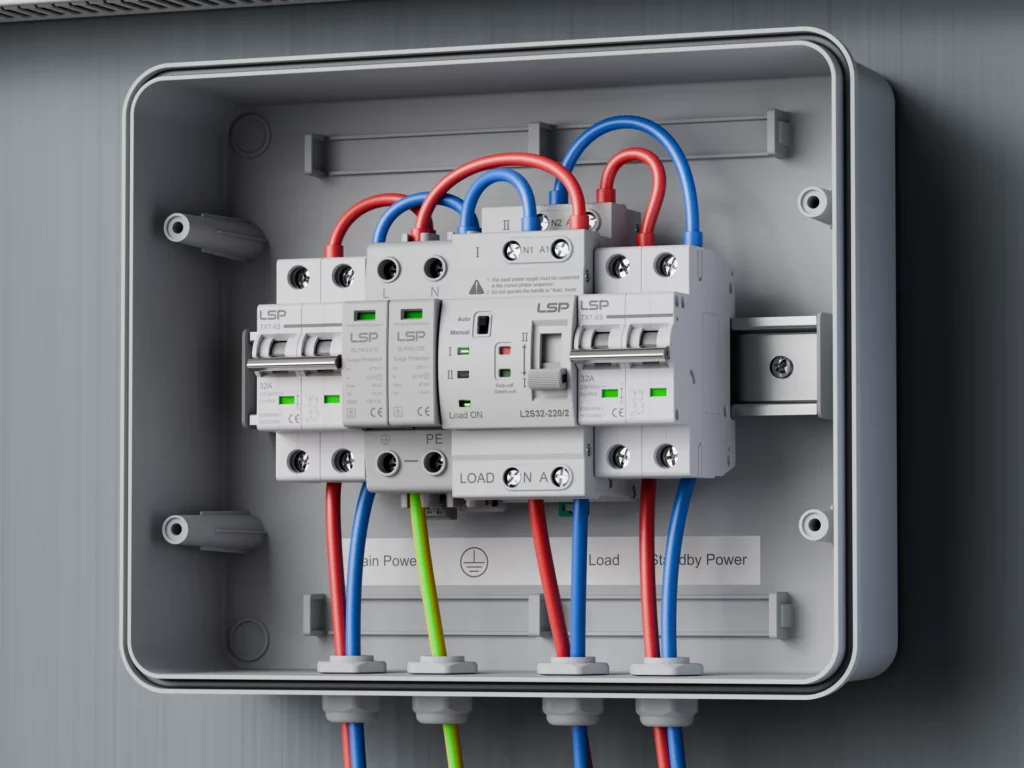

A DIN rail automatic transfer switch is a modular device that keeps a load running by moving it from a failed or abnormal power source to a healthy backup source without an operator in the loop. Mounted on a standard rail inside a distribution board, it monitors the incoming sources and transfers the load automatically when the preferred source drops below acceptable limits. For panel builders, installers, and facility engineers, this small box is often the difference between a brief nuisance outage and a costly, prolonged interruption.
The concept is straightforward, but a safe and code-compliant installation is not. In the United States, a DIN rail ATS works within a dense framework of listing and installation rules, including UL 1008 for transfer switch equipment and the relevant sections of the National Electrical Code, or NEC. Understanding where this device fits alongside those requirements matters before you select one for a panel.
The sections that follow walk through the definition, the internal logic, the applicable US standards, the key specifications, real-world applications, installation coordination, and commissioning practices. Read the whole guide, or jump to the section that matches your challenge. Either way, by the end you will know how to evaluate a DIN rail ATS with confidence.
What a DIN Rail ATS Is
Core definition
An automatic transfer switch, or ATS, is a piece of transfer switching equipment that connects a load to one of two separate power sources. The DIN rail version is the compact, modular form of that principle, designed to snap onto a standard rail inside an enclosure so it occupies minimal panel space. It monitors the primary source and, when that source fails or runs outside its acceptable range, transfers the load to the alternate source. When the primary source returns and stabilizes, the switch transfers the load back.
Three characteristics set a transfer switch apart from a simple changeover switch. First, it is automatic, meaning the transfer decision is made by built-in sensing and control logic rather than by a person. Second, it is electrically interlocked so the two sources can never be connected to the load at the same time. Third, it is rated and tested as a complete switching system, not as two separate switches packaged in one housing.
DIN rail format
The term DIN rail refers to the standardized metal mounting rail defined by the European standard EN 60715, the same 35 mm symmetrical profile used for circuit breakers, contactors, and modular control equipment. This format is what makes the DIN rail ATS so easy to work with. The device clips onto the rail without screws, sits at a uniform height alongside the other modular components, and can be rewired or replaced by sliding it out of the panel.
Earlier references sometimes call this rail the EN 50022 profile, but EN 60715 is the current designation. The 35 mm width is the practical takeaway: because the ATS uses the same rail and the same modular footprints as the rest of the distribution board, adding automatic transfer capability becomes a matter of specifying a module rather than redesigning the entire panel.
Where it’s used
In the US market, DIN rail ATS units appear most often in applications that need reliable, space-efficient source selection without the expense or footprint of a large floor-mount transfer switch. Typical homes include residential and light commercial panels where a generator or battery backs up critical circuits, telecom and IT cabinets where a UPS protects network equipment, and solar, battery, and hybrid inverter systems that shift loads between the grid and stored energy.
A DIN rail ATS is not a substitute for large industrial transfer switching equipment rated for hundreds or thousands of amps. It is a targeted solution for the low-voltage, moderate-amperage range, usually from about 16 A up to roughly 100 A or a bit more, where compact DIN rail mounting is a genuine advantage. Understanding that boundary helps you choose the right class of device for the panel you are building.
How a DIN Rail ATS Works
Source monitoring and logic
At its core, a DIN rail ATS is a sensing system wrapped around a switching mechanism. The control logic continuously measures the voltage on each incoming source, and on many units also checks frequency and, for three-phase models, the phase condition. The logic compares those measurements against settings for acceptable range and dropout. As long as the preferred source stays within tolerance, the load remains connected to it.
When the primary source fails, undervolts, or drifts outside its programmed window, the logic starts a short time delay to confirm the condition is real rather than a momentary blip. Once the fault is confirmed, the ATS commands the switch to move the load to the healthy backup source. When the primary source returns and stabilizes for a set period, the logic retransfers the load back. Most units also expose status indicators or a dry-contact output so a panel or a building management system can see which source is active.
Open vs. closed transition
The term transition describes the order in which the two sources are connected during a transfer. An open transition ATS is a break-before-make design: it disconnects the load from the first source, and only then connects the load to the second source. This creates a brief interruption measured in milliseconds, but it guarantees the two sources never overlap. That is why open transition is the standard choice for a DIN rail ATS switching between an unsynchronized utility and generator, or between grid and inverter.
A closed transition ATS is a make-before-break design: it briefly connects the second source before disconnecting the first, producing a near-seamless transfer with essentially no interruption. The catch is that the two sources must be synchronized, closely matched in voltage, frequency, and phase angle, before they can be paralleled. Because synchronizing two independent sources adds cost and complexity, closed transition is reserved for loads where even a brief outage is unacceptable. Nearly all DIN rail ATS modules in the residential and light-commercial space are open transition for this reason.
Interlocking and safety
Interlocking is the safety feature that makes an ATS trustworthy. It is a mechanical and electrical guarantee that the switch can never connect both sources to the load simultaneously, because doing so could parallel two unsynchronized supplies and create a dangerous backfeed or short-circuit condition. In an open transition design, the interlock is what enforces the break-before-make sequence.
Safety extends beyond the switch itself into how the ATS behaves around other protection. When a generator is involved, the ATS commonly provides a start signal to the generator and waits for it to come up to speed and voltage before transferring. Retransfer is delayed long enough for the source to stabilize, and many units include a cooldown delay so the generator can run unloaded for a period before shutting down. These built-in sequencing steps protect both the equipment and the people working around it.
Key Specifications and Features
Ratings, poles, and neutral switching
The first specifications to pin down are voltage, current, and pole count. The ATS must be rated for the system voltage and frequency, and its continuous current rating must be at least equal to the maximum operating current of the load. Pole count follows the circuit: two-pole units handle single-phase service, while three-pole and four-pole units serve three-phase systems.
Neutral switching is a decision that is easy to overlook and hard to reverse later. In a grid-to-generator installation, and in many inverter systems, the neutral must often be switched as well as the phase conductors to keep the neutral properly isolated and to preserve ground-fault sensing. Confirm whether your topology requires a switched neutral, and select the pole configuration accordingly. Getting this wrong can defeat protective devices and create safety hazards that are difficult to trace back to the transfer switch.
Transfer times, delays, and retransfer logic
Transfer time is the interval between the moment the ATS recognizes a source failure and the moment the load is reconnected to the backup source. Compact DIN rail units commonly advertise very fast transfers, on the order of tens of milliseconds for the switching action itself. The practical number you care about depends on the load, with motor and electronic loads reacting very differently to a brief interruption.
Delays are just as important as raw speed. A time delay on the dropout side prevents the ATS from reacting to transient voltage sags, so a flicker does not cause an unnecessary switchover. On the restore side, a retransfer delay holds the load on the backup source until the primary source has been stable for a set period. A cooldown delay lets the generator run unloaded after the load returns to the primary source. Each delay is programmable on most units, and these settings are what translate generic transfer capability into a well-behaved system.
Control modes and generator start signal
A DIN rail ATS typically offers automatic and manual control. In automatic mode, the internal logic decides when to transfer and retransfer. In manual mode, an operator overrides the logic for maintenance or testing, using a handle or push button to move the switch between sources. A clean manual override is valuable because it lets you verify the mechanism without waiting for a real outage.
When a generator is part of the system, the ATS usually provides a generator start signal, often through a dry contact or voltage-free output that closes when the backup source is needed. The signal tells the generator to crank and come up to voltage, and the ATS holds the load on the utility side until the generator is ready. Understanding how the start signal integrates with the generator controller and the transfer delays is essential, because the coordination between the two pieces of equipment defines how seamless the switchover really is.
Selection by Application
Residential and light commercial loads
For a home or a small commercial panel backing up an essential generator, the priorities are compact size, fast transfer, and a PC class design that relies on the upstream breaker for fault clearing. A DIN rail ATS in the 16 A to 100 A range fits neatly into the distribution board, and switching speed in the sub-50 millisecond range protects sensitive electronics during a transfer. The installed cost is low, the panel footprint is small, and the unit qualifies readily under UL 1008 for optional standby service.
When you select for this class, pay attention to the neutral, the target critical load rather than the generator rating, and the upstream protection that gives the switch its withstand rating. Sizing the ATS to the circuits you actually need to keep alive, rather than to the total panel capacity, usually results in a smaller, more economical module.
Telecom/IT cabinets and UPS pairing
In a telecom or IT cabinet, continuity is everything. A rack feeding network switches, servers, or monitoring equipment cannot accept a visible outage, even one measured in milliseconds. Here the choice often shifts toward a static transfer switch, or STS, which uses solid-state switching for transfers fast enough that connected equipment never notices. Where a mechanical DIN rail ATS is used, it must be selected for the fastest practical transfer and matched carefully to the upstream UPS path.
Beyond speed, verify the current rating, the single-phase or two-pole service type, and the available fault current at the cabinet. Because a cabinet’s short-circuit current rating is only as high as its weakest component, the ATS, SPD, fuses, and terminals all have to be coordinated. In critical-power settings, it is worth treating transfer selection as part of a broader continuity scheme rather than as a standalone switch.
Solar, ESS, and hybrid inverters
Solar, battery storage, and hybrid inverter systems add a second source that behaves unlike a generator. The inverter, or stored energy, must be matched to the ATS in voltage, frequency, current, and pole count, and the neutral handling must match the inverter’s output. Confirm the unit is genuinely automatic and intended for the specific topology, rather than assuming any dual-power switch will do. LSP manufactures certified DIN rail automatic transfer switches and surge protective devices for inverter, battery, and energy-storage applications, with independent testing and documented low-voltage safety design. Because a single weak component can define the whole panel rating, coordinate the ATS and SPD with the upstream protection during design.
Why Choose LSP for Your Automatic Transfer Switch Needs
Here at LSP, we are committed to developing and manufacturing reliable Automatic Transfer Switches (ATS) for residential, commercial, industrial, and backup power applications. With extensive experience in low-voltage electrical equipment manufacturing, we understand that an ATS is not simply a switching device—it is a critical component for maintaining power continuity, system reliability, and electrical safety when the primary power source fails.
Whether you need to add automatic transfer switches to your existing electrical product range, source OEM/ODM ATS products, or integrate a complete automatic power transfer solution into your electrical system, LSP provides reliable products and professional technical support to meet your requirements.
Looking for a reliable Automatic Transfer Switch manufacturer or OEM/ODM partner? Contact LSP today to discuss your ATS requirements and find the right solution for your market or electrical application.
Conclusion
A DIN rail automatic transfer switch is a compact, modular device that keeps a load powered by automatically switching between two sources when the preferred one fails. It monitors source voltage and condition, uses electromechanical interlocks to prevent the sources from ever paralleling, and is available in open and closed transition designs to match the load’s tolerance for interruption.
Selecting and installing one correctly comes down to a few disciplined steps: confirm the ratings and neutral strategy, match the WCR and SCCR to the available fault current, coordinate the upstream protection and surge protection, and follow good wiring and grounding practice. The same care extends into commissioning, where functional and timing checks plus solid documentation establish a baseline for ongoing inspection.
Frequently Asked Questions
How does a DIN rail ATS work?
A DIN rail ATS continuously monitors the primary power source. When a power failure or abnormal voltage condition is detected, the ATS disconnects the load from the primary source and transfers it to the backup source. When the primary supply returns to normal, the automatic transfer switch (ATS) can automatically transfer the load back.
Can a DIN rail ATS be used for a generator backup system?
Yes. A DIN rail ATS can be used to automatically switch selected loads between utility power and a backup generator, provided that the ATS voltage, current, pole configuration, and switching characteristics are compatible with the generator and electrical system.
Can a DIN rail ATS switch between mains power and an inverter?
Yes, depending on the ATS specifications. DIN rail automatic transfer switch (ATS) devices can be used in applications where two compatible AC power sources are available, such as utility power and an inverter or UPS. The voltage, frequency, current rating, and source compatibility should be checked before installation.
Is a DIN rail ATS suitable for single-phase or three-phase power?
DIN rail automatic transfer switch (ATS) products are available for both single-phase and three-phase applications. The correct model depends on the electrical system, number of poles, rated voltage, load current, and switching requirements.
Where is a DIN rail automatic transfer switch typically installed?
DIN rail automatic transfer switch (ATS) units are commonly installed inside distribution boards, consumer units, control panels, generator panels, and other electrical enclosures. They are particularly useful where limited panel space makes a compact automatic transfer solution desirable.
