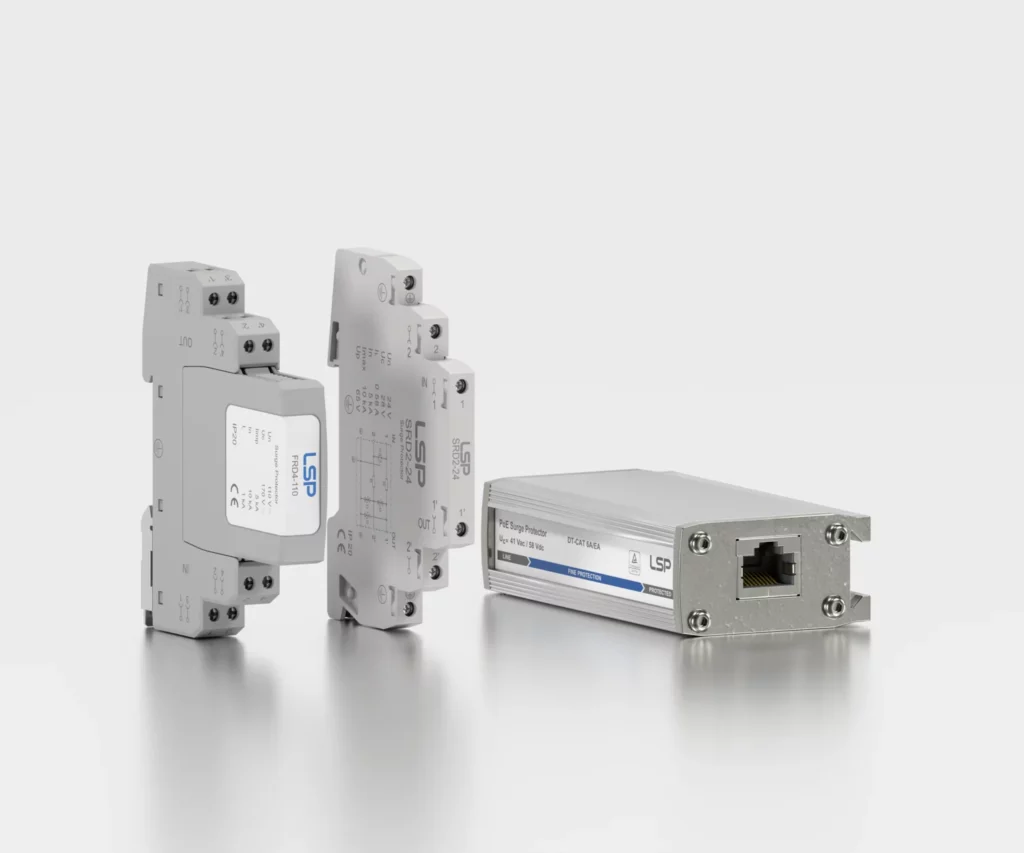

Definition of a Data and Signal Surge Protector (SPD)
A data and signal surge protector is a specialized device designed to protect signal transmission lines from the damaging effects of surges or transient overvoltages.
Its primary function is to suppress or divert surge currents, preventing them from damaging electronic equipment, communication systems, or network interfaces.
Surges are often caused by lightning strikes, switching transients, power line faults, or equipment startup/shutdown, leading to sudden voltage spikes that may permanently damage sensitive devices.
By installing signal surge protector, these harmful transients are safely redirected to ground, ensuring signal stability and equipment safety.
Unlike traditional power surge protectors, signal SPDs and Data Line Surge Protectors are optimized for low-voltage and high-speed data signals. They must react extremely fast while maintaining signal integrity.
Therefore, data and signal surge protectors use components such as Transient Voltage Suppression (TVS) diodes, Gas Discharge Tubes (GDTs), or current limiters.
Unlike power SPDs that rely on Metal Oxide Varistors (MOVs), these protectors avoid MOVs to prevent signal distortion, attenuation, or transmission delay—critical factors for Ethernet, telecom, and automation systems.
Why Signal SPDs Avoid Using Metal Oxide Varistors (MOV)?
Signal SPDs are engineered for low-voltage, high-frequency data lines, and the core requirement is maintaining signal integrity. Although MOV components offer high surge capacity, their slower response time and higher capacitance can lead to signal distortion, attenuation, and transmission delay in high-frequency applications. Therefore, Signal SPDs prioritize components like TVS Diodes and GDTs that feature Low Insertion Loss and ultra-fast response to ensure communication quality.
In short, the design of a signal surge protector prioritizes maintaining signal quality and communication reliability. Through careful component selection (TVS Diodes, GDTs), avoidance of MOVs, these devices provide fast, stable, and effective surge protection across diverse low-voltage applications.
Working Principle of a Data and Signal Surge Protector
Basic Principle of Data and Signal Surge Protector
The main purpose of a data and signal surge protector is to prevent overvoltages from reaching sensitive electronic circuits. When a surge occurs, the device detects the overvoltage and instantly diverts excess energy to ground, keeping the voltage on the protected line within a safe range.
When voltage spikes beyond the threshold, internal protective components (such as TVS diodes or GDTs) activate within nanoseconds, clamping the surge energy and channeling it to earth ground. After the surge dissipates, the protector automatically resets to its normal high-resistance state, allowing uninterrupted signal transmission.
This rapid switching behavior ensures that even brief transients—common in data lines, Ethernet networks, or telecom systems—do not disrupt communication or damage ports and interfaces.
These protectors are designed according to IEC/EN 61643-21, which defines combination waves for testing, such as the 10/700 µs voltage wave and 5/20 µs current wave, simulating induced lightning and reflecting the true transient characteristics on data lines.
Furthermore, many data line SPDs are DIN-rail mountable and feature a Pluggable/Modular design, allowing engineers to replace or upgrade devices without shutting down industrial or automation networks. This design minimizes downtime and ensures high availability in critical systems.
In short, data and signal SPDs provide fast-response surge suppression, preserve signal integrity, comply with communication line-specific standards, and support flexible industrial installation, ensuring reliable protection for a wide range of low-voltage applications.
Key Components Inside a Data and Signal Surge Protector
A well-designed signal surge protector integrates multiple protective elements to balance response time, surge capacity, and long-term reliability. The following table summarizes the main components and their characteristics commonly used in data line surge protectors and signal SPDs.
Table 1. Key Protective Components and Working Principles in Data & Signal Surge Protectors
| Component | Function | Response Time | Typical Application | Notes |
| GDT (Gas Discharge Tube) | Diverts large surge currents safely to ground | µs | Telecom surge protector, coaxial surge protector | High surge capacity but slower response |
| TVS Diode | Clamps transient voltages within nanoseconds | ns | Ethernet surge protector, RS485 SPD | Low insertion loss, high precision |
| NTC Thermistor | Limits inrush current and provides thermal protection | ms | Industrial control SPD, sensors | Reduces overcurrent damage |
| Current Limiter | Restricts surge current in sensitive circuits | µs–ms | Automation SPD, data lines | Enhances SPD lifespan |
Gas Discharge Tube (GDT)
A GDT conducts when voltage exceeds a defined breakdown level, ionizing the gas inside to create a conductive path to ground. It is capable of handling high surge currents, making it ideal for protecting against lightning-induced transients. GDTs are often paired with TVS diodes to combine high surge capacity with fast response time.
Transient Voltage Suppression Diode (TVS)
TVS diodes—also known as silicon avalanche diodes (SADs)—activate within nanoseconds when voltage exceeds safe limits. They conduct surge current away from sensitive circuits, maintaining precise clamping voltage and low insertion loss. TVS protection is especially crucial for high-speed signal lines such as Ethernet, RS485, or USB, ensuring minimal signal distortion.
NTC Thermistor for Data Line Surge Protection
NTC thermistors act as current limiters during surge events. Their resistance increases as temperature rises, reducing excessive current flow and protecting downstream circuits. Though slower to react, NTCs are valuable secondary protection components in complex surge suppression networks.
Current Limiter for Signal Surge Protector
A current limiter controls the flow of excessive current during transient conditions, complementing other surge protection elements. By coordinating with TVS and GDT components, it prevents overload damage and enhances the SPD’s durability and safety.
Together, these components form a multi-stage protection system that ensures data integrity, signal stability, and equipment longevity in demanding applications.
These components work together to achieve layered protection—GDT handles high-energy surges, while TVS ensures fast response for delicate data lines.
Types of Data and Signal Surge Protectors (SPDs) & Their Applications
Signal & Data SPDs are the universal class of surge protective devices designed to protect all low-voltage (below 1000V) non-power transmission lines. They safeguard analog and digital signal lines, including telecom, coaxial, control, and Ethernet data cables, from transient overvoltages caused by lightning or switching events.
These SPDs ensure reliable signal transmission without distortion or loss — a critical feature for industrial control, communication, and automation systems. Core technologies often include gas discharge tubes (GDTs) and transient voltage suppression (TVS) diodes, ensuring fast clamping response and minimal signal attenuation.
Different communication and control systems require specific surge protection solutions. Modern signal surge protectors and data line surge protectors are classified based on their application type and protection scope. The following hierarchy outlines the main categories of Signal & Data Surge Protective Devices (SPDs), along with their key applications and functions.
The table below compares characteristics, protected lines, and typical applications of Signal Surge Protectors. This helps quickly identify which signal surge protection device best fits the system.
Table 2. Types of Data and Signal Surge Protectors and Their Typical Applications
| SPD Type | Protected Line | Common Connector | Typical Application | Notes |
| Telecom SPD | Telephone / DSL | RJ11 | PBX, Intercom, Fax systems | Telecom surge protection |
| Coaxial SPD | Video / RF | BNC / F-type | CCTV surge protector, CATV, satellite | Maintains impedance matching |
| Data Line SPD | RS485 / RS232 | Terminal block | PLC, sensors, industrial control SPD | Supports differential signal |
| Ethernet SPD | Cat5e / Cat6 | RJ45 | LAN, routers, switches | Ethernet surge protector for up to Gigabit speed |
| PoE SPD | Cat5e / Cat6 (Power + Data) | RJ45 | IP cameras, access points | PoE surge protector – power & data protection |
Selecting the right signal surge protection device depends on the type of signal line, system voltage, and communication speed. From telecom surge protectors and data line SPDs to advanced PoE surge protectors, each category offers specialized protection tailored to modern communication and control systems.
Implementing high-quality Signal & Data SPDs ensures that all your communication infrastructure — whether Ethernet, PoE, coaxial, or industrial data lines — remains secure, stable, and surge-free.
Telecom Surge Protector
What Is a Telecom Surge Protector?
A Telecom Surge Protector (or Telecom SPD) is designed for telephone, DSL, ISDN, fax, and modem lines. These circuits typically carry low-voltage voice or digital communication signals, which are highly susceptible to signal surge or induced lightning transients.
Applications of Telecom SPD
- Telephone exchanges and PBX systems
- DSL modems and remote telecom stations
- Security and intercom systems
By integrating Telecom Surge Protection Devices, operators can effectively prevent damage to sensitive telecom ports, reduce downtime, and maintain voice/data clarity during electrical disturbances.
Coaxial Surge Protector
What Is a Coaxial Surge Protector?
A Coaxial Surge Protector provides specialized signal surge protection for video and RF transmission lines. It is commonly used in CCTV, broadcast, and satellite systems that use coaxial cables (e.g., BNC, F-type connectors).
Unlike standard surge arresters, these protectors maintain impedance matching and low insertion loss, preventing distortion in high-frequency RF or video signals.
Typical Applications of Coaxial Surge Protector
- CCTV surge protector for analog surveillance cameras
- CATV and satellite communication systems
- RF antenna and base station signal protection
High-quality coaxial SPDs use GDT or quarter-wave stubs to safely discharge lightning-induced surges to ground without affecting the video signal path.
Data Line Surge Protector (Data Surge Protection SPD)
Definition of Data Line Surge Protection
Data line surge protectors (also called data surge protectors or data line SPDs) are used for industrial control and serial communication systems. They protect data transmission lines such as RS-232, RS-485, RS-422, Profibus, CAN bus, and 4–20 mA current loops.
These devices are vital in automation networks, preventing downtime caused by overvoltage or electromagnetic interference.
They ensure continuous signal flow and data integrity even under harsh industrial conditions.
These Data Line Surge Protectors are typically DIN-rail mountable and often feature a Pluggable/Modular design, which is critical for automation networks requiring high availability and quick maintenance.
Typical Applications of Data Surge Protectors
- PLC and control cabinets
- Process monitoring and instrumentation
- Industrial sensors and automation controllers
ETHERNET Surge Protector (LAN/Data Surge Protection)
What Is an Ethernet Surge Protector?
An Ethernet Surge Protector is specifically designed to protect RJ45 interfaces and network data lines such as Cat5e, Cat6, or Cat6A cables. It prevents transient voltages and lightning surges from entering network switches, routers, and servers.
The best Ethernet surge protectors feature ultra-low insertion loss and fast clamping speed to maintain stable gigabit-speed transmission. They are ideal for protecting IT and communication systems where reliability and uptime are critical.
Ethernet Surge Protection Devices Explained
- Protects Ethernet ports on routers, switches, and servers
- Ensures Ethernet surge protection up to 1000Base-T networks
- Minimizes packet loss, latency, and signal degradation
PoE Surge Protector (Power over Ethernet SPD for Data & Power Lines)
What Is a PoE Surge Protector?
A PoE Surge Protector (or Ethernet PoE surge protector) safeguards both the data transmission lines and DC power pairs in Power over Ethernet (PoE) systems. Unlike standard Ethernet SPDs, PoE surge protectors must handle the combined energy of data plus power, up to 90 W in high-power IEEE 802.3bt (PoE++) applications. These devices typically have a Nominal Discharge Current (In) of 7–10 kA (8/20 µs), providing adequate capacity for common induced surges. They are essential for protecting powered devices (PDs) such as IP cameras, VoIP phones, and wireless access points from lightning strikes or switching surges.
Outdoor PoE Surge Protection Solutions
- PoE camera surge protector for IP surveillance systems
- Outdoor PoE surge protection for wireless access points
- Network infrastructure in smart buildings and industrial networks
High-quality PoE SPDs use hybrid protection circuits (TVS + GDT) for rapid response, ensuring both network stability and electrical safety.
Application Integration of Data and Signal Surge Protectors (SPDs)
CCTV Surge Protector (Video & Power Line Protection)
A CCTV Surge Protector is sometimes broadly categorized as an Antenna/Feeder SPD due to its use of coaxial cables. In practical applications, it often combines Coaxial SPDs (for analog cameras) and PoE Surge Protectors (for IP cameras) to provide comprehensive protection in hybrid surveillance systems.
However, the two are not identical. A professional Antenna SPD strictly complies with IEC 61643-21, specifically designed for high-frequency RF signals. It requires precise impedance matching (typically 50 Ω) and ultra-low insertion loss to ensure communication quality. In contrast, a CCTV SPD is optimized for video signal transmission and low-voltage DC power supply, focusing on maintaining signal integrity and equipment safety without introducing attenuation or distortion.
Industrial Control Surge Protector (RS485 / RS232 / RS422 Line SPD)
For automation systems, combining Data Line SPDs (for RS4855/RS232/RS422 communication) and PoE SPDs (for HMI panels or networked PLCs) ensures reliable operation and system integrity.
Smart Building Surge Protection (Telecom + Ethernet + PoE SPD Integration)
Smart buildings often deploy multiple systems (door access, intercom, Wi-Fi APs). A combined Telecom + Ethernet + PoE SPD configuration delivers full-scale surge protection across communication, control, and security networks.
How to Choose and Install a Signal Surge Protector
Selecting and installing the right data and signal surge protector ensures effective surge response without degrading signal quality.
Key Considerations for Choosing a Signal & Data SPD
When choosing a Signal or Data Line SPD, several parameters define whether the device will perform effectively in real-world conditions. These include Uc (Operating Voltage), In (Nominal Discharge Current), Up (Voltage Protection Level), and the response time of its internal components such as TVS diodes or GDTs.
Table 3. Key Selection Parameters for Choosing the Right Data and Signal Surge Protector
| Parameter | Description | Recommended Range | Notes |
| Rated Voltage (Uc) | Voltage the SPD can continuously withstand | Slightly higher than nominal line voltage | Prevents false triggering |
| Response Time | Time to clamp surge voltage | <1 ns (for Ethernet surge protector) | Critical for high-speed transmission |
| Nominal Discharge Current (In) | SPD surge endurance | 7–10 kA (8/20 µs waveform) | Ensures durability under repeated surges |
| Insertion Loss | Signal attenuation by the SPD | <0.5 dB | Important for PoE surge protector and Gigabit Ethernet |
| Grounding Distance | Cable length between SPD and protected equipment | <0.5 m | Minimizes residual voltage (Up) during surge events |
| Design Feature | Ease of maintenance and status feedback | Pluggable/Modular | Essential for high-uptime industrial/telecom Data Line SPDs |
Operating Voltage
Choose a signal surge protector whose rated operating voltage matches the protected circuit. It must be slightly higher than normal line voltage, but lower than the maximum surge voltage expected. This ensures timely activation without false triggering. For example, in Ethernet or RS485 networks, the SPD’s nominal voltage must align with standard transmission levels to prevent interference or unnecessary attenuation.
Response Time
Response time defines how fast the SPD reacts to transient overvoltages. High-speed communication lines (like Ethernet, PoE, or industrial data buses) demand ultra-fast devices with nanosecond-level response. TVS diodes and GDTs are commonly used because they combine speed and surge endurance, offering both instant response and reliable protection.
Insertion Loss
Insertion loss measures how much the protector affects signal transmission quality. High-quality data surge protectors maintain minimal insertion loss, ensuring no distortion, delay, or data packet loss—a vital factor for gigabit Ethernet, fiber optics, or satellite communication systems.
Choose low-loss SPDs specifically designed for high-speed signal applications to preserve data accuracy and transmission stability.
Summary and Recommended SPD Selection for Different Applications
In summary, Proper data and single surge protector selection ensures optimal surge performance without affecting signal quality or Ethernet transmission speed. After you’ve understood these key parameters, the next step is to identify the right SPD type for your specific application.
The following table summarizes typical application scenarios and SPD categories to consider before installation:
| Application Scenario | Key SPD Type | Key Selection Parameters | Recommended Features |
| High-Speed Networks | Ethernet SPD, PoE SPD | Response Time (<1 ns), Low Insertion Loss | Pluggable / Modular Design, Remote Signaling |
| Industrial Control Systems | Data Line SPD (RS485 / RS422) | Nominal Discharge Current (In), Operating Voltage (Uc) | DIN-Rail Mountable, Status Indicator |
| Outdoor / Building Entry Points | Telecom SPD, Coaxial SPD | Maximum Discharge Current (IMAX), Grounding Capacity | Hybrid GDT + TVS Protection |
Installation Guidelines for Signal and Data SPDs
Proper installation is just as important as selecting the right SPD.
Even the best surge protector will perform poorly if not correctly grounded or positioned.
Grounding
Effective grounding is critical for SPD performance. Ensure a low-impedance connection to ground so that surge currents can safely dissipate. Poor grounding significantly reduces surge diversion efficiency, resulting in a higher residual voltage (Up) at the equipment, which may lead to damage.
Any conductor connecting the SPD to the protected equipment—including the grounding conductor—introduces parasitic inductance. As a practical guideline, every additional 30 cm of conductor length may increase the residual voltage (Up) by approximately 10–20 V. Therefore, it is crucial to install the SPD as close as possible—ideally within 0.5 meters—to the sensitive equipment and minimize grounding resistance, ensuring a low protection level (Up) while allowing the grounding conductor to handle high-energy transient currents.
Mounting Location
Mount the SPD as close as possible to the protected device to shorten the surge current path and reduce residual voltage.
For example:
- Install Ethernet surge protectors near network switches or routers.
- Place telecom SPDs at entry points of phone lines.
- Mount PoE surge protectors at the interface between outdoor IP cameras and indoor network switches.
Proper placement ensures faster surge discharge and maximum protection efficiency.
Application Fields of Data and Signal Surge Protectors
Data and signal surge protectors play a vital role in ensuring the safety, reliability, and stability of signal transmission systems across industries. They are widely used in the following fields:
Data Communication and Network Systems
In modern communication infrastructure, Ethernet surge protectors and PoE SPDs protect routers, switches, and access points from transient overvoltages. They prevent data loss, signal interference, and equipment failure during lightning or switching surges. Fiber-optic terminals and wireless base stations also require surge protection for stable long-term operation.
Audiovisual and Broadcast Systems
Coaxial surge protectors are critical for CCTV, satellite communication, and broadcast applications. They protect coaxial cables, cameras, amplifiers, and mixers from voltage spikes while maintaining signal integrity. In professional audio systems, signal SPDs safeguard sensitive sound equipment and maintain consistent sound quality.
Industrial Automation Systems
Industrial plants rely on RS485/422/232 and control signal lines for communication between PLCs, sensors, and controllers. Data line surge protectors ensure uninterrupted operation, prevent downtime, and protect against voltage transients common in heavy-industry environments such as metallurgy, petrochemicals, or mining.
Medical Equipment
Precision medical devices require stable, noise-free signal environments. Medical surge protectors safeguard patient monitoring systems, imaging devices, and communication interfaces from surges, ensuring accurate operation and patient safety.
Transportation and Railway Systems
Signal surge protectors are essential for railway signaling, traffic monitoring, and subway control systems. They prevent system failures caused by lightning-induced surges, ensuring network reliability even under harsh weather conditions.
Aerospace and Defense Applications
In aerospace and military environments, signal SPDs protect high-value electronic systems from electromagnetic pulses (EMPs), transient voltages, and lightning. They ensure the stable performance of avionics, radar, and communication systems under extreme conditions.
Summary of Data and Signal Surge Protector Applications
A data and signal surge protector is an essential component in modern communication and control systems. From Ethernet and PoE networks to industrial automation and broadcast systems, these devices ensure uninterrupted operation and safeguard sensitive electronics from transient events.
By understanding how signal surge protectors work, choosing the correct type, and ensuring proper installation and grounding, engineers can achieve long-term system reliability, improved data stability, and comprehensive protection against lightning and surge hazards.
FAQ: Data and Signal Surge Protectors (Signal SPDs, Ethernet & PoE Protection)
What is the difference between a data surge protector and a power surge protector?
A data surge protector (also called a signal surge protector or signal SPD) is specifically designed to protect low-voltage communication lines such as Ethernet, RS485, CCTV, or telecom circuits. It focuses on maintaining signal integrity and minimizing insertion loss.
In contrast, a power surge protector (such as Type 2, Type 3, or combined Type 2+3 SPD compliant with IEC/EN 61643-11 for DIN rail mounting) is used for AC power systems, protecting electrical panels, outlets, and equipment from high-energy lightning surges. While both divert surge energy to ground, data SPDs are optimized for high-speed data transmission and should not use MOVs that could distort or delay signals.
Does a surge protector affect signal strength or quality?
A high-quality signal surge protector does not affect signal strength or transmission quality. Modern Ethernet surge protectors and coaxial surge protectors are designed with low insertion loss, ensuring minimal impact on data rate and bandwidth.
However, poor-quality protectors or incorrect installations can cause signal attenuation, packet loss, or noise interference. To avoid this, always select certified data line surge protectors with specifications matching your network type (e.g., Cat5e, Cat6, Cat6A Ethernet SPDs).
Can I use a PoE Surge Protector for non-PoE Ethernet lines?
Yes, a PoE surge protector (Power over Ethernet SPD) can generally protect both PoE and non-PoE Ethernet lines, as long as the voltage and pin configuration are compatible. PoE SPDs are designed to handle both DC power and data signals simultaneously. When used with non-PoE devices, the protector passes data without supplying power. For best results, always use Ethernet surge protectors matched to your cabling standard and network speed, such as Gigabit or 10-Gigabit Ethernet.
How long does a signal surge protector last?
The lifespan of a signal surge protector depends on the frequency and severity of surge events and lightning strikes. Under normal conditions, it can last several years. After multiple large surges, internal components such as TVS diodes or GDTs may degrade. If such features are absent, periodic inspection or replacement every few years is recommended to ensure reliable protection.
Is Ethernet Surge Protection Necessary?
Yes. Ethernet ports are susceptible to induced surges from nearby lightning strikes or power transients. Unprotected ports are common failure points in switches, routers, and IP cameras. Installing Ethernet surge protectors at both ends of long cable runs or at building entry points ensures full protection and minimizes costly downtime. This is especially important in industrial automation, CCTV, and data center environments.
Will a surge protector boost cable or Wi-Fi signal strength?
No, a signal surge protector does not amplify or boost signals. Its purpose is to protect the signal from surges rather than enhance it. Installing a coaxial surge protector or Ethernet SPD will not increase Wi-Fi range or speed. If experiencing weak signal, consider upgrading cabling, using shielded twisted pair (STP) cables, or improving network hardware.
Can I use one surge protector for multiple signal lines?
Each signal line, such as Ethernet, RS485, coaxial, or telephone, should ideally have its own surge protector or a multi-channel SPD designed for that line type. Sharing a single protector among multiple lines may cause cross-interference or uneven surge discharge. For structured cabling systems, choose multi-port Ethernet SPDs or DIN-rail modular SPDs rated for your specific application.
How do I know which type of signal surge protector I need?
The selection depends on your application:
- Ethernet Surge Protector → for LAN, routers, switches
- PoE Surge Protector → for PoE cameras, access points
- Telecom Surge Protector → for telephone or DSL lines
- Coaxial Surge Protector → for CCTV or satellite systems
- Data Line Surge Protector (RS485/RS232/RS422) → for industrial automation
- Signal SPD for Sensors → for process control or field instruments
Matching the correct SPD type, voltage rating, and connector interface ensures full protection and long-term performance.
Is surge protection really necessary for modern data systems?
Absolutely. Modern systems use high-speed and low-voltage signals that are even more sensitive to transient overvoltages. Without data and signal surge protection, a single surge event could corrupt data, damage ports, or cause costly network downtime.
By using dedicated signal surge protectors, you ensure system reliability, network uptime, and long-term protection of mission-critical electronics.
