In any electrical system, keeping personnel safe is very important, especially in emergencies. One key device that helps reduce electrical dangers is the isolator switch. An isolator switch is a mechanical device that you operate by hand. It disconnects a part of an electrical circuit from the main power supply. This disconnection creates a safe, de-energized area for technicians to work on electrical equipment during maintenance, repairs, or upgrades.
An isolator switch acts as a safety tool for safety purposes. It stops the flow of electricity in an electrical circuit. Unlike a circuit breaker, which turns off automatically during electrical faults, an isolator switch is turned off by a person. This ensures that a certain part of the circuit is no longer powered.
This manual shutdown is very important during maintenance or repair jobs. It creates a clear break in the electrical circuit. This means that an electrical current cannot pass through the isolated part, making it safe for technicians to work.
Electrical safety is very important. Isolator switches help reduce the risk of electrocution. They also ensure that electrical equipment operates safely. These switches let you turn off part of the system, an electrical circuit completely. This gives technicians a safe space to work on equipment.
The main job of an isolator switch is to keep a specific part of the circuit away from the power supply. When the switch is off, it stops the flow of electricity. This means workers are safe from electrical shock while they handle the section that is turned off.
Isolator switches are very important during maintenance activities. They help make sure technicians can work on equipment that is not powered, which lowers the chances of accidents and keeps the work area safe.
Isolator switches are very important for the safety of maintenance personnel working on electrical systems. They create a safe point that stops the flow of electrical current in a part of the circuit. This helps to keep technicians safe from electric shock.
Isolator switches work by physically separating the electrical contacts, ensuring normal operation is maintained. When the switch is turned “off,” these contacts are apart. This break in the electrical pathway clearly shows technicians that the section is safe and has no power.
Also, isolator switches can handle high electrical currents that may be in the circuit. When isolating, they keep these currents from flowing into the isolated section. This protects both maintenance personnel and equipment from harm.
Isolator switches come in many types. Each type serves specific applications and can manage different voltage and current levels. The most common types are single-pole, double-pole, three-pole, and four-pole isolator switches. They are each made for certain electrical circuits.
Choosing the right type of isolator switch depends on how many phases your electrical system has and what your specific needs are. For example, single-pole isolator switches work best for single-phase circuits. Three-pole isolator switches are usually found in three-phase systems.
One common type of isolator switch is the air break isolator switch. It is widely used in many electrical systems because of its simple design and reliable performance. This switch uses air to stop arcs that might happen when opening the switch while it is in use.
The air break isolator switch works by pulling its contacts apart in the air. When the switch opens, the contacts create an air gap. This gap prevents the flow of electrical current, which breaks the circuit.
Air break isolator switches are usually found in places where the electrical load is not too large and the voltage is not extremely high. Their easy design and strong build make them good for different industrial and commercial needs.
Air break isolator switches are common, but there are also special types made for specific applications and higher voltage systems. Gas-insulated isolator switches and vacuum isolator switches are examples of these specialized switches. They use different insulating methods to improve safety and performance.

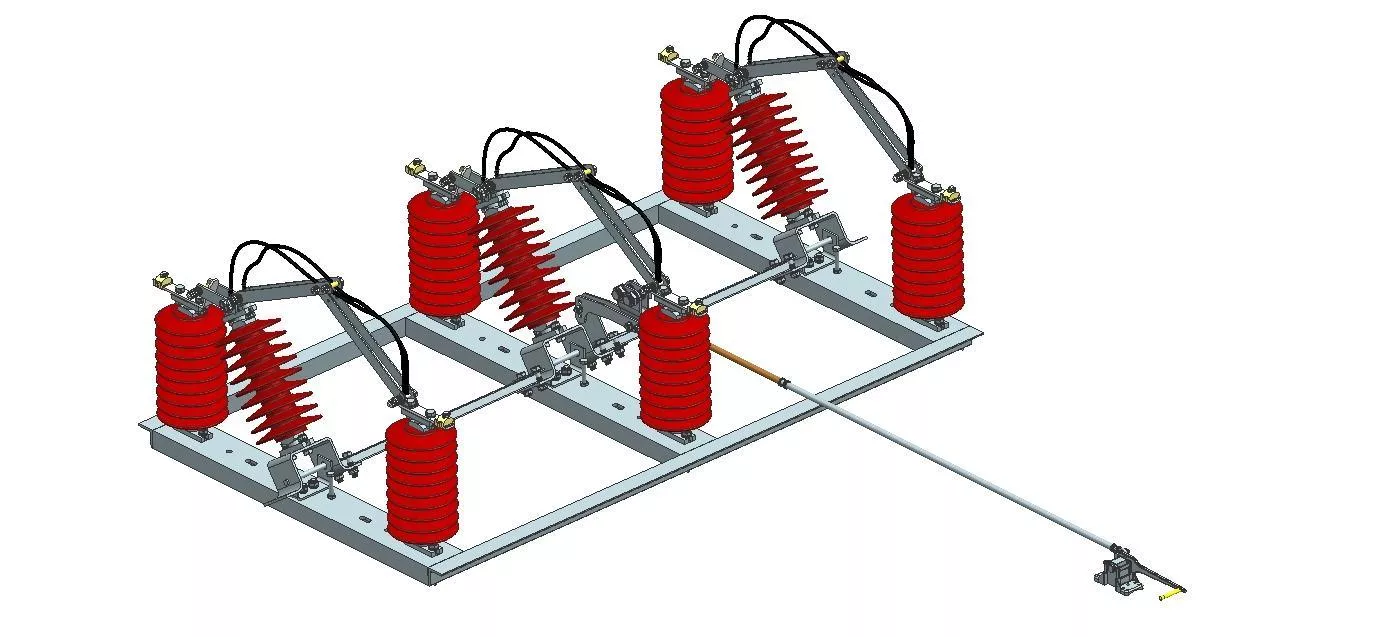

Air Break Isolator Switch
Gas-insulated isolator switches use a certain gas, like sulfur hexafluoride (SF6), for insulation. This gas-filled chamber stops arcing and lets the switch work well at higher voltages. On the other hand, vacuum isolator switches create a vacuum inside to control arcing.

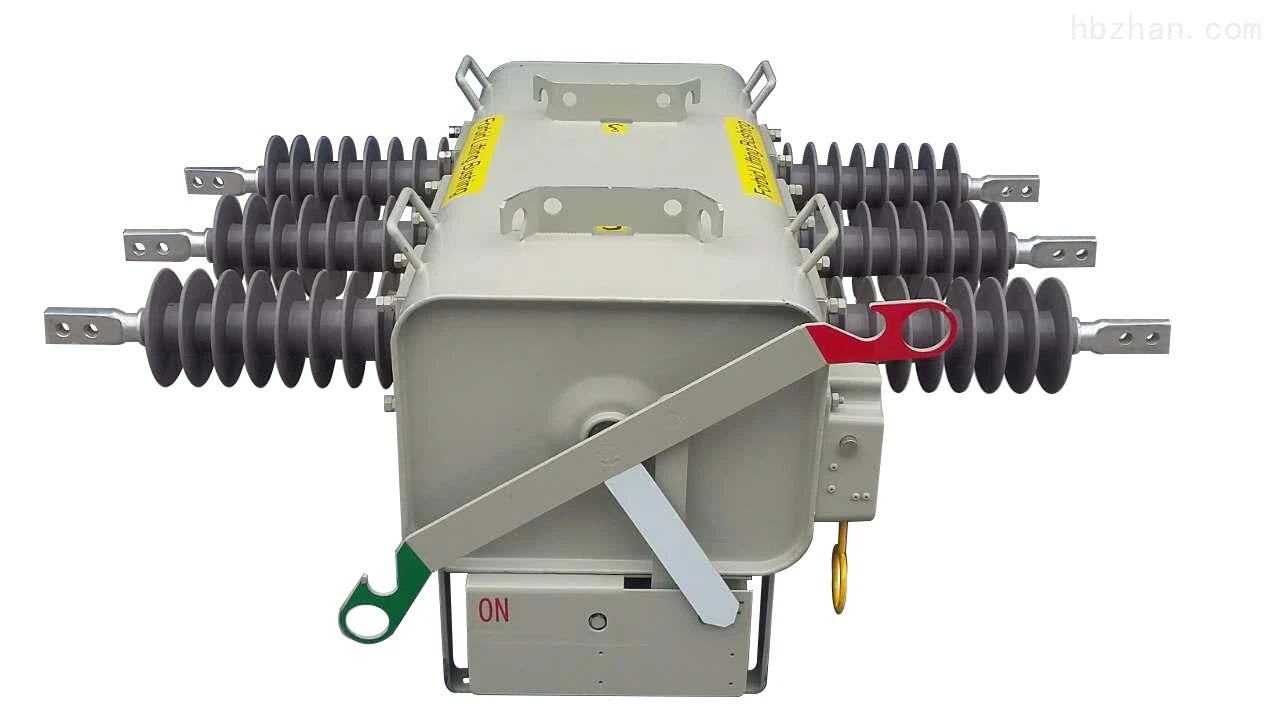

Gas Insulated Isolator Switch
These specialized isolator switches, including the DC isolator switch, are mainly used in high-voltage situations where electrical faults are more likely. Their improved insulation technologies make them safer and more reliable than regular air break isolator switches.
Understanding the parts of isolator switches is important for keeping an efficient electrical system. These switches help prevent electric shock and protect the safety of maintenance personnel when they are doing maintenance tasks. The primary function of an isolator switch is to ensure safety by physically disconnecting the circuit. Isolator switches are usually operated manually. They separate a particular section of the circuit to allow for safe maintenance.
Various types of isolator switches fit specific applications. They are a vital part of any electrical system, especially in industrial settings. The way the switch operates and the number of poles it has decide how well it can isolate electrical loads.
The contacts are typically made of highly conductive materials such as copper or silver alloys, designed to withstand the heat generated during current interruption.
Insulators are made from non-conductive materials like porcelain or polymers, preventing electrical current from flowing to unintended paths.
The operating mechanism, often a lever or a handle, provides a mechanical advantage, allowing operators to open or close the switch with ease. Its design ensures that the contacts separate or engage securely, providing reliable isolation or connection of the electrical circuit. Its design ensures that the contacts separate or engage securely, providing reliable isolation or connection of the electrical circuit.
Understanding the key elements of an isolator switch is essential for comprehending its functionality and importance in electrical systems. The following table provides a concise overview:
Component | Description | Function |
Contacts | Conductive parts that make or break the circuit | Carry the electrical current and separate to interrupt the flow |
Insulators | Non-conductive materials surrounding live parts | Prevent electrical leakage and ensure safety |
Operating Mechanism | Allows manual or remote operation for opening and closing the switch, ensuring ease of use for the user. | Isolation or connection of the electrical circuit. |
In addition to the main parts, isolator switches can have extra features like grounding or earthing for safety during maintenance work. Grounding is very important. It offers an easy path for electrical current to go straight to the ground, avoiding other equipment and people.
When the isolator switch is in the “off” position and turned off for maintenance, it’s very important to ground the isolated section. This is usually done by linking the isolated conductor to the grounding system with grounding cables or wires.
The isolator switch works by stopping the flow of current in a circuit when it is operated manually. Unlike circuit breakers, which automatically turn off during problems, isolator switches need human intervention to open or close the circuit.
When the isolator switch is “on,” the contacts are closed, and current can flow easily from the power source. But when it is turned “off,” the contacts separate. This creates a gap or uses insulation to stop the current. This manual ability to “make” and “break” the circuit ensures safe isolation for things like maintenance, repairs, or changes.
Isolator switches can work manually or with a motor. Each method has its benefits based on what you need.
Manual isolator switches require a person to move a lever or handle to open or close the switch. This method is simple and less expensive. It’s a good choice when you don’t need to operate the switch from far away.
Motorized isolator switches are easier to use from a distance. They use an electric motor to move the switch contacts. This is very helpful in high-voltage settings or places that are hard to reach.
Even though motorized isolator switches make it easier to operate and are quicker, manual isolator switches are still dependable and cost-effective for many uses. Choosing between them depends on things like voltage level, how easy it is to reach, how often they are used, and your budget.
Within power distribution networks, isolator switches are key parts that help the power grid work safely and reliably. These networks send electricity from sources to users. They need strong isolation tools to allow maintenance, repairs, and changes without causing big issues.
Isolator switches are placed carefully in power distribution networks to separate different parts of the grid. This separation lets workers isolate specific sections to conduct maintenance. For example, if there is a problem on a certain line, isolator switches can cut off the faulty segment. This way, repairs can happen without stopping power to other areas. This feature is very important for reducing downtime and keeping the power supply steady for consumers.
Also, Isolator switches have a vital role in protecting the power system. Alongside protective relays and circuit breakers, isolator switches help separate damaged sections of the network. This action stops problems from spreading and helps maintain the stability of the power grid.

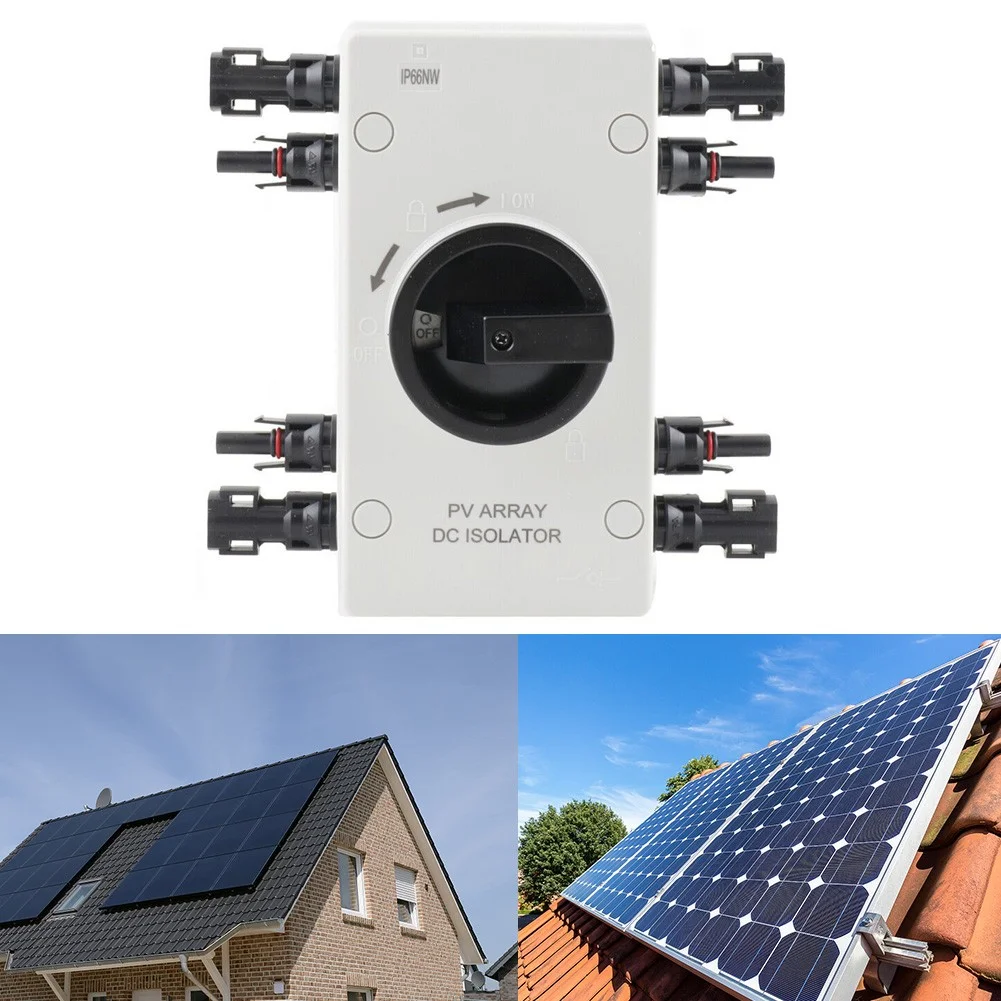

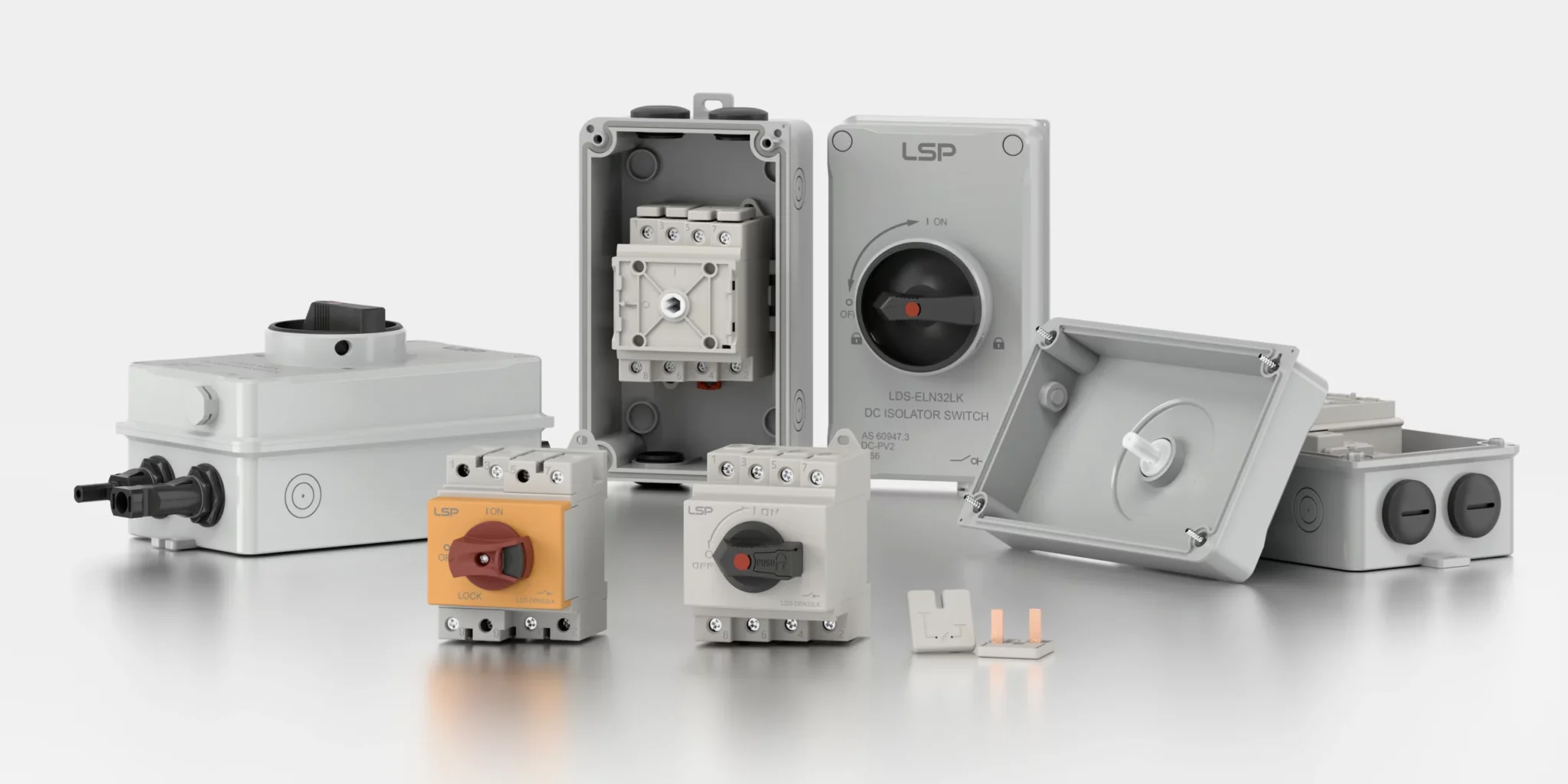

Beyond regular power systems, isolator switches are important in the growing area of renewable energy, especially in solar energy systems. In photovoltaic (PV) setups, isolator switches help safely disconnect solar panels from the rest of the system when doing maintenance, repairs, or upgrades.
Solar panels make direct current (DC) electricity. An inverter then changes this into alternating current (AC) for homes or businesses. Isolator switches are found on both the DC and AC sides of the system. They create more ways to isolate and improve safety.
On the DC side, isolator switches are often built into the combiner boxes. This allows workers to isolate individual strings of solar panels. They can safely work on a specific section of the solar array without turning off the entire system. On the AC side, isolator switches usually sit between the inverter and the electrical grid. This helps isolate the solar energy system from the grid during maintenance or emergencies.
In summary, it’s very important to know how isolator switches help keep us safe with electricity. These switches protect equipment and make sure people stay safe, too. There are different types of isolator switches, and they work in different ways. They are vital for many fields, such as power distribution and energy systems like solar. By learning about how these switches work and where they are used, you can help keep things safe and running smoothly. Always remember why isolator switches matter and how they operate to improve electrical safety in many places.
An isolator switch improves electrical safety. It does this by totally cutting off power to a part of the electrical system. This isolation helps to remove the risk of electrocution while carrying out maintenance tasks. It protects workers from electric shock.
No, you should never use an isolator switch while it is under load. Opening the switch when the current is flowing can cause arcing. This can harm the safety of personnel and might damage the switch. Isolator switches are meant for isolation during maintenance tasks, not for breaking live circuits.
