What Are Electrical Circuit Protection Devices?
Electrical circuit protection devices are components designed to limit damage, reduce fire risk, and improve personnel safety when abnormal electrical conditions occur. In low-voltage systems, those abnormal conditions generally fall into a few buckets: overcurrent (overload and short circuit), leakage to earth, arcing faults, transient overvoltage (surges), sustained abnormal voltage (overvoltage or undervoltage), and loss of supply.
A common point of confusion is that no single device covers every fault mechanism. Many devices are designed around one physical detection principle (thermal heating, magnetic force, differential current sensing, waveform analysis, or voltage clamping). That detection principle defines what the device can and cannot see.
Another practical reality: protection is a system property. You can select high-quality devices and still get poor outcomes if coordination, wiring, earthing/grounding, and installation details are wrong. The goal is to build a layered scheme where each device handles the fault type it is designed for, and upstream devices stay selective whenever practical.
Types of Electrical Circuit Protection Devices
Device type | Primary hazard addressed | Typical location in a system | Key limitation to remember |
|---|---|---|---|
Fuse | Overload and short circuit (overcurrent) | Branch circuits, DC strings, equipment feeds | One-time operation; must be replaced |
MCB | Overload and short circuit (overcurrent) | Branch circuits | Fixed trip curve; limited high-fault capability vs MCCB |
MCCB | Overload and short circuit (overcurrent), sometimes adjustable coordination | Feeders, mains, larger loads | Requires correct settings and coordination study |
RCCB/RCD | Electric shock and leakage to earth | Downstream of overcurrent device | Does not protect against overload/short circuit by itself |
RCBO | Shock/leakage plus overcurrent | Individual branch circuits | More complex device; consider nuisance-trip causes |
AFDD/AFCI | Arc-fault fire risk | Final circuits (often residential) | Requires correct application to avoid nuisance tripping |
SPD | Transient surges (lightning, switching) | Service entrance and distribution, near sensitive loads | Not for sustained overvoltage |
Voltage protector | Sustained over/under-voltage | Ahead of sensitive loads or panels | Too slow for impulse surges |
ATS | Loss of supply continuity | Between sources and critical loads | Not a fault protection device by itself |
Fuse
A fuse is a sacrificial overcurrent protective device. When current exceeds a designed threshold for long enough, the fuse element heats and melts, opening the circuit. Because the clearing mechanism is physical, a fuse has a time-current characteristic: small overloads take longer to open; large faults open very quickly.
Where fuses still excel is simplicity, high interrupting capability (in many industrial fuse families), and strong current-limiting behavior, which can reduce downstream let-through energy during short circuits. Typical selection checks include voltage rating, continuous current rating, and interrupting rating (the available fault current at that installation point). Fast-acting vs time-delay behavior matters when loads have inrush, such as motors or transformers.
Miniature Circuit Breaker (MCB)
An MCB is a resettable overcurrent protective device commonly used on branch circuits. Most MCBs use thermal-magnetic tripping: a thermal element responds to overload (seconds to minutes), and a magnetic element responds to high fault current (instantaneous trip for short circuits).
MCBs are generally chosen by rated current, trip curve/type (how fast they trip on inrush), breaking capacity, number of poles, and the system voltage. A frequent engineering error is focusing only on the rated current and ignoring breaking capacity and coordination. Another is selecting a curve too sensitive for motor inrush, causing nuisance trips.
Molded Case Circuit Breaker (MCCB)
An MCCB covers the same fundamental hazards as an MCB (overload and short circuit) but typically at higher current levels and higher fault duties. Many MCCBs provide adjustable trip settings (and, depending on the trip unit, adjustable time delays) to improve selectivity with downstream devices.
MCCBs are common in feeder protection, main distribution, and larger loads where coordination matters. The engineering work is not just choosing a frame size; it is selecting trip settings that protect conductors, coordinate with downstream devices, and match the available short-circuit current. Incorrect settings can either cause nuisance tripping or allow damaging let-through energy.
Residual Current Circuit Breaker (RCCB/RCD)
An RCCB (often called an RCD) detects residual current by comparing the current leaving on the ungrounded conductor(s) and returning on the neutral. If they do not match, current is leaking elsewhere, often to earth. The device trips when leakage exceeds its sensitivity.
RCCBs improve protection against electric shock and can reduce fire risk related to leakage currents. The critical limitation is that an RCCB does not provide overload or short-circuit protection, so it must be coordinated with a separate overcurrent protective device (often an MCB or MCCB). Selection typically involves sensitivity (for example, 30 mA is commonly used for personnel protection in many contexts), number of poles, and device type compatible with the expected waveform.
Residual Current Breaker with Overcurrent Protection (RCBO)
An RCBO combines residual-current protection and overcurrent protection in one device. Functionally, it replaces an MCB plus an RCCB for a single circuit. For designers, the advantage is tighter circuit-level protection: a leakage fault on one circuit is less likely to trip a shared upstream RCCB serving multiple circuits.
RCBO selection involves both sides of the problem: the overcurrent rating and curve for the load, and the residual-current sensitivity and type for the application. Many nuisance-trip complaints originate from wiring errors (shared neutrals), insulation leakage accumulation, incompatible devices with certain loads, or poor separation of circuits.
Arc Fault Detection Device (AFDD/AFCI)
Arc-fault devices target a specific fire mechanism: arcing caused by damaged insulation, loose terminations, or degraded connections. A dangerous arc can generate enough heat to ignite surrounding materials without drawing enough current to trip a conventional overcurrent device quickly.
AFDD (often used as the term in IEC contexts) and AFCI (common in US contexts) typically analyze current waveforms to recognize arc signatures and disconnect the circuit. They are commonly applied to final circuits where wiring runs through combustible structures or where hidden faults are plausible. The limitation is that these devices depend on proper application and wiring quality; if the installation is noisy electrically or the wiring is poor, nuisance operation can occur.
Surge Protection Device (SPD)
An SPD is designed to limit transient overvoltages by clamping voltage and diverting surge current to the grounding/earthing system. These events are short in duration: lightning-induced impulses and switching transients. SPDs are categorized by intended installation location and test waveform (for example, Type 1 at the service entrance for higher-energy events, Type 2 at distribution, Type 3 near sensitive loads).
Key parameters include maximum continuous operating voltage (MCOV), nominal discharge current (In), maximum discharge current (Imax), and the protection level (often represented as Up or, in some contexts, VPR). An SPD is not intended to solve sustained overvoltage; a prolonged abnormal voltage can degrade or destroy an SPD.

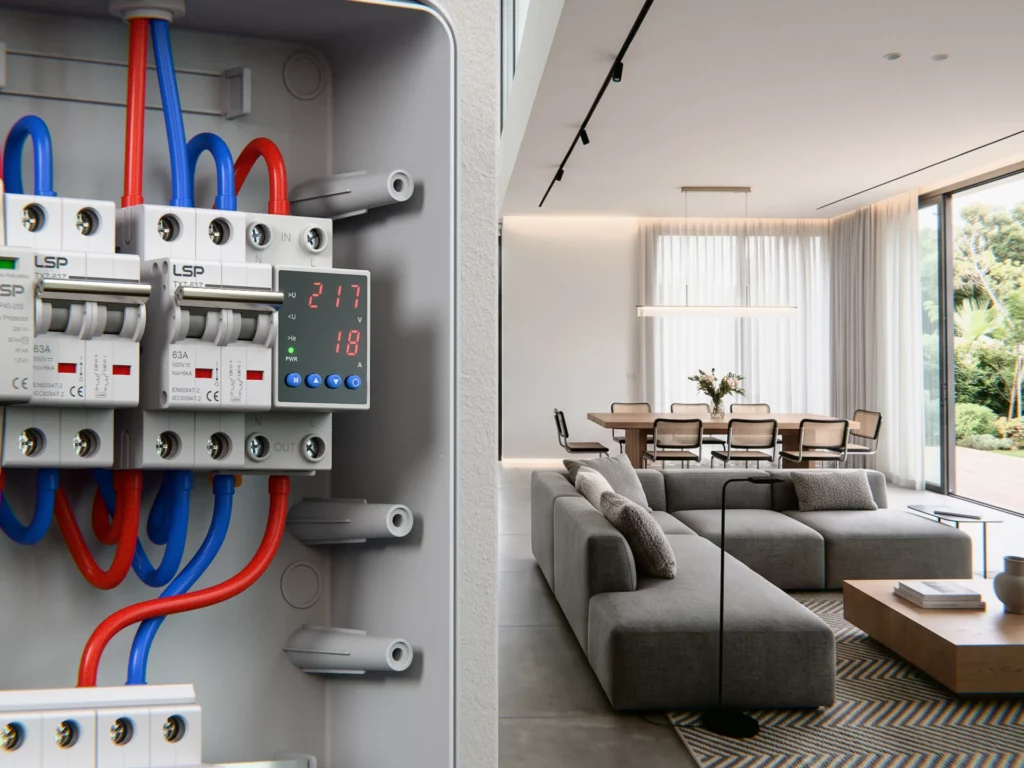

Voltage Protector
A voltage protector is used to mitigate sustained abnormal voltage, such as overvoltage or undervoltage conditions that persist long enough to thermally stress equipment. Implementation varies: some devices disconnect the load using a relay/contact, and others provide regulated output in certain product families.
The key distinction from an SPD is timescale. A voltage protector is designed for seconds-to-minutes events, not microseconds. Selection typically focuses on setpoints (over/under thresholds), delay time, recovery time, load current rating, and whether the device handles single-phase or three-phase faults such as neutral loss scenarios.
Automatic Transfer Switch (ATS)
An ATS is used to maintain supply continuity by transferring a load from a normal source to an alternate source (often a generator or secondary utility feed) when the normal source fails. In industrial and commercial settings, it supports availability objectives.
An ATS is not, by itself, a fault-clearing device for overload, short circuit, or leakage. It must be applied with upstream and downstream protection. Engineering considerations include transfer mode (open transition vs closed transition), short-circuit withstand and closing ratings, control power, sensing logic, and how it coordinates with generator protection and distribution protection.
Comparison of Different Circuit Protection Devices
Fuse vs Circuit Breaker
Both fuses and circuit breakers protect against overcurrent, but they behave differently during faults and during recovery.
Criteria | Fuse | Circuit breaker (MCB/MCCB) |
|---|---|---|
Reset after fault | Replace fuse element | Reset (after clearing the fault) |
Current limiting | Often very strong | Depends on breaker design and fault level |
Selectivity approach | Often achieved by fuse family coordination | Achieved by trip curve and time-current coordination |
Adjustment | Not adjustable | MCCB often adjustable; MCB typically fixed |
Common best fit | Simple, high interrupt duty points; DC strings; equipment protection | Branch distribution and feeders; systems needing resets and settings |
Design note: the choice is rarely philosophical. It is about available fault current, selectivity requirements, maintenance model (replacement vs reset), and the load profile.
RCCB vs RCBO
RCCBs and RCBOs both provide residual-current protection. The difference is whether overcurrent protection is integrated.
Criteria | RCCB/RCD | RCBO |
|---|---|---|
Residual-current protection | Yes | Yes |
Overload/short-circuit protection | No (needs upstream OCPD) | Yes (integrated) |
Impact of a single leakage fault | Can trip a group of circuits if shared | Typically isolates only the affected circuit |
Panel space | Often smaller per device, but needs separate MCBs | Larger per circuit, but single device |
Typical selection reason | Protect multiple circuits economically | Improve discrimination and reduce nuisance-impact |
A practical rule: if the system design is sensitive to nuisance outages, per-circuit protection with RCBOs often simplifies troubleshooting and improves availability.
SPD vs Voltage Protector
SPDs and voltage protectors are often confused because both relate to abnormal voltage. They protect different timescales and failure mechanisms. Engineers sometimes describe this decision informally as surge protection device vs voltage protector, but the correct choice is based on the event duration.
Criteria | SPD | Voltage protector |
|---|---|---|
Target event | Transient surge (impulse) | Sustained over/under-voltage |
Response requirement | Very fast clamping | Trip/disconnect with intentional delay |
Key selection parameter | MCOV, In/Imax, protection level (Up/VPR), type | Setpoints, delay, load current, phase monitoring |
Typical failure if misapplied | Overheating during sustained overvoltage | Does not stop fast impulse damage |
Best practice relationship | Use as part of surge zoning | Use for supply-quality abnormalities |
Which Protection Device Prevents Which Electrical Fault?
Use the fault type first, then pick devices that are designed for that detection principle.
Fault type | What it looks like electrically | Devices that typically address it | Devices that typically do not address it |
|---|---|---|---|
Overload | Current above normal for seconds to hours | Fuse, MCB, MCCB, RCBO | RCCB, SPD, voltage protector, ATS |
Short circuit | Very high current, fast rise | Fuse, MCB, MCCB, RCBO | RCCB (unless combined), SPD, voltage protector, ATS |
Earth leakage | Current imbalance between line and neutral | RCCB/RCD, RCBO | Fuse, MCB, MCCB, SPD, ATS |
Arc fault | Abnormal arcing waveform; may be low current | AFDD/AFCI | Fuse, MCB, MCCB, RCCB (often insufficient alone), SPD |
Transient surge | Very short overvoltage spike | SPD | Voltage protector, RCCB, MCB/MCCB |
Sustained over/under-voltage | Voltage out of band for seconds+ | Voltage protector | SPD, RCCB, fuse, MCB/MCCB |
Loss of supply | Voltage absent or source failed | ATS (continuity function) | Fuse, MCB/MCCB, RCCB, SPD |
How to Choose the Right Circuit Protection Device
Choose According to the Type of Electrical Fault
Start with a clear fault model:
Overload and short circuit: choose an overcurrent protective device (fuse, MCB, MCCB, or an RCBO). Match conductor ampacity, expected inrush, and available fault current.
Shock and leakage: add residual-current protection (RCCB/RCD or RCBO) when personnel protection, fire mitigation, or code requirements call for it.
Arc-fault fire risk: consider AFDD/AFCI where arcing risk is elevated (damaged cords, aging wiring, hidden runs in combustible structures) and where the jurisdiction or specification requires it.
Transient surges: add SPDs at appropriate zones (service entrance, distribution, point-of-use) and verify earthing/grounding quality.
Sustained abnormal voltage: add voltage protection when supply quality issues or neutral faults are credible risks to equipment.
Continuity: add ATS when the business impact of supply loss justifies alternate sources.
A key engineering discipline is avoiding category errors: do not ask an RCCB to protect conductors against overload; do not expect an SPD to solve undervoltage; do not expect an ATS to clear a short circuit.
Choose Based on Your Application
Application context changes both the fault likelihood and the acceptable consequences.
Residential: branch circuits are numerous, loads are diverse, and the main risks often include shock, arcing in cords, and damage to consumer electronics. Device choices emphasize circuit-level discrimination, life safety, and surge zoning.
Commercial buildings: uptime expectations are higher, loads include HVAC and controls, and coordination between distribution stages matters. Designers often rely on MCCBs at feeders, then a mix of branch protection and residual-current protection based on circuit type and local requirements.
Industrial facilities: fault currents can be high, motor loads are common, and a nuisance trip may stop production. This pushes the design toward adjustable protection (MCCB/relays where applicable), careful selectivity, robust surge protection for control systems, and maintainable schemes.
DC-heavy systems (PV, BESS, EVSE): DC fault behavior, switching devices, and insulation monitoring requirements can change the preferred protective device families and coordination methods.
Consider Electrical Ratings and Standards
Ratings and standards are where good designs become safe designs.
Overcurrent protection: verify rated current, breaking capacity (interrupting rating), and the time-current characteristic relative to conductor protection and inrush. For adjustable devices, document settings and ensure they are locked/controlled.
Residual current protection: verify sensitivity (mA rating), device type compatible with expected waveform, and coordination with upstream overcurrent devices.
Surge protection: verify system voltage and MCOV, expected surge environment, SPD type/placement, and the protection level relative to equipment withstand. Installation details such as lead length and bonding paths can dominate real-world performance.
Voltage protection: verify setpoints and delays against equipment tolerances and ride-through expectations.
Standards families vary by market and specification. The practical approach is to specify devices that are certified/listed to the applicable standard for the jurisdiction and then validate ratings against the actual system conditions.
Recommended Circuit Protection Solutions for Different Applications
Residential Electrical Systems
A common residential approach is:
Branch overcurrent protection: MCBs or equivalent breakers sized to conductors and loads.
Shock/leakage protection: RCCB/RCD protection where required, or RCBOs for critical circuits to reduce the blast radius of a single fault.
Arc-fault protection: AFCI/AFDD where required or where fire risk is elevated.
Surge protection: a Type 2 SPD at the main panel plus point-of-use protection for sensitive electronics where needed.
Optional voltage protection: useful where the supply is unstable or neutral faults are a known risk.
Commercial Buildings
Commercial systems often benefit from selective coordination:
Feeder protection: MCCBs at distribution boards with appropriate settings.
Branch protection: MCBs or RCBOs on final circuits.
Residual-current protection: applied selectively to circuits with higher personnel exposure or where specifications require it.
Surge protection: Type 1/Type 2 SPD coordination depending on service entrance exposure, plus local protection for automation, BMS, and IT loads.
Voltage protection: applied where equipment is sensitive (controls, elevators, refrigeration controllers).
Industrial Facilities
Industrial designs typically optimize uptime and maintainability:
Main and feeder protection: MCCBs with documented trip settings, and a coordination study where warranted.
Motor and drive protection: appropriate branch protection for motor feeders, considering inrush and starting method.
Residual-current protection: used carefully to avoid unnecessary trips, often applied to circuits where personnel exposure is high.
Surge protection: robust SPDs for power distribution and separate attention to control/communication circuits where applicable.
Voltage protection and monitoring: used where process stability depends on supply quality.
Solar PV Systems
PV systems introduce DC circuits and inverter interfaces:
DC string protection: fuses or DC-rated breakers sized for string current and fault contribution.
Isolation and disconnect: DC isolators/disconnects where required for maintenance and safety.
Surge protection: SPDs on the DC side (combiner/inverter input) and on the AC side (inverter output and distribution) based on exposure.
Residual current considerations: inverter leakage characteristics and RCD/RCBO selection must match the expected waveform and system topology.
EV Charging Stations
EVSE adds high-power electronics and frequent load variation:
Overcurrent protection: branch and feeder devices sized for continuous duty, considering diversity and thermal environment.
Residual-current protection: commonly required to mitigate shock risk; device selection must align with the charger’s leakage characteristics.
Surge protection: SPDs to protect power electronics and communication/control subsystems.
Voltage protection: helpful where grid swells/sags are common and can cause charger faults or downtime.
Summarizes typical layering by application.
Application | Typical baseline stack | Notes |
|---|---|---|
Residential | MCB/RCBO + RCD where needed + AFCI/AFDD where needed + SPD | Emphasize circuit-level discrimination to reduce nuisance impact |
Commercial | MCCB (feeders) + MCB/RCBO (branches) + SPD + selective RCD | Coordination and maintainability are central |
Industrial | MCCB with settings + tailored branch protection + SPD + monitoring | Avoid nuisance trips by matching curves and leakage strategy |
Solar PV | DC fuses/breakers + disconnects + DC/AC SPDs + suitable RCD strategy | Pay attention to DC ratings and grounding topology |
EVSE | Feeder/branch OCPD + suitable residual-current protection + SPD | Continuous loading and power electronics drive the selection |
Frequently Asked Questions About Circuit Protection Devices
What Is the Most Common Circuit Protection Device?
In most low-voltage installations, the most common circuit protection device is the branch circuit breaker providing overcurrent protection. In US residential panels this is typically a thermal-magnetic breaker, while commercial and industrial boards often add molded case breakers at higher currents. Fuses remain common in specific equipment and DC circuits.
Is a Surge Protection Device a Circuit Protection Device?
A surge protection device is a protection device, but it is not an overcurrent protective device. It limits transient overvoltage by clamping voltage and diverting surge current to the grounding system during lightning or switching events. It does not protect against overloads or short circuits, and it is not intended to disconnect a circuit during normal-frequency faults.
Do I Need Both an SPD and an RCCB?
Often, yes, because they address different hazards. An RCCB trips on residual current to reduce shock risk and mitigate leakage-related fire hazards. An SPD clamps fast transient overvoltages and diverts impulse energy to ground to protect equipment. An RCCB cannot stop a surge, and an SPD cannot detect leakage.
Can One Device Protect Against All Electrical Faults?
No single low-voltage device covers every fault mechanism because detection principles differ. Overcurrent devices respond to high current, residual-current devices respond to imbalance, and arc-fault devices look for waveform signatures. SPDs clamp short transients, while voltage protectors respond to sustained abnormal voltage.
Which Circuit Protection Device Is Best for Home Use?
For typical homes, start with branch circuit breakers sized to protect the wiring against overloads and short circuits. Add residual-current protection where required or where shock risk is higher, and consider circuit-level RCBOs to reduce the impact of a single fault. Where mandated, AFCI or AFDD protection improves fire safety by detecting arc faults.
