What Is a Type 3 SPD (Class III SPD)? The Final Layer of Surge Protection
A Type 3 SPD is a Surge Protective Device designed to act as the final layer of protection for sensitive electronic equipment, capturing residual voltage and low-energy transient surges that remain after upstream protection. These devices are also referred to as Class III SPDs under IEC 61643-11, indicating their role in point-of-use protection.
Type 3 SPDs are installed downstream of Type 1 and Type 2 SPDs and should be placed as close as possible to the equipment they protect. Unlike upstream devices that handle high-energy surges from lightning or switching events, Type 3 SPDs are optimized to suppress low-level transients that could degrade or damage sensitive electronics over time.

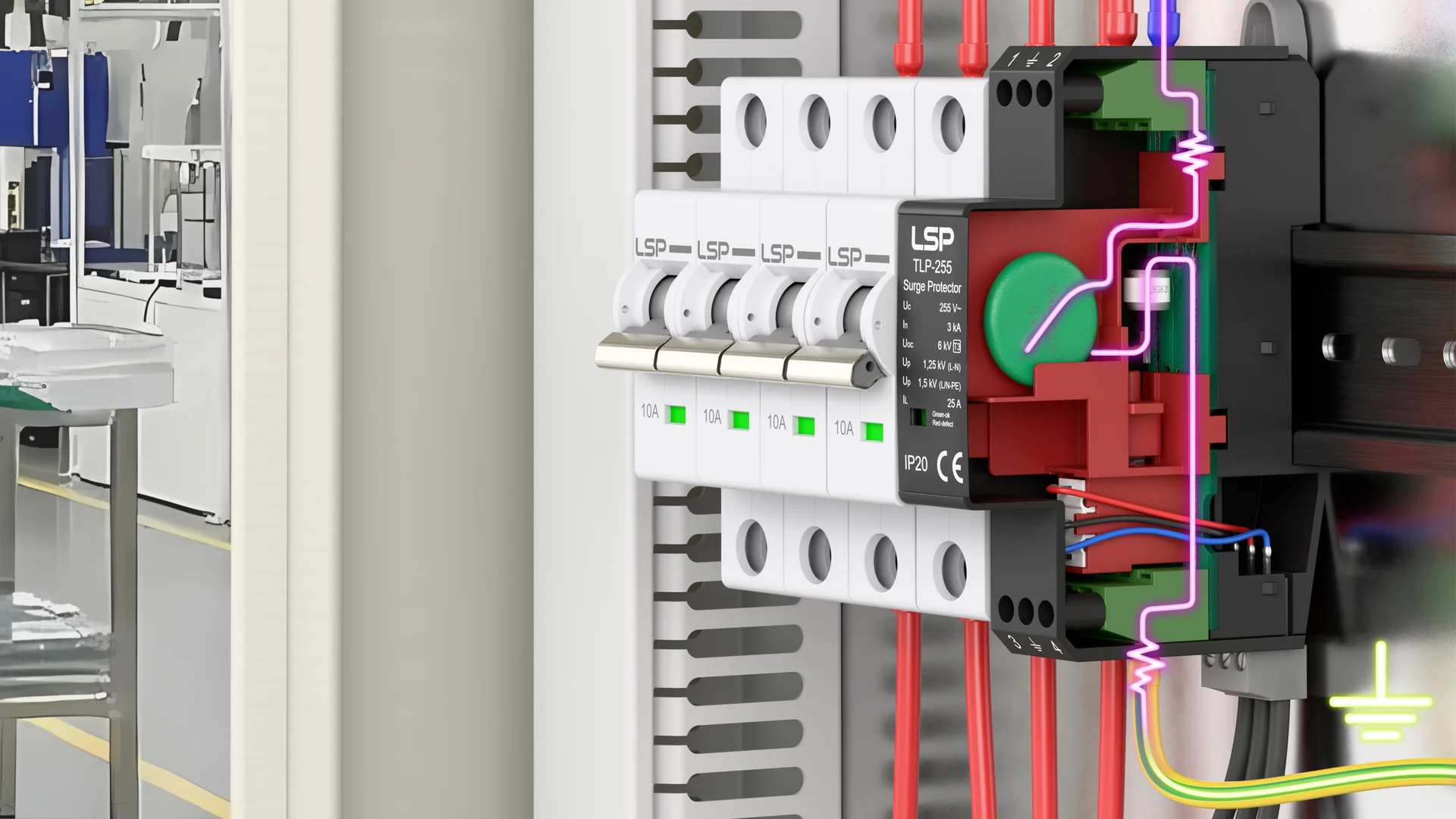

How Type 3 SPDs Work: Clamping Residual Surges at the Device Level
Core Protection Components: MOV, GDT and TVS
Type 3 SPDs rely on non-linear components such as Metal Oxide Varistors (MOVs), Gas Discharge Tubes (GDTs), and sometimes Silicon Avalanche Diodes (SADs). These components maintain high impedance under normal operating voltage, allowing almost no current to flow. When the voltage exceeds the clamping voltage (Up), their impedance drops rapidly, creating a safe path for the surge current to reach protective earth or neutral conductors.
MOVs are widely used for their fast response, good clamping performance, and cost-efficiency. SADs are applied when tighter voltage clamping is required, while GDTs may be combined in hybrid designs to enhance surge endurance despite slower response times.
Residual Surge Clamping and Fast Device-Level Protection
A Type 3 SPD is specifically designed to handle residual and low-energy surges that remain after upstream protection. These surges are small but can gradually degrade or instantly damage sensitive electronics if left unchecked. The SPD responds extremely fast—typically within nanoseconds to microseconds—to redirect harmful surges, ensuring device-level protection.
The clamping voltage (Up) determines when the SPD activates, limiting the voltage seen by the equipment. Type 3 SPDs operate non-mechanically, without mechanical switches, creating a low-resistance path that safely diverts surge currents and clamps voltage to protect sensitive devices.
Layered Surge Protection Strategy: Coordinating Type 1, Type 2 and Type 3
Effective surge protection depends on a layered approach with SPDs at each level of the electrical system. By strategically placing Type 1, Type 2, and Type 3 SPDs, sensitive electronics are shielded from high-energy lightning surges down to low-energy residual transients at the device level.
Roles of Type 1, Type 2 and Type 3 SPDs in a Layered System
Type 1 SPDs at the service entrance handle high-energy external surges, safely diverting massive currents to ground as the first line of defense. Type 2 SPDs in distribution boards absorb residual surges that bypass Type 1 or are generated internally by switching operations, acting as the second line of defense. Type 3 Surge Protectors, installed near sensitive equipment, clamp low-energy surges, providing the final layer of protection against degradation, malfunction, or failure of valuable electronics.
A properly layered SPD system ensures that the heaviest energy is intercepted at the service entrance, intermediate surges are suppressed at distribution boards, and the most sensitive devices receive fine-tuned protection at the point of use. Without this coordination, even minor surges could compromise critical systems, highlighting the necessity of a multi-layered surge protection strategy.

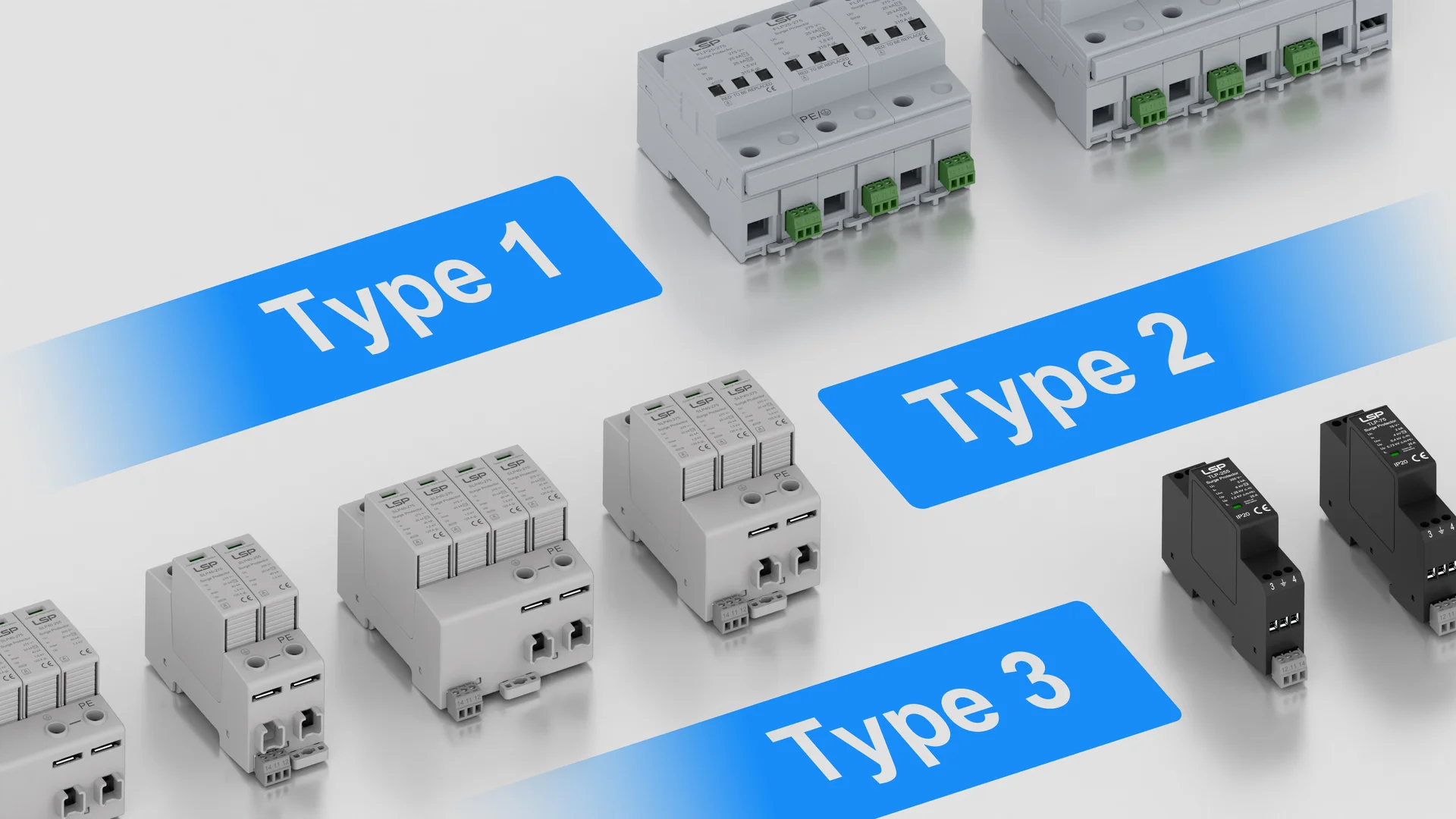

Type 1 vs. Type 2 vs. Type 3: Key Differences
| Feature | Type 1 SPD | Type 2 SPD | Type 3 SPD |
| Installation | Service entrance, main distribution board | Sub-distribution board, branch panel | Adjacent to sensitive equipment |
| Primary Purpose | Divert high-energy external surges | Divert residual external & internal surges | Protect sensitive equipment from residual/internal surges |
| Surge Capacity | High (10/350 μs waveform) | Moderate (8/20 μs waveform) | Low (8/20 μs & 12/3.5 µs waveform combination) |
| Energy Handling | Highest | Moderate | Lowest |
| Let-Through Voltage (Up) | Higher than Type 2/3 | Lower than Type 1, higher than Type 3 | Lowest (optimized for equipment) |
| Role in System | First line of defense | Second line, main workhorse for internal surges | Last line, fine protection at point-of-use |
Type 1 SPDs are designed to absorb direct lightning energy, Type 2 SPDs manage internal surges and residual peaks, and Type 3 SPDs provide fine, device-level protection. Understanding these differences is crucial for designing a coordinated surge protection system that prevents equipment damage or fire hazards.
Installation & Best Practices for Type 3 SPDs at the Point of Use
Proper installation is critical for Type 3 SPDs to function effectively at the device level. Correct placement, minimal wiring, and reliable grounding ensure that residual and low-energy surges are clamped before reaching sensitive electronics.
Best Practices for Point-of-Use Installation of Type 3 SPDs
Point-of-Use Placement: Install Type 3 SPDs as close as possible to the equipment they protect. Ideal locations include distribution boards near critical circuits, equipment enclosures, or directly integrated into device power cords. This ensures the shortest path for residual surges, maximizing protective performance.
Minimizing Lead Length and Proper Grounding: Short wiring reduces voltage spikes caused by inductance. Ensure a direct and unobstructed connection to the earth ground. Avoid unnecessary bends and loops in wiring to safely divert surge currents away from sensitive equipment.
Form Factors for Device-Level Protection: Type 3 Surge Protectors come in various formats to suit different applications:
- Plug-in surge-protecting power strips
- Wall-mounted outlets with integrated surge protection
- Hard-wired modules for custom setups
- DIN rail-mounted SPDs for industrial control panels
Common Mistakes to Avoid:
- Installing the SPD far from the equipment
- Using excessively long leads
- Poor or missing grounding
Best Practice Summary: Install Type 3 SPDs near sensitive loads, use minimal wiring, and ensure reliable grounding to safeguard electronics against residual surges effectively.
Common Installation Locations and Typical Use Cases
| Installation Location | Description | Typical Usage |
| Electrical Panels or Distribution Boards | Installed inside distribution boards closer to the point of use, providing localized surge protection for specific circuits or zones | Critical circuits in commercial or industrial environments, such as those powering sensitive machinery or essential systems |
| Equipment Enclosures or Control Panels | Installed inside equipment enclosures or control panels to protect multiple devices without covering the entire system | Industrial machinery, HVAC systems, automated production lines, and control systems |
| Power Cords of Sensitive Equipment | Integrated directly into the power cords of devices, offering surge protection at the device level | Electronics requiring precise, point-specific protection, such as medical equipment, servers, and networking hardware |
Typical Applications of Type 3 SPDs in Home, Commercial and Industrial Systems
Type 3 SPDs are essential for protecting sensitive and expensive electronics that can be damaged by even low-level surges. From home devices to industrial control systems, these SPDs act as the last line of defense, clamping residual voltage before it reaches critical components.
- Computing Equipment: Personal computers, laptops, servers, monitors, and peripherals rely on sensitive semiconductors. Surges can corrupt data, disable devices, or degrade performance over time.
- Audio and Visual Equipment: Smart TVs, gaming consoles, and media players require precise digital circuitry; surges can impair quality or disable devices.
- Networking Gear: Routers, switches, and NAS devices are crucial for data connectivity; surges can cause downtime or data loss.
- Smart Home Devices: Lighting systems, thermostats, security cameras, and voice assistants contain fragile electronics sensitive to voltage spikes.
- Medical Equipment: Life-saving monitors, diagnostic machines, and laboratory units must be continuously operational; Type 3 SPD is mandatory.
- Industrial Control Systems: PLCs, sensors, and HMIs can suffer unscheduled downtime and equipment damage without residual surge protection.
- Telecommunications Equipment: Phone systems, fax machines, and other communication devices are vulnerable to power line surges.
Type 3 SPD Selection and Key Ratings
Understanding the key electrical ratings of a Type 3 SPD is crucial for effective point-of-use protection. Important parameters include the maximum continuous operating voltage (Uc), the nominal discharge current (In), and the voltage protection level (Up). These devices follow IEC 61643-11 Class III standards, ensuring suitability for downstream sensitive electronics.
When selecting a Type 3 Surge Protector, consider the equipment’s voltage rating, the expected residual surges, and the installation environment. Choose a device with a Up rating lower than the equipment’s maximum voltage tolerance and ensure its In rating can handle expected residual currents. Proper selection maximizes protection while avoiding over-specification.
For point-of-use protection, plug-in or wall-mounted SPDs are usually sufficient for home and commercial electronics, while hard-wired or DIN rail-mounted SPDs may be needed for sensitive industrial or medical equipment.
Protection at the equipment level is as important as upstream protection. Type 3 Surge Protectors intercept residual and internally generated surges that could damage delicate electronics, and installing them close to the load ensures effective clamping and reduces risks from wiring inductance and overshoot.
A Type 3 SPD is only effective if well designed. Poorly constructed or uncertified devices can fail under overload or lack thermal protection, creating fire hazards. High-quality SPDs include thermal disconnects, status indicators, and components meeting international standards.
Selecting the right product is crucial. Properly designed Type 3 SPDs provide reliable, long-term equipment-level protection, fitting into multi-tiered systems and maintaining consistent clamping performance for sensitive electronics and industrial controls.
Why Choose LSP Type 3 SPDs for Sensitive Equipment Protection
LSP Type 3 SPDs provide effective point-of-use protection for sensitive electronic equipment. With over a decade of manufacturing experience and exports to multiple countries, LSP Type 3 SPDs are compliant with IEC 61643-11 Class III standards and are intended to manage residual surges that upstream protection may not fully suppress.
Components of LSP Type 3 SPDs, including LKD MOVs, Vactech GDTs, flame-retardant housings, and durable metal terminals, are selected to ensure consistent clamping performance. Built-in thermal disconnectors and status indicators facilitate safe operation and provide clear alerts when replacement is required, reducing the risk of equipment downtime caused by surge events.
For point-of-use protection in commercial, industrial, or medical environments, LSP Type 3 SPDs can be installed near sensitive equipment to minimize lead length and wiring inductance, providing reliable residual surge suppression. Their design supports integration into multi-tiered surge protection systems, complementing upstream Type 1 and Type 2 SPDs for comprehensive protection.
LSP also provides technical support and service options, including standard lead times, customized solutions, and post-sale assistance, enabling engineers and facility managers to implement reliable surge protection strategies for sensitive electronics and critical industrial or medical systems.
FAQ: Common Questions About Type 3 SPDs
Why Does My Sensitive Equipment Need a Type 3 SPD?
A Type 3 SPD acts as the final stage of a cascade protection system, downstream of Type 1 and Type 2 SPDs, ensuring that any residual surges are clamped before reaching sensitive electronics. This provides point-of-use protection against low-energy transient overvoltages.
Can a Type 3 SPD Be Used Alone Without Type 1 or Type 2 SPDs?
No. A Type 3 Surge Protector must not be used alone. According to IEC 61643-11, Class III SPDs are designed to operate only as part of a coordinated surge protection system, working downstream of Type 1 and/or Type 2 SPDs to handle residual surges.
What Is the Difference Between Type 2 SPD and Type 3 SPD?
The main difference lies in installation location, energy handling capability, and protection purpose.
- Type 2 SPD protects distribution circuits from induced surges.
- Type 3 SPD provides point-of-use protection for sensitive electronics against low-energy residual surges.
Where Should a Type 3 SPD Be Installed for Effective Protection?
A Type 3 SPD should be installed as close as possible to the equipment being protected, such as at socket outlets, power strips, or directly inside terminal equipment. Short lead length and proper grounding are essential to ensure low residual voltage.
Does a Type 3 SPD Protect Against Direct Lightning Strikes?
No. A Type 3 Surge Protector is not designed to handle direct lightning currents. It protects equipment only from residual surges after high-energy lightning currents have been diverted by Type 1 and Type 2 SPDs.
How Do I Select the Right Type 3 SPD for Sensitive Equipment?
To select a suitable Type 3 SPD, ensure it:
- Complies with IEC 61643-11 Standard
- Matches the system voltage (Uc)
- Has a low voltage protection level (Up)
- Is coordinated with upstream Type 1 and Type 2 SPDs
How Do I Know When a Type 3 SPD Needs Replacement or Maintenance?
Most Type 3 SPDs include status indicators showing operational condition. If the indicator signals failure or if the device has experienced repeated surge events, inspection and replacement are recommended to maintain reliable protection.
