Introduction: The Last Line of Defense for Sensitive Electronics
Role of Type 3 SPD in Point-of-Use Protection
A Type 3 SPD acts as the final shield for your sensitive electronics. Unlike upstream protectors, you install this device at the point-of-use, close to equipment like computers, TVs, and smart appliances. This proximity ensures a fast response and superior clamping voltage performance. By diverting any remaining overvoltage directly at the terminal, it prevents hardware failure caused by lightning surges or internal switching events. Understanding core parameters like In, Imax, Up, and Uoc is essential to ensure your electronics remain safe from damaging transients.
Why Upstream Type 1 and Type 2 Devices Cannot Fully Protect Delicate Circuits
In a multi-stage surge protection system, Type 1 and Type 2 SPD devices handle the bulk of high-energy surges at the service entrance. However, they often leave behind residual overvoltage that can still damage delicate components. To optimize protection, a Type 3 SPD should be placed at least 10 meters away from the main distribution panel. This distance allows the system to dissipate residual surge energy more effectively through coordination. Without this final layer, your most valuable devices remain vulnerable to the leftover transients that bypass upstream stages.
Core Parameters Demystified: In, Imax, Up & Uoc
Current Ratings: Nominal (In) vs. Maximum (Imax)
The discharge capacity of a Type 3 SPD defines its durability and survival limit. The nominal discharge current, or In, represents the level of surge current the device can handle repeatedly. Based on IEC standards, this is tested using 15 consecutive 8/20 µs impulses. A higher In value indicates a longer operational lifespan under frequent electrical disturbances. Conversely, the maximum discharge current, or Imax, defines the absolute peak surge the Type 3 SPD can withstand once without catastrophic failure. While In ensures long-term reliability, Imax protects against rare but extreme switching transients or residual lightning energy.
| Parameter | Waveform | Purpose |
| In (Nominal) | 8/20 µs | Determines operational lifespan and repeated reliability. |
| Imax (Maximum) | 8/20 µs | Indicates the ultimate survival limit for a single event. |
Voltage Protection: Level (Up) and Open Circuit (Uoc)
Voltage parameters determine how well a Type 3 SPD shields sensitive hardware. The voltage protection level, or Up, is the maximum let-through voltage allowed to reach the protected equipment. It is the most critical factor for equipment safety; a lower Up value provides superior clamping performance for delicate electronics. This is complemented by Uoc, or open circuit voltage, which represents the 6kV combination wave (1.2/50 µs) used during laboratory certification. While Uoc simulates the severity of real-world threats to verify device robustness, the Up rating is the actual “safety ceiling” for your electronics.
| SPD Type | Typical Up (Clamping Efficiency) | Application Strategy |
| Type 1 | Highest Let-through Voltage | Service Entrance / Main Panel |
| Type 2 | Medium Let-through Voltage | Distribution Boards |
| Type 3 | Lowest Let-through Voltage | Point-of-Use / Terminal Protection |
TYPE 3 SPD Performance Summary and Operational Monitoring
Selecting the right Type 3 SPD requires balancing these four parameters against your equipment sensitivity. While Up and Uoc ensure immediate voltage clamping, In and Imax guarantee the device stays functional over time. Note that environmental factors like temperature (-40°C to 80°C) should be maintained to ensure these ratings remain accurate.
How to Choose the Right Type 3 SPD for Your Application
Matching Voltage Protection to Equipment Sensitivity
To select the ideal Type 3 SPD, you must first evaluate the withstand voltage of your electronics. Sensitive devices like computers, data center servers, and industrial PLCs require a lower Up (voltage protection level) to ensure the clamping voltage remains below damaging thresholds. For home offices, moderate In and Imax ratings are usually sufficient. However, for industrial automation, prioritizing a device with a faster response time (measured in nanoseconds) and higher energy absorption capability is vital to safeguard mission-critical hardware from high-frequency transients.
Practical Selection Steps and System Compatibility
A successful installation depends on matching the Type 3 SPD to your specific electrical environment. Follow these practical selection tips:
- System Voltage: Ensure the nominal system voltage of the protector matches your power supply.
- Response Time: Choose a device with a fast response to protect delicate circuits from rapid voltage spikes.
- Installation Proximity: Always install the Type 3 SPD as close to the terminal equipment as possible. Keep lead lengths short and straight to minimize inductive voltage drops.
- Grounding: Verify that all equipment shares a single, low-resistance ground to help the device safely divert overcurrent.
Key Selection Parameters for Industrial and Residential Use
| Application Environment | Priority Parameter | Recommended Feature |
| Home Office / Residential | Up (Voltage Protection) | Low clamping voltage for TVs and PCs. |
| Data Centers / IT | Response Time & Uoc | High reliability and 6kV test robustness. |
| Industrial Automation | Energy Absorption & In | High repetitive surge handling for PLCs. |
Coordinated Protection System and the 10m Rule
Achieving Effective Coordination with Type 2 SPDs
A Type 3 SPD should never be used as the sole protection for a building. It is designed to work as the final layer in a coordinated system alongside Type 1 and Type 2 devices. Effective coordination ensures that high-energy surges are handled at the service entrance, while the Type 3 SPD manages the residual overvoltage near the terminal equipment. This cascading approach prevents the fine protection stages from being overwhelmed by massive energy spikes, ensuring a safer clamping voltage for sensitive electronics.
SPD Installation demand: Decoupling with the 10m Cable Rule
To ensure a coordinated protection system functions correctly, a minimum cable length of 10 meters is required between the upstream Type 2 protector and the Type 3 SPD. This distance provides the necessary inductive impedance to decouple the two stages. Without this specific installation proximity, the Type 3 SPD might trigger too early, attempting to handle high-energy surges meant for the larger Type 2 device. Proper decoupling allows each stage to manage its designated surge level, effectively reducing residual overvoltage and ensuring a safe clamping voltage for terminal electronics.
Practical Selection: DIN-rail, Socket-type, and Built-in Modules
Selecting the Right Form Factor for Industrial vs. Residential Use
The physical design of a Type 3 SPD is tailored to its specific installation environment. For industrial automation, DIN-rail mounted protectors are the standard, offering a secure fit within control cabinets to protect sensitive PLCs and sensors. In contrast, residential and commercial applications often utilize socket-type modules or plug-in protectors designed for power strips to shield home office electronics. For specialized equipment like LED drivers or security cameras, built-in modules provide a compact solution that can be integrated directly into the device housing. Each form factor ensures the clamping voltage remains at a safe level for terminal hardware.
Importance of Proximity and Short Lead Lengths for Optimal Protection
To achieve the best protection, a Type 3 SPD must be installed with strict attention to proximity. The device should be as close to the terminal equipment as possible to minimize the inductive voltage drop across the connecting wires. Long or coiled leads can significantly increase the let-through voltage during a fast transient, potentially bypassing the protective benefits of a low Up rating. By keeping leads short and straight, you ensure the Type 3 SPD responds instantly to manage residual overvoltage, effectively bridging the gap between the distribution panel and the delicate electronic load.
Reliability in Surge Protection: LSP Type 3 SPD Solutions
As a leading manufacturer, LSP specializes in engineering a Type 3 SPD that delivers superior energy absorption for sensitive environments. By utilizing premium Metal Oxide Varistor (MOV) materials, these devices provide a reliable clamping voltage to shield microprocessors from rapid transients. The robust internal design ensures the Type 3 SPD maintains protective integrity even after repeated surges, minimizing downtime in critical industrial and data center applications.

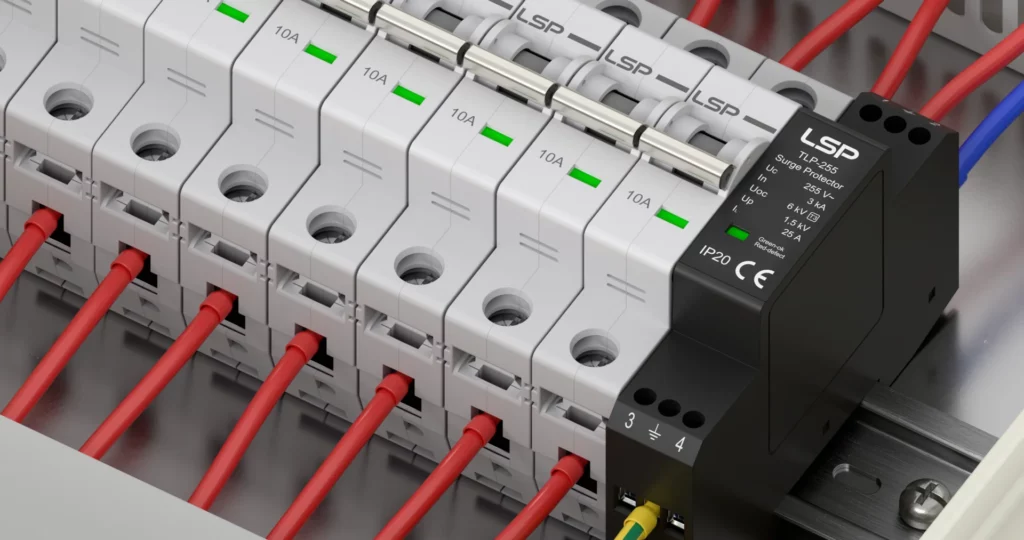

LSP provides a versatile range of Type 3 SPD solutions, including DIN-rail modules optimized for space-constrained installations in distribution boards or terminal boxes. These units are designed to meet international standards such as IEC 61643-11 and EN 61643-11. Such compliance ensures that In, Imax, and Up ratings are strictly verified, giving engineers confidence that their terminal protection systems align with global safety and performance requirements.
FAQ: Addressing Common Questions on Type 3 SPD Performance
Can a Type 3 SPD be used alone without Type 1 or Type 2 protection?
No. A Type 3 SPD is a point-of-use protector designed for residual overvoltage. It lacks the capacity to handle direct lightning strikes. It must work within a coordinated protection system where Type 1 or 2 devices manage the initial high-energy surge.
How does a Type 3 SPD manage residual energy and clamping voltage?
A Type 3 SPD dissipates the residual energy that bypasses upstream stages. Its primary role is to maintain a low clamping voltage, keeping transient overvoltage below the withstand voltage of sensitive electronics to prevent insulation breakdown.
Why is a 10m cable length required for effective Type 3 SPD decoupling?
The 10-meter rule provides the inductive impedance necessary for decoupling. This ensures the upstream device triggers first. Without this distance, the Type 3 SPD might be overwhelmed by overcurrent, leading to premature hardware failure.
Can a Type 3 SPD protect against internal switching transients and harmonics?
Yes. A Type 3 SPD is highly effective at filtering internal switching events. Its fast response time allows the Type 3 SPD to clamp voltage spikes and mitigate electrical disturbances or harmonics that degrade delicate circuits.
What happens if the Type 3 SPD maximum continuous operating voltage is exceeded?
Exceeding the maximum continuous operating voltage (Uc) causes the Type 3 SPD to overheat, potentially leading to thermal runaway. Factors like high humidity accelerate this degradation.
