What Is a Type 2 SPD and Why Is It Essential
A TYPE 2 SPD is the critical second line of defense against transient overvoltages in electrical systems, protecting downstream equipment from everyday surge events. Although electricity enables modern residential, commercial, and industrial operations, invisible voltage spikes continuously threaten sensitive electronics.
Power surges originate from both external and internal sources and are unavoidable in real-world installations. Nearby lightning activity can induce indirect surges, while routine events such as motor startups, HVAC operation, or load switching frequently generate internal transients that stress electrical systems over time.
To manage these risks effectively, a layered surge protection strategy is essential. Within this coordinated approach, Type 2 surge protective devices play a central role by limiting residual overvoltages that primary protection devices cannot fully suppress.
A TYPE 2 SPD is installed on the load side of the main service entrance, typically in main distribution boards and sub-distribution boards. From this location, it clamps transient overvoltages before they propagate to downstream circuits, appliances, and electronic equipment.
While Type 1 SPDs handle high-energy surges at the service entrance, they do not eliminate all voltage stress within the system. A TYPE 2 SPD attenuates the remaining surges, providing continuous protection against both externally induced and internally generated overvoltage events.
As electrical systems become increasingly dependent on sensitive electronics, deploying a TYPE 2 SPD is no longer optional. It improves system reliability, reduces equipment damage, and forms the backbone of effective surge protection in modern power distribution networks.
How a Type 2 SPD Works: Components & Protection Mechanism
A TYPE 2 SPD protects electrical systems primarily using Metal Oxide Varistors (MOVs), which respond to voltage spikes by changing their resistance. Under normal operating voltages, the MOV’s resistance is extremely high, allowing standard AC power to flow uninterrupted to connected devices with minimal energy loss.
When a transient overvoltage occurs, the surge exceeds the device’s clamping voltage. The MOV’s resistance drops almost instantly, creating a low-impedance path for the surge current. This diverts dangerous voltage spikes safely to the grounding system or neutral point, preventing damage to sensitive electronics such as microprocessors and control systems.
This rapid response mechanism ensures that the entire surge suppression sequence happens within billionths of a second, so harmful transients never reach critical distances within the electrical network. The TYPE 2 SPD effectively acts as a fast-acting valve, absorbing high surge currents over short periods while maintaining a safe voltage level, known as the Voltage Protection Level (Up).
By performing this cycle continuously, the TYPE 2 SPD protects residential, commercial, and industrial loads from both external lightning-induced surges and internal switching transients. Its combination of speed, low impedance during surges, and reliable return to high-impedance normal operation ensures electrical resilience across the entire distribution system.
Key Technical Parameters Explained (In, Imax, Uc, Up)
Understanding the key technical parameters of a TYPE 2 SPD is essential to selecting the right device for your electrical system. These parameters define how the SPD reacts to transient overvoltages, how much energy it can absorb, and how well it protects connected equipment.
Nominal Discharge Current (In) indicates the maximum surge current the SPD can handle repeatedly without damage. Maximum Discharge Current (Imax) defines the highest surge the device can withstand in a single event. Voltage Protection Level (Up or Voltage Protection Rating) represents the peak voltage allowed to pass to downstream circuits during a surge. Maximum Continuous Operating Voltage (Uc or MCOV) is the highest voltage the SPD can safely endure under normal operation without degradation.
The following table summarizes these critical parameters for typical residential and industrial applications:
| Parameter | Description | Typical Value / Range |
| Nominal Discharge Current (In) | Repeated surge current capacity | 20kA |
| Maximum Discharge Current (Imax) | Single-event surge tolerance | 40kA |
| Voltage Protection Level (Up) | Maximum let-through voltage | 1.5-2kV for 230/400V systems |
| Maximum Continuous Operating Voltage (Uc) | Maximum safe operating voltage | 275-440V |
Correctly interpreting these values ensures that a TYPE 2 SPD is capable of clamping harmful surges, protecting sensitive electronics, and maintaining a safe voltage level across your electrical system.
Where to Install a Type 2 SPD & Wiring Best Practices
Proper installation is critical for TYPE 2 SPD to provide effective surge protection against transient overvoltages and overvoltage events. Even high-quality SPDs fail if installed incorrectly. The primary installation location is the main distribution board (MDB) or panel directly after the main service entrance, protecting all downstream circuits. Secondary locations include sub-distribution boards serving critical loads or equipment prone to internal surges, such as large motors, HVAC systems, or variable frequency drives.
The TYPE 2 SPD should be mounted as close as possible to the bus bars or circuit breakers to minimize conductor length. Short, straight leads reduce impedance and maximize surge suppression effectiveness. Installation must be performed by a qualified electrician following standard lockout/tagout procedures. The SPD is connected in parallel with the circuits it protects, with line, neutral, and ground terminals wired according to manufacturer specifications and local electrical codes.
Key wiring best practices include using the proper wire gauge, ensuring a solid low-impedance ground connection, tightening connections to specified torque, and verifying status indicators after re-energizing. Following these steps ensures that the TYPE 2 SPD effectively protects sensitive electronics in residential, commercial, and industrial environments.
Quick Installation Checklist:
| Step | Recommendation |
| Location | Main distribution board; sub-panels for critical loads |
| Proximity | As close as possible to bus bars/circuit breakers |
| Wiring | Parallel connection; short, straight leads |
| Wire Gauge | Per SPD manufacturer and local code |
| Grounding | Robust low-impedance connection to building ground |
| Torque | Tighten to manufacturer’s specifications |
| Verification | Check SPD indicators after re-energizing |
How to Choose a Type 2 SPD: Type 1 vs Type 2 vs Type 3
Choosing the right Type 2 SPD is critical for a layered surge protection system. Each SPD type has a unique role: Type 1 at the service entrance handles high-energy external surges, Type 2 at distribution boards manages residual and internal surges, and Type 3 provides final protection for sensitive devices. Coordinating these devices ensures comprehensive defense against transient overvoltages in residential, commercial, and industrial systems.
SPD Coordination Rules
- Type 1 SPD: Installed at the service entrance (line side, before main breaker) to absorb high-energy external surges like lightning strikes.
- Type 2 SPD: Installed downstream (after main breaker) in main or sub-distribution panels to suppress residual surges from Type 1 and handle internal switching events.
- Type 3 SPD: Installed near sensitive devices (appliances, computers, or power strips) for point-of-use protection, filtering noise and clamping small surges.
Key SPD Selection Considerations
- Voltage Protection Level (Up) must match the hierarchy: Type 1 (highest), Type 2 (medium), Type 3 (lowest).

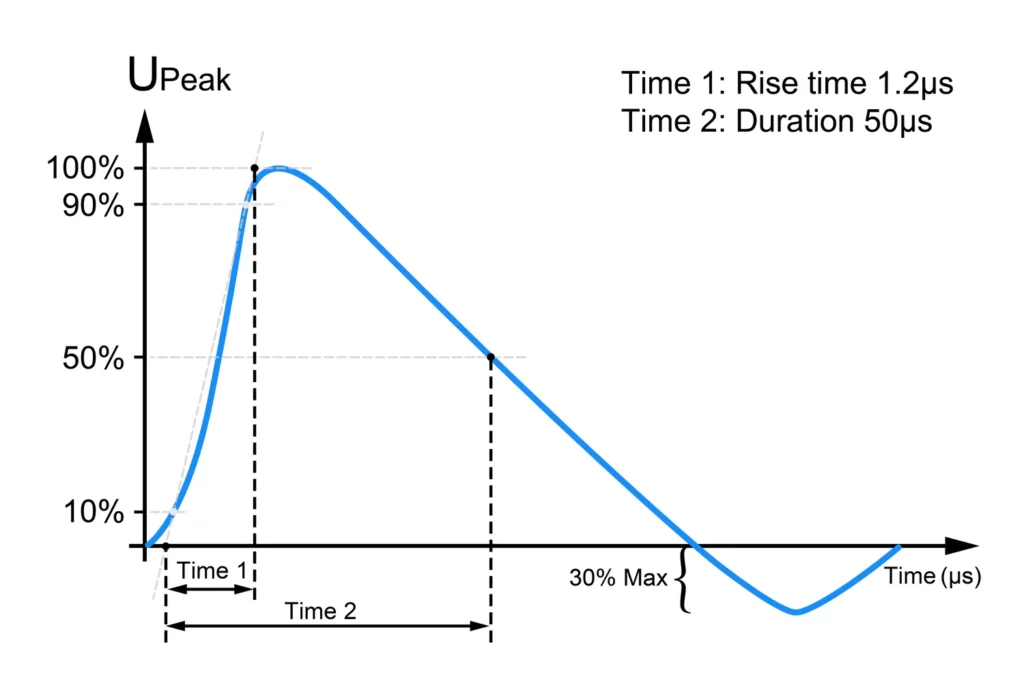

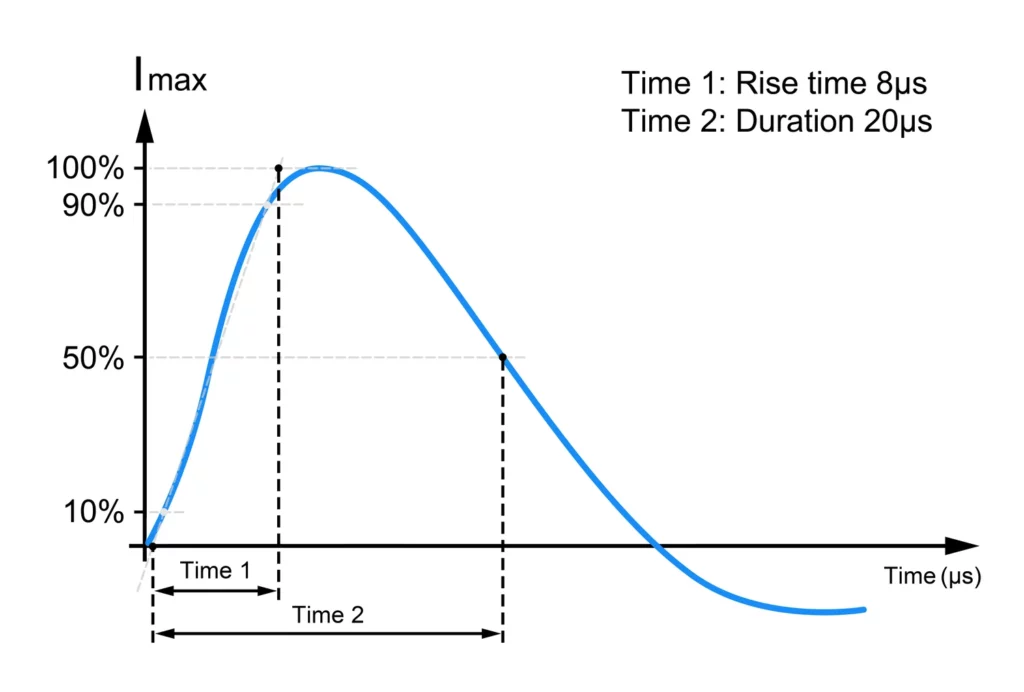

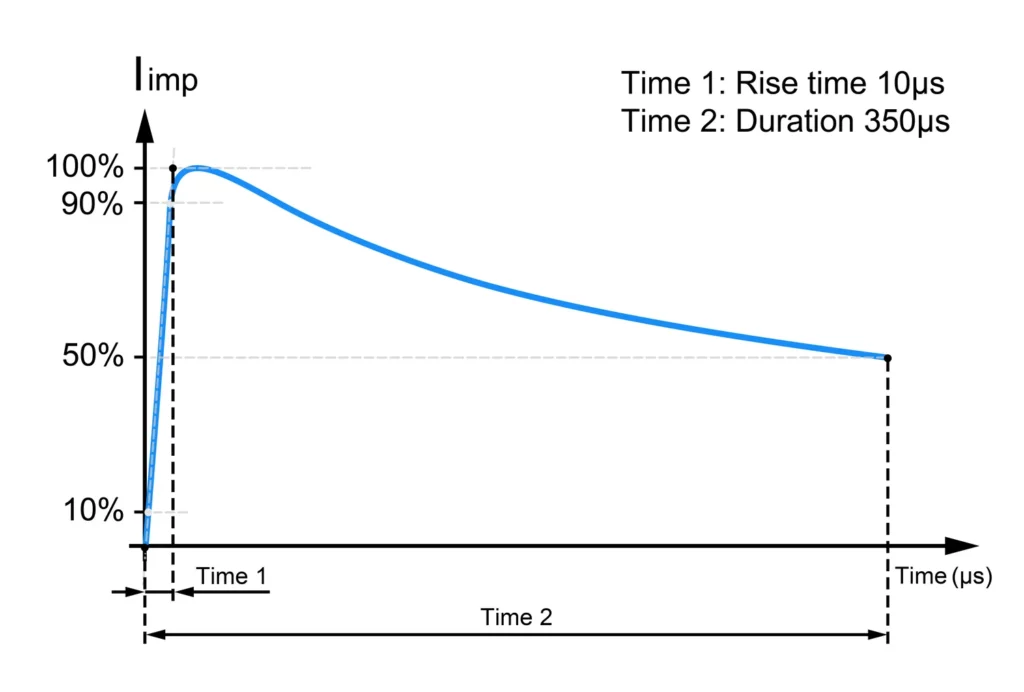

- Test Waveform differs: Type 1 uses 10/350µs, Type 2 8/20µs, Type 3 combination of 1.2/50µs & 8/20µs.
- System Type: Residential, commercial, and industrial networks have varying surge exposure and coordination needs.
- Compliance with IEC 61643-11 ensures that Type 2 SPD coordinates with upstream Type 1 and downstream Type 3 devices for optimal surge suppression.
SPD Type Comparison Table
| Feature | Type 1 SPD | Type 2 SPD | Type 3 SPD |
| Location | Service entrance (line side, before main breaker); integrated in switchgear | After main breaker (load side); main or sub-distribution panels | Point of use; close to sensitive devices (appliances, computers) |
| Primary Function | Protects against high-energy external surges (lightning strikes) | Protects against residual and internal surges from machinery or switching events | Final point-of-use protection; filters noise and clamps small surges |
| Voltage Protection Level (Up) | Highest | Medium | Lowest |
| Test Waveform | 10/350µs impulse current (Iimp) | 8/20µs nominal discharge current (In) | 1.2/50µs & 8/20µs combination |
| Installation Note | Must handle large surge energy | Must coordinate with Type 1 & Type 3 for layered protection | Must be within 10 m (30 ft) of upstream Type 2 SPD for effective protection |
Choosing the right SPD type and following IEC 61643-11 standards ensures a reliable, layered surge protection strategy. Type 2 SPD is the backbone, bridging service entrance protection and point-of-use devices to prevent equipment damage and reduce costly downtime.
Type 2 SPD Applications: Residential, Commercial & Industrial Systems
Implementing a TYPE 2 SPD is more than just installing a device-it is a strategic investment in surge protection, electrical safety, and business continuity. TYPE 2 SPD safeguards sensitive electronics, minimizes downtime, and extends the lifespan of equipment in residential, commercial, and industrial environments.
Key Benefits of Type 2 SPD:
- Protection of Sensitive Electronics: Computers, servers, PLCs, smart appliances, and LED lighting rely on microprocessors that are highly vulnerable to transient overvoltages. TYPE 2 SPD prevents damage before it occurs.
- Prevention of Downtime: By mitigating internal and external surges, TYPE 2 SPD reduces service interruptions, data loss, and equipment failures.
- Reduced Maintenance & Replacement Costs: Devices damaged by uncontrolled surges are costly to repair or replace. Investing in TYPE 2 SPD is more economical over time.
- Enhanced Safety: Surge currents are safely diverted to ground, preventing hazards to control equipment and personnel.
- Counteracting Internal Surges: Internal events, such as motor starts or HVAC cycling, create spikes that Type 1 SPDs cannot handle. TYPE 2 SPD effectively clamps these surges.
- Compliance and Best Practice: Installing TYPE 2 SPD aligns with industry standards, building codes, and insurance requirements, increasingly becoming a recommended or mandatory practice.
- Peace of Mind: Owners, facility managers, and homeowners gain confidence knowing that critical electrical systems are protected.
Overall, TYPE 2 SPD ensures reliable surge suppression, maintains equipment functionality, and safeguards both infrastructure and personnel against transient overvoltages.
Why Choose LSP Type 2 SPD?
LSP offers high-quality TYPE 2 SPD solutions designed to protect residential, commercial, and industrial electrical systems from both external and internal surges. Our SPDs are engineered for reliability, performance, and compliance with IEC 61643-11 international standards.
Key Advantages of LSP Type 2 SPD:
- Advanced Protection: Safeguards sensitive electronics from transient overvoltages and internal surges.
- High Discharge Capacity: Uses premium Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs) to absorb large surge currents.
- Flexible Applications: Suitable for sub-distribution boards, string boxes, inverters, and other critical points.
- Compliance & Certification: TUV, CE, and CB certified, ensuring adherence to global safety standards.
- Robust Design: Pluggable enclosures, moisture- and surge-resistant construction, and internal disconnection devices enhance durability.
- Customizable Options: Available in single-phase, three-phase, and DC PV models with specifications to fit specific system requirements.
- Warranty & Support: 5-year product warranty reflects confidence in long-term reliability.

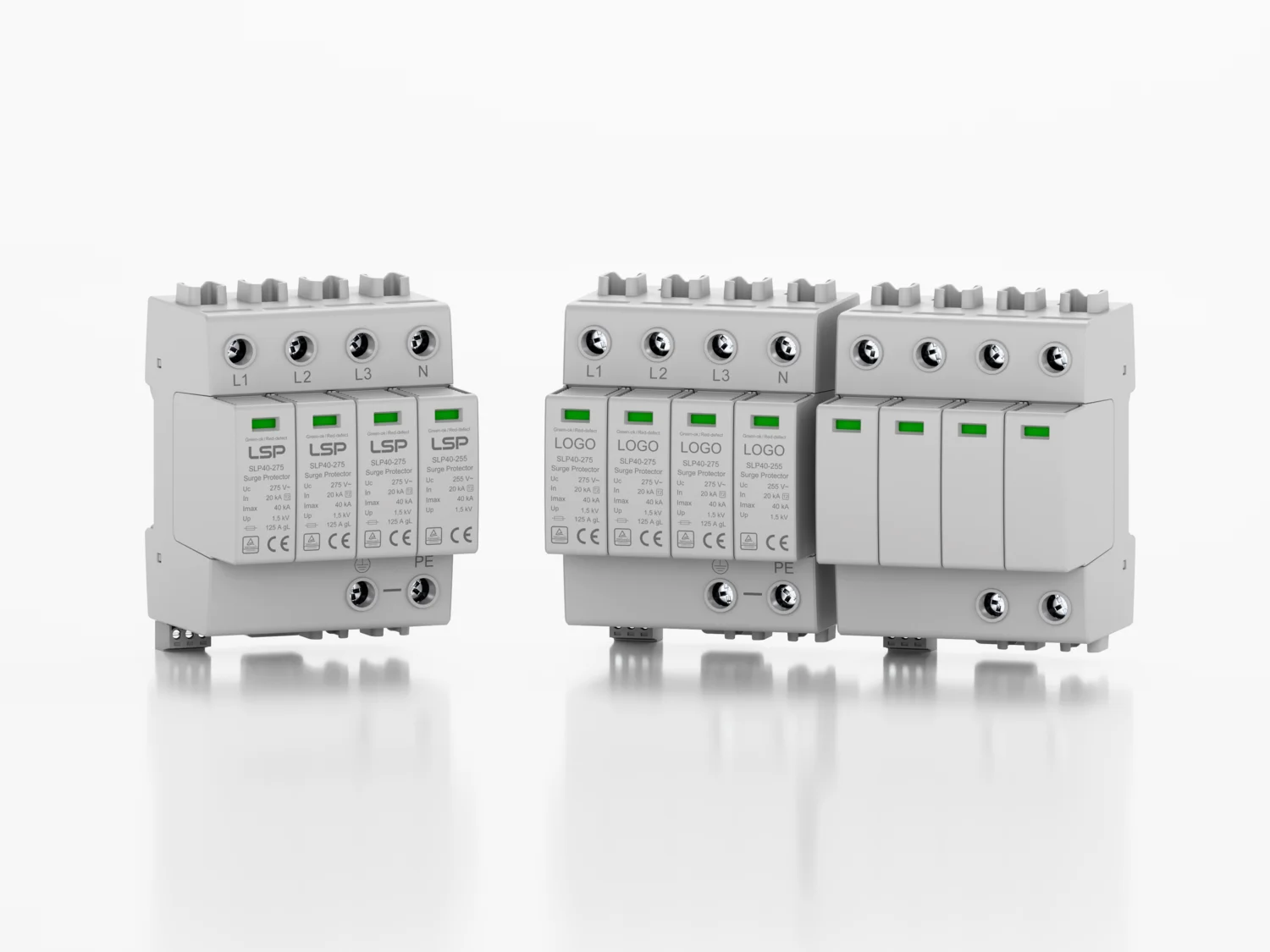

LSP Type 2 SPD Specifications at a Glance:
| Device | Phase / Voltage | Nominal Discharge Current (In) | Max Discharge Current (Imax) | Protection Level (Up) | Key Features |
| SLP40-275/1S | Single-phase 230V | 20kA | 40kA | 1.5kV | MOV, Pluggable, TUV/CE/CB |
| SLP40-275/3S | Three-phase 230V | 20kA | 40kA | 1.5kV | MOV, Pluggable, TUV/CE/CB |
| SLP-PV1000-S | DC PV 1000V | 20kA | 40kA | 4kV | MOV, DIN rail, Pluggable, IEC/EN 61643-31 |
Implementing LSP TYPE 2 SPD is not optional—it is essential for extending equipment life, preventing downtime, and maintaining electrical safety across your facilities. Our devices bridge the protection gap between service entrance SPDs (Type 1) and point-of-use SPDs (Type 3), forming the backbone of a well-coordinated surge protection strategy.
FAQ: Type 2 SPD Selection, Installation & Compliance
Can a Type 2 SPD be used as the main surge protector?
A TYPE 2 SPD is primarily a secondary protector in a layered strategy. It handles residual surges and internal transients but should be coordinated with a Type 1 SPD at the service entrance for full system protection.
What is the difference between In and Imax in Type 2 SPD?
The Nominal Discharge Current (In) shows the repeated surge capacity a TYPE 2 SPD can handle safely. Imax is the maximum surge it can absorb in extreme events. Both ensure reliable surge suppression for residential, commercial, and industrial systems.
Does Type 2 SPD require a dedicated circuit breaker?
Yes, TYPE 2 SPD should be protected by a dedicated circuit breaker or fuse. This ensures safe operation during surges and compliance with IEC 61643-11 standards.
How often should a Type 2 SPD be replaced?
Replacement depends on exposure to surges and In rating. Residential SPDs may last 5-10 years, industrial systems may require earlier replacement. Regular checks of status indicators are recommended.
Can a Type 2 SPD protect against both internal and external surges?
Yes, TYPE 2 SPD attenuates residual external surges from Type 1 SPD and suppresses internal surges from equipment cycling or switching, ensuring comprehensive protection.
Why is Type 2 SPD essential in modern electrical systems?
A TYPE 2 SPD forms the backbone of layered surge protection, bridging service entrance and point-of-use devices. It extends equipment life, prevents downtime, enhances safety, and aligns with industry standards.
