You rely on your type 1+2+3 surge protection to keep your equipment safe from lightning surge and electrical disturbances. Neglecting care can lead to hidden damage, reduced reliability, and unexpected failures. Regular maintenance forms the foundation of a strong surge protection strategy. When you schedule routine inspections, monitor performance, and check for signs of wear like burn marks or cracks, you help prolong your device’s lifespan and ensure it continues to clamp the overvoltage or divert the overcurrent to the grounding system. Always choose certified devices and adopt a consistent inspection and cleaning routine.
Key Takeaways
Regular maintenance is crucial for surge protection devices. Schedule monthly visual inspections to catch early signs of wear.
Choose surge protectors with high joule ratings and low clamping voltages for better protection against voltage spikes.
Replace surge protection devices every 3 to 5 years, or sooner if you notice warning lights or visible damage.
Use a Type 1+2+3 SPD to provide full-spectrum, layered surge protection in a single integrated device.
Monitor the status indicators on your surge protectors. A green light means they are functioning well; a non-green light indicates a problem.
Understand the environmental factors that affect surge protectors. Choose devices suited for your specific location and conditions.
Overview of Type 1+2+3 Surge Protection Devices
Types of Surge Protection Devices Explained
You encounter three main types of surge protection devices in modern electrical systems. Each type plays a unique role in defending your equipment from voltage spikes and high-energy surges. The following table highlights the differences according to international standards IEC 61643 :
Type | IEC 61643 Description | Testing Method |
|---|---|---|
Type 1 | Used at the main distribution board for lightning surge defense. | Iimp (10/350 µs waveform) |
Type 2 | Installed in distribution boards to protect against residual surges. | In/Imax (8/20 µs waveform) |
Type 3 | Positioned close to sensitive devices for fine protection. | Uoc ( 1.2/50 µs & 8/20 µs waveform) |
You often see type 1+2+3 surge protection device setups in buildings that require layered defense. Type 1 handles major surges from external sources, type 2 shields internal distribution, and type 3 protects your most sensitive devices. A single Type 1+2+3 SPD provides this complete protection in one integrated device.
Tip: Layering type 1+2+3 surge protection device solutions increases your system’s reliability and reduces the risk of equipment failure.
Why Type 1+2+3 Surge Protection Is Essential
You face significant risks if you neglect surge protection devices. Global economic losses from data loss due to power issues exceed $5 billion each year, with surges as a major cause. About 15% of electrical fires relate to surges. Manufacturing industries lose over $10 billion annually from unplanned downtime caused by voltage spikes. In one case, a logistics warehouse faced customer claims up to $500,000 after surge damage. Insurance companies may deny claims if you do not install surge protection devices, leaving you with unexpected expenses.
You can avoid these disasters by using type 1+2+3 surge protection device systems. These devices clamp the overvoltage and transfer the overcurrent to the grounding system, keeping your property and investments safe.
Note: Whole-home surge protection using type 1+2+3 surge protection device setups ensures every outlet and appliance receives layered protection against voltage spikes and induced lightning surge events.
Installation and Maintenance Best Practices for Type 1+2+3 Surge Protection
Comprehensive Guidelines for Proper Installation of Type 1+2+3 Surge Protection Devices
You need to follow strict installation and maintenance best practices to maximize the reliability of your type 1+2+3 surge protection device. Proper installation ensures that surge protectors clamp the overvoltage and transfer the overcurrent to the grounding system during a lightning surge or voltage spikes.
The following table summarizes recommended installation practices for each type of surge protection device:
Step | Description | Notes |
|---|---|---|
1. Select Installation Location | Install the integrated Type 1+2+3 SPD at a key point in the power chain, e.g., distribution panel, to ensure full-spectrum protection. | Consider wiring layout and accessibility for maintenance. |
2. Mounting | Use DIN rail or standard mounting. Secure firmly to prevent vibration. | Industrial environments may require additional brackets. |
3. Electrical Connections | Connect L (line), N (neutral), and PE (ground) according to the diagram. Keep connections short and low-impedance. | Follow local electrical codes and safety standards. |

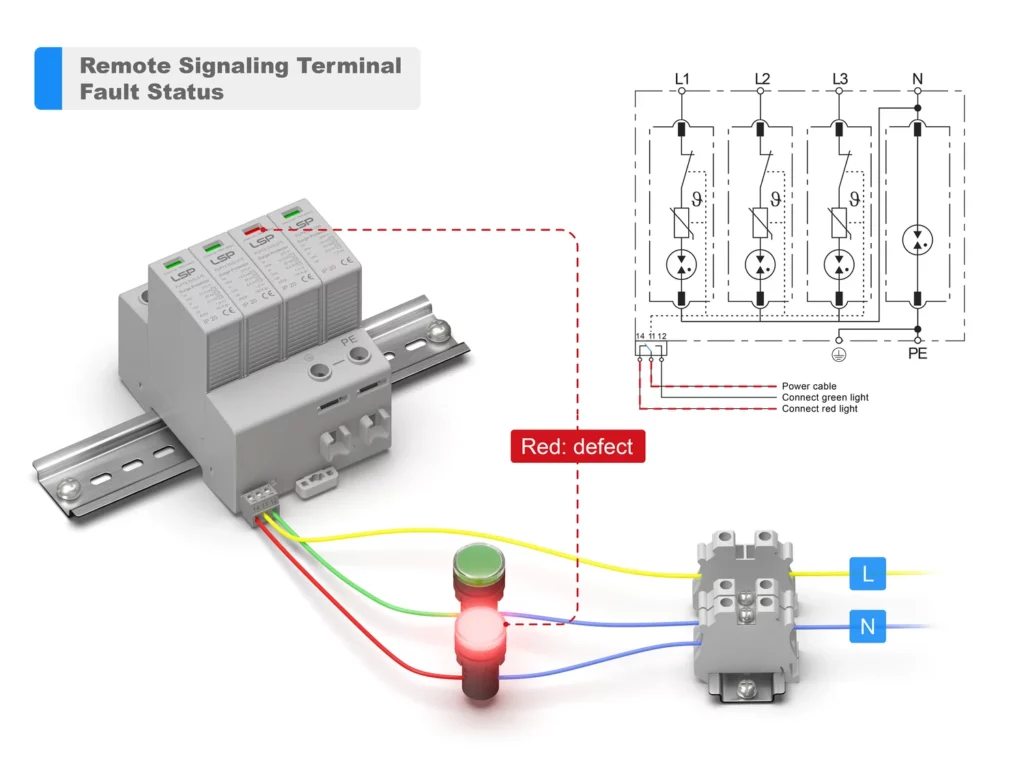

4. Status Indicators | Verify operation via window indicators. Connect remote contacts if available. | Verify integration with monitoring or automation systems. |
5. Testing and Commissioning | Confirm voltage levels, grounding integrity, and surge clamping. Document installation. | Perform functional checks as per manufacturer’s guidelines. |
6. Maintenance Tips | Inspect indicators regularly and replace the SPD if necessary. Keep spares for quick replacement. | Keep spare units or modules ready for quick replacement. |
You must avoid common installation mistakes. Exceeding environmental limits or using undersized conductors can degrade your surge protection devices and create fire hazards. Improper fuse ratings may prevent the device from disconnecting during a fault, risking equipment damage.
Tip: Always verify proper grounding and follow manufacturer instructions for torque and wire size. This step helps maintain the effectiveness of your type 1+2+3 surge protection device.
Routine Maintenance Schedule
You should set up a regular maintenance schedule to keep your surge protection devices working at peak performance. Industry standards recommend routine checks and timely replacement to prevent failures.
Monthly Visual Inspection
You need to perform a visual inspection every month. Look for burn marks, cracks, or discoloration on the surge protectors. Check indicator lights and status displays. Make sure the device housing is intact and that there are no loose wires or connections. This simple step helps you catch early signs of wear and keeps your type 1+2+3 surge protection device reliable.
Quarterly Internal Check
Every three months, you should open the enclosure and inspect the internal components. Look for signs of corrosion, dust buildup, or moisture. Test the surge protector using the manufacturer’s recommended procedure. Confirm that all connections are tight and that the grounding system is secure. If you notice any damage or abnormal readings, schedule a replacement or repair.
Annual Comprehensive Test
Once a year, you need to conduct a full test of your type 1+2+3 surge protection device. Use specialized equipment to measure the device’s response to simulated voltage spikes and induced lightning surge events. Review the performance data and compare it to the manufacturer’s specifications. Replace any surge protectors that fail the test or show significant degradation.
Note: Surge protection devices should be tested regularly to ensure they function properly. Replace surge protectors every 3-5 years or sooner if they show signs of wear.
Cleaning and Environmental Care
You must keep the surge protector clean and maintain a safe environment to extend the lifespan of your devices. Dust and moisture can degrade performance and cause failures.
Avoiding Dust and Moisture
You should install surge protection devices in dry, well-ventilated areas. High ambient temperatures and humidity can accelerate degradation and reduce the lifespan of your type 1+2+3 surge protection device by 50% or more. Moisture in the air can hinder the efficient operation of electrical components, leading to issues like delamination and reduced adhesion strength. Excessive humidity can accelerate corrosion of metal connections and breakdown of polymers, compromising reliability.
High humidity can lead to mold growth and other material degrading processes.
Corrosion of metal connections can occur due to moisture, affecting performance.
The breakdown of polymers can also be accelerated by high humidity, impacting device reliability.
Tip: Whole-home surge protection works best when you keep all surge protectors clean and dry and monitor environmental conditions.
By following these installation and maintenance best practices, you ensure your type 1+2+3 surge protection device continues to clamp the overvoltage and divert the overcurrent to the grounding system, protecting your equipment from voltage spikes and induced lightning surge events.
When to Replace Surge Protection Devices
Service Life (3-5 Years)
You need to understand the expected service life of your type 1+2+3 surge protection device. Most surge protectors last between 3 to 5 years, but this range can change based on several factors. The frequency of lightning surge events and voltage spikes plays a major role. If your location experiences frequent induced lightning surge or power disturbances, your surge protection devices may reach the end of their service life sooner.
The quality and specifications of your surge protectors also matter. Status indicator alerts help you track the health of your type 1+2+3 surge protection device and signal when it is time to replace surge protectors.
Here is a table that summarizes the service life and influencing factors:
Frequency of surge events.
Quality and specifications of surge protectors.
Presence of status indicator alerts.
You should always follow the manufacturer’s recommendations for replacement intervals. If your surge protection device has experienced several strong surge events, consider replacing it even if it has not reached the end of its expected service life.
Signs of Wear or Damage
You must inspect your type 1+2+3 surge protection device regularly for signs of wear or damage. Surge protectors do not last forever, and each surge event reduces their ability to clamp the overvoltage and transfer the overcurrent to the grounding system. Some devices have warning lights that indicate when protection is no longer available. If you see a warning light, you should replace surge protectors immediately.
Look for these signs that show your surge protection device needs replacement:
Warning lights or status indicators signal no protection left.
Visible damage such as frayed wires, damaged outlets, or cracks in the casing.
Smoke or a burning plastic smell means you need to act right away.
Devices plugged into the surge protector malfunction or stop working.
Unusual meter readings, such as low or infinite values, suggest a problem.
Buzzing or crackling noises from the device may indicate internal damage.
You should check for proper grounding and ensure the grounding system remains secure. Poor grounding can reduce the effectiveness of your type 1+2+3 surge protection device and increase the risk of equipment damage.
Tip: Regular inspection and timely replacement of surge protectors help maintain reliable protection against voltage spikes and induced lightning surge events.
Monitoring Type 1+2+3 Surge Protection Device Reliability
You need to monitor your type 1+2+3 surge protection device to ensure optimal performance and long-term reliability. Regular checks help you catch problems early and prevent failures that could expose your sensitive devices to potentially damaging voltage spikes or high-energy surges. This section explains how to use built-in status windows, remote monitoring systems, and how to recognize warning signs that indicate your surge protection devices may need attention or replacement.
Using Built-In Indicators and Status Lights
Most type 1+2+3 surge protection device products include a status window that helps you monitor device health at a glance. The status window uses color signals to show the operational state of the device:
A green status window in the status window means your surge protection device is functioning correctly and can clamp the overvoltage or divert the overcurrent to the grounding system.
A non-green light signals an abnormal status or failure. This means the device may no longer protect against major surges or induced lightning surge events.
Some surge protectors also include audible alarms that alert you immediately if the device loses protection.
You should check the status window during your regular maintenance routine. If you see a non-green light, you need to replace surge protectors right away to maintain reliability. These visual and audible indicators ensure you always know the health of your type 1+2+3 surge protection device and can act quickly if protection is lost.
If you notice a non-green light or hear an alarm, act immediately to prevent equipment damage from voltage spikes.
Remote Monitoring Systems
Remote monitoring systems give you advanced tools to monitor device health and reliability, especially in large facilities or critical environments. These systems connect to your type 1+2+3 surge protection device and provide real-time updates on operational status, surge events, and potential failures.
You can use remote monitoring in many settings, such as:
Equipment monitoring in manufacturing or medical facilities
Power distribution companies
HVAC equipment and control panels
Propane tanks and storage sites
Remote monitoring systems help you:
Capture and record surge events, including induced lightning surge and high-energy surges.
Receive instant notifications if a device fails or needs replacement.
Prevent network downtime by identifying problems before they affect sensitive devices.
Improve system and data reliability by ensuring all surge protection devices work as intended.
Eliminate equipment damage from potentially damaging voltage spikes.
You can choose from different types of remote monitoring systems. Some use voltage switch technology with discharge tubes for fast response, while others use voltage limiting technology with varistors for effective over-voltage control. Many modern systems combine both methods for the best protection and monitoring.
Remote monitoring helps you maintain optimal performance and reliability, especially when you manage multiple type 1+2+3 surge protection device installations.
Recognizing Warning Signs and Failures
You must recognize early warning signs that your type 1+2+3 surge protection device may be failing. Quick action protects your equipment and ensures continued reliability.
Look for these physical and performance indicators:
Cracks, melted parts, or discoloration on the device housing
Unusual heat or a burning smell coming from the device
Rust or corrosion, especially near terminals or connections
Malfunctioning status window (no light or non-green light)
Buzzing noises or crackling sounds from the device
Frequent tripping of the circuit breaker connected to the surge protection device
You can use a multimeter to test the circuit and reveal hidden issues. Always monitor the status window for any abnormal color. Listen for strange sounds that may indicate overheating or internal damage. Keep track of how often the circuit breaker trips, as frequent tripping can signal a failing surge protection device.
If you notice any of these warning signs, replace surge protectors immediately. Regular maintenance and monitoring help you catch problems early and maintain the reliability of your type 1+2+3 surge protection device.
Early detection of failures ensures your surge protection devices continue to clamp the overvoltage and transfer the overcurrent to the grounding system, protecting your sensitive devices from major surges and induced lightning surge events.
Common Mistakes and Myths About Surge Protection Devices
Neglecting Regular Maintenance
You might think surge protection devices work forever once installed, but skipping regular maintenance can lead to hidden problems. Over time, dust, moisture, and repeated exposure to voltage spikes or lightning surge events can degrade your devices. If you ignore maintenance, you risk silent failures that only become obvious after equipment damage or data loss.
Neglecting regular maintenance often results in higher repair costs than the cost of scheduled upkeep.
Here are some risks you face when you neglect maintenance:
Risk Type | Description |
|---|---|
Device Damage | Surges can break your electronics and appliances. |
Data Loss | Important files can disappear during a surge. |
Fire Hazards | Surges can start electrical fires. |
Reduced Equipment Longevity | Devices wear out faster without protection. |
Productivity and Revenue Loss | Broken equipment can stop work and cost money. |
You may also see hidden damage, burnt wiring, or shortened system lifespan. These issues reduce the reliability of your surge protection devices and can cause unexpected shutdowns or even fires.
Misunderstanding Device Ratings
Many people misunderstand the ratings on surge protectors. You might believe that a higher nominal discharge current rating (In/Imax) means better protection. In reality, these ratings do not always reflect real-world conditions. Some users confuse “nominal” with “normal,” thinking the tests match everyday use. This mistake can lead you to select the wrong device for your needs, reducing reliability.
Misconception | Explanation |
|---|---|
Nominal Discharge Current Rating reflects normal use | The test does not represent typical conditions. |
Higher Nominal Discharge Current Ratings mean more safety | Failures often occur due to events not covered by the In test, such as temporary overvoltages. |
Choosing the wrong type 1+2+3 surge protection device or ignoring key ratings can leave your equipment exposed. Always match the SPD type and rating to your system’s voltage and application for maximum reliability.
Believing Surge Protectors Are “Set and Forget”
You may have heard that surge protectors last forever or require no attention. This myth can put your equipment at risk. Surge protectors wear out over time as they clamp the overvoltage and divert the overcurrent to the grounding system. Each surge event reduces their ability to protect. If you never check indicator lights or replace degraded devices, you lose reliability.
Some people also believe that power strips and surge protectors are the same. In fact, only surge protection devices provide real defense against voltage spikes and induced lightning surge. Power strips simply add outlets without any protection features.
Surge protectors need regular checks for indicator lights and status windows.
Features like built-in filters and alarms help you monitor device health.
Remember, surge protection devices are not “set and forget.” You must inspect and replace them to maintain reliability.
Ignoring Environmental Factors
You may overlook how your environment affects the reliability of your surge protection devices. Environmental factors play a major role in determining how well your type 1+2+3 surge protection device can clamp the overvoltage and transfer the overcurrent to the grounding system. If you ignore these factors, you risk device failure and reduced protection for your equipment.
Your installation location matters. Devices placed in high-pollution areas face more contaminants, which can degrade internal components and shorten service life. Coastal regions expose surge protection devices to salt spray, which can cause corrosion and electrical leakage. You need devices with hydrophobic surfaces in these settings to resist moisture and salt. Extreme temperatures can crack or degrade materials, making your surge protection less effective.
Consider this table to see how different environmental factors impact surge protection device performance:
Environmental Factor | Impact on SPD Performance |
|---|---|
Installation Location | Affects the risk of flooding, fire, and other hazards, necessitating specific design considerations for SPDs. |
Weather Conditions | Extreme weather requires SPDs to be rated for higher energy handling and durability. |
Geographic Hazards | Areas prone to earthquakes or lightning induction need specialized surge protection measures. |
You must pay attention to outdoor installations. Equipment in these settings is more vulnerable to natural phenomena like induced lightning surge and electromagnetic interference. Surge protection devices in outdoor environments need robust enclosures and weather-resistant materials. If you install surge protectors in areas with frequent lightning induction, select Type 1+2+3 SPD with high Iimp values. For indoor panels, Type 1+2+3 SPD with high In/Imax ratings offer better defense against residual surges.
You should also consider the risks in regions with extreme weather. Power equipment in these areas is more susceptible to surges. Surge protection devices help ensure both equipment safety and operator safety in harsh environments. When you choose surge protectors, look for products designed to withstand your local climate and hazards.
Here are some key points to remember:
High-pollution areas require special surge protection considerations.
Coastal regions need devices with hydrophobic surfaces to withstand salt spray.
Areas with extreme temperatures necessitate materials that resist cracking or degradation.
Proper selection of surge protection products can mitigate risks associated with environmental factors.
If you ignore environmental factors, you may experience frequent device failures, reduced protection, and increased maintenance costs. You can prevent these problems by evaluating your installation site and choosing surge protection devices that match your environment. Always review manufacturer specifications for environmental ratings before installation.
Note: Surge protection devices work best when you match their design and ratings to your local environmental conditions.
Actionable Checklist for Type 1+2+3 Surge Protection Device Care
Maintenance Steps
You can boost the reliability of your surge protectors by following a clear maintenance routine. Start by installing surge protective devices at the service entrance. This step intercepts high-energy surges, including those from lightning surge or induced lightning surge. Place additional devices at distribution panels to guard against residual surges. For sensitive equipment, install point-of-use surge protectors to clamp the overvoltage and transfer the overcurrent to the grounding system. Always include backup protection, such as fuses or circuit breakers, to ensure safety and compliance. Regular maintenance and professional inspections help you spot issues early and keep your system reliable.
Maintenance Checklist:
Install surge protective devices at the service entrance.
Place devices at distribution panels for extra protection.
Use point-of-use surge protectors near sensitive equipment.
Add backup protection like fuses or circuit breakers.
Schedule regular maintenance and inspections.
Tip: Consistent maintenance extends the lifespan and reliability of your type 1+2+3 surge protection system.
Monitoring Tips
Monitoring your surge protectors helps you maintain reliability and prevent failures. Use advanced monitoring displays with tri-colored LED indicators to check the status of your protection circuits. Data logging and timestamping allow you to track surge events, including the date, time, and magnitude. Health monitoring features help you keep an eye on the lifespan of your devices, so you can plan proactive maintenance. Remote monitoring and communication tools give you real-time access to surge data and device health, even from a distance. Always keep your devices clean and dry, ensure proper grounding, and avoid excessive heat to protect internal components.
Monitoring Tip | Description |
|---|---|
Advanced Monitoring Displays | Tri-colored LEDs show real-time protection status. |
Data Logging and Timestamping | Records surge events for analysis and pattern identification. |
Health Monitoring | Tracks device health and lifespan for proactive care. |
Remote Monitoring and Communication | Provides remote access to surge data and device health. |
Environmental Considerations | Keep devices clean, dry, and within safe temperature ranges. |
You protect your equipment best when you follow a proactive care routine for type 1+2+3 surge protection. Regular maintenance, monitoring, and timely replacement keep your system reliable. Industry guidelines highlight the need for proper installation, grounding, and monitoring:
Key Takeaway | Description |
|---|---|
Proper Installation | Place SPDs close to equipment with short cables. |
Grounding | Use low-impedance, robust connections. |
Zones of Protection | Use a single integrated device for full coverage. |
Lifespan and Monitoring | Monitor and replace SPDs as they degrade. |
Take these steps to improve your surge protection today:
Type 1+2+3 Surge Protection Device provides integrated protection.
Install at the proper place.
Inspect and maintain devices yearly.
Replace SPDs every 3–5 years or if damaged.
Use monitoring features for device status.
Review your setup now and schedule your next inspection to ensure lasting protection.
FAQ
What is the main purpose of a type 1+2+3 surge protection device?
You use a type 1+2+3 surge protection device to clamp the overvoltage and transfer the overcurrent to the grounding system. This integrated layered approach protects your equipment from lightning surge, induced lightning surge, and voltage spikes.
How often should you inspect your surge protection devices?
You should inspect your surge protection devices visually every month. Perform an internal check every three months. Schedule a comprehensive test once a year to ensure continued reliability.
What do the indicators on my surge protection device mean?
A green status window shows your device works properly. A non-green status window signals a problem or failure. If you see a non-green status window, it signals a problem or failure. Please replace your surge protection device to maintain protection.
When should you replace your surge protection device?
Replace your surge protection device every 3 to 5 years, or sooner if you notice warning lights, visible damage, or after several strong surge events. Always follow the manufacturer’s recommendations.
Can you install surge protection devices yourself?
For panel-mounted or service entrance devices, you should hire a qualified electrician. Proper installation ensures the device can clamp the overvoltage and transfer the overcurrent to the grounding system.
Do surge protection devices protect against all electrical problems?
Surge protection devices defend against lightning surge, induced lightning surge, and voltage spikes. They do not protect against sustained overvoltage, under-voltage, or wiring faults. You need other safety devices for those issues.
Why is grounding important for surge protection devices?
Grounding lets your surge protection device transfer the overcurrent safely. Without proper grounding, the device cannot protect your equipment from lightning surge or induced lightning surge. Always check your grounding system during installation and maintenance.
