You need surge protection to keep your electrical systems safe. Homes in areas with frequent lightning surge events benefit most from a Type 1+2 Surge Protection Device. Large commercial or industrial buildings often require higher-level protection to handle induced lightning surge and switching surges. Choosing the wrong device can leave you exposed to costly damage. Always check your installation location, building type, and local regulations before making a decision.
Quick Answer: Your Primary Surge Protection Decision
Best Choice for Residential Homes in Lightning-Prone Areas
If you live in a region where lightning surge events occur frequently, you need to prioritize protection for your home’s electrical system. A type 1+2 surge protection device offers the most comprehensive defense against both external surges from lightning induction and internal surges caused by switching operations or faulty appliances. You should install this device at the main service entrance. It handles high impulse currents (Iimp), which means it can absorb the energy from a lightning surge before it reaches your home’s wiring. This approach protects sensitive electronics and appliances, reducing the risk of costly repairs or replacements.
Tip: Always check your local risk level and building type before choosing a surge protection device. Homes with antennas or located in open areas face higher exposure to lightning induction.
Best Choice for Large Commercial/Industrial Facilities
Commercial and industrial buildings often contain critical equipment and complex electrical systems. You need to consider both the exposure risk and the sensitivity of your equipment. Facilities in high-risk areas benefit from a combination of surge protection types. Installing a type 1+2 surge protection device at the service entrance shields your facility from external surges, while type 2 surge protective device units at distribution panels clamp internal surges generated by machinery or switching operations. This layered approach ensures that both high impulse and lower-level surges are managed effectively.
Here’s a quick reference table to help you decide:
Type | Installation Location | Surge Type | Suitable Building Types |
|---|---|---|---|
Type 1 | Service Entrances | External Surges (lightning induction) | Free-standing structures, buildings with antennas, high-risk areas |
Type 2 | Distribution Panels | Internal Surges (switching, appliances) | Residential, commercial, industrial facilities |
When Type 1+2 Surge Protection Device with Iimp Handling is Essential
You must use a type 1+2 surge protection device with Iimp handling in several scenarios:
Your building stands alone or has external antennas.
You operate in an area with frequent lightning surge events.
Your facility houses sensitive or critical equipment.
You want to protect against both external and internal surges with a single device.
A type 1+2 surge protection device provides primary defense by diverting high-energy lightning impulse currents to the earth and clamping lower-level surges. This solution is especially important for buildings where downtime or equipment failure leads to significant losses. You should assess your system voltage and equipment sensitivity before making a final decision. For standard applications, a type 2 surge protective device may be sufficient, but high-risk environments require the added protection of Iimp handling.
When Only Type 2 SPD (In/Imax) is Sufficient
You may find that a Type 2 surge protection device (SPD) with In/Imax parameters meets your needs in many everyday situations. Type 2 SPDs focus on protecting your electrical system from internal surges. These surges often come from switching operations, faulty appliances, or the normal operation of large equipment. If your building does not face a high risk of induced lightning surge, you can often rely on a Type 2 SPD for reliable protection.
Type 2 SPDs work best in these scenarios:
Your building sits within a dense urban area, surrounded by other structures.
You do not use external antennas or tall metal structures.
Your region rarely experiences severe thunderstorms or lightning surge events.
You want to protect against surges caused by switching, motor starts, or equipment faults.
You have already installed a Type 1 SPD at the main service entrance, and now you need additional protection at distribution panels.
Note: Type 2 SPDs do not handle the high impulse currents (Iimp) from induced lightning surge. They focus on clamping lower-level surges (In/Imax) that can still damage sensitive electronics.
You should install Type 2 SPDs at distribution panels or sub-panels. This placement allows the device to intercept surges before they reach end devices like computers, televisions, or industrial controllers. Type 2 SPDs act as a second line of defense, especially in buildings with layered surge protection.
Here is a quick comparison to help you decide:
Feature | Type 1+2 SPD (Iimp + In) | Type 2 SPD (In/Imax) |
|---|---|---|
Handles lightning surge | Yes | No |
Handles switching surges | Yes | Yes |
Installation location | Main service entrance | Distribution/sub-panels |
Best for | High-risk, exposed buildings | Low-risk, urban buildings |
You should check the status window on your Type 2 SPD regularly. A non-red light means the device works as intended. A red light signals abnormal status or failure, and you should replace the SPD as soon as possible.
Tip: If you upgrade your system or add sensitive equipment, review your surge protection setup. Sometimes, adding a Type 2 SPD at key distribution points gives you extra peace of mind.
Type 2 SPDs offer a cost-effective solution for many homes and businesses. You get solid protection against most common surges without the higher investment required for Iimp-rated devices. Always match your SPD choice to your building’s risk profile and electrical layout. If you remain unsure, consult a qualified electrician to assess your needs.
What Is a Surge Protection Device?
Fundamental Principles and Key Functions of Surge Protection Devices (SPDs)
You rely on a surge protection device to keep your electrical system safe from sudden voltage spikes. International electrical standards define a surge protection device as a safety barrier for your equipment. It works by suppressing voltage surges and limiting voltage levels automatically when abnormal high voltages occur. The device diverts excess energy to the grounding system, which protects your sensitive equipment from damage.
You can find surge protection devices in many forms. Some are standalone units, while others are modular and fit into distribution cabinets. You use them in residential, commercial, and industrial settings. The main types include the type 1 surge protective device, type 2 surge protective device, and type 3 surge protective device. Each type targets different surge risks and installation points.
A type 1 surge protection device handles high impulse surges (Iimp) and sits at the main service entrance.
A type 2 surge protection device focuses on internal surges (In/Imax) and installs at distribution panels.
A type 3 surge protection device protects end devices and responds to surges with Uoc parameters.
The Critical Importance of Surge Protection for Safeguarding Your Electrical Systems
You need surge protection to prevent costly failures and downtime. Surges can damage computers, industrial controllers, and other sensitive equipment. Even a single transient overvoltages event can destroy circuit boards or cause data loss. When you install a type 1 surge protector or a type 2 surge protector, you create a defense system that absorbs or redirects dangerous energy before it reaches your devices.
Tip: Regularly check the status window on your surge protection device. A non-red light means normal operation. A red light signals abnormal status or failure, so you should replace the device immediately.
Surge protection also helps you comply with safety codes and protect investments in equipment. You reduce the risk of fire, equipment failure, and unexpected repair costs. In industrial and commercial settings, surge protection keeps your operations running smoothly and protects your bottom line.
The Most Common Sources of Electrical Surges in Residential, Commercial, and Industrial Settings
You face many sources of surges in your daily environment. Some of the most common include:
Induced lightning surge
Damaged wiring
Disruptions in electrical flow
System overloads
Damaged utility lines
Restoring power after an outage
Faulty wiring
Electronics switching on or off
A type 1 surge protective device shields your system from induced lightning surge at the service entrance. A type 2 surge protective device or type 2 surge protector manages surges from switching operations and internal faults. For extra protection at the device level, you can use a type 3 surge protective device.
You protect your home or business best when you understand these risks and install the right surge protection device at each level of your electrical system.
Type 1: High Impulse Surge Handling (Iimp)
What Distinguishes Type 1 Capability (10/350μs Waveform)
You need to understand what sets a type 1 surge protective device apart. This device is designed to handle the most powerful surges that can enter your electrical system. The key feature is its ability to absorb high impulse currents (Iimp) using a 10/350μs waveform. This waveform simulates the energy profile of a lightning surge, which lasts much longer and carries more energy than typical switching surges.
Here is a table that highlights the differences between surge types:
Parameter | Type 1 (10/350μs) | Type 2 (8/20μs) | Implications |
|---|---|---|---|
Pulse Duration | Long (350μs) | Short (20μs) | Type 1 handles much more energy |
Energy Content | High | Lower | Direct comparison impossible |
Primary Threat | Lightning surge | Induced surges | Different protection purposes |
You rely on a type 1 surge protective device to survive a series of high-energy impulses. The device must pass tests that use five impulses, each increasing to the maximum Iimp. This ensures your protection against the most severe surge events.
Type 1 SPDs are designed to handle high-energy events.
The testing uses a 10/350μs waveform to simulate lightning surges.
Role in External Lightning Protection Systems (LPS)
You often see type 1 surge protective devices installed as part of an external lightning protection system. These devices act as the first line of defense for your building. When a lightning surge enters through the power supply, the type 1 surge protective device diverts the energy safely to ground. This prevents the surge from reaching your main distribution panel and damaging sensitive equipment.
You should install the type 1 surge protection device before your main protective device, such as a circuit breaker. Many type 1 surge protective devices include a built-in overcurrent protection device (OCPD), which adds another layer of safety. This setup ensures that both external lightning surges and internal switching surges are managed effectively.
Tip: If your building stands alone or has external antennas, you need a type 1 surge protective device at the service entrance. This protects your entire electrical system from high-energy lightning surges.
Technology Used: MOV + GDT (Gas Discharge Tube)
You benefit from advanced technology in type 1 surge protective devices. Most devices use a combination of Metal Oxide Varistors (MOV) and Gas Discharge Tubes (GDT). MOVs react quickly to voltage spikes and absorb excess energy. GDTs provide robust protection by safely channeling high currents to ground during extreme surge events.
This combination allows the device to respond to both fast and slow surge profiles. You get reliable protection against lightning surges and switching surges. The status window on your device helps you monitor its condition. A non-red light means normal operation. A red light signals abnormal status or failure, so you should replace the device immediately.
Note: Always check your status window after severe weather or electrical disturbances. Regular inspection keeps your surge protection system working as intended.
Type 2: Switching & Induced Surge Clamping
What Defines Type 2 (In/Imax – 8/20μs Wave)
You rely on Type 2 surge protection devices to shield your electrical system from transient overvoltages. These surges often result from switching operations, or equipment faults. Type 2 SPDs use the 8/20μs waveform specification, which closely mimics the effects of switching surges. This specification is crucial because it determines how effectively the device can clamp and absorb these transient events. When a surge occurs, the Type 2 SPD reacts quickly, limiting the voltage and diverting excess energy to ground. This action helps you protect downstream electronics and maintain the reliability of your system.
Type 2 SPDs are rated by two key parameters: Nominal Discharge Current (In) and Maximum Surge Current (Imax). These values indicate the device’s ability to handle repeated and extreme surge events. You should select a device with ratings that match your building’s risk profile and electrical load.
The 8/20μs waveform specification directly links to the clamping capability of Type 2 SPDs. Devices engineered with this standard absorb and limit transient overvoltages efficiently. You gain improved safety and durability for your electrical system when you install a properly rated Type 2 SPD.
Application in Single-Phase / Three-Phase Systems
You can use Type 2 SPDs in both single-phase and three-phase electrical systems. In residential settings, you often find single-phase systems. Here, Type 2 SPDs protect home appliances, computers, and entertainment devices from switching surges and induced lightning surge. You install the device at the distribution panel, where it intercepts surges before they reach end devices.
In commercial and industrial environments, three-phase systems are common. These systems power heavy machinery, HVAC units, and critical control equipment. Type 2 SPDs play a vital role in these settings. You install them at main distribution boards and sub-panels to clamp surges generated by large motors, switching operations, or faults. This approach helps you maintain uptime and prevent costly equipment damage.
In single-phase systems, Type 2 SPDs protect household electronics and small office equipment.
In three-phase systems, they safeguard industrial controllers, production machinery, and building management systems.
Note: You should match the SPD configuration to your system type. For three-phase systems, select devices designed for three-pole or four-pole installation. This ensures complete protection across all phases.
Type 2 SPDs offer flexibility and robust protection for a wide range of applications. You enhance your system’s resilience and extend the lifespan of your equipment by choosing the right device for your electrical setup.

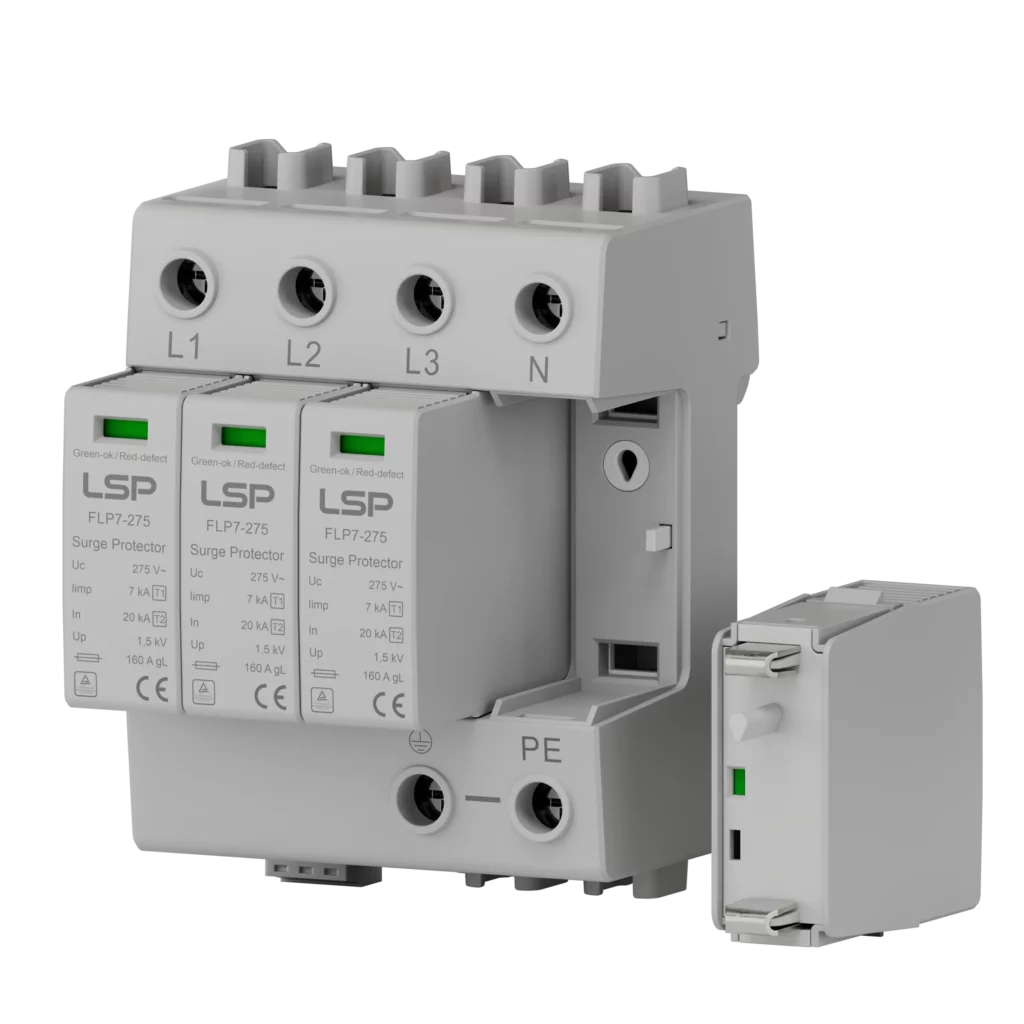

Type 1+2 Surge Protection Device: The Combined Solution
Advantages: Complete Primary Defense (Iimp + In)
You want to protect your electrical system from both external and internal surges. A type 1+2 surge protection device gives you this complete coverage in one device. When you install a type 1+2 surge protection device, you combine the strengths of a type 1 surge protective device and a type 2 device. This means you get protection against high impulse currents (Iimp) from lightning surge and also against switching surges (In).
Here are the main advantages you gain with a type 1+2 surge protection device:
You avoid leaving your system vulnerable to lightning surge. Type 2 devices alone cannot handle the high impulse currents that come from lightning induction.
You minimize risks during extreme weather events. The combination of type 1 and type 2 protection ensures your system can absorb and manage both large and small surges.
The type 1 surge protective device transfers most of the surge energy. The type 2 part then manages any remaining energy, giving you layered protection.
Tip: If you want to reduce downtime and protect sensitive equipment, always consider a type 1+2 surge protection device for your main panel. This approach gives you peace of mind during storms and power disturbances.
You also simplify your installation process. Instead of installing two separate devices, you use one combined solution. This saves space and often reduces installation time.
Installation Position (Main Panel)
You should install a type 1+2 spd at the main service entrance or main distribution panel. This position allows the device to intercept surges before they spread through your building’s wiring. By placing the device here, you protect all downstream circuits and equipment.
Note: Always check the status window on your type 1+2 spd after severe weather or power events. A non-red light means your protection is active. If you see a red light, replace the device to maintain safety.
You should also consider the wiring system in your building. For TT and TN-S systems, the main panel is the best location for a type 1+2 spd. This setup gives you the broadest protection with the least complexity.
By choosing the right device and installing it in the correct position, you ensure your electrical system stays safe from both lightning surge and switching surges. This combined solution is ideal for homes, commercial buildings, and industrial sites that need reliable, all-in-one surge protection.
Head-to-Head: Type 1+2 SPD vs Type 2 Only
Installation Differences Across TT and TN-S Systems
You need to understand how installation varies between TT and TN-S systems when choosing between a type 1+2 spd and a type 2 surge protective device. In TT systems, the earth connection is separate from the neutral, so you must install the surge protection device at the main panel where the supply enters the building. This position allows the device to intercept lightning surge and transient overvoltages before they reach sensitive equipment. You should connect the device between the live conductors and earth. In TN-S systems, the neutral and earth run separately from the transformer to the building. You install the surge protection device at the main distribution board, connecting it between the live conductors and earth as well.
You often see animated diagrams that show the flow of surge energy in each system. In TT systems, the surge travels through the supply and finds a path to earth at the main panel. In TN-S systems, the surge follows the supply lines and is diverted to earth at the distribution board. You must ensure that the wiring is correct and that the device matches the system type. Incorrect installation can leave your system exposed to surge events.
Tip: Always check your local wiring system before installing a surge protection device. Proper placement ensures maximum protection for your building and sensitive equipment.
Cost vs Risk: Evaluating the Investment
You want to make a smart investment when choosing between a type 1+2 spd and a type 2 surge protector. You must weigh the cost against the value of equipment protection, downtime prevention, insurance implications, and lifespan extension.
You protect your investment in sensitive equipment by choosing the right device. A type 1+2 spd offers complete defense against lightning surge and transient overvoltages, reducing the risk of costly repairs and downtime. You may see lower insurance premiums if you install a robust surge protection device. A type 2 surge protector works well in low-risk environments, but it may not prevent losses from severe surge events.
Note: You can use an ROI calculator to estimate your savings over time. Consider the cost of equipment, potential downtime, and replacement cycles when making your decision.
Maintenance: Pluggable / Modular Design Impact
You need to maintain your surge protection device to ensure long-term safety. Pluggable and modular designs make this process easier. Type 1+2 DC SPDs have a design life of over 15 years under standard conditions. You should perform quarterly visual inspections and replace the device in less than five minutes if the status window shows a red light. General SPDs, including type 2 surge protective device units, typically last 8-12 years. Environmental factors such as the number of thunderstorm days and humidity can affect lifespan.
Here is a table that summarizes maintenance requirements:
SPD Type | Expected Lifespan | Maintenance Requirements |
|---|---|---|
Type 1+2 DC SPD | Over 15 years | Quarterly visual inspections; quick replacement in < 5 mins |
General SPDs | 8-12 years | Regular replacement based on environmental conditions |
You benefit from pluggable designs because you can replace units quickly without rewiring. Regular inspections help you catch performance degradation caused by current shocks. You should replace the device if the status window shows a red light, which signals abnormal status or failure. A non-red light means the device works as intended.
Type 1+2 DC SPDs last over 15 years in standard environments.
General SPDs, including type 2 surge protective device units, last 8-12 years.
Maintenance includes regular inspections and quick replacement due to pluggable design.
Environmental factors and surge events can shorten lifespan.
You protect your building and sensitive equipment by following a maintenance schedule. You reduce the risk of failure during surge events and extend the life of your electrical system. You should also consider adding a type 3 surge protective device near end devices for extra protection against transient overvoltages.
Cascading Surge Protection & Type 3 Coordination
Layering Type 1 and Type 2 for Comprehensive Safety
You improve electrical safety when you use a layered surge protection strategy. No single surge protection device can absorb the full energy from a lightning surge. You need a series of devices to progressively reduce surge energy as it moves through your system. This multi-stage approach gives you the best defense against both external and internal surges.
Here is how cascading protection works:
You install a Type 1 SPD with Iimp handling at the service entrance. This device absorbs high-energy surges from external sources, such as lightning induction.
You place a Type 2 SPD with In/Imax parameters at sub-distribution panels. This device clamps residual surges and protects equipment from switching events or faults.
Type of SPD | Function | Installation Location |
|---|---|---|
Type 1 | Handles high energy surges from external sources (Iimp) | Service entrance |
Type 2 | Addresses residual/internal surges (In/Imax) | Sub-distribution panel |
You benefit from a tiered approach that manages surge energy at each stage. This method ensures comprehensive protection for sensitive equipment and combines external and internal surge protection in one coordinated system.
Tip: Layering Type 1 and Type 2 SPDs helps you avoid costly downtime and equipment damage, especially in buildings with complex electrical systems.
Introducing Type 3 SPD (Uoc 6kV)
You can further enhance your surge protection by adding a Type 3 SPD. This device is designed to intercept surges that pass through the first two layers and provide extra safety for end devices.
Type 3 SPDs feature a Uoc rating, often around 2kV-6kV, which means they can handle the voltage stress that reaches sensitive electronics. You install these devices close to the equipment you want to protect, such as computers, televisions, or industrial controllers.
Uoc specification ensures robust defense against transient overvoltages.
You use these devices for added safety in areas with frequent surge events.
Enhanced Protection When Installed Close to End Device
You maximize surge protection when you install SPDs close to your end devices. Surges can travel along wiring and lose energy, but sensitive electronics remain vulnerable to even small voltage spikes. By placing Type 3 SPDs near your equipment, you intercept surges before they reach critical circuits.
Consider these benefits:
You reduce the risk of data loss and hardware failure.
You extend the lifespan of your electronics.
You create a final barrier against transient overvoltages.
You should use Type 3 SPDs in offices, server rooms, and industrial control areas. This strategy works well for homes with expensive entertainment systems or smart appliances.
Tip: Regularly inspect the status window on SPDs installed near end devices. Replace any unit showing a red light to maintain optimal protection.
Cascading surge protection with coordinated Type 1, Type 2, and Type 3 SPDs gives you a comprehensive safety net. You protect your building and equipment from a wide range of surge threats, ensuring reliable operation and peace of mind.
Decision Factors & Use Case Recommendations
Building Type and Local Lightning Risk Level
You need to assess your building type and the local risk of lightning surge before selecting a surge protection device. Structures with external lightning protection systems, such as rods or meshes, require a device that can handle high-energy surges. You should install a type 1+2 spd at the main distribution board for these buildings. This device manages the energy from induced lightning surge and provides primary defense.
If your building does not have external protection, you still face risks from residual surges and internal disturbances. In these cases, you can rely on a type 2 surge protective device at distribution switchboards. This device clamps surges from switching operations and protects sensitive electronics.
Here is a table to help you match your building type and risk level to the right solution:
SPD Type | Application | Description |
|---|---|---|
Type 1 | External Protection | Necessary for structures with external lightning protection systems. |
Type 2 | Internal Protection | Suitable for installations without external protection, focusing on internal surges. |
You should consider the location of your building. Facilities in open areas or regions with frequent thunderstorms face higher exposure to lightning induction. Urban buildings surrounded by other structures usually have lower risk. You can use the following checklist to guide your decision:
Does your building have external lightning protection?
Is your facility located in a high-risk area for lightning surge?
Do you operate sensitive or critical equipment?
Tip: Always install a surge protection device at the main panel if your building is exposed to lightning induction. For internal protection, use a type 2 surge protective device at distribution points.
System Design and Budget Constraints
You must evaluate your system design and budget before choosing a surge protection device. Certification and compliance play a key role. Devices should meet international standards like IEC 61643-11 and TUV-Rheinland to ensure reliability and safety. You need to check local regulations, as requirements for surge protection devices vary by country.
Budget balance is important. You want to select a device that provides adequate protection without sacrificing quality. A type 1+2 spd offers comprehensive coverage but may require a higher initial investment. A type 2 surge protector provides cost-effective protection for lower-risk environments.
Consider these factors when planning your system:
Certification and compliance with international standards
Alignment with local regulations for surge protection devices
Budget constraints and protection needs
You should prioritize protection for critical equipment and areas with high surge risk. If your budget is limited, focus on installing a type 2 surge protective device at key distribution panels. For facilities with valuable assets or sensitive operations, invest in a type 1+2 spd at the main entrance.
Note: Always balance your budget with the need for reliable surge protection. Cutting corners may lead to costly repairs or downtime.
Use Case: System Upgrades Requiring Backup Fuse / Protection
You improve your electrical system’s reliability by upgrading with backup fuses or additional protection. Backup fuses are essential for surge protection devices. They enhance the safety of your electrical assets and help prevent failures due to aging or catastrophic surge events.
Australian standards recommend using suitable overcurrent protective devices, such as fuses or circuit breakers, with surge protection devices. Proper installation of backup protection ensures your system remains safe and extends its lifespan.
You should follow these steps when upgrading your system:
Install backup fuses with each surge protection device to provide extra safety.
Use overcurrent protective devices that match your system’s specifications.
Regularly inspect the status window on your surge protection device. A non-red light means normal operation. A red light signals abnormal status or failure, and you should replace the device immediately.
Plan upgrades to include backup protection for all critical circuits.
Tip: Backup protection helps mitigate failures and keeps your system running smoothly during surge events. Always include backup fuses when upgrading or installing a new surge protection device.
You protect your facility and equipment by coordinating surge protection upgrades with backup fuses. This approach reduces the risk of downtime and ensures long-term reliability for your electrical system.
Installation & Maintenance Tips
Professional Installation vs DIY Considerations
You face an important decision when installing a surge protection device: hire a professional or attempt a DIY approach. Professional installation offers several advantages. Electricians follow manufacturer guidelines, which ensures proper functionality and safety. They evaluate your property to determine the right surge protector type based on risk levels. You benefit from their expertise in identifying optimal installation locations for maximum protection of outlets and appliances.
Professionals complete the installation through the electrical panel, making sure the system complies with safety codes. After installation, they test the system to confirm it provides adequate surge protection. You should consider these best practices for professional installation:
Install surge protection devices according to manufacturer instructions.
Maintain a minimum conductor length of three feet between the device and protected equipment.
Keep unprotected and protected wiring in separate conduits.
Use a grounding bus bar for terminating ground wires.
Avoid twist-on wire connectors for ground wires.
Run dedicated ground wires to a common bus bar for multiple devices.
Ensure grounding conductors are short and straight.
If you choose a DIY approach, you must follow all safety codes and manufacturer guidelines. Mistakes can reduce the effectiveness of your surge protection and put your equipment at risk.
Tip: Professional installation reduces the risk of improper wiring and ensures your surge protection device works as intended.
Inspection and Replacement Using Status Window
Regular inspection of your surge protection device keeps your system safe.
Inspection frequency depends on your building’s risk level. The table below shows recommended inspection intervals:
Criticality Level | Inspection Frequency |
|---|---|
High-Criticality/High-Risk | Monthly visual checks and annual professional testing |
Medium-Criticality/Standard Commercial | Quarterly to semi-annual visual inspections, professional testing every 2-3 years or after significant events |
Low-Risk/Residential | Annual visual checks are generally adequate |
You should schedule professional testing after major surge events or system upgrades. Regular inspections help you catch problems early and maintain reliable surge protection.
Connecting Remote Signaling to Monitoring Systems
You can enhance surge protection management by integrating remote signaling into your monitoring systems. Real-time monitoring allows you to track the status of surge protection devices across your facility. Many systems offer compatibility with existing infrastructure, making integration seamless.
You can send status reports using Modbus TCP or RTU protocols, which support remote monitoring. These systems allow you to monitor multiple surge protection devices and arresters, providing comprehensive coverage. App-based management gives you easy access to device health and status from anywhere.
Real-time monitoring improves response to surge events.
Compatibility with existing systems simplifies integration.
Status reports via Modbus TCP/RTU enable remote oversight.
App-based management offers convenient access to device information.
Remote signaling helps you maintain surge protection across large facilities and critical environments. You can respond quickly to abnormal status and schedule maintenance before problems escalate.
Tip: Integrate remote signaling with your monitoring system to ensure continuous protection and rapid response to surge events.
Common Mistakes to Avoid
You want your surge protection system to work as intended. Many people make avoidable mistakes during installation and maintenance. These errors can reduce the effectiveness of your surge protection devices and put your equipment at risk. Here are some of the most common mistakes you should watch out for:
Incorrect Device Selection
You might choose the wrong type of surge protection device for your building or risk level. Always match the device’s parameters, such as Iimp, In, Imax, or Uoc, to your system’s needs. Using a device with insufficient capacity can leave your equipment exposed.Improper Installation Location
Placing the device too far from the main panel or distribution board can reduce its effectiveness. You should install the device as close as possible to the point where the surge could enter your system. Long cable runs increase the risk of voltage drop and reduce protection.Poor Grounding Practices
You need a proper grounding system for your surge protection device to work. Loose or corroded connections can prevent the device from safely diverting excess energy. Always use short, straight grounding conductors and avoid sharp bends.Skipping Regular Maintenance
You should inspect your surge protection devices on a regular schedule. Failing to do so can lead to unnoticed failures. Environmental factors, such as humidity or frequent surge events, can shorten the device’s lifespan.Overlooking Coordination Between Devices
You may install multiple devices without considering how they work together. Proper coordination between Type 1, Type 2, and Type 3 devices ensures layered protection. Without coordination, you risk leaving gaps in your defense.
By staying aware of these common mistakes, you can ensure your surge protection system provides reliable defense for your electrical equipment.
Final Checklist & Conclusion
Decision Steps: Iimp or In/Imax Requirements
You want to select the right surge protection device for your facility. Follow these steps to make an informed decision:
Risk Assessment
Begin by evaluating the lightning surge risk in your area. Consider how often thunderstorms occur and whether your building stands alone or has external antennas. Assess the sensitivity of your equipment. Critical systems, such as servers or industrial controllers, require higher protection.System Voltage Considerations
Check your system voltage. Determine the minimum In rating needed for your electrical setup. Higher voltage systems often need devices with greater surge handling capacity. Match the SPD’s parameters to your system’s requirements.Installation Location Factors
Decide where you will install the SPD. If you need protection at the main service entrance, choose a device with Iimp capability. For distribution panels or sub-panels, select a device with In/Imax specifications. Installation location affects the type of surge events your device will encounter.
Tip: Always review your building’s risk profile and equipment sensitivity before making a final choice.
FAQ
What is the main difference between Type 1+2 SPD and Type 2 SPD?
Type 1+2 SPD protects against both induced lightning surge (Iimp) and internal surges (In). Type 2 SPD only handles internal surges (In/Imax). You need Type 1+2 for high-risk areas and Type 2 for lower-risk, internal protection.
Where should I install a Type 1+2 SPD?
You should install a Type 1+2 SPD at the main service entrance or main distribution panel. This location allows the device to transfer surges before they reach your building’s wiring and sensitive equipment.
Can I use only a Type 2 SPD in my home?
You can use only a Type 2 SPD if your home sits in a low-risk area for induced lightning surge. For homes in high-risk regions, you need a Type 1+2 SPD for complete protection.
How often should I inspect or replace my SPD?
Inspect your SPD at least once a year. After severe weather or surge events, check the status window. Replace the device if you see a red light or after the recommended lifespan.
What does Uc mean on an SPD?
Uc stands for maximum continuous operating voltage. You should choose an SPD with a Uc rating that matches or exceeds your system voltage to avoid unnecessary triggering.
Do I need a professional to install an SPD?
Professional installation ensures correct wiring and grounding. You reduce the risk of mistakes and improve safety. If you lack experience, always hire a qualified electrician.
Can I combine different SPD types for better protection?
Yes. You can layer Type 1, Type 2, and Type 3 SPDs for comprehensive protection. This approach helps you manage both high-energy and low-energy surges throughout your electrical system.
