Type 1 SPD Explained: Your First Line of Surge Protection

Today’s electrical systems, including microprocessors, control systems, and networks, power homes, factories, and commercial installations. The more we rely on constant electricity, the greater the risk from power surges. When surges occur due to lightning strikes or grid switching, they can severely damage sensitive equipment. This makes robust surge protection essential for any modern electrical system.

The effects of a power surge go beyond damaged equipment or financial loss. Critical failures can include lost server data or interruptions in hospital systems. To prevent these issues, it is vital to manage and reduce high-energy electrical surges with a comprehensive Type 1 surge protection system. Protecting your electrical system is no longer optional—it is a necessity for safety and reliability.

Type 1 SPDs (Surge Protective Devices) are specifically designed to handle high-energy transients caused by lightning or major power supply fluctuations. Without a Type 1 surge protector, surge energy can reach the main electrical panel and damage multiple components of the installation. Proper Type 1 Surge Protection Device installation not only helps comply with modern electrical standards but also strengthens the system’s resilience against surges.

This critical Type 1 surge protective device ensures the safety and continuous operation of today’s electrical infrastructure, making it an indispensable component of any well-designed surge protection strategy.

Type 1 SPD Installation Plan: Best Locations and Ideal Installation Timing

The effectiveness of a Type 1 Surge Protective Device (SPD) depends not only on its built-in protective features but also on proper Type 1 Surge Protection Device installation. Strategic placement is crucial for optimal performance and the overall safety of your electrical system. Knowing where and when to install a Type 1 surge protector ensures it can redirect high-energy surges from lightning strikes or grid switching before they reach sensitive equipment.

Where is Type 1 SPD required

About this question, we think you want to know where a Type 1 SPD is installed. If so, the typical installation points are listed below:

• Main Electrical Panel: The central distribution point where electrical power enters a building or facility.
• Main Distribution Board (MDB): The primary distribution panel that divides electrical power into subsidiary circuits.
• Main Circuit Breaker Panel: The panel that houses the main circuit breaker and often serves as the point of SPD installation.
• Electrical Cabinets: Enclosures that house electrical components, including main distribution panels and SPDs.
• Service Entrance Panel: The panel located at the point where utility power enters the building.

Type 1 Surge Protection Device (SPD) is primarily used at the main electrical panel where power enters a building or facility. It protects the entire electrical system from high-energy surges caused by external sources, such as lightning strikes. Type 1 Surge Protection Devices are designed to handle large surge currents and are suitable for installation at the power supply entry point.

Type 1 SPD serves as the primary line of defense against high-energy surges from external sources. It is typically used in conjunction with Type 2 andType 3 SPDs to provide a multi-level protection approach, ensuring comprehensive protection for the electrical system and its equipment.

Applications Where Type 1 SPDs Are Essential

Application	Reason / Description
Commercial and Industrial Facilities	Sensitive equipment, machinery, control systems, and data networks can be disrupted by surges, leading to costly downtime. Type 1 SPDs prevent operational interruptions in factories, manufacturing plants, and processing facilities.
Critical Infrastructure	Hospitals, data centers, telecommunications hubs, and emergency services require uninterrupted power. Type 1 surge protective devices help protect essential services from external electrical disturbances.
Buildings with Overhead Power Lines	Overhead lines are more vulnerable to lightning strikes and switching transients than underground lines. Installing Type 1 SPDs ensures stronger surge protection for these locations.
High-Value Residential Properties	Large homes with smart features, home offices, and sensitive electronics benefit from service entrance surge protection, especially in areas prone to storms.

When to Use Type 1 SPD?

Type 1 surge protectors are rarely used in domestic or single-phase applications.

A Type 1 SPD is usually used in a three-phase network.

For example:

Timing for Installation

The best time to install a Type 1 Surge Protection Device is during new construction or major electrical work. Early installation allows for optimal placement, shorter connection paths, and seamless integration into the electrical system. Upgrading existing systems with Type 1 surge protectors has also become common due to updated electrical codes and increased awareness of surge risks. The investment in proactive installation is minimal compared to potential losses from damaged equipment, lost data, and downtime caused by power surges.

Proper Type 1 SPD installation not only complies with modern electrical standards but also enhances system resilience. By strategically placing these critical Type 1 surge protective devices, you ensure your electrical infrastructure remains safe, reliable, and capable of withstanding high-energy transients.

Type 1 Surge Protector Installation for Low Voltage System

Type 1 SPD Wiring Diagram

Type 1 AC Surge Protection Device (SPD) are heavy-duty devices designed to be installed at the origin of AC installations equipped with a Lightning Protection System (LPS).

Type 1 surge protector is installed at the main distribution panel of a building to prevent damage from external power surges, such as those caused by lightning strikes.

It connects directly to the power entry point and diverts surge currents to the ground, protecting the entire electrical system.

Type 1 SPD Installation Diagram

Lightning and surges can disrupt equipment operation, cause failures, reduce lifespan, or even destroy them. Type 1 Surge Protection Devices are heavy-duty devices designed to be installed at the origin of AC installations equipped with a Lightning Protection System (LPS). SPDs protect installations from transient over-voltages caused by switching events and lightning strikes.

Before installing the SPD, turn off the upstream MCCB or MCB. During installation, follow the 50-centimeter installation rule. Connect the signal wire from the SPD’s floating switch to the red and green lights on the control panel, ensuring correct signal transmission.

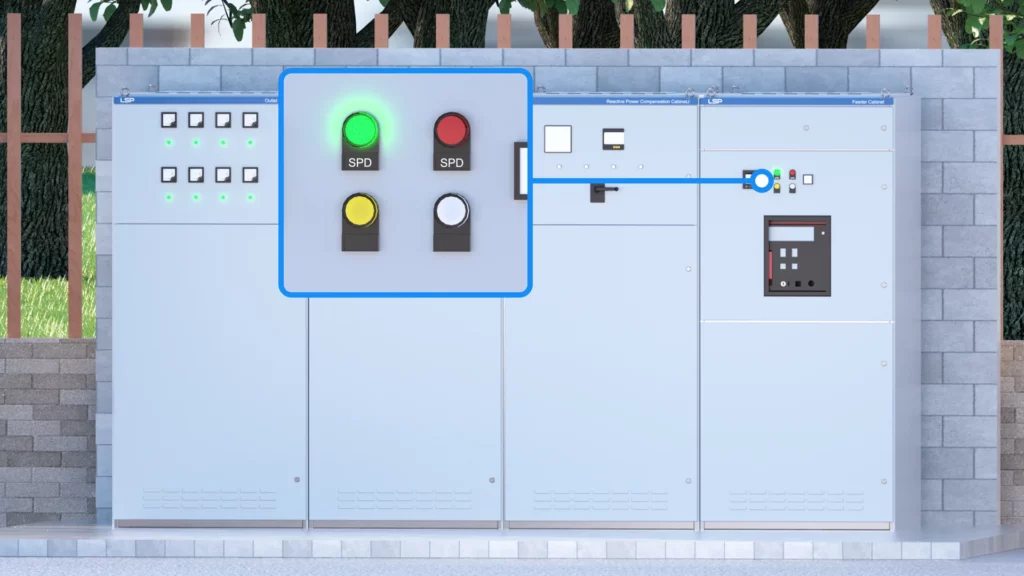

When tension increases, the SPD discharges the surge current. The visible window indicates “Red” when the surge capacity exceeds. The floating switch for remote signaling indicates the status of the SPD. When the red light is on, it’s time to replace the surge protective device.

Turn off the upstream MCCB or MCB, and replace the damaged SPD. A professional approach to surge protection will guarantee your electrical installations a long life.

Step-by-Step Type 1 SPD Installation Guide

Installing a Type 1 Surge Protective Device (SPD) requires precision, strict safety protocols, and solid electrical knowledge. While this guide provides a general overview, only qualified electricians should perform the installation, following the manufacturer’s instructions and all relevant codes.

Safety First

1. De-energize: Switch the main service disconnect to OFF. Confirm zero voltage on all phases, neutral, and ground with a multimeter.
2. Lockout/Tagout: Apply LOTO procedures to prevent accidental energization.
3. System Check: Confirm system type (single-phase, three-phase, delta, wye) and SPD compatibility.

Choosing the Installation Location

Install the Type 1 SPD as close as possible to the service entrance, typically in or near the main panel. Key points:

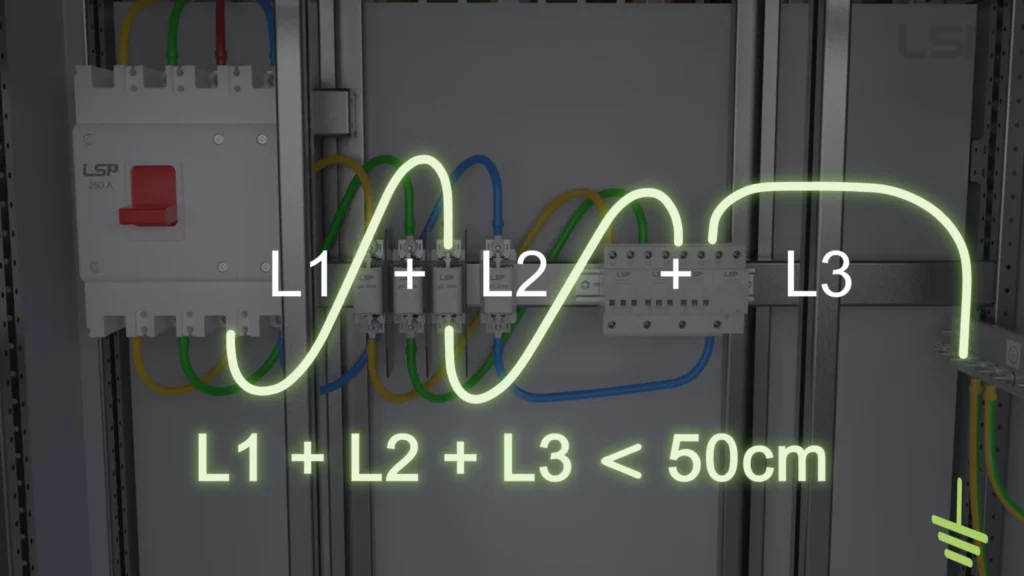

• Minimize Lead Length: Keep conductors as short and straight as possible—ideally under 0.5 meters (20 inches)—to reduce inductance and improve protection.
• Maintain Clearances: Ensure proper working space per electrical code.

Mounting the SPD

• Securely mount the SPD to a stable surface, such as the panel enclosure or adjacent wall, using suitable hardware. Ensure it’s accessible for inspection.
• For outdoor installations, ensure proper IP or NEMA rating.

Wiring Connections

Type 1 SPDs are wired in parallel, upstream of the main breaker. Follow these steps:

• Ground (PE): Connect the SPD’s ground (green or green/yellow) directly to the main grounding electrode or busbar, using a short, straight, and robust conductor.
• Neutral (N): If required, connect the neutral (white or blue) to the main neutral busbar.
• Phases (L1, L2, L3): Connect phase wires (black, red, blue) to the incoming service conductors, before the main breaker.
• Twist Wires: Gently twist conductors together to reduce inductance.
• Tighten Connections: Follow torque specifications; loose connections risk overheating.

Overcurrent Protection

Some SPDs include internal protection; others may require external OCPDs. Always follow the manufacturer’s instructions.

Final Checks

1. Inspect: Confirm tight connections, proper wiring, and secure mounting.
2. Test Grounding: Verify low-impedance grounding (<0.1Ω) if applicable.
3. Re-energize: Restore power and check SPD status indicators (green/blue = OK, red/off = fault).

Installation Conclusion and Key Takeaways

Installing a Type 1 SPD is more than wiring—it establishes a critical layer of protection for your electrical system. Correct Type 1 SPD installation ensures your SPD performs when needed most, safeguards sensitive equipment, maintains system reliability, and ensures compliance with modern surge protection standards.

Type 1 SPD Installation PDF

Type 1 Surge Protector Installation Manual Overview

SPD Wiring and Surge Protection Concepts

Surge protection, for example, involves a combination of devices such as surge protectors, lightning rods, and suppressors strategically placed within an electrical system. It encompasses concepts such as equipotential bonding, emphasizing the importance of maintaining uniform electrical potential across connected equipment and structures.

The wiring diagram for a Type 1 SPD (Surge Protective Device) illustrates how to correctly connect the device to the electrical system. It typically involves main wires: the live wire (L), neutral wire (N), and ground wire (PE). The live wire connects to the power input, the neutral wire connects to the neutral bus bar in the distribution panel, and the ground wire connects to the ground bus bar. Proper wiring ensures the SPD effectively protects the entire electrical system during power surges.

Installing Type 1 SPD with Coordination Disconnector

Installation Steps for SPD and MCCB/MCB or Fuse Coordination

Coordination between the surge protective device and its associated disconnect circuit breaker or fuse (Based on IEC/EN 61643-11)

Main Switch (ACB / MCCB)	Dedicated MCCB / MCB or Dedicated Fuse		Surge Protective Device
ACB ≥ 630AMCCB = 315A ~ 630A	200A	315A250A	Type 1 SPD FLP25 seriesIimp (10/350μs): 25kA
MCCB 400AMCCB 200A	125A ~ 100A	125A	Type 1+2 SPD FLP12,5 seriesIimp (10/350μs): 12,5kA
MCCB 200A	80A ~ 50A	80A	Type 1+2 SPD FLP7 seriesIimp (10/350μs): 7kA
100A63A	40A ~ 32A	40A32A	Type 2 SPD SLP40 seriesIn (8/20μs): 20kAImax (8/20μs): 40kA
/	20A	20A	Type 2+3 SPD SLP20 seriesIn (8/20μs): 10kAUoc (1.2/50μs): 20kV
/	16A ~ 10A	16A ~ 10A	Type 3 SPD TLP seriesUoc (1.2/50μs): 2kVIn (8/20μs): 1kA

1. Power Off: Start by turning off the main power supply to ensure safety.
2. Mount the Surge Protector: Install the Type 1 surge protector near the main electrical panel, close to the incoming power line.
3. Install the Disconnector: Position the disconnector between the power supply and the surge protector to allow safe isolation during maintenance.
4. Wiring:
   1. Connect the live wire from the disconnector to the surge protector.
   2. Attach the neutral wire to the panel’s neutral bus bar.
   3. Connect the ground wire to the ground bus bar.

Type 1 SPD Cable Size and Connection Requirements

Cable size recommendation for surge protection SPD Type 1 and Type 2 according to IEC 60364.

The conductor must resist a short-circuit current during the maximum protection system cutoff time.

• 4 mm² (Cu) for connection of Type 2 SPD
• 16 mm² (Cu) for connection of Type 1 SPD (presence of lightning protection system).

Surge Protective Device (SPD) Connection Wire Specification Analysis

Different levels of SPDs are installed at the entrance where the line enters the building, at the interface of lightning protection zones, and near protected equipment.

The connection wires for each level of surge protector should be short and straight, with a length not exceeding 0.5 m, and firmly fixed.

The grounding end of the SPD should be connected to the equipotential grounding terminal board in its lightning zone by the shortest distance possible.

The protective ground wire (PE) of the distribution box should be directly connected to equipotential grounding terminal board.

Power lines with terminal blocks for SPD should use crimping. SPD with wire columns should connect wiring terminals to wire columns.

The minimum cross-sectional area of SPD connection wires must comply with the following table:

SPD level	SPD types	cross-sectional area of the wire (mm2)
		copper wire for SPD connection to the phase line	copper wire for SPD ground terminal connection
First level	switching type or voltage-limiting type	6	10
Second level	voltage-limiting type	4	6
Third level	voltage-limiting type	2.5	4

Table 1 – Minimum Cross-Sectional Area of Connection Wires for SPD

Note: For combined SPDs, select the cross-sectional area according to the corresponding level.

The minimum cross-sectional area of each component connected by lightning protection and equipotential bonding should comply with the following table:

Equipotential connection components			Material	Cross-sectional area (mm2)
Equipotential bonding strip (copper, steel with copper plating on the surface, or hot-dip galvanized steel)			Cu (Copper), Fe (Iron)	50
Connecting conductors from the equipotential bonding strip to the grounding system or between different equipotential bonding strips			Cu (Copper)	16
			AI (Aluminum)	25
			Fe (Iron)	50
Connecting conductors from indoor metal installations to the equipotential bonding strip			Cu (Copper)	6
			AI (Aluminum)	10
			Fe (Iron)	16
Conductors connecting the surge protector	Electrical system	Type I tested surge protector	Cu (Copper)	6
		Type II tested surge protector		2.5
		Type III tested surge protector		1.5
	Electronic system	Class D1 surge protector		1.2
		Other types of surge protectors (connection conductors may have a cross-sectional area less than 1.2 mm²)		Determine based on the specific situation

Table 2 – Minimum Cross-Section of Each Connection Component of Lightning Protection Device

Type 1 SPD Standards (IEC 61643-11 & UL 1449) and Essential Technical Specifications

Surge Protective Devices (SPDs) are designed and tested according to strict standards. All our products are made and tested to meet the requirements of IEC 61643-11, a worldwide standard for low-voltage SPDs.

IEC 61643-11 sorts SPDs by their purpose and the tests used to evaluate them. To test Type 1 SPDs, a 10/350 µs impulse current waveform is used to simulate partial lightning currents. Important factors to consider are:

Term	Definition
Impulse Current (Iimp)	The peak surge current the SPD can withstand in a 10/350 µs waveform test.
Voltage Protection Level (Up)	The maximum voltage the SPD allows through during a surge; lower values mean better protection.
Uc	The highest continuous voltage the SPD can tolerate without conducting current.
Isccr	The maximum short-circuit current that both the SPD and upstream protection can safely withstand.

In North America, UL 1449 is the main standard for SPDs. Although the terms and tests are different (using the 8/20 µs waveform), the main goal of both standards is to protect against surges. UL Type 1 SPDs are usually put at the service entrance and are defined by the following parameters:

Term	Definition
Maximum Current	The highest surge current the SPD can handle during 15 surges in an 8/20 µs waveform test.
Voltage Protection Rating (VPR)	The clamping voltage level measured during an In (nominal discharge current) test.
Maximum Continuous Operating Voltage (MCOV)	The maximum continuous voltage the SPD can withstand; equivalent to IEC’s Uc value.
SCCR (Short-Circuit Current Rating)	The maximum fault current the SPD can safely withstand without damage or risk of failure.

In addition to SPD specifications, the idea of coordination is crucial. It means that each SPD type (Type 1, Type 2, Type 3) is installed in the right order to provide complete surge protection. Type 1 SPDs are responsible for the first big surge and Type 2 and Type 3 devices take care of any remaining surges or transients that occur inside the system. Choosing the right Type 1 SPD requires:

• System Voltage and Configuration: Ensuring the SPD is rated for the same voltage as the electrical system.
• Risk of Direct Strike: Determining the chances of a lightning strike or a major surge in the electrical system.
• Fault Current Levels: Checking that the SPD’s SCCR is strong enough for the fault currents at the installation point.
• Protection Level (Up or VPR): Pick an SPD that has the lowest voltage protection level that can manage the expected surge currents.

Following these standards is important for both compliance and to ensure your electrical installations are reliable, safe and last a long time. It provides the structure needed to create an electrical system that can handle unexpected problems that would knock out weaker systems.

Maintaining Type 1 SPDs: Inspection, Service Life, and Replacement Guidelines

While a Type 1 SPD helps protect your electrical system, it needs to be checked and maintained regularly to keep working well and last long. Although Type 1 SPDs are built to last, the process of absorbing high-energy transients can cause their internal parts to wear out over time or after major events.

Important Maintenance Practices:

• Check the LEDs and flags to confirm that the SPD is working. If the SPD shows a red light or a tripped flag, it means the SPD has taken in a large surge or is no longer working.
• Check for any damage, signs of overheating, loose wires or corrosion. Deal with any problems as soon as you notice them.
• The SPD environment should be kept clean, dry and without too much dust or moisture.

Testing (Periodic):

• Testing: Performing surge capacity tests on-site is not simple, but electricians can check insulation resistance and connections.
• Some SPDs include self-diagnostics or remote monitoring, which makes it easier to maintain them.

Documentation:

Record the date each device was installed, its model number and any changes in its status for simple tracking and future use.

What Affects How Long We Live:

• The more often or strongly surges occur, the quicker the SPD parts will wear out.
• For the system to work well and last long, it must be wired correctly, have secure connections and be grounded.
• Temperature, humidity and corrosion can cause items to age more quickly.

Replacement Strategy:

• Replace the SPD when the indicator on the device indicates it is time to do so.
• Replace the SPD after a major lightning event or when it is close to the end of its life or has taken in several large surges.

Conclusion

You must keep an eye on your Type 1 SPD to make sure it is still protecting your electrical system. If you act quickly, your protection will be ready for power surges and unexpected events.

Why Choose LSP for Type 1 SPDs

Durable Type 1 Surge Protective Device for Long-Lasting Reliability

At LSP, we have been dedicated to the research and production of surge protection devices (SPDs) since 2010, with a strong focus on delivering reliable Type 1 SPDs to global markets. With over a decade of experience, our products are now exported to more than 10 countries, supported by two automated production lines and a 1600㎡ facility certified with ISO9001, TUV, CB, and CE. We ensure production efficiency with a standard delivery time of 10–15 days for regular models and one month for custom orders. Even in cases with no inventory, we maintain a maximum lead time of two months.

What sets our Type 1 SPDs apart is our commitment to high-performance components and rigorous testing. We use top-tier materials like LKD MOVs and Vactech GDTs, both trusted by global SPD leaders. Our metal parts undergo a 48-hour salt spray test and feature thicker terminals (8mm x 0.8mm) for enhanced durability. Our SPDs are designed with an internal disconnector that has been developed over three years, ensuring safe isolation and arc suppression during surges. With dual testing certifications (8/20 and 10/350 waveforms), low-temperature tripping technology, and added moisture protection, our Type 1 SPDs offer unmatched safety and lifespan of over five years.

We also provide customized solutions to meet specific market needs. Our in-house R&D team supports design customization, 3D modeling for marketing, and assistance with obtaining secondary certifications like TUV, CB, and CE. From pre-sales technical consultation to efficient logistics and global after-sales support, including a 5-year warranty and fast response times, we aim to deliver not just high-quality products but a complete, reliable service experience.

Conclusion: Why Type 1 SPDs Are Essential for System Safety

Today, electrical systems are always at risk from transient overvoltages. Such sudden, unexpected surges, caused by lightning or major grid problems, may harm and disrupt sensitive equipment. If this risk is ignored, important infrastructure could be disrupted and suffer significant losses.

The Type 1 SPD is the initial and most important barrier against external electrical hazards. It is placed at the start of your electrical system to take in and redirect powerful surges before they can harm equipment, interrupt work, or endanger people. It is this layer that makes the electrical system more resilient.

By investing in Type 1 SPDs, you can avoid losing money from equipment breakdowns, maintain continuous operation, and make your workplace safer. Selecting a manufacturer like LSP, recognized for its top performance and following international standards, guarantees your protection is excellent. Because technology is so important today, it is necessary to use surge protection to keep both current and future operations safe.

Type 1 SPD Frequently Asked Questions

Q1: What is the primary difference between a Type 1 and Type 2 SPD?

A1: Type 1 SPDs handle high-energy surges like direct lightning strikes and are installed at the service entrance. They’re tested with a 10/350 µs waveform. Type 2 SPDs protect against smaller, residual or internal surges and are installed in distribution panels, tested with an 8/20 µs waveform.

Q2: Can a Type 1 SPD protect against all types of surges?

A2: No. Type 1 SPDs protect against large external surges but not all internal or residual surges. For full protection, use Type 2 and Type 3 SPDs in a coordinated system.

Q3: Where should a Type 1 SPD be installed?

A3: At the building’s service entrance, either before or after the main breaker, depending on standards and product type.

Q4: How important is lead length in Type 1 SPD installation?

A4: Very important. Short, straight wires (preferably under 0.5 meters total) reduce inductance and improve SPD performance.

Q5: Does Type 1 SPD Require a Breaker?

A5: Yes, Type 1 SPD (surge protective device) needs a dedicated MCCB (Moulded Case Circuit Breaker) or Fuse.For example: Type 1 SPD Iimp 25kA, Main MCCB is 250A or 315A, the dedicated MCCB selects 160A or Fuse 200A.
