Should I Install Type 1 Surge Protector at Main Service Entrance for Lightning Protection?
Installing a Type 1 surge protector (Class I SPD) at the main service entrance is one of the most effective ways to protect an electrical system from lightning-induced surges. Acting as the first line of defense, a Type 1 SPD intercepts high-energy surge currents before they enter the building’s internal wiring.
Lightning strikes and grid switching events can generate transient overvoltages that travel through power distribution networks. Without proper surge protection, these surges may damage sensitive equipment such as industrial control systems, communication devices, and smart electronics.
Installing a Type 1 surge protector at the main distribution board (MDB) allows high-energy lightning currents to be safely diverted to the earthing system, preventing surge energy from propagating through downstream circuits.
Because Type 1 SPDs are designed to withstand 10/350 μs lightning impulse currents, they are especially important for buildings equipped with lightning protection systems or located in regions with frequent lightning activity.
Do Residential Buildings Need Type 1 Surge Protector?
Yes. Residential buildings can also benefit from installing a Type 1 Surge Protector, especially in areas with frequent lightning activity.
Modern homes contain many sensitive electronic devices, including routers, smart appliances, security systems, solar inverters, and EV chargers. Installing a Type 1 SPD at the residential main distribution board helps divert high-energy surge currents to ground, protecting household electronics and improving the reliability of the home electrical system.

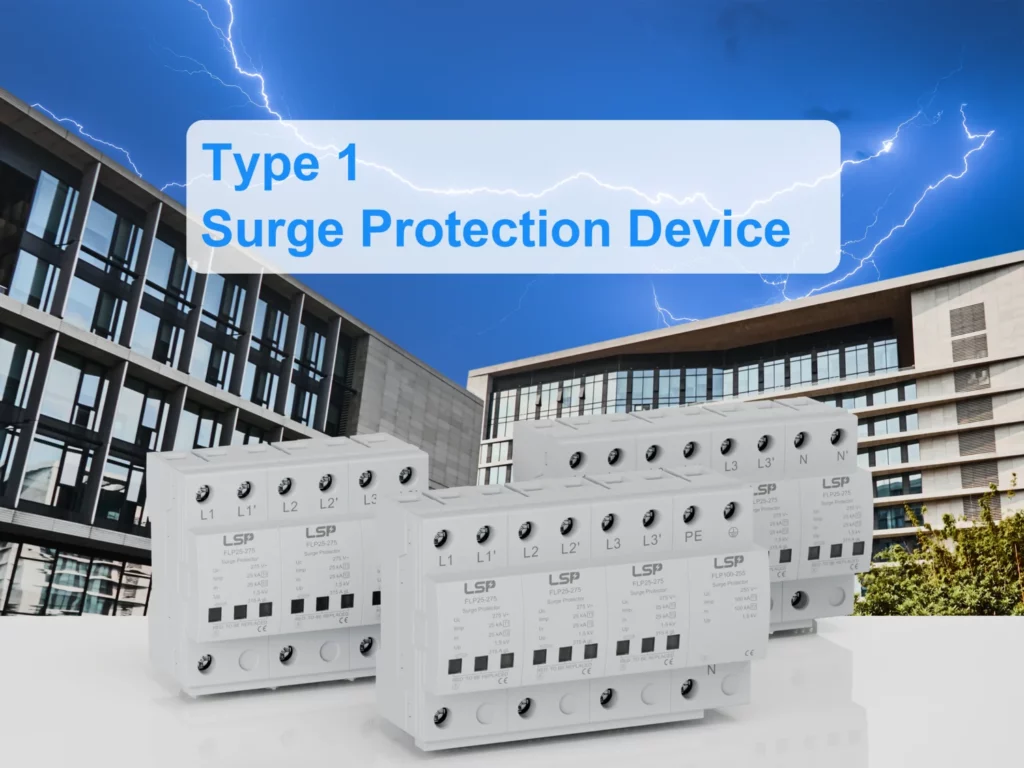

What Is Type 1 Surge Protector and Can It Withstand 10/350 μs Lightning Impulse Currents?
A Type 1 surge protector is a specialized Surge Protective Device designed to withstand the devastating 10/350 μs lightning impulse current waveform. This specific waveform simulates the high energy and long duration of a direct lightning strike, which is far more destructive than standard internal induced surges.
To be classified as a Type 1 surge protector, the device must pass rigorous Class I testing according to IEC 61643-11 or EN 61643-11 standards, ensuring it can discharge an impulse current (Iimp) of up to 25 kA or higher per pole.
By neutralizing high-energy transients at the main distribution board, a Type 1 surge protector acts as a critical shield for both industrial infrastructure and modern residential homes equipped with sensitive smart appliances.
Relying on advanced components like high-energy metal oxide varistors (MOV) and gas discharge tubes (GDT), a Type 1 surge protector ensures that even the most intense lightning-induced overvoltages are safely diverted to the ground before they reach your internal electrical installations.
How Does Type 1 Surge Protector Work with MOV and GDT Technology?
A Type 1 surge protector installed at the main service entrance intercepts and safely diverts high-energy lightning currents to the grounding system. Using advanced internal components, the device continuously monitors the electrical system and immediately establishes a low-impedance path to ground when a transient overvoltage occurs. This ensures that the energy from a direct lightning strike does not enter the building’s internal wiring or damage electrical equipment.
The core protection mechanism of a Type 1 surge protector relies on the following key components and technologies:
- Metal Oxide Varistors (MOV): As a core component, these provide an ultra-fast response time to voltage spikes, absorbing and dissipating transient energy within nanoseconds to protect sensitive electronics.
- Gas Discharge Tubes (GDT): These high-capacity components are specifically designed to handle the high-energy currents of the 10/350 us waveform, providing the robust discharge capacity (Iimp) needed during major lightning events.
- Voltage Clamping Technology: This technique ensures the Type 1 surge protector limits the residual voltage, known as the voltage protection level (Up), to a safe threshold that downstream equipment can withstand.
- Thermal Disconnection Mechanism: This internal safety technology ensures that the device safely disconnects from the power source at the end of its operational lifespan to prevent overheating or fire hazards.
In summary, the synergy between MOV and GDT technologies allows a Type 1 surge protector to offer both speed and strength. While the MOV reacts quickly to minor fluctuations, the GDT manages the extreme kinetic energy of primary lightning discharges, ensuring that your main distribution board remains safe under the most demanding conditions.
Type 1 vs Type 2 vs Type 3 Surge Protectors: What Are the Key Differences?
Understanding the distinction between Type 1, Type 2, and Type 3 surge protectors is essential for designing a comprehensive cascaded surge protection strategy. While all three devices are designed to mitigate transient overvoltages, they are engineered for different surge energy levels and installed at different stages of the power distribution system.
A Type 1 surge protector acts as the primary defense against high-energy lightning surges entering from the external power grid. A Type 2 surge protector provides secondary protection by limiting residual surge energy inside the electrical distribution system. A Type 3 surge protector, often installed close to sensitive equipment, offers the final level of protection by suppressing small remaining voltage spikes that could damage electronic devices.
The key differences between Type 1 vs Type 2 vs Type 3 Surge Protectors
- Installation Location A Type 1 surge protector is installed at the main service entrance or main distribution board (MDB) to intercept lightning surges at the source. A Type 2 surge protector is typically installed in distribution panels or sub-panels to reduce residual surge energy. A Type 3 surge protector is installed close to sensitive equipment such as computers, communication devices, or control systems.
- Testing Waveform Type 1 devices are tested with the 10/350 μs impulse current (Iimp) waveform to simulate direct lightning strikes. Type 2 devices are tested with the 8/20 μs waveform for indirect lightning or switching surges. Type 3 devices are tested using combined waveforms to simulate surges that reach terminal equipment.
- Energy Handling Capacity Type 1 surge protectors are rated for very high impulse currents, often 25 kA per pole or higher, to handle the extreme energy of direct lightning currents. Type 2 surge protectors handle moderate surge currents within the internal power distribution network. Type 3 surge protectors manage relatively small residual surges near end-use equipment.
- Application Scenario Type 1 surge protectors are used in buildings with lightning protection systems or located in high lightning risk areas. Type 2 surge protectors protect distribution circuits and internal electrical installations. Type 3 surge protectors protect sensitive electronic equipment such as computers, servers, and automation devices.
Coordinated Surge Protection Strategy
In practice, maximum protection is achieved through a coordinated surge protection system that combines all three SPD types. By installing a Type 1 surge protector at the service entrance, Type 2 devices at distribution panels, and Type 3 protectors near sensitive equipment, surge energy is progressively reduced throughout the electrical installation.
This multi-level protection strategy ensures that high-energy lightning currents are safely discharged at the entry point while sensitive electronics remain protected from residual voltage spikes.
How to Choose Type 1 Surge Protector Based on Iimp, Up, In Parameters?
Selecting the ideal Type 1 surge protector requires a technical evaluation of its performance ratings to ensure it can withstand the electrical stresses of your specific environment. The rating of a Type 1 surge protector determines its capacity to neutralize high-energy surges without failure.
When comparing different models, engineers and facility managers must prioritize three primary metrics: Impulse Current (Iimp), Voltage Protection Level (Up), and Nominal Discharge Current (In). These parameters provide a clear indication of how the device will perform during a direct lightning strike or a significant transient event.
To make an informed decision, you should evaluate these key technical specifications:
- Impulse Current (Iimp): This is the most critical parameter for a Type 1 surge protector, measured with a 10/350 us waveform. It represents the peak current the device can discharge. For high-risk areas, an Iimp of 25 kA or 50 kA per pole is often recommended.
- Voltage Protection Level (Up): Also referred to as the let-through voltage, this indicates the maximum voltage that will reach your equipment during a surge. A lower Up ensures better protection for sensitive electronics.
- Nominal Discharge Current (In): This value, tested with an 8/20 us waveform, represents the peak surge current the device can withstand repeatedly (typically 15 times) without degrading.
- Certification Standards: Always prioritize devices that are fully compliant with IEC 61643-11 and EN 61643-11 standards. A Listed SPD meets all safety requirements, whereas a Component Recognized device may have limited applications.
In summary, choosing a Type 1 surge protector is about balancing robust energy handling with effective voltage suppression. High-quality devices, such as the LSP FLP25 series, offer a high Iimp of 25 kA and a low Up of 1.5 kV, ensuring they meet the most demanding international safety standards. By focusing on these certified parameters, you safeguard your electrical investments and ensure the long-term reliability of your critical infrastructure.
Where Should Type 1 Surge Protector Be Installed for Maximum Protection?
Strategic placement of a Type 1 surge protector at the service entrance is the most effective method for intercepting high-energy lightning currents before they infiltrate a building’s internal wiring.
According to international engineering standards such as IEC 61643-12, a Type 1 surge protector must be installed at the origin of the electrical installation, which is typically the main distribution board.
Type 1 surge protectors can immediately divert massive transients from a direct lightning strike into the earthing system, preventing the surge from propagating through the entire electrical infrastructure.
To ensure the highest level of protection, the installation process must prioritize minimizing lead inductance and optimizing the discharge path.
An essential technical requirement is the 50cm Rule, which dictates that the total conductor length between the power lines, the Type 1 surge protector, and the main earthing bar should ideally be less than 0.5 meters. Every extra centimeter of wiring increases inductive reactance during a fast-rising surge event, which can significantly raise the residual voltage (Up) and compromise the safety of downstream sensitive electronic equipment.
Compliance and Professional Qualifications:
Due to the critical nature of these connections, a Type 1 surge protector must be installed exclusively by a licensed and certified electrician. Professional installation ensures adherence to IEC 60364-5-53 safety protocols, including correct grounding configurations (TN-S, TN-C, TT) and proper use of Personal Protective Equipment (PPE).
Hiring a qualified expert guarantees that the device remains active and grounded, providing a low-impedance path to earth that safeguards your critical assets during extreme lightning events.
How to Read Type 1 Surge Protector Wiring Diagram Correctly?
Interpreting a Type 1 surge protector wiring diagram requires more than just identifying terminal labels; it demands an understanding of the dynamic behavior of high-frequency lightning currents.
A professional diagram illustrates the parallel connection between the power supply and the equipment, highlighting the shortest path to the earthing system.
When reading these schematics, the primary objective is to visualize the “protection loop”-the total path from the phase line, through the Type 1 surge protector, and down to the main earthing bar.
To translate a technical wiring diagram into a high-performance physical installation, engineers must adhere to the following wiring logic:
- Terminal Identification (L-N-PE): Standard Type 1 surge protector diagrams specify connections for various earthing systems (TN-S, TN-C, TT). Ensure that the Neutral (N) and Earth (PE) connections follow the specific local grounding configuration to avoid neutral-to-earth voltage shifts during a surge event.
- Wiring Geometry and Bend Radius: High-frequency lightning pulses do not travel efficiently through sharp corners. A professional wiring diagram implies a “smooth” path. In practice, this means avoiding 90-degree bends or loops in the conductors. Straight, direct wiring minimizes inductive reactance, ensuring the Type 1 surge protector reacts within nanoseconds.
- Cross-Sectional Integrity: The diagram often specifies a minimum conductor size (typically 16mm² for Type 1). This is not just for current-carrying capacity but to provide the mechanical strength and low resistance necessary to handle the kinetic energy of a 10/350 us impulse current.
Expert Warning:
A common mistake when following a wiring diagram is focusing solely on the “L” and “N” connections while neglecting the quality of the “PE” terminal’s bond to the main earth bar.
A high-impedance ground connection effectively renders the Type 1 surge protector useless, as the energy will seek an alternative path through your sensitive electronics instead of the intended discharge route.
How to Select Backup Overcurrent Protection for Type 1 Surge Protector?
According to IEC 61643-11, a Type 1 surge protector almost always requires coordinated backup protection. While the SPD handles massive lightning energy, it cannot interrupt a power-frequency short-circuit if an internal component fails at the end of its life.
Without a correctly sized fuse or circuit breaker, a failed SPD could lead to a permanent short-circuit on the main busbar, posing a fire hazard.
To ensure a reliable coordinated surge protection system, focus on these three essential selection criteria:
- Maximum Backup Fuse Rating: Check the manufacturer’s limit (e.g., 250A gG). If your main service breaker exceeds this, a dedicated backup device is mandatory in the SPD branch to prevent thermal damage during a fault.
- Short-Circuit Current Rating (Isccr): The combined SPD and breaker assembly must safely withstand the prospective short-circuit current (Icc) at the installation point. Insufficient breaking capacity can lead to catastrophic failure.
- Impulse Current Immunity: The breaker must allow the full Iimp (10/350 us) current to pass without nuisance tripping. An incorrect trip curve may leave the system unprotected during a lightning event.
LSP FLP25 Type 1 Surge Protector Specifications: Iimp, Up, and In?
The LSP FLP25 series represents a high-performance solution for primary surge protection at the main distribution board.
Engineered to meet the rigorous IEC 61643-11 Class I standards, these monobloc DIN-rail protectors are designed for various network systems, including TN-S, TN-C, and TT.
Whether for three-phase (3P+N, 4P) or single-phase (1P) applications, the FLP25 series provides a robust first line of defense against high-energy lightning strikes and transient overvoltages.
Technical Specifications
| Model | Poles | Network System | Protection Mode | Elements | Iimp (10/350) | In (8/20) | Up |
| FLP25-275/1S | 1P | TN-C/S, TT | L-PE, N-PE | MOV | 25 kA | 25 kA | 1.5 kV |
| FLP25-275/3S | 3P | TN-C | L-PE | MOV | 25 kA | 25 kA | 1.5 kV |
| FLP25-275/4S | 4P | TN-S | L-PE, N-PE | MOV | 25 kA | 25 kA | 1.5 kV |
| FLP25-275/3S+1 | 3P+N | TT, TN-S | L-N, N-PE | MOV + GDT | 25 kA | 25 kA / 100 kA | 1.5 kV |
Conclusion: Protect from the First Strike – Choose the Right Type 1 SPD
In conclusion, Type 1 surge protectors provide the ultimate defense against catastrophic high-energy surges. By installing high-performance devices like the LSP FLP25 at the main distribution board, you intercept dangerous currents before they reach sensitive downstream equipment.
This proactive approach minimizes operational downtime, reduces long-term maintenance costs, and significantly extends the lifespan of your electrical infrastructure.
Whether managing industrial sites or commercial facilities, choosing a trusted partner like LSP ensures that your assets are protected by world-class engineering and reliability.
