You should act fast if you think there is a problem with your DC surge protector in a solar system. Electrical surges cause over 40% of solar system failures. This shows these devices are essential. If the surge protector is not installed correctly, it may not work quickly. Grounding mistakes can make unsafe paths for electricity. Checking often and setting up the system right helps keep it safe and working well.
Key Takeaways
Act fast if you think there is a problem with your DC surge protector. Taking action early can stop expensive damage.
Check your surge protector every three months. Look for broken parts, warning indicator, and loose wires.
Make sure your surge protector follows IEC 61643-31 standards. This means it is safe and works well in solar systems.
Install the surge protector the right way. Match the voltage rating and check the polarity to stop the device from failing.
Use Type 2 surge protectors on both AC and DC sides of the inverter. This gives better protection from surges.
Write down when you inspect and test the surge protector. Keeping records helps you see how it works and spot problems.
If you see a red indicator, think about changing the surge protector. A red indicator usually means something is wrong.
Understanding the Role and Applications of DC Surge Protectors in Solar Systems
Definition and Importance of DC Surge Protector
What a DC Surge Protector does and how it mitigates transient overvoltages
A DC surge protector works like a shield for your solar PV system. It keeps important parts safe, like solar panels and inverters. During lightning strikes or switching operations, the voltage can rise sharply in an instant. They can break your equipment. The DC surge protection device either rejects excess voltage. This stops damage and helps your solar system last longer.
You can look at the table below to see how a DC surge protection device works:
Component Function | Description |
|---|---|
Surge Protection | Deals with high voltage from lightning strikes. |
Grounding | Moves extra current safely into the ground. |
Voltage Monitoring | Watches the voltage and acts when it gets too high. |
Energy Shunting | Uses MOVs and GDTs to send surge energy to ground. |
Reset Mechanism | Gets ready to protect again after a surge. |
Why is it critical in DC power networks of solar systems?
Solar systems can get hurt by power surges. Without a DC surge protection device, your inverter and panels can break. Fixing these parts costs a lot more than buying a surge protector. Surge protection helps you save money and keeps your system working.
Typical surge sources: lightning strikes, inductive loads, switching surges.
Many things can cause a power surge. The most common causes are:
Lightning strikes (direct or indirect)
Problems in the power grid
Big electrical loads turning on or off
These events can send sudden high voltages through your solar system. A DC surge protector safeguards your equipment by intercepting and diverting these surges before they cause damage.
Protection Scope of DC Surge Protector
Safeguards solar panels, inverters, combiner boxes, and monitoring systems.
Surge protection keeps more than just your panels safe. It also protects inverters, combiner boxes, and monitoring equipment. Inverters need surge protectors the most.
Prevents insulation damage, DC arc faults, and energy loss.
A surge can break insulation, cause arc faults, and waste energy. Surge protection devices stop these problems before they start.
Enhances long-term reliability and reduces downtime.
With surge protection, your solar system breaks down less. It works well for a long time.
Common Application Scenarios of DC Surge Protectors
You can find DC surge protection devices in many places, like:
Homes with solar systems
Businesses with solar systems
Factories with solar systems
Large solar farms
No matter how big your solar system is, surge protection is a smart way to keep it safe.
Safety Standards and Compliance for DC Surge Protector
International standards: IEC 61643-31
You need to check if your DC surge protector follows the right rules. IEC 61643-31 is the main standard for surge protective devices in solar systems. This standard tells how DC SPDs should work, how they get tested, and how they are sorted. If you use a surge protector that meets IEC 61643-31, it can handle the special voltage and current in solar PV systems. Devices that follow this standard go through tough tests to show they can protect your solar equipment from surges. Always look for DC SPDs with IEC 61643-31 on their label. This helps you avoid trouble and keeps your solar system safe.
Tip: Only use DC surge protectors made for photovoltaic systems. Check for IEC 61643-31 before you install them.
All DC SPDs in photovoltaic systems must follow IEC 61643-31.
Requirements for Coordination with the Inverter and Grounding Systems
Requirements for Coordination with the Inverter and Grounding Systems
Your DC surge protector must be properly coordinated with your inverter and grounding system to reduce the risk of surge damage.
SPDs should be installed on both the AC and DC sides of the inverter. These devices need to respond rapidly to surges—sometimes in nanoseconds—and maintain a low let-through voltage (Up) to protect inverter inputs.
A DC surge protector must also handle high surge currents and prevent arcing or fire hazards on the DC side. Strong grounding is essential: use thick copper wires and ensure earth resistance is ≤10 Ω. Backup protection, such as MCBs or fuses (per IEC 60947‑2), should be included to prevent overloads.
Install surge protectors at the proper locations, such as the inverter input and near sensitive loads, to ensure effective protection.
Key Requirements Table for DC Surge Protectors
Requirement | Description |
|---|---|
Type of SPD | Install SPDs on both AC and DC sides of the inverter. |
Response Time | Must respond rapidly to nanosecond-scale surges. |
Let-Through Voltage (Up) | Keep let-through voltage low to protect inverter inputs. |
Surge Current Handling | Capable of handling high surge currents on both AC and DC sides. |
Earthing | Use thick copper wires; maintain earth resistance ≤10 Ω. |
Backup Protection | Include MCBs or fuses according to IEC 60947‑2. |
Placement | Type 2 SPD at inverter input; Type 3 SPD at sensitive load points. |
DC Side Design | DC SPDs must prevent arcing and fire hazards. |
You must also make sure your grounding is strong. Use thick copper wires and keep earth resistance low. Add backup protection like circuit breakers or fuses to stop overloads. Put surge protectors at the right spots, like at the inverter input and near sensitive equipment.
Importance of proper DC voltage rating (Uc) and polarity alignment
When you install a DC surge protector, match the voltage rating (Uc) to your solar system’s highest voltage. If you pick a surge protector with a lower Uc rating, it can get too hot or break. Always check your system’s voltage before you choose a device. DC surge protectors are polar sensitive, so you need to connect the positive and negative terminals the right way. If you mix up the polarity, the surge protector will not work and your system could get hurt.
DC surge protective devices are polar sensitive, so connect the terminals correctly.
The Uc rating must match the system’s highest voltage to stop overheating and damage.
Note: Double-check the voltage rating and polarity before you finish your setup. This easy step can save your solar system from expensive repairs.
Causes of DC Surge Protector Malfunction
Repeated Surges and Overloads Affecting the DC Surge Protector
Sometimes, your surge protection does not last long. This happens when there are many surges or overloads. Each surge makes the dc surge protector take in extra energy. This slowly breaks the inside parts. After a while, the device cannot protect your solar system well.
Every surge causes small damage inside the surge protection devices.
More surges make the protection weaker over time.
Strong or frequent surges make the device wear out faster.
The type of surge, and how often surges happen all change how long your device lasts.
If you live where storms or power problems happen a lot, check your surge protection system often.
Grounding and Earth Faults in DC Surge Protector Circuits
Grounding and surge protection are closely related but serve different purposes. Grounding provides a safe path for electricity to flow into the earth, while DC surge protectors use this path to divert excess voltage away from your solar system. If grounding is poor or faulty, the surge protector cannot function properly.
Common causes of grounding and earth faults include:
Old or damaged insulation, causing wires to contact metal surfaces.
Water ingress in outlets or breaker boxes.
Equipment failure or incorrect installation.
Human errors, such as misusing extension cords or touching live wires.
Lightning strikes, which can induce ground faults.
Weak grounding, which reduces system safety.
When a ground fault occurs, current can flow along unintended paths, potentially causing fires, arc flashes, or electric shock. Always ensure that your grounding system is robust, your equipment is properly installed, and the environment is dry and maintained.
Tip: Grounding and surge protection work hand in hand. Proper grounding enhances the effectiveness of your DC surge protector, keeping your solar equipment safe from surges and electrical faults.
Environmental and Installation Issues for DC Surge Protector
Where you put your dc surge protector matters a lot. Things around it can make it break early. High temperatures can change how the device works and cause mistakes. Humidity can make water build up inside, which breaks parts and causes rust. Vibration from machines nearby can shake the device and move parts out of place.
You should also be careful when installing the device. If you put it in a spot with lots of dust, water, or heat, it will not last long. Always follow the manufacturer’s instructions for where to put and protect the device.
Environmental Factor | Possible Effect on Surge Protection Devices |
|---|---|
High Temperature | Can cause mistakes and device failure |
High Humidity | Makes water build up, causes rust and problems |
Vibration | Can move parts and make the device less reliable |
If you know these causes, you can help protect your solar system and make your surge protection last longer.
Step-by-Step Troubleshooting of DC Surge Protector
Initial Inspection and Power-Down of DC Surge Protectors
Always turn off the solar system before you start. This keeps you safe from electric shock. Wear insulated gloves and use insulated tools. Make sure the system is fully off. Wait a few minutes for any stored energy to leave. Check the manufacturer’s manual for special shutdown steps. Safety is the most important thing when working with surge protection devices.
Visual Inspection of DC Surge Protector
After turning off the system, look at the DC surge protector. Many problems can be seen with your eyes. You might notice damage or signs that it is not working. Here are some things to check:
Indicator Type | Description |
|---|---|
Physical Damage | Look for cracks, chips, or melting. These mean the device got too hot or had a strong surge. |

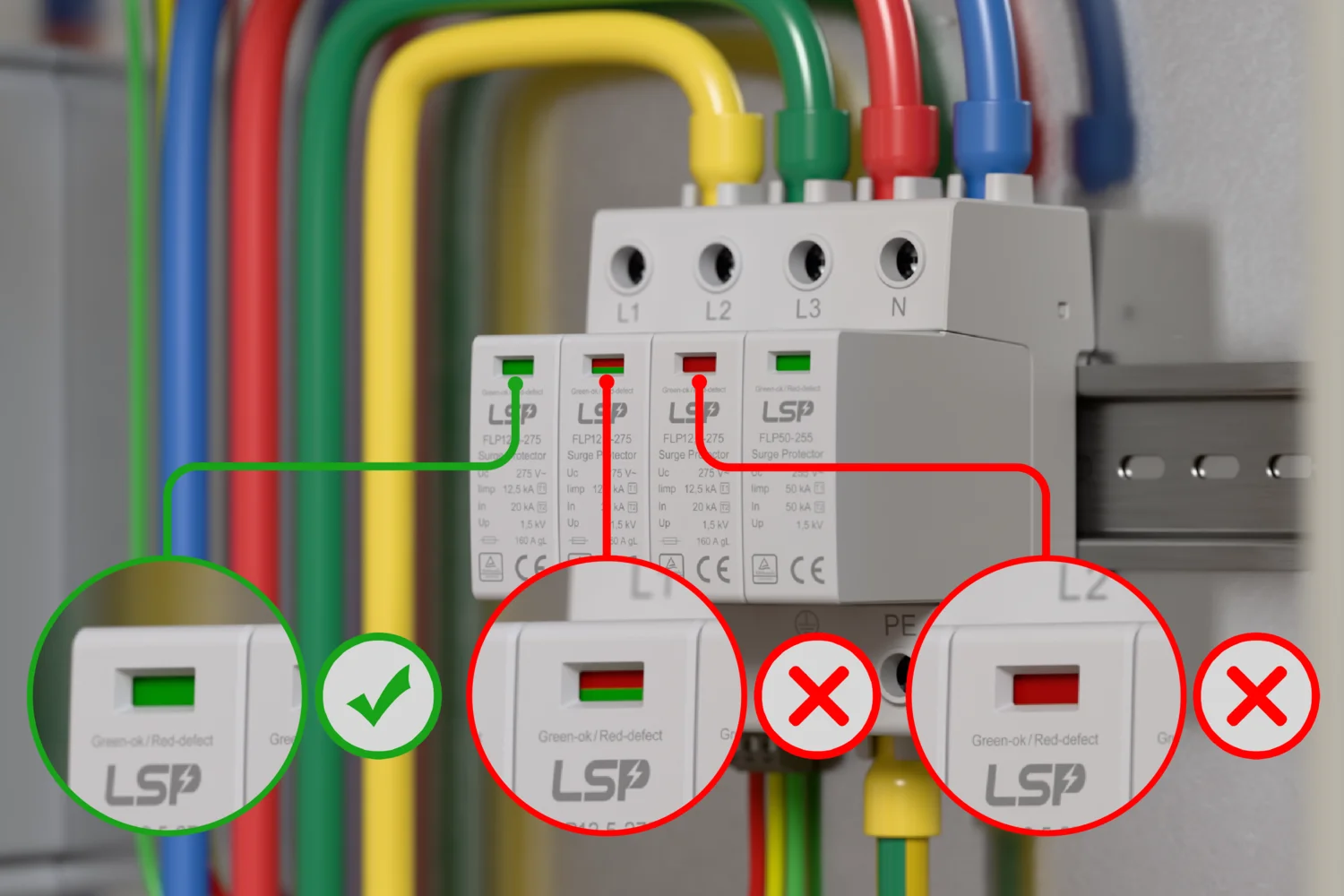

Visual Status Window | If the status window shows green, the device is functioning properly, while red or no indicates that the device may be faulty or require replacement. |
Discoloration | Burn marks or color changes show overheating or electrical problems. |
You can use this simple checklist:
Green status: The surge protection system is working.
Red status: The device has a problem or needs to be replaced.
If you see any of these signs, plan to test or replace the device soon.
Electrical Testing Procedures for DC Surge Protector
Continuity and resistance tests.
Use a multimeter to check if your surge protection system is healthy. Set the meter to continuity mode. Touch the probes to the input and output terminals. If you hear a beep, the circuit is complete. No beep means the device may be broken inside. Next, switch to resistance mode. A good device shows high resistance. Low resistance could mean a short circuit or damage inside.
Clamping Voltage, Insulation Resistance, and Leakage Current in DC Surge Protectors
For more testing, check the clamping voltage. This test shows if the device reacts at the right voltage. If the clamping voltage is much lower than the label, the device may be worn out. If it is much higher, it may not protect your system during a surge.
Test insulation resistance with a megohmmeter. High insulation resistance means the device does not let current leak. Low readings can mean water or broken parts inside.
Some experts do surge testing. This sends a controlled voltage spike through the surge protection system. It checks if the system can handle real surges. If the device fails this test, replace it right away.
Tip: Always follow the manufacturer’s instructions for each test.
Fixing or Replacing a Faulty DC Surge Protector
Safe Removal Steps for DC Surge Protector
You must be careful when taking out a broken DC surge protector. First, turn off all power to your solar system. Put on insulated gloves and use insulated tools. This keeps you safe from electric shock. Wait a few minutes so any leftover energy can leave. Look at the surge protector for heat or damage before touching it.
Next, use a screwdriver to loosen the terminal screws. Take out the wires one by one. Keep the wires apart so they do not touch each other or metal. Remove the surge protector from its rail or bracket. Put the old device somewhere safe for recycling or throwing away.
Tip: Always follow the safety steps from your manufacturer. Take your time and do not rush. Safety is the most important thing.
Choosing a Replacement DC Surge Protector
When you pick a new DC surge protector, make sure it fits your solar system. Check the voltage and current ratings. The new device must handle your system’s highest voltage. Look at the polarity so you connect the positive and negative sides right.
You can use this table to help you pick the right surge protector:
Parameter | Description | Recommended Value |
|---|---|---|
Imax | Maximum single discharge current (8/20 µs) | 40–80 kA |
In | Nominal discharge current | ≥20 kA |
Up | Voltage protection level (clamping voltage) | 20% below the equipment insulation level |
Response | Response time of the SPD | <25 ns (for MOV-based SPDs) |
You can choose a surge protector that reacts quickly. This helps keep your equipment safe from sudden surges. The voltage protection level should be less than your equipment’s insulation level. This protects your panels and inverter.
Note: Always look for IEC 61643-31 certification on the new device. This shows it meets safety rules for solar systems.
Installation Guide for DC Surge Protector
You can put in a new DC surge protector by following these steps:
Pre-Installation Preparation: Get all the tools you need. Make sure all power is off.
DC Side Connection: Put in the fuse, miniature circuit breaker (MCB), and surge protector in the PV combiner box. Connect the surge protector to the inverter.
AC Side Connection: Connect the right surge protector, fuse, and MCB. Check the polarity again.
Battery Side Connection: Connect the combiner box to the battery system. Use the right parts for safety.
Grounding: Pick a good earth wire. Follow local rules for grounding to keep the system safe.
Testing and Commissioning: Look at all connections. Use a multimeter to test the surge protector. Make sure the window indicator shows the device works.
Callout: If you are not sure about any step, ask us for help. Good installation keeps your solar system safe and working well.
Preventive Maintenance for Solar DC Surge Protector
Regular Inspection and Testing of DC Surge Protector
You should check your DC surge protector often. This helps keep your solar power system safe. Inspections help you find problems early. Look for wear, loose wires, or rust. Test the surge protector to see if it works. Use a multimeter to check clamping voltage. Make sure the device reacts to surges. If you see damage or it fails the test, replace it fast.
Here is a table to help you remember what to check and how often:
Inspection Type | Frequency/Details |
|---|---|
Visual Inspections | Regularly check for physical damage, corrosion, or loose connections. |
Functional Testing | Conduct routine tests to ensure SPDs are operational, including clamping voltages. |
Documentation | Maintain records of inspections and tests to track performance over time. |
Tip: Set a reminder every three months to inspect your surge protector. This helps you find problems before they get worse.
Monitoring and Record-Keeping for DC Surge Protector
Keeping good records helps you watch your surge protection. Write down every inspection, test, and replacement. Note the date, what you checked, and any problems. If you change the surge protector, record why and details about the new one. This log helps you see patterns and plan for future checks.
Here is a table to guide your record-keeping schedule:
Maintenance Task | Frequency |
|---|---|
Visual inspection of all power strips | Quarterly |
Comprehensive inspection | Annually |
Test surge protection functionality | Annually |
Document inspection | Annually |
Remove from service if damage found | As needed |
You can use a simple list to keep your records neat:
Keep a log for all checks and replacements.
Write down the date and results of each check.
Replace the surge protector right away if you find damage.
Note: Good records make it easy to show your solar power system is safe and well cared for.
You can keep your solar system safe if you check your DC surge protector often. Make sure you install it the right way. Regular checks help you find problems early. You might see broken parts or warning indicator.
Good installation and grounding stop expensive damage and keep your system working.
Check your surge protector every year and replace it when needed. This protects your equipment and saves money.
If you see a red indicator or there was a big surge, call an expert.
If you take care of your surge protector, your solar system will last longer and work better.
FAQ
What does a DC surge protector do in a solar system?
A DC surge protector keeps your solar panels and inverter safe from sudden high voltages. It blocks or redirects extra voltage caused by lightning or switching. This helps your system last longer.
How often should you check your DC surge protector?
You should check your DC surge protector every three months. Look for damage, loose wires, or warning indicator. Regular checks help you find problems early.
What are signs that your DC surge protector is failing?
Look for these signs:
- Red or no window status
- Burn marks or melted parts
- Strange smells or noisesReplace the device if you see any of these.
Replace the device if you see any of these.
Do you need a professional to install a DC surge protector?
You should ask a trained electrician to install your DC surge protector. This keeps you safe and makes sure the device works right. Incorrect installation can damage your solar system.
What happens if you connect the surge protector with the wrong polarity?
If it is a DC SPD, reversing the polarity (positive and negative) usually does not affect its operation, but proper grounding is essential. However, for an AC SPD, the L (live) and N (neutral) wires must not be reversed, otherwise the device will not function correctly.
How long does a DC surge protector last?
Most DC surge protectors last 3 to 5 years. If you have many storms or surges, you may need to replace it sooner. Check the device often to make sure it still works.
