Created by: Glen Zhu | Updated Date: April 28th, 2025
Power systems often face dangers from sudden power spikes. These spikes can happen due to lightning, switching, or grid issues. They can harm devices, stop work, and cost a lot to fix. A 40kA Surge Protector helps keep electrical systems safe from these problems.
Power spikes can be very strong, especially during lightning storms. A 40kA Surge Protector can handle spikes up to 40,000 Amperes. It protects homes, businesses, and factories. As a Type 2 device, it works well at main power points like service entrances or panels. This makes it useful for protecting many devices, from home gadgets to big machines.
The 40kA Surge Protector offers exceptional performance with its ultra-fast response time, diverting excess voltage to ground within nanoseconds. This rapid action helps prevent damage to sensitive equipment such as computers, medical devices, and communication systems. By minimizing the risk of costly repairs or replacements, the 40kA surge protector proves to be a smart investment for long-term electrical protection and system reliability.
Surge protection is very important. Power spikes can happen anytime and are hard to predict. Without protection, even one spike can cause big problems. A 40kA Surge Protector ensures system safety and uninterrupted operation, even under harsh conditions, providing users with peace of mind and reliable protection.
A 40kA Surge Protector is a tool that guards electrical systems. It protects them from sudden voltage increases, often caused by lightning or power changes. The “40kA” means it can handle up to 40,000 Amperes of current. This makes it good for medium-level protection in many places.
Surge protectors are grouped by how and where they are used. The table below shows these groups:
Surge Protector Level | Where It’s Used | Max Current It Handles |
|---|---|---|
First Level | Main power cabinets | 80KA~200KA |
Second Level | Branch power cabinets | 40KA |
Third Level | Near important devices | 20kA |
The 40kA Surge Protector is a second-level device. It is placed in branch cabinets to protect systems further down the line. This keeps important devices safe during power surges.

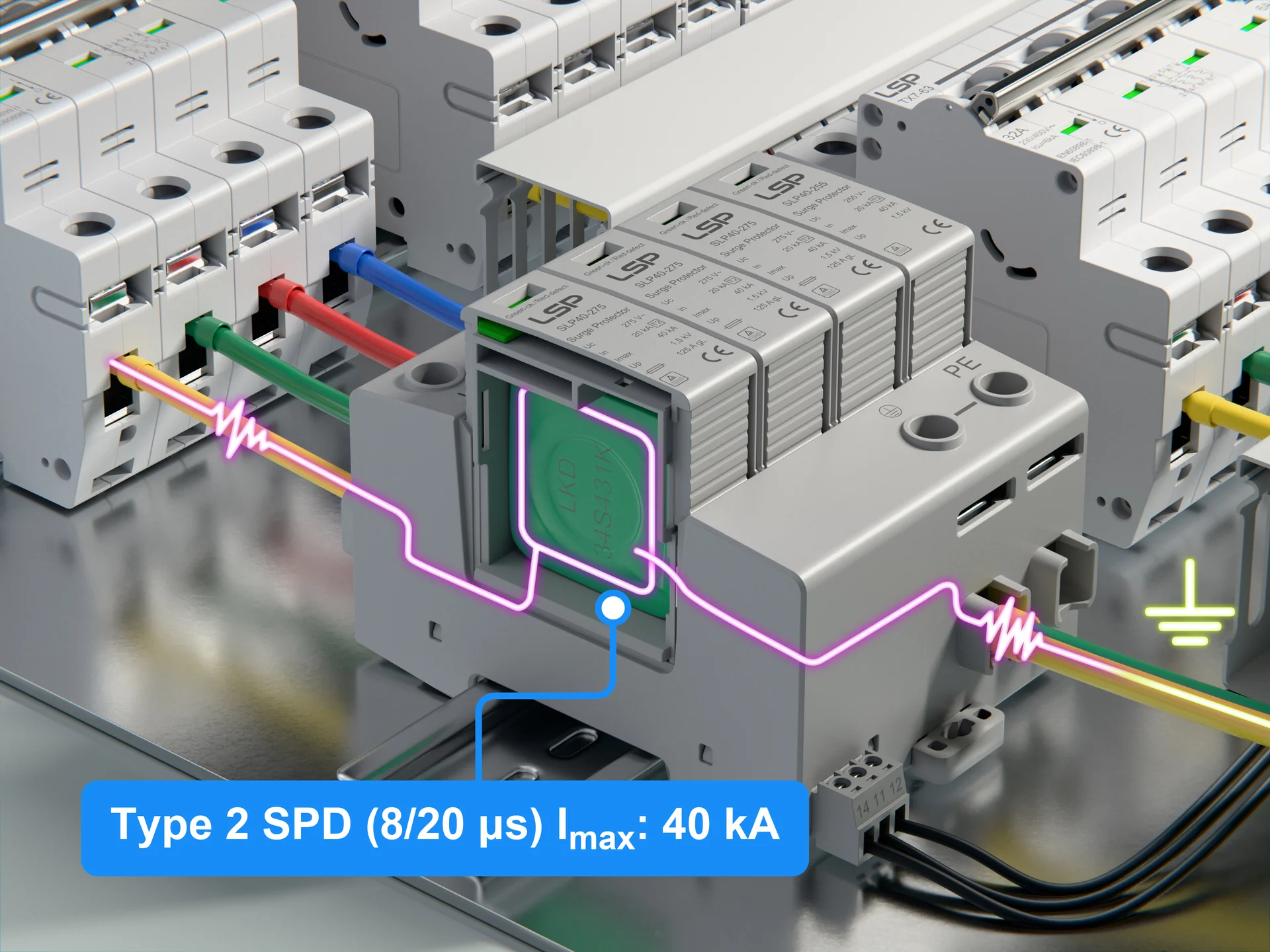

Technically, a 40kA Surge Protector is a Type 2 Surge Protection Device (SPD). They are designed to handle 8/20 µs current waveforms and serve as a backup to Type 1 surge protectors, which provide the first layer of protection. For highly sensitive equipment, Type 3 surge protectors are used. These surge protectors offer additional safety by simultaneously managing both voltage and current waveforms.
The device operates by safely diverting excess voltage to the ground. It boasts an extremely fast response time, neutralizing potential damage in just a few nanoseconds. This speed is critical for protecting sensitive equipment such as computers, medical instruments, and communication devices.
A Type 2 40kA Surge Protection Device （SPD) is an essential component for electrical safety, designed to protect electrical systems from transient overvoltages caused by lightning strikes or power fluctuations.
The 40 kA surge protector safely diverts overvoltages to ground. It uses specialized components such as metal oxide varistors (MOVs) and gas discharge tubes (GDTs), which quickly absorb and dissipate energy. Its fast response time, measured in nanoseconds, protects sensitive equipment from damage.
The kA rating indicates the maximum surge current a 40kA Surge Protector can withstand. It measures the device’s ability to safely divert excess current to ground. This rating, expressed in kiloamperes (kA), represents the maximum surge current the device can handle without failure. For 40kA Surge Protector, the kA rating typically ranges from 20 kA to 40 kA, depending on the device’s design and intended application. A 40kA SPD is typically classified as a Type 2 surge protector based on its rating.
The 8/20 µs waveform diagram is described as follows:
“T” represents Time.
“T1” represents the wavefront, forming a steep slope within 8 µs.
“T2” represents the wavetail, forming a steep slope within 20 µs.
Note:
Different standards use different terms to classify Surge Protective Devices (SPDs):
According to IEC 61643-11, the classification is Class II;
According to EN 61643-11, the classification is Type 2;
According to VDE 0675-6, the classification is Class C.
Currently, the IEC and EN standards have become largely harmonized, and the unified designation Type 2, often represented as T2 in a box, is commonly used.
The kA rating is determined through rigorous testing based on international standards. One test involves applying 15 pulses of 8/20 µs surge current waveforms at the nominal discharge current (In). This verifies whether the SPD can withstand multiple surges without damage. The table below explains this test:
Test Description | Purpose | Test Levels |
|---|---|---|
Under the rated discharge current (In), SPD is subjected to 15 pulses of 8/20 μs surge current. | Verifies the SPD’s ability to endure repeated surges without failure. | Typical values: 3 kA, 5 kA, 10 kA, or 20 kA for Type 2 SPDs; 10 kA or 20 kA for Type 1 SPDs. |
The kA rating affects how well and how long the SPD works. A higher kA rating means it can handle stronger surges, making it better for areas with frequent or strong power spikes. Choosing the right kA rating depends on:
How often surges happen, such as in areas prone to storms or industrial zones.
The installation location of the SPD in the power system.
How long you want the SPD to last.
The chart below compares the kA ratings of Type 2 and Type 1 SPDs, highlighting their differences in surge handling capabilities:
When selecting a Type 2 SPD, choose the appropriate kA rating based on your needs. For homes or offices, 10 kA or 20 kA is typically sufficient. In factories or high-risk areas, a higher kA rating may be necessary to enhance safety.
A 40kA Surge protector (SPD) is used in many places to protect electrical systems from sudden voltage spikes. It is capable of handle surge currents up to 40,000 Amperes, well suited for homes, businesses, and factories. These devices are especially valuable in areas with frequent lightning or unstable power conditions.
1. Residential Buildings:
People use Surge Protective Devices (SPD) to safeguard household appliances like TVs and smart devices. These are typically installed at the main distribution board to protect the entire house from surges.
2. Commercial Establishments:
Offices and stores utilize 40kA SPDs to ensure the safety of servers, communication tools, and point-of-sale systems. These protectors help prevent work disruptions and costly repairs.
3. Industrial Facilities:
Factories use 40kA SPDs to protect machines and control systems. These places face higher risks due to peak power usage and frequent switching.
4. Renewable Energy Systems:
Solar and wind energy systems benefit from 40 kA SPDs, particularly in regions with strict regulations. For example, Japan mandates that rooftop solar systems be equipped with at least a 40 kA SPD to address local weather condition
Selecting the appropriate kA rating for an SPD is crucial. The kA rating indicates the maximum surge current the device can safely withstand. To choose the correct rating, consider the environment, electrical system type, and required protection level.
1. Frequent Lightning or Unstable Power Conditions
Areas with frequent lightning or unstable power require a higher kA rating. For example, factories with large machinery typically face stronger surges than homes.
2. Installation Location of the SPD
The SPD’s location in the system affects its current rating. SPDs at the main power entrance (Type 1) require a higher rating, such as 80kA or more. SPDs in branch distribution boards (Type 2) generally need a rating of 20kA to 40kA.
3. Equipment Needing Protection
Sensitive equipment like medical devices or communication systems requires robust protection. A 40 kA SPD is well-suited for homes, offices, and small factories.
4. Compliance with Safety Standards Like UL 1449 and IEC 61643
Standards provide guidance on SPD selection, offering kA rating recommendations based on voltage and expected surge current levels.
Tip: Consult a licensed electrician or engineer to assess your system’s requirements.
A 40 kA SPD is ideal for moderate surge protection. It suits medium-risk environments such as homes, offices, and small factories. It can handle surges from indirect lightning strikes or power fluctuations, ensuring equipment safety.
In homes, a 40 kA SPD installed at the main distribution board protects appliances and electronics. In offices, it safeguards computers and servers. Small factories use it to protect machinery and control systems.
Application | Recommended kA Rating |
|---|---|
Homes | 20kA–40kA |
Offices | 40kA |
Small Factories | 40kA |
High-Risk Areas | 60kA or more |
Note: While a 40 kA SPD is suitable for most settings, high-risk areas may require a higher rating for added safety.
LSP is a renowned surge protection company headquartered in China, recognized for producing reliable products. Their 40kA Surge Protector exemplifies their high standards, offering protection for homes, offices, and factories against sudden electrical surges.
LSP focuses on manufacturing safe and durable products. Their SPDs undergo rigorous testing to ensure superior performance. They utilize advanced components such as Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs), which enable rapid suppression of overvoltages during power spikes.
LSP also adheres to global safety standards. The table below lists their key certifications:
Certification | What It Means |
|---|---|
TUV | Confirms the product meets safety standards. |
CB | Verifies compliance with international performance rules. |
CE | Indicates adherence to European safety and environmental rules. |
These certifications highlight LSP’s commitment to delivering safe and reliable products, making their 40 kA SPD effective across diverse applications.
LSP’s 40 kA SPD incorporates unique intelligent features. Its tripping mechanism safely interrupts arcs during surges, ensuring the safety of connected equipment. It is also compatible with various power configurations, including TN-C, TN-S, TT, and IT systems, making it versatile for different installation environments.
LSP’s products are designed for ease of use. Their SPDs are simple to install and maintain, saving time and allowing seamless integration into existing systems.
LSP goes beyond merely manufacturing products. They invest in research and development to maintain their industry-leading position. Prioritizing customer satisfaction, they have earned a loyal global customer base. Whether for household appliances or factory machinery, LSP’s products deliver exceptional protection.
If you need a reliable 40 kA Surge Protective Device, LSP is a wise choice. Their products combine quality, innovation, and trust, helping to ensure the safety of electrical systems and extend their lifespan.
Installing a 40 kA Surge Protector is a wise decision to safeguard electrical systems from sudden surges. It not only ensures the safety of homes, offices, and factories but also extends equipment lifespan. Capable of withstanding surge currents up to 40,000 amperes, it provides robust and reliable protection for medium-risk environments.
The 40 kA SPD is versatile and efficient, compatible with various power configurations such as TN-C, TN-S, TT, and IT systems. Its rapid response time, measured in nanoseconds, safely diverts overvoltages to ground, protecting critical equipment like computers, medical devices, and communication systems from damage.
The 40 kA SPD also meets today’s energy demands. As more people rely on electronics and renewable energy, surge protection is more critical than ever. Affordable and high-performing, the 40 kA SPD is an ideal choice for a wide range of applications.
“40 kA” refers to the maximum surge current the device can withstand. This means it can handle up to 40,000 amperes of current during a power spike, protecting connected equipment from damage.
A 40 kA SPD safely diverts overvoltages to ground. It uses components like Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs), which absorb energy and prevent equipment damage.
Yes, a 40kA SPD works well in homes. It protects appliances, electronics, and smart devices from power surges. Installing it at the main distribution board ensures the entire house is safeguarded.
Yes, a 40kA SPD works with solar and wind systems. It protects inverters and other components from voltage spikes, ensuring system safey and compliance with regulations.
The lifespan depends on how many surges it handles. Check its status indicator regularly. Replace it if it shows wear or stops working properly.
Yes, a 40 kA SPD should be installed by a professional. An electrician ensures proper wiring, placement, and grounding, optimizing performance and ensuring compliance with safety standards.
A high-quality 40 kA SPD should carry TUV, CB, and CE certifications. These certifications confirm it meets global safety and performance standards, ensuring reliable system protection.
LSP’s reliable surge protection devices (SPDs) are designed to meet the protection needs of installations against lightning and surges. Contact our Experts!
