What Are Surge Protectors (SPD)?
Definition of Surge Protectors and Transient Overvoltage Protection
A Surge Protector is a device that safeguards electrical and electronic equipment from transient overvoltages, commonly known as surges. These surges occur due to lightning strikes, grid voltage fluctuations, or switching operations in electrical systems. By absorbing or diverting these excessive voltages to the ground, a surge protector, or SPD, prevents damage to circuits and extends the lifespan of connected devices. Surge protectors are essential in homes, offices, and industrial installations where sensitive equipment operates.
Why Surge Protectors Are Important for Electrical Systems
Surge protectors are crucial for maintaining the reliability and safety of electrical systems. Without proper SPD protection, transient overvoltages can damage electronic components, disrupt operations, or even create fire hazards. Coordinated SPDs at different points in the system ensure that surges are safely absorbed or redirected, reducing downtime and maintenance costs. Using surge protectors enhances system stability and protects valuable equipment from unexpected power events.
Common Causes of Power Surges
Power surges can originate from several sources. Lightning strikes near power lines introduce extremely high voltages into electrical systems. Switching operations by large appliances, industrial machinery, or utility equipment can create transient spikes. Grid fluctuations and faults, such as short circuits or sudden load changes, also contribute to surges. Understanding these causes helps in selecting appropriate SPDs and designing layered surge protection for both residential and industrial applications.
How Surge Protectors Work: Surge Protection Principles
A surge protector works by coordinating its internal components to absorb or redirect transient overvoltages, protecting connected devices from damage. SPDs react within microseconds to manage both low- and high-energy surges effectively. Excess surge energy is safely diverted to ground through proper grounding, which ensures system stability and continuous operation of sensitive electronics. Surge protectors are essential in homes, offices, and industrial systems where electronics are vulnerable to voltage spikes.
MOV-Based Surge Protection Mechanism
The MOV acts as the first line of defense, reacting almost instantly when voltage exceeds its threshold. It absorbs low- to medium-energy surges and converts them into heat, preventing equipment damage. With response times from nanoseconds to microseconds, MOVs effectively protect electronics in homes, offices, and industrial environments.
Gas Discharge Tube (GDT) and Hybrid SPD Technology
The GDT handles high-energy surges such as lightning by providing a low-impedance path to ground. Slightly slower than MOVs, it can withstand higher currents and coordinates with MOVs for tiered protection. In hybrid SPDs, MOVs absorb low-energy surges while GDTs redirect high-energy events. Thermal fuses or circuit breakers act as a final safety barrier if necessary.
Types of Surge Protectors
Different electrical environments and devices require different types of surge protectors. Choosing the right SPD ensures that equipment remains safe and reliable. SPDs are classified according to IEC and UL standards, providing protection at various levels, from building entry points to end devices. Selecting the appropriate type for each installation scenario allows for coordinated, tiered protection across the entire electrical system.
Type 1 SPD: Lightning and Service Entrance Protection
Type 1 SPDs are installed at the building’s main electrical entry to protect against direct lightning strikes and high-energy power surges. They are designed for TN-S, TT, and TN-C systems and handle large impulse currents, forming the first line of defense for downstream circuits. Type 1 SPDs are essential in areas prone to lightning or for buildings with sensitive infrastructure.
Type 2 SPD: Distribution Panel Protection
Type 2 SPDs are installed in distribution panels or branch circuits to protect internal devices from grid fluctuations and residual lightning energy. They are designed for TN-S, TT, and TN-C systems, with nominal discharge current ratings that handle typical surges from switching or indirect lightning. Type 2 SPDs form the secondary layer of protection, complementing Type 1 SPDs for coordinated system safety.
Type 3 SPD: Point-of-Use Protection
Type 3 SPDs provide point-of-use protection for sensitive electronics, often integrated in plug-in SPDs or power strips. They handle residual surges that pass through upstream protection and are suitable for computers, TVs, routers, audio systems, and other critical devices. Using Type 3 SPDs in combination with Type 1 and Type 2 SPDs ensures tiered protection from the service entrance to the end device.
Selecting the appropriate type of SPD for each location is essential to achieve coordinated, tiered protection across an electrical system, ensuring reliable and safe operation of all connected devices.
Key Surge Protector Specifications and Parameters
The performance of an SPD is defined by several key parameters that determine its ability to protect connected devices from transient overvoltages. Understanding these specifications is crucial for selecting the right SPD for residential, commercial, and industrial applications. Core parameters include:
Maximum Continuous Operating Voltage (Uc)
The highest voltage an SPD can continuously withstand under normal grid conditions without misoperation or damage. Choosing an SPD with an appropriate Uc ensures stability during voltage fluctuations while maintaining protection for downstream equipment.
Nominal Discharge Current (In)
Defines the SPD’s ability to repeatedly handle surges of a standard waveform, such as those caused by switching or indirect lightning. Higher In ratings are necessary for Type 1 SPDs at building entrances, while Type 2 and Type 3 SPDs have lower In suitable for distribution panels and end devices.
Maximum Discharge Current (Imax)
Indicates the maximum surge current the SPD can safely divert without failure. Coordinating Imax across Type 1, 2, and 3 SPDs ensures tiered protection for the entire system.
Lightning Impulse Current (Iimp)
Measures the SPD’s ability to withstand lightning-induced impulses. Type 1 SPDs typically have the highest Iimp, while Type 2 and 3 SPDs handle lower residual impulses. Selecting SPDs with suitable Iimp values ensures reliable protection for sensitive electronics.
Voltage Protection Level (Up)
Defines the maximum voltage that may reach connected devices during a surge. Lower Up provides better protection for sensitive electronics.
Temporary Overvoltage (TOV)
Represents the SPD’s ability to withstand temporary overvoltages without tripping or damage.
Parameter Coordination: Balancing Up, TOV, and other SPD specifications ensures optimal, reliable protection across the electrical system.
Whole-House Surge Protection: Coordinated SPD System
Whole-house SPDs, installed at the main electrical panel or distribution cabinet, form the first line of defense for the entire building. They protect all downstream circuits from high-energy surges caused by residual lightning, grid fluctuations, or voltage spikes from large appliances.
Key aspects of coordinated SPD protection include:
- Layered Protection: Combining Type 1, Type 2, and Type 3 SPDs provides tiered protection. Type 1 SPD handles direct lightning and high-energy surges at the service entrance, Type 2 protects the distribution panel, and Type 3 SPDs deliver precise protection for sensitive end devices.
- System-Level Coordination: The full deployment of Type 1, 2, and 3 SPDs ensures that surges are progressively mitigated at each stage, providing comprehensive, coordinated protection across the electrical system.
- Monitoring and Maintenance: Advanced models feature status windows and alarm functions, allowing easy real-time monitoring, maintenance, and extending SPD service life.
Summary
By deploying SPDs in a layered approach across the building’s main power entry, distribution circuits, and end devices, coordinated whole-system protection effectively mitigates surge risks, ensuring reliable protection for the entire electrical system and critical equipment.
How to Choose the Right Surge Protector
Choosing the correct SPD requires careful evaluation of both the installation location and the type of electrical lines to be protected. The selection process ensures comprehensive protection for sensitive electronics, industrial equipment, and the entire building electrical system.
Selecting SPD Based on Installation Location and Line Type
SPD type based on installation location:
- Type 1 SPD: Installed at the main panel for service entrance protection, designed to handle high-energy surges such as direct lightning strikes or major grid fluctuations.
- Type 2 SPD: Installed at distribution panels to protect branch circuits from residual surges and switching operations.
- Type 3 SPD: Installed at point-of-use locations to provide precise protection for sensitive end devices, including computers, audio-visual equipment, and networking devices.
SPD type based on line type:
- AC SPD: Protects main AC power lines in residential, commercial, and industrial systems, suitable for both single-phase and three-phase systems.
- DC SPD: Protects DC circuits such as photovoltaic arrays, battery storage systems, and industrial DC applications.
- Data/Network SPD: Protects Ethernet (RJ45), PoE, telephone (RJ11), and coaxial lines from surges entering through power and communication cables, preventing hidden risks that bypass AC protection.
Integrating both installation-based SPD selection and line-type protection ensures a tiered, coordinated approach to surge protection. This method allows for robust system-level defense using Type 1 and Type 2 SPDs, while Type 3 SPDs provide precise, localized protection for end devices. Data and network SPDs further enhance security by addressing potential communication line surges.
Compliance with IEC 61643 Standards
All selected SPDs should comply with IEC 61643 standards, ensuring reliable and tested performance. Standard parameters include maximum discharge currents (In, Imax), response time, voltage protection level (Up), and temporary overvoltage (TOV) capability. Compliance guarantees that SPDs operate correctly under expected surge conditions, safeguarding residential, commercial, and industrial installations.
By following these principles, users can select SPDs that align with system type, installation requirements, line types, and applicable standards. Proper selection not only protects critical equipment but also extends the lifespan of both SPDs and connected devices.
Surge Protector Installation, Maintenance, and Replacement Best Practices
Correct SPD Installation and Lead Considerations
Installing an SPD correctly is crucial for reliable surge protection. Place whole-house SPDs in the main electrical panel or distribution cabinet, and plug-in SPDs near critical end devices. Keep connection leads as short as possible to minimize residual voltage and ensure fast response during surges. Avoid connecting high-power appliances directly to plug-in SPDs to prevent overload.
Grounding for Optimal SPD Performance
A solid ground connection is essential for SPDs to safely divert surge energy to the earth. A solid ground connection ensures that transient overvoltages do not damage downstream equipment. Check that grounding conductors meet local electrical codes and are tightly connected to the grounding bus or rod. Regular inspections help maintain grounding integrity over time.
SPD Status Monitoring and Replacement Guidelines

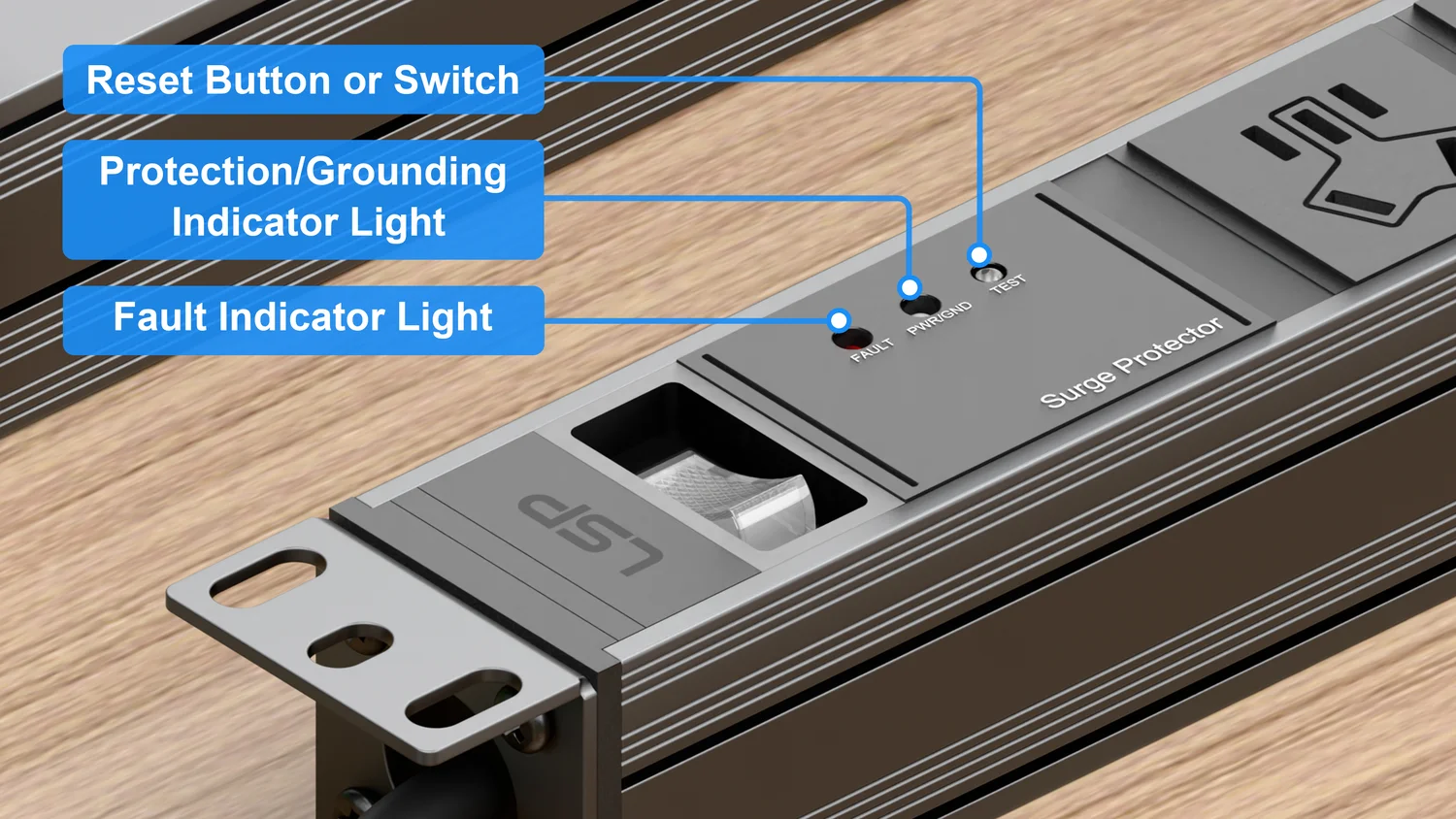

Monitoring SPD status windows is critical because SPD failure is often silent. Most SPDs have LED status windows: a green light indicates the SPD is operating normally and providing protection, while a different color, blinking, or absence of light signals that the SPD may no longer protect connected devices and should be replaced immediately. Replacement cycles depend on surge frequency and environmental conditions; residential SPDs may be checked or replaced every 2–5 years, while industrial SPDs require shorter intervals. Keeping inspection and replacement records ensures long-term system reliability.
Proper SPD installation, grounding, and status monitoring provide a solid foundation for implementing reliable SPD solutions.
LSP Surge Protector Solutions: Protect Your Electrical Systems
LSP specializes in high-quality SPD manufacturing, focusing on precise components and refined production techniques. This ensures stable SPD performance, long service life, and accurate surge clamping. LSP products undergo strict tolerance controls and encapsulation to maintain moisture-proof and insulating properties, guaranteeing reliable operation in residential, commercial, and industrial environments.
LSP offers a layered surge protection strategy using Type 1, Type 2, and Type 3 SPDs. Type 1 SPDs provide high-energy protection at the main electrical entry against direct lightning and grid surges. Type 2 SPDs protect branch circuits in distribution panels, while Type 3 SPDs deliver precise end-device protection, especially for sensitive electronics. This tiered approach maximizes system reliability and minimizes the risk of equipment damage.
Beyond standard AC SPDs, LSP also produces specialized SPDs for DC applications, photovoltaic systems, and signal/data line protection, including Ethernet, PoE, and telephone lines. These devices clamp overvoltage and divert surge energy away from sensitive network and control equipment, ensuring comprehensive protection across all circuits and data lines.
By choosing LSP SPDs, facilities gain access to a complete surge protection solution, combining precision manufacturing, tiered defense, and specialized protection for power and data lines. This integrated approach safeguards sensitive electronics, industrial equipment, and building systems against all types of transient overvoltages.
Frequently Asked Questions About Surge Protectors
Do Surge Protectors Protect Against Lightning?
Surge Protectors (SPDs) can protect electrical systems from the damaging effects of indirect lightning strikes and switching surges. Type 1 SPDs at the main power entry handle high-energy surges, while Type 2 and Type 3 SPDs protect distribution circuits and sensitive end devices. They divert surge energy to ground, minimizing the risk of equipment damage.
How Long Do Surge Protectors Last?
The lifespan of an SPD depends on the number and magnitude of surges it absorbs. High-quality SPDs with proper installation and grounding can last several years, but status windows should be regularly monitored. Residential SPDs are typically inspected or replaced every 2–5 years, while industrial environments may require more frequent replacement.
Do All Devices Need Surge Protection?
Not all devices require a dedicated SPD, but sensitive electronics such as computers, routers, NAS, TVs, and medical equipment benefit most from protection. Coordinated protection using Type 1, 2, and 3 SPDs ensures both system-level and device-level defense.
Can Surge Protectors Fail After Multiple Surges?
Yes. SPD components such as MOVs and GDTs degrade after absorbing multiple surges. Regular monitoring of status windows and timely replacement ensures continued surge protection.
Why Power Strips Alone Do Not Protect Against Surges
Standard power strips only extend outlet count and do not contain SPD modules or clamping components. They cannot absorb or divert transient overvoltages, leaving connected devices vulnerable. Only SPDs with properly rated Imax, In, Up, and fast response can reliably protect electronics.
