Surge Protector vs UPS: Understanding the Core Differences
Power disturbances such as lightning, sudden blackouts, or voltage fluctuations can easily shut down a computer, corrupt files, or damage expensive electronics. This is when many people first discover that ordinary outlets offer no real protection—and they begin comparing a Power Surge Protector with a UPS (Uninterruptible Power Supply).
Yet the common “surge protector vs UPS” debate is based on a misconception. These devices are not alternatives to each other. A Power Surge Protector provides surge protection, while a UPS offers backup power to prevent data loss and unexpected shutdowns. Because they solve different problems, many users search for terms like “UPS surge protector” or “UPS with surge protection”, hoping to understand how the two should work together.
This leads directly to the two practical questions most people ask.
When your home appliances are already connected to the main power through a power strip with surge protection, do you still need to have a UPS?
Or, if you have equipped important devices with a UPS to prevent data loss or abnormal shutdown caused by power outages, do you still need an additional power surge protector?
In fact, these two questions are not necessarily causally related. Surge Protectors and UPS (Uninterruptible Power Supplies) differ significantly in their core functions and application purposes. They are not mutually exclusive choices, nor do they depend on one another sequentially. Whether to use one or both depends primarily on the power protection goals you want to achieve.
Below, we will introduce the functions and uses of these two types of devices separately.
What Is a Surge Protector?
Surge protectors are among the most commonly used devices for safeguarding modern electronics, yet many people still mistake them for simple power strips. In reality, a surge protector plays a critical role in preventing damage from power surges, electrical surges, and transient overvoltage events—typically caused by lightning strikes, utility grid switching, or sudden load changes from large household appliances. Although these surges last only microseconds, the spike in voltage can easily overload and destroy sensitive components found in computers, TVs, networking equipment, and smart home devices. This makes surge protection an essential part of electrical safety for both homes and commercial environments.
As the name implies, a surge protector is a device designed to protect circuits from instantaneous overvoltages (also called “surges”). When the voltage briefly exceeds the safe range tolerated by connected equipment, the surge protector diverts the excess current to the grounding system, preventing damage to the connected devices.
Common surge protectors internally use components such as Metal Oxide Varistors (MOVs), Gas Discharge Tubes (GDTs), or Transient Voltage Suppression Diodes (TVS). Although these names sound technical, their essential function is the same—to quickly conduct and clamp surge voltage during abnormal voltage events.
Under normal voltage conditions, the SPD (Surge Protective Device) remains in a “high resistance” state and hardly conducts; but when a surge occurs and voltage reaches its triggering threshold (known as “breakdown voltage”), the protector instantly conducts, channeling surge current to the ground line to prevent damage to sensitive parallel devices.
Devices sensitive to voltage fluctuations—such as TVs, computers, networking equipment, and smart appliances—are recommended to be equipped with surge protectors to prevent transient surges caused by lightning strikes, grid switching, motor interference, and so forth.

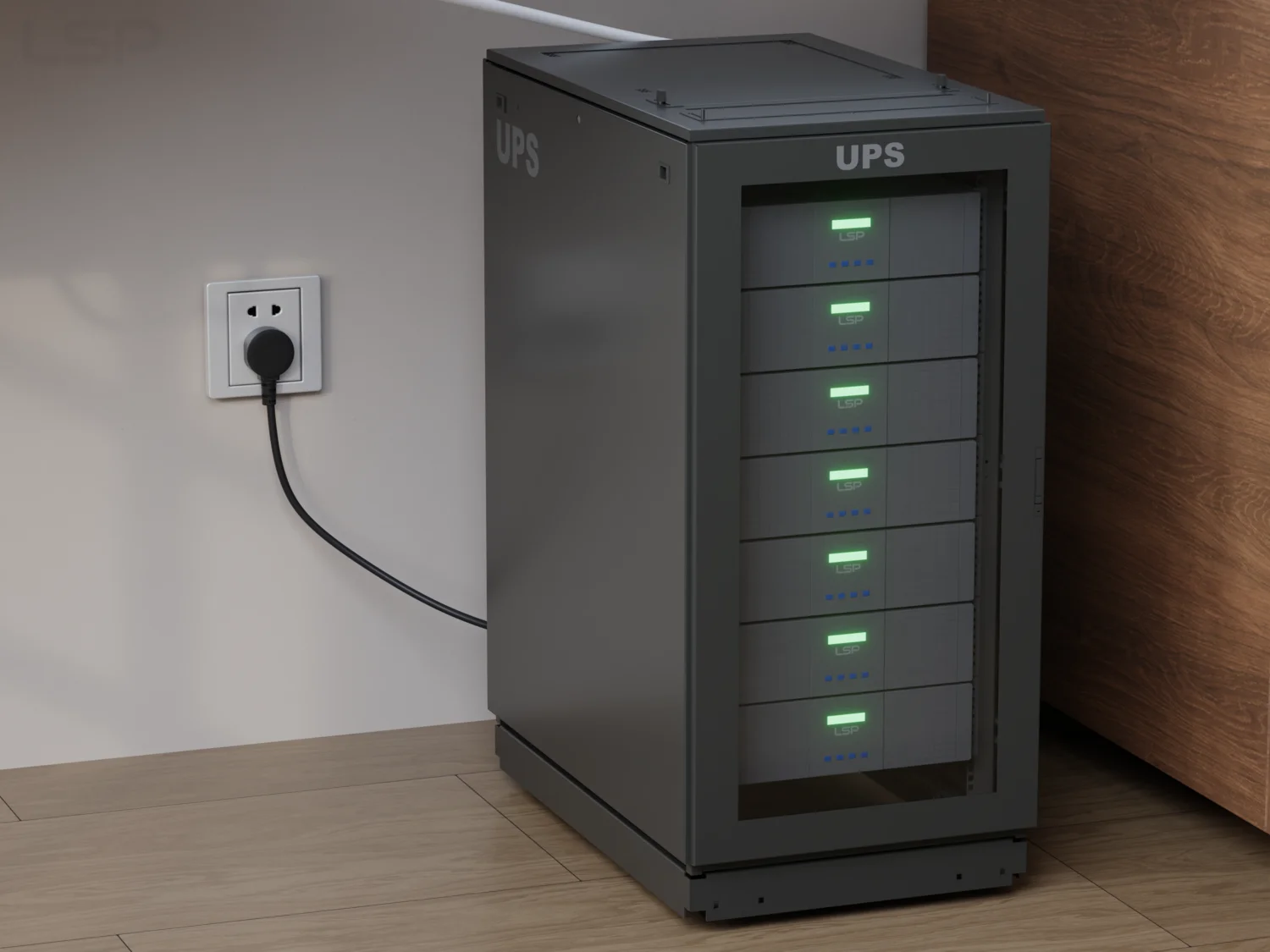

What Is UPS Uninterruptible Power Supply?
As mentioned above, surge protectors focus on protecting against overvoltage but do not provide backup power. They cannot handle risks from instantaneous power loss or outages, which is exactly what the UPS (Uninterruptible Power Supply) is designed to address.
A UPS contains batteries and an inverter that immediately switch to battery power when main power fails or fluctuates severely, outputting stable AC power through the inverter to provide temporary power support for critical devices like computers, servers, and networking equipment, thus avoiding data loss or system crashes.
Some high-end UPS models also feature Automatic Voltage Regulation (AVR) to automatically adjust output voltage within a fluctuation range and improve power quality.
So, is a UPS equivalent to a surge protector? Not exactly. Although some high-end UPS devices have built-in surge protection modules and provide certain surge protection in UPS functions, these products tend to be more expensive and are typically used in scenarios requiring both a continuous power supply and equipment safety.
Surge Protector vs UPS: Key Comparison
While surge protectors and UPSs both safeguard electronics, they serve distinct purposes. Knowing their strengths and limitations helps you use them together for comprehensive protection.
A surge protector defends sensitive electronics from sudden voltage spikes, power surges, and transient overvoltage events caused by storms, grid switching, or large appliances. It protects computers, TVs, networking equipment, and smart appliances, preventing hardware damage and downtime. However, standard surge protectors have limitations:
- Pros: Affordable, easy to use, essential for hardware protection.
- Cons: Ineffective during blackouts or brownouts, MOV wears out, cannot correct dirty power.
For continuous protection, especially during outages, combining a surge protector with a UPS (Uninterruptible Power Supply) or voltage regulator ensures both hardware and critical systems are safeguarded.
A UPS provides battery backup, allowing critical devices to stay powered during blackouts, brownouts, or voltage fluctuations. Its main purpose is data protection, giving time to save files, close programs, and safely shut down computers, servers, NAS drives, or other critical electronics, preventing data loss and system crashes.
Common UPS types include:
- Standby (Offline): Simple, suitable for home PCs and non-critical devices.
- Line-Interactive: Corrects minor brownouts without using the battery; ideal for home offices and small businesses.
- Online (Double-Conversion): Provides continuous, clean power with zero transfer time; ideal for enterprise servers or critical equipment.
Once you know the roles of a surge protector and a UPS, you can see how using both together provides complete protection.
Summary of Core Functional Differences: Complementarity of UPS and Surge Protector
In summary, surge protectors and UPS serve fundamentally different roles: the former focuses on surge (transient overvoltage) protection, while the latter ensures power supply during outages. They are not substitutes but can work together to complement each other.
Therefore, instead of debating whether to choose a surge protector or UPS, it is better to decide based on your application scenario whether to connect the UPS downstream of a surge protector or to plug a surge protector into the output of a UPS, thereby achieving dual protection of surge protection and battery backup.
Which One Do You Need: Surge Protector vs UPS?
UPS vs Surge Protector / SPD Comparison Table
| Item | UPS (Uninterruptible Power Supply) | Surge Protector / SPD (Surge Protective Device) |
| Core Function | Provides battery backup, stabilizes voltage, prevents shutdown during power outages | Blocks/absorbs power surges and transient overvoltages; protects sensitive electronics |
| Surge Protection Capability | Some UPS units include basic surge protection (500–1000J, limited) | Yes — Type 1/2/3 SPDs offer strong surge protection and handle much higher surge energy |
| Battery Included | Yes — continues powering devices during blackouts | No — does not supply power during outages |
| Advantages | Ensures data protection, prevents unexpected shutdowns, provides clean power | Strong surge suppression, long lifespan, supports whole-house and point-of-use protection |
| Disadvantages | Not ideal for heavy surge events; battery requires maintenance; higher cost | Cannot protect against power loss; cannot replace a UPS |
| Best Use Cases | Computers, servers, NAS, PLCs, networking gear, medical/lab devices | Main panels, sub-panels, home appliances, TVs, CCTV, IoT devices |
| Best Combined Usage | UPS + Endpoint SPD for full protection | Works with UPS to form a complete surge protection system |
Since a UPS (Uninterruptible Power Supply) and a Surge Protector serve different purposes, how should we choose to meet specific protection needs? The choice of device, or whether to combine them, largely depends on the difference between UPS and surge protector, their functions, and when to use each or both together for power surge protection and battery backup.
Combined Use of UPS and Endpoint Surge Protector
When considering whether to combine a UPS with a surge protector, first evaluate them on the same level.
- If the UPS only provides backup power for one or a few endpoint devices (such as computers, workstations, surveillance equipment), then those devices should be equipped with endpoint surge protectors.
Common endpoint Surge Protector forms include:
- Power outlets or strips with built-in surge protection modules
- Din rail-mounted Type 3 Surge Protectors (installed inside endpoint distribution boxes)
When these endpoint Surge Protector devices are used together with a UPS, they provide effective dual protection:
- The UPS ensures continuous power supply during outages
- The Surge Protector prevents transient over-voltages caused by lightning, grid switching, etc.
In practice, “plugging a surge protector into the output of a UPS” is a common approach, especially suitable for home and office environments.
- If the UPS is used to power an entire floor or building (e.g., hospitals, data centers), relying solely on endpoint SPD is insufficient.
In such cases, Type 1 and Type 2 Surge Protectors should be installed at sub-distribution panels and main distribution boards to build a complete hierarchical protection system.
Regardless of UPS usage, system-level surge protection (main distribution, sub-distribution, endpoints) is indispensable for critical sites such as industrial, medical, telecommunications, and laboratory environments.
After all, if expensive precision equipment is damaged by surges, the repair or replacement cost far exceeds the investment needed for deploying Surge Protector.
Which Is Better: UPS or Surge Protector for Home and Office?
Choosing between a UPS and surge protector for home or office depends on your actual needs and budget:
If budget allows:
It is recommended to configure both UPS and surge protector, or select a UPS with built-in surge protection.
This combination not only prevents transient overvoltage damage but also maintains device operation during sudden power outages, protecting data integrity and extending device lifespan.
When Do You Need a UPS Instead of a Surge Protector?
The key criterion is whether the device requires a stable power supply and cannot tolerate interruption during power outages.
Typical scenarios requiring UPS include:
Workstations, data centers, PLC controllers, medical devices, security and communication equipment, ATMs, and laboratory equipment.
For these applications, data exchange, recording, or signal integrity is paramount, demanding an uninterrupted power supply. A UPS can provide timely power during a main outage and also effectively protect against lightning strikes, grid surges, and voltage fluctuations affecting the equipment.
Don’t Forget Upstream Surge Protection: Type 1/Type 2 SPD Matters
Whether you choose surge-protected power strips, din rail-mounted Type 3 Surge Protector, or UPS with surge protection, you must not neglect the deployment of Surge Protector at the system upstream level.
- Endpoint Surge Protector can only defend against some surges;
- Large surge currents (e.g., direct lightning strikes, power system switching) must be mitigated through Type 1 / Type 2 Surge Protector installed in the main distribution system.
Only by establishing a complete hierarchical surge protection system—from main distribution to the sub-distribution and finally to the endpoint devices—can critical equipment be truly safeguarded for stable and safe operation under various power abnormalities.
Safety Guidelines: How to Connect UPS and Surge Protector Properly
Since in many practical applications, a UPS often needs to work alongside a Surge Protector (SPD), how should the two be properly connected? What should you be aware of? Let’s explore two typical connection scenarios:
Can You Plug a Surge Protector into a UPS?
Yes. In most home and office settings, this is the best practice setup for UPS and surge protector combinations.
When a surge protector is plugged into a UPS, your devices gain two layers of protection:
- UPS supplies backup power during an outage (battery backup), ensuring devices run without interruption during a power outage or main power issue.
- The surge protector prevents damage from power surges, lightning spikes, or grid switching.
In this setup:
- The UPS input is directly connected to main power, allowing it to monitor voltage abnormalities and switch to backup power when necessary.
- The UPS output connects to the surge protector, which then supplies the endpoint devices, achieving dual protection.
Can You Plug a UPS into a Surge Protector?
Conversely, if we first connect the UPS’s input to a surge protector and then connect the UPS’s output to terminal equipment, this scenario requires a more detailed analysis. There are two main situations for this type of connection:
Scenario 1: UPS Installed Downstream of Main/Sub Distribution SPD
In this configuration：
- A Type 1+2 or Type 2 Surge Protector is installed at the distribution panel;
- The UPS is connected downstream of the panel to power the endpoint devices.
This is a reasonable and safe setup. In this case, the Surge Protector primarily protects the entire downstream circuit—including the UPS and connected devices—from large-scale lightning surges.
However, note that although the upstream Surge Protector clamps the surge initially, residual surge voltage may still propagate downstream. If devices are particularly sensitive, it’s still advisable to install a Type 3 SPD at the endpoint.
Scenario 2: UPS Plugged into Endpoint Surge Protector or Surge-Protected Power Strip
This setup is not recommended, especially for high-wattage or mission-critical systems. Even though many users ask:
“Can a UPS be plugged into a surge protector?”, or “Should I connect UPS to a surge protector?”
The risks include overload, voltage interference, and surge protector misfiring.
There are several reasons below:
- The UPS typically has a higher power demand, which may exceed the rated load of the endpoint Surge Protector, increasing the risk of overload, overheating, or even fire;
- Endpoint Surge Protectors are designed to protect low-power devices and cannot withstand the surge current from a UPS and its downstream load;
- The surge clamping action of the Surge Protector may interfere with the UPS’s power-switching logic, potentially causing false triggers or malfunctions;
- Voltage transients generated during UPS switching (e.g., from AC to battery mode) may mistakenly trigger the Surge Protector or even cause reverse surge impact.
Improper connection between the two may lead to protection failure, unexpected device restarts, or equipment damage.
Therefore, do not plug a UPS into an endpoint surge protector, especially in scenarios involving high-power UPS units or high-value equipment.
Instead, place the UPS directly into a wall socket and connect a surge protector to its output if needed.
In summary, when a UPS and an Surge Protector need to be used together, the optimal connection order is: Main Power → UPS → Surge Protector (or power strip with surge protection functionality) → Terminal Devices. This ensures the UPS first receives clean, stable power and provides backup power, after which the downstream surge protector provides final overvoltage protection for sensitive terminal devices.
Safe Connection Between UPS and Surge Protector: Best Practices and Setup Tips
Properly connecting a UPS (Uninterruptible Power Supply) and a Surge Protection Device (SPD) is crucial for ensuring both a continuous power supply and effective surge protection.
Depending on whether your UPS comes with built-in SPD functionality, the following configurations are recommended:
Option 1: UPS with Built-in Surge Protection – Why It Might Not Be Enough
Many users notice the “Surge Protection” label on a UPS and assume it is sufficient. While most modern UPS devices include basic surge protection, relying on it alone can be risky. A UPS is primarily designed for battery backup and inverter operation, not high-energy surge absorption.
A dedicated surge protector typically offers 2500–4000 Joules of energy absorption, whereas a UPS’s built-in SPD may provide only 500–1000 Joules, leaving connected devices vulnerable to lightning strikes, grid switching surges, or other high-energy transient overvoltages. Using a UPS alone as a primary surge protector can expose both your hardware and the UPS itself to damage.
If you’re using a UPS surge suppressor or UPS battery backup & surge protector, you don’t need an additional Surge Protector.
Pros: Simple structure, easy operation; ideal for everyday office and home use.
Cons: The Surge Protector module inside the UPS is usually limited in capacity and not suitable for regions with frequent thunderstorms or severe voltage fluctuations.
Option 2: UPS without Built-in Surge Protection
If your UPS does not have built-in surge protection, install an upstream (Type 1 or 2) or downstream (Type 3) Surge Protector to achieve full UPS and surge protection.
Recommended wiring configurations：
- Main Power → Main/Sub Distribution Panel (with Type 1 or Type 2 SPD) → UPS → Endpoint Devices
- Suitable for scenarios requiring full system protection, such as office cabinets or home automation systems.
- Main Power → UPS → Type 3 Endpoint SPD → Sensitive Devices
- Ideal for protecting precision devices like routers, NAS systems, PLCs, medical electronics, and laboratory instruments.
- Ensures both continuous power supply and surge protection in the event of simultaneous power failure and lightning surge.
Using this layered UPS + SPD strategy, the UPS focuses on providing backup power and maintaining data integrity, while the SPD absorbs high-energy surges, offering system-level surge protection.
Layered Surge Protection with Professional SPD and UPS Backup
Relying solely on consumer power strips or a UPS is insufficient for comprehensive surge protection. To fully safeguard home or office electronics, a layered protection strategy combining professional Surge Protection Devices (SPDs) with a UPS battery backup is recommended.
Why Professional SPDs Matter
Standard power strips or basic surge protectors cannot absorb high-energy voltage surges caused by lightning strikes or grid switching. Professional SPDs are classified by type based on installation location and protection scope:
- Type 1 SPD: Installed before the main breaker; handles massive external surges and protects the entire power line. Ideal for industrial/commercial or high-risk residential scenarios.
- Type 2 Whole-Home SPD: Installed in the main electrical panel; serves as the core of whole-home surge protection, shielding all branch circuits and outlets.
- Type 3 / Rail-mounted SPD: Mounted near endpoint devices; limits medium-to-low surges for critical devices such as PCs, NAS, routers, or sensitive appliances.
Most homes rely only on Type 3 SPDs, which is insufficient against high-energy surges. A Type 2 Whole-Home SPD provides robust system-level surge protection before electricity reaches outlets or sensitive equipment.
Layered Protection Strategy: Macro and Micro Levels
- Macro-Protection (SPD): A Type 2 Whole-Home SPD at the main panel absorbs external voltage surges, protecting all circuits, outlets, and critical devices. This provides system-level surge protection for your home or office.
- Micro-Protection (UPS): Connect critical electronics—such as PCs, servers, NAS systems, and networking equipment—to a UPS battery backup. The UPS focuses on maintaining data integrity and uninterrupted operation during blackouts, brownouts, or voltage sags, ensuring localized backup and protection for sensitive devices.
Practical Scenarios for Layered SPD + UPS Protection
- Scenario 1: Student / Renter (Budget-Conscious) Use a high-quality Type 3 SPD surge protector with a high Joule rating (2000+). Laptop batteries serve as built-in UPS backup; for desktops or consoles, a small Standby UPS ensures temporary power continuity and protects data integrity.
- Scenario 2: Home Office / PC Gamer Combine a Type 2 Whole-Home SPD with a Line-Interactive UPS for desktops and monitors. This layered setup protects both hardware from surges and critical data during brownouts or sudden power interruptions.
- Scenario 3: Smart Home / NAS User Implement a full-stack defense: a Type 2 Whole-Home SPD protects all circuits and endpoints, while a Line-Interactive UPS provides battery backup and ensures safe shutdown of servers or NAS during power outages. This combination preserves data integrity and prevents equipment damage in high-risk environments.
Key Takeaway: A layered protection strategy combining professional SPDs and a UPS battery backup ensures complete hardware and data safety, offering system-level surge protection and localized power continuity for critical devices.
Conclusion: Choose Your Setup Based on Protection Goals
As discussed, UPS (Uninterruptible Power Supply) and Surge Protection Devices (SPD) are not mutually exclusive—they are complementary components of a robust power protection strategy.
A proper connection setup should consider:
- Application location (home, hospital, data center, etc.);
- Device criticality and sensitivity;
- Whether upstream SPD protection is in place;
- Budget and installation conditions.
The correct UPS + SPD setup not only prevents equipment damage from voltage spikes, transient overvoltages, and power surges, but also ensures continuous, stable, and reliable power for critical electronics during blackouts, brownouts, and grid fluctuations.
A layered approach is the most effective strategy:
- System-wide surge protection with a professional-grade SPD at the main panel to absorb high-energy surges and protect all branch circuits.
- Localized backup and data integrity protection via a UPS for critical devices that cannot tolerate improper shutdowns.
Stop leaving your valuable electronics to chance. Implementing a layered UPS + SPD defense provides comprehensive protection for both hardware and data, ensuring operational continuity and extending device lifespan.
Frequently Asked Questions （FAQ）
Does a UPS Have Built-in Surge Protection?
Not all UPS (Uninterruptible Power Supply) units come with built-in SPD (Surge Protection Device). Many users mistakenly assume a UPS acts as a surge protector, but only specific UPS models with integrated surge suppression include this function.
To determine whether your UPS includes surge protection:
- Check for labels like “Surge” or “Surge Protected” on the UPS or its outlets;
- Refer to the product manual or technical specifications;
- Confirm with the official brand channels or your supplier.
Can a Surge Protector Safeguard a UPS?
Yes, a surge protector can protect a UPS, but only if you use a Type 1, Type 1+2, or Type 2 SPD installed in the main or sub-distribution panel. These devices have sufficient current-carrying capacity and protection level.
It is not recommended to protect a UPS with a Type 3 Surge Protector or surge-protected power strip, due to:
- Inadequate load capacity;
- Potential interference with the UPS’s internal power management logic, leading to false triggers;
- Overheating risk from the current load exceeding the Surge Protector rating.
Is AVR the Same as a UPS?
No. AVR (Automatic Voltage Regulator) and UPS (Uninterruptible Power Supply) are two different devices:
| Feature | AVR | UPS |
| Built-in Battery | No | Yes |
| Core Function | Voltage regulation | Backup power + voltage regulation |
| Use Case | Mild voltage fluctuation | Unstable grid / critical equipment protection |
An AVR protects devices from overvoltage and undervoltage but cannot supply power during outages, and cannot replace a UPS.
Do You Need Surge Protector or UPS for a Refrigerator?
For kitchen appliances like refrigerators that are high-powered and not data-sensitive, use a surge protector for appliances, not a UPS. A surge protector for a refrigerator can prevent voltage spikes without the cost or complexity of battery backup.
- Refrigerators generate inrush current during startup/shutdown and are sensitive to voltage fluctuations;
- In the event of a power outage, they usually just need to be restarted—unlike computers, which may lose data.
Therefore, a UPS is not recommended, and a surge-suppressing power strip or endpoint SPD should be used for protection.
