What is a Surge Protection Device (SPD)

A surge protection device (SPD) is an essential electrical component designed to protect electrical and electronic equipment from transient overvoltages, commonly known as surges. Surges can be caused by lightning strikes, switching operations in power networks, or electromagnetic interference, and they can damage sensitive devices, reduce equipment lifespan, or even cause fire hazards.

SPD Working Principle

A Surge Protection Device (SPD) protects connected equipment by absorbing excessive voltage and diverting surge current safely to ground. Most high-quality SPDs adopt a multi-stage protection mechanism, which ensures both high-energy and low-energy surges are handled efficiently.

If you want to learn more about How Does Surge Protection Work, please visit our previous blog https://lsp.global/how-does-surge-protection-work/

What is the Function of a Surge Protector？

• Clamping voltage spikes: Limiting the voltage to a safe level for connected devices.

• Diverting surge energy to ground: Safely directing excess energy away from sensitive circuits.

• Protecting critical equipment: From servers, communication devices, industrial controllers, to renewable energy systems like PV inverters.

Understanding the core components and their functions of an SPD is essential for fully grasping how an SPD works. By selecting and combining these components appropriately, an SPD can deliver multiple protective functions to meet various application needs.

Overview of Core SPD Components and Their Functions

To provide a clear understanding of the structure of a surge protection device (SPD) and the role of each component, we have summarized the main parts in the table below. It covers each core SPD element with its definition, function, typical applications, and notes or common issues encountered during operation.

Component	Definition	Function	Application	Notes / Common Issues
Metal Oxide Varistor (MOV)	The most common core component in SPD	Absorbs medium- and low-energy surges, clamps voltage, protects downstream devices	Type 2 SPD, medium-energy surge scenarios	Leakage current increase, aging degradation; should be used with GDT or Spark Gap
Gas Discharge Tube (GDT)	Discharge device filled with inert gas	Handles high currents; conducts upon breakdown to safely divert surge to ground	Lightning protection, communication line protection	Relatively slower response, higher residual voltage
Spark Gap	Protection device based on gas gap breakdown principle	Provides primary protection against high-current surges, directs energy to ground	Type 1 SPD, power systems, lightning-prone environments	Slower response than MOV; larger size; needs to be paired with MOV/GDT
Transient Voltage Suppression Diode (TVS)	Ultra-fast-response semiconductor device	Protects sensitive electronics, clamps transient overvoltage	Precision electronics, data lines, microprocessor circuits	Suitable for low-energy surges; cannot handle large current lightning strikes
Thermal Disconnect (OTP / Thermal Fuse)	Temperature-triggered circuit disconnect device	Cuts off circuit if MOV overheats, preventing fire or explosion	Distribution systems, industrial automation, PV systems	Trigger temperature must be set correctly; some are one-time fuses
Filter & Decoupling Circuit	Circuit module to suppress high-frequency interference	Suppresses harmonics and noise, ensures lossless high-frequency signal transmission	Industrial automation, data centers, PV systems	Mainly for high-frequency interference; cannot handle high-current surges
Indicator / Status Window	Visual element showing SPD operating status	Clearly shows device status (Green = Normal, Red = Fault)	All SPD devices	Indicator may fail or give false reading
Remote Signaling Contact	Remote monitoring interface	Sends SPD status signal to SCADA/BMS	Industrial facilities, PV power plants, large buildings	Only transmits status signal; must be used with primary protection components
Enclosure & Materials	Structure protecting internal SPD components	Provides physical protection and flame resistance	Indoor/outdoor SPD installation	Protection rating must match installation environment (e.g., IP65)
Wiring Terminals & Base	Critical part connecting SPD to the circuit	Ensures reliable electrical connection, prevents loosening and overheating	All SPD installations	Must accommodate multi-strand wires, anti-loosening design, temperature rise control

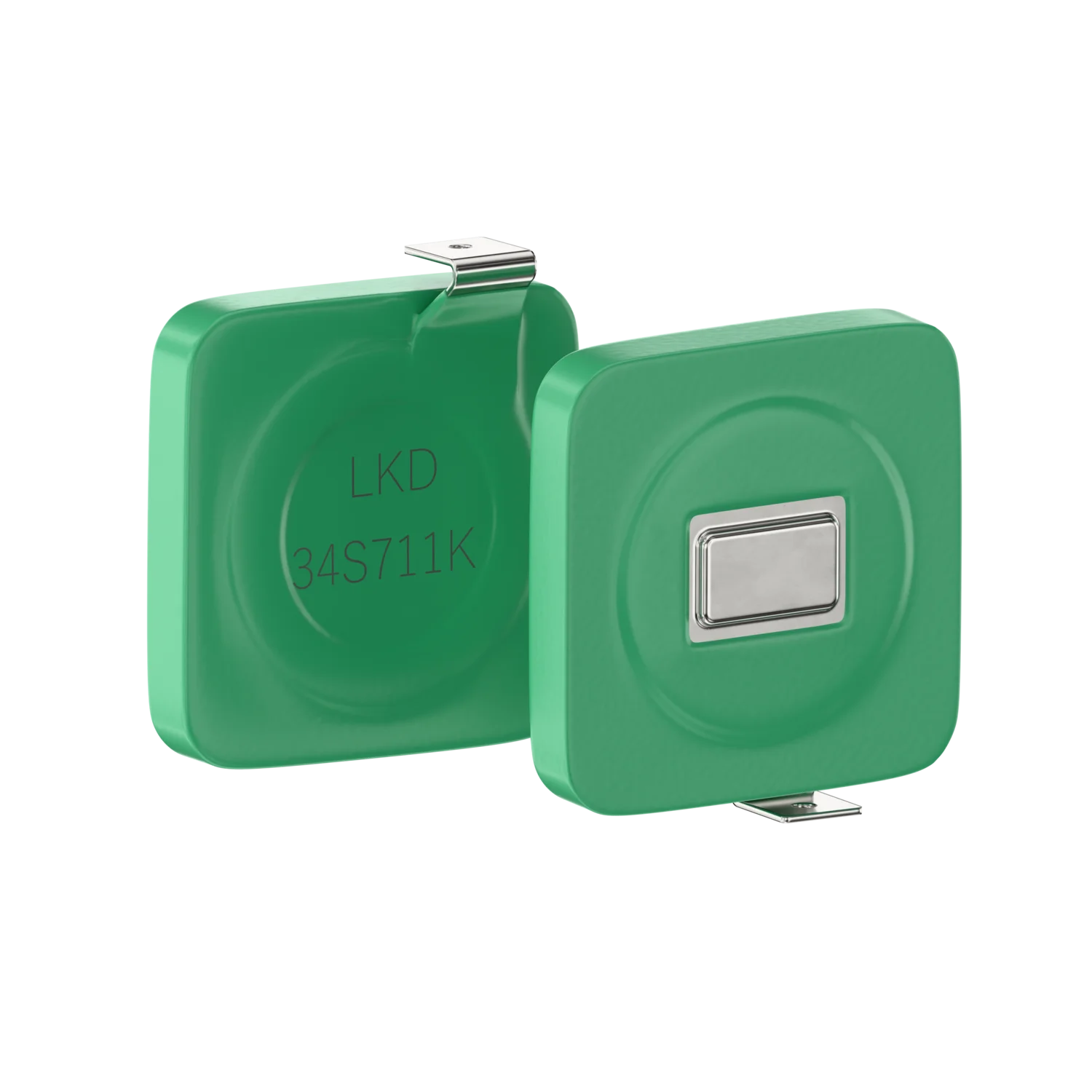

Metal Oxide Varistor (MOV)

Definition

The Metal Oxide Varistor (MOV) is one of the most common and critical surge protection device (SPD) components. It is typically made by sintering zinc oxide (ZnO) particles with other metal oxides, forming a nonlinear resistor. Under normal voltage conditions, the MOV exhibits high impedance, allowing normal circuit operation with minimal interference.

Function

The primary function of an MOV is to absorb transient overvoltages and clamp them within a safe range for connected equipment. When a surge or lightning-induced overvoltage occurs, the MOV’s resistance quickly switches from high impedance to low impedance, instantly conducting and diverting excess energy to the ground.

This mechanism provides effective surge protection and overvoltage protection, preventing damage to downstream electrical and electronic devices.

Applications

Due to its low cost, fast response, and stable protection capability, MOVs are widely used in Type 2 SPDs, mainly for medium-energy surge events. Typical applications include:

• Power distribution systems: Secondary protection at the main power entry point

• Residential and commercial electrical equipment: Built-in surge protection for computers, appliances, and power outlets

• Photovoltaic systems: Surge protection on both DC and AC sides

In multi-stage protection architectures, MOVs are often paired with Gas Discharge Tubes (GDT) or Spark Gaps, forming a more robust surge protection chain.

Common Failure Modes

Although MOVs are highly effective, they do have potential failure risks:

• Increased leakage current: Over time, repeated surge exposure can degrade the device, causing current leakage even under normal voltage conditions.

• Aging and degradation: Repeated surges gradually reduce the clamping voltage, weakening protection capability.

• Thermal failure: Excessive energy absorption can cause overheating, potentially leading to short circuits or fire.

For this reason, high-quality SPDs typically include a Thermal Disconnect (OTP / Thermal Fuse) to automatically disconnect the MOV if overheating occurs, preventing fire hazards or further device damage.

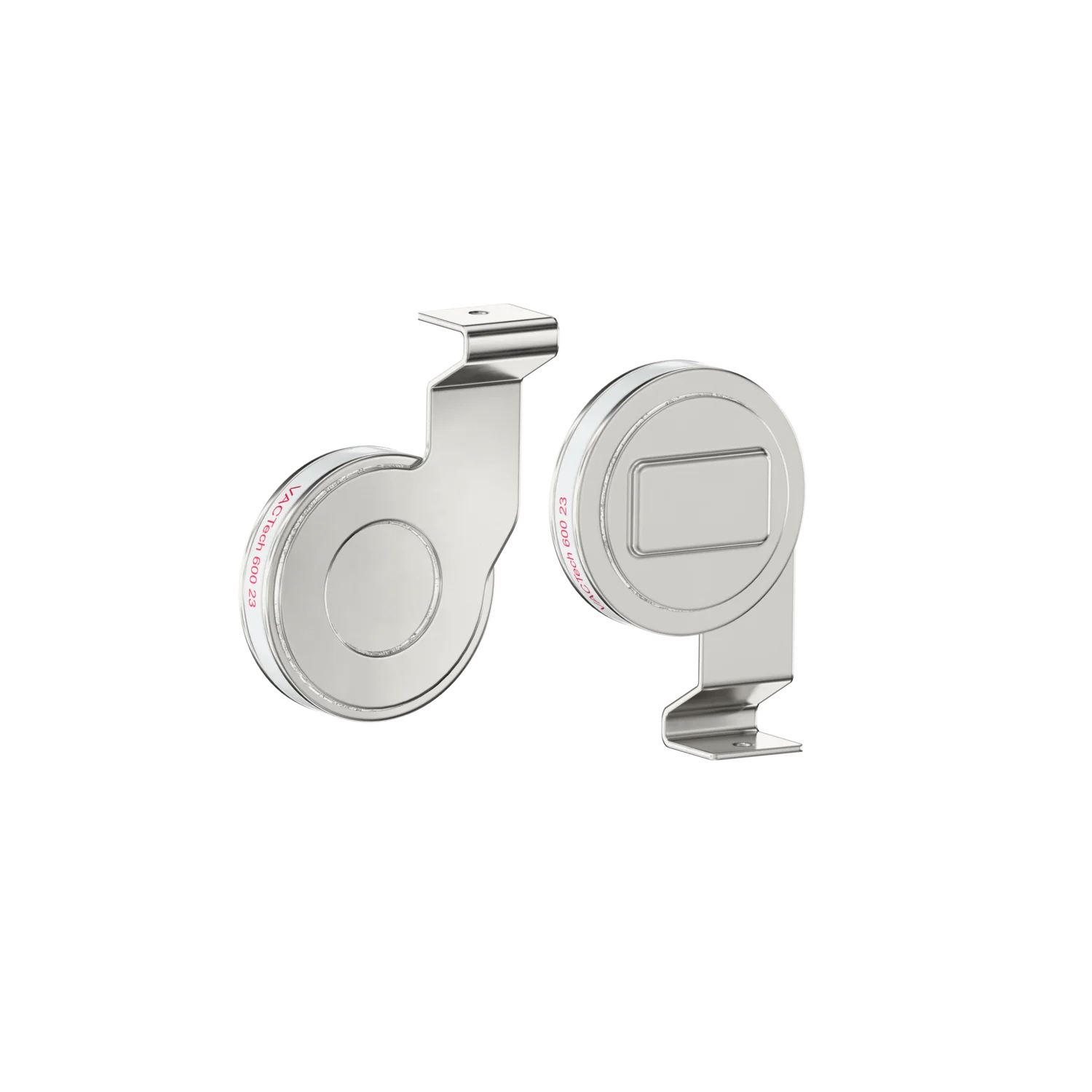

Gas Discharge Tube (GDT)

Definition

The Gas Discharge Tube (GDT) is a core protective component in a surge protection device (SPD). It contains an inert gas, such as argon or neon, sealed within a ceramic or glass enclosure using a two- or three-electrode structure.

Under normal voltage conditions, the GDT remains in a high-impedance state, conducting almost no current. When a transient overvoltage occurs, the gas inside the tube ionizes and breaks down, forming a low-impedance path that rapidly diverts the surge current, protecting downstream equipment.

Function

The primary function of a Gas Discharge Tube (GDT) is to handle high-energy, high-current surge events, especially those caused by lightning strikes. Its operating principle is a “switch-type protection”: when the voltage exceeds the breakdown threshold, the GDT rapidly conducts, diverting the surge energy directly to ground and protecting downstream electrical equipment.

Compared to a Metal Oxide Varistor (MOV), a GDT can withstand much higher current surges, making it an ideal first-stage protective component in an SPD. It acts as a strong “first line of defense”, safeguarding the system against severe surge events.

 Applications

Gas Discharge Tubes (GDTs) are widely used, especially in systems that require high surge energy handling capability:

• Lightning protection: First-stage surge protection in power systems (Type 1 SPD).

• Communication and signal line protection: GDTs have low capacitance, making them suitable for protecting high-speed signal lines such as telephone lines, data lines, and antenna interfaces.

• Photovoltaic and wind power systems: Used to prevent high-energy surges caused by direct or induced lightning strikes.

• Industrial equipment: Critical equipment that operates continuously is highly sensitive to lightning overvoltage and often integrates GDTs as primary protection.

Advantages and Disadvantage

Advantages:

• High current handling capability: Suitable for direct lightning strikes or strong electromagnetic pulses (EMP).

• Low capacitance: Ideal for high-speed data communication lines, minimizing signal interference.

• Excellent insulation and long-term stability: Ensures reliable performance over time.

Disadvantage:

• Relatively slower response: Typically in the nanosecond to microsecond range, not as fast as TVS diodes or MOVs.

• Post-discharge “follow-on current”: After conduction, residual current may persist; GDTs are often paired with other voltage-limiting components (such as MOVs) to prevent damage during voltage recovery.

• Environmental sensitivity: If the seal is compromised, gas leakage can occur, leading to device failure.

In practical surge protection design, GDTs are often combined with MOVs, Thermal Disconnects (OTP), and other components to form multi-stage protection. This approach allows the SPD to handle high-energy surges while quickly limiting residual voltage, ensuring overall system protection performance.

Spark Gap

Definition

A Spark Gap is a protective component based on the air-gap breakdown principle, widely used in surge protection devices (SPDs). It consists of two or more electrodes separated by a fixed air gap.

Under normal voltage conditions, the air gap remains in a high-impedance state, conducting virtually no current. When a transient overvoltage or lightning strike occurs, the electric field exceeds the air breakdown threshold, causing the gap to break down. This forms a low-impedance path, allowing the surge current to be rapidly diverted to ground, protecting downstream equipment.

Function

The primary function of a Spark Gap is to provide first-stage protection, particularly against direct lightning strikes or high-current surge events. It can withstand surge currents of tens of kiloamperes or even higher, making it a critical lightning protection component in electrical systems.

Similar to a Gas Discharge Tube (GDT), the Spark Gap is a “switch-type protective element”: once it conducts, it offers almost no resistance to current flow, allowing the lightning energy to be diverted to ground as fully as possible. This protects downstream voltage-limiting components such as MOVs (Metal Oxide Varistors) and TVS diodes, ensuring the overall surge protection system functions effectively.

Applications

Spark Gaps are commonly used in high-energy surge protection scenarios. Typical applications include:

• Type 1 SPD: Serves as a first-stage surge protection device, installed at the main power entry of buildings to withstand direct lightning strikes.

• Power systems: Used in high-voltage transmission and distribution networks to protect substations, circuit breakers, isolating switches, and other critical equipment.

• Lightning-prone environments: Outdoor systems such as communication base stations, wind farms, and photovoltaic power plants, where direct lightning strikes may cause severe surges.

• Railway and industrial facilities: In areas with high electromagnetic interference and lightning exposure, Spark Gaps provide high energy handling capability.

Advantages and Disadvantage

Advantages:

• Extremely high current handling capability: Can withstand direct lightning strikes and high-energy surges.

• Simple structure and long lifespan: Low maintenance requirements.

• Adjustable breakdown voltage: Can be designed to meet the needs of different systems.

Disadvantage:

• Relatively slower response: Typically in the microsecond range; requires coordination with other voltage-limiting components for fast transient surges.

• High residual voltage: May still stress sensitive equipment.

• Large size: Not suitable for compact electronic devices.

Therefore, Spark Gaps are usually combined with GDTs and MOVs to form a multi-stage surge protection system: the Spark Gap handles high-current energy dissipation, while MOVs and TVS diodes handle voltage clamping, together providing comprehensive surge protection for electrical systems.

Supplementary Protection & Control Components

Transient Voltage Suppression Diode (TVS)

Definition

The Transient Voltage Suppression Diode (TVS) is a semiconductor protection device specifically designed to safeguard sensitive electronic components. It is widely used in surge protection devices (SPDs) and various precision circuits.

Compared to MOVs (Metal Oxide Varistors) and GDTs (Gas Discharge Tubes), TVS diodes have an extremely fast response time, capable of clamping transient overvoltages within nanoseconds, effectively preventing damage to sensitive electronic components.

Function

The primary function of a TVS diode is to provide ultra-fast surge protection for sensitive electronic components, such as microprocessors, integrated circuits, data lines, and signal lines.

When the voltage rises instantaneously, the TVS diode immediately conducts, clamping the excess energy to a safe voltage level. This prevents electronic devices from failing or being damaged due to transient overvoltage.

Applications

Typical applications of TVS diodes include:

• Precision electronic devices: such as computer motherboards, microcontrollers, and communication modules.

• Low-energy surge protection: for data lines (USB, HDMI, Ethernet), sensor signal lines, and low-voltage control circuits.

• Industrial automation and instrumentation: protects sensitive signal and control circuits from transient overvoltage interference.

• Photovoltaic and wind power inverters: safeguards low-voltage control and signal acquisition lines.

Advantages

• Fast response time: Nanosecond-level transient clamping, ideal for protecting high-speed signals and sensitive electronic components.

• Compact size: Easy to integrate into PCBs or small electronic devices.

• Precise voltage clamping: Can be designed for specific voltage levels, effectively protecting precision circuits from surge events.

Thermal Disconnect (OTP / Thermal Fuse)

Function

The primary function of a Thermal Disconnect (OTP) is to provide overheat protection:

• When an MOV or other SPD component experiences excessive heating due to prolonged or repeated surges, the OTP automatically disconnects the circuit.

• By cutting off power, it prevents fire or explosion caused by component degradation, overload, or repeated surge events.

• Enhances the safety and reliability of the SPD system and serves as a core safety element in high-quality surge protector designs.

Applications

Thermal Disconnects (OTP) are widely used in various SPD systems, especially in scenarios requiring long-term stability and high safety:

• Power distribution systems: Protects secondary surge protection devices (Type 2 SPDs) in residential or commercial buildings.

• Industrial automation equipment: Prevents risks caused by heat buildup from motor start/stop operations or high-frequency switching.

• Photovoltaic and wind power systems: Safeguards DC and AC side SPDs, preventing overheating that could damage circuit boards or cables.

• Precision electronic equipment: Ensures the safety of sensitive devices and prevents secondary damage due to overheating.

Advantages

• Automated protection: Disconnects overheated components without manual intervention.

• Extends SPD lifespan: Protects MOVs and other critical components, reducing premature failure caused by heat accumulation.

• Enhances safety: Significantly lowers the risk of fire, explosion, and equipment damage.

Filter & Decoupling Circuit

Definition

The Filter and Decoupling Circuit is an important auxiliary protection component in a surge protection device (SPD). It is mainly used to handle high-frequency noise and stray voltages in power and signal lines.

• Filter circuits suppress harmonic interference generated by the power grid or equipment.

• Decoupling circuits isolate electrical interference between different modules, ensuring stable operation of both signal and power systems.

Function

The primary functions of a Filter and Decoupling Circuit include:

• Suppressing harmonic interference: Effectively reduces high-frequency noise in power systems, preventing impacts on downstream sensitive equipment.

• Lossless high-frequency signal transmission: Ensures that data lines or control signals passing through the SPD remain undistorted and unaffected.

• Enhancing system stability: Prevents combined effects of surges and electromagnetic interference, which could cause device malfunctions or control system failures.

Applications

Filter and Decoupling Circuits are widely used in scenarios that require high signal integrity and system stability, such as:

• Industrial automation systems: Protect PLCs, controllers, and sensors from operational overvoltages and high-frequency interference.

• Data centers: Ensure servers, switches, and network equipment remain stable in environments with surges or electromagnetic interference.

• Photovoltaic systems: Suppress high-frequency voltage fluctuations in inverters and DC combiner lines, improving surge protection efficiency.

• Precision instruments: Safeguard laboratory or medical equipment from high-frequency surges and harmonic interference.

Advantages

• Protects precision equipment: Reduces damage from high-frequency surges and harmonic interference.

• Ensures signal integrity: Maintains high-quality signal transmission in communication lines and control systems.

• Enhances system reliability: When combined with MOVs, GDTs, and other SPD components, forms a comprehensive multi-stage protection system.

Monitoring & Status Indicators

Indicator / Status Window

Definition and Function

The Indicator / Status Window is a visual monitoring component in a surge protection device (SPD), used to display the real-time operational status of the device. Typical indicators are color-coded:

• Green: SPD is functioning normally, protection is active.

• Red: SPD has failed or the protective components are damaged and need replacement.

The status window allows users to quickly determine whether the SPD is providing effective protection without opening the enclosure or using specialized instruments, enhancing maintenance convenience and safety.

Common Issues

• Indicator failure or sticking may lead to misjudgment of SPD status.

• External light, dust, or aging may affect visibility.

• Some low-cost SPDs lack status indicators, making it difficult for users to verify device health.

Remote Signaling Contact

Definition and Function

The Remote Signaling Contact is an interface component that transmits the operational status of an SPD to remote monitoring systems, such as SCADA or BMS.

Through normally open or normally closed contacts, it enables remote monitoring and automatic alerting, allowing facility managers or operators to take timely action if the SPD experiences a fault or failure.

Applications

Remote Signaling Contacts are widely used in scenarios requiring centralized or remote monitoring of SPD status:

• Industrial facilities: Large production lines and factory equipment can detect SPD failures via monitoring systems, ensuring production safety.

• Photovoltaic power plants: Remotely monitor the status of SPDs in inverters and combiner boxes to prevent surge damage to critical equipment.

• Large buildings and infrastructure: Centralized monitoring of multiple SPDs in building distribution rooms improves maintenance efficiency.

Advantages

• Enhances system reliability and safety: Supports remote management of SPDs.

• Integrates with centralized monitoring systems: Automatically generates alerts or maintenance notifications.

• Reduces manual inspection frequency: Lowers maintenance costs and labor requirements.

Mechanical & Safety Design

Enclosure & Materials

The SPD enclosure is a core structure that protects internal components from physical damage, dust, moisture, and external environmental factors.

A high-quality enclosure also provides flame-retardant properties, reducing the risk of fire in the event of internal overheating or abnormal surge events.

Common Materials

• Flame-retardant PC (Polycarbonate): Lightweight and impact-resistant, commonly used in residential or light industrial SPDs.

• ABS Plastic: Low-cost, good impact resistance, suitable for medium- to low-power SPDs.

• Metal Enclosures (e.g., Aluminum Alloy or Steel): Excellent heat dissipation and high mechanical strength, ideal for industrial, photovoltaic, or high-power protection scenarios.

Protection Rating

• High-quality SPDs typically feature IP65 or higher protection, providing dustproof and waterproof capabilities to ensure reliable installation and long-term operation in outdoor or harsh environments.

• The enclosure design must also balance heat dissipation and safety, preventing component overheating after prolonged surge events.

Wiring Terminals & Base

Definition and Function

Wiring terminals are the critical connection points between the SPD and external circuits, directly affecting electrical reliability and safety.

The base design ensures that terminals remain stable and easy to install, while also supporting the internal structure of the SPD.

Function & Technical Highlights

• Ensures reliable electrical connection: Prevents loosening, poor contact, or arcing.

• Accommodates multi-strand wires: Supports various wire sizes and installation requirements.

• Anti-loosening design: Uses patented nuts or clamping structures to prevent terminal loosening due to vibration or long-term use.

• Temperature rise control: High-quality terminals are designed to avoid overheating under high load or continuous surges, extending SPD lifespan.

Applications & Advantages

• Suitable for industrial, commercial, and photovoltaic systems.

• Ensures long-term stable SPD operation and reduces maintenance frequency.

• When combined with enclosure and heat dissipation design, provides comprehensive physical and electrical protection for the system.

System-Level Coordination & Working Principles

Multi-Stage Coordination: MOV, GDT, and Spark Gap

In high-reliability surge protection devices (SPDs), key protective components—MOV (Metal Oxide Varistor), GDT (Gas Discharge Tube), and Spark Gap—are typically designed with a multi-stage coordination mechanism to provide layered surge protection:

Stage 1: Spark Gap or GDT

• Handles medium- to high-energy surges, such as lightning-induced surges or those caused by power switch operations.

• Works in conjunction with MOVs to reduce residual voltage, ensuring downstream equipment safety.

Stage 2: MOV (Metal Oxide Varistor)

• Precisely clamps voltage, limiting remaining medium- to low-energy surges within a safe range.

• Protects sensitive and low-voltage electronic components, preventing cumulative damage over time.

Through this multi-stage protection mechanism, the SPD can manage surges of varying energy levels, while extending the lifespan of core components and enhancing overall system reliability.

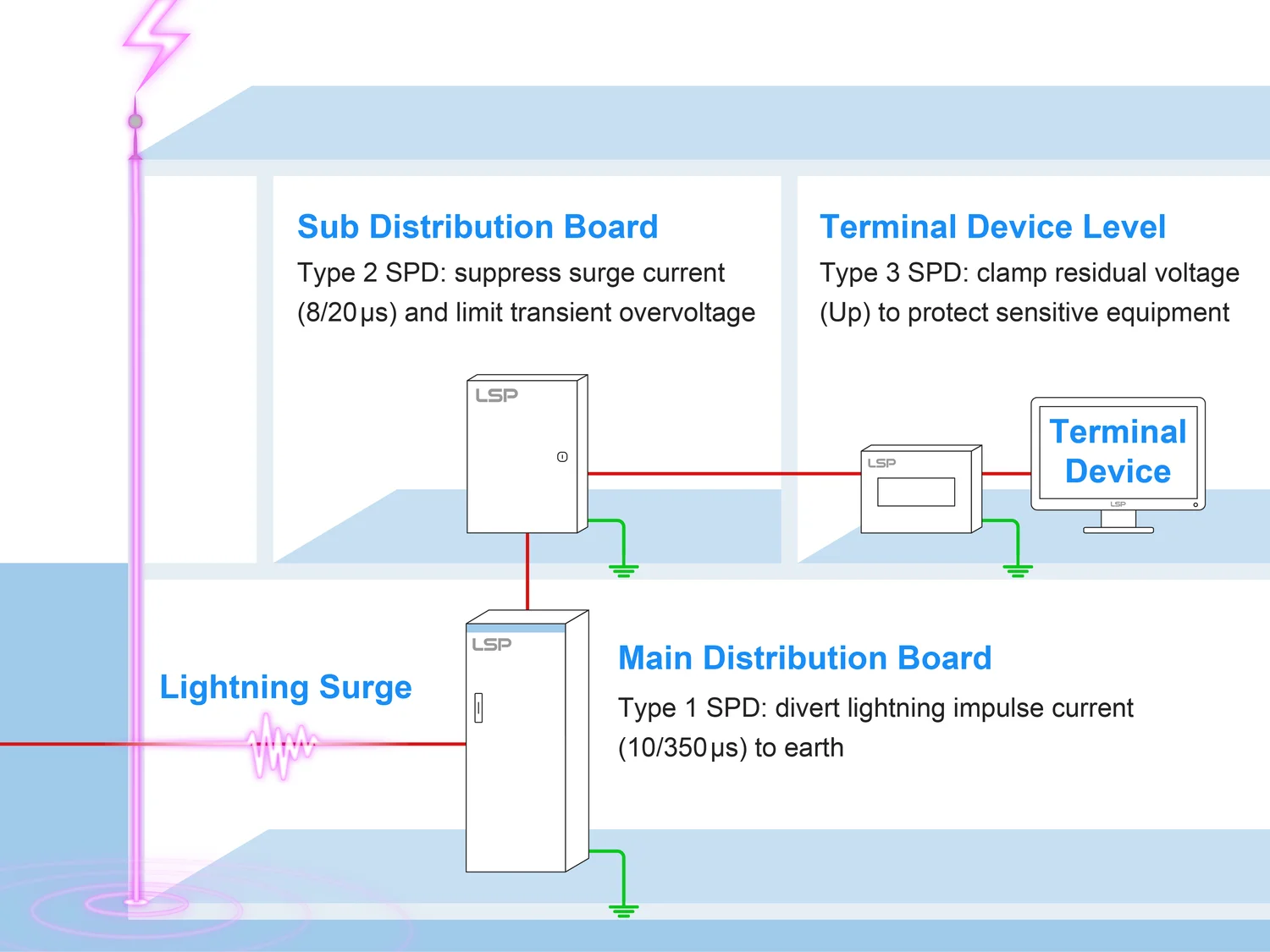

Typical Three-Stage SPD (Type 1 + 2 + 3) Protection Principle

A three-stage SPD system combines Type 1, Type 2, and Type 3 SPDs to provide comprehensive protection from high-energy to low-energy surges:

• Type 1 SPD: Installed at the building’s power inlet, primarily protects against direct lightning strikes and high-current surges.

• Type 2 SPD: Acts as the secondary protection, installed in distribution boxes or branch circuits, handling medium-energy surges and protecting downstream devices.

• Type 3 SPD: Provides final-stage protection, located near critical equipment or outlets, absorbing low-energy surges to safeguard sensitive electronics.

Through this cascaded protection, the three-stage SPD creates a gradient defense from high to low energy, effectively reducing the probability of equipment damage while meeting the safety requirements of modern power systems, photovoltaic installations, and industrial automation applications.

Application Scenario Selection Strategies

The selection strategy for SPDs (Surge Protection Devices) varies depending on the application environment and equipment characteristics. A well-designed combination of SPD components and protective schemes ensures system safety and reliability, while also extending the lifespan of critical equipment.

Data Center

• Characteristics: High density of sensitive equipment, connected downstream of UPS systems, with strict power quality requirements.

• Recommended Solution:
  • MOV + GDT: Combines high-energy surge absorption with precise voltage clamping for multi-stage surge protection.
  • Active Cooling Modules: Reduces MOV temperature rise during prolonged operation, enhancing reliability.

• Advantages: Protects servers, switches, and network devices from surges and high-frequency interference.

Photovoltaic Systems

Characteristics: DC-side voltage components combined with AC fluctuations, frequent voltage variations.

Recommended Solution:

• Dedicated DC SPD: Designed to handle DC characteristics and high switching frequencies.

• EMI-Compatibility Optimization: Suppresses high-frequency interference, ensuring stable inverter and control system operation.

Advantages: Extends the lifespan of PV inverters and combiner boxes and improves overall system stability.

Industrial Automation

Characteristics: Frequent motor start-stop operations, frequent operational overvoltage, and complex equipment.

Recommended Solution:

• Composite Voltage-Limiting SPD: Combines MOV, TVS, and GDT to provide fast response and high-energy absorption.

Advantages: Protects PLCs, controllers, sensors, and other industrial equipment, reducing malfunctions and downtime risks.

Summary

In a Surge Protection Device (SPD), each core component—MOV, GDT, Spark Gap, TVS Diode, Thermal Disconnect (OTP), Filter & Decoupling Circuit, Status Indicator Window, and Remote Signaling Contact—plays an irreplaceable role:

• MOV: Absorbs medium- and low-energy surges.

• GDT: Provides primary protection against high-energy surges.

• Spark Gap: First-line defense for direct lightning strikes or ultra-high current surges.

• TVS: Offers ultra-fast protection for sensitive electronic devices.

• Thermal Disconnect (OTP): Automatically cuts off overheating components to ensure safety.

• Filter & Decoupling Circuit: Suppresses high-frequency interference, ensuring signal integrity.

• Status Indicator Window & Remote Signaling Contact: Monitor SPD status in real time, enhancing maintainability and system reliability.

By integrating multi-stage protection and component coordination, these elements form a complete surge protection system, providing comprehensive protection from high-energy to low-energy surges.
