Why Inverters Need Surge Protection
Surge Threat Overview for Inverters
In modern energy systems, inverters are core devices for converting DC to AC. However, their electronic components are highly susceptible to damage from transient overvoltages, which can arise from multiple sources such as lightning strikes, switching transients, and grid fluctuations.
These surges can result in:
- Equipment failure or degraded performance
- System downtime and economic losses
- Safety hazards and rising maintenance costs
Therefore, surge protector for inverter is essential.
Common Surge Sources for Inverters
Lightning Strikes
- Direct strikes: Current surges of tens of kiloamps enter equipment via the grounding system, creating strong EMP effects.
- Indirect inductive coupling: Nearby lightning strikes generate rapidly changing magnetic fields, inducing reverse EMF of thousands of volts.
- Typical vulnerable points: PV combiner boxes, inverter DC inputs of wind turbines.
Switching Transients
Switching transients in the grid or equipment operations create sudden current and voltage fluctuations. These spikes impact sensitive inverter semiconductors, leading to failures in MOSFETs, IGBTs, and control circuits.
Grid Fluctuations
Grid fluctuations and unstable voltage supply create additional stress during inverter operation, often accelerating component degradation and triggering unplanned shutdowns.
Impact of Surges
The damage caused by surges to inverters extends beyond hardware breakdown. It also results in reduced efficiency, shortened service life, and accelerated aging. In large-scale PV plants or critical industrial setups, such risks can translate into substantial financial loss.
Risk & Cost Analysis Table
| Type of Damage | Short-term Consequence | Long-term Effect | Estimated Repair Cost |
| Hardware Damage | MOSFET gate breakdown | Gradual degradation of electrolytic capacitors | ~30% of equipment value |
| Performance Degradation | MPPT accuracy decline → efficiency loss | Core saturation causing abnormal temperature rise | +15% annual O&M expenditure |
| System-level Failure | Communication interruption causing downtime | Stress cycling accelerating solder joint cracking | Downtime losses calculated hourly |
Every medium-level surge event can shorten inverter lifespan by 7%–12%.
For utility-scale PV plants, even minor efficiency losses can translate into six-figure annual revenue reductions due to decreased energy harvest.
Summary
An inverter is the “heart” of the energy system but is extremely vulnerable to surges. Lightning strikes, switching transients, and grid fluctuations are the primary threats. Surges not only damage hardware but also shorten lifespan and cause huge economic losses. Hence, implementing a Surge Protector for Inverter is an essential safeguard for long-term reliability.
Now, we move from theory to application, exploring three major scenarios of surge protection for inverters — solar inverter surge protection, outdoor and mobile inverter protection, and residential inverter surge protection.
In each scenario, the proper use of an inverter SPD plays a vital role in ensuring long-term safety and system stability.
Together, these categories represent the full spectrum of surge protection for inverter, offering comprehensive defense solutions for both the DC and AC sides of modern energy systems.
Essential Surge Protection for Solar Inverters
In modern photovoltaic systems, proper solar inverter surge protection is essential to safeguard your system and improve reliability. Installing the right SPD for solar inverter can effectively protect your equipment from lightning and power surges. Learn more about SPD solar inverter solutions and how to protect your solar inverter from lightning in the following section.
Common Risks to Solar Inverters Without Surge Protection
Solar inverters face multiple surge risks during operation, primarily originating from DC-side lightning surges, combiner box surges, and AC-side switching operation surges. These surge risks can cause transient overvoltage, protector tripping, reduced power generation efficiency, and even equipment damage.
Comprehensive Surge Protection for Solar Inverters
Solar inverter surge protection is essential for maintaining inverter performance and longevity. To safeguard inverters, a comprehensive surge protection strategy should include grounding and a reliable surge protector for solar inverter to protect the DC side, AC side, and communication lines.
Grounding in Inverter Surge Protection
Grounding is the first line of defense in solar inverter surge protection. Proper grounding provides a safe dissipation path for surges, preventing damage to inverter electronics. Common methods include:
- Installing copper grounding rods deeply buried for low resistance;
- Using standard-compliant connectors and terminals;
- Connecting both DC and AC grounding systems to the same network to eliminate potential differences.
DC Side Surge Protection for Solar Inverters
The DC side of a PV system, especially the MPPT inputs, is highly vulnerable to surge events. To maintain long-term system stability, the appropriate DC surge protector (DC SPD) should be selected based on the lightning risk level:
- Type 2 DC SPD: Provides protection against medium-energy transient surges caused by induced lightning or grid switching operations. Installed at the inverter’s MPPT input, it limits surge voltage effectively and protects power modules and control electronics — the standard DC surge protection device for residential and commercial PV systems.
- Type 1+2 DC SPD: ideal for high lightning-risk areas or PV systems exposed to direct strikes, providing combined primary and secondary surge protection for inverters and DC combiner boxes.
Inverter AC Surge Protection
On the AC side of a PV system, AC surges are typically caused by grid fluctuations, indirect lightning strikes, or overvoltages coupled through long cable runs. To ensure inverter and load safety, appropriate AC surge protection devices (AC SPDs) should be installed at the inverter AC output and distribution panel entry.
Provides reliable protection against medium-energy surges from switching operations and induced lightning. This is the standard AC surge protection configuration for residential and commercial inverter outputs, ensuring stable grid connection and equipment longevity.
Recommended for high lightning-risk areas or main distribution panels, it offers primary and secondary AC surge protection for inverters, minimizing the risk of damage from direct or nearby lightning events.
Communication Line Surge Protection in Solar Systems
Modern PV plants rely on monitoring systems and SCADA, which also require communication line surge protection to maintain data integrity and system reliability.
Solar inverter surge protection Selection Guidelines
According to IEC 61643-11, selection of inverter surge protectors should be based on lightning exposure and system parameters:
- System voltage: Ensure SPD voltage rating matches system voltage.
- Lightning flash density: Areas with higher lightning frequency require SPDs with higher withstand capability.
- Protection level: Choose basic, medium, or advanced protection depending on risk assessment.
- Discharge current capacity: Must withstand repeated surge events.
| Application Scenario | Recommended SPD Type | Max Discharge Current (In) | Up Voltage Limit |
| Standard rooftop PV | Type 2 DC SPD | 10kA | <1500V |
| Desert PV plant | Type 1+2 DC SPD | 25kA | <2000V |
Case Study- SPD for Solar Pump Inverters
To illustrate the practical application of solar inverter surge protection, the following case study focuses on surge protection for a solar pump inverter system.
Features of Solar Pump Inverters
Solar pump inverters convert DC power from PV modules to AC power for driving pumps, often deployed in remote or rural locations where reliable power is critical and maintenance is challenging.
Recommended Configuration
In agrivoltaic and remote water supply systems, a recommended configuration includes:
- Type 1+2 DC SPD should be installed at the DC input of the PV combiner box to discharge high-energy lightning currents from the PV array and prevent surge propagation toward the inverter.

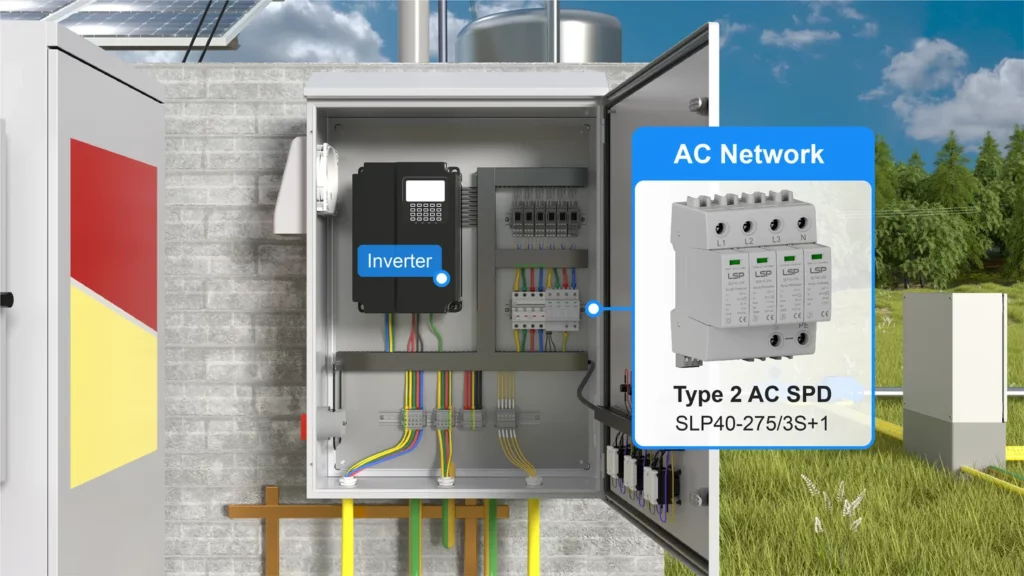

- Type 2 AC SPD should be installed at both the inverter’s AC input and AC output sides, forming a bidirectional surge protection network that effectively limits transient overvoltages originating from either the grid or the load side.
This combination significantly extends inverter life, reduces maintenance costs, and ensures an uninterrupted water supply.
Key Takeaways
- Solar inverter surge protection must include DC surge protector, AC surge protector, and communication line protection to ensure comprehensive coverage;
- DC SPD and AC SPD should be selected based on system voltage and local lightning exposure risk;
- Cascaded surge protection design (e.g., Type 1+2 DC SPD + Type 2 AC SPD) effectively reduces let-through voltage (Up) to safe levels, ensuring inverter safety and stable performance;
- Combined with proper SPD selection and grounding design, this approach significantly reduces surge risks, extends inverter lifespan, and improves system reliability.
Surge Protection for Inverter Generators & RVs
Outdoor and mobile inverters face unique surge challenges in fluctuating power environments. Adopting a tiered surge protection concept with integrated or portable SPD modules provides a reliable safeguard against transient overvoltages. In particular, using a surge protector for inverter—whether in vehicle-based or outdoor power systems—can significantly improve system reliability, extend equipment lifespan, and prevent costly damage caused by voltage spikes.
Risk Analysis
Surge Risks in Complex Power Environments
Complex power environments expose inverter generators and RV systems to multiple surge sources:
- Multi-source interference stacking when switching between shore power, onboard generator, and unstable campground grids;
- Long cable effects — Inductance in >50m extensions transforms moderate surges into steep-front pulses (>5kV/μs dv/dt);
- Grounding inconsistency — Earthing resistance varies from <1Ω to >100Ω, creating potential differences of hundreds of volts.
Vulnerability Analysis
In inverter systems, components such as power semiconductors (IGBTs, MOSFETs), control boards, filter capacitors, and communication ports are most vulnerable to transient overvoltages. Even a single surge event may cause partial breakdown or degradation, leading to long-term reliability issues.
Risk Assessment Recommendation
When designing mobile power solutions such as a car power inverter with surge protector, incorporate a vulnerability matrix for risk evaluation and deploy IEC 61643-11 compliant SPDs to minimize damage and downtime.
Protection Approaches
Modular Protection Design
Unlike fixed installations, portable and vehicle-mounted inverters require a modular surge protection design:
- Input stage — integrated Type 2 SPD (MOV + GDT) for lightning-induced and switching surges;
- Output stage — TVS or solid-state clamp circuits for high-frequency transient suppression;
- Communication interface — micro-SPD modules or isolation barriers for data line protection.
Dynamic Ground Reference Stabilization
Adaptive ground compensation monitors the voltage offset between chassis and earth, injecting countercurrent when potential difference exceeds 50 V, effectively stabilizing reference ground and improving surge immunity under motion.
Intelligent Thermal-Magnetic Disconnect
To prevent SPD failure from sustained overloads or heat buildup, an intelligent thermal-magnetic disconnect isolates the circuit when current exceeds 1.5× rated for > 3 s or when temperature rise exceeds 35 °C/min.
Surge Protector Profiles of Inverter Generators
Field measurements reveal three surge phases:
- Initial spike (0–5μs) — Up to 8× nominal voltage, caused by electromagnetic induction;
- Ringdown oscillation (5–50μs) — LC resonance, frequency band 10–100kHz;
- Exponential tail (50μs–10ms) — High energy content that can cause MOV thermal degradation if unprotected.
Common Risks in RV Systems
In recreational vehicles (RVs) and mobile power systems, the electrical environment is often unstable and prone to fluctuations. Frequent switching between different power sources — such as campground outlets, shore power, or onboard generators — exposes the system to multiple surge risks, including:
- Voltage fluctuations or poor power quality from external sources;
- Transient surges generated during generator start-up or shutdown;
- Reverse voltage spikes caused by frequent switching of high-power appliances like air conditioners, refrigerators, or microwaves;
- Conducted surges induced by nearby lightning strikes or electromagnetic interference.
Such surges can damage inverters, control modules, and onboard electrical systems.
Installing a surge protector for RV power systems is therefore essential to ensure electrical safety, equipment stability, and long-term reliability during travel.
Summary
In outdoor and mobile inverter systems, surge risks mainly arise from induced lightning, grid fluctuations, and long cable effects.
A Type 2 SPD-based coordinated protection system, optionally enhanced with a Type 1 SPD for direct strike protection, is recommended to ensure reliable surge mitigation.
When combined with adaptive grounding compensation and smart tripping functions, this configuration enhances system immunity under unstable grid and uneven grounding conditions.
The design has passed ISO/IEC 16750 vibration, shock, and thermal cycling tests, making it suitable for diverse outdoor climates.
Annual insulation resistance testing is advised to maintain SPD reliability and long-term inverter stability.
Surge Protection for Inverter Air Conditioners & Home Appliances
Modern households increasingly rely on inverter-driven high-value appliances and energy systems such as central air conditioners, smart refrigerators, heat pump water heaters, home energy storage, and microgrids. Surge Protective Devices (SPDs) play a vital role, as voltage fluctuations, lightning induction, and switching transients can cause severe damage to sensitive electronics.
Surge Risks for Home Appliances
Residential inverters and appliances face various surge risks, including:
- Grid fluctuations — Frequent switching in the public grid, especially during storms, can generate high-voltage transients;
- Induced lightning — Entering homes via power or communication lines;
- DC-side disturbances — In rooftop PV and home storage systems, DC-side lightning surges or switching transients can harm inverters;
- End-device sensitivity — Inverter-driven appliances such as variable-speed compressors and IoT modules are particularly vulnerable to nanosecond surges.
Why Power Strip Surge Guards Are Ineffective
Common plug-in surge protectors have critical shortcomings:
- Slow response — MOVs with >400 V clamping voltage cannot suppress fast surges;
- Low discharge capacity — Designed for EMI filtering, not high-energy surges;
- Poor coordination — Parallel setups may fail entirely if one module degrades.
Lab tests show that over 70% of consumer-grade surge strips fail to maintain safe let-through voltage during 1 μs rise-time surges, proving they cannot replace a professional inverter surge protector.
Recommended Configuration (Type 2 Primary, Type 3 Refined Supplement)
For household inverters and their loads, a protection strategy centered on Type 2 SPDs is recommended; Type 3 SPDs should be added in sensitive device circuits to optimize residual voltage and provide fine surge filtering.
| Level | SPD Type | Installation Point | Prime Function | Typical Specs |
| L1 | Type 2 SPD | Main breaker output in distribution board | Bulk surge absorption from induced lightning and grid transients | In = 20 kA (8/20 μs), Up ≤ 1.5 kV |
| L2 | Type 3 SPD (Fine Supplement) | Sensitive load or outlet point | Fine filtering of residual surges and voltage clamping | In = 5 kA (8/20 μs), Up ≤ 1.2 kV |
Summary
The core of home inverter surge protection lies in installing Type 2 SPDs on both the AC and DC sides of the inverter to cover surge threats from either direction. For sensitive terminal equipment, an additional Type 3 SPD can further reduce residual voltage. With proper SPD coordination and regular inspection, this setup significantly extends the lifespan of inverters and household appliances while enhancing the overall reliability and safety of the residential energy system.
Surge Protection Technology Explained for Inverter: Type 2 and Type 3 SPDs
After exploring surge protection solutions for solar, portable, and home inverters, it’s time to understand how surge protection devices (SPDs) actually work.
This section focuses on Type 2 and Type 3 SPD technologies, which are essential for providing effective surge protection for inverters and maintaining inverter reliability.
Surge Characteristics of Inverters and SPD Requirements
Inverters face unique surge conditions:
- DC-side surges: Induced lightning or switching transients from PV arrays and storage systems;
- AC-side surges: Lightning surges or switching events from the grid;
- High-frequency interference: Sensitive inverter electronics exposed to nanosecond transients.
Therefore, inverter surge protection devices must:
- Respond quickly to nanosecond surges;
- Maintain a low let-through voltage (Up) to safeguard inverter inputs;
- Handle large surge currents on both AC and DC sides.
Advantages of Type 2 and Type 3 SPD Coordination for Inverters
- Multi-level protection: Type 2 SPD intercepts major surges, Type 3 SPD suppresses residual transients, lowering Up to safe levels.
- Extends inverter lifespan: Reduces damage to inverter electronics.
- Smart monitoring compatibility: Some SPDs support remote monitoring, integrating into inverter energy management systems.
- Compliant with IEC 61643‑11: Ensures stable operation under various conditions.
Installation Guidelines for Inverter SPDs
- Short Connections: Keep the connection between the SPD and inverter as short as possible (recommended <1 m) to minimize parasitic inductance and reduce let-through voltage (Up).
- Reliable Earthing: Ensure earth resistance ≤10 Ω and use ≥16 mm² copper conductors to connect the SPD to the earth terminal.
- Backup Protection: Install upstream circuit breakers (MCB) or fuses in compliance with IEC 60947‑2 to protect the system.
- Placement: Install Type 2 SPD at the inverter input; Type 3 SPD (fine supplement) at sensitive load points or inverter output terminals to achieve multi-level surge protection.
- Cable Length: Keep wiring between the SPD and terminals ≤50 cm to minimize surge let-through caused by line inductance.
- DC Side Considerations: DC SPDs must be specially designed to avoid misuse of AC SPDs, preventing sustained arcing and fire hazards.
Routine Checks & Replacement
Inverter SPDs are consumable components and require scheduled maintenance:
- Visual Checks: Confirm indicator windows show green; no visible damage, corrosion, or burn marks.
- Performance Testing: Measure clamping voltage (Up) with a surge tester—deviation must be within ±10% of rated value.
- Event Logging: Maintain logs recording each surge event with timestamp and energy rating to track system health.
If the indicator turns red, replace the pluggable SPD module immediately. Thanks to hot-swappable design, replacements can be performed without system shutdown.
Common Misconceptions Debunked
Myth 1: “A regular power strip can replace a professional SPD.”
Reality: Budget strips use undersized MOVs (<5kA) with no thermal disconnect, posing risks during lightning-level surges.
Myth 2: “Install once and forget—SPDs last forever.”
Truth: SPDs degrade after each surge event. Per IEEE C62.41, preventive replacement every 2 years is recommended for reliable inverter surge protection.
Summary
Inverter surge protection requires a coordinated strategy of Type 2 SPD and Type 3 SPD. Type 2 SPD serves as primary surge interception, while Type 3 SPD offers fine protection in sensitive circuits. This approach significantly enhances inverter reliability, prolongs service life, and ensures stable operation under complex grid conditions and extreme environments.
Product Recommendation — LSP Surge Protectors for Inverters
LSP delivers a complete portfolio of SPD for inverter products, ensuring optimal protection for both DC and AC sides of inverter systems.
LSP Surge Protector Product Lines for Inverters
LSP offers a comprehensive SPD for the inverter portfolio, ensuring full coverage for both DC and AC sides of inverter systems.
DC SPD Family
The LSP DC SPD family is designed for DC-side surge protection for inverters, spanning small off-grid systems to utility-scale PV plants:
- Model SLP-PV600 – SLP-PV1500 (600–1500Vdc) with integrated disconnect switch for utility-scale string inverters.
AC SPD Family
The LSP AC SPD family delivers AC-side surge protection for inverters and downstream loads, from high lightning density areas to precision equipment:
- Type 1+2 Combination: Suitable for the AC distribution system entrance in high lightning-density areas.
- Type 2 Standalone: Primarily protects against induced lightning (8/20 μs) and switching transients.
- Type 2+3 Cascaded：Cascaded solution for end-point protection.
- Ultra-low let-through Type 3: For critical loads such as medical devices and laboratory instruments, with Up <600V.
Key Product Features
Comprehensive Protection：
Complete DC and AC protection, forming an entrance-to-device cascade defense.
Modular Design：
Hot-swappable modular design for quick maintenance and upgrades.
Remote Signaling：
Built-in dry contact alarm outputs for SCADA/IoT integration.
Status Indicator：
Color-coded indicators with LED backlighting for visibility in low light.
Compliance：
IEC/EN 61643-11 compliant with certified test reports.
Recommended Configurations
LSP offers tailored SPD solutions for inverter systems to match inverter type, installation conditions, and lightning exposure.
Contact LSP today for a FREE surge risk assessment tailored to your system. Our engineers deliver optimized inverter surge protection recommendations within 24 hours!
FAQ — Surge Protection for Inverters
Do inverters have surge protection?
Most commercial inverters include basic EMI filters but cannot handle high-energy surges (>5kA) from lightning or grid switching. An external surge protection device (SPD) is mandatory for reliable surge protection for inverters.
Can you use a surge protector with an inverter?
Yes, and it’s essential! Choose the correct SPD type: DC SPD for DC side, cascaded Type 2+3 SPD for AC side. Avoid using AC SPDs on DC circuits.
Can an inverter damage a surge protector?
Yes — risks exist. Faulty inverters generating reverse EMF can damage standard SPDs. Use bidirectional SPDs (such as LSP models) to ensure reliable surge protection for inverters.
Is an inverter generator the same as a surge protector?
Totally different devices: An inverter generator converts DC to AC power, whereas a surge protector (SPD) provides nanosecond-level clamping of overvoltages. Key differences lie in functionality, response time, and energy handling capacity — all critical for surge protection for inverters.
Can you plug a surge protector into a power inverter?
Permissible only when meeting compatibility criteria:
- Compliance: Use SPDs matched to inverter output waveform (e.g., Type 3 fine protection for pure sine wave inverters);
- Prohibition: Avoid multi-stage cascading of SPDs on the same branch to prevent impedance mismatch and oscillations. Use hierarchical SPD coordination as defined in IEC standards.
This ensures safe and effective surge protection for inverters.
Do I Need a Surge Protector with an Inverter Generator?
Yes, inverter generators must have dedicated SPDs to prevent damaging voltage spikes. Proper surge protection for inverters is key to prolonging lifespan and enhancing reliability.
