In modern power systems, SPD coordination is critical because electrical networks are exposed to increasingly complex and high-energy surge threats, including direct lightning strikes, induced surges, and frequent switching transients from industrial equipment, inverters, and power electronics. A single Surge Protective Device (SPD) cannot handle all these different energy levels effectively. If only one protection stage is used, it will either be overloaded by high-energy lightning currents or fail to provide sufficiently low voltage protection for sensitive downstream equipment. Therefore, a coordinated protection system using Type 1, Type 2, and Type 3 SPDs is necessary to ensure surge energy is progressively reduced in a controlled and safe manner throughout the entire electrical system.
SPD coordination (cascading protection) follows the Lightning Protection Zone (LPZ 0–3) concept, where each SPD stage plays a specific role: Type 1 protects against high-energy lightning currents at the system entrance, Type 2 reduces residual and switching surges in distribution panels, and Type 3 provides final fine protection for sensitive electronic equipment. When properly designed with correct energy grading, voltage protection level (Up) coordination, grounding quality, and decoupling principles, the system achieves higher reliability, reduced equipment failure risk, and significantly lower downtime. Therefore, SPD coordination is not only a product selection issue, but a fundamental system-level design requirement for ensuring electrical safety and operational continuity.

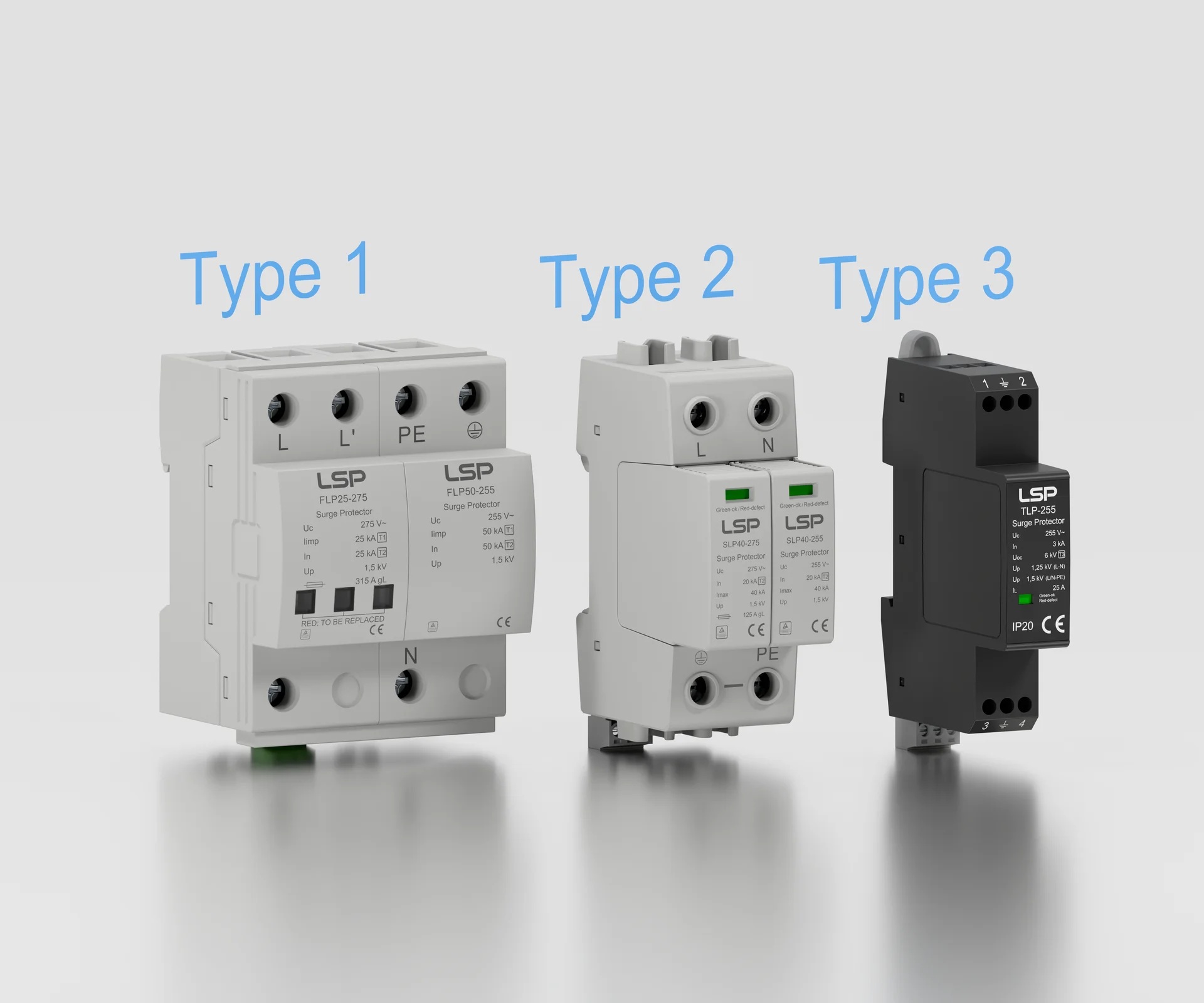

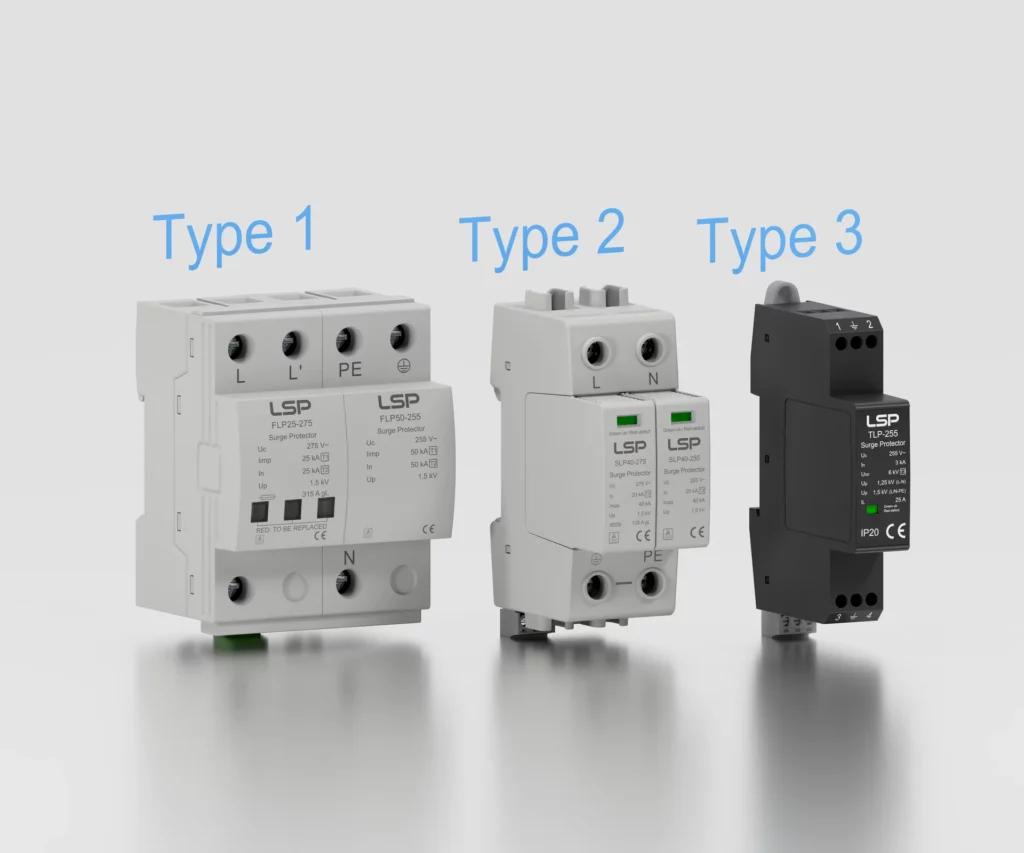

Type 1, Type 2 & Type 3 SPD Explained (Functional Roles)
Type 1 SPD – Main Entrance Protection
Type 1 SPD is designed as the first line of defense in a surge protection system, specifically to protect electrical installations against direct lightning currents and extremely high-energy surge events entering through the power supply system. It is installed at the main service entrance or main distribution board, where external surge energy first enters the building.
1. Extremely High Surge Current Capability
Type 1 SPD is designed to withstand very high impulse currents, tested with the 10/350 μs waveform, which simulates direct lightning strikes. Its key parameter is Iimp (impulse discharge current), representing the ability to safely conduct and discharge extreme lightning energy without failure.
2. Main System Entrance Installation
It is always installed at the main service entrance, where external lightning energy first enters the electrical system. This allows it to intercept surge energy at the earliest stage.
3. High Energy Discharge, Not Precision Protection
Type 1 SPD focuses on diverting large lightning energy to earth, not on achieving very low clamping voltage. Its residual voltage (Up) is relatively higher compared to downstream SPD types.
4. Heavy-Duty Internal Structure
It typically uses spark gap technology or reinforced MOV structures to handle high-energy discharge without thermal runaway or damage.
5. Key Role in SPD Coordination System
In a coordinated SPD system, Type 1 SPD acts as the primary energy absorber, reducing the magnitude of incoming surge energy before it reaches downstream SPDs (Type 2 and Type 3).
Type 2 SPD – Distribution Level Protection
Type 2 SPD is the most widely used surge protective device in modern electrical systems. It is designed to protect distribution networks and downstream equipment from residual lightning energy and switching surges that remain after Type 1 protection. It acts as the second layer of defense in a coordinated SPD system.
1. Protection Against Residual and Switching Surges (防护残余浪涌与开关浪涌)
Type 2 SPD is designed to suppress residual lightning energy that passes through Type 1 SPD, as well as switching surges generated by inductive loads such as motors, transformers, and inverters. These surges are more frequent but lower in energy compared to direct lightning strikes.
2. Standard 8/20 μs Test Waveform
Type 2 SPD is tested using the 8/20 μs current waveform, which represents typical induced lightning and switching surge conditions. Its key performance parameters include In (nominal discharge current) and Imax (maximum discharge current).
3. Installed in Distribution Panels
Type 2 SPD is installed in sub-distribution boards or distribution panels, where electrical power is further distributed to different loads. This position allows it to protect branch circuits and intermediate equipment effectively.
4. Balanced Protection and Voltage Limitation
Type 2 SPD provides a lower clamping voltage (Up) compared to Type 1 SPD, making it more suitable for protecting sensitive electrical and electronic equipment. It balances energy handling capability and voltage protection performance.
5. Key Role in SPD Coordination System
In a coordinated protection system, Type 2 SPD acts as the secondary energy reduction stage, further decreasing surge energy before it reaches sensitive end devices protected by Type 3 SPD.
Type 3 SPD – Final Equipment Protection
Type 3 SPD is the final layer of surge protection in a coordinated system. It is specifically designed to protect sensitive electronic equipment from very low residual surge voltages that remain after Type 1 and Type 2 protection. It provides precision voltage limitation at the point of use, ensuring that final loads operate within safe electrical limits.
1. Ultra-Low Voltage Protection Level
Type 3 SPD is designed with a very low clamping voltage (Up), typically below 1.5 kV, making it suitable for protecting highly sensitive electronics such as PLCs, communication devices, and computer systems. Its main goal is to ensure that residual surge voltage does not exceed equipment withstand levels.
Type 3 SPD is tested using a 1.2/50 μs combination wave, which simulates induced lightning surges and switching transient conditions in low-voltage terminal equipment circuits. This test evaluates the SPD’s ability to protect sensitive electronics from low-energy but high-frequency overvoltage events. The key parameter for Type 3 SPD is Uoc (open-circuit voltage), which defines the maximum impulse voltage the device can safely withstand at the equipment level.
2. Installed Close to Final Equipment
Type 3 SPD must be installed as close as possible to the protected equipment, such as control cabinets, socket outlets, or communication interfaces. This minimizes the effect of cable inductance and ensures precise voltage limitation.
3. Protection for Sensitive Electronics
Type 3 SPD is specifically designed for low-energy but high-sensitivity equipment, including PLC systems, IoT devices, computers, servers, and communication networks. These devices can be damaged even by small transient overvoltages.
4. Precision Voltage Limitation
Unlike Type 1 and Type 2 SPDs that focus on energy discharge, Type 3 SPD focuses on precise voltage clamping and fine protection control. It ensures that only a very low residual voltage reaches the final equipment.
5. Final Stage in SPD Coordination System
In a coordinated SPD system, Type 3 SPD acts as the final protective barrier, eliminating any remaining surge energy that has passed through upstream protection stages, ensuring complete system safety.
How SPD Coordination (Cascading System) Works
SPD coordination (cascading protection) works by dividing surge energy into controlled stages, ensuring that each Surge Protective Device (Type 1, Type 2, and Type 3) handles a specific portion of the total surge depending on its energy level and installation position. Instead of relying on a single device, the system distributes protection across multiple layers from the power entrance to the final load.
1. Surge Energy Flow Sequence
When a surge enters the electrical system, it follows a controlled energy reduction path:
- Type 1 SPD (Entrance Level): Intercepts and discharges high-energy lightning currents (direct or near-direct strikes) into the grounding system.
- Type 2 SPD (Distribution Level): Reduces remaining surge energy and handles switching transients from inductive loads and power equipment.
- Type 3 SPD (Terminal Level): Provides fine protection by limiting residual voltage to a safe level for sensitive electronic devices.
This step-by-step energy reduction ensures that no single SPD is overloaded.
2. Voltage Protection Level (Up) Coordination
Each SPD stage has a defined voltage protection level (Up), and coordination ensures that:
- Type 1 SPD handles the highest energy but allows higher residual voltage
- Type 2 SPD reduces voltage further
- Type 3 SPD ensures ultra-low final protection voltage
Proper Up grading prevents downstream devices from being exposed to unsafe voltage levels.
Why SPD Coordination Is Necessary
Why Upstream SPD Cannot Fully Protect Downstream Equipment
An upstream SPD (such as a Type 1 SPD installed at the main distribution board) is designed to handle high-energy surges entering the electrical system. It plays a critical role in intercepting direct lightning currents and reducing the initial surge impact. However, despite its importance, it cannot fully ensure the safety of downstream sensitive equipment due to inherent electrical and system-level limitations.
(1) Residual Voltage (Up Problem)
Even after a surge is partially discharged by the upstream SPD, a residual voltage (Up) still remains on the system. This residual voltage is the clamping level of the SPD itself and is never zero. For sensitive electronic equipment such as PLCs, communication modules, and control systems, this remaining voltage may still exceed their insulation or operating tolerance levels, leading to gradual degradation or immediate failure.
(2) Distance Effect
Electrical conductors are not ideal; they have inherent inductance and impedance. When a surge current with a very steep waveform (high di/dt) flows through long cables, an additional voltage is generated according to the equation V = L × di/dt. This means that even if the upstream SPD clamps the voltage effectively at its installation point, the voltage seen at the downstream equipment terminals can still be significantly higher due to cable length and routing.
This “distance effect” becomes especially critical in industrial and building distribution systems where SPDs and equipment are physically separated. The longer the cable, the greater the induced voltage, reducing the effectiveness of upstream protection.
(3) Energy Distribution Limitation
A single upstream SPD is not designed to manage the entire energy spectrum of surge events across multiple system levels. It may absorb too much energy during high-intensity surges, leading to overheating or premature failure. On the other hand, if it is designed with higher protection margins, it may allow excessive residual energy to pass downstream, exposing sensitive equipment to risk.
Without proper coordination, energy is not distributed in a controlled step-by-step manner. Instead, it becomes concentrated or unevenly shared, which reduces overall system efficiency and increases failure risk.
Concept of Lightning Protection Zones (LPZ 0 → 3)
The Lightning Protection Zone (LPZ) concept is a structured protection framework defined in IEC 62305 that divides a building or electrical system into different zones based on the level of lightning exposure and electromagnetic surge intensity. The main idea is to control and gradually reduce surge energy as it moves from the external environment into sensitive internal equipment areas, ensuring a coordinated and step-by-step protection strategy.
LPZ 0 – Direct Exposure Zone
LPZ 0 is the outermost zone where the system is directly exposed to lightning strikes and full electromagnetic fields. This area has the highest surge energy and highest risk level, as lightning current can directly enter the system. In this zone, protection must be capable of handling extreme surge currents, which is why Type 1 SPD is typically required at the entry point to intercept direct lightning energy before it propagates inside the installation.
LPZ 1 – Internal Protected Zone
LPZ 1 begins after the first level of protection has reduced the incoming surge energy. Although lightning energy is significantly attenuated, switching surges and residual lightning currents may still exist. This zone represents a moderate-risk internal environment, where distribution systems operate. In this stage, Type 2 SPD is used to further reduce transient overvoltage and stabilize the electrical network.
LPZ 2 – Sensitive Equipment Zone
LPZ 2 is a more controlled environment where surge energy has been further reduced by upstream protection devices. This zone typically contains sensitive control systems, communication equipment, or automation devices. Even small voltage spikes can cause malfunction or data loss. Therefore, Type 3 SPD is required to provide precise voltage clamping and protect electronic circuits from low-level transient disturbances.
LPZ 3 – Final Equipment Level
LPZ 3 represents the innermost and most sensitive zone, where highly delicate electronic components operate. Devices in this zone require extremely low residual voltage protection and very stable power conditions. Any remaining surge energy must be minimized to near safe levels. At this stage, protection is focused on precision voltage limitation and equipment-level safeguarding rather than energy absorption.
System-Level Insight
The LPZ concept ensures that surge energy is not handled by a single device but is instead progressively reduced across multiple zones. Each zone corresponds to a specific SPD type, forming a coordinated cascading protection system. This structured approach significantly improves system reliability, reduces equipment stress, and ensures compliance with international standards such as IEC 62305.
System Benefits of Energy Grading
This staged protection strategy ensures that:
- No single SPD is exposed to energy levels beyond its design capacity
- Each SPD operates within its optimal performance range
- Surge energy is progressively reduced from high to low levels
- Final equipment receives only controlled and safe voltage levels
Coordination Between SPD and Backup Protection
In a properly engineered surge protection system, the coordination between SPD and backup protection devices (MCB or fuse) is essential to ensure both effective surge handling and system safety. The key design principle is that backup protection should never interfere with the normal operation of the SPD during transient surge events. Instead, it should remain passive during surge discharge and only activate under abnormal or fault conditions.
1. Non-Interference During Normal Surge Operation
During surge events such as lightning strikes or switching transients, the SPD must respond within nanoseconds to clamp overvoltage and divert surge energy to ground. In this extremely fast process, the backup protection device must remain stable and must not trip or disconnect the circuit.
MCBs and fuses are intentionally designed with time-delay characteristics compared to SPD response speed. This ensures that short-duration surge currents pass through the system safely without triggering disconnection.
2. Operation Under Abnormal Conditions
Backup protection devices only operate when abnormal or fault conditions occur. These conditions include:
- SPD end-of-life failure When an SPD reaches its service life limit, it may fail in a short-circuit or degraded state. The backup protection isolates the failed device from the system.
- Sustained follow current (especially in spark gap Type 1 SPD systems) In spark gap-based Type 1 SPDs, after discharge, a power-frequency follow current may occur. If not interrupted, this current can damage the system. Backup protection ensures safe interruption.
- Short-circuit faults in wiring or SPD modules Faults in wiring insulation or internal SPD components may cause persistent overcurrent conditions. Backup protection quickly disconnects the circuit to prevent escalation.
3. System-Level Coordination Benefits
Proper coordination between SPD and backup protection provides several key benefits:
- Ensures uninterrupted surge protection performance during transient events
- Prevents unnecessary tripping and system downtime
- Enhances fault isolation capability
- Improves overall electrical system safety and reliability
Common Design Mistakes in SPD Coordination
Using Only One SPD Stage
Using only one SPD stage in a power distribution system is one of the most common design mistakes in surge protection. Although it may appear cost-effective and simple to install, a single Surge Protective Device cannot provide comprehensive protection because surge events in modern electrical networks vary significantly in energy level, waveform, and impact point. Lightning-induced surges, switching transients, and internal disturbances each require different levels of protection, which cannot be effectively handled by one device alone.
When only one SPD is installed, it is forced to handle both high-energy lightning currents and low-level sensitive equipment protection simultaneously, which is beyond its design capability. If the device is designed for high surge current (Type 1 level), it will not provide sufficiently low clamping voltage to protect sensitive electronics. Conversely, if it is designed for fine protection (Type 2 or Type 3 level), it will be easily damaged by high-energy lightning currents entering the system. This mismatch leads to either premature SPD failure or inadequate protection of downstream equipment.
Furthermore, a single-stage protection approach ignores the principle of energy coordination and voltage grading, which are essential in modern surge protection design. Without cascading stages, surge energy is not properly distributed, resulting in excessive stress on one device and higher residual voltage reaching equipment terminals. This significantly increases the risk of equipment damage, system downtime, and even fire hazards in severe cases.
Therefore, modern surge protection standards strongly recommend a multi-stage coordinated system (Type 1 + Type 2 + Type 3 SPD) rather than a single-device approach. Only through cascading protection can surge energy be gradually reduced, ensuring both high-energy absorption at the system entrance and precise voltage limitation at the final load. This layered design is essential for achieving reliable, long-term electrical system protection.
Incorrect SPD Placement
Incorrect SPD placement is a serious engineering mistake that can significantly reduce the effectiveness of an otherwise properly selected surge protection device. Even if the correct Type 1, Type 2, or Type 3 SPD is used, installing it in the wrong location can disrupt surge energy flow, weaken coordination between protection stages, and leave critical equipment exposed to dangerous transient overvoltages.
In a properly designed surge protection system, each SPD type has a clearly defined position: Type 1 is installed at the main service entrance, Type 2 is placed in distribution panels, and Type 3 is installed close to sensitive equipment. When these positions are not followed—such as placing Type 2 SPD too close to the service entrance or installing Type 3 SPD too far from the load—the intended energy grading structure is broken. As a result, surge energy may bypass certain protection stages or overload downstream devices.
Another common issue caused by incorrect placement is the loss of coordination between SPD stages. If SPDs are installed too close together without proper separation or decoupling, they may operate simultaneously instead of sequentially. This prevents proper energy distribution and increases the risk of thermal stress or failure in multiple devices at the same time. On the other hand, excessive distance or improper routing can introduce additional impedance issues and reduce response effectiveness.
Incorrect placement can also affect grounding effectiveness and increase residual voltage at equipment terminals. For example, installing SPD with long connection leads or placing it far from the main grounding point increases inductive voltage drop, which directly reduces the protective performance of the device. In such cases, even a high-quality SPD cannot achieve its designed protection level.
Therefore, correct SPD placement is not only about following installation diagrams, but also about maintaining proper energy flow, coordination logic, and grounding integrity across the entire surge protection system. Proper positioning ensures that each SPD stage performs its intended role, achieving reliable and effective system-level protection.
Ignoring Voltage Protection Level (Up)
Ignoring the voltage protection level (Up) is a critical design and selection error in surge protection systems. Even when the correct type of SPD is installed, failing to properly consider its Up value can result in insufficient protection for downstream equipment. The Up value represents the residual voltage that appears at the terminals of the protected equipment during a surge event, and it directly determines whether sensitive devices can withstand the transient overvoltage.
In a properly designed SPD coordination system, each stage must progressively reduce the Up value: Type 1 SPD handles high-energy lightning currents but has a relatively higher Up, Type 2 reduces the residual voltage further, and Type 3 provides the lowest Up level for sensitive electronic equipment. If this voltage grading principle is ignored—such as using a high-Up device near sensitive loads or failing to install a final-stage SPD—equipment may still be exposed to voltage levels beyond its insulation or electronic tolerance limits.
Another common problem caused by ignoring Up is mismatching SPD performance with equipment withstand levels. Industrial control systems, PLCs, communication devices, and data centers often require very low residual voltage protection. If the selected SPD cannot reduce voltage below the equipment impulse withstand level (Uw), repeated micro-damage may occur, eventually leading to premature failure. This type of failure is often difficult to detect because it accumulates over time rather than occurring instantly.
Therefore, Up coordination is a fundamental requirement in surge protection design. It is not enough to select an SPD based only on current capacity or installation location. Engineers must ensure that the entire cascading system provides a progressively decreasing voltage protection level, matching the insulation and sensitivity requirements of the protected equipment. Proper Up control ensures long-term system stability, equipment safety, and reduced maintenance risk.
Poor Grounding System
A weak or poorly designed grounding system is one of the most critical reasons for SPD underperformance or even complete failure. In surge protection systems, the grounding network is not just a supporting structure—it is the final discharge path for surge energy. If this path is not low-impedance and properly constructed, even a high-quality SPD cannot effectively perform its protective function.
One of the most common issues is high grounding resistance, which prevents surge current from flowing efficiently into the earth. When resistance is too high, surge energy cannot be rapidly dissipated, resulting in increased residual voltage across the system. This higher voltage is then directly imposed on sensitive electrical and electronic equipment, increasing the risk of insulation breakdown or component damage.
Another major problem is the use of long, curved, or improperly routed grounding conductors. In surge conditions, even short additional lengths can introduce significant inductance, which increases voltage drop according to V=L×di/dt. This means that poor wiring layout can significantly degrade SPD performance, even if the grounding resistance appears acceptable in static measurements.
A further critical issue is the lack of equipotential bonding. Without a unified equipotential grounding network, different metal structures and devices may develop dangerous potential differences during surge events. This can lead to internal arcing, equipment stress, and even SPD malfunction due to uneven voltage distribution across the system.
Ultimately, poor grounding compromises every aspect of surge protection performance, including voltage limitation, energy discharge, and coordination between SPD stages. In real-world applications, many SPD failures are not caused by the device itself but by inadequate grounding design. This is why engineers often emphasize that SPD performance is only as strong as its grounding system.
Lack of Coordination Design
Lack of coordination design is a fundamental system-level mistake in surge protection engineering. In many real-world installations, multiple SPDs (Type 1, Type 2, and Type 3) are installed across a power distribution system, but they are not properly designed to work together as a unified protection network. As a result, these devices operate independently rather than as a coordinated system, which significantly reduces overall protection performance.
Without proper coordination, multiple SPDs may trigger simultaneously during a surge event, instead of operating in a controlled sequence. This simultaneous operation prevents proper energy distribution, meaning that surge energy is not progressively absorbed from upstream to downstream. Instead, energy may be shared unevenly or concentrated on multiple devices at the same time, increasing the risk of thermal stress, nuisance tripping, or SPD failure.
Another major consequence is mutual interference between protection stages. When coordination is not considered, a downstream SPD may respond too early or too aggressively, interfering with the operation of upstream devices. This breaks the intended energy grading structure and can lead to reduced protection efficiency or even system instability during surge events.
Proper SPD coordination design requires three essential elements: energy grading between stages, correct installation distance or decoupling measures, and matched voltage protection levels (Up coordination). These elements ensure that each SPD operates in the correct sequence and shares surge energy according to its design capability, forming a true layered protection system.
Ultimately, without coordination design, multiple SPDs function only as isolated protective devices rather than an integrated system. This not only reduces protection effectiveness but also undermines the fundamental purpose of cascading surge protection, which is to ensure controlled energy flow from the power entrance to the final load.
Why SPD Coordination Is More Important Than Individual Devices
SPD coordination is more important than individual devices because surge protection is not a single-point problem—it is a system-level energy management process. In modern electrical networks, surge events travel through multiple stages from the power entrance to sensitive equipment, carrying different energy levels and waveforms. A single SPD, no matter how high its performance, can only protect a limited range of conditions. It cannot independently handle the full spectrum of lightning energy, switching surges, and sensitive electronic protection requirements.
When only individual SPD devices are used without coordination, the protection system becomes fragmented. Each device may operate independently, leading to uneven energy distribution, overlapping response, or even mutual interference. This can result in premature SPD failure or insufficient protection at the equipment level. In contrast, a coordinated system using Type 1, Type 2, and Type 3 SPDs ensures that each device has a clearly defined role in the energy flow path.
Another key advantage of SPD coordination is energy grading and voltage control. Type 1 SPD handles high-energy lightning currents at the system entrance, Type 2 reduces residual and switching surges, and Type 3 provides precise voltage limitation for sensitive equipment. This step-by-step energy reduction ensures that no single device is overloaded and that the residual voltage reaching the final load is within safe limits.
Furthermore, coordinated SPD systems significantly improve system reliability and continuity of operation. By distributing surge energy across multiple stages, the stress on each device is reduced, resulting in longer SPD lifespan, fewer failures, and reduced maintenance costs. It also minimizes the risk of catastrophic system shutdown caused by a single-point failure.
Therefore, SPD coordination transforms surge protection from a collection of independent devices into a structured, intelligent protection system. It ensures controlled energy flow, proper voltage grading, and optimized protection performance across all levels of the electrical network.
