Do EV Chargers Need Surge Protection?
The answer is yes — surge protection for EV chargers is definitely required.
With the ongoing advancement of global environmental policies, the adoption of electric vehicles is growing rapidly, and charging technologies are evolving accordingly. In this process, Surge protection for EV chargers during daily use has become a key concern for both end users and installation contractors.
What is surge protection?
As mentioned in our earlier articles, surge protection refers to the use of a Surge Protection Device (SPD) to divert or limit transient overvoltages and overcurrents caused by lightning induction, grid switching operations, or load start/stop events, thereby protecting equipment from damage.
Whether it is a residential AC charger installed indoors or a commercial DC fast charger deployed outdoors, EV chargers must remain connected to the power grid during operation. This connection makes them highly vulnerable to surges. When a surge occurs, the instantaneous overvoltage can far exceed the charger’s design limits. In mild cases, it may cause performance degradation or accelerated component aging; in severe cases, it can lead to complete equipment failure and even damage other connected circuits and devices.
Therefore, appropriate surge protection for EV chargers is not only essential to prevent equipment damage and extend service life, but also a key measure to ensure the safety and stability of the entire charging system. Regardless of the charger type or installation environment, installing surge protection for EV chargers is considered an industry best practice.
Is Surge Protection for EV Chargers Necessary?
From the perspective of industry standards and regulations, the necessity of surge protection for EV chargers has been widely recognized worldwide, and in many regions, it is even a mandatory requirement:
- IEC 61643‑11: A globally adopted standard for low-voltage power distribution system SPDs, specifying the performance and testing methods for EVSE surge protection devices.
- UL 1449 (5th Edition): A standard for the North American market defining the safety certification requirements for EV charger SPDs.
- GB/T 34120‑2017: The Chinese national standard for charging stations, requiring chargers to have at least Type II surge protection
- UN ECE R10 (Revision 4): An international automotive regulation requiring On‑Board Chargers (OBCs) to pass lightning surge and pulse group tests to ensure electromagnetic compatibility (EMC) and overvoltage protection.
These standards consistently emphasize that surge protection for EV chargers is not only a core part of the safety design, but also a fundamental prerequisite for compliant installation and user safety.
Do EV chargers have surge protection built in?
Since surge protection for EV chargers is so critical, does this feature come pre‑installed in most devices at the factory?
In reality, not all models are equipped with built‑in surge protection modules. Many budget residential EV chargers on the market may only provide basic circuit designs without dedicated surge protection devices (SPDs) or defined overvoltage protection mechanisms. Some premium brands may integrate basic surge suppression components inside the charger, but their performance is often limited by cost and internal space constraints.
Therefore, both consumers and engineers should proactively check whether the product has a valid surge protection certification (e.g., IEC, UL) and prioritize brands that have passed international testing standards.
Built‑In Surge Protection for EV chargers vs. External Surge Protection
Even if an EV charger has built‑in surge protection, its capability is usually quite basic.
- Built‑in surge protection for EV chargers: Typically has a small capacity and can only handle minor surges. It serves more as the final line of defense in a multi‑stage surge protection It works best when combined with stronger external protection upstream. Without external protection, built‑in SPDs are likely to fail when exposed to severe lightning surges or grid fluctuations.
- External surge protection for EV chargers: It is strongly recommended to install a whole‑house surge protector (Type 1 or Type 1+2 SPD) in the main distribution panel. This external SPD can handle higher lightning currents and grid surge energy, serving as the first line of defense. It can effectively absorb most high‑energy surges, thereby protecting the entire electrical system and all connected equipment.
As a result, the widely recommended industry strategy is a layered surge protection design:
- Install a whole‑house surge protector at the building’s main distribution board as the primary barrier.
- Combine it with the built‑in surge protection for EV chargers as the final defense at the equipment level.
This coordinated internal‑external surge protection ensures effective dissipation of surges of different intensities, proper voltage coordination between protection stages, and significantly improves the overall reliability and lifespan of the EV charger system.
What Happens Without Surge Protection for EV Chargers?
Although we have repeatedly emphasized the importance of installing surge protection for EV chargers, what risks will you face if this crucial safety measure is completely ignored? Let’s examine the answer from both a technical and real‑world perspective.
In a stable grid environment with no abnormal voltage fluctuations, an EV charger without an SPD may appear to operate normally. This is a common misconception among many users. However, this “calm” condition can be shattered at any time by a sudden surge event.
Lightning & Grid Surges — Surge Protection for EV Chargers
When lightning induction or grid fluctuations occur, the supply line can experience transient overvoltages far exceeding the equipment’s tolerance (often reaching several kilovolts).
- With SPD protection: The EV charger surge protector—normally in a high‑impedance state—will instantly conduct, diverting excess current safely to ground through dedicated earthing conductors, protecting the equipment.
- Without SPD protection: The full surge energy will be injected directly into the charger’s internal power components (e.g., IGBT modules, control boards), leading to irreversible damage. Common outcomes include:
- Minor damage: Component degradation, reduced charging efficiency, and communication failures.
- Severe damage: Burnt PCBs, insulation breakdown, short‑circuit fires.
- Chain reaction: Fault currents traveling back through the DC output to the EV battery pack, potentially causing battery failure.
Real Case Study: The Costly Consequences of Missing Surge Protection for EV Chargers
At a commercial DC fast charging station, 20 chargers were installed without any surge protection for EV chargers — only standard lightning rods were used. After a thunderstorm, lightning surges caused multiple chargers to shut down with black screens, while others suffered burnt components and live enclosures. None survived.
Post‑incident analysis revealed that the absence of a multi‑stage surge protection for EV chargers was the direct cause. The resulting repair and downtime costs far exceeded the initial investment required to install SPDs.
Key Lessons Learned：Surge Protection for EV Chargers
This case is a classic example in the EV infrastructure field, and serves as an important reminder:
- Lightning rods alone are not enough; they mainly prevent direct strikes but cannot effectively block induced lightning surges. In high lightning risk areas, surge protection for EV chargers against indirect surges is essential.
- Small investment, big returns: Compared to the massive cost of repairs and downtime, installing EV charger SPDs is a low‑cost measure that protects your long‑term operations.
Investing in surge protection for EV chargers is not just a technical upgrade—it’s a reliable safeguard for your assets, safety, and operational continuity.

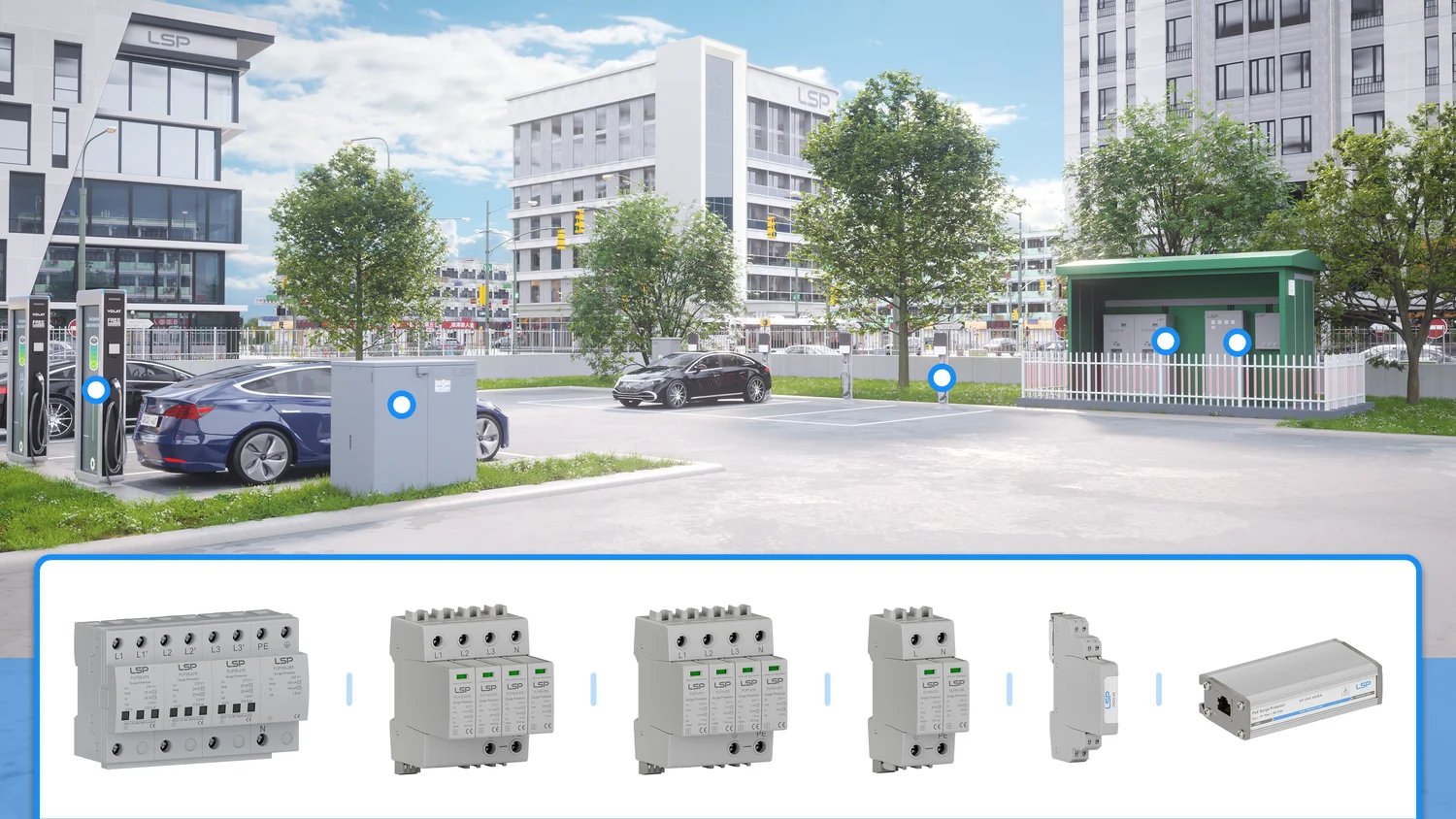

Surge Protection for EV Chargers Guide: SPD Types & Application Scenarios
As outlined earlier, effective surge protection for EV chargers must be tailored to the actual application environment. A well‑designed multi‑stage SPD system is essential to ensure equipment safety and system stability.
Below are the recommended solutions and technical considerations for different types of EV chargers in various scenarios.
Stage 1 Surge Protection: Main Distribution Panel (Service Entrance)
According to IEC 61643‑12 and IEC 62305, any building requiring lightning protection should install a Type 1 SPD at the main distribution panel to serve as the first line of defense against direct lightning surges.
Core Functions:
- Absorb and divert high‑energy lightning surge currents.
- Reduce impulse voltage entering the distribution system to protect downstream equipment.
Installation Recommendations:
- Install the Type 1 SPD as close to the power supply entrance as possible.
- Keep wiring short and straight to minimize surge reflection and losses.
- Use appropriate overcurrent protection (e.g., circuit breakers) to prevent overheating or SPD failure from causing safety hazards.
For commercial three‑phase AC EVSE and DC fast chargers, a Type 1+2 SPD is commonly used to handle both lightning surges and operational or induced surges, meeting higher protection requirements.
Stage 2 Surge Protection: Application‑Specific Selection
Residential AC Charger
- Scenario: Single‑family homes, private garages, residential communities.
- Features: Output power typically 3.3–7.4 kW, single‑phase AC supply.
Recommended SPD Type: Type 2 SPD
- Installation location: Charger input terminal.
- Key specs:
- Rated voltage: 230 V AC
- Nominal discharge current In ≥ 20 kA (8/20 μs)
- Voltage protection level Up ≤ 1.5 kV
- Reason: Primarily protects against operational surges and induced lightning. A Type 2 EV charger surge protector can safeguard electronic control modules and power devices effectively.
Commercial AC EVSE
- Scenario: Public parking lots, commercial complexes, corporate campuses.
- Features: Output power up to 11–22 kW, three‑phase AC supply.
Recommended SPD Type: Type 2 SPD
Installation location: Sub‑distribution board or charger input.
Key specs:
- Nominal discharge current In ≥ 20 kA
- Covers all three phases and a neutral conductor.
DC Fast Charger, DCFC
- Scenario: Highway service areas, long‑distance travel hubs, public charging stations.
- Features: Output power commonly 30–350 kW, AC input / DC output architecture.
Recommended SPD Type:
- AC input: Type 2 SPD, nominal discharge current In ≥ 20 kA.
- DC output: DC SPD (rated for charger output voltage), installed near DC terminals.
Internal supplementary protection: Built‑in DC protection modules.
Key specs:
- AC side: Same configuration as commercial three‑phase AC.
- DC side: Rated working voltage according to charger output (typically 500–1000 V DC), nominal discharge current In ≥ 20 kA (8/20 μs).
Reason: DCFC units are highly sensitive to surges during high‑power operation. AC + DC dual protection is essential to prevent damage to power modules, control systems, and EV batteries.
Stage 3 Surge Protection: Device‑Level Internal Protection
Stage 3 surge protection for EV chargers is typically achieved through built‑in Type 3 SPDs, which provide final defense against residual voltage and small surges at the charger terminal.
Conclusion: Multi‑Stage Surge Protection for EV Chargers
From Stage 1 (main panel) to Stage 3 (device‑level), a layered SPD approach forms a robust defense system. This setup limits surge voltage to safe levels at each point, ensuring surge protection for EV chargers and the entire charging system operates reliably and safely over the long term.
| V Charger Type | Three‑Stage Surge Protection Plan | Key Installation Points | SPD Type |
| Residential Single‑Phase AC Charger | Main distribution panel (Type 1 SPD / whole‑house surge protector) → Charger input (Type 2 EV charger surge protector) → Built‑in SPD | Service entrance, charger input terminal, charger internal circuit | Type 1 / Type 2 / Built‑in |
| Commercial Three‑Phase AC EVSE | Main distribution board (Type 1+2 SPD) → Branch circuit (Type 2 SPD) → Built‑in SPD | Main distribution input, branch circuits, inside charging post | Type 1+2 / Type 2 / Built‑in |
| DC Fast Charger (AC Input Side) | Main distribution board (Type 1+2 SPD) → Fast charger input (Type 2 SPD) → Built‑in SPD | AC main distribution, fast charger input, control unit | Type 1+2 / Type 2 / Built‑in |
| DC Fast Charger (DC Output Side) | DC SPD → Internal protection → End‑point protection | DC output terminals, internal circuits | DC SPD / Built‑in |
Surge Protection for EV Chargers Maintenance & Management
The performance of surge protection for EV chargers depends not only on proper SPD selection and installation location, but also on scientific management and regular maintenance during operation.
A surge protective device (SPD) is a consumable safety component with a limited service life. Its internal non‑linear components degrade after repeated surge events, gradually reducing its protection capability. Therefore, regular SPD inspections are essential to ensure the EV charger remains in a safe and protected operating state.
Inspection Cycle & Replacement Recommendations for EV Charger Surge Protection
To maintain reliable performance of the surge protection for EV chargers, the following inspection cycles are recommended:
- Residential EV chargers: Inspect the SPD status once a year.
- Commercial EV chargers: Due to higher operating frequency, inspect the SPD status every six months.
If an SPD shows a fault indication or reduced performance, it must be replaced immediately. Main inspection methods include:
- Visual status indicator: Most SPDs have a status window or LED indicator. Green means normal, while red indicates SPD failure and replacement is required.
- Remote status monitoring: Advanced SPDs with remote signaling contacts can send fault alerts. Any alert should trigger immediate on‑site inspection and replacement.
Replacement & Upgrade Recommendations for surge protection for EV chargers
- Ease of replacement: Many advanced modular SPDs support plug‑in replacement without shutting down the power system, saving maintenance time and cost.
- Upgraded protection: In areas with frequent lightning activity, select higher energy‑rating SPDs or add multi‑stage surge protection for improved safety.
Regular inspection, timely replacement, and structured maintenance can significantly extend the protection life of the SPD, ensure long‑term stability of EV chargers, and reduce both damage risk and maintenance cost.
Recommended Surge Protection for EV Chargers Manufacturer – LSP
Why Choose LSP for Surge Protection for EV Chargers?
The LSP surge protector is certified to IEC 61643‑11 and provides high‑performance surge and lightning protection solutions tailored to diverse EV charging environments.
With 15 years of expertise, LSP continuously upgrades core components and housing materials to ensure every LSP SPD operates reliably even under high‑stress conditions.
Core Advantages of LSP Surge Protective Device
- Comprehensive product line: Covers Type 1 SPD, Type 1+2 SPD, Type 2 SPD, Type 2+3 SPD, Type 3 SPD, and DC SPD—suitable for both AC and DC EV charger surge protection
- High surge withstand capability: Designed to handle large lightning currents and switching surges, meeting demanding commercial and industrial requirements.
- Modular design: Plug‑in replaceable modules allow fast, safe maintenance without system shutdown.
- Intelligent monitoring: Equipped with status indicator windows and remote alarm interfaces for easy operation and maintenance.
- Support for multi‑stage protection: LSP’s product portfolio enables seamless Type 1 + Type 2 + Type 3 SPD configurations from main distribution panels to end devices, ensuring comprehensive surge protection.
Whether for residential AC chargers, commercial AC EVSE, or DC fast chargers, LSP offers IEC‑compliant EV charger surge protection solutions to ensure long‑term system safety and reliability.
FAQ of Surge Protection for EV Charges
Ｗhy is surge protection for EV chargers necessary?
Whether you are using a residential EV charger or a commercial EV charger, surge protection for EV chargers is essential to prevent equipment damage caused by lightning strikes or power grid surges.
Is surge protection for EV chargers built in?
Some high-end charger models come with built-in surge protection, but their capacity is limited. Typically, an external SPD is required to meet the protection level specified by IEC standards.
Does a Tesla charger need surge protection?
It is recommended. Tesla officially advises installing a Type 2 SPD at the main distribution panel to ensure charging safety and device stability.
Where should surge protector for EV chargers be installed?
It is recommended to install surge protection at the main distribution panel or the EV charger input line. Using a multi-stage protection scheme (Type 1, Type 2, Type 3 SPD) provides optimal results.
Is surge protection for EV chargers mandatory in the UK and the US?
Yes, it is strongly recommended or even mandatory. The UK’s IET Wiring Regulations and the US NEC electrical code both recommend supplying surge protection for EV chargers.
Is additional surge protection for residential EV chargers required?
It is advisable. The best practice is to install a Type 1 SPD at the whole-house distribution panel and add a Type 2 SPD at the charger’s input line. This combination covers all surge scenarios from lightning strikes to everyday load switching.
What are the surge protection requirements for commercial fast charging stations?
Commercial fast charging stations require robust surge protection for EV chargers, typically with combined Type 1+2 SPDs on the AC side and dedicated DC SPDs on the DC side, along with thermal disconnect, remote monitoring, and failure alarm functions.
