Surge Protection Devices Selection Guide: Core Selection Criteria for Electrical Systems
Selecting the correct surge protection devices involves four essential steps: determining the Lightning Protection Zones (LPZ), choosing the appropriate SPD type (Type 1, Type 2, or Type 3) based on installation location, matching the voltage protection level (Up) with equipment sensitivity, and ensuring compatibility with the grounding system (TN, TT, or IT). This structured approach provides a practical framework for engineers learning how to select surge protection device solutions for reliable system protection.
How to Decide Between Type 1, Type 2, and Type 3 Surge Protection Devices for LPZ Zones
According to IEC 62305, the lightning protection concept divides a structure into LPZ 0 (LPZ 0A and LPZ 0B), LPZ 1, LPZ 2, and LPZ 3. LPZ 0 represents the external environment of the building, where direct lightning strikes may occur. External lightning protection systems such as air terminals or lightning rods are typically installed to intercept direct strikes.
Surge protection devices are designed to protect internal electrical systems and equipment. The first distribution board where power enters the building (main distribution board) marks the transition from external to internal zones.
Type 1 SPD (Class I SPD)
When an external lightning protection system is present, a Type 1 SPD must be installed at this point. Type 1 SPDs are specifically designed to handle high-energy lightning currents with a 10/350 µs waveform.
Therefore, Type 1 SPDs are installed at the boundary between LPZ 0B and LPZ 1.
Type 2 SPD (Class II SPD)
Type 2 SPDs are used downstream to further reduce surge energy after the first protection stage. They operate with an 8/20 µs waveform and are typically installed at the boundary between LPZ 1 and LPZ 2, such as sub-distribution boards.
Type 3 SPD (Class III)
Type 3 SPDs are installed at the boundary between LPZ 2 and LPZ 3 or directly near sensitive equipment. They provide fine protection by limiting residual voltage to very low levels and are tested with combined waveforms (1.2/50 µs and 8/20 µs).
Typical installation locations:
LPZ 0-1 (building entry): Type 1
LPZ 1-2 (distribution level): Type 2
LPZ 2-3 (equipment level): Type 3
It is critical to note that Type 3 SPDs have very limited discharge capacity. Without upstream Type 1 and Type 2 protection, installing a Type 3 SPD at the service entrance may result in failure or even catastrophic damage under lightning conditions.
Matching Voltage Protection Level (Up) for System Safety
The voltage protection level (Up) is one of the most critical parameters in SPD selection. It represents the maximum residual voltage that appears across the SPD during operation.
To ensure safe operation, the Up value must always be lower than the impulse withstand voltage (Uw) of the protected equipment. According to the coordination principle, the Up value should decrease progressively at each protection stage.
Typical Up ranges:
| SPD Type | LPZ Boundary | Typical Up | Protection Target |
| Type 1 | LPZ 0–1 | ≤ 2 kV | Main distribution systems |
| Type 2 | LPZ 1–2 | 0.4–2.0 kV | General loads and switchboards |
| Type 3 | LPZ 2–3 | < 1.25 kV | Sensitive electronics |
According to IEC 60664-1, equipment in 230/400 V systems is classified by impulse withstand voltage (Uw):
Category IV (4 kV): service entrance equipment → protected by Type 1
Category III (2.5 kV): distribution and industrial equipment → Type 2
Category II (1.5 kV): appliances and office equipment → Type 2 or Type 3
Category I (0.8 kV): highly sensitive electronics → Type 3
Engineering rule: always maintain a safety margin
Up ≤ 0.8 × Uw
For example, if equipment withstand voltage is 1.5 kV, the selected SPD should have a Up not exceeding 1.2 kV.

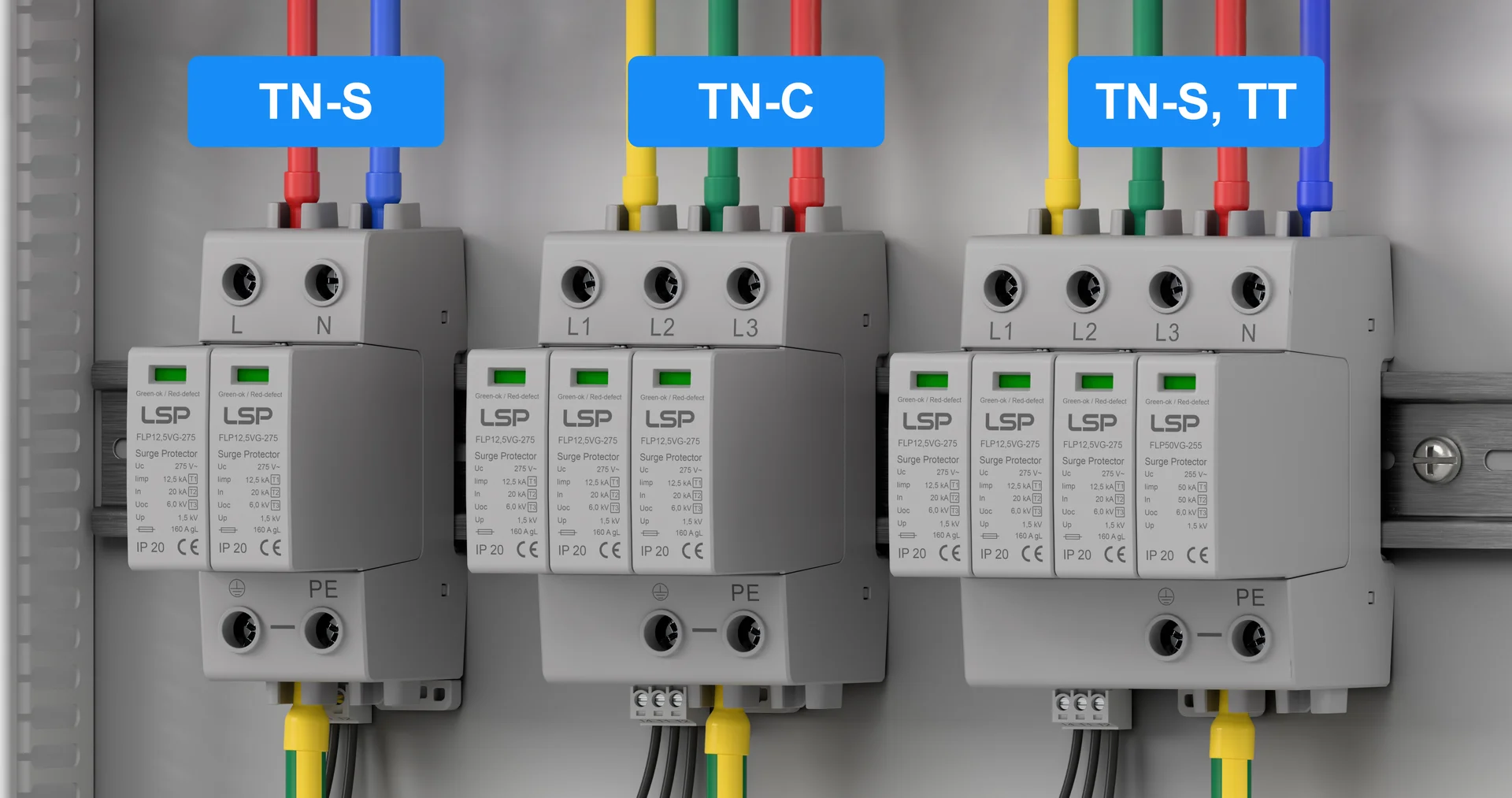

Grounding System Compatibility: Wiring for TN, TT, and IT Networks
The configuration and number of poles of an SPD determine whether it can operate safely within a specific grounding system. The key consideration is how the neutral conductor (N) is handled.
Selection guidelines:
TN-C system Recommended: 3P The system uses a combined PEN conductor. The SPD is connected between phase conductors and PEN.
TN-S system Recommended: 3+1 or 4P
4P: independent protection between each conductor and PE
3+1: uses a high-energy discharge tube between N and PE
The 3+1 configuration is generally preferred, as it minimizes leakage current and improves stability during neutral displacement.
TT system Mandatory: 3+1 (or 1+1 for single-phase) N and PE are separated. A 3+1 configuration ensures isolation between N and PE, preventing leakage currents and avoiding unwanted tripping of RCDs.
IT system Recommended: 3P (with higher Uc) No neutral is typically distributed. SPDs are installed between phase conductors and PE. Due to possible voltage rise during single-phase faults, higher Uc values are required.
Single-phase systems
TN-S: 2P or 1+1
TT: 1+1 required
Practical rule:
If the system includes RCDs, always prioritize 3+1 or 1+1 configurations to avoid nuisance tripping and ensure operational safety.
Surge Protection Devices System Design for Layered Protection
If a Type 1 surge protection device is installed at the main distribution board, does it provide complete protection against all surge events?
The answer is no.
A single SPD cannot fully suppress all surge energy. Effective protection requires a coordinated, multi-stage system design. This principle is fundamental in any practical SPD selection guide for real-world electrical installations.
Energy Coordination Between Cascaded Surge Protection Devices
As indicated by the Up parameter, each type of surge protection device can only limit surge energy to a certain level. The residual voltage within its protection level will propagate to the next LPZ zone through the system wiring.
In systems with sensitive equipment, multi-stage protection is essential. Depending on the application, either two-stage or three-stage SPD coordination can be implemented.
Key rules for layered surge protection design:
No stage skipping Each protection level must be installed in sequence. Omitting the intermediate stage (e.g., installing only Type 1 and Type 3) can result in excessive energy reaching the downstream SPD, leading to thermal failure or destruction.
Short connection leads The total conductor length (phase + PE) for each SPD must be less than 0.5 m. Excessive lead length increases inductive voltage drop, significantly raising residual voltage and reducing protection effectiveness.
Proper grounding system All SPDs must be connected to a common equipotential bonding system. Differences in grounding potential may cause backflow currents and increase the risk of secondary surge damage.
Application recommendations:
Residential systems: Two-stage protection is typically sufficient (Type 2 at distribution board + Type 3 near sensitive equipment).
Industrial facilities / data centers: Three-stage coordinated protection is required, with particular attention to decoupling distance and energy distribution.
Example Surge Protection Layouts for Typical Installations
In practical engineering, surge protection device layouts follow three key principles: zoned protection, energy coordination, and short grounding paths.
Typical configurations for common applications:
1. Large or medium-sized buildings (three-phase TN-S system)
Primary protection (LPZ 0/1 – main distribution board): Type 1 or Type 1+2 SPD installed near the main breaker Iimp ≥ 12.5 kA (10/350 µs), Up ≤ 2 kV, 4P configuration, lead length < 0.5 m
Secondary protection (LPZ 1/2 – sub-distribution boards): Type 2 SPD In = 20–40 kA (8/20 µs), Up ≤ 1.5 kV
Tertiary protection (LPZ 2/3 – sensitive equipment): Type 3 SPD (DIN rail mounted) Uoc = 6 kV, Up ≤ 1.25 kV
2. Residential / small office (single-phase TT system)
Main distribution board (LPZ 0/1): Type 2 SPD (1+1 configuration), installed upstream of the RCD Prevents leakage current from triggering RCD trips, while the GDT ensures isolation between N and PE under normal conditions
Sensitive equipment (LPZ 2): Type 3 SPD
3. Photovoltaic systems (DC side protection)
Combiner box / inverter DC input (LPZ 0B/1): DC Type 2 SPD with Y-configuration Ucpv must exceed the system’s maximum open-circuit voltage (e.g., 1000 V / 1500 V DC)
Inverter AC output side: Type 2 SPD installed according to TN or TT system configuration
Practical Installation and Wiring Tips for Surge Protection Devices
The 50 cm Connection Rule: Minimizing Residual Voltage
The “50 cm rule” refers to the total length of the conductors connecting the surge protection device, including both the incoming line (from the power supply to the SPD) and the outgoing line (from the SPD to the busbar or grounding terminal).
For effective surge protection, wiring must follow the principle of short, straight, and low-impedance connections.
If the conductor length is too long, the inductance of the wiring increases significantly. During a surge event, this inductive effect generates additional voltage drop, which can raise the residual voltage (Up) seen by the equipment. As a result, even a properly selected SPD may not provide adequate protection, potentially leading to equipment damage.
In practical installation best practices, minimizing lead length is one of the most critical factors in reducing residual voltage and ensuring the effectiveness of surge protection devices.
Remote Signaling and Pluggable Modules for Unmanned Sites
Most modern surge protection devices are equipped with remote signaling contacts, providing a reliable way to monitor system status and improve maintenance efficiency. This feature is particularly important in unmanned installations such as photovoltaic systems, outdoor cabinets, and industrial sites.
When the visual status windows change from green to red, or when a remote alarm signal is triggered, it indicates that the SPD has reached end-of-life or experienced a fault condition. In such cases, the device or its protection module must be replaced immediately to maintain system protection.
Pluggable module design further enhances maintenance efficiency. Instead of removing the entire SPD, only the defective module needs to be replaced. This significantly reduces downtime, simplifies maintenance procedures, and lowers operational costs.
In modern power systems, features such as remote monitoring, status indication, and modular replacement are considered best practices for ensuring long-term reliability and operational continuity of surge protection devices.
Surge Protection Devices Selection Checklist for Final Validation
If you are evaluating how to select the right surge protection devices for your electrical system, the following checklist provides a practical final validation before implementation. This step is essential in any complete surge protection devices selection guide to ensure system compatibility, safety, and long-term reliability.
6-Point Technical Checklist for Surge Protection Devices Selection
1. System Voltage and Uc Compatibility Verification
Identify the system type (AC, DC, or photovoltaic system) and select the corresponding SPD category. The maximum continuous operating voltage (Uc) of the SPD should typically be at least 20%–30% higher than the system’s maximum operating voltage to ensure stable performance under normal and transient conditions.
2. Type Selection Validation: Type 1, Type 2, or Type 3 Coordination
Determine the required SPD type based on installation location and LPZ zoning. This may include Type 1, Type 2, Type 3, or combined solutions such as Type 1+2 or Type 2+3, depending on the protection strategy.
3. Surge Protection Level (Up) and Equipment Coordination Check
Verify that the SPD’s voltage protection level (Up) is lower than the impulse withstand voltage (Uw) of the protected equipment. A safety margin should be maintained to ensure reliable protection under surge conditions.
4. Grounding System and Installation Compliance Check
Select the correct SPD configuration (number of poles and structure) based on the grounding system (TN, TT, or IT), and ensure proper wiring and grounding practices are followed.
5. Energy Coordination and Cascaded Protection Verification
Confirm that multi-stage SPDs are properly coordinated, ensuring effective energy distribution between protection levels and avoiding overload of downstream devices.
6. Final Safety and Maintenance Readiness Confirmation
Establish a maintenance plan, including periodic inspection and timely replacement of SPDs. Proper maintenance ensures continuous protection and prevents unexpected system failures due to degraded devices.
LSP Surge Protection Devices for Reliable System Protection
LSP is a professional manufacturer of surge protection devices, committed to delivering reliable electrical protection solutions across a wide range of applications.
With nearly 20 years of manufacturing experience, LSP products are designed and tested in accordance with IEC 61643 standards. The portfolio covers residential, commercial, industrial, and renewable energy systems, ensuring consistent protection performance in diverse environments.
To enhance real-world application performance, the LSP engineering team has continuously optimized product design, including improved touch-safe construction, anti-misoperation features for pluggable modules, advanced disconnection mechanisms, and the use of high-quality components and materials.
Type 1+2 Surge Protection Devices for Industrial and Utility Applications
LSP Type 1+2 surge protection devices are widely used in industrial installations and high-end building applications where both lightning current discharge and surge voltage limitation are required in a single device.
These devices are capable of handling lightning impulse currents (Iimp) in the range of 12.5 kA to 50 kA (10/350 µs), while maintaining a voltage protection level (Up) typically below 2 kV. This combination enables effective first-stage protection for downstream electrical equipment.
They are particularly suitable for buildings equipped with external lightning protection systems, as well as installations in exposed environments such as telecom base stations, pumping stations, and photovoltaic inverter systems.
In sensitive applications such as data centers, Type 1+2 SPDs provide a robust primary protection layer, supporting coordinated downstream protection.
High Performance Surge Protection Devices for 1500V DC Photovoltaic Systems
In addition to AC applications, LSP provides high-performance surge protection devices – TYPE 1+2 PV SPD series – specifically designed for photovoltaic systems, covering voltage ranges from 600 V to 1500 V DC.
These DC SPDs are engineered to meet the unique requirements of PV installations, including high system voltages, long cable runs, and exposure to lightning-induced surges. With optimized internal design and appropriate Ucpv ratings, they ensure reliable protection for combiner boxes and inverter inputs in modern solar power systems.
FAQ: About Surge Protection Devices Selection Guide
What is a Surge Protection Device and how does it work?
A surge protection device (SPD) is designed to limit transient overvoltages and divert surge currents safely to earth. Under normal operating conditions, the SPD remains in a high-impedance state. When a surge occurs—such as from lightning or switching operations—it responds within nanoseconds, becoming conductive and redirecting the surge energy away from downstream equipment.
How do I choose the correct Surge Protection Devices for my system?
Selecting the correct SPD requires evaluating several key factors, including system type (AC, DC, or PV), operating voltage range, installation location, and grounding configuration. Following a structured spd selection guide helps ensure proper coordination and reliable protection performance.
What is the difference between Type 1, Type 2, and Type 3 devices?
The main difference between Type 1, Type 2, and Type 3 SPDs lies in their surge handling capability and installation location. Type 1 devices are designed to discharge high-energy lightning currents, Type 2 devices limit residual surges within distribution systems, and Type 3 devices provide fine protection for sensitive equipment at the terminal level.
Do Surge Protection Devices Need Replacement After a Single Lightning Strike?
After a lightning event, the SPD should be inspected immediately. If there are visible signs of damage or if the status indicator changes (e.g., from green to red), the device or module must be replaced. Regular inspection is essential to maintain continuous protection.
Can Surge Protection Devices Function Effectively Without an Earthing System?
No, surge protection devices cannot function effectively without a proper earthing system. Grounding provides the essential path for diverting surge energy. Without it, the SPD cannot safely discharge surge currents, significantly reducing protection effectiveness and increasing the risk of equipment damage.
