Introduction to Surge Protection Devices (SPDs): What They Are and Why They Matter
Surge protection devices (SPDs) play a critical role in safeguarding modern electrical systems from transient overvoltages. These sudden spikes—whether caused by lightning, grid disturbances, or internal switching – can lead to equipment failure, operational downtime, fires, or irreversible damage to sensitive electronics.
As today’s homes, businesses, and industrial facilities rely heavily on advanced electronic equipment, the need for surge protector types has never been greater. Different environments face different surge risks, which is why different types of surge protection devices exist. Understanding these distinctions helps ensure proper protection at every level of an electrical installation.
SPDs work by detecting dangerous voltage levels and safely diverting excess energy to the ground. By implementing the correct surge protection device type, users can protect wiring, electrical panels, and sensitive loads such as computers, medical equipment, automation systems, and communication devices.
In this guide, we provide surge protection types explained in detail—from Type 1 devices managing high-energy lightning currents to Type 2 SPDs protecting distribution systems to Type 3 SPDs guarding sensitive electronics. By understanding different types of surge protectors, you can build a coordinated, multi-level surge protection system that ensures safety, equipment longevity, and uninterrupted performance.
Businesses and electrical professionals can significantly reduce risk and long-term maintenance costs by selecting the appropriate surge protective device types for each installation point. A properly coordinated SPD strategy is not just a safety measure—it is a long-term investment in reliability and operational continuity.
Understanding Surge Sources and Hazards: Why You Need Surge Protection Devices
To effectively combat power surges, it is essential to understand their nature. A power surge, or transient voltage, is a brief but intense spike that far exceeds a system’s normal operating voltage. Though lasting only microseconds, such events can be highly destructive. Unlike voltage sags or prolonged overvoltages, surges are short-lived and unpredictable.
Voltage surges can originate from both external and internal power sources, potentially reaching thousands of volts. Such spikes can severely damage electrical systems, making surge protective device types critical for protection.
Sources of Voltage Surges
- External Surges: Lightning StrikesThunderstorms or indirect electromagnetic energy traveling through power lines can destroy connected devices. Even distant strikes can cause significant damage.
- Internal Surges: Equipment SwitchingEveryday operations such as motor starts, HVAC systems, and switching power supplies generate transient spikes. Over time, these internal surges degrade wiring, MOVs, and sensitive electronics.
- Power Grid Disturbances and Faulty SystemsTransformer switching, grid faults, or abnormal voltage flows can produce sudden voltage spikes, posing immediate danger to all connected loads.
Consequences of Voltage Surges
Voltage surges can overheat circuits, damage semiconductors, trip protective devices, and corrupt essential data. Repeated exposure accelerates equipment aging, increases maintenance costs, and can even trigger electrical fires. For businesses and industrial facilities, downtime caused by surges can result in significant financial loss.
Why Surge Protection Devices (SPDs) Are Important
The fundamental solution to the threat of power surges lies in the deployment of Surge Protective Devices (SPDs). These devices are engineered to divert excess voltage away from sensitive equipment by channeling it safely to ground, thereby allowing only the normal operating voltage to reach connected loads.
SPDs provide essential protection by:
- Reducing and redirecting excess voltage from sensitive equipment.
- Preventing costly repairs and loss of data.
- Minimizing electrical fires and enhancing safety.
Without proper surge protection, homes, businesses, and critical infrastructure remain vulnerable to costly or catastrophic failures. Choosing the correct surge protection device type ensures comprehensive protection at every stage of your electrical installation.
Next, we detail the different types of surge protection devices, explaining their functions, waveform classifications, and typical installation locations.
Types of Surge Protection Devices
There are different types of SPD according to IEC/EN 61643-11, classified as follows:
- Type 1 / Class I / Class B
- Type 1+2 / Class I+II / Class B+C
- Type 2 / Class II / Class C
- Type 2+3 / Class II+III / Class C+D
- Type 3 / Class III / Class D
Surge Protection Device standard definition
| － | Direct lightning stroke | Indirect lightning stroke | Indirect lightning stroke |
| IEC 61643-1:2005 | Class I test | Class II test | Class III test |
| IEC 61643-11:2011 | Type 1; T1 | Type 2; T2 | Type 3; T3 |
| EN 61643-11:2012 + A11:2018 | Type 1; T1 | Type 2; T2 | Type 3; T3 |
| VDE 0675-6-11 | Class B | Class C | Class D |
| Type of test wave | 10/350 μs | 8/20 μs | 1.2/50 μs |
- Note 1: There exists Type 1+2 Surge Protective Device (or T1+T2 SPD) combining protection of loads against direct and indirect lightning strokes.
- Note 2: Some T2 Surge Protection Device SPD can also be declared as T3.
Type 1 SPD
Type 1 Surge Protective Deviceis intended for installation between the secondary of the service transformer and the line side of the service equipment overcurrent device, as well as the load side, including watt-hour meter socket enclosures, and is intended to be installed without an external overcurrent protective device.
Type 1 devices are dual-rated for Type 2 applications as well, providing the highest ratings available for installation at the service entrance. Type 1SPD can discharge lightning current with waveform 10/350 μs. It will be installed in the primary distribution board at the origin of the electrical installation.
A Type 1 SPD alone does not provide the required protection level and must be used in conjunction with coordinated Type 2 devices. An installation with a lightning protection system will require a Type 1 SPD.
Type 1 surge protection device is developed as the best solution available to protect service entrance at an industrial site, especially those with existing lightning protection systems or meshed cage applications.
Type 1 surge protection device is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg, buildings equipped with lightning rods).
Type 1 SPD is characterized by a 10/350 µs lightning current waveform and installed at the load center’s main circuit breaker, e.g., main distribution board.
Type 1+2 SPD
Type 1+2 surge protection device can protect all electrical installations against lightning strikes by discharging the current created from a lightning surge and keeping it from spreading to the equipment.
Type 1+2 SPD is characterized by a 10/350 µs and 8/20 µs lightning current waveform.
Type 1+2 surge protection device installed at the origin of the AC installation equipped with LPS.
Type 1+2 surge protection devices use Metal Oxide Varistor (MOV) and/or Gas Discharge Tube (GDT) circuits to protect electrical devices from spikes in alternating current power.
Type 1+2 SPD is designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, and for TN-C, TN-S, TN-C-S TT, and IT power supply systems.
Type 2 SPD
Type 2 Surge Protective Devices are intended for installation on the load side of the service equipment overcurrent device, including SPDs located at the branch panel.
Type 2 SPD can discharge 8/20 μs current wave, they can prevent the damage of transient overvoltage in the electrical installations and protects equipment connected to it.
It usually employs metal oxide varistor (MOV) technology. The device would normally be installed in sub-distribution boards and in the primary distribution board if there was no requirement for a type 1 device.
Type 2 surge protection deviceis characterized by an 8/20 µs lightning current waveform.
Type 2 SPD is designed to be installed at the service entrance of low voltage systems or close to sensitive equipment to protect against transient overvoltages.
Type 2 surge protection device is for nominal working voltage (50/60Hz) U(n) = 120V 230V 400V ac applications and for maximum continuous operating voltage (50/60Hz) U(c) = 150V 275V 320V 385V 440V ac applications.
Type 2 SPD is generally installed in sub-distribution or machine control cabinets, for indoor use or fixed into a waterproof box for outdoor use.

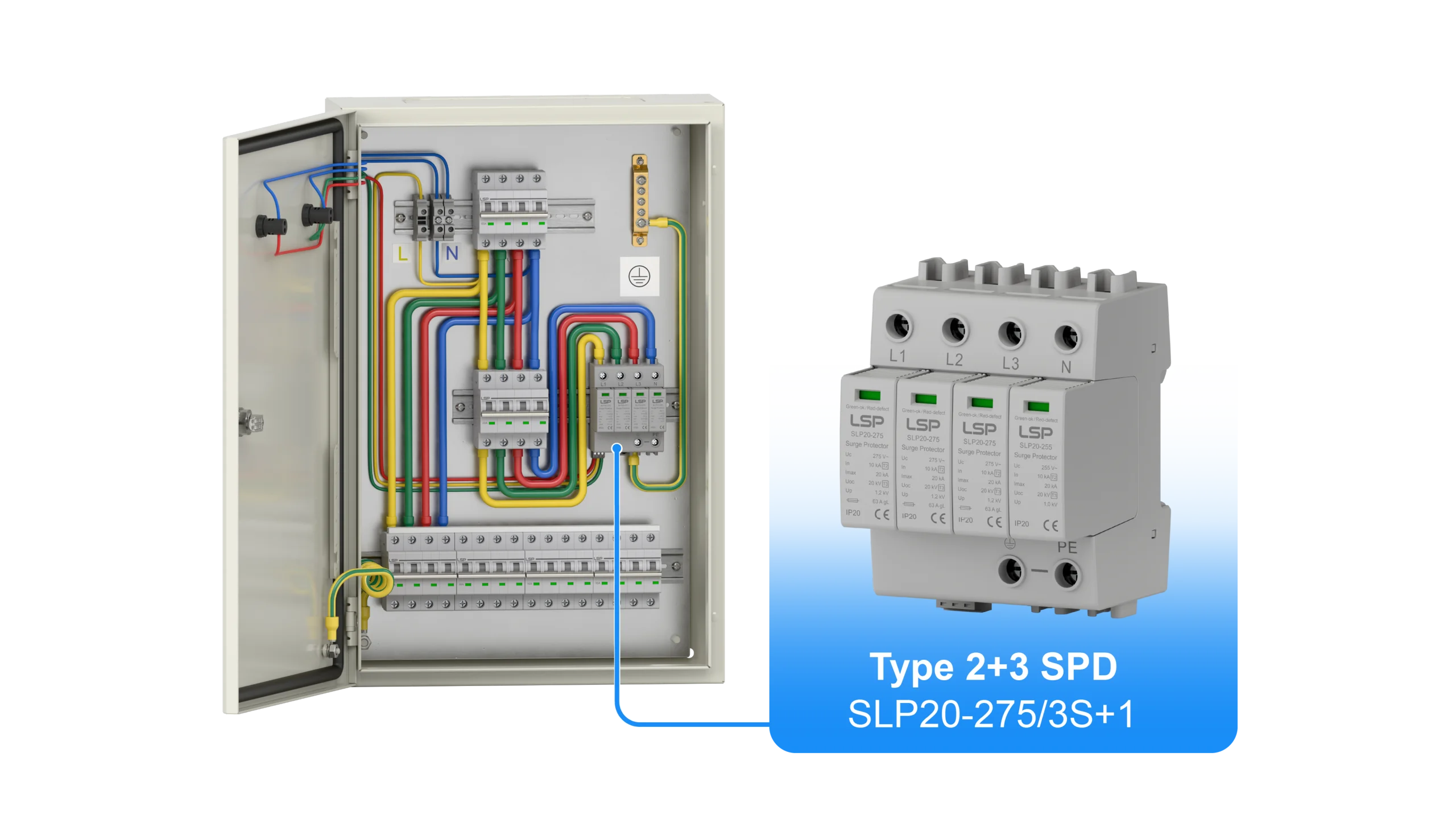

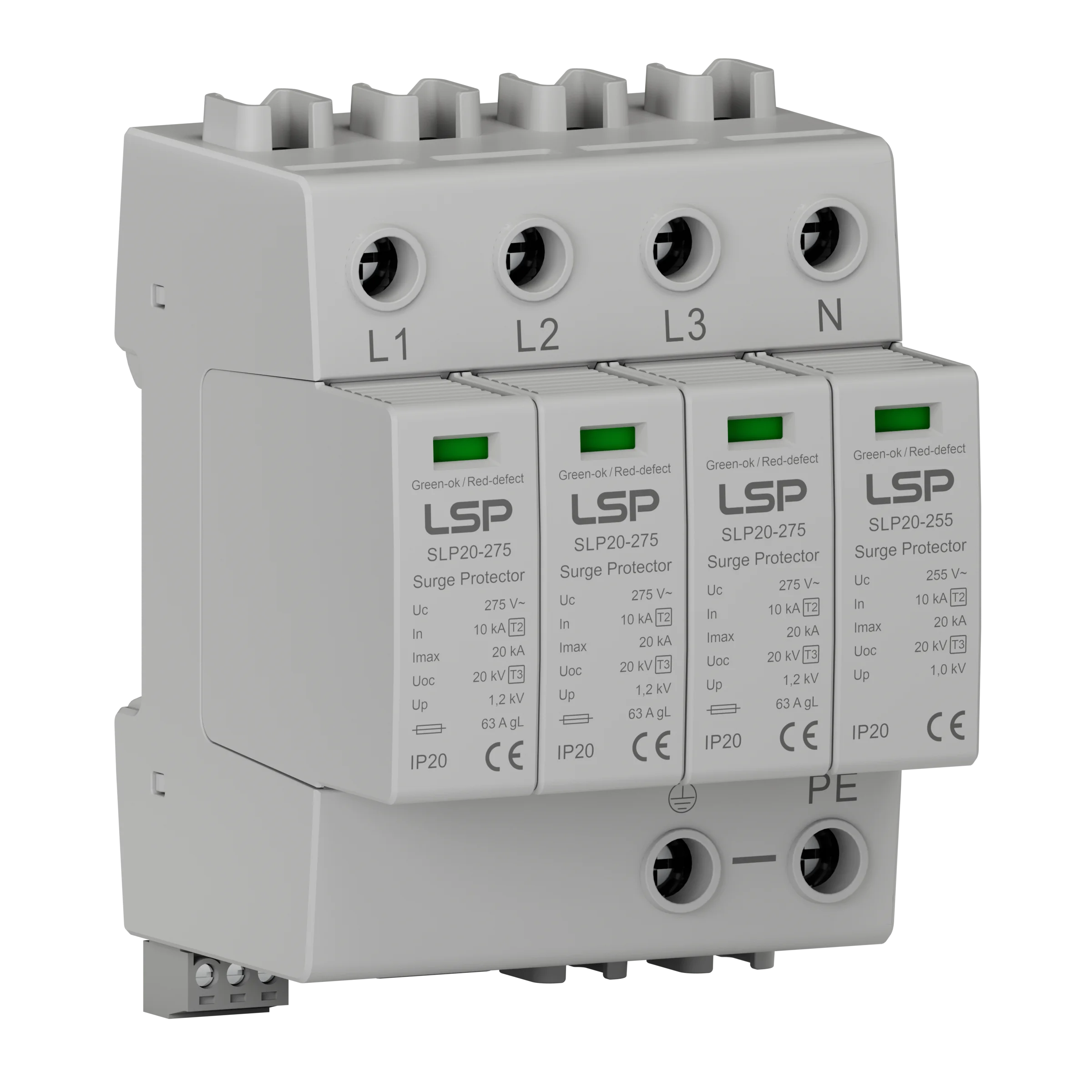

Type 2+3 SPD
Type 2+3 surge protection devices are normally installed right before the protected equipment.
Type 2+3 SPD is characterized by current waves (8/20 μs) and a combination of voltage waves (1.2/50 μs).
The technical parameters are usually nominal discharge current (8/20 μs) I(n) and open-circuit voltage (1.2/50 μs) U(oc)

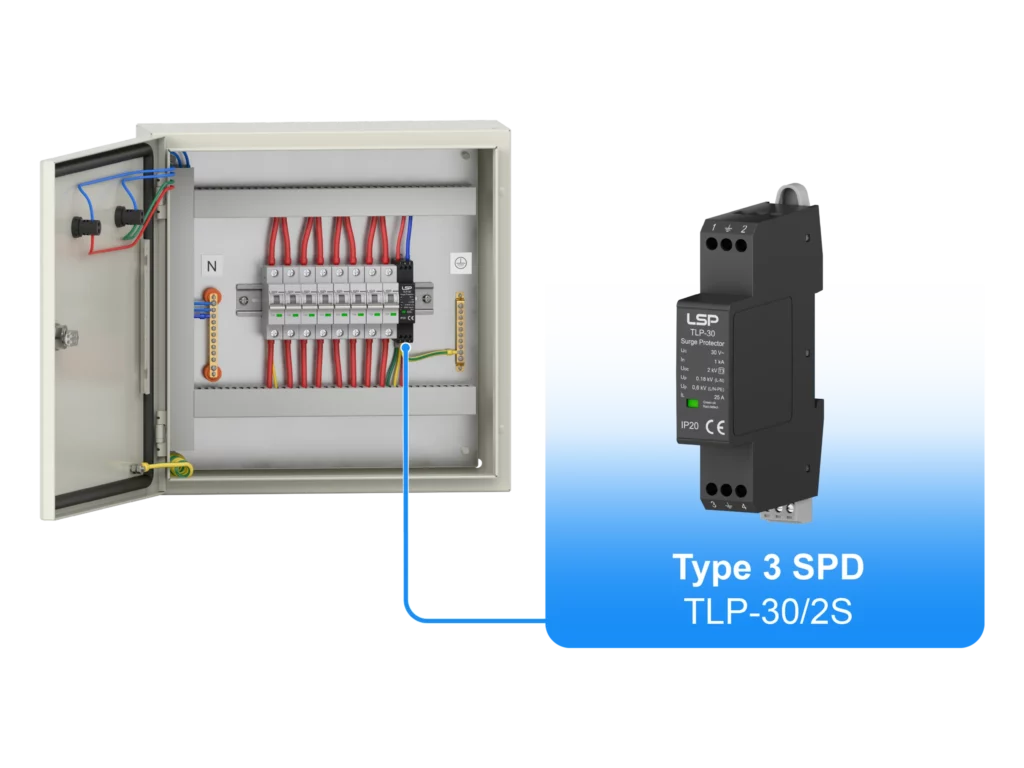

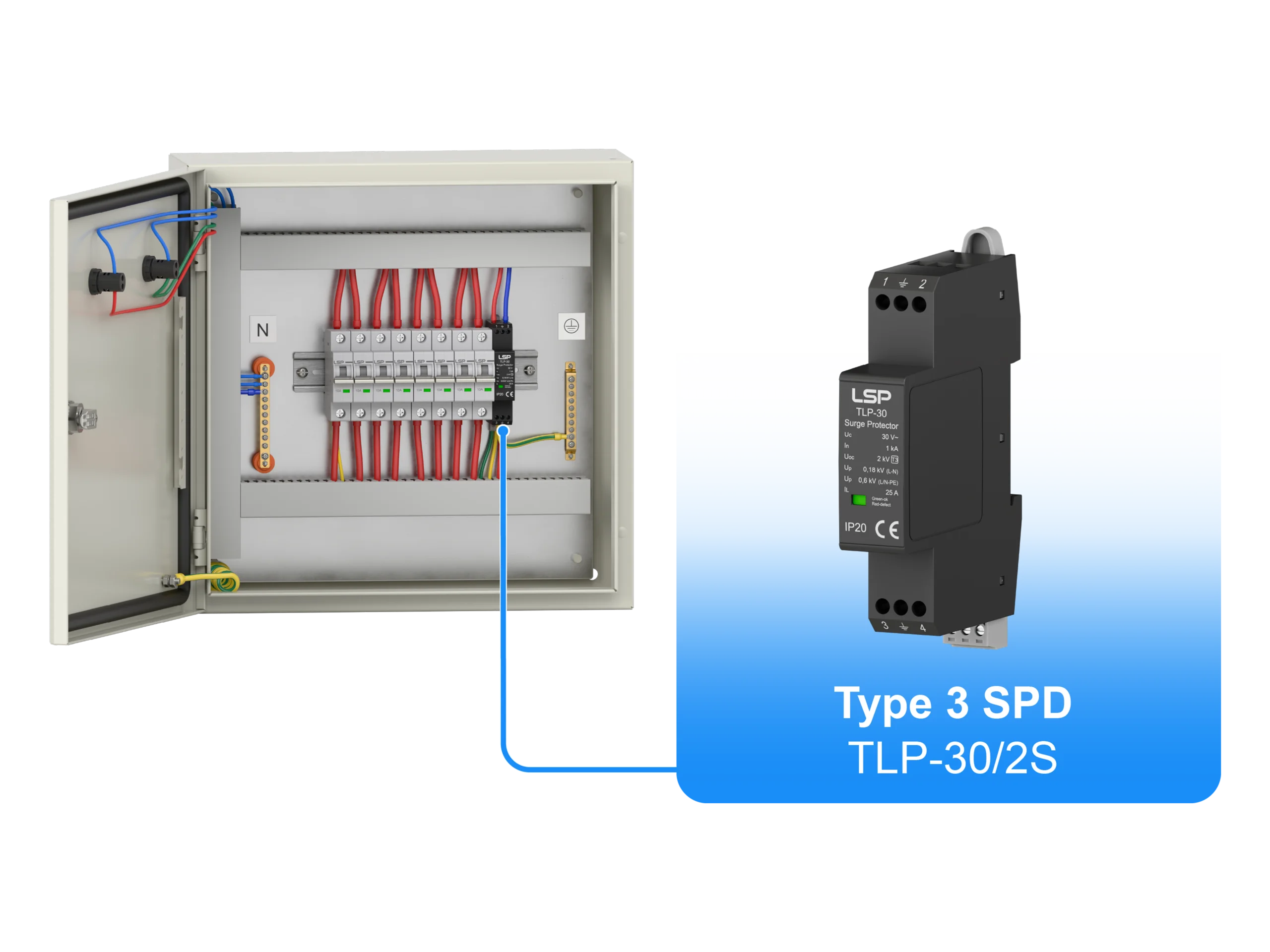

Type 3 SPD
These SPDs have a low discharge capacity. They must therefore only be installed as a supplement to Type 2 SPD and in the vicinity of sensitive loads.
Type 3 SPD is characterized by a combination of voltage waves (1.2/50 μs) and current waves (8/20 μs) and load current I(L.)
Type 3 surge protection devices are normally installed right before the protected equipment.
Type 3 SPD is generally installed near the protected load, to protect sensitive equipment for 24V 48V 60V 120V 230V, in coordination with Type 2 surge arrester installation head.
Arresters tested and found AC Type 3 surge protection devices are intended to be installed near sensitive equipment, in coordination with Type 2 surge arrester installation head.
Compared to Types 1 and 2, Type 3 surge protection devices (SPDs) have the lowest discharge capacity but provide the most sensitive protection in joules. They are particularly effective at preventing damage to delicate electronics—including computers, televisions, audio-visual equipment, and medical devices—that have low tolerance to even minor voltage fluctuations. However, Type 3 SPDs alone do not offer high-amplitude surge protection or the ability to withstand very high-energy surges.
In a coordinated multi-stage surge protection system, different types of surge protection devices work together, with Type 1 and Type 2 SPDs handling high-energy surges and Type 3 SPDs providing localized protection for sensitive equipment. Without adequate upstream protection, relying solely on Type 3 SPDs increases the risk of damage from large surges beyond their protective capacity. Therefore, surge protective device types must be strategically combined, and Type 3 SPDs should always be integrated as part of a broader surge protection device type strategy rather than used independently as the first line of defense.
SPD Type 1 vs Type 2 vs Type 3
What is the difference between type 1, type 2, and type 3 surge protection devices?
The table below provides a more thorough comparison of the characteristics of SPD type 1, type 2, andtype 3:
| Surge Protection Device Types | Category | Waveform | Maximum Discharge Current (Imax) | Voltage Protection Level (Up) Rating | Location of Installation | Application & Coverage |
| Type 1 | Primary | 10/350μs | 50 kA | ≤ 2.5 kV | Main service entrance or source of power supply | For large facilities and high-threat locations |
| Type 2 | Secondary | 8/20μs | 40 kA | ≤ 1.5 kV | Sub-distribution panel or electrical panel | For facilities of medium size |
| Type 3 | Point-of-use | Combination of voltage waves (1.2/50 μs) & current waves (8/20 μs) | 10 kA | ≤ 1.0 kV | Outlets or near the specific terminal equipment | For certain devices and circuits |
Summary:
SPD Type 1 provides primary protection against high-level surges caused by direct lightning strikes. It is often put on the main distribution board to safeguard a building’s whole electrical system.
SPD Type 2 provides secondary-level protection, the majority of common surges generated by electrical switching or nearby lightning strikes could be effectively protected, which are installed at the sub-distribution panel or electrical panel.
SPD Type 3 is designed specifically aimed at protecting specific terminal equipment, they should be installed close to sensitive loads as a supplement to Type 2 SPDs.
Overall, the selection of the appropriate SPD type will depend on several factors including the location of installation, maximum discharge current, voltage protection level, and application.
It’s important to note that the actual applications of each type can change based on the particular requirements of a given facility or piece of equipment that has to be protected.
A single type of surge protective device (SPD) is typically used in combination with the other two surge protective device types, ensuring comprehensive protection across all electrical installation conditions and proper interaction between devices.
SPD Terminology
Iimp – Impulse current of Type 1 SPDs with 10/350 μs waveform.
In – Norminal discharge current of Type 2 SPDs with 8/20 μs waveform.
Imax – Maximum discharge current of Type 2 SPDs with 8/20 μs waveform.
Uoc – Open-circuit voltage of Type 3 SPDs with a combination of voltage waves (1.2/50 μs).
Up – The residual voltage that is measured across the terminal of the SPD when In is applied.
Uc – The maximum voltage which may be continuously applied to the SPD without damage the SPD.
Short-Circuit Current Rating (SCCR) – The maximum fault current the SPD can safely withstand without failing. Crucial for all surge protection device types to ensure safety under fault conditions.
Response Time – Time taken for the SPD to start conducting and divert surge current after the voltage exceeds the threshold. Faster response improves surge mitigation for all surge protector types.
Type of Protection – Defines whether the SPD protects all modes (line-to-ground, line-to-neutral, neutral-to-ground) or specific modes. Selection depends on system configuration and the sensitivity of connected equipment.
Key Parameters to Differentiate Surge Protection Device Types: A Technical Deep Dive
While the installation site provides a general idea of different types of SPD, several important technical parameters further differentiate surge protection device types. Understanding these key specifications is essential for selecting the right type of surge protection device for a specific application.
| Parameter | Description | Relevance to SPD Types |
| Maximum Continuous Operating Voltage (Uc) | The highest voltage the SPD can continuously withstand without triggering. Must exceed the system’s nominal voltage to prevent nuisance tripping or premature failure. | Relevant for all SPD types to ensure compatibility. |
| Voltage Protection Level (Up) | The maximum voltage allowed to pass to protected equipment during a surge. Lower values provide better protection. | Critical for all types, especially for sensitive electronics. |
| Maximum Discharge Current (Imax) | The peak current the SPD can safely discharge once without failure. | Mainly Type 2 and Type 3 SPDs. |
| Impulse Current (Iimp) | The peak current of a 10/350 µs waveform the SPD can discharge repeatedly. | Essential for Type 1 SPDs handling high-energy lightning surges. |
| Nominal Discharge Current (In) | The peak current of an 8/20 µs waveform the SPD can discharge repeatedly. | Important for Type 2 SPDs, reflecting their ability to handle repetitive surges. |
| Open-Circuit Voltage (Uoc) | The voltage of the SPD measured under no-load conditions, usually for Type 3 SPDs with 1.2/50 μs combination voltage waves. | Relevant for Type 3 SPDs to ensure proper protection of connected equipment. |
| Short-Circuit Current Rating (SCCR) | The maximum fault current the SPD can withstand safely. | Crucial for all surge protector types to ensure safety under fault conditions. |
| Response Time | Time taken to start conducting and diverting surge current after voltage exceeds threshold. | Faster response improves surge mitigation for all SPD types. |
| Type of Protection | Defines whether the SPD protects all modes (line-to-ground, line-to-neutral, neutral-to-ground) or specific modes. | Selection depends on system configuration and equipment sensitivity. |
Fulfilling these technical parameters is key to selecting the correct SPD type and rating for your installation. Consultation with qualified electrical specialists is strongly recommended to ensure the chosen surge protection device meets the system’s safety and performance requirements.
Additional Factors to Consider When Comparing Surge Protection Device Types
When comparing different surge protection device types, electrical parameters alone do not provide a complete picture. The performance, durability, and suitability of various types of surge protection devices are also influenced by internal protection technology, functional safety features, and compliance with applicable standards.
Protection Technologies Used in Different Types of SPDs
One of the main distinctions between SPD types lies in the protection technology used inside the device. Common technologies include metal oxide varistors (MOVs), silicon avalanche diodes (SADs), and gas discharge tubes (GDTs), each offering different response characteristics.
MOV-based designs are widely used across many surge protector types due to their high surge current capacity and cost-effectiveness. However, MOVs experience gradual performance degradation after repeated surge events. SAD technology provides extremely fast response and accurate voltage clamping, making it suitable for protecting highly sensitive electronic loads, although its surge current capability is typically lower. GDTs are capable of handling very high-energy surges, but their response speed is slower and follow current effects may occur.
To achieve balanced performance, many modern surge protective device types adopt hybrid designs that combine multiple technologies. In such designs, GDTs handle the majority of high-energy surges, while MOVs or SADs provide fast voltage limitation. This approach improves coordination and extends the operational life of the SPD.
Functional Features That Differentiate Surge Protector Types
Status indicators allow users to quickly verify whether the SPD remains operational. Remote signaling enables condition monitoring through building management systems, while thermal disconnection ensures that the SPD is safely isolated from the circuit in the event of overheating or internal failure. These features significantly enhance system safety and simplify maintenance.
Standards and Certifications for Surge Protection Device Types
Compliance with recognized standards is essential for all types of surge protection devices used in professional installations. The IEC 61643 series defines classification, testing, and application requirements for SPDs, with IEC 61643-11 governing low-voltage surge protective devices.
Certification from accredited testing bodies such as UL or CE provides additional assurance of performance and safety. These certifications confirm that the SPD has been tested under standardized surge conditions and meets defined criteria for long-term reliability.
Selecting the Right Surge Protection Device Type: An Application-Based Guide
Choosing the correct type of surge protection device is critical for effective protection. Mismatched Surge protection devices (SPDs) may lead to equipment failure or insufficient protection. Below is a practical guide for selecting SPD types based on application:
| Application | Type 1 SPD (Service Entrance) | Type 2 SPD (Distribution Panel) | Type 3 SPD (Point-of-Use) |
| Residential | Lightning-prone areas, installed at main service entrance | At main and sub-panels for circuits and appliances | Power strips for electronics (computers, TVs, consoles) |
| Commercial | Protect entire facility from external surges | In distribution boards and panels for lighting, HVAC, outlets | For POS systems, office computers, communication equipment |
| Industrial | Handle high-energy surges from grid/storms at service entrance | In MCCs and panels for sensitive equipment (PLCs, CNCs, robotics) | At control panels for delicate electronics |
| IT & Telecom | — | Server rooms for sensitive data storage and network equipment | Workstations for individual devices |
| Medical Equipment | — | High-reliability SPDs for essential devices | Localized SPDs for critical electronics |
| Renewable Energy (Solar, Wind) | Lightning-prone areas, specialized SPD for grid connection | SPD for both AC and DC sides | — |
| Environmental & Code Factors | Recommended in high-lightning regions | Ensure compliance with local codes | Compliance for sensitive equipment |
Consulting qualified engineers or electrical specialists ensures the correct surge protection device types are selected based on equipment sensitivity and the specific sources of voltage surges. Using different types of surge protectors strategically in a coordinated, multi-layer system maximizes the lifespan of your electrical systems and provides comprehensive, reliable protection.
For a deeper understanding of types of surge protection devices and how they safeguard electrical systems, explore our complete guide on what SPD is in electrical applications, covering installation best practices, waveform ratings, and device coordination for optimal performance.
Installation Best Practices and Professional Support for Surge Protection Devices
*This video demonstrates the wiring diagram, connection, and installation of an AC Type 1+2 Surge Protective Device (SPD).
The effectiveness of a surge protective device depends not only on its technical specifications, but equally on correct installation. Even a high-quality SPD will fail to perform as intended if installation best practices are not followed. Improper installation can significantly reduce surge diversion capability and leave electrical systems exposed.
Minimize Lead Lengths
Keeping connections leads as short and straight as possible is one of the most critical installation principles. Conductors connecting the SPD to the power system and grounding point should be routed with minimal length and without sharp bends.
Excessive lead length increases inductive impedance, which slows surge current diversion and raises the let-through voltage seen by protected equipment. Short, direct connections allow the SPD to respond rapidly and effectively redirect surge energy to ground.
Ensure Proper Grounding
Effective grounding is fundamental to SPD performance. The SPD must be connected to a low-impedance grounding system that complies with applicable electrical codes. If the grounding path is inadequate, surge energy cannot be safely dissipated, significantly reducing protection effectiveness.
A properly designed grounding electrode system ensures that diverted surge current is safely conducted away from sensitive equipment.
Correct Coordination and Placement
In systems using layered surge protection, devices must be properly coordinated based on their voltage protection levels (Up). Upstream devices should have higher protection levels than downstream devices, allowing higher-energy surges to be absorbed first, while downstream protection limits residual overvoltage.
SPDs should be installed in locations recommended by the manufacturer and in accordance with relevant standards and electrical codes to ensure effective coordination across the system.
Use Dedicated Circuit Connections Where Applicable
Whenever possible, especially for service-entrance and distribution-level protection, SPDs should be connected through dedicated circuit breakers or disconnect devices. This allows proper isolation, prevents unintended interactions with other loads, and simplifies maintenance or replacement.
Consider Environmental Conditions
SPDs must be installed within their specified environmental limits. Excessive moisture, dust, vibration, or extreme temperatures can shorten service life or impair operation. Outdoor or harsh environments require appropriately rated enclosures to maintain long-term reliability.
Perform Regular Inspection and Maintenance
Periodic inspection is essential. Check visual indicators such as LEDs or mechanical status flags to confirm operational status. Any signs of physical damage, discoloration, overheating, or indicator changes should be addressed immediately. A failed SPD must be replaced promptly to restore protection.
When to Call a Professional
While plug-in, point-of-use protection may be suitable for end users, installation of SPDs connected to distribution panels or service entrances should always be performed by a qualified and licensed electrician.
These installations involve high fault currents and direct interaction with the electrical distribution system. Improper wiring or grounding can create serious safety hazards, including electric shock and fire risk. A professional installer ensures correct conductor routing, proper grounding, compliance with electrical codes, and optimal device placement.
For complex commercial or industrial facilities, consultation with an electrical engineer experienced in power quality and surge protection is strongly recommended. Professional system design helps ensure correct coordination, minimizes installation errors, and delivers reliable long-term protection.
Final Consideration
Correct installation is as important as SPD selection. Poor grounding, excessive lead length, or improper coordination can severely limit performance – even for high-rated devices. Routine inspection and adherence to environmental guidelines further support reliable operation.
Engaging a qualified professional provides safety, compliance, and confidence – transforming a well-designed SPD into a dependable line of defense for critical electrical systems.
