Introduction: Why Solar PV Systems Need Surge Protection Devices (SPD)
Solar PV systems are a significant long-term investment. However, without a properly installed Surge Protection Device for solar, even minor voltage spikes can damage critical components such as inverters, monitoring systems, and control electronics. Lightning strikes and switching events are common sources of transient overvoltages, which can severely affect system reliability and lifespan.

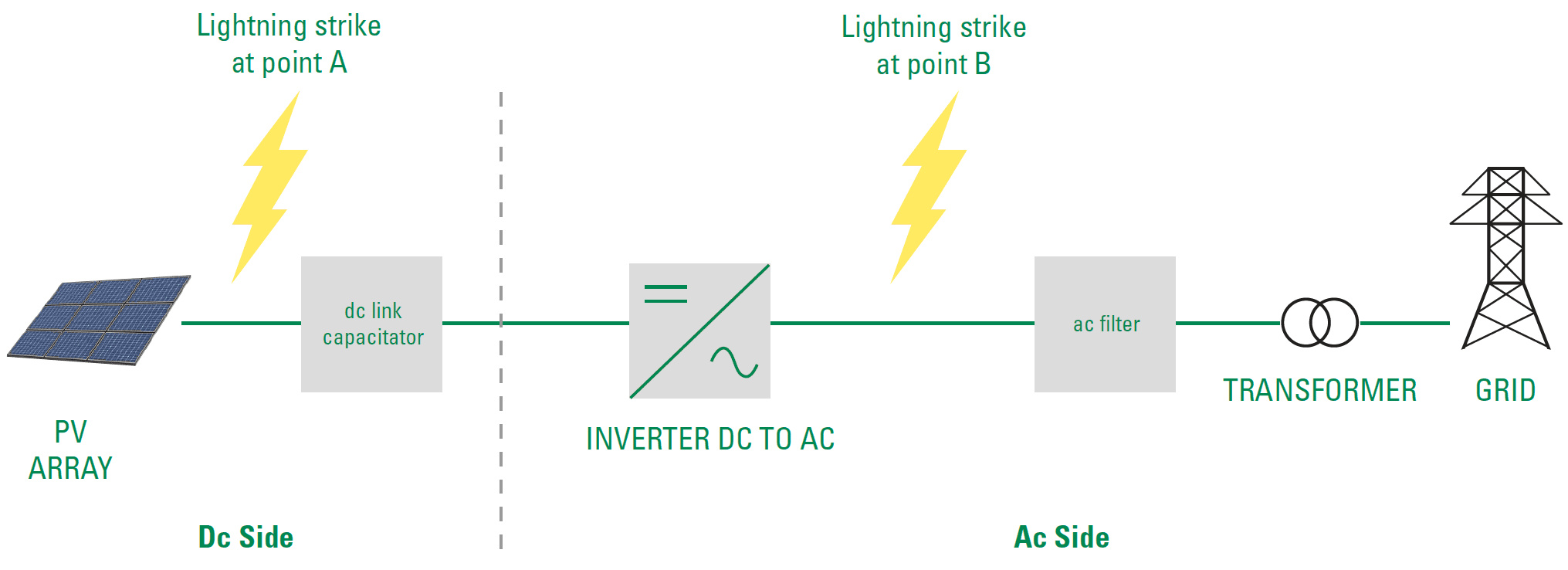

Because solar panels are installed outdoors, they are exposed to harsh environmental conditions. Lightning can impact PV systems in two main ways:
- Direct strikes, which may physically damage modules, inverters, or rooftop equipment
- Induced transient overvoltages, traveling through DC and AC cabling and harming sensitive electronics
In areas with frequent lightning, unprotected PV systems may experience repeated failures, resulting in higher maintenance costs, downtime, and lost energy production.
A properly designed surge protection device for solar limits transient overvoltages and safely diverts surge currents to earth, keeping voltages within safe limits. Installing an SPD is therefore essential for the long-term reliability, safety, and performance of any solar PV system.
What Is a Surge Protection Device (SPD) for Solar PV Systems?
A surge protection device for solar is a critical component designed to protect sensitive electronics in a solar PV system from transient overvoltages caused by lightning or switching events. SPDs limit voltage spikes and safely divert surge currents to earth, helping to prevent damage to costly equipment such as inverters, controllers, and monitoring devices.
In a solar PV system, both DC and AC circuits are vulnerable. Inverters, which convert DC power from solar panels to AC for the grid, are particularly sensitive and expensive. When lightning strikes or a surge occurs along the DC or AC lines, these devices are at high risk of damage.
The number and placement of surge protection devices for solar depend on the system layout and cable lengths:
- For DC cabling under 10 meters, typically one SPD should be installed near the inverter, combiner boxes, or close to the solar panels
- For DC cabling over 10 meters, additional SPDs are recommended at both ends of the cables
- AC lines also require appropriate SPDs to ensure complete protection
Correctly choosing and installing SPDs ensures both DC and AC sides are safeguarded, reducing downtime, repair costs, and potential system failures.
Types of Surge Protection Devices for Solar PV Systems (DC & AC)
Solar PV systems require different surge protection devices for solar depending on the location and type of electrical circuits. Choosing the right SPD ensures that both DC and AC sides are effectively protected against transient overvoltages.
Type 1+2 vs Type 2 for Solar Applications
Type 1+2 combined SPDs are designed to handle both lightning strikes and switching surges, providing all-in-one protection. Type 2 SPDs are primarily used to protect against switching surges and induced transients, making them suitable for downstream DC or AC circuits where lightning energy has already been partially mitigated.
| SPD Type | Iimp (10/350μs) | In (8/20μs) | Application |
| Type 2 | – | 20kA | Residential/commercial PV |
| Type 1+2 | 6.25kA | 20kA | High-risk areas, utility-scale plants |
DC Surge Protection Devices vs AC Surge Protection Devices
DC SPDs protect PV strings and inverter DC inputs (150–1500VDC), while AC SPDs safeguard inverter outputs and grid connections (230/400VAC). Typical installations:
- Residential (10kW): 2× DC Type 2 + 1× AC Type 2
- Commercial (100kW): 4× DC Type 1+2 + 2× AC Type 2
- Utility-scale: Type 1+2 throughout + remote monitoring
Proper selection and placement prevent oversizing or under-protection and reduce equipment damage.
How Surge Protection Devices Work in Solar PV Systems
A surge protection device for solar controls transient voltages and safely diverts surge currents to ground during overvoltage events. The key component in most SPDs is the Metal Oxide Varistor (MOV), which switches between high‑impedance (>1 MΩ) and low‑impedance (<10 Ω) states based on voltage levels. This fast transition limits voltage spikes and protects downstream components.
SPD Working Principle Based on MOV Technology
Under normal PV operating voltages (600–1500 VDC for many LSP DC SPDs), the MOV remains in high‑impedance mode with minimal leakage, ensuring negligible impact on system efficiency. When a surge occurs, the MOV conducts within nanoseconds, clamping voltage to safe levels and directing energy through a low‑resistance path to ground. After the transient event, the device resets to high impedance. Thermal protection and flame‑retardant housing further reduce fire risk and improve safety.
How SPDs Protect Sensitive PV Electronics
A properly installed surge protection device for solar protects inverters, DC/DC converters, combiner boxes, and monitoring systems from residual voltages and overcurrent stress. Multi‑stage protection is achieved when SPDs are coordinated with upstream devices such as fuses or breakers. Type 1+2 SPDs provide robust defense against both direct lightning and switching surges, while Type 2 SPDs excel at handling induced transients. Quick response times (>99 % energy diverted in nanoseconds) and status indicators support predictive maintenance and extend component lifespan.
Key Technical Specifications When Selecting a Solar SPD
When selecting a surge protection device for solar PV systems, understanding the key technical specifications ensures optimal protection and reliable system performance. The following parameters are essential for both DC and AC SPDs, and must be considered in relation to system voltage, expected surge currents, and applicable standards.
Key Parameters Table
| Parameter | Description | Notes |
| Maximum Continuous Operating Voltage (Ucpv) | Should match or slightly exceed PV system open-circuit voltage (Voc) | Undervalued Ucpv → premature SPD failure; Overvalued → reduced clamping efficiency |
| Nominal Discharge Current (In) | Repetitive surge current a Type 2 SPD can handle | Ensures long-term DC/AC circuit protection |
| Impulse Current (Iimp) | High-energy surge capacity of Type 1+2 SPD | Protects against direct lightning strikes |
| Standards Compliance | IEC/EN 61643-31 (DC), UL 1449 (AC) | Ensures tested safety, performance, and durability |
This table summarizes the key selection criteria, helping designers and installers choose the correct SPD for a given PV system. Correct understanding of these parameters reduces downtime, prevents equipment damage, and ensures long-term system reliability.

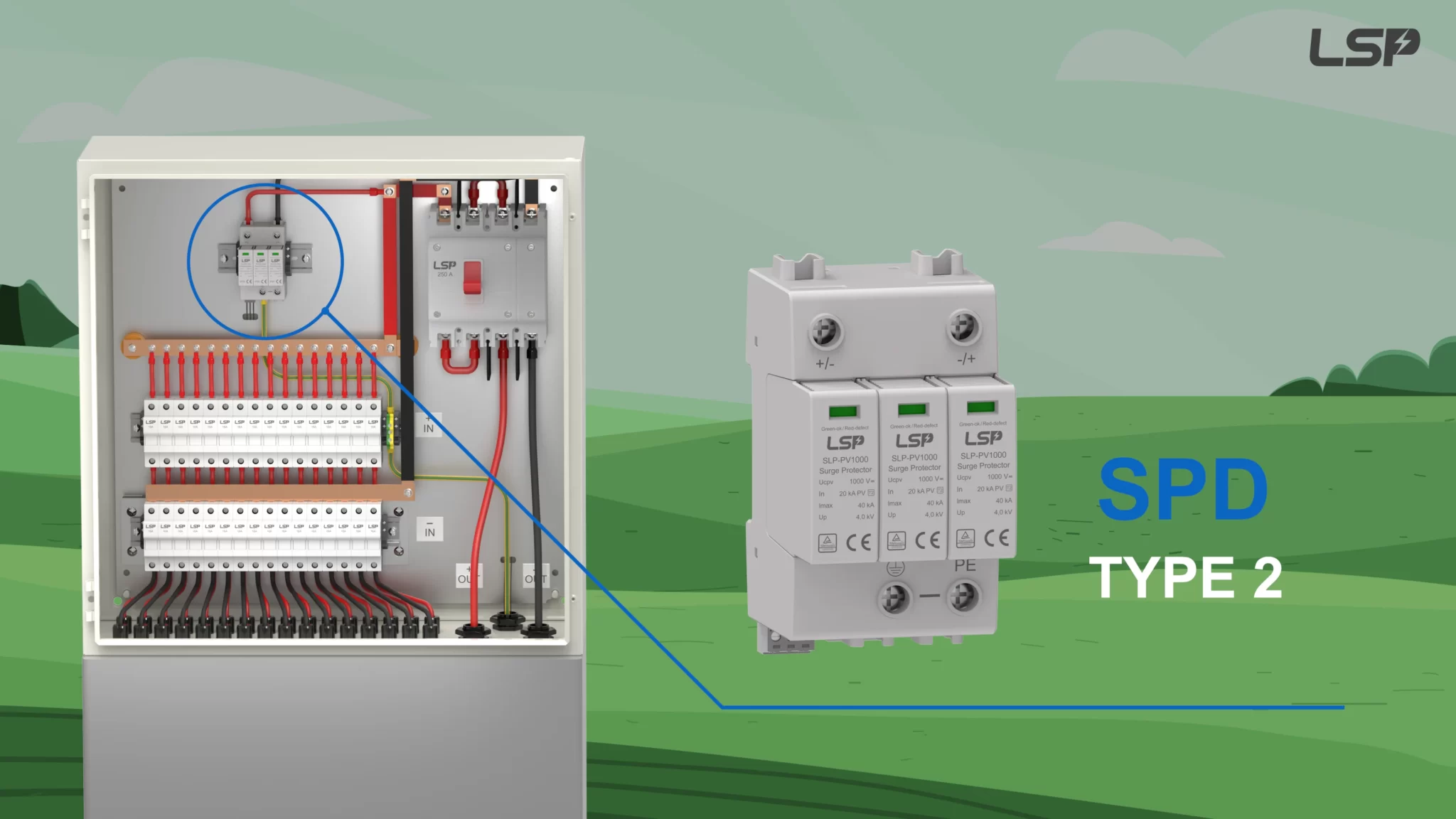

Where and How to Install SPD in Solar PV Systems
Correct installation of a surge protection device for solar is essential to protect critical DC and AC circuits and ensure the continuous operation of the PV system. SPDs must always be installed upstream of the equipment they protect. Their placement depends on three main parameters: maximum continuous operating voltage (Uc or Ucpv), voltage protection level (Up), and nominal discharge current (In). Following these guidelines ensures that transient overvoltages are safely diverted without affecting system performance.

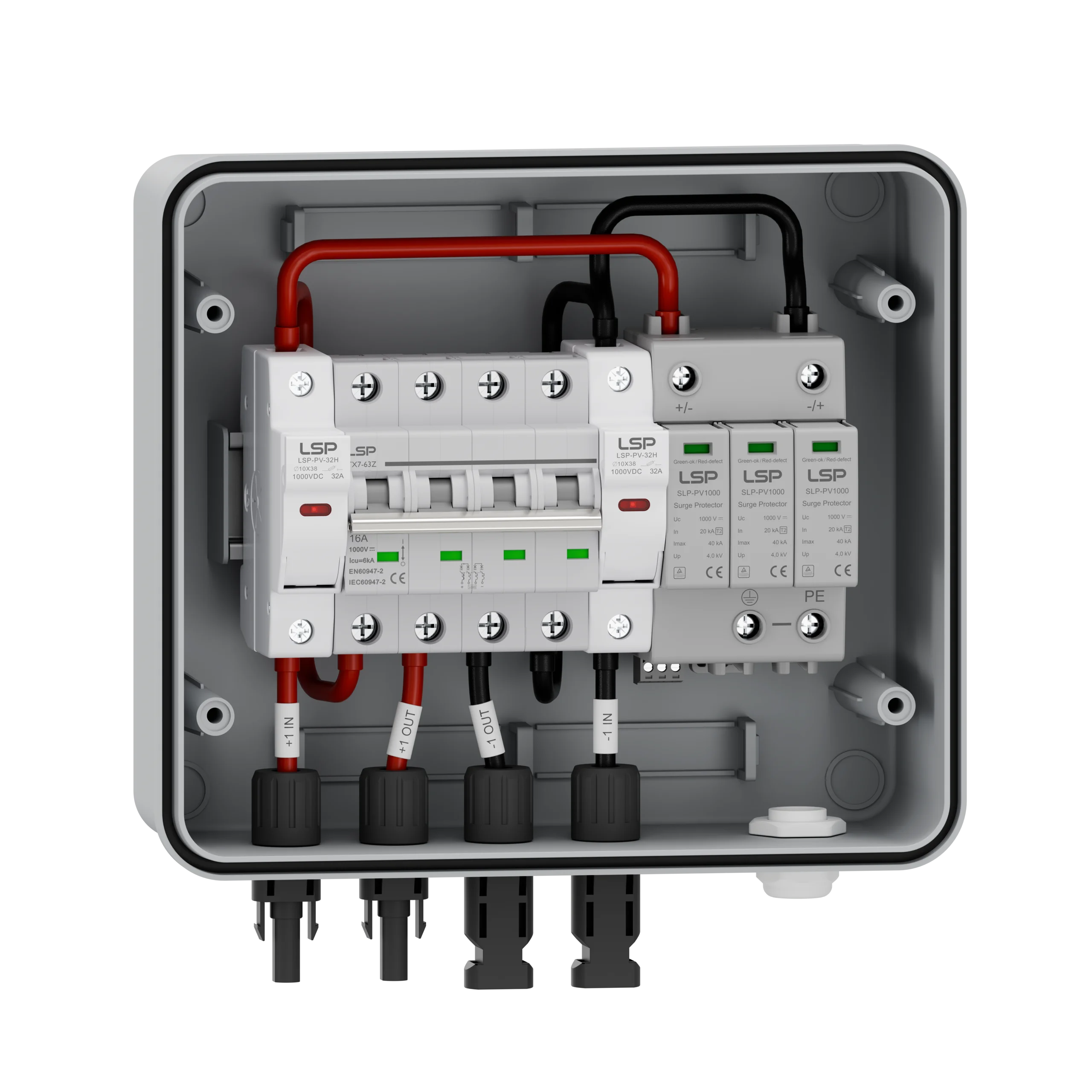

DC Side SPD Installation in Combiner Boxes & Inverter Inputs
DC SPDs should be installed at PV combiner boxes to protect each string and at inverter DC inputs to shield sensitive inverter electronics. The number of SPDs depends on cable length between panels and inverters:
- Cable ≤10 m: one SPD mounted at the inverter input is sufficient
- Cable >10 m: two SPDs are recommended — one near the panels and one at the inverter
For installations where the inverter is more than 30 m from the nearest combiner, additional DC SPDs are required according to NFPA 780 guidelines. Correct placement prevents voltage overshoot and protects downstream electronics.
AC Side SPD Installation at Inverter Output & Distribution Boards
AC SPDs should be installed immediately after the inverter and at distribution boards or grid connection points to protect against switching surges and grid transients. Type 2 SPDs are typically sufficient unless direct lightning exposure exists, in which case Type 1 may be required. Proper coordination between AC and DC SPDs ensures full system protection.
Influence of Cable Length on SPD Placement
Cable length significantly impacts SPD performance. Longer DC or AC cables increase voltage overshoot and the risk of induced surges. SPD selection and quantity should follow these rules:
| Location | PV modules and array boxes DC side | Inverter DC side | Inverter AC side | Lightning rod (on the mainboard) | |||
| Length of cables | <10 m | >10 m | n/a | <10 m | >10 m | Yes | No |
| Type of SPD to use | n/a | Type 2 | Type 2 | n/a | Type 2 | Type 1+2 | Type 2 if Ng > 2.5 and the overhead line |
Correct assessment of cable lengths and installation points ensures the surge protection device for solar operates efficiently and reduces residual voltage stress on PV components.
Benefits of Using Surge Protection Devices in Solar PV Systems
Installing a surge protection device for solar provides critical benefits for any PV system. By effectively limiting transient overvoltages, SPDs minimize system downtime, reduce repair costs, and protect sensitive electronics such as inverters, DC/DC converters, and monitoring devices. Long-term protection improves overall system reliability, extends equipment lifespan, and maximizes return on investment (ROI). Proper SPD selection and placement ensure that both DC and AC circuits are fully safeguarded against lightning strikes and switching surges.
Application Examples by PV System Scale
Residential Solar PV Systems: In rooftop PV systems (5–20 kW), Type 2 SPDs installed at inverter inputs and AC outputs protect the inverter and monitoring devices. This reduces downtime and prevents costly equipment replacement after transient events.
Commercial and Industrial PV Installations: Medium-scale PV installations (50–500 kW) benefit from combined Type 1+2 SPDs in combiner boxes and Type 2 SPDs at inverter AC outputs. Coordinated SPD placement minimizes residual voltages and ensures continuous operation even during local thunderstorms.
Utility-Scale Solar Power Plants: Large ground-mounted solar farms (>1 MW) require Type 1+2 SPDs throughout DC arrays and at inverters, combined with monitoring indicators for predictive maintenance. Properly implemented SPDs protect the entire plant from direct and induced surges, maintaining long-term energy production and system ROI.
Common Solar SPD Selection and Installation Mistakes to Avoid
Even with the right knowledge, many PV system installations make mistakes that reduce the effectiveness of a surge protection device for solar. Avoiding these common errors ensures reliable system operation and protects expensive equipment.
Incorrect Voltage Rating Selection
Choosing an SPD with too low a maximum continuous operating voltage (Uc or Ucpv) risks premature failure, while an excessively high rating may allow harmful overvoltages to reach sensitive electronics. Always match the SPD rating to the PV system’s maximum Voc and grid voltage.
Missing DC or AC Side Protection
Some installers focus only on AC protection, leaving PV strings and inverter inputs vulnerable. Proper coordination requires installing SPDs on both DC and AC sides to intercept surges before they reach critical components.
Improper Grounding and Wiring
SPDs are only effective when correctly grounded. Improper grounding or long, poorly routed cables increase residual voltage and reduce protection efficiency. Follow manufacturer wiring diagrams and local codes for grounding and conductor sizing.
Lack of Coordination Between SPDs
Using multiple SPDs without coordination can result in uneven voltage clamping and stress downstream equipment. Ensure upstream Type 1+2 SPDs and downstream Type 2 SPDs are correctly matched for voltage protection levels and response times.
LSP Surge Protection Devices for Solar PV Applications
LSP offers a comprehensive portfolio of surge protection devices for solar designed for residential, commercial, and utility-scale PV systems. Our solutions cover both DC and AC protection, ensuring critical equipment like inverters, monitoring units, and PV arrays remain safe from transient overvoltages. All products comply with international standards (IEC/EN 61643-31) and are tested for durability, reliability, and consistent performance under harsh environmental conditions.
DC and AC SPD Solutions for PV Systems
- DC SPDs: Protect PV strings and inverter inputs. High-energy Type 1+2 units are used in combiner boxes, while Type 2 SPDs provide downstream protection at inverter DC inputs.
- AC SPDs: Installed at inverter outputs and distribution boards to handle switching surges and grid transients. Type 2 AC SPDs are sufficient for most installations unless direct lightning exposure occurs.
- Modular designs allow easy expansion and integration into existing PV systems.
LSP surge protection devices for solar are engineered for reliability, modular integration, and multi-stage voltage coordination, ensuring long-term protection of PV systems with minimal downtime.
FAQ: Surge Protection Devices for Solar PV Systems
Do Solar PV Systems Really Need SPD?
Yes. A surge protection device for solar protects inverters, monitoring units, and PV modules from lightning strikes and switching surges. Even small transient overvoltages can shorten equipment lifespan and cause costly downtime.
Where Should DC and AC SPDs Be Installed?
- DC SPDs: Install at combiner boxes and inverter DC inputs. Placement depends on cable length and local lightning risk.
- AC SPDs: Install at inverter outputs and distribution boards to intercept grid transients. Proper placement ensures full protection of sensitive PV electronics.
How to Choose the Right SPD Rating for Solar Applications?
Select SPD voltage rating based on system Voc (DC) or grid voltage (AC). Consider maximum surge current (Imax/Iimp) and multi-stage coordination with upstream and downstream SPDs for comprehensive protection.

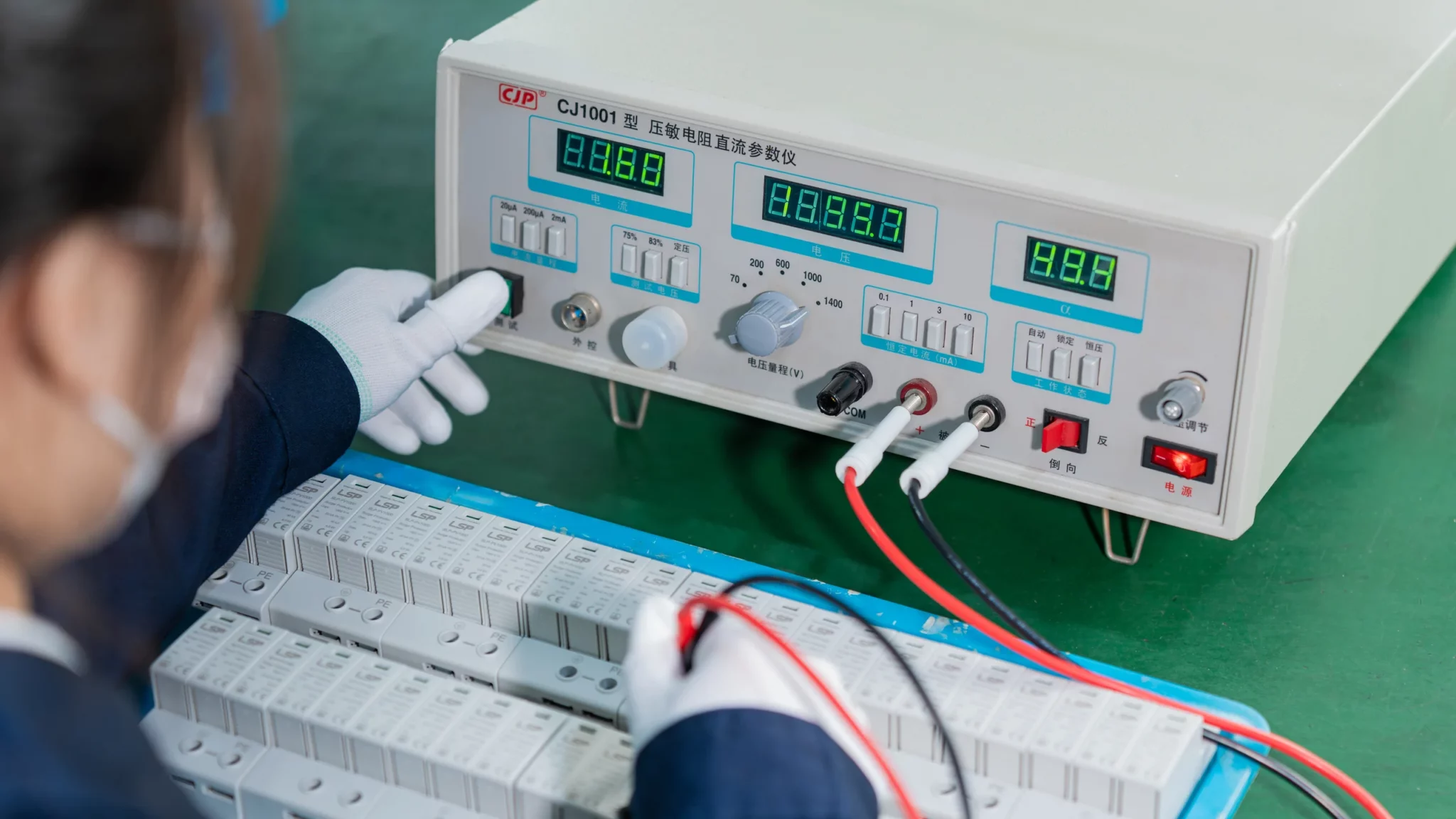

How Often Should SPD Be Inspected or Replaced?
Check SPDs annually or after known surge events. Visual indicators or remote monitoring signal MOV degradation. Replace SPDs showing excessive residual voltage to maintain protection.
Can SPD Protect Against Both Lightning and Switching Surges?
Yes. Type 1+2 SPDs can handle direct lightning strikes and switching surges, while Type 2 SPDs primarily manage induced surges. Coordinated installation ensures PV strings, inverters, and AC outputs are fully protected.
What Happens if an SPD Fails During a Surge?
A properly coordinated system with upstream and downstream SPDs and fuses prevents cascading damage. If one SPD fails, others continue protecting the system while the failed unit is replaced.
Can SPD Extend the Lifespan of PV Components?
Yes. By diverting >95% of transient energy, a surge protection device for solar reduces stress on inverters, DC/DC converters, and monitoring electronics, extending their lifespan by 3–5 years or more.
