Surge Protection Device for Elevators

Complete Guide to Surge Protection Device for Elevators: Principle, Selection, Installation & Standards

Why Are Surge Protectors Essential for Elevator Systems?

Sources of Surges and the Risks Elevators Face

As one of the most critical vertical transportation systems in modern buildings, elevators rely heavily on electronic components and microprocessor-based modules in their control, power, and communication systems – making them particularly sensitive to voltage fluctuations. In reality, surge voltage can originate from a wide range of unpredictable sources:

• Lightning Strikes and Induced Surges

When lightning strikes a building or nearby infrastructure, even without a direct hit to the elevator system, it can induce high-voltage surges through power lines, communication cables, or the grounding network. These surges can easily exceed the dielectric strength of sensitive components, leading to instant damage.

• Power Grid Switching and Transformer Failures

Transient overvoltages—another form of surge—may occur during utility load switching or when the grid performs a source switchover. Sudden voltage fluctuations can also arise from upstream transformer faults or poor grounding, injecting harmful energy into the elevator’s electrical system.

• Surges Triggered by Equipment Operation

The startup and shutdown of high-power equipment (such as air conditioners, pumps, or welding machines) may cause backflow interference in the power network. This interference can affect elevator control devices that share the same power supply, potentially leading to malfunctions.

The elevator components most vulnerable to surge damage include:

• Main Control Board (MCU Control System)

• Variable Frequency Drive (VFD)

• Door Operator Drive System

• Floor Display Panels and Control Buttons

• Communication Modules (such as CAN, RS485, and Ethernet)

The Cost of Ignoring Surge Protection

Without effective surge protection in place, an elevator system exposed to surge events faces not only the risk of equipment damage but also serious safety and operational consequences:

• Passenger Safety and Reputation at Risk

A sudden elevator malfunction or shutdown caused by a surge can trap passengers inside, leading to panic or, in severe cases, accidents. Beyond endangering user safety, such incidents can significantly damage the reputation and credibility of property owners or facility managers.

• High Repair and Replacement Costs

Key components such as control boards and VFDs are often irreparably damaged by surges and usually require full replacement. These parts are costly, and lead times for spares can be long – potentially resulting in extended elevator downtime.

• Frequent Maintenance and Rising Operational Costs

Systems without surge protection are more vulnerable to electrical interference, leading to higher failure rates. This directly increases the workload for maintenance teams and drives up the long-term operational costs, ultimately reducing system efficiency.

In summary, neglecting surge protection doesn’t just risk hardware failure – it acts as a multiplier of hidden dangers across the entire operational chain.

Elevator Surge Protectors ≠ Lightning Rods – What’s the Difference?

Many people mistakenly believe that once a lightning rod is installed on a building, there’s no need for additional surge protection in the elevator system. In reality, surge protection devices and lightning rods serve entirely different purposes and protect against different threats:

(1) Functional Differences:

• Lightning Rods

Designed to attract and safely conduct direct lightning strikes into the ground, lightning rods protect the physical structure of a building from being hit or penetrated by a lightning discharge.

• Surge Protection Devices

Surge protection devices are designed to divert and dissipate surges that travel along power or communication lines. They react in microseconds to clamp transient overvoltages and safely shunt them to ground – protecting sensitive electronic components from damage.

(2) Different Protection Scopes:

• Lightning Rods

Only mitigate external lightning threats. They do not stop surges caused by electromagnetic induction, power grid switching, or internal electrical faults from entering equipment via cables.

• Surge Protection Devices

Act as the last line of defense inside the building, shielding the elevator’s internal systems—such as control boards, drives, and communication modules—from surge damage due to both external and internal sources.

Conclusion:

Even if a building has a well-designed lightning protection system, elevator systems remain vulnerable to surges transmitted through wiring. Given their sensitivity, elevators must be equipped with dedicated surge protection device to complete a full, layered protection scheme – ensuring long-term safety and reliability.

How Elevator Surge Protectors Work and What They Do

Operating Principle of Surge Protection Devices

A Surge Protection Device is an electrical safety component designed to limit transient overvoltage and divert surge energy safely to ground. Its core function is to respond within microseconds, clamping abnormally high voltages down to a safe level that protected equipment can tolerate—thereby preventing component breakdown, burnout, or malfunctions.

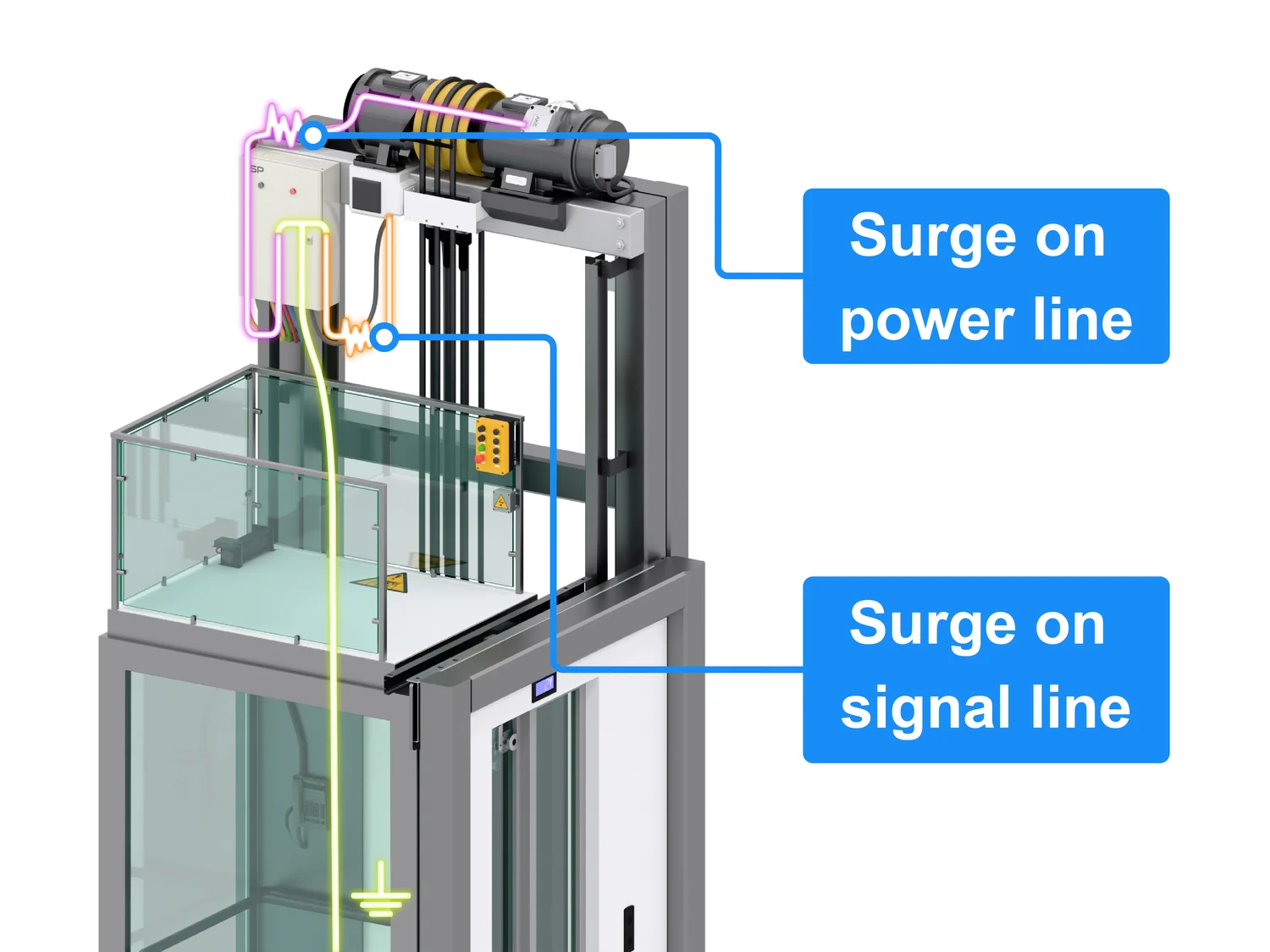

Power Systems vs. Signal/Control Line Protection

Surge protection is essential not only for power lines but also for communication and control lines in elevator systems. While the basic protection principles are similar, the design approach and component selection vary depending on the type of circuit:

Power Line Surge Protectors:

These surge protection devices are designed to block high-energy surges caused by lightning strikes or grid disturbances from entering the elevator’s main electrical circuits – such as the main power inlet or the VFD (Variable Frequency Drive) supply lines.

• Must handle large surge currents

• Require low residual voltage (clamping level)

• Typically use MOVs or combination MOV+GDT structures

Signal/Control Line Surge Protectors:

These are used for protecting low-voltage, high-speed communication interfaces such as CAN bus, RS485, Ethernet, and door encoder signals. Such lines are highly sensitive to even low-current surges, which can disrupt data integrity or permanently damage communication chips.

• Protection must ensure minimal signal attenuation and fast response

• Common protection components include TVS diodes and GDT+TVS hybrids

• Must match the specific communication voltage levels and transmission speeds

Different circuits require different types of surge protection devices to work in coordination, ensuring that the entire elevator system can effectively withstand various surge events.

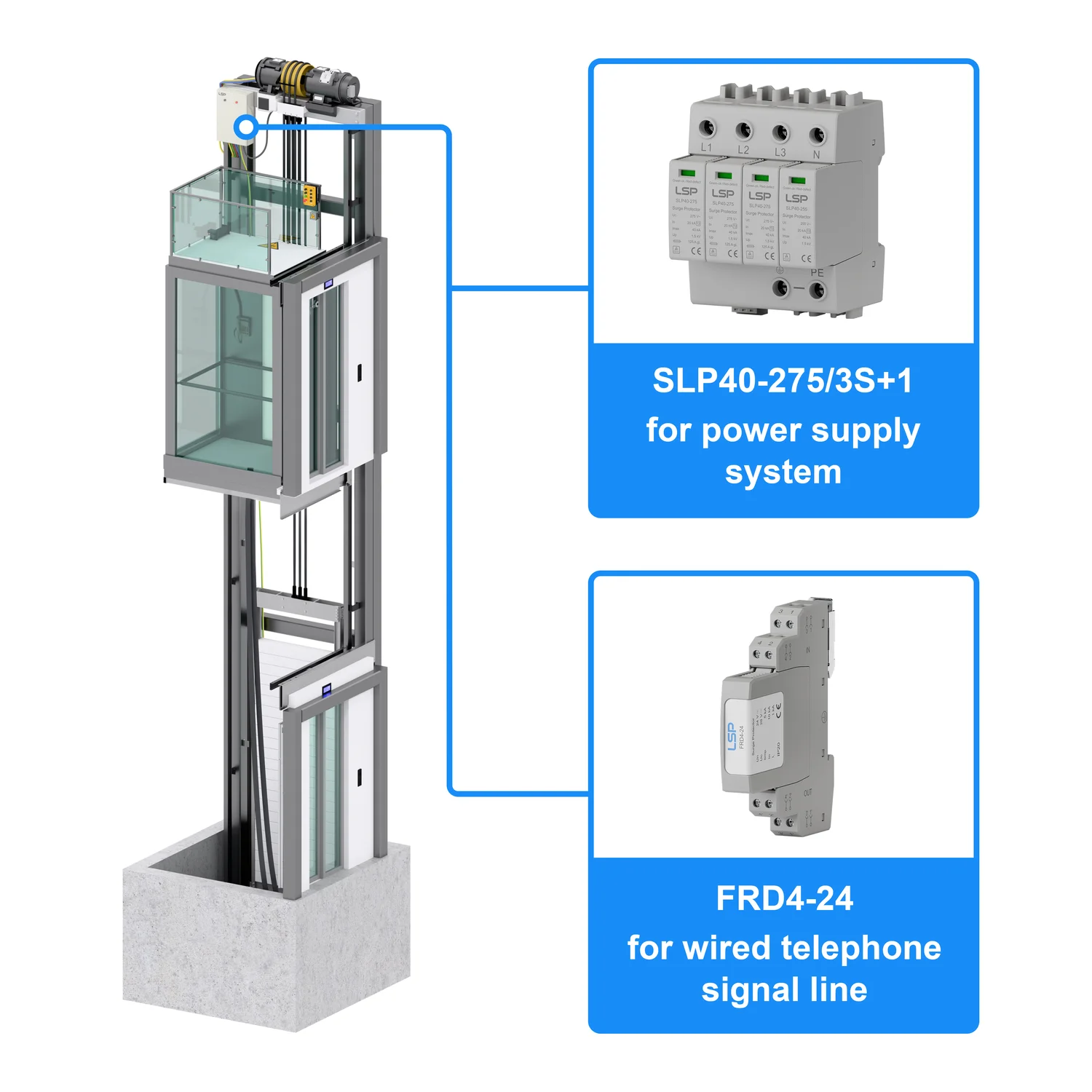

Typical Installation Points of Surge Protection Device in Elevator Systems

In elevator systems, surge protection devices must be strategically installed based on the system’s topology and the vulnerability of different components. Proper surge protector placement is one of the keys to achieving effective protection. The following are the typical installation locations:

Main Power Inlet at the Machine Room

The elevator’s primary power source is usually derived from the building’s distribution system. A Type 1 surge protection device should be installed at the main power input of the elevator control cabinet – such as near the distribution terminal or upstream of the circuit breaker.

• Purpose: Defend against surges from the external power grid or lightning-induced voltages

• Recommended surge protector Type: Combined or high-energy voltage-limiting surge protection device

• Should have high discharge capacity and thermal disconnection protection

Inside the Control Cabinet (Control and Communication Modules)

Within the control cabinet are sensitive components such as the main control board, door operator controller, VFD interface, and communication modules. These circuits require Type 2 surge protection devices for secondary protection.

• Purpose: Clamp residual surges that pass the first stage and protect delicate control electronics

• Enhances operational stability and equipment longevity

Traveling Cables / Shaft Communication Lines

Numerous signal lines (e.g., RS485, CAN bus, door switch lines) run between the elevator car and control cabinet via traveling cables. These lines are particularly prone to electromagnetic interference inside the shaft.

• Recommendation: Install dedicated signal-line surge protection devices at cable entry points to suppress induced surges

• Especially important for tall buildings or long shaft lengths, where induced voltages can be more severe

• Helps maintain signal integrity and prevents data communication errors

In real-world projects, surge protection device layout should be determined based on the elevator brand, wiring diagrams, and environmental factors. Following a “multi-level protection” strategy ensures that each subsystem and interface is properly shielded – greatly enhancing the system’s resistance to lightning and electrical interference.

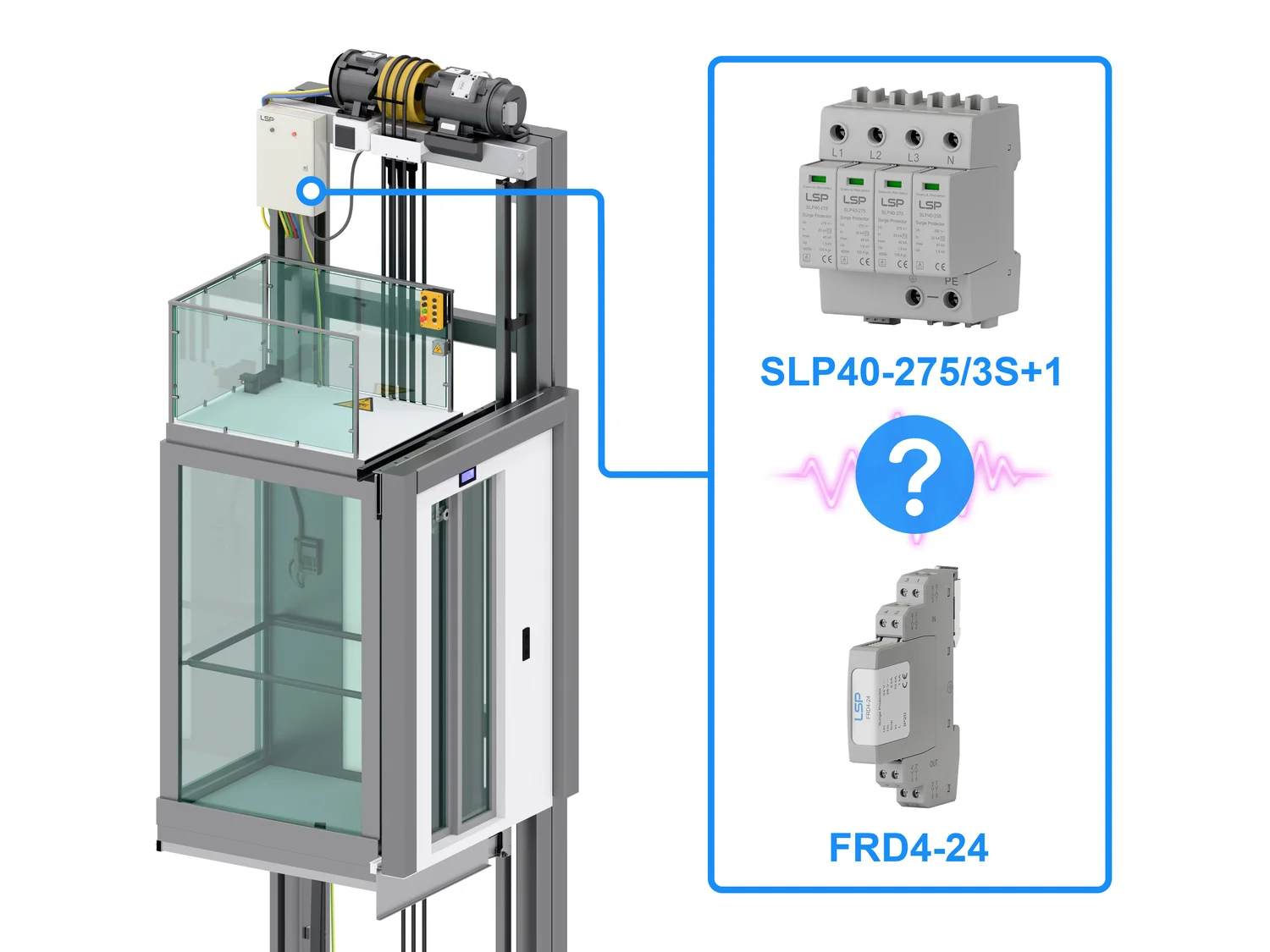

How to Select Suitable Surge Protection Device for Elevator Systems

Overview of Common Surge Protector Types for Elevators

Elevator systems are complex integrations of power drives, intelligent controls, and human-machine interfaces, requiring surge protection across multiple electrical layers and signal systems. The common types of surge protectors used include:

• Power Surge Protectors (AC Surge Protectors)

Installed at the elevator’s main power inlet and branch circuits, these protect against overvoltages caused by lightning strikes, power grid switching, and other transient events. Common ratings include 40kA, 60kA, and 80kA combined-type surge protection devices, with current capacity chosen according to building height and environmental factors.

• Control/Communication Line Surge Protectors (Signal Surge Protectors)

Designed specifically for low-voltage signal lines such as RS485, CAN bus, Ethernet, and door zone switch lines. These surge protection devices typically use TVS diodes or GDT+TVS combinations to achieve low voltage clamping, meeting the demands of high-speed data transmission.

• Video Surveillance and Display Module Surge Protectors

Used for protecting elevator cabin cameras, display panels, call buttons, and other terminal devices susceptible to surge interference. These provide interface-level protection to ensure stable operation of user interfaces and safety monitoring systems.

• Combined Surge Protector Solutions

For elevator projects with multiple interface types, manufacturers often offer modular surge protection devices that integrate both power and signal line protection, simplifying wiring and centralized management.

Key Parameters Explained and Selection Recommendations

When selecting surge protection device suitable for elevator systems, it is essential to consider equipment characteristics, power supply conditions, and building types. Focus on the following core parameters:

• U_c (Continuous Operating Voltage)

The maximum voltage the surge protection device can continuously withstand without activating, typically set slightly above the system’s rated voltage. Common values include 275V for 230V single-phase systems and 385V for 400V three-phase systems.

• I_n / I_max (Nominal Discharge Current / Maximum Discharge Current)

I_n indicates the surge protection device’s ability to operate normally under repeated surge events, usually rated at 5kA or 20kA.

 I_max represents the maximum surge current the surge protection device can handle in a single event.

For elevator systems, it is recommended to select surge protection devices with I_n ≥ 20kA and I_max ≥ 40kA to withstand frequent thunderstorms and harsh environments.

• U_p (Voltage Protection Level)

The maximum voltage level to which the surge protector clamps the surge during operation. The lower the Up, the better the protection effect. It is advised that Up should be less than 70% of the insulation withstand voltage of protected equipment; for example, main control boards usually require U_p < 1.5kV.

• t_A (Response Time)

The response time of an surge protection device is usually in the nanosecond range. Fast response is critical to protect sensitive low-voltage control systems, especially for signal line surge protection devices where products with response times under 25ns are preferred.

• Installation Method and Form Factor

Commonly, surge protection devices come as modular devices designed for 35mm DIN rail mounting for ease of installation and maintenance. Some elevator manufacturers provide custom integrated surge protection modules directly built into the elevator’s power distribution system.

Power-line surge protection devices should ideally feature failure disconnection indication and remote signaling outputs, which facilitate maintenance by clearly indicating the surge protection device’s operational status during routine inspections.

Elevator Core Components Most Vulnerable to Surges

Elevator systems extensively use microprocessor control boards, communication modules, and high-frequency drive devices, all of which are highly sensitive to surges. The following components are most prone to damage or breakdown from surge events:

• Main Control System (Mainboard, Logic Controllers)

These use low-voltage digital circuits with intensive logic operations, making them particularly vulnerable to surge damage due to weak surge immunity.

• Variable Frequency Drive (VFD)

As a critical drive component operating at high frequency, surges can cause catastrophic failure of the IGBT modules inside the VFD.

• Door Operator Controller

Subjected to frequent start-stop cycles and constantly exposed to electromagnetic interference, this component requires robust surge protection.

• Communication Modules (RS485, CAN bus, Ethernet)

With long wiring runs, often passing through elevator shafts, these modules are especially susceptible to induced surges from lightning.

• Display Screens and Cameras

External low-voltage devices whose interfaces are sensitive to voltage spikes; surge damage can degrade passenger experience and compromise safety monitoring.

Damage to these components often necessitates full module replacement, which is costly and time-consuming. Therefore, surge protector selection should prioritize protection of these critical devices to ensure elevator system reliability.

Surge Protection Configuration Recommendations by Elevator System Zones

Different parts of an elevator system have distinct functions and require surge protectors with varying types and performance specifications. Below are recommended configurations for key zones:

Main Power Surge Protector Configuration

• Installation Location:

At the main power input of the elevator distribution or control cabinet.

• Recommended Parameters:
  • Nominal Discharge Current I_n ≥ 20kA
  • Maximum Discharge Current I_max ≥ 40kA
  • Continuous Operating Voltage U_c = 385V
  • Voltage Protection Level U_p ≤ 1.5kV

• Selection Tips:

Use a combined-type surge protection device suitable for three-phase four-wire or five-wire systems, preferably with thermal disconnection and failure indication features.

Signal Line Surge Protector Configuration (RS485 / CAN / Ethernet)

• Installation Location:

Communication module inputs inside the control cabinet, shaft entry points, and elevator car communication interfaces.

• Recommended Parameters:
  • RS485/CAN: U_c = 6V~12V, U_p < 20V, response time < 25ns
  • Ethernet: Support PoE, transmission speed ≥ 100Mbps, compatible with Cat5e/6 cables

• Selection Tips:

Choose dedicated communication surge protectors that match signal pinouts and support relevant transmission protocols to maintain data integrity.

Video Surveillance and Floor Display Surge Protector Configuration

• Installation Location:

At power and signal input terminals of display panels and cameras.

• Recommended Parameters:
  • Voltage Protection Level U_p ≤ 1.2kV
  • Continuous Operating Voltage U_c = 12V or 24V, depending on supply voltage

• Selection Tips:

Use combined low-voltage surge protectors designed to protect DC power lines and video signal transmission.

By accurately selecting and deploying surge protection devices according to these recommendations, you can significantly reduce elevator failure rates, extend system lifespan, and lower maintenance costs—providing a critical guarantee for the reliable operation of elevator systems.

Installation Locations and Wiring Considerations for Elevator Surge Protection Devices

Proper installation locations and scientifically planned wiring are fundamental to ensuring surge protection devices perform optimally. In elevator systems, different functional areas have distinct requirements for surge protection devcie deployment, and common installation issues such as insufficient protection or improper wiring often occur in practice. The following sections detail key points regarding installation locations, wiring principles, and frequent mistakes.

Installation Locations Across Different Subsystems

Elevator systems include several electrical subsystems – power supply, control logic, communication transmission – each with potential surge entry points. Effective protection requires installing appropriate surge protection devices at the following critical locations:

• Distribution Cabinet (Power Input Side)

Install primary (Type 1) power surge protectors here to intercept high-energy surges from the utility grid. This is the first line of defense in the surge protection system.

Installation advice: Place the three-phase surge protector downstream of the main circuit breaker and upstream of control circuits. Pay close attention to voltage compatibility and discharge capacity requirements.

• Control Cabinet (PLC, VFD, etc.)

Configure secondary (Type 2) surge protection device in control power circuits or VFD supply lines to clamp residual surges, protecting sensitive electronic components.

Installation advice: Install as close as possible to equipment terminals to minimize response time and reduce residual voltage.

• Communication Boards / Signal Interface Modules

Protect weak current lines such as CAN bus, RS485, and door zone signals at their entry points.

Installation advice: Deploy dedicated signal-line surge protectors at communication module terminals, ensuring reliable equipotential bonding with the communication ground.

• Shaft Signal Entry and Elevator Car Traveling Cable Terminals

Guard against induced surges entering via long traveling cables or shaft wiring.

Installation advice: Especially critical in high-rise buildings, install signal surge protectors at the top and bottom of shafts to implement multi-level protection.

Wiring Principles and Construction Considerations

Even with high-quality surge protectors, improper installation and wiring can significantly reduce their protective effectiveness. The following wiring principles must be strictly observed:

• Install as Close as Possible to the Protected Equipment or Main Power Input

The shorter the lead wires of the surge protection devivce, the lower the residual voltage and the faster the response time, ensuring genuine protection for the circuit. Inside control cabinets, surge protection devices should be installed tightly against the power or module terminals.

• Ensure Reliable Equipotential Bonding

All surge protector grounding conductors must be firmly connected to the main equipotential grounding system. Avoid “local grounding” or connection to ineffective grounds, as these can cause counter-voltage or failure of surge suppression during discharge.

• Configure Appropriate Fuses or Isolation Switches Upstream of the surge protection device

These protect the surge protector itself in case of internal short circuits and prevent impact on the entire system operation. They also facilitate safe power-off during maintenance or replacement.

Tip: Follow the surge protection device manufacturer’s recommended fuse ratings and breaking capacities.

• Strictly Control Grounding Lead Length and Routing

Surge protection device grounding wires should be as straight, short, and thick as possible (≥6mm² cross-section), with total length (L+N+PE) ideally not exceeding 50cm. Avoid loops or coiling to minimize induced voltages and parasitic inductance.

Common Installation Mistakes

In real-world projects, due to insufficient understanding of surge protection or improper construction, the following typical errors frequently occur. These issues can seriously weaken the effectiveness of surge protectors or even introduce new risks:

Ignoring Signal Line Surge Protection or Using Incorrect SPD Models

Elevator signal systems such as RS485 and CAN bus are often overlooked. Lack of protection or choosing surge protection devices with incorrect voltage ratings can lead to communication failures and frequent device crashes.

Installing Only Primary (Type 1) surge protectors and Neglecting the “Layered Protection” Principle

Primary surge protection devices absorb high-energy surges but residual voltages may still exceed equipment tolerance. Without secondary or tertiary SPDs, critical components remain at risk. The correct practice is:

• Primary protection: At power input lines

• Secondary protection: Inside control cabinets

• Tertiary protection (optional): At terminal devices or important signal interfaces

Failing to Perform Grounding Resistance and Equipotential Bonding Tests After Installation

Without verifying grounding resistance or equipotential bonding, surge protectors may fail to discharge surges properly when needed, rendering protection ineffective.
Recommendation: Ground resistance should not exceed 4Ω, and periodic testing of grounding effectiveness is essential.

When installing elevator surge protectors, always follow the three key principles of “proximity protection, layered defense, and low-resistance grounding.” Moreover, ensure seamless coordination among selection, installation, and commissioning stages to build a truly reliable and efficient surge protection system, providing solid assurance for elevator operational stability.

Standards and Certifications: Key Criteria for Assessing Surge Protector Quality

In elevator systems, the reliability of surge protection devices directly impacts equipment safety and operational stability. However, with a wide variety of surge protection device products available on the market, and significant differences in performance, the absence of effective standards and certification systems can easily lead to wrong selections, improper procurement, or even system failures. Therefore, understanding relevant standards and authoritative certifications is essential for evaluating surge protector product quality.

Overview of Chinese and International Relevant Standards

1. GB/T 34555-2017 “Surge Protective Devices for Elevator Systems”

This is China’s first national recommended standard specifically targeting surge protectors used in elevator systems. It systematically defines terminology, structural forms, technical requirements, test methods, and environmental conditions for elevator surge protection devices. Key points include:

• Requirements for surge protection device’s ability to withstand lightning currents and power-frequency short-circuit currents

• Application guidelines of SPDs in typical elevator power supply structures

• Principles for multi-level protection design and typical wiring recommendations

2. GB 50057 “Code for Design of Lightning Protection of Buildings”

This code specifies the design and acceptance requirements for comprehensive lightning protection systems in buildings, covering both power systems and information systems protection. It provides clear regulations on surge protection device selection, electrical characteristics, and equipotential bonding methods to ensure effective surge protection within the building infrastructure.

3. IEC 61643 Series International Standards

The IEC 61643 series represents the most influential international standards for surge protective devices, applicable to various types of power SPDs (IEC 61643-11) and signal line SPDs (IEC 61643-21). Key regulatory focuses include:

• Surge voltage limitation capability (U_p)

• Nominal discharge current (I_n) and maximum discharge current (I_max)

• Response time and voltage clamping accuracy

• Protection modes (common mode and differential mode)

These standards ensure global consistency in surge protection device performance, safety, and testing, widely recognized in the industry.

4. GB 50303 “Code for Quality Acceptance of Electrical Engineering Construction of Buildings”

As a crucial standard for quality acceptance in building electrical installations, this code mandates that the installation of surge protective devices must strictly comply with design drawings, product technical manuals, and relevant standards. Unauthorized changes to surge protection device models, specifications, or installation methods are prohibited to ensure system reliability and safety.

Certification Systems and Testing Requirements

Surge protective devices with authoritative certifications not only meet fundamental electrical performance criteria but also have passed rigorous reliability tests, ensuring stable operation in real-world environments.

1. Significance of International Authoritative Certifications such as CE, TÜV, and CB

• CE Certification (European Union)

Demonstrates compliance with EU regulations including Electromagnetic Compatibility (EMC) and Low Voltage Directive (LVD), serving as a mandatory passport for products entering the European market.

• TÜV Certification (Germany)

Issued by the German Technical Inspection Association, featuring comprehensive and stringent testing covering electrical performance, structural safety, and environmental adaptability.

• CB Certification (IECEE)

Part of the IECEE’s Certification Bodies Scheme, it provides global mutual recognition of testing and certification results, facilitating entry into multiple national markets and serving as a vital bridge for international trade.

2. Core Testing Items: Ensuring Product Safety and Reliability

• Surge Current Test (8/20μs wave):

Tests whether the surge protection device can operate stably under specified discharge currents, typically indicated by In and Imax ratings.

• Voltage Limiting Performance Test (U_p):

Verifies if the surge protection device’s maximum clamping voltage under a defined surge current meets its design specifications.

• Response Time Test:

Measures whether the surge protection device can discharge within microseconds to protect downstream equipment effectively.

• Short-Circuit Withstand Test (I_sc):

Checks if the surge protection device can safely disconnect during system short circuits (e.g., Line-Neutral short), preventing secondary faults.

• Aging and Lifetime Test:

Simulates the SPD’s performance degradation after repeated minor surge events to assess its service life and replacement cycle.

When selecting surge protective devices for elevators, it is recommended to prioritize products that comply with GB/T 34555-2017 or the IEC 61643 series standards. Additionally, verify whether they have obtained third-party certifications such as TÜV, CB, and CE, and ensure that authentic test reports are available. Standards and certifications not only signify product compliance but also serve as vital guarantees for the safe operation of your equipment.

Procurement Advice: How to Choose a Reliable Elevator Surge Protection Device Brand

When selecting surge protective devices for elevators, the primary focus should be on the manufacturer’s professional background and technical capabilities. The following points are core criteria to determine whether a brand is trustworthy:

Evaluating Brand Professionalism from Technical Strength

• Specialization in Surge Protection Industry

Some manufacturers have specialized in surge protection for over a decade, possessing deep understanding of lightning electromagnetic environments, elevator operating characteristics, and surge protection device application scenarios. They can provide mature, tailored solutions. In contrast, non-specialized multi-category manufacturers often lack control over surge protection device product performance, offering generic products that fail to meet the elevator’s high demands for response speed and anti-interference ability.

• Capability for Customized Solutions

Elevator systems are complex with diverse brands and communication interfaces; off-the-shelf products cannot cover all wiring forms and voltage levels. Brands capable of customization can optimize configurations for specific projects (e.g., high-rise residences, hospitals, commercial complexes), enhancing system compatibility and protection efficiency.

• Company Age and Technical Accumulation

Brands with longer establishment history, independent R&D teams, and in-house manufacturing have advantages in product development, standards adaptation, and reliability testing. Long-term technical accumulation also means more stable designs and richer application experience.

• Customer Cases and Industry Adaptability

Proven successful applications in well-known real estate, high-end commercial buildings, hospitals, or rail transit elevator systems serve as key references to assess brand maturity and industry trust.

Prioritize brands with professional backgrounds in surge protection, elevator industry application experience, and the ability to provide customized solutions.

Application scenarios of elevator surge protectors

Elevators are essential for transporting people and goods in both residential and commercial buildings. For lower lifting heights, hydraulic elevators are commonly used as an alternative to counterweight cable systems. Passenger elevator speeds typically start at around 1 m/s and can reach up to 8 m/s in multi-storey buildings, and as high as 17 m/s in skyscrapers. Goods elevators are designed to carry loads of up to 5 tonnes.

Modern elevators incorporate various advanced functions, including:

• Smooth acceleration and deceleration via frequency converters;

• Traffic management features (e.g., bypassing stops when fully loaded, priority operation, emergency fire mode);

• Energy-saving modes that deactivate lighting and ventilation when the cabin is unoccupied or idle;

• Regenerative power systems that feed energy from downward travel or empty return trips back into the grid.

These features depend on highly sensitive electronic systems.

To minimize electrical interference in elevator systems, manufacturers implement shielding techniques such as using metal enclosures, selecting suitable cables, and optimizing cable routing. However, these methods cannot fully prevent conducted transient over-voltages from affecting elevator performance or causing damage.

Peripheral devices – such as floor selectors and display panels – are typically connected using prewired plug-in cables. Therefore, surge protection is mainly needed for the main power supply, telephone line, and, if applicable, the fire alarm system.

Differentiated Surge Protector Configuration Recommendations for Different Building Types

Different building structures and usage scenarios require distinct strategies for configuring elevator surge protective devices. Below are reference recommendations for the main building types:

Medical Buildings

Characteristics: High integration of information systems with extremely stringent requirements for communication stability; elevators often need to interface with building automation systems (BAS).

Recommendations:

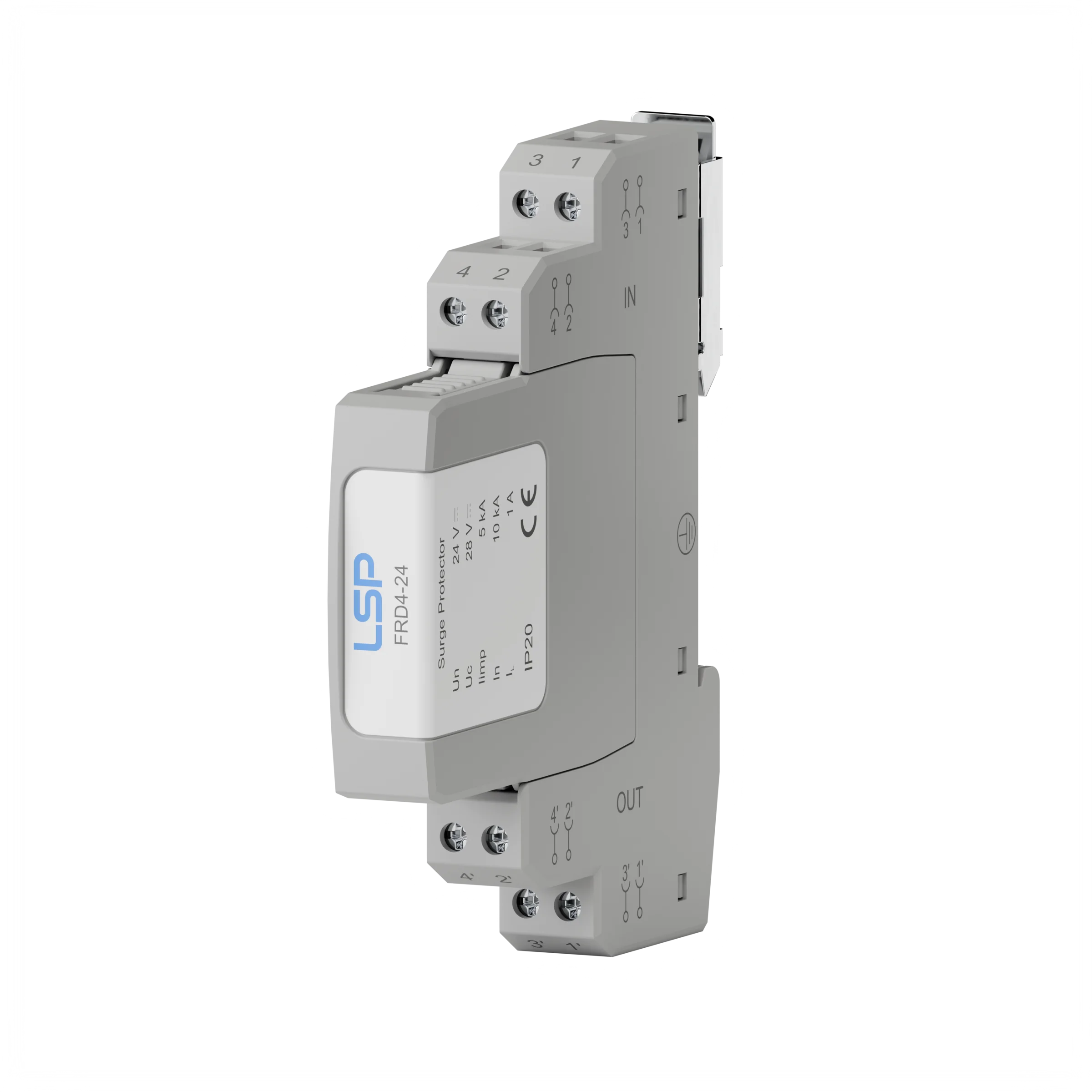

• Prioritize signal surge protectors that support high-speed bus compatibility (such as CAN and Ethernet).

• Recommend using surge protectors with remote signaling output to integrate into the BAS monitoring system.

• All critical elevators should be included in the annual surge protector inspection and maintenance plan.

High-Rise Residential Buildings

Characteristics: Long elevator shafts, high risk of lightning-induced surges, and limited maintenance resources.

Recommendations:

• Implement a clear multi-level protection system (Level 1 at main power input, Level 2 at control cabinets, Level 3 at terminal devices).

• Install signal surge protectors at both ends of the traveling cable (shaft top and elevator cabin interface).

• Choose modular DIN-rail mounted products for easier maintenance and replacement.

Commercial/Office Buildings

Characteristics: High foot traffic, frequent elevator use, and medium to high requirements for operational continuity.

Recommendations:

• Select main power surge protectors balancing high discharge capacity and low residual voltage (recommend combination type surge protection devices).

• Install low-voltage surge protectors for peripheral devices such as display systems, cameras, and call buttons.

• Emphasize reliable grounding and equipotential bonding checks after surge protection device installation.

Conclusion: A Key Step to Enhancing Elevator System Reliability

With urban buildings evolving towards greater intelligence and height, elevators as core vertical transportation equipment have become a crucial focus for engineering design, operation management, and user experience. Within the electrical safety framework, surge protective devices (surge protection devices) serve as an indispensable line of defense against lightning strikes, power grid disturbances, and equipment malfunctions.

Proper selection, standardized installation, and tiered configuration of surge protection devices can significantly reduce elevator failure rates, minimize equipment damage, lower maintenance costs, and comprehensively improve system reliability and operational efficiency. However, to fully realize the protective effectiveness of surge protection devices, coordinated collaboration among all project stakeholders is essential, creating a closed-loop guarantee from design and procurement through to operation and maintenance.
