Surge Protection Consumer Unit Types
Universal Surge Protection Consumer Unit
Features
Universal surge protection consumer units work with many surge-protective devices. They fit most electrical panels in homes and businesses. These units can use different surge protection device models. This makes them easy to upgrade. Many universal units have a status window. The window is green when things are normal. It changes color if there is a problem. They stop too much voltage and send extra current to the ground during a surge.
Pros and Cons
Pros | Cons |
|---|---|
Easy to put in many panels | Might need more space in the panel |
Works with many surge-protective device types | Sometimes costs more than special units |
Good for homes and businesses | May need extra wires for some surge protectors |
The best surge protection consumer unit for most homes uses a Type 2 SPD. It meets IEC 61643-11 standards.
A surge protection consumer unit keeps electrical systems safe from surge events. These events include lightning surge and switching surge.
Many countries now require surge protection consumer units for whole-home surge protection. This helps keep homes safe and follows the rules.
Surge protection consumer units must clamp overvoltage. They also send surge current to the ground.
Standards like IEC 61643-11 and device types such as Type 1 and Type 2 help users pick good surge protection.
Following the 10m rule gives proper protection for each surge protection consumer unit.
Tip: Universal surge protection consumer units help electricians pick the right surge-protective device for each job.
Plug-On Neutral Surge Protection Consumer Unit
Features
Plug-on neutral surge protection consumer units connect right to the neutral bar. They use a special surge-protective device that snaps onto the panel. These units save space and need less wiring. The status window shows if the device is working well. They stop too much voltage and send extra current to the ground during a surge.
Pros and Cons
Pros | Cons |
|---|---|
Quick to install with less wiring | Only fits certain panels |
Small size saves space | Not many surge protection device choices |
Looks neat in new panels | May not work in older systems |
Note: Plug-on neutral surge protection consumer units are best for new homes with the right panels.
Type 1 vs. Type 2 Surge Protection Device
Regulatory Requirements
IEC 61643-11 gives the rules for surge-protective device types. Type 1 surge protection device handles lightning surge and big energy surges. Type 2 surge protection device protects against switching surge and smaller surges. Most homes use type 2 surge protectors to follow IEC rules. Businesses with outdoor wires or risk of lightning induced surges need Type 1 surge-protective device.
Application Scenarios
Type 1 surge-protective device goes at the main service entrance. It protects against lightning surge and big surges. Type 2 surge protective device goes inside the distribution board. It keeps sensitive equipment safe from switching surge. Homes usually use type 2 surge protectors for daily surge events. Businesses may use both types for full protection. Picking a surge protection device depends on the building, risk of lightning induced surges, and local rules.
Picking the right surge-protective device keeps all electrical systems safe.

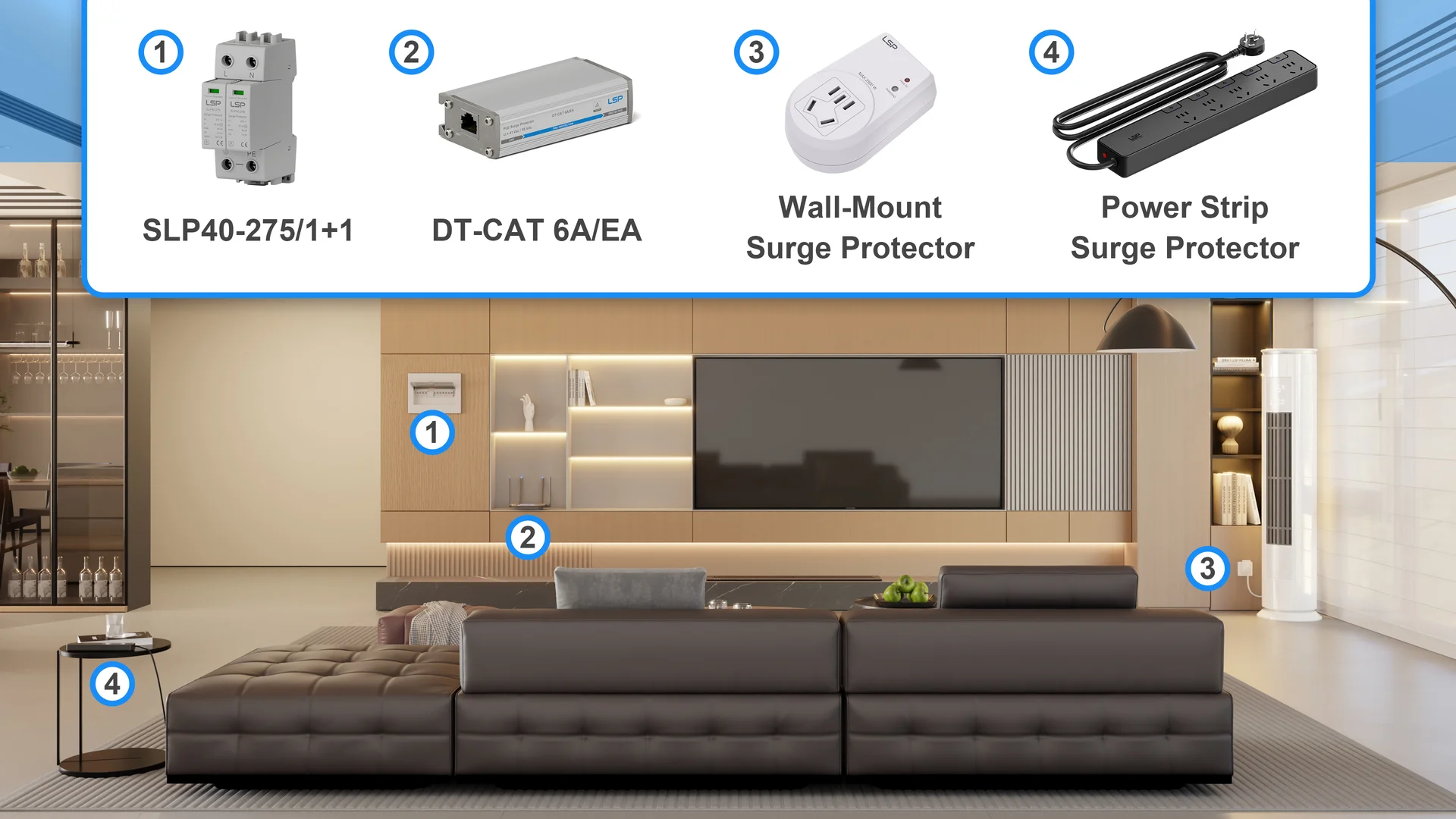

Step-by-Step Selection Guide for Surge Protection Consumer Unit
Picking the right surge protection consumer unit can seem hard. This guide gives easy steps to help you choose for your home or business. Each step tells you what to check and why it is important.
Assessing Electrical Setup and Home Size
Check the Main Electrical Panel
Look at your main panel. Count how many circuits need surge protection. Big homes or buildings with more circuits need a bigger surge protection consumer unit.Count Sensitive Devices
If you have lots of electronics, you need stronger surge protection. More devices mean more risk from surge events.Review Building Layout
Check the distance from the main panel to other boards. If it is more than 10 meters, you need extra surge protection devices. This follows the 10m rule.
Tip: An electrician can help check your setup and give advice on the best surge protection plan.
Budget and Cost Considerations
Compare Product Prices
Surge protection consumer units have different prices. Basic models cost less but have fewer features. Advanced units with status windows and higher surge ratings cost more.Factor in Installation Costs
You should add the cost of hiring an electrician. Good installation makes sure the surge protection device works right.Consider Long-Term Value
Buying a good surge protection consumer unit can stop damage to your electronics. Spending more now can save money later.
Feature | Basic Model | Advanced Model |
|---|---|---|
Status Window | No | Yes |
Surge Rating | Standard | High |
Price | Lower | Higher |
Upgrade Options | Few | Many |
Technical Criteria for Surge Protection Device
Joule Rating
Joule rating shows how much surge energy the device can take. Higher joule ratings give better protection for sensitive equipment. Most homes should get a surge protection device with at least a 600 joule rating.
Clamping Voltage
Clamping voltage is when the surge protection device starts to work. Lower clamping voltage means it reacts faster to a surge. Pick a clamping voltage that fits your equipment.
IEC Listing and Verification
Surge protection consumer units should meet IEC 61643-11 standards. Check for a status window on the device. Green means it works right. If it is not green, there is a problem. Always check the product’s certification before you buy.
Note: Certified surge protection devices are safest and follow the rules.
This guide helps you pick the right surge protection consumer unit for your needs. Following these steps keeps your electrical system safe from surge events.
Surge Protection Consumer Unit Standards and Certifications
UL1449 and UL Listing
Different countries use different surge protection standards. Some places use UL1449 and UL Listing for surge devices. These standards make sure surge protection equipment is safe and works well.
UL1449 tells how a surge device must stop too much voltage. It also says the device must send extra current to the ground. UL1449 checks if the status window is strong and if the device can handle lightning surge.
Most projects around the world use IEC standards for single-phase surge protection. These standards give clear rules for testing, putting in, and taking care of surge protection.
UL1449 and IEC standards both try to keep people and equipment safe from surges. But IEC standards talk about more types of surges. They also give more details for single-phase surge protection in homes and businesses.
Note: Always make sure the surge protection consumer unit follows local standards before you put it in.
IEC 61643-11 and IEC 61643-12
IEC 61643-11 is the main rule for surge protection devices. It tells how to test and sort surge devices for single-phase surge protection. This rule says the device must stop too much voltage and send extra current to the ground during a lightning surge or switching surge.
IEC 61643-12 gives rules for putting in surge protection. It explains the 10m rule. This rule says the surge device should be no more than 10 meters from the equipment. The rule helps keep single-phase surge protection strong for all sensitive devices.
Both IEC 61643-11 and IEC 61643-12 say the surge protection device must have a status window. The window should be green when the device works right. If the window is not green, the device needs to be checked or changed.
IEC standards also help people pick the right surge protection device for different buildings. They help users choose the best device for homes, offices, and factories.
IEC Standard | Main Focus | Key Requirement |
|---|---|---|
IEC 61643-11 | Testing and classification | Clamp overvoltage, divert surge current |
IEC 61643-12 | Installation and maintenance | 10m rule, status window |
Tip: Following IEC standards makes sure the surge protection consumer unit works well and is safe.
Certification Verification Process
Checking surge protection consumer unit certifications keeps people safe. It also makes sure the unit follows the rules. This process helps users know if the device meets IEC standards. It also shows if the unit gives good surge protection. Here are steps to check certifications for surge protection consumer units:
Check Product Documentation
Manufacturers give certificates and test reports for their devices. Look for IEC 61643-11 and IEC 61643-12 in the papers. These certificates prove the device can clamp overvoltage. They also show it sends surge current to ground during lightning surge or switching surge.
Inspect the Status Window
Surge protection consumer units have a status window. Green means the device works fine. If it is not green, something is wrong. The window helps users know when to change the device.
Review Markings and Labels
Surge protection devices have IEC standard markings. Check for labels with IEC 61643-11 or IEC 61643-12. These markings prove the device meets world surge protection rules.
Confirm Manufacturer Reputation
Good manufacturers follow IEC standards for surge protection. They give clear certificates and help customers. Pick brands that have a good record for homes and businesses.
Consult Installation Guides
Installation guides show how to put in surge protection consumer units. They explain the 10m rule from IEC 61643-12. The guides help users get the best surge protection for all circuits.
Request Third-Party Test Reports
Independent labs test surge protection devices. Ask for third-party reports that show IEC compliance. These reports prove the device clamps overvoltage and sends surge current to ground during lightning surge.
Tip: Always check surge protection consumer unit certifications before you install them. This step gives strong surge protection and keeps electrical systems safe.
Step | What to Check | Why It Matters |
|---|---|---|
Product documentation | IEC certificates, test reports | Shows surge protection compliance |
Status window | Green or not green | Tells surge protection device status |
Markings and labels | IEC standard numbers | Proves surge protection standards |
Manufacturer reputation | History, clear info | Gives reliable surge protection |
Installation guides | IEC 61643-12 steps | Gets the best surge protection |
Third-party test reports | Independent proof | Shows surge protection performance |
Certification checks keep homes and businesses safe from lightning surge and switching surge. People who follow these steps make sure surge protection consumer units meet IEC standards and give strong protection.

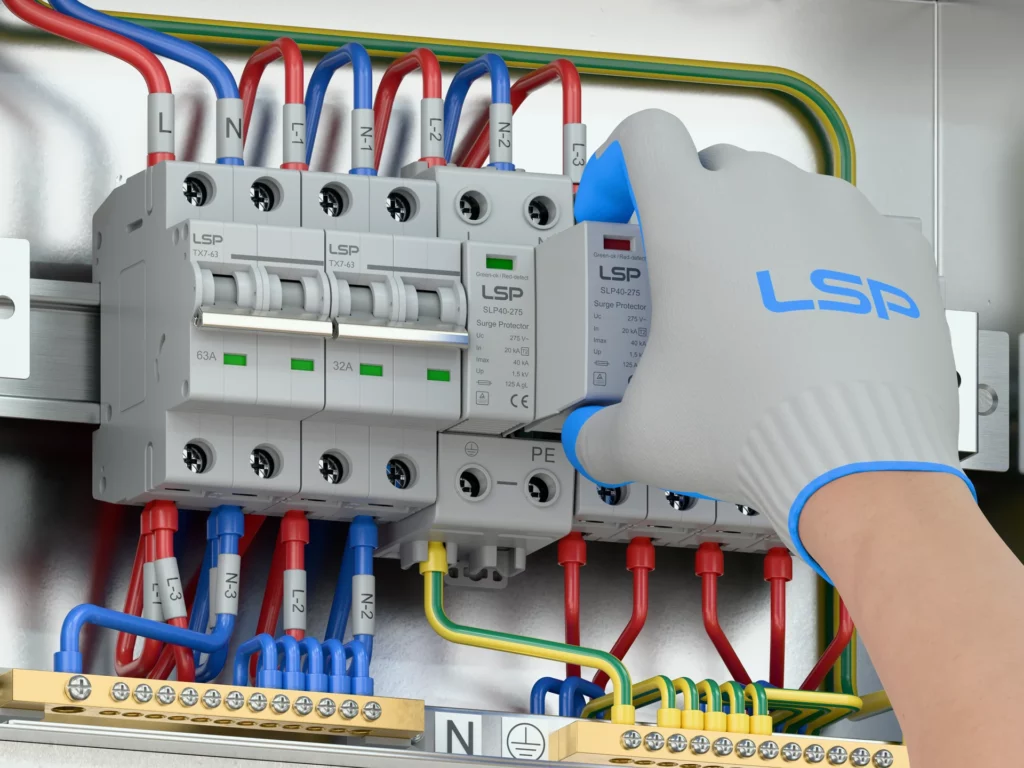

Surge Protection Consumer Unit Installation and Maintenance
Installation Best Practices
10m Rule
Put the surge protection consumer unit close to the main distribution board.
The 10m rule from IEC 61643-12 says the surge protection device should be no more than 10 meters from the equipment it protects.
If the distance is over 10 meters, add another surge protection device near the sensitive equipment.
This setup helps stop too much voltage and sends extra current to the ground fast.
Tip: Using the 10m rule helps protect all devices in the building better.
Safety Precautions
Always turn off the main power before you start installing.
Use tools with insulation and wear safety gloves.
Only trained electricians should put in surge protection consumer units.
After you finish, check the status window. Green means it works right.
Make sure every wire is tight so there are no loose connections.
Safety Step | Why It Matters |
|---|---|
Turn off main power | Stops electric shock |
Use insulated tools | Lowers the chance of getting hurt |
Check status window | Shows if surge protection is working |
Maintenance and Inspection
Routine Testing
Look at the status window every month.
If the window is not green, the surge protection device might not work.
Test the surge protection device by following the instructions from the manufacturer.
Write down the date and what you found in a logbook.
Note: Checking often keeps surge protection strong and dependable.
Replacement Guidelines
Change the surge protection device if the status window is not green.
Replace the device after a big lightning surge happens.
Follow the manufacturer’s advice for when to replace, usually every 3 to 5 years.
Always use certified surge protection devices that meet IEC 61643-11 and IEC 61643-12.
Common Mistakes to Avoid
Not following the 10m rule and putting the surge protection device too far from the equipment.
Not checking the status window after installing or during regular checks.
Using surge protection devices that are not certified and do not meet IEC standards.
Letting people who are not trained install or change surge protection consumer units.
Not changing the device after a lightning surge or when the status window is not green.
Callout: Good installation and regular checks help surge protection work well and make electrical equipment last longer.
Surge Protection Consumer Unit Manufacturer: LSP
LSP Overview
LSP is a top company in surge protection technology. The company started more than 20 years ago. They focus on making electrical systems safer. LSP is known for making high-quality surge protection consumer units. Their engineers design products that follow IEC 61643-11 and IEC 61643-12 rules. LSP has modern factories and uses advanced testing tools. The team works to make surge protection better for homes, businesses, and factories. LSP also helps customers with technical support and service after buying. Their promise to keep improving and making good products makes them a trusted name in surge protection.
LSP Surge Protection Device Features
LSP surge protection consumer units have many useful features. Each device has a status window that shows green when it works right. If the window is not green, the device needs to be checked or changed. LSP makes its products to stop too much voltage and send extra current to ground during lightning surge or switching surge. The company uses strong materials so the devices last a long time. LSP surge protection devices are easy to put in and take care of. Their products fit many electrical panels and protect sensitive equipment well. LSP tests every device to meet IEC rules before sending them out.
Key features include:
Status window for quick device checks
High surge current handling capacity
Fast response to overvoltage
Easy installation and replacement
Compliance with IEC 61643-11 and IEC 61643-12
Why Choose LSP
LSP is a trusted surge protection consumer unit maker. The company has a strong reputation for safety. LSP has many years of experience. They make surge protection consumer units that follow IEC 61643-11 and IEC 61643-12 standards. These standards help each device clamp overvoltage. They also send surge current to ground during lightning surge or switching surge.
Key Reasons to Choose LSP:
Long History and Expertise
LSP has worked in surge protection for over twenty years. Their engineers know what homes, offices, and factories need. They use this knowledge to make reliable surge protection consumer units.Advanced Manufacturing
LSP uses modern factories with strict quality checks. Every surge protection consumer unit gets careful testing. This makes sure each device meets IEC standards and works well.Strong Research and Development
LSP spends money on research and development. The team studies new surge events and improves designs. They focus on making surge protection consumer units that react fast and last long.Global Certifications
All LSP surge protection consumer units have IEC 61643-11 and IEC 61643-12 certifications. These certificates show the devices clamp overvoltage and send surge current to ground.Clear Status Window
Each LSP surge protection consumer unit has a status window. Green means the device works normally. If it is not green, the device needs checking or replacing. This makes it easy for users to check surge protection.Wide Product Range
LSP sells surge protection consumer units for many uses. The product line has models for homes, offices, and factories. Each model gives strong protection from lightning surge and switching surge.Customer Support and Service
LSP helps customers before and after buying. The company gives clear installation guides and technical help. This service helps users get the best performance from their surge protection consumer units.
Tip: Picking LSP means you get surge protection consumer units that meet IEC standards and keep electrical systems safe.
LSP Surge Protection Consumer Unit Advantages
Feature | Benefit |
|---|---|
IEC 61643-11/12 Certification | Meets international surge protection standards |
Status Window | Easy device monitoring (green = normal) |
Advanced R&D | Fast response to overvoltage and surge events |
Quality Manufacturing | Reliable performance and long service life |
Wide Product Range | Solutions for homes, offices, and factories |
Customer Support | Help with installation and maintenance |
LSP leads in surge protection technology. The company focuses on quality, new ideas, and service. Their surge protection consumer units are a smart choice for people who want safety and compliance.
LSP has surge protection consumer units for many different needs. Surge protection keeps important devices safe in homes and businesses. Surge protection should fit the building’s size and how much risk there is. Surge protection works better when people plan for upgrades. Surge protection helps people follow local rules and stay safe. People should look at surge protection choices and talk to experts before buying.
FAQ
What does a surge protection consumer unit do?
A surge protection consumer unit stops too much voltage. It sends extra surge current to the ground. This keeps equipment and electrical systems safe from damage.
How often should users check the status window?
Users should look at the status window every month. Green means the device works fine. If it is not green, the device needs checking or replacing.
Is surge protection required for all homes?
Many countries say homes must have surge protection consumer units. IEC standards suggest surge protection for buildings with sensitive equipment. Surge protection is also needed if there is a risk of lightning induced surges.
What is the 10m rule in surge protection?
The 10m rule says the surge protection device should be close to the equipment. It must be no more than 10 meters away. This rule helps keep all circuits safe.
Can one surge protection consumer unit protect the whole building?
One surge protection consumer unit can protect small buildings. Big buildings or those with long wires may need extra surge protection devices at sub-panels.
How does the status window help users?
The status window shows if the device works. Green means the surge protection device is good. If it is not green, the device needs checking or replacing.
What IEC standards apply to surge protection consumer units?
IEC 61643-11 gives rules for testing and sorting devices. IEC 61643-12 gives rules for putting in and taking care of devices. It also explains the 10m rule and status window.
