In electrical engineering, the terms “surge arrester” and “surge protector (SPD)” are frequently confused, especially among non-technical users, purchasing staff, and even in some project communications. This confusion mainly arises because both devices are related to lightning and overvoltage protection, and are often generically referred to as “lightning protectors” in everyday language. However, from the perspectives of technical definition, voltage class, installation location, and protection target, they are fundamentally different devices. Surge arresters are typically used in medium- and high-voltage power systems to protect transformers, transmission lines, and substations against high-energy lightning surges, while surge protectors (SPDs) are mainly applied in low-voltage electrical systems to protect sensitive electronics, industrial controls, and communication equipment from transient overvoltage.
What Is a Surge Arrester?
Definition of surge arrester

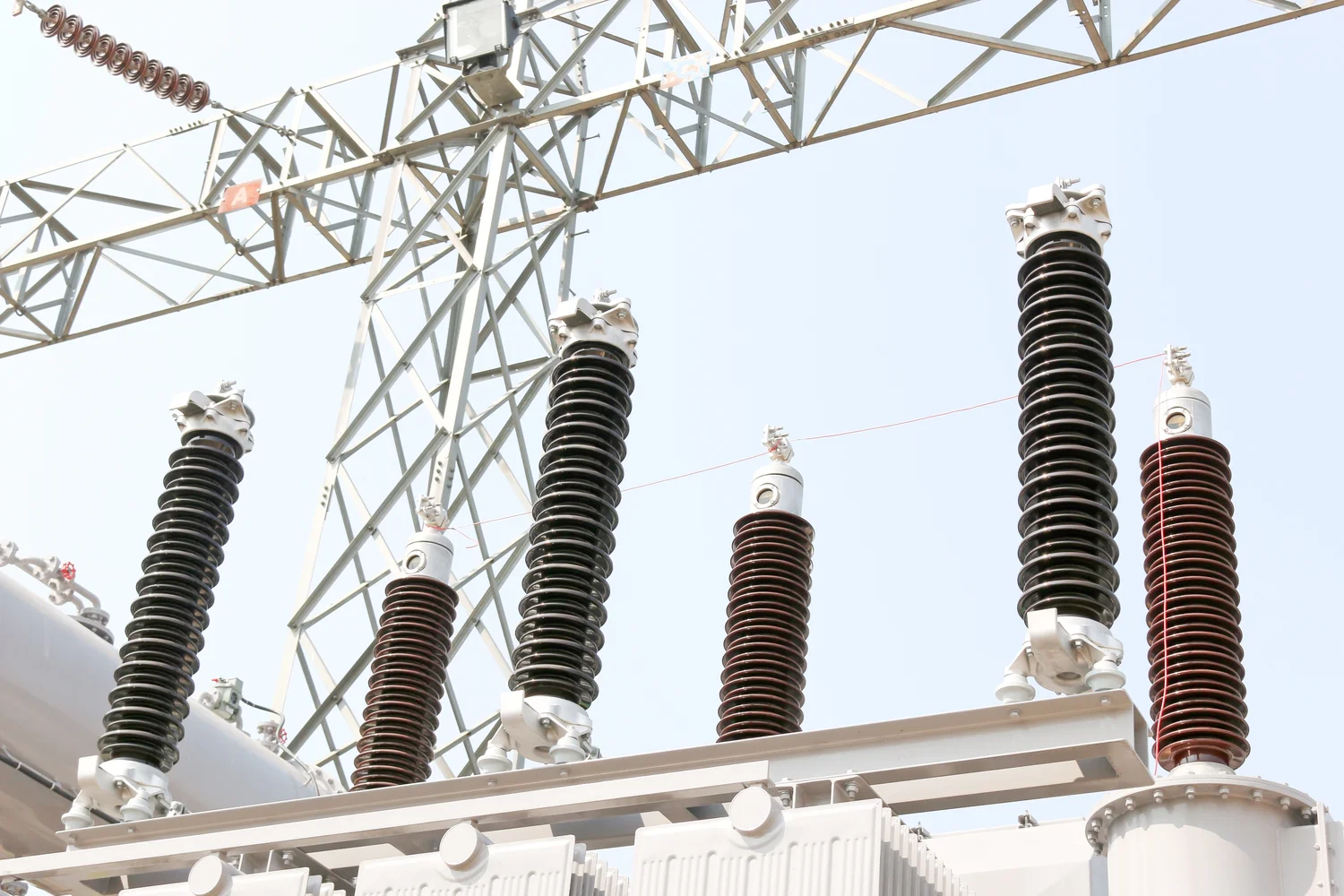

A surge arrester is a protective device specifically designed to protect electrical power systems from high-energy transient overvoltages caused by lightning strikes, switching operations, or fault conditions. Its primary function is to divert excessive surge current safely to ground before it can damage expensive electrical infrastructure such as transformers, switchgear, generators, cables, and substations. Unlike low-voltage surge protective devices (SPDs), surge arresters are mainly used in medium-voltage (MV) and high-voltage (HV) systems where surge energy levels are extremely high and insulation failure can cause catastrophic damage.
Typical technologies
The most common surge arrester technology today is the ZnO metal oxide varistor (MOV) arrester, which uses zinc oxide blocks without spark gaps and offers excellent energy absorption, fast response, and stable protection performance. Another traditional type is the gap-type arrester, which uses spark gaps to discharge surge energy and is still found in some older or specialized systems. Surge arresters are governed by international standards such as IEC 60099 and IEEE C62.11, which define their classification, testing methods, and performance requirements to ensure reliability under severe surge conditions.
What Is a Surge Protector (SPD)?
Definition of SPD (Surge Protective Device)
A Surge Protective Device (SPD) is a low-voltage electrical protection device designed to protect electrical and electronic equipment from transient overvoltages caused by lightning-induced surges, switching operations, or internal electrical disturbances. Its primary function is to limit surge voltage and divert excessive transient energy safely to the grounding system, ensuring that sensitive equipment operates within its safe voltage withstand limits. Unlike surge arresters used in high-voltage systems, SPDs are specifically engineered for low-voltage power distribution networks and end-use equipment protection.
SPD Types
Surge Protective Devices are commonly classified into three types based on their application and protection level: Type 1 SPD is installed at the main service entrance and protects against high-energy lightning currents; Type 2 SPD is installed in distribution panels and protects against switching and residual surges; Type 3 SPD is installed close to sensitive equipment and provides fine-level voltage protection for electronics such as PLCs, computers, and communication systems.
Surge Arrester vs Surge Protector: Core Differences
Core Differences Comparison Table
| Item | Surge Arrester | Surge Protector (SPD) |
| Voltage Level | Medium / High Voltage (kV level power systems) | Low Voltage (<1500V AC/DC systems) |
| Protection Target | Transformers, substations, transmission lines, switchgear | PLCs, inverters, servers, computers, communication systems |
| Installation Location | At system entry points (substations, transmission terminals) | Inside distribution panels, sub-panels, near end-use equipment |
| Surge Type | Direct lightning impulse (10/350 μs waveform) | Induced lightning surges & switching transients (8/20 μs waveform) |
| Core Function | Diverts high surge current directly to ground (energy discharge) | Clamps transient overvoltage and limits residual voltage (Up control) |
| System Role | Primary protection (grid-level protection layer) | Secondary / final protection (equipment-level protection layer) |
| Energy Handling | Very high energy capability for lightning currents | Lower energy handling for residual and transient surges |
| Response Speed | Fast operation, optimized for high-energy discharge | Extremely fast (nanosecond-level response) for sensitive electronics |
| Standards | IEC 60099 series / IEEE C62.11 | IEC 61643 series |
| Application Areas | Power transmission systems, substations, utility grids | Solar PV systems, industrial automation, buildings, data centers, telecom |
Voltage Level Difference
Surge arresters are engineered for medium-voltage (MV) and high-voltage (HV) electrical systems, typically ranging from several kilovolts (kV) up to hundreds of kilovolts in transmission networks. These systems form the backbone of power generation, transmission, and distribution infrastructure, where electrical stress levels are extremely high and insulation coordination plays a critical role in system safety. In such environments, surge arresters must be capable of withstanding and discharging very high-energy lightning impulses without causing damage to primary electrical assets such as transformers, switchgear, overhead lines, and substations.
In contrast, Surge Protective Devices (SPDs) are specifically designed for low-voltage (LV) electrical systems operating below 1500V AC or DC. These include residential buildings, commercial facilities, industrial control panels, and modern electronic systems. Because these systems operate at lower voltage levels, they are more vulnerable to transient overvoltages caused by lightning-induced surges, switching operations, and internal disturbances. SPDs therefore focus on precise voltage limitation and protection of sensitive electronic components rather than handling extremely high energy levels.
From a system design perspective, this voltage level difference defines their fundamental roles: surge arresters act at the “grid level protection layer,” while SPDs operate at the “equipment-level protection layer.” Together, they form a coordinated, multi-stage surge protection architecture that ensures both infrastructure stability and end-user equipment safety.
Protection Target Difference
Surge arresters are primarily designed to protect high-value and high-energy electrical infrastructure within power transmission and distribution networks. Their main protection targets include transformers, substations, switchgear, overhead transmission lines, and other grid-level assets. These components form the backbone of the electrical power system and are exposed to extremely high-energy lightning strikes and switching surges. A failure in these systems can lead to large-scale power outages and significant economic losses, so surge arresters are engineered to ensure system stability by safely diverting large surge currents away from critical infrastructure.
In contrast, Surge Protective Devices (SPDs) focus on protecting low-voltage electronic and control equipment that is highly sensitive to even small transient overvoltages. Typical protection targets include PLC controllers, inverters, servers, communication equipment, industrial automation systems, monitoring devices, and smart building electronics. These devices often contain semiconductor components that have very low voltage withstand capability, making them vulnerable to residual surge energy that passes through upstream protection stages.
From a system perspective, surge arresters and SPDs protect completely different layers of the electrical ecosystem. Surge arresters focus on safeguarding the “power infrastructure layer,” ensuring grid stability and preventing catastrophic failure at the transmission level. SPDs, however, focus on the “end-user equipment layer,” ensuring the safe and reliable operation of sensitive electronic devices. Together, they form a hierarchical protection structure that covers both macro-level infrastructure and micro-level electronics.
Installation Location Difference
Surge arresters are installed at the boundary between the external power network and the internal electrical system, typically at system entry points such as transmission line terminals, substations, transformer high-voltage sides, or incoming utility lines. Their position is strategically chosen to intercept high-energy lightning surges before they penetrate deeper into the power infrastructure. By being placed at the front line of the electrical network, surge arresters act as the first protective barrier, diverting large surge currents directly to the grounding system and preventing them from entering sensitive or downstream equipment.
In contrast, Surge Protective Devices (SPDs) are installed within low-voltage distribution systems and close to the equipment being protected. Typical installation locations include main distribution boards (MDB), sub-distribution panels, control cabinets, and directly at or near sensitive loads such as PLCs, servers, and communication equipment. This downstream placement allows SPDs to provide fine-level voltage limitation after upstream protection devices have already reduced the initial surge energy.
From a system design perspective, this difference in installation location reflects a coordinated protection hierarchy. Surge arresters are positioned at the “system entrance level,” handling external high-energy surges, while SPDs are positioned at the “distribution and load level,” managing residual and internally generated transients. This layered installation strategy is essential to achieving a complete and effective surge protection system.
Response Speed Difference
Surge arresters are designed with a primary focus on high-energy discharge capability rather than ultra-fast switching speed. Their operation involves conducting and diverting extremely large surge currents to ground once the voltage exceeds a certain threshold. Although their response is fast enough for power system protection, it is generally considered slower compared to electronic-level protection devices. This is because surge arresters are optimized to handle massive energy levels safely and repeatedly, ensuring stability of high-voltage infrastructure such as transformers, substations, and transmission systems.
In contrast, Surge Protective Devices (SPDs) are engineered for extremely fast response times, typically in the nanosecond range. This ultra-fast reaction is essential for protecting modern semiconductor-based equipment, which can be damaged by even very short voltage spikes. SPDs continuously monitor voltage levels and clamp transient overvoltages almost instantly, preventing harmful energy from reaching sensitive electronic components such as PLCs, servers, communication systems, and industrial control units.
From a system design perspective, the difference in response speed reflects their functional priorities. Surge arresters prioritize energy handling and system-level robustness, while SPDs prioritize precision voltage control and ultra-fast protection for sensitive loads. When used together in a coordinated protection system, they ensure both macro-level surge handling and micro-level electronic safety.
Working Principle Comparison
Surge arresters operate on the principle of direct energy diversion. When a lightning surge or switching overvoltage exceeds the arrester’s breakdown threshold, the device rapidly transitions from a high-impedance state to a low-impedance conducting path. This allows the extremely high surge current to be safely diverted directly into the grounding system. The primary goal is not to limit voltage precisely, but to ensure that large amounts of lightning energy are discharged away from critical power system components such as transformers, substations, and transmission lines, thereby preventing insulation failure and system damage.
In contrast, Surge Protective Devices (SPDs) operate on the principle of voltage clamping and residual voltage limitation. SPDs continuously monitor system voltage and respond within nanoseconds when a transient overvoltage occurs. Instead of simply diverting large energy, SPDs limit the voltage to a safe level (called protection level Up) by clamping the surge and controlling the residual voltage that reaches downstream equipment. This ensures that sensitive electronic devices such as PLCs, inverters, servers, and communication systems are not exposed to damaging voltage spikes.
From a system engineering perspective, the fundamental difference is clear: surge arresters prioritize current diversion and energy discharge, while SPDs prioritize precise voltage control and equipment-level protection. Together, they form a complementary protection mechanism that handles both high-energy lightning events and low-energy transient disturbances across different system levels.
Applications
Surge arresters are widely used in high-voltage and medium-voltage power systems where the risk of direct lightning strikes and large-scale switching surges is significant. Their main role is to protect critical power infrastructure and ensure grid stability by safely diverting high-energy surge currents into the grounding system. These applications are typically located in outdoor or utility-scale environments where electrical stress levels are extremely high and system reliability is essential for continuous power delivery.
Typical applications include power transmission lines, substations, outdoor transformers, and utility grid networks. In these environments, surge arresters act as the first line of defense against lightning-induced overvoltage, preventing catastrophic failures and large-scale power outages.
Surge Protective Devices (SPDs) are designed for low-voltage electrical systems that contain sensitive electronic equipment. These environments are more vulnerable to transient overvoltages caused by lightning-induced surges, switching operations, and internal electrical disturbances. SPDs provide multi-level protection by limiting residual voltage and ensuring that electronic devices operate within safe voltage limits.
Typical applications include solar photovoltaic (PV) systems, industrial automation systems, commercial buildings, data centers, and telecommunications networks. In these scenarios, SPDs protect critical electronic systems such as inverters, PLCs, servers, communication modules, and monitoring equipment, ensuring operational continuity and reducing equipment downtime.
Can Surge Arrester Replace SPD?
Surge arresters and surge protective devices (SPDs) cannot replace each other because they are designed for different voltage levels, protection objectives, and system positions. A surge arrester is intended for high-voltage power systems to protect grid infrastructure from high-energy lightning surges, while an SPD is designed for low-voltage systems to protect sensitive electronic equipment from residual and transient overvoltages.
From a technical perspective, surge arresters are optimized to handle extremely high surge energy at the system entrance, while SPDs are optimized for precise voltage limitation and fast response near end-use equipment. Even if a surge arrester successfully diverts the majority of lightning energy, residual voltage and induced surges can still reach downstream equipment, which is why SPD protection is still required.
Therefore, surge arresters and SPDs are not competing technologies but complementary protection layers. A complete surge protection system requires both devices working together to ensure full coverage from the power grid to sensitive electronic loads.
How Surge Arrester and SPD Work Together
Modern electrical power systems require a coordinated, multi-layer surge protection strategy because lightning and switching surges can enter the system at different points and with different energy levels. A single protection device cannot effectively handle the entire surge energy spectrum from the grid entrance to sensitive end-use equipment.
Surge Arrester (External lightning)
At the system entry point, surge arresters act as the first line of defense. They intercept high-energy external lightning currents before they propagate into internal power systems. By diverting massive surge currents directly to the grounding system, surge arresters significantly reduce the energy level that enters the electrical network.
SPD (Internal lightning)
After the surge energy is reduced by the arrester stage, residual voltage and induced transient surges may still exist inside the system. SPDs installed in distribution panels and near sensitive loads provide precise voltage clamping and fine protection, ensuring that electronic equipment operates within safe voltage limits.
System Benefit
This layered protection approach ensures:
- No single device is overloaded
- Surge energy is controlled progressively
- Sensitive equipment receives only safe residual voltage
- Overall system reliability is significantly improved
Common Industry Misunderstandings
In practical engineering and procurement, surge arresters and surge protective devices (SPDs) are often misunderstood or incorrectly applied. These mistakes can significantly reduce system protection effectiveness and even lead to equipment failure. Understanding these common errors is essential for building a reliable surge protection system.
Mistaking SPD as a Surge Arrester
One of the most common misunderstandings is treating SPD and surge arrester as the same device. Although both are used for surge protection, they operate at completely different voltage levels and system layers. Surge arresters are designed for high-voltage power networks, while SPDs are designed for low-voltage electrical and electronic systems. Confusing the two often leads to incorrect selection and insufficient protection.
Using Surge Arresters in Low-Voltage Systems
Another frequent mistake is installing surge arresters in low-voltage distribution systems. Surge arresters are not designed for precise voltage clamping required by sensitive electronics. In low-voltage environments, this misapplication may result in poor protection performance or even compatibility issues with downstream equipment.
Ignoring Coordinated Protection Design
Many systems install protection devices individually without considering system-level coordination. Without proper coordination between surge arresters and SPDs, energy distribution becomes unbalanced, and devices may operate simultaneously or inefficiently. A correct design should follow a layered protection concept, ensuring that each device operates within its intended protection stage.
LSP surge protection devices: Brand and Products
LSP is a well-known company in surge protection. They have over 10 years of experience. LSP works hard on making and improving surge protection devices. Their products are safe and reliable. LSP follows strict IEC rules, so your electrical system gets good protection.
LSP has modern factories and smart engineers. They use new machines to design and test each surge protection device. Their products work well in real-life situations. LSP also helps customers with questions or problems. If you need help picking a device, their team can help you.
LSP surge protector: Features
LSP surge protectors, called SPDs, keep your electronics safe from too much voltage and small surges. You put these near computers, TVs, and other important things. LSP surge protectors stop extra voltage and send the surge to the ground. This helps your devices last longer.
Important features are:
- Meets IEC rules for good protection
- Acts fast to stop extra voltage
- Has different SPD types (Type 1, 2, 3) for many uses
- Easy to put near devices or branch circuits
- Has a window to check if it works
You can feel safe knowing your electronics are protected from daily surges.
Choosing LSP for surge protection
Pick LSP surge protection devices if you want full safety for your system and devices. Start with an LSP surge arrester at the main panel for big surges. Add LSP surge protectors (SPDs) near your electronics for extra safety from small surges. LSP has many products, so you can find what you need for home, office, or factory.
Try these steps:
- Find the places you need to protect (main panel, branch circuits, single devices).
- Pick the right LSP surge arrester or surge protector for your needs.
- Check that the device fits your system’s voltage and current.
- Make sure it meets IEC rules for safety.
LSP’s experience, good products, and support make it a smart pick for surge protection.
Conclusion
Surge arresters and surge protective devices (SPDs) are fundamentally different components in electrical protection systems and should not be considered interchangeable. Each device is designed for a specific voltage level, energy range, and protection objective within the overall power system architecture.
When properly coordinated, surge arresters and SPDs form a layered protection system that gradually reduces surge energy from the grid level to the equipment level. This ensures that each protection device operates within its optimal range, preventing overload and improving overall system reliability.
Effective surge protection is not about choosing between a surge arrester and an SPD, but about using both correctly in a coordinated system design.
Frequently Asked Questions (FAQ)
Is surge arrester the same as surge protector?
No. A surge arrester is designed for medium and high-voltage power systems to protect electrical infrastructure from high-energy lightning currents. A surge protector (SPD) is designed for low-voltage systems to protect sensitive electronic equipment from transient overvoltage. They operate at different system levels and are not the same device.
Can SPD replace a lightning arrester?
No, a Surge Protective Device (SPD) cannot replace a lightning arrester because they are designed for different voltage levels and protection purposes within an electrical system. A lightning arrester is used in medium- and high-voltage power systems to safely divert high-energy lightning currents directly to ground, protecting critical infrastructure such as transformers and substations.
Which is better for solar PV systems?
For solar PV systems, neither surge arresters nor surge protective devices (SPDs) alone is sufficient. Both are required because they protect different parts of the system. Surge arresters are mainly used at higher-energy entry points such as combiner boxes or inverter inputs to divert large lightning-induced currents. They protect the main power infrastructure of the PV system.
Where should SPD be installed?
Type 1 SPDs are placed at the main incoming distribution board, Type 2 SPDs at sub-distribution panels, and Type 3 SPDs close to sensitive equipment. This coordinated installation helps reduce surge energy step by step, limits residual overvoltage, and ensures safe operation of electrical and electronic devices.
Why do I need both surge arrester and SPD?
Surge arresters and surge protective devices (SPDs) are designed to protect different parts of the electrical system, which is why both are required for complete surge protection. A surge arrester is used at the system entry or high-voltage side to divert high-energy lightning currents safely into the ground, protecting power infrastructure such as transformers and distribution networks.
