When you set up solar power systems, you want them to run safely, efficiently, and reliably. That’s where a PV Solar Combiner Box comes in. It protects your solar panels from electrical faults and keeps everything running smoothly. Did you know that 23% of solar power systems fail because they lack proper protection or use the wrong combiner box? By streamlining wiring and adding smart protection, you lower risks and boost energy output. If you care about getting the most out of your renewable energy investment, you need the right protection in your solar power systems. Check out how different features in solar power systems can help you avoid costly failures and maximize performance.
What PV combiner boxes do for solar power systems | How they help you |
|---|---|
Simplify wiring and reduce failure points | Boost efficiency and cut installation costs |
Monitor multiple strings and manage loads | Improve reliability and safety |
Guard against overcurrent and overvoltage | Keep your system running longer |

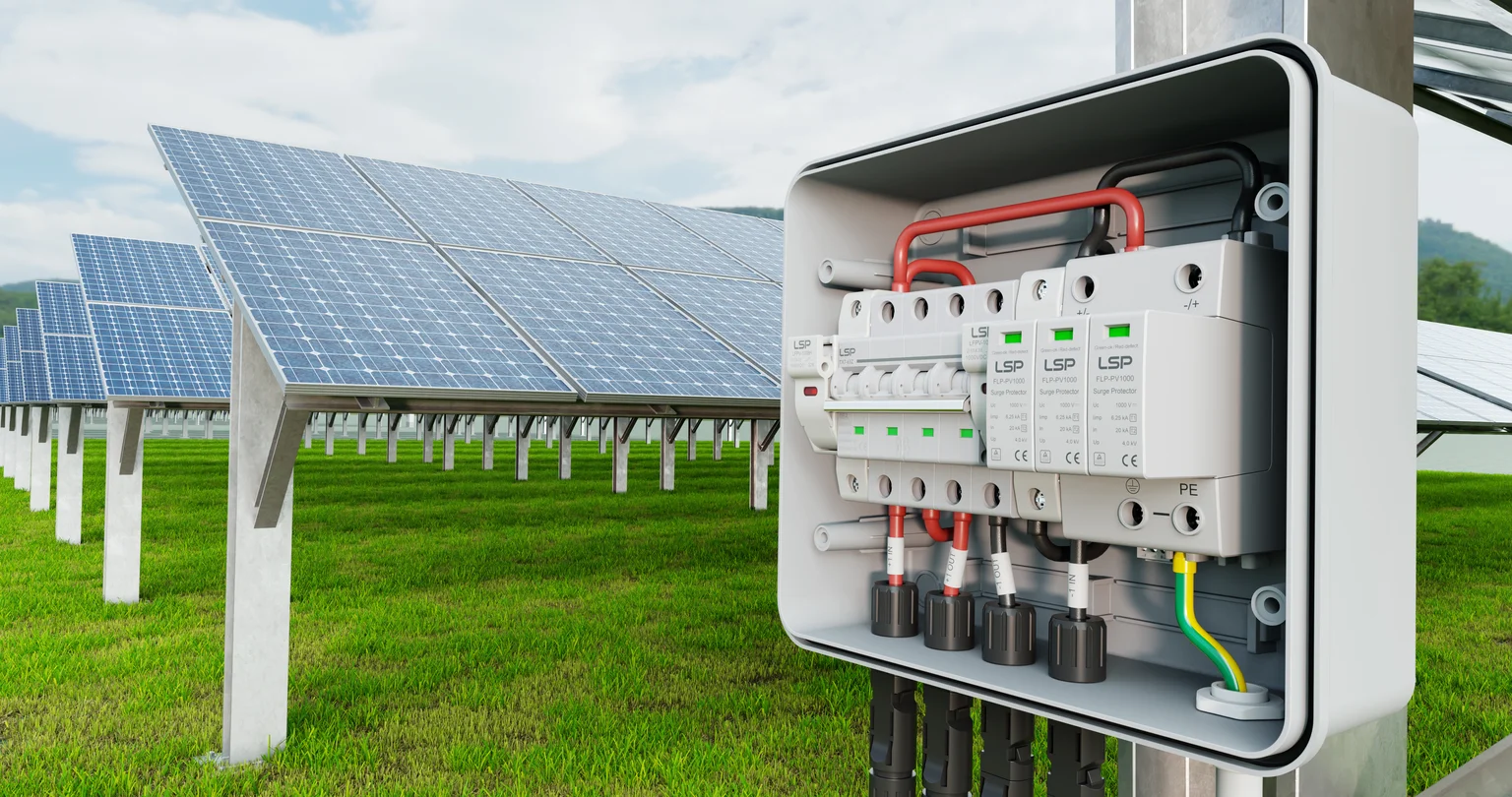

What Is a PV Solar Combiner Box?
Basic Function and Role
You might wonder what a pv solar combiner box actually does in your solar setup. Think of it as the central hub for all your solar panel strings. When you connect several panels, each one sends direct current (DC) electricity through its own wire. The pv combiner box brings these wires together, making your system easier to manage and much safer.
Here’s a quick look at the main components and their roles:
Component | Function | Safety Impact |
|---|---|---|
DC Fuses/Breakers | Overcurrent protection for each string | Prevents fire hazards from short circuits and overloads |
Surge Protection Device | Diverts lightning and switching surges to ground | Shields equipment from voltage spikes |
Disconnect Switch | Safe isolation for maintenance | Lets you service without risk of electric shock |
Busbars/Terminal Blocks | Connection points for multiple circuits | Keeps connections secure and stable |
Enclosure | Protects internal parts from weather | Stops moisture and corrosion from damaging the system |
You get more than just protection. The pv solar combiner box also helps you organize your wiring, cut down on clutter, and make troubleshooting easier. If you ever need to service your system, you can safely disconnect sections without shutting down everything.
How It Consolidates DC Output
When you use a pv combiner box, you combine the output from multiple solar panel strings into a single circuit. This step is key for sending power to your inverter or charge controller. You avoid messy wiring and reduce the risk of loose connections.
You connect each solar panel string to its own fuse or breaker inside the pv solar combiner box.
The box merges all these inputs using busbars, creating one strong output.
Surge protection devices inside the pv combiner box guard your system against sudden voltage spikes.
The enclosure keeps everything safe from rain, dust, and heat.
By consolidating DC output, you make your solar system more reliable and efficient. You also meet international safety standards like IEC 62109-X, which require proper protection and organization in photovoltaic combiner boxes. If you want a system that’s easy to maintain and less likely to fail, you need a quality pv solar combiner box.
Tip: Always choose a pv combiner box with individual string fusing and a weatherproof enclosure. You’ll protect your investment and keep your energy flowing.
PV Combiner Box Protection Features
When you look at a pv combiner box, you see more than just a metal enclosure. You see a collection of protective devices working together to keep your panels safe and your solar combiner box running at peak performance. Let’s break down the main features that make these boxes essential for safety and reliability.
Fuses and Circuit Breakers
You want your solar combiner box to stop electrical faults before they become disasters. Fuses and circuit breakers do exactly that. Each panel string connects to its own fuse or breaker inside the pv combiner box. If a fault or overload happens, these devices act fast to isolate the problem.
Here’s a quick look at the types and ratings you’ll find:
Type | Description | Common Ratings |
|---|---|---|
Fuses | gPV rated fuses designed for DC circuits and solar arrays. | 10x38mm, 14x51mm |
Circuit Breakers | DC-rated miniature circuit breakers (MCBs) that are resettable. | N/A |
Fuses melt and break the circuit when the current gets too high. Circuit breakers trip automatically and can be reset after you fix the issue. Both help prevent fires and keep your panels from getting damaged. You get simple, reliable protection that keeps your system running smoothly.
Device Type | Function | Advantages |
|---|---|---|
Fuse | Melts to stop the flow of electricity when current exceeds its rating. | Provides a simple, one-time protection mechanism against overcurrent. |
Circuit Breaker | Automatically opens the circuit for overcurrent protection. | Resettable after tripping, can be used for circuit disconnection during maintenance. |
Overcurrent Protection | Protects conductors and equipment from overheating and electrical faults. | Prevents damage to insulation, reduces risk of electrical shock, and minimizes fire hazards. |
You get individual string protection, which means each panel string has its own safety net. If one string fails, the rest keep working. This setup boosts reliability and cuts down on maintenance costs. You don’t have to shut down the whole solar combiner box just to fix one problem.
The pv combiner box houses overcurrent protection devices like fuses or circuit breakers, which are essential for preventing electrical overloads that could damage the solar power system.
Fuses cut off the faulty string during a short circuit or overload, protecting the safe operation of the circuit.
Circuit breakers automatically disconnect the faulty circuit during serious overloads or short circuits, preventing further accidents and ensuring equipment safety.
Surge Protection and Overcurrent Prevention
Lightning strikes and sudden voltage spikes can ruin your panels and damage your solar combiner box. Surge protection devices inside the pv combiner box divert these surges safely to ground. You get overvoltage protection that shields your investment and keeps your system running longer.
Overcurrent prevention works hand-in-hand with surge protection. When you combine these features, you protect your panels from overheating, electrical faults, and fire hazards. Your solar combiner box stays reliable, and your panels last longer.
If you skip these features, you risk common failure modes like blown fuses, breaker malfunctions, and even fire. Here’s what can go wrong without proper protection:
Failure Mode | Description |
|---|---|
Breaker Malfunction | Circuit breakers may trip frequently or fail to isolate faults properly, leading to cascading issues. |
Environmental Stress | Water ingress and dust accumulation can cause corrosion or short circuits, especially without proper IP protection. |
Lightning Protection Failure | Surge protection devices can fail, exposing the system to risks from electrical surges. |
Loose or Faulty Connections | Loose terminals can lead to overheating and eventual melting. |
Blown Fuses | Repeatedly blown fuses may indicate a short circuit or undersized fuse. |
Overheating | Thermal degradation can occur in hot climates or direct sunlight without adequate ventilation. |
Dust and Water Ingress | Lack of proper sealing can lead to dust buildup and water leakage, compromising system integrity. |
Monitoring & Communication Errors | Faulty signal cables or incorrect configurations can disrupt system monitoring. |
You want your pv combiner box to handle these risks with ease. Surge protection and overcurrent prevention are your best defense against costly repairs and downtime.
Disconnect Switches and Monitoring
You need to work on your solar combiner box safely. Disconnect switches let you isolate sections of your system for maintenance. You don’t have to worry about electric shock or damaging your panels. Monitoring systems give you real-time data on performance, so you spot problems before they get serious.
Industry standards like NEC 690.16(B) and UL 98B require visible disconnects and reliable operation. Arc-fault protection is also a must, helping you avoid electrical fires and keep your panels safe.
Standard | Description | Impact on Safety |
|---|---|---|
NEC 690.16(B) | Requires a visible means of disconnect within sight and no more than 50 feet from fuses | Enhances safety during maintenance by ensuring easy access to disconnects |
UL 98B | Testing standard for integral disconnects in PV applications | Ensures reliability and safety of disconnects used in combiner boxes |
Arc-fault protection | Required by NEC to prevent electrical fires | Increases safety by detecting and mitigating arc faults in PV systems |
You get even more reliability when your pv combiner box includes monitoring. You see how each panel string performs, catch faults early, and keep your system running at top performance. You save time and money on maintenance, and your panels stay protected.
Tip: Always choose a solar combiner box with individual string protection, surge protection, disconnect switches, and monitoring. You’ll get the best safety and reliability for your panels and maximize your system’s performance.
Solar Combiner Box and Energy Optimization
Reducing Energy Loss and Wiring Complexity
When you connect multiple solar panels, you want every bit of energy to count. A solar combiner box helps you do just that. By bringing together multiple solar panel strings, you cut down on the amount of wiring needed. Fewer wires mean less resistance, which leads to lower energy loss. You also make your installation look cleaner and easier to manage.
High-voltage systems with a combiner box can deliver up to 0.8% more energy from every site.
Energy efficiency improves by 1–2%, which adds up to major gains over a system’s 25-year lifetime.
You might not think 1% sounds like much, but over time, that small boost can mean thousands of extra kilowatt-hours. When you use a combiner box, you also reduce the number of connection points. Fewer connections mean fewer chances for something to go wrong. You spend less time troubleshooting and more time enjoying reliable power from your panels.
A solar combiner box also makes it easier to expand your system. If you want to add more panels later, you can connect new strings without redoing all your wiring. This flexibility helps you scale up as your energy needs grow.
Tip: If you want to maximize the performance of solar power systems, always plan for future expansion. A well-chosen combiner box makes upgrades simple and cost-effective.
Maintaining Steady Voltage and System Efficiency
Keeping voltage steady is key to getting the best performance from your panels. When you combine multiple solar panels using a combiner box, you help maintain a consistent voltage level before the power reaches your inverter. This steady voltage keeps your inverter working efficiently and protects your equipment from unexpected drops or spikes.
Proper placement of the combiner box within your solar array limits power loss and ensures maximum system efficiency. By putting the box in the right spot, you minimize both voltage and power losses. This simple step boosts the overall performance of your solar setup.
Upgraded components, like modern surge protectors inside the combiner box, can boost system efficiency by up to 12%, according to Arizona retrofitting data.
Strategic placement and quality components help you get the most out of every panel.
You also get better monitoring and control. Many modern combiner boxes come with smart features that let you track the performance of each string. If one string of panels underperforms, you spot the issue fast and fix it before it affects your whole system.
Here’s how combiner boxes impact scalability and efficiency:
Feature or Innovation | Impact on System Efficiency and Scalability |
|---|---|
IoT and AI integration | Enhances monitoring and predictive maintenance, reducing downtime and operational costs |
Advanced safety features | Supports larger installations by ensuring compliance and safety |
Hybrid and decentralized system compatibility | Encourages scalability in diverse environments |
When you use a combiner box, you make your system more adaptable. You can add more panels or upgrade components as technology improves. This adaptability means your solar investment keeps paying off, even as your needs change.
Note: If you want to keep your system efficiency high, always use a combiner box with upgraded components and smart monitoring. You’ll see better performance, lower maintenance costs, and a longer lifespan for your panels.
In the end, a solar combiner box does more than just organize wires. It helps you reduce energy loss, maintain steady voltage, and optimize the performance of your solar power systems. You get a cleaner, safer, and more efficient setup that saves you money year after year.
Applications and LSP PV Combiner Box Solutions
Residential, Commercial, and Utility-Scale Uses
You might wonder where PV combiner boxes fit in different solar energy systems. These boxes work in almost every setting, from homes to huge solar farms. Here’s a quick look at how they help in each type of installation:
Application Type | Description |
|---|---|
Residential Installations | PV combiner boxes help in organizing wiring from multiple panels, ensuring a safe and efficient connection to the inverter. |
Commercial Installations | They provide a centralized point for monitoring and maintenance, enhancing operational efficiency. |
Utility-Scale Installations | In large solar farms, combiner boxes reduce cable management complexity and improve system safety and performance. |
If you have residential solar systems, you get neat wiring and easy troubleshooting. For commercial solar installations, you can monitor and maintain your setup from one spot. In commercial solar projects and utility-scale plants, you cut down on cable mess and boost safety. No matter the size, you get a safer, more reliable system.
Tip: You can use the same maintenance checklist for any installation. Regular inspections, seal checks, and cleaning keep your combiner box working its best.
LSP Product Features and Advantages
You want a PV combiner box that stands up to tough conditions and meets strict standards. LSP delivers on both fronts. Every box uses components that pass the highest industry tests. Surge protection devices carry certifications like TUV, CB, and CE, and they meet IEC/EN 61643-11 and IEC/EN 61643-31 standards. LSP follows ISO 9001 in manufacturing, so you know you’re getting quality.
Feature or Standard | What It Means for You |
|---|---|
Rigorous Quality Control | You get reliable performance and fewer failures. |
International Certification | Your system meets global safety and quality standards. |
Strong Waterproof Design | High IP ratings protect against humidity and rain, so your box lasts longer. |
Heat and Cold Resistance | Materials handle extreme temperatures, so your box works in any climate. |
You don’t have to worry about humidity or temperature swings. LSP boxes use materials that resist cracking in the cold and handle heat well. High IP ratings keep out moisture, so you avoid short circuits and corrosion. You also get clear maintenance guidelines—check connections, seals, and fuses regularly, and always use a qualified technician.
With LSP, you get a PV combiner box that keeps your solar energy systems safe, efficient, and ready for anything.
You want your solar panels to last and deliver maximum energy. PV combiner boxes give you protection, efficiency, and reliability for every installation. Whether you’re powering a home or a solar farm, you need features like DC circuit breakers, fuses, and anti-reverse diodes. Look for boxes with weather-resistant design, easy installation, and strong safety features.
Key Factor | Description |
|---|---|
Design Quality | Weather-resistant, sealed against moisture |
Compatibility | Handles your system’s output and components |
Safety Features | Includes breakers, fuses, and secure connections |
Ease of Installation | Clear labeling and accessible terminals |
Choose a trusted brand like LSP. You’ll get advanced technology, cost savings, and peace of mind for years to come.
FAQ
What does a pv combiner box do in my solar system?
A pv combiner box brings together the output from several solar panel strings. You get safer wiring, easier maintenance, and better protection for your pv setup. This box helps you keep your pv system organized and running smoothly.
How does a pv combiner box protect my panels?
You get protection from electrical faults with a pv combiner box. It uses fuses, circuit breakers, and surge protection to guard your pv panels against overcurrent and voltage spikes. This keeps your pv investment safe and reliable.
Can I use a pv combiner box for any size pv installation?
Yes, you can use a pv combiner box for residential, commercial, or utility-scale pv systems. The box adapts to different pv setups, making it easy to expand or upgrade your pv array as your energy needs grow.
Do I need to maintain my pv combiner box regularly?
You should check your pv combiner box often. Look for loose connections, blown fuses, and signs of moisture. Regular maintenance helps your pv system last longer and keeps your pv panels working at their best.
What features should I look for in a pv combiner box?
Choose a pv combiner box with strong surge protection, individual string fusing, and a weatherproof enclosure. These features help your pv system stay safe and efficient. You also want easy access for maintenance and clear labeling for your pv wiring.
Always match your pv combiner box to your pv system’s size and voltage for the best results.
Feature | Why It Matters for Your pv System |
|---|---|
Surge Protection | Shields your pv panels from voltage spikes |
String Fusing | Protects each pv panel string |
Weatherproof Case | Keeps your pv box safe from rain and dust |
Easy Access | Makes pv maintenance simple |
