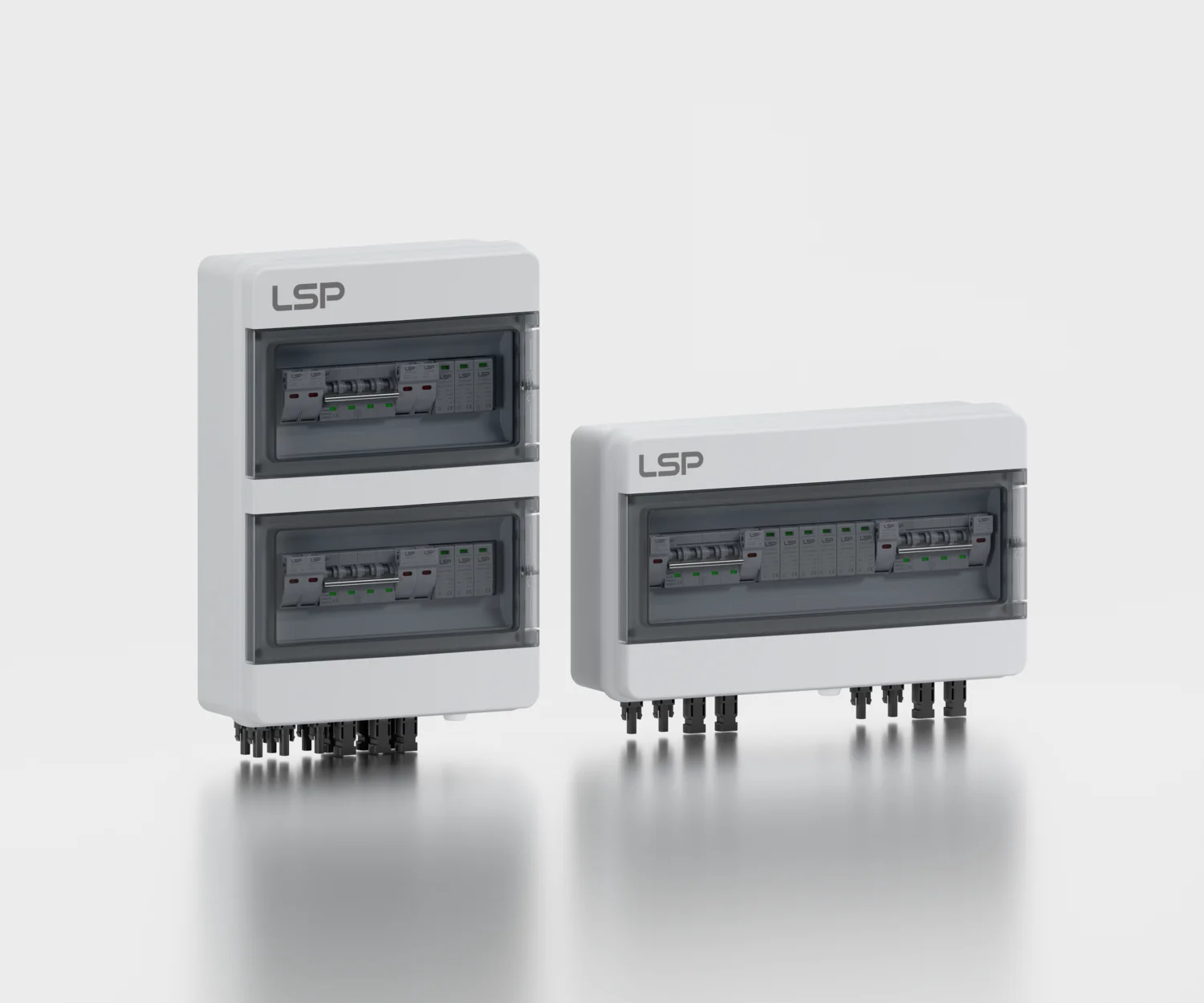

LSP designs and manufactures PV Combiner Boxes for 600V, 1000V, and 1500V DC photovoltaic systems, used in rooftop, utility-scale, and commercial installations to combine multiple PV string outputs into a DC bus.
Each PV Combiner Box integrates overcurrent and surge protection functions, supporting reliable DC string combining and protection in photovoltaic systems.
PV Combiner Box is designed in accordance with IEC 61439 for low-voltage switchgear assemblies, typically integrating DC fuses, circuit breakers, and surge protection devices (SPDs) for string-level protection.
The PV Combiner Box features a modular design with configurable string inputs and optional monitoring for current status and basic operational data.
For DC systems without current zero-crossing, the PV Combiner Box is designed with DC fault current interruption and arc control capability.
PV Combiner Box enclosures are rated IP65-IP67 for outdoor environments, with resistance to temperature, humidity, UV exposure, and salt mist for long-term operation.
600V / 1000V / 1500V DC
IP65-IP67 Protection Rating
Ensures reliable PV combiner box operation in harsh outdoor environments
Integrated DC SPD Protection
Provides surge protection for PV combiner box DC circuits and downstream equipment
Modular System Configuration
Supports OEM/ODM customization for PV combiner box project requirements
PV Combiner Box combines DC outputs from multiple PV strings to inverter inputs in photovoltaic systems. It integrates overcurrent protection and surge protection functions for rooftop, utility-scale, and commercial installations.
PV Combiner Box is designed in accordance with IEC 61439 for low-voltage switchgear assemblies and covers system voltages from 600V to 1500V DC.
PV Combiner Box integrates DC fuses, miniature circuit breakers, surge protection devices (SPD), and monitoring units within a modular structure for PV string combining and system protection.
The internal electrical layout and insulation design comply with IEC 61439 standards, ensuring safe and reliable operation under DC conditions without current zero-crossing, suitable for residential, commercial, and utility-scale PV systems.
Diverts lightning-induced or surge overvoltages to the grounding system within the PV combiner box, reducing stress on inverters and downstream PV system equipment.
The PV combiner box enclosure is rated IP65-IP67, offering protection against dust and moisture ingress and ensuring reliable operation in harsh outdoor PV environments.
Provides a quick connection between PV strings and the combiner circuit inside the PV combiner box, simplifying installation and improving system integration efficiency.
Used in a PV combiner box for fast disconnection under overcurrent or abnormal conditions, supporting resettable operation and facilitating PV system maintenance.
Provides string-level fault protection within a PV combiner box by automatically disconnecting the circuit under short-circuit or overcurrent conditions, ensuring continuous operation of other PV strings.
Provides a waterproof and dustproof cable entry solution for the PV combiner box, effectively securing the cables while maintaining and preserving the enclosure’s IP rating over long-term operation.
PV Combiner Box is a distribution unit on the DC side of photovoltaic systems, used to combine multiple PV string outputs to inverter inputs. It integrates overcurrent protection and surge protection functions within a single enclosure.
PV Combiner Box design supports selective protection and centralized maintenance, improving system reliability and operational efficiency.
PV Combiner Box is a key DC-side distribution and protection device in photovoltaic systems.
It is used to combine multiple PV string outputs and deliver them to the inverter input, while integrating overcurrent protection and surge protection functions within a single enclosure.
Each PV string is protected by an individual fuse or protective device, enabling selective fault isolation so that a fault in one string does not affect the operation of others.
The internal structure is modular, allowing flexible layout and easy maintenance of components inside the combiner box.
With an IP65-IP67 protection rating, the solar combiner box is designed for reliable outdoor operation under all weather conditions. Optional monitoring units can be integrated for real-time voltage and current supervision.
PV combiner box selection is based on key parameters, including DC voltage rating, number of input PV strings, string current, output configuration, and total output current, to ensure safe and reliable operation across different PV system applications.
Maximum DC Voltage
The maximum DC voltage of a solar combiner box must exceed the PV system’s open-circuit voltage under extreme low-temperature conditions to prevent overvoltage failure. LSP Solar Combiner Box products are available in 600V, 1000V, and 1500V DC ratings for different PV system scales.
Number of Input PV Strings
The number of input PV strings is determined by the inverter MPP tracker configuration and solar system design. Standard LSP Solar Combiner Box models support 1-3 inputs, with OEM/ODM customization available for larger PV system requirements.
PV String Current
PV String current includes short-circuit current (Isc) and maximum power point current (Imp), used for selecting appropriate DC fuse and circuit breaker ratings to ensure reliable overcurrent protection. LSP Solar Combiner Box designs are matched to different system current levels.
Number of Output Strings
The number of output circuits defines the connection structure between the combiner box and the inverter. Single-output designs simplify wiring, while multiple outputs support complex PV system configurations. LSP Solar Combiner Box supports flexible output configurations for different system topologies.
Total Output Current
The total output current is the sum of all parallel PV string currents. It must match the inverter DC input rating and ensure terminal and conductor current-carrying capacity is sufficient to avoid overheating. LSP Solar Combiner Box is engineered with proper current-carrying and thermal management considerations.

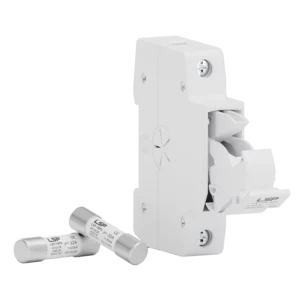

The DC fuse in a PV combiner box isolates faulty circuits, preventing electrical hazards and ensuring system safety. It also makes troubleshooting and maintenance easier, reducing downtime and supporting smooth solar system operation.

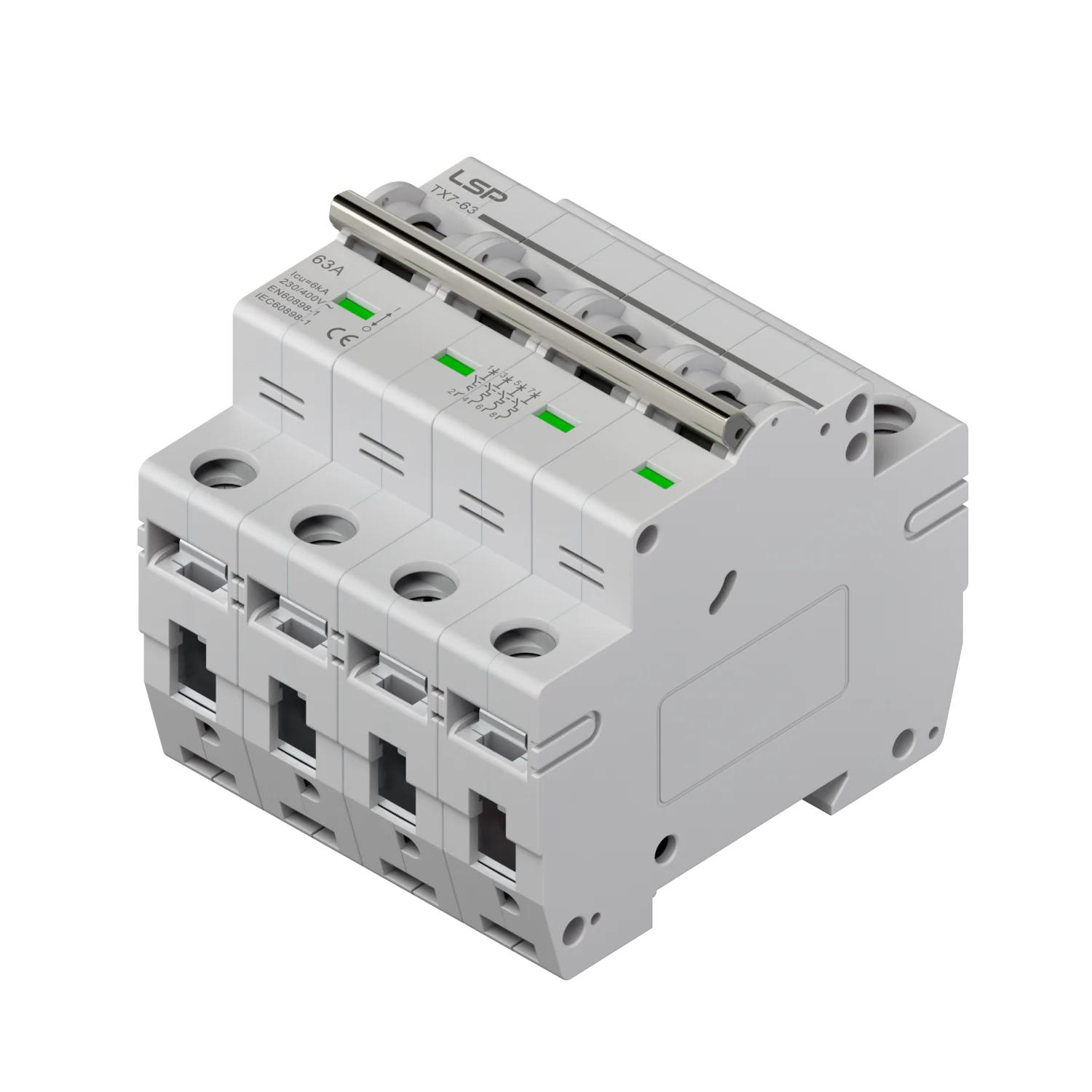

DC MCBs act as protective devices that automatically interrupt current during faults or abnormal conditions, safeguarding connected PV modules and other components in the DC combiner box from potential damage.

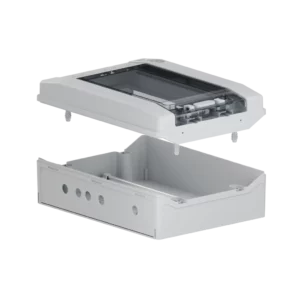

A waterproof plastic enclosure protects the PV combiner box from environmental elements such as moisture, dust, and temperature fluctuations, ensuring safe and efficient long-term operation of solar energy systems.

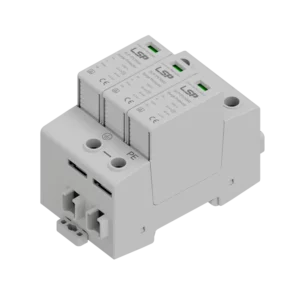

DC SPDs installed in the PV combiner box protect against surges caused by lightning strikes, switching operations, or other external factors by safely diverting excess voltage to the ground, preserving the integrity of the solar energy system.
A PV Combiner Box is used to parallel multiple PV strings, combining current while maintaining stable voltage levels, enabling efficient DC power transmission to the inverter. A low contact-resistance busbar system reduces power losses and improves overall system efficiency, making it a key component in PV string combining systems.
Combining Process
1. String Input
PV modules are connected in series to form PV strings, generating DC voltage and current that are fed into the PV combiner box.
2. DC Fuse Protection
Each PV string is equipped with an individual DC fuse. The fuse automatically disconnects the circuit under short-circuit or overcurrent conditions, isolating faulty branches.
3. Current Combining
Multiple PV strings are connected in parallel via a busbar system, where currents are combined while voltage remains constant.
4. DC Surge Protection Device (SPD)
A built-in DC SPD diverts surge current to earth, protecting inverters and downstream equipment from overvoltage damage.
5. Output to Inverter
The combined output current is delivered from the PV combiner box to the inverter for DC-AC conversion.
The DC fuse in a PV combiner box isolates faulty circuits, preventing electrical hazards and ensuring system safety. It also makes troubleshooting and maintenance easier, reducing downtime and supporting smooth solar system operation.
DC MCBs act as protective devices that automatically interrupt current during faults or abnormal conditions, safeguarding connected PV modules and other components in the DC combiner box from potential damage.
A waterproof plastic enclosure protects the PV combiner box from environmental elements such as moisture, dust, and temperature fluctuations, ensuring safe and efficient long-term operation of solar energy systems.
DC SPDs installed in the PV combiner box protect against surges caused by lightning strikes, switching operations, or other external factors by safely diverting excess voltage to the ground, preserving the integrity of the solar energy system.
LSP PV Combiner Box is built on a standardized product matrix based on system voltage levels and PV string quantities. It supports flexible combinations and customization, covering applications from residential rooftop PV systems to large-scale utility solar plants, balancing efficiency, system cost, and electrical protection performance.
Classification by System Voltage
Designed for small residential rooftop PV and off-grid energy storage systems, offering a cost-optimized solution.
Recommended LSP PV Combiner Box models:

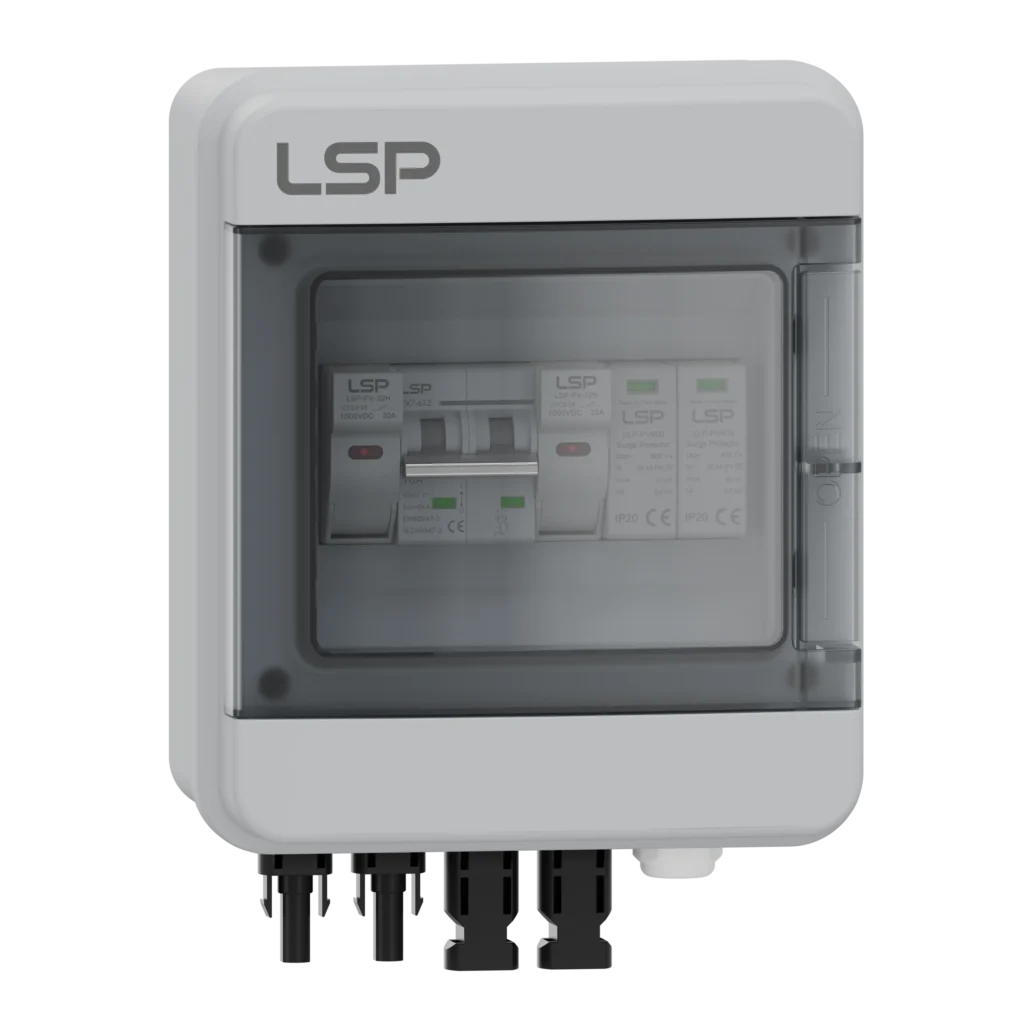

SLP-1/1-600V, SLP-2/2-600V
Suitable for commercial and industrial rooftop PV systems and medium-scale utility solar plants. It serves as the standard configuration for mainstream medium-voltage PV systems, balancing efficiency and cost.
Recommended LSP PV Combiner Box models:
SLP-1/1-1000V, SLP-2/2-1000V, SLP-3/3-1000V
Designed for large utility-scale solar farms and floating PV projects, featuring low-loss design for ultra-large PV arrays combining systems.
Recommended LSP PV Combiner Box models:

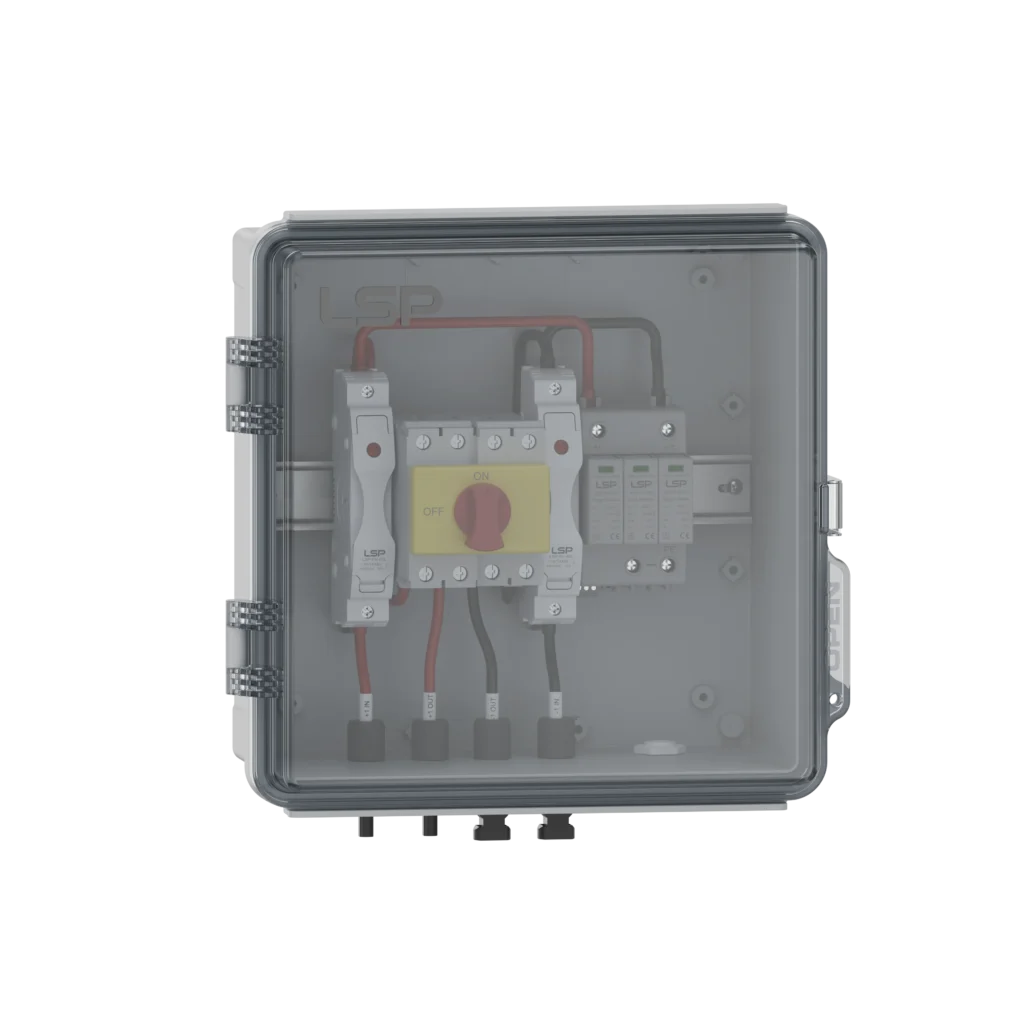

SLP-1/1-1500V
Classification by String Quantity
Suitable for single-string independent systems and small rooftop PV installations, featuring a compact design to reduce installation space requirements.
Models:
SLP-1/1-600V, SLP-1/1-1000V, SLP-1/1-1500V
2 String Solar Combiner box suitable for dual MPPT inverter systems and medium-capacity rooftop PV installations, enabling balanced current distribution and improved system stability.
Models:
SLP-2/1-600V, SLP-2/1-1000V, SLP-2/2-600V, SLP-2/2-1000V
4 String PV Combiner Box suitable for triple MPPT inverters and medium-scale utility PV systems, reducing inverter wiring complexity through multi-string integration.
Model:
SLP-4/2-1000V, SLP-4/4-1000V
A PV Combiner Box is a key DC-side combining and protection device in photovoltaic systems, installed between PV strings and inverters. It enables multi-string current aggregation, fault isolation, and surge protection, forming an efficient DC power transmission path from module level to system level while improving solar system safety and operational reliability.
String Level
PV modules are connected in series to form PV strings, generating DC voltage and current. Each string operates independently, with voltage accumulated based on module quantity while current remains at module level, forming the basic unit of the PV system.
Combining Level
The PV Combiner Box performs DC combining by connecting multiple PV strings in parallel. It aggregates current while maintaining stable voltage and integrates overcurrent protection and surge protection (SPD), serving as a critical node in the DC side architecture.
Inverter Level
The combined DC power is delivered to the inverter, where Maximum Power Point Tracking (MPPT) is applied to optimize energy output and convert DC into AC power efficiently.
Grid / Energy Storage Level
The AC output is stepped up via transformers for grid connection or directed to energy storage systems for power management, forming a complete PV system architecture.
PV combiner box is used on the DC side of photovoltaic systems for PV string power collection and distribution, suitable for residential, commercial, and utility-scale solar installations. It manages multiple PV string inputs, supports fault isolation, and provides coordinated DC protection with integrated surge protection (SPD) for enhanced system reliability under outdoor operating conditions.

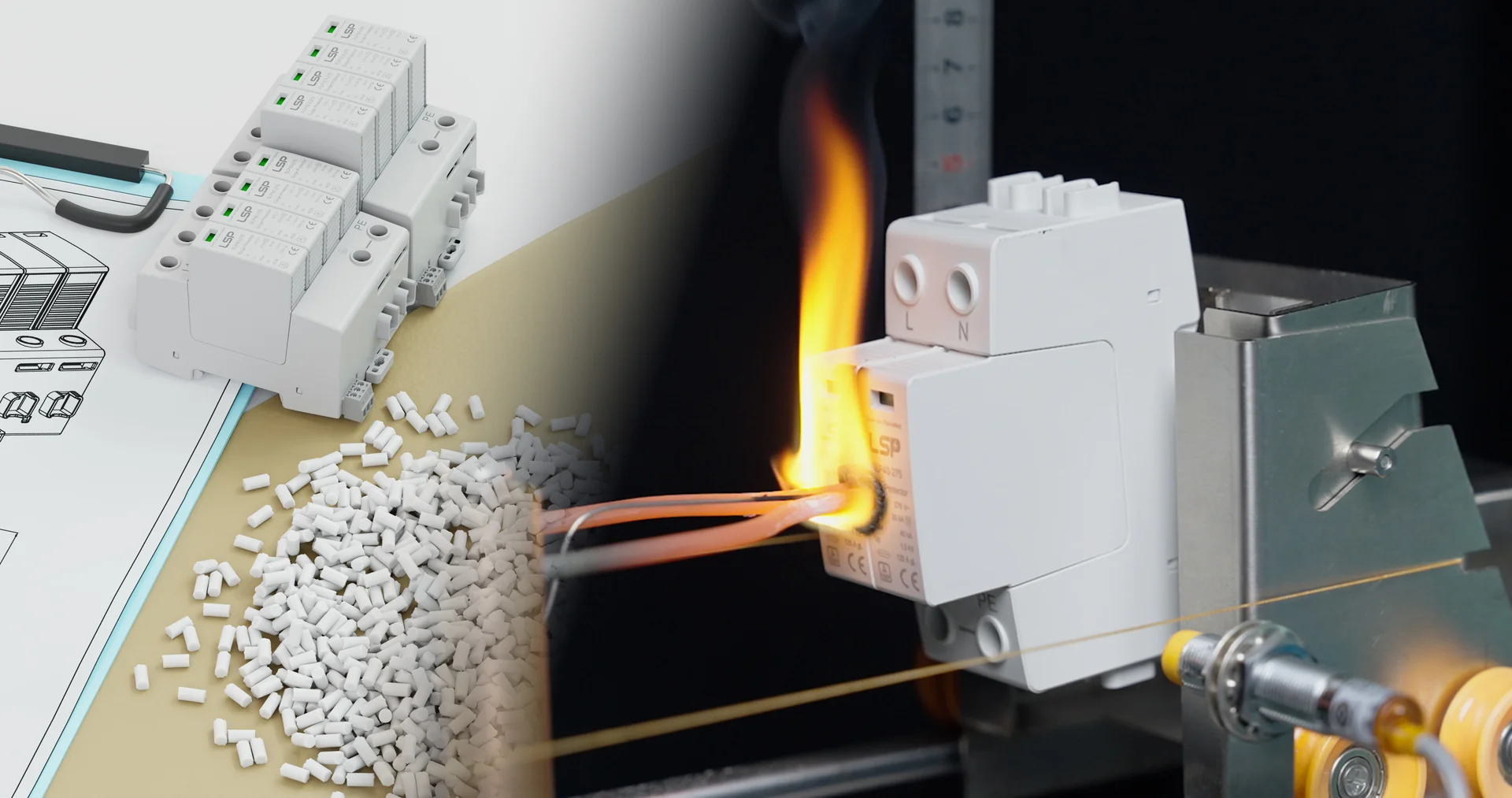

Each LSP PV Combiner Box undergoes comprehensive electrical and environmental testing before delivery. From raw material selection to final inspection, all processes comply with ISO 9001 quality management standards and are certified by TUV, CB, and CE for global PV applications.
Through standardized testing procedures and strict quality control, LSP PV Combiner Box ensures stable electrical performance and environmental durability for long-term operation in photovoltaic systems.
PV combiner box is manufactured under ISO 9001 quality management system and complies with IEC 61439, ensuring electrical safety and reliable operation in photovoltaic systems.

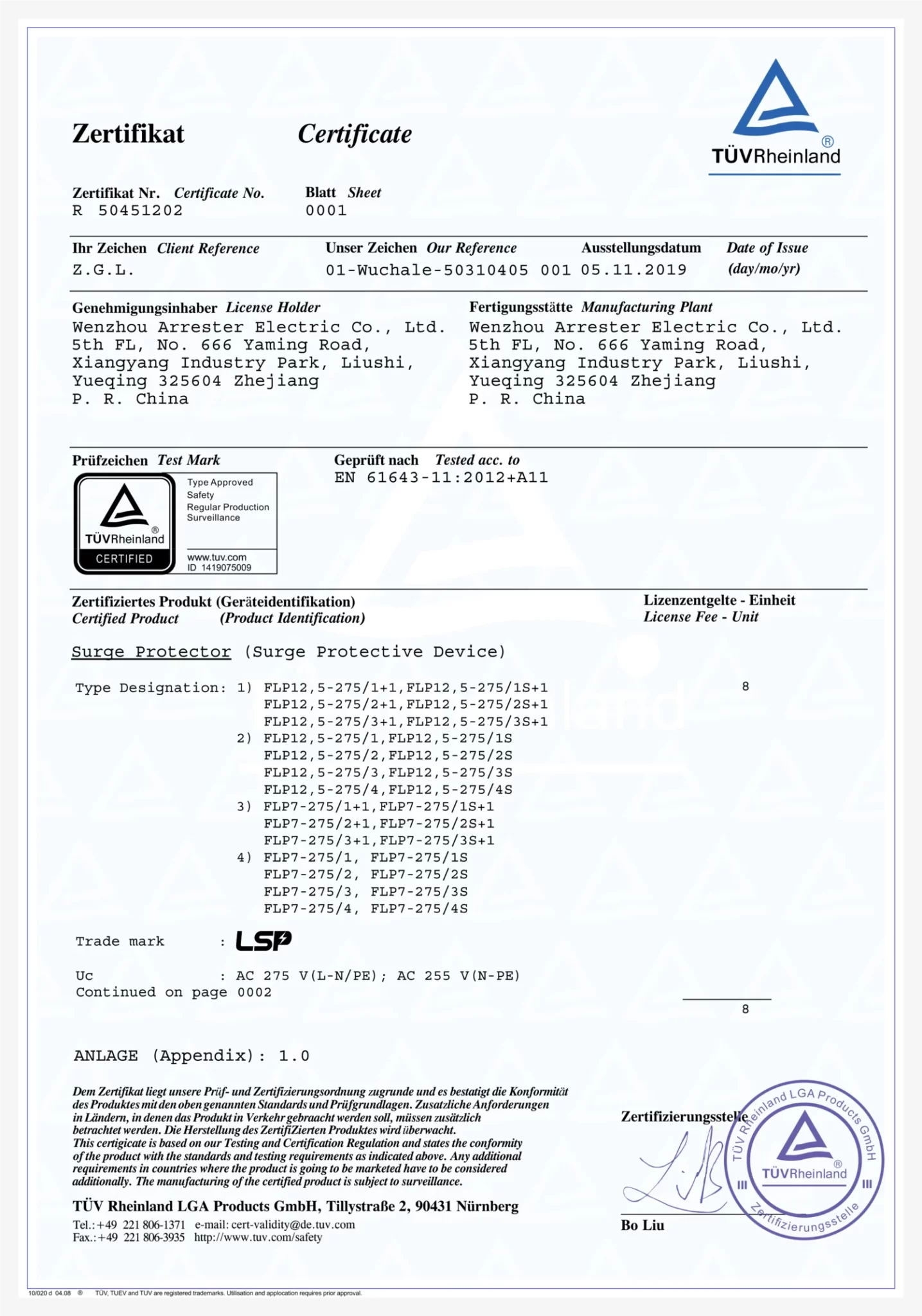

The integrated DC SPD in the PV Combiner Box is designed in accordance with IEC/EN 61643-31:2018 and tested under Type 1 and Type 2 conditions to verify surge protection performance. IP65/IP67 enclosure protection ensures stable operation in outdoor and harsh environments.
Every PV combiner box is manufactured under a structured quality control system, including raw material inspection, in-process quality checks, and final product testing. The entire production process follows the ISO 9001 quality management system to ensure consistent product quality and reliable performance in PV applications.
Covering a voltage range of 600V to 1500V, the solar combiner box is designed for wide system compatibility and long-term operational stability in photovoltaic string-level power distribution systems.

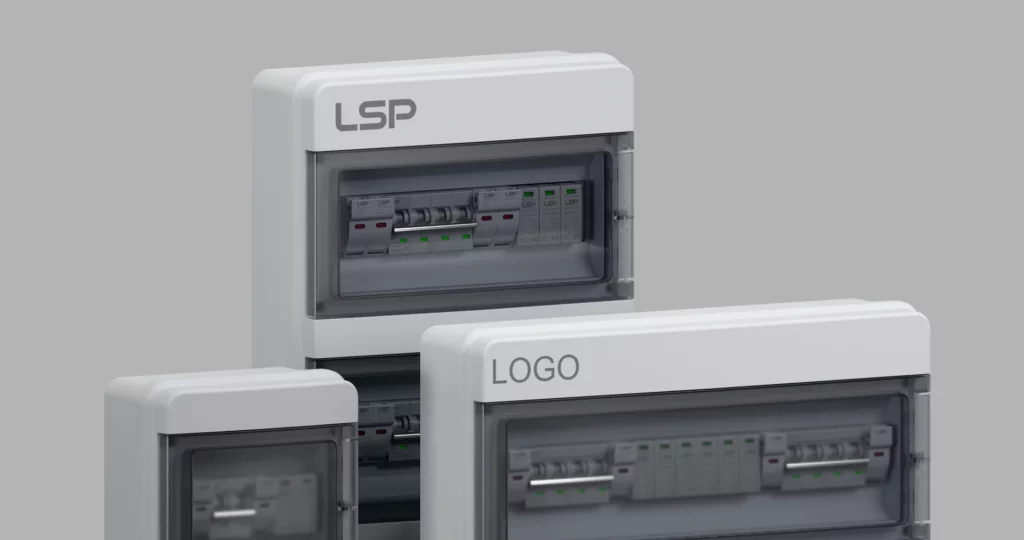

LSP provides full-process OEM and ODM manufacturing solutions for PV combiner boxes, covering product design, engineering support, mass production, and after-sales service. All production is carried out under ISO 9001 quality management system to ensure consistent quality and long-term reliability.
PV combiner box solutions support global EPC contractors and system integrators with stable manufacturing capacity and standardized quality control.
PV combiner box production follows ISO 9001 quality management procedures from raw material inspection to final testing. Products are certified to TUV, CB, and CE standards, ensuring compliance with international PV system requirements.
With extensive PV industry experience, our engineering team provides technical support for PV combiner box selection, system configuration, and customized design optimization. Modular architecture allows flexible configuration of strings, fuse protection, SPD types, and monitoring interfaces across 600V to 1500V systems.
PV combiner box configurations support single-string to multi-string designs based on project requirements. Key components such as fuses, DC SPD modules, enclosure dimensions, and monitoring interfaces can be customized for different PV applications. This modular design improves system flexibility and simplifies long-term maintenance.
All PV combiner boxes are covered by a 5-year warranty. A full traceability system ensures product quality control across the entire manufacturing process, supporting long-term operational reliability in PV installations.
Standard configurations are delivered within 15 days, while customized PV combiner box solutions require approximately 30 days, depending on project specifications. Flexible production scheduling ensures timely delivery for global PV projects.
LSP provides full-process OEM and ODM manufacturing solutions for PV combiner boxes, covering product design, engineering support, mass production, and after-sales service. All production is carried out under ISO 9001 quality management system to ensure consistent quality and long-term reliability.
PV combiner box solutions support global EPC contractors and system integrators with stable manufacturing capacity and standardized quality control.
PV combiner box production follows ISO 9001 quality management procedures from raw material inspection to final testing. Products are certified to TUV, CB, and CE standards, ensuring compliance with international PV system requirements.
With extensive PV industry experience, our engineering team provides technical support for PV combiner box selection, system configuration, and customized design optimization. Modular architecture allows flexible configuration of strings, fuse protection, SPD types, and monitoring interfaces across 600V to 1500V systems.
PV combiner box configurations support single-string to multi-string designs based on project requirements. Key components such as fuses, DC SPD modules, enclosure dimensions, and monitoring interfaces can be customized for different PV applications. This modular design improves system flexibility and simplifies long-term maintenance.
All PV combiner boxes are covered by a 5-year warranty. A full traceability system ensures product quality control across the entire manufacturing process, supporting long-term operational reliability in PV installations.
Standard configurations are delivered within 15 days, while customized PV combiner box solutions require approximately 30 days, depending on project specifications. Flexible production scheduling ensures timely delivery for global PV projects.
PV Combiner Box design is continuously improved based on real-world photovoltaic project data and field application feedback. Insights from utility-scale plants and distributed PV systems are used to optimize internal structure, enhance protection performance, and improve long-term operational reliability. This continuous engineering-driven process ensures the stable performance of Solar Combiner Box in diverse solar power applications.

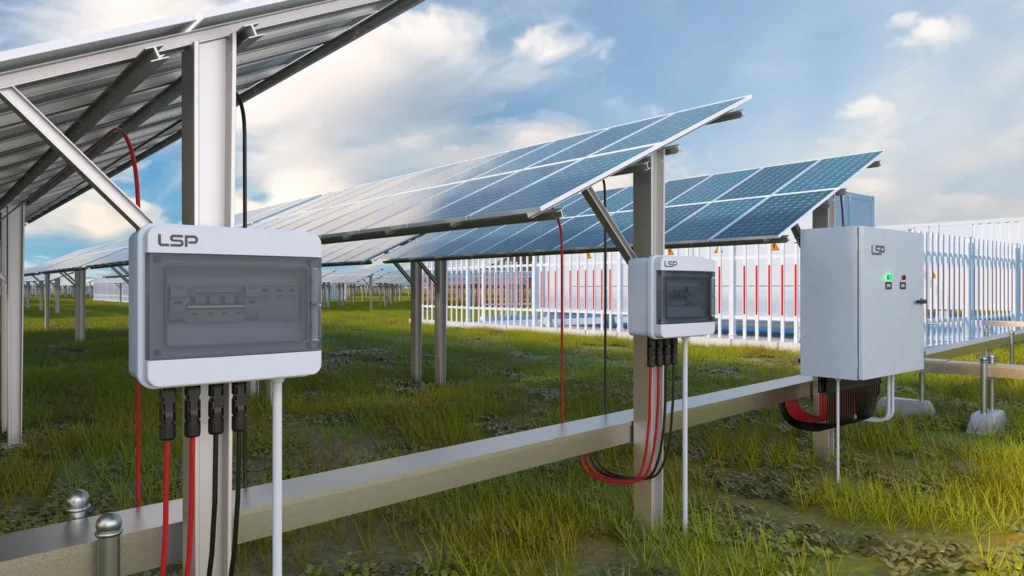

Proper installation and wiring are the foundation for PV Combiner Box to deliver system-level protection performance. As an important DC-side distribution and protection device in photovoltaic systems, the installation location, wiring configuration, grounding design, and protection configuration of the combiner box directly affect the long-term stability and operational safety of the PV system.

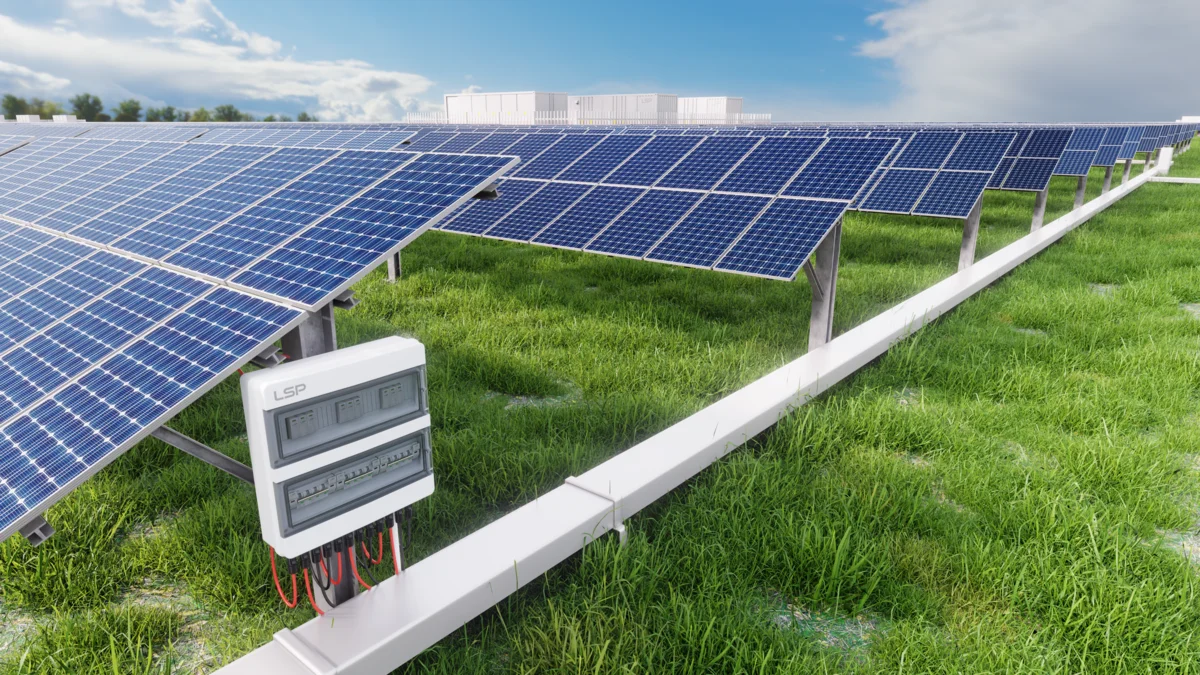

PV Combiner Box is designed for rooftop PV systems, utility‑scale power plants, and commercial & industrial PV installations, with core installation principles covering multi‑string aggregation, overcurrent protection, surge protection, and reliable outdoor operation.

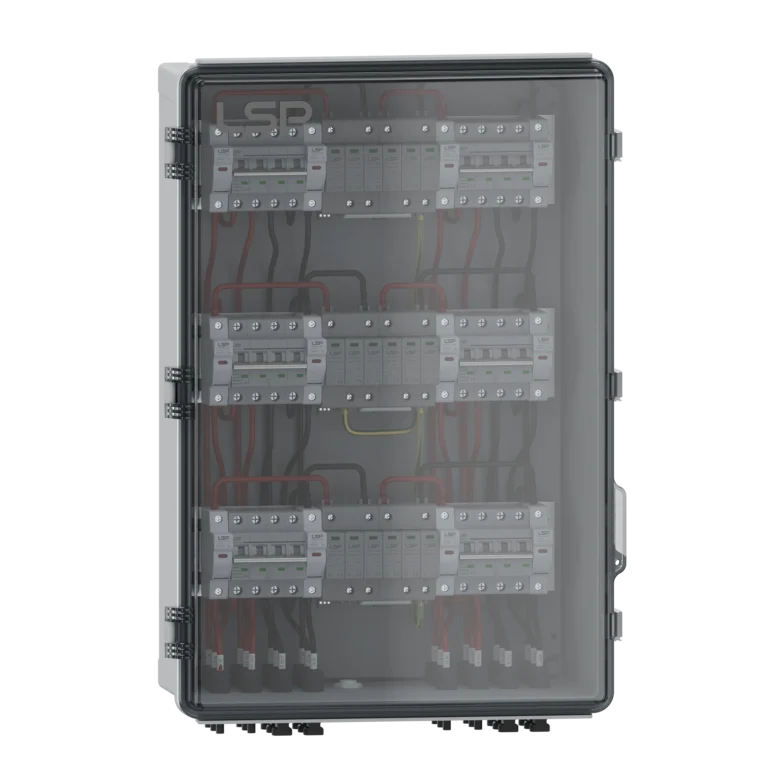

6 String Input 1 String Output PV combiner box adopts a modular wiring design, which simplifies the installation process. Each input and output module is clearly labeled, allowing installers to connect cables step by step without confusion.
2 String Input 2 String Output PV combiner box is securely mounted, with each string cable labeled and routed into the correct terminals. Cable glands provide strain relief and maintain waterproofing.
Outputs connect to busbars leading to the inverter, while SPD and grounding are installed for protection. All connections are checked for polarity and tightness before energizing the system.
Real-world feedback from PV Combiner Box applications in energy storage, EV charging, utility-scale PV plants, rooftops, off-grid, and agrivoltaic systems. The cases reflect conditions such as extreme climates, system expansion, fault isolation, and maintenance challenges. They show how PV Combiner Box improves DC-side architecture, system stability, and operational efficiency across different project environments.
A PV combiner box typically comes equipped with essential protection devices to safeguard the solar PV system. Each input string is protected by a fuse, which disconnects the circuit in the event of overcurrent or short-circuit conditions, preventing damage to cables, modules, and other components. Additionally, most combiner boxes include a Surge Protective Device (SPD) to protect against voltage spikes caused by lightning strikes or switching transients. Some advanced models may also feature isolation switches or circuit breakers for maintenance convenience. These devices are pre-installed in a structured layout, ensuring easy installation and reliable protection from the moment the system is energized.
Regular maintenance involves checking terminal tightness, inspecting for corrosion, and verifying that fuses and SPDs are functional. Remove dust or debris from the enclosure and ensure cable entries remain sealed. Replace damaged components immediately. Periodic maintenance prevents voltage drops, loose connections, and potential faults, helping to maintain long-term system reliability.
Yes, most PV combiner boxes are rated IP65, meaning they are fully protected against dust ingress and can withstand water jets from any direction. Outdoor installation requires placing the box in a location that is easily accessible for maintenance but shielded from direct mechanical damage. It is important to ensure that the cable entries are properly sealed using the supplied glands and that any exposed wires are protected with UV-resistant conduit or cable ties. Proper grounding and bonding must also be implemented to maintain safety and compliance with local electrical codes.
A DC combiner box centralizes multiple solar string outputs, allowing easier installation of monitoring devices to track performance and detect faults quickly.
A solar PV combiner box is typically housed in a robust enclosure with high ingress protection ratings (commonly IP65–IP67). These solar combiner boxes are designed to withstand dust, moisture, UV exposure, and extreme weather.
Yes. PV combiner boxes can be fully customized with different string quantities, modular fuse configurations, and integrated surge protection devices. This flexibility allows the DC combiner box to meet the electrical and operational requirements of utility-scale solar power plants.
PV combiner boxes consolidate solar panel outputs for agrivoltaic projects, while solar pump inverters convert energy to reliably power irrigation systems, optimizing land use and water management.
