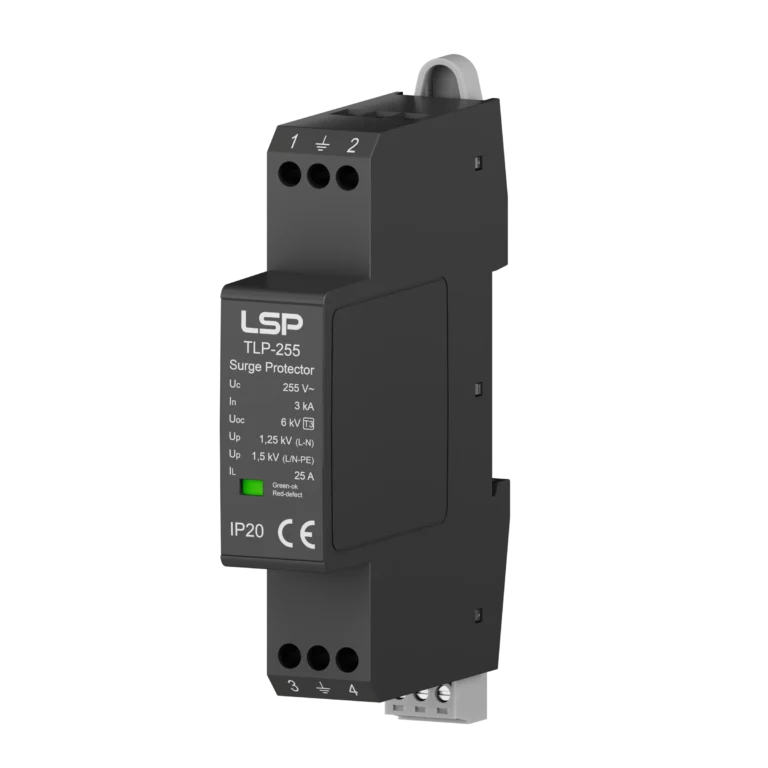

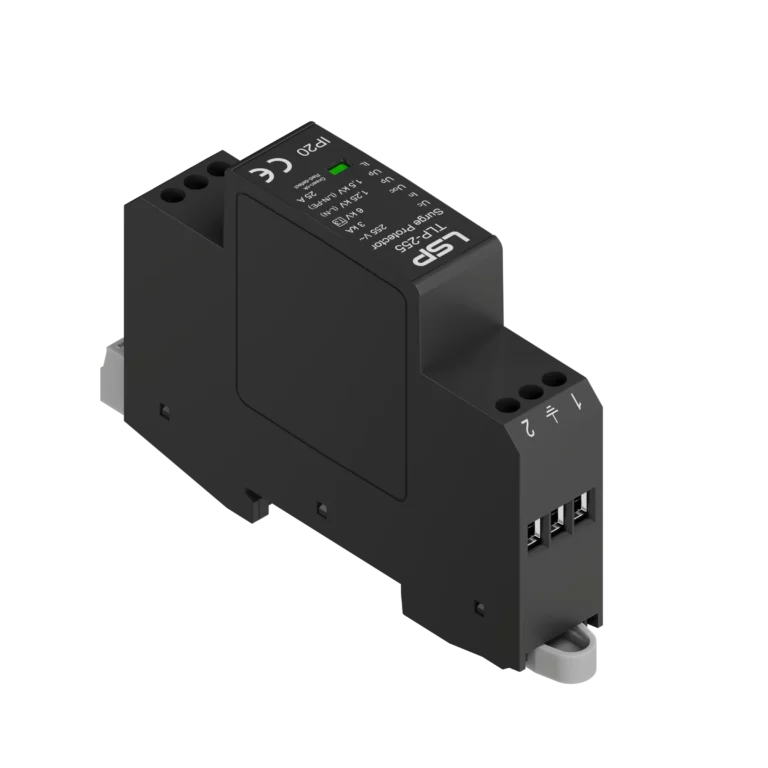

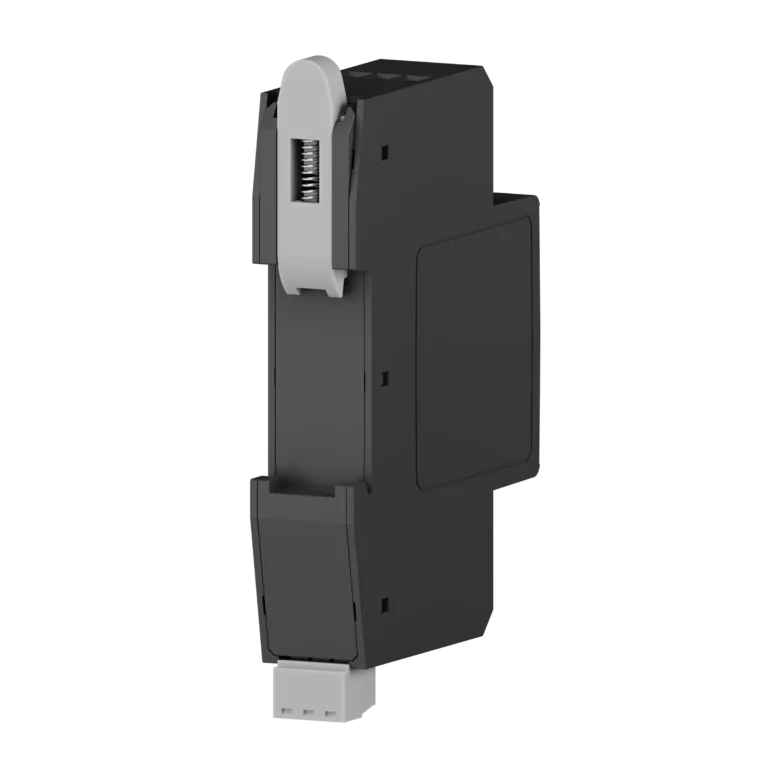

Type 3 SPD Surge Protector TLP-255/2S

DIN rail, compact Type 3 / Class III SPD with MOV & GDT and narrow design for protecting industrial electronic systems and equipments at boundaries from LPZ 1-3 and higher

Main Features:

Monobloc design and DIN rail installation

Visual and remote status indication

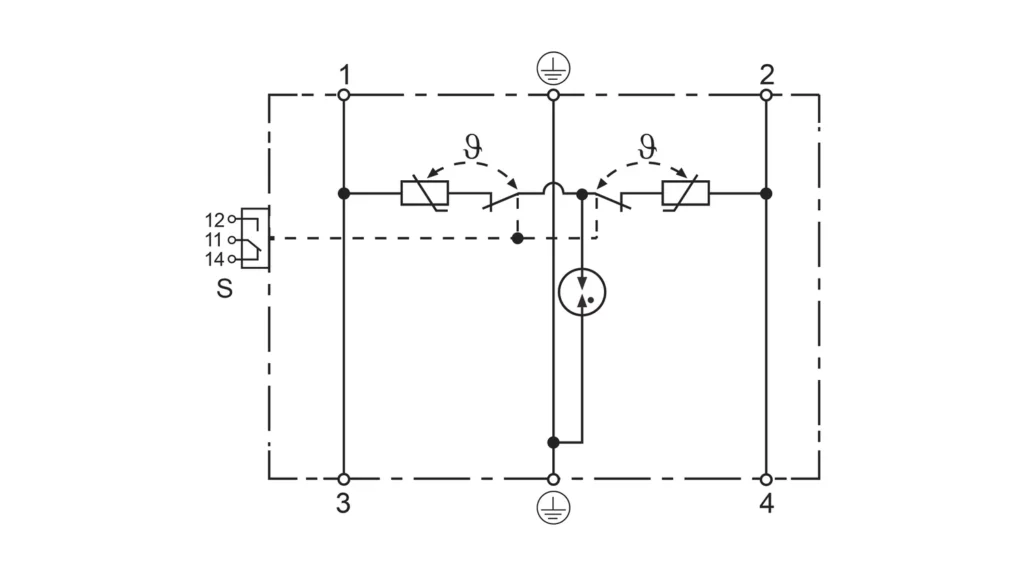

High discharge capacity due to heavy-duty zinc oxide varistor / GDT combination

Reliable thermal disconnect device

Energy coordination with other arresters of LSP product family

Get Free Quote Now

Main Specification

Model No.	TLP-255/2S
	SPD according to IEC/EN 61643-11	Type 3 / Class III / Class D
	Nominal voltage U_n	230V
	Max. continuous operating voltage U_c	255V
	Nominal load current I_L	25A
	Nominal discharge current (8/20 μs) I_n	3kA
	Total Discharge Current (8/20 μs) [1+2-PE] I_total	5kA
	Open circuit voltage (1.2/50 μs) U_oc	6kV
	Voltage protion level [1-2] U_P	≤ 1.25kV
	Voltage protion level [1/2-PE] U_P	≤ 1.5kV
