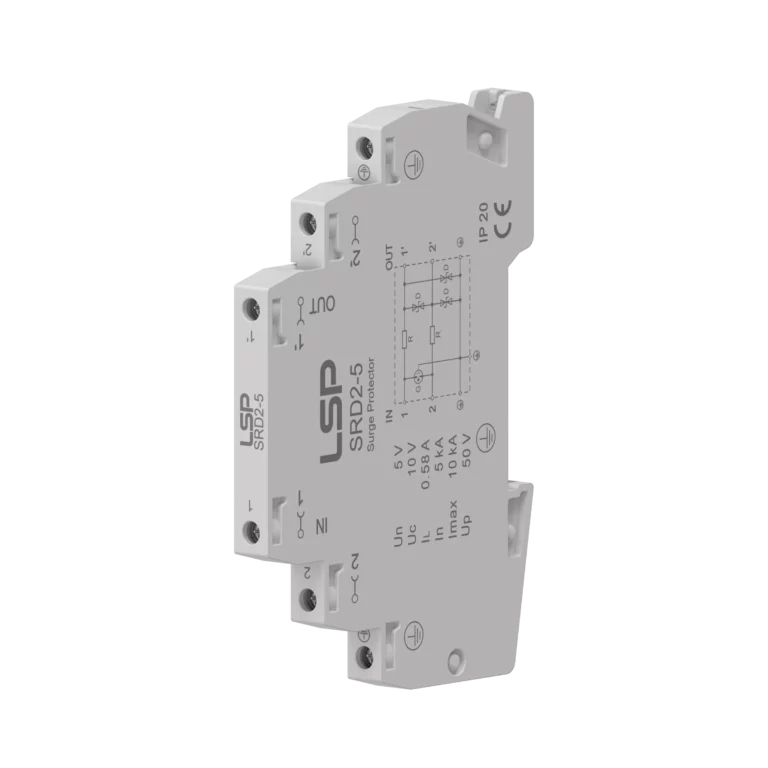

Data Surge Protector SRD2-5

Ideal for telephone, Ethernet, or data lines, ts small size fits tight spaces and existing systems.

IEC/EN Category: Class I+II+III / Type 1+2+3

Mode of Protection: Longitudinal, Transverse

Voltage: 5Vdc

High Frequency Range: 0 - 100MHz

Surge Discharge Ratings: I_n: 5kA, I_max: 10kA, I_imp: 1kA

Series Load Current: 0.58A

Enclosure: DIN 43880 2/3 TE, DIN Rail Mount

Terminals: Stranded to 2.5mm²

Compliance: IEC/EN 61643-21

Main Specification

Model No.	SRD2-5
	Lines protected	1 (2 Conductors)
	Nominal operating voltage (DC) U_n	5V
	Maximum continuous operating voltage (DC) U_c	10V
	Rated load current at 25 ºC I_L	0.58A
	C2 Nominal discharge current (8/20 μs) I_n	5kA
	Maximum discharge current (8/20 μs) I_max	10kA
	D1 Impulse current (10/350 μs) I_imp	1kA
