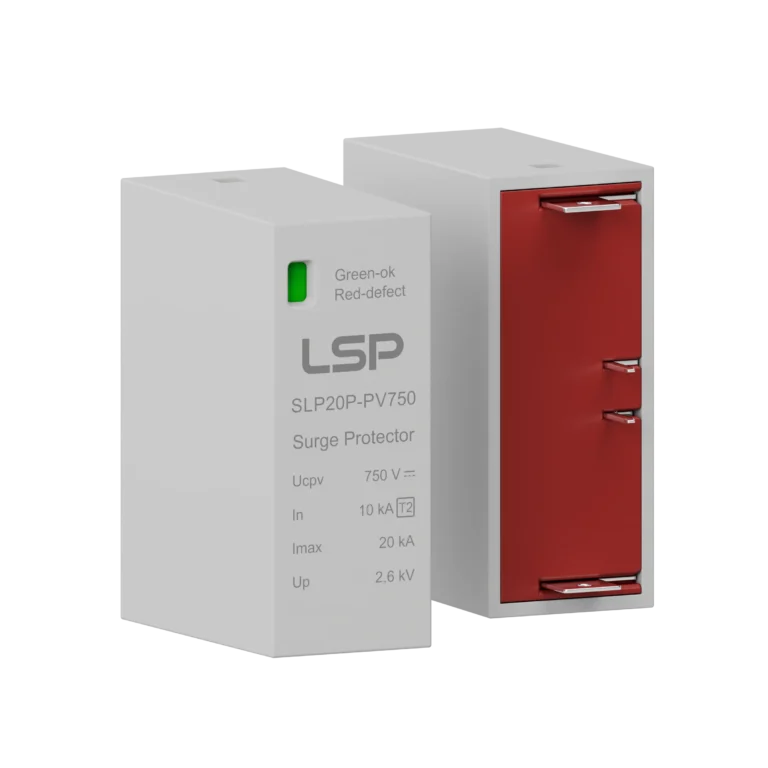

PCB Mounting Surge Protector SLP20P-PV750

Location of Use: For PCB mounting

Surge Ratings: I_n = 10kA (8/20 μs)

IEC/EN Category: Class ll / Type 2

Protective Elements: High Energy MOV

Compliance: IEC/EN 61643-31

Main Specification

Model No.	SLP20P-PV750
	SPD according to IEC/EN 61643-31	Type 2 / Class II / Class C
	Max. PV operating voltage (DC) U_cpv	750V
	Max. PV operating voltage (DC), [star mounting] U_cpv	1500V
	Continuous operating current I_cpv	< 0.1 mA
	Nominal discharge current (8/20 μs) I_n	10kA
	Maximum discharge current (8/20 μs) I_max	20kA
	Voltage protection level U_p	2.6kV
	Voltage protection level, [star mounting] U_p	5.2kV
