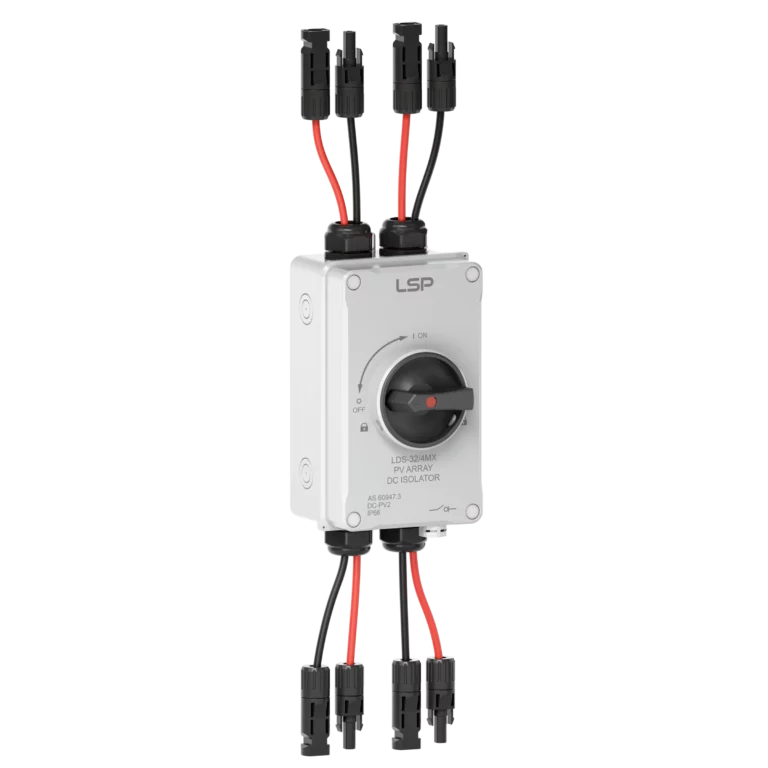

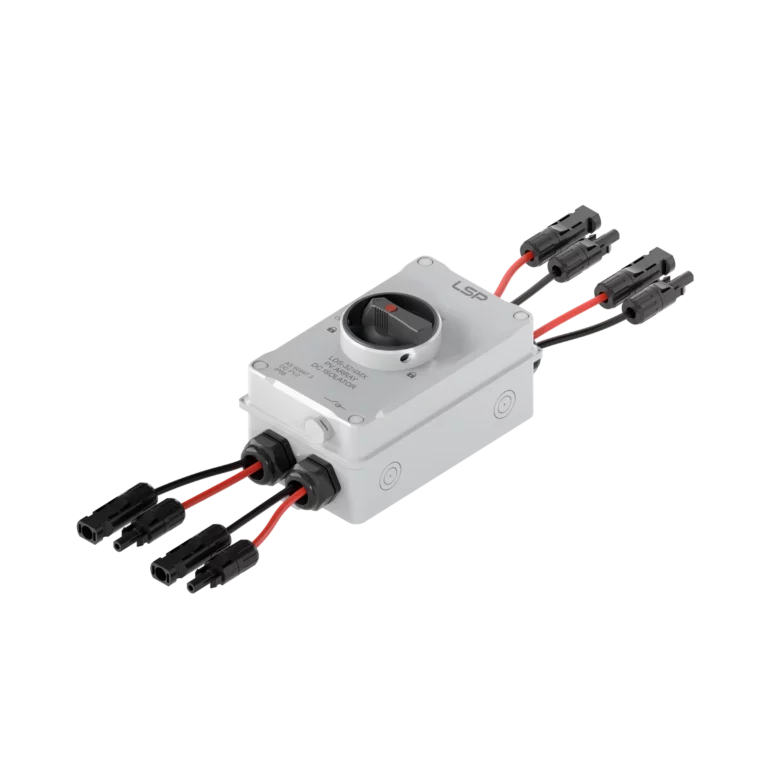

DC Isolator Switch LDS-32/4MX

Name: DC Isolator Switch LDS-32/4MX
Brand: LSP

Standards: IEC/EN 60947-3 and AS 60947.3

Utilization Category: DC-PV1 / DC-PV2

Polarity: Non-polarized

Ingress Protection: IP66, UV-resistant

OFF-position lockable

UV-resistant, Flame-retardant (UL94 V-0)

Arcing Time: <2 ms

Main Specification

Model No.	LDS-32/4MX
	Rated Frequency	DC
	Rated Operating Voltage U_e	300 V / 600 V / 800 V / 1000 V / 1200 V
	Rated Insulation Voltage U_i	1200 V
	Rated thermal current U_th	32 A
	Rated Short-time Withstand Current I_cw	1 kA/1s (4, 4T, 4B, 4S), 1.7 kA/1s (2H)
	Rated Impulse Withstand Voltage U_imp	8 kV
	Pole	4 Poles
	Function	lsolation and control
	Utilization Category	DC-PV1 / DC-PV2
	Overvoltage Category	II
	Polarity	Mechanically non-polarized; "+" and "−" polarities can be interchanged
	Standard	IEC/EN 60947-3, AS 60947.3
Service Life / Cycle Operations / Mechanical / Electrical	15000 / 300
Accessory	Staggered busbar
