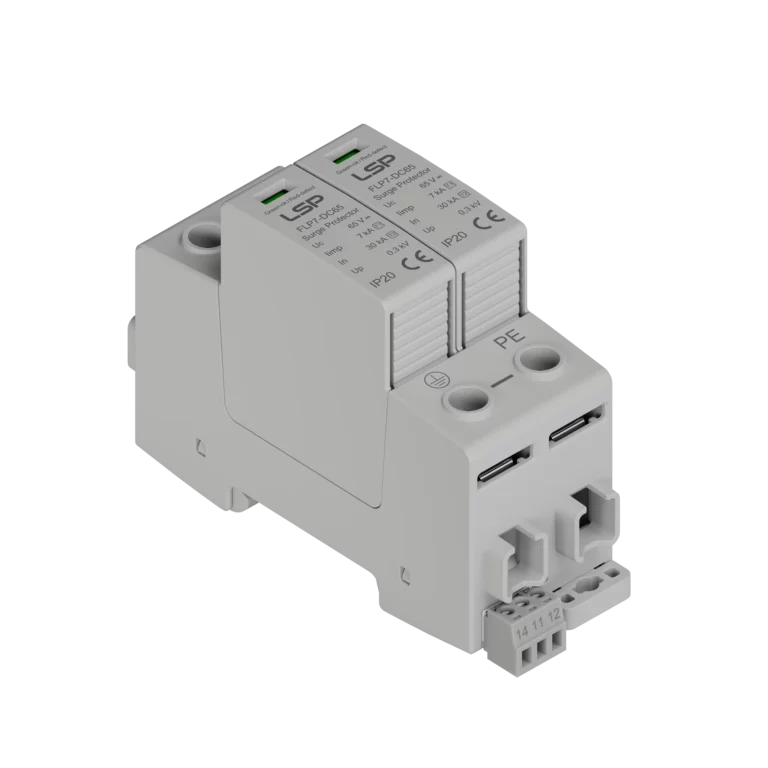

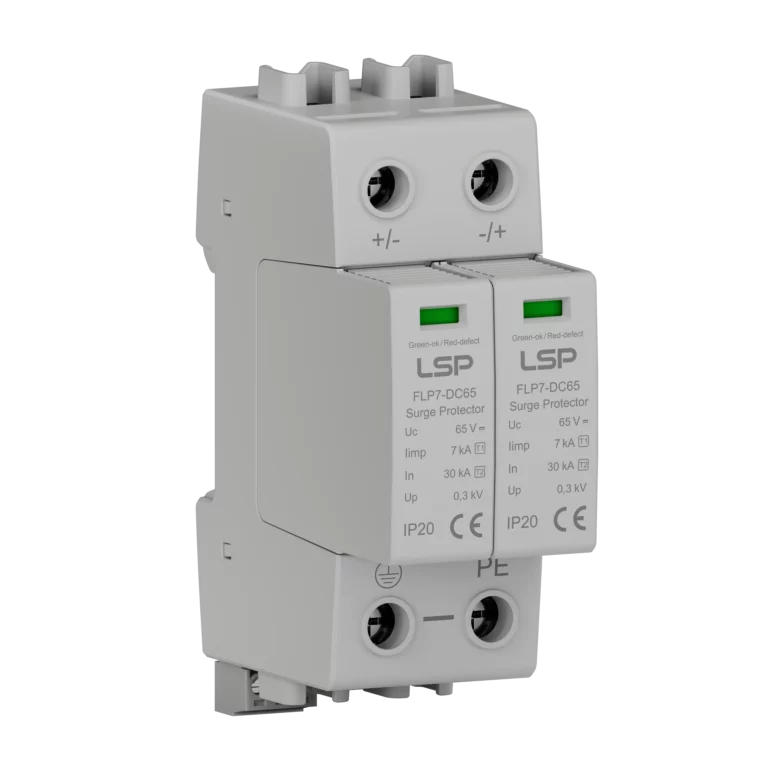

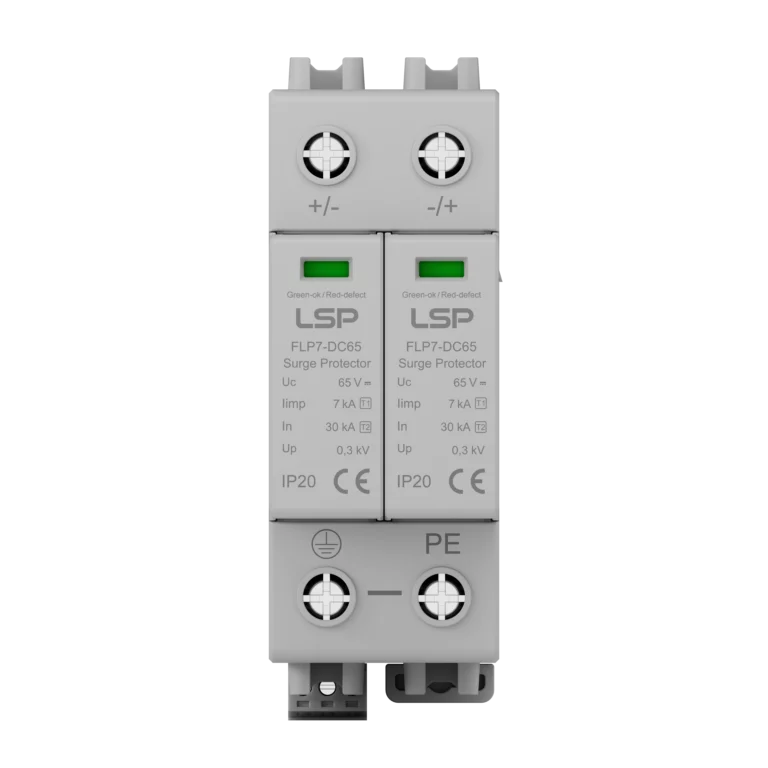

Type 1+2 DC Surge Protector Device FLP7-DC65/2S

DIN rail installation, for 48V DC power system, high discharge capacity due to zinc oxide varistor

Location of Use: String box, Inverter

Mode of Protection: (DC+/-)-PE and (DC-/+)-PE

Surge Ratings: I_imp = 7kA (10/350 μs), I_n = 30kA (8/20 μs)

IEC/EN Category: Class l+II / Type 1+2

Protective Elements: High Energy MOV

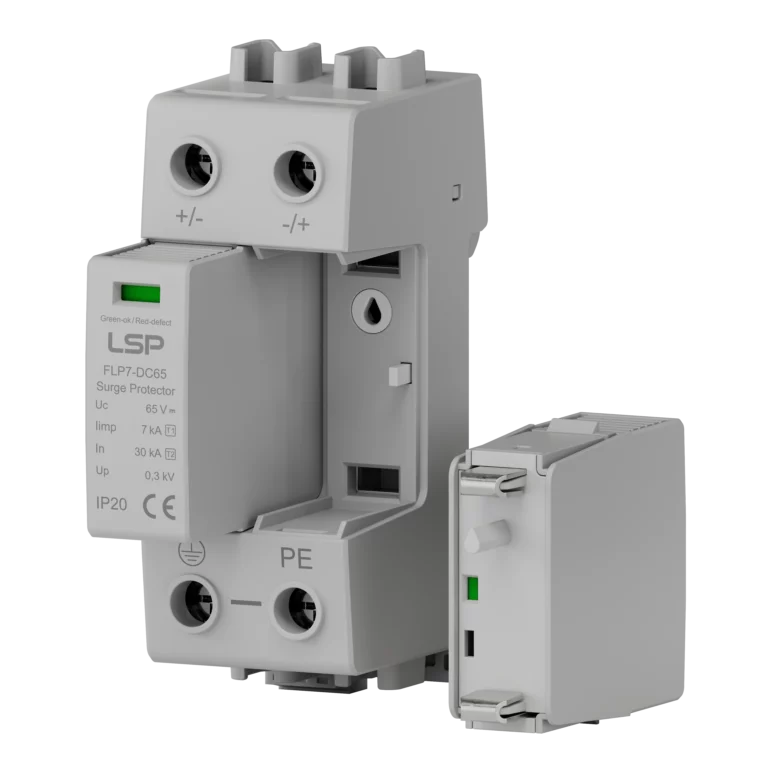

Housing: Pluggable Design

Compliance: IEC/EN 61643-41

Main Specification

Model No.	FLP7-DC65/2S
	SPD according to IEC/EN 61643-41	Type 1+2 / Class I+II / Class B+C
	Protection mode	Common Mode (CM)
	Connection mode	(DC+/-)-PE and (DC-/+)-PE
	Rated operational DC voltage U_n	48Vdc
	Max. continuous operating DC voltage U_cdc	65Vdc
	Impulse discharge current (10/350 μs) I_imp	7kA
	Nominal discharge current (8/20 μs) I_n	30kA
	Maximum discharge current (8/20 μs) I_max	70kA
	Voltage protection level U_p	0.3kV
