Type 1 Spark Gap Surge Protective FLP50GR-275/1S+1 offers Iimp 50kA (10/350µs), Uc 275V (L-N), Up 1.8kV/1.5kV. Designed for TN-S/TT systems (1+1 mode) with 500A backup fuse and remote signaling. IEC 61643-11 certified.
| Model No. | FLP50GR-275/1S+1 |
|---|---|
| Nominal AC Voltage (50/60 Hz) Uo / Un | 230V |
| Maximum Continuous Operating Voltage (L-N) UC / (N-PE) UC | 275V |
| Nominal Discharge Current (8/20 μs) (L-N) / (N-PE) In | 50 kA / 100 kA |
| Maximum Discharge Current (8/20 μs) (L-N) / (N-PE) Imax | 100 kA |
| Impulse Discharge Current (10/350 μs) (L-N) / (N-PE) Iimp | 50 kA / 100 kA |
| Specific Energy (L-N) / (N-PE) W/R | 156.5 kJ/Ω / 2.5 MJ/Ω |
| Voltage Protection Level (L-N) / (N-PE) Up | 1.8 kV / 1.5 kV |
| Follow Current Interrupt Rating (N-PE) Ifi | 50 ARMS / 100 ARMS |
| Max. Backup Fuse | 500 A gL / gG |
| Short-Circuit Current Rating (AC) (L-N) ISCCR | 10 kA |
| TOV Withstand 5 s (L-N) UT | 335 V |
| TOV 120 min (L-N) UT | 530 V |
| TOV Withstand 200 ms (N-PE) UT | 1200 V |
| Number of Ports | 1 |

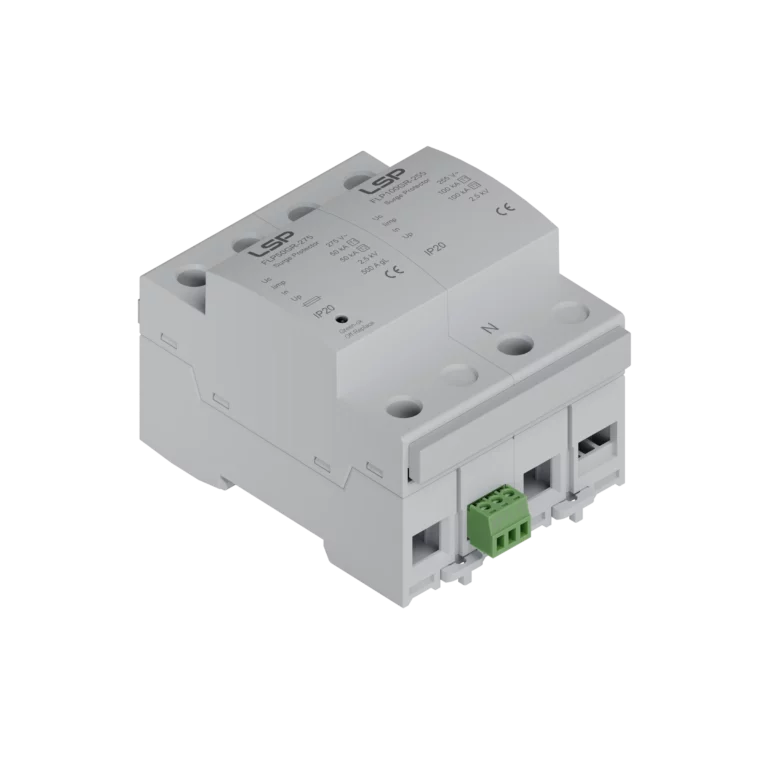

Type 1 Spark Gap Surge Protective FLP50GR-275/1S+1 is designed for single-phase TN-S/TT systems (1+1 configuration), providing L-N and N-PE protection with built-in spark gap technology and remote signaling contacts.

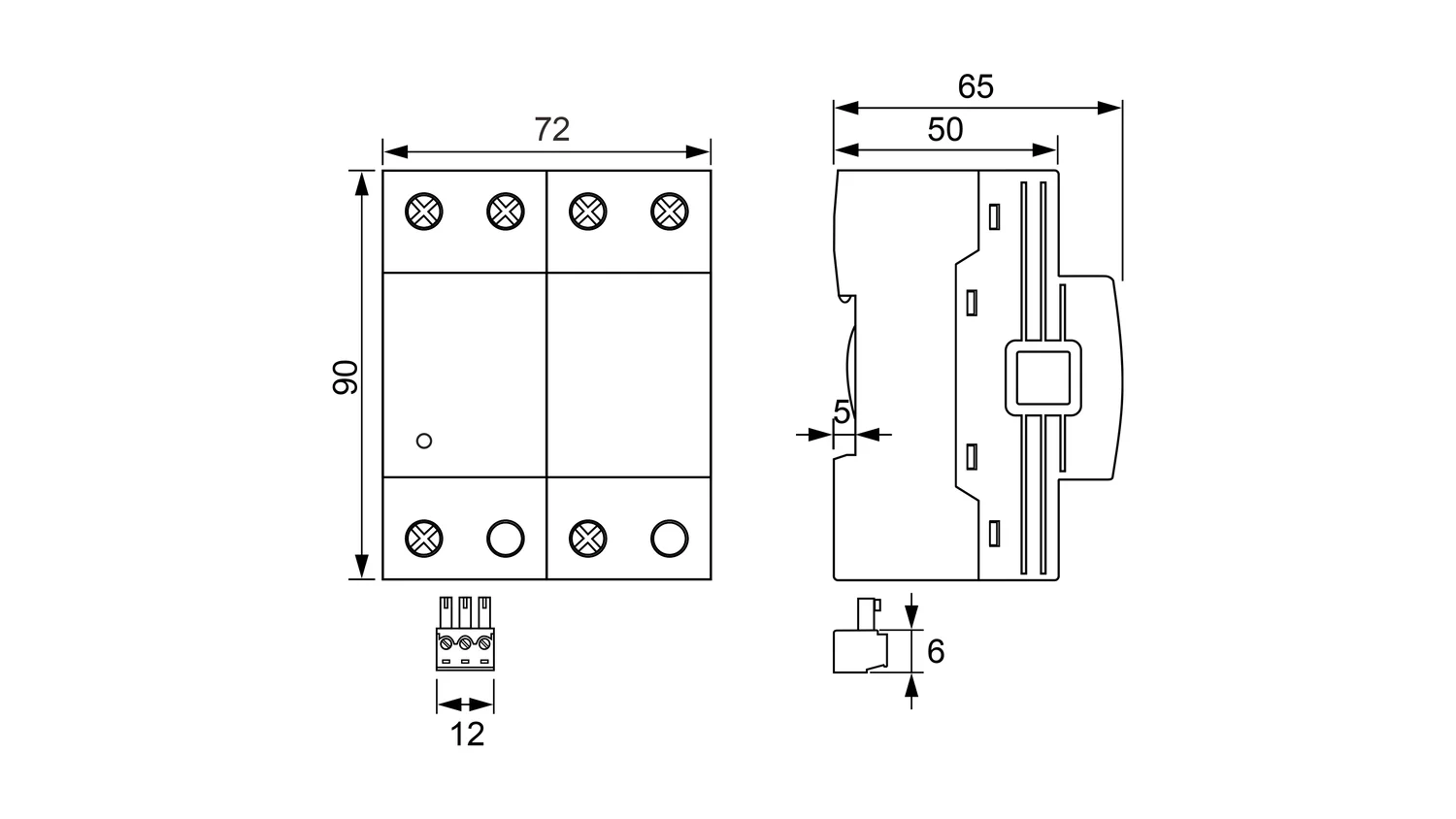

Type 1 Spark Gap Surge Protective FLP50GR-275/1S+1 mounts on 35mm DIN rail. Torque terminals to 3.5-4.0 Nm. Use 6-35mm² (L/N) and 16-35mm² (PE) copper conductors. Connect remote contacts (11-12-14) for status monitoring.
This Spark Gap Surge Protection Device is DIN rail mountable. Use standard parallel wiring, with connection leads <50cm for optimal lightning current discharge performance.
Integrated Remote Signaling Terminal provides real-time status monitoring for the Spark Gap Surge Protection Device. NO/NC contacts enable remote alarming and centralized control.
