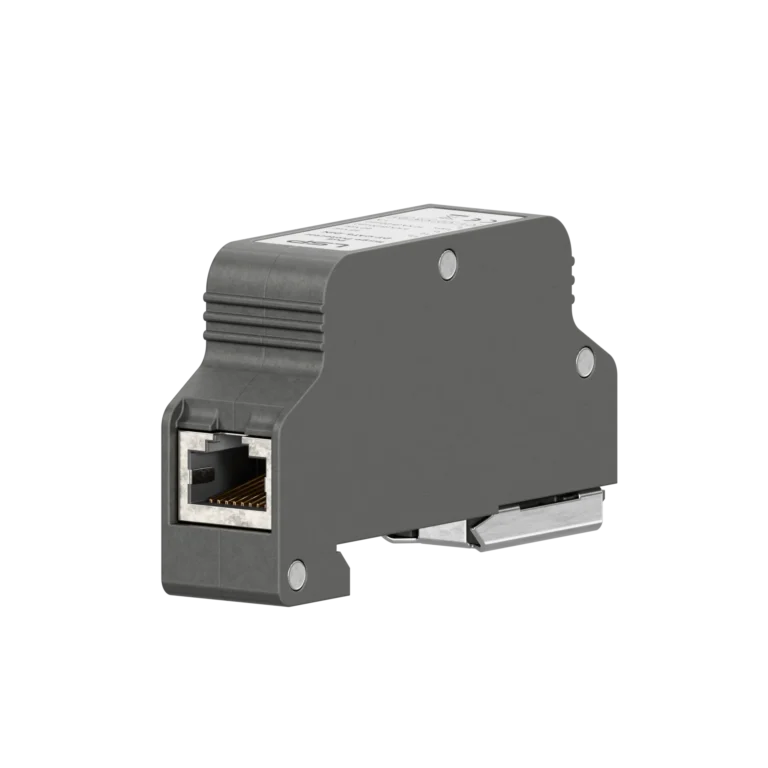

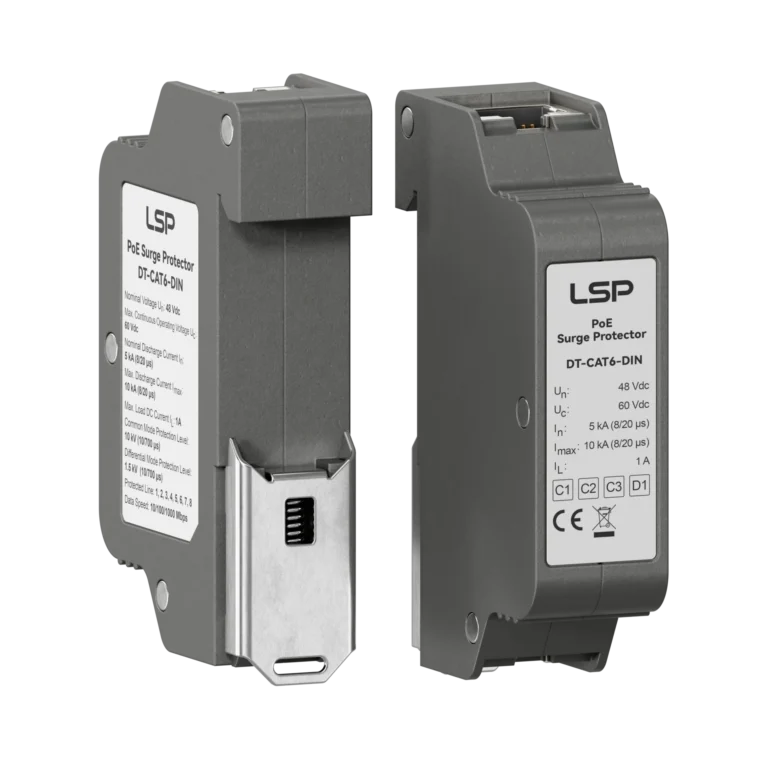

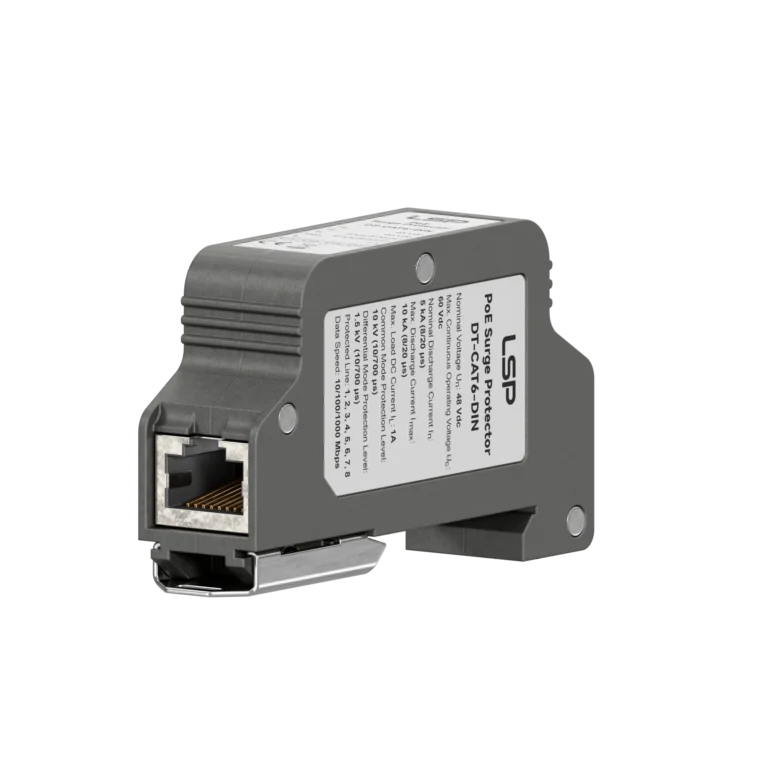

Power over Ethernet PoE Surge Protector DT-CAT6-DIN

DIN rail installation, for 120 W PoE systems, supports 10/100/1000 Mbps over 8-wire lines, IP10 zinc alloy shell, grounded via rail.

Ideally suited for retrofitting, protection of all lines

Cat. 6 in the channel (class E)

Power over Ethernet IEEE 802.3 compliant (up to POE++ / 4PPoE)

For iinstallation in conformity with the lightning protection zone concept at the boundaries from 0_B-2 and higher

Main Specification

Model No.	DT-CAT6-DIN
	SPD according to IEC/EN 61643-21	Class II / Type 2
	Nominal voltage U_n	48V
	Maximum continuous operating voltage (DC) U_c	60V
	Maximum continuous operating voltage (AC) U_c	34V
	Maximum continuous operating voltage (DC) Pair-Pair (PoE) U_c	57V
	Nominal current I_L	1A for 2 pairs, 2A for 4 pairs
	D1 Lightning impulse current (10/350 μs) per Line I_imp	0.5kA
	C2 Nominal discharge current (8/20 μs) Line - Line I_n	150A
	C2 Nominal discharge current (8/20 μs) Line - PG I_n	2.5kA
	C2 Total nominal discharge current (8/20 μs) I_n	10kA
	C2 Nominal discharge current (8/20 μs) Pair - Pair (PoE) I_n	150A
	Data speed	10/100/1000Mbps
Earthing via	DIN rail as a ground wire
