What is a Surge Protector vs Power Strip?
A power strip is essentially a device that expands a single power outlet into multiple sockets, allowing several electrical appliances to share one power source simultaneously. It typically consists of a main housing connected to a power cord with a plug, and the housing features multiple AC outlets. Some models may also include features such as a power switch, overload protection, and other safety enhancements to improve convenience and electrical safety.
A power strip with surge protector goes a step further by integrating surge protection components into the standard power strip. These components not only defend against surges on power lines, but also provide protection for signal lines such as Ethernet ports or antenna connections. When exposed to sudden overvoltages caused by lightning strikes, power grid switching, or the startup of high-power equipment, the internal surge protection elements can quickly divert excess voltage to the ground, effectively protecting the connected electronic devices from damage.
Power Strips with Surge Protection
A surge-protected power strip is an advanced version of a regular power strip that integrates built-in surge protection functionality. When exposed to events like lightning strikes, power grid switching, or sudden voltage spikes, it can effectively absorb and redirect surge current to the ground, thereby protecting connected electronic devices from damage.
Compared to standard power strips, this type of surge protector includes several critical protective components. These typically include MOVs (Metal Oxide Varistors)—the most commonly used surge absorption elements; GDTs (Gas Discharge Tubes)—capable of handling high-energy surges, ideal for coarse protection; TVS diodes (Transient Voltage Suppression) – which respond extremely fast, providing precise protection for sensitive equipment; and TFMOVs, which are MOVs equipped with thermal fuse protection. TFMOVs can disconnect automatically in case of MOV degradation or overheating, helping to prevent fire hazards.
The appearance of a surge-protected power strip is usually similar to a conventional one, with multiple AC outlets and a master power switch. It features a three-prong plug to ensure grounding capability. Most models also come with a “Protection” indicator light to show whether the surge protection is active. High-end models may include RJ45 Ethernet ports or coaxial connectors to protect data lines or antenna systems from electrical surges.
In terms of working principle, the internal surge protection components remain in a high-resistance, standby state under normal voltage conditions. Once a sudden overvoltage is detected—such as one caused by a lightning strike—the protection components instantly conduct and divert the excess voltage safely to the ground. After the surge passes, they return to a high-resistance state, ready for the next event.
There are several key usage precautions. First, the power strip must be plugged into a properly grounded three-prong outlet; otherwise, the surge current cannot be safely discharged, rendering the protection ineffective. Second, if the indicator light is off or fails to illuminate, it likely means the internal protection elements have degraded or failed, and the unit should be replaced. Third, it is not recommended to daisy-chain multiple surge protectors, as this may interfere with their functionality. Lastly, surge-protected power strips are considered end-point protection devices and should ideally be used in combination with a Type 2 SPD (Surge Protective Device) installed at the distribution panel to form a layered protection system.
These power strips are highly suitable for sensitive or high-value electronics, including computers, laptops, printers, routers, network switches, NAS storage systems, TVs, audio systems, gaming consoles, as well as smart home and video surveillance equipment. For such devices, proper surge protection not only extends service life but also significantly reduces the risk of unexpected damage.
Power Strip vs Surge Protector
If summarized in one sentence, LSP believes the main difference between a power strip and a surge protector is this: a surge protector is essentially a power strip that has been enhanced with built-in surge protection components, providing effective defense against lightning-induced surges and voltage spikes.
Here’s a more detailed comparison:
Modern power strips typically include the following basic features:
- Multiple AC outlets, allowing multiple devices to be powered at once
- Overload protection, preventing overcurrent or overheating
- Overvoltage/undervoltage protection, ensuring stable operation
- USB charging ports, convenient for mobile devices
- Type-C charging ports, compatible with newer electronic devices
A surge protector, on the other hand, includes all of the above, but also integrates key components for lightning and surge protection, such as:
- MOV (Metal Oxide Varistor)
- TFMOV (Thermally Fused MOV)
- GDT (Gas Discharge Tube)
Metal Oxide Varistor (MOV)
Thermally Fused MOV (TFMOV)
Gas Discharge Tube (GDT)
These components are installed along the power circuit and are designed to absorb and safely divert surge energy, protecting connected devices from being damaged by transient overvoltages.
In addition, some high-performance surge protectors also include:
- RJ45 Ethernet ports
- Coaxial cable ports or antenna modules
These features allow the device to offer signal line surge protection, covering network cables, communication lines, or antenna systems—achieving dual protection for both power and signal lines.
In summary:
- A standard power strip focuses on expanding power access and providing basic safety features
- A surge protector goes further by offering professional-grade surge and lightning protection, making it ideal for environments where equipment safety is a top priority
This distinction makes surge protectors the preferred choice for sensitive or high-value electronics in homes, offices, industrial settings, or IT infrastructure.
Surge Protector vs Power Strip How to Tell
There are many types of standard power strips available on the market, with various designs and features, but they generally serve the same basic purpose. Most people can easily recognize them at a glance. However, how can you tell whether a power strip is a basic one or one that comes with built-in surge protection?
In most cases, if a power strip includes surge protection, the manufacturer will clearly label it on the product casing, packaging, or user manual with terms such as “Surge Protection” or “Surge Suppressor“. Additionally, if the power strip features RJ45 Ethernet ports or antenna (coaxial) connectors, it usually indicates that the product not only protects the power lines but also includes signal line surge protection.
That said, external appearance alone isn’t always a reliable indicator. For a more accurate assessment, the most direct method is to open the power strip and examine its internal components and circuit structure.

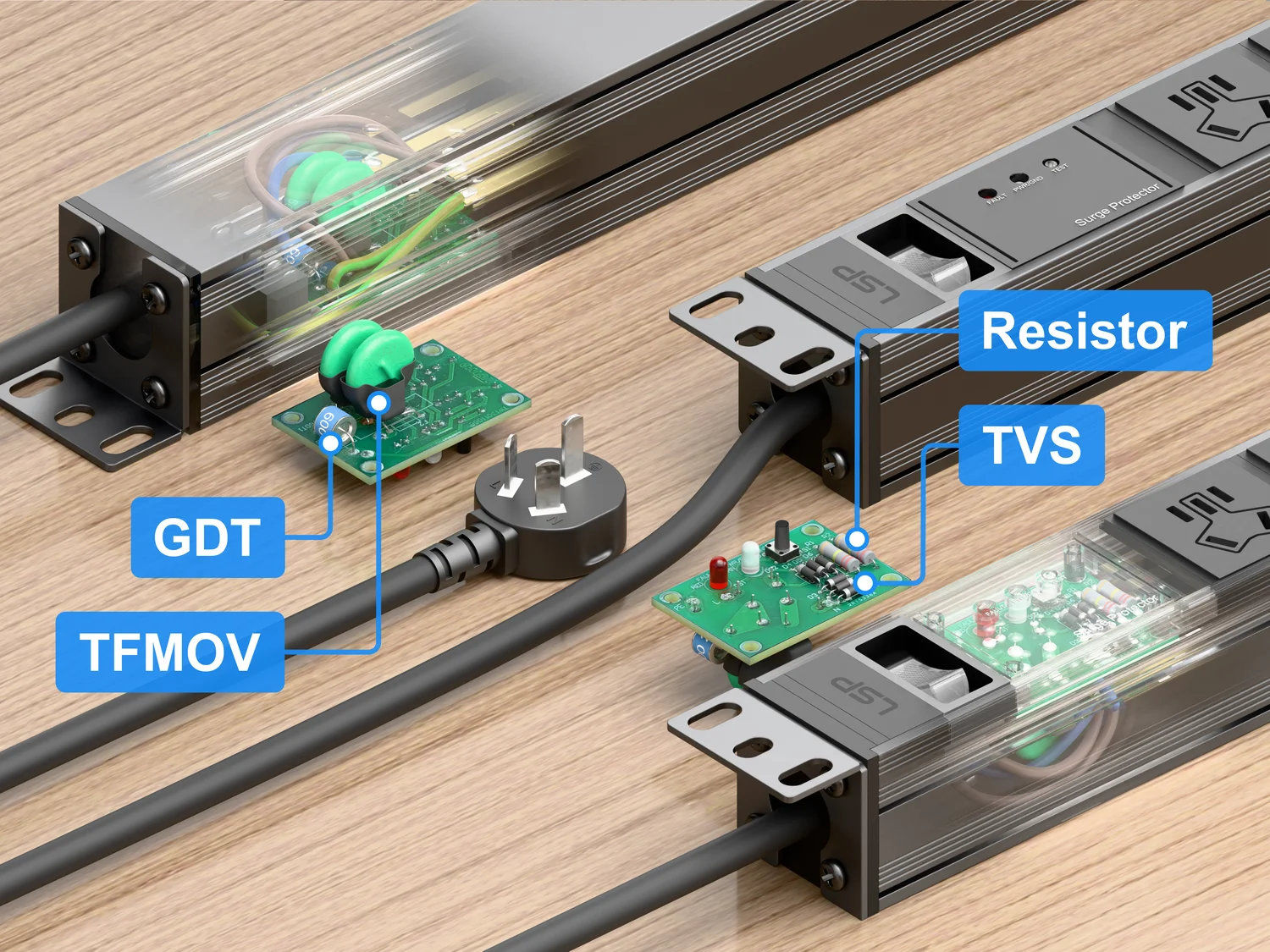

- If the power circuit includes components like MOVs (Metal Oxide Varistors), TFMOVs (Thermally Fused MOVs), or GDTs (Gas Discharge Tubes), this means the power strip offers surge protection on the power line.
- If the strip is equipped with RJ45 ports or antenna interfaces, and its signal lines contain components such as GDTs or TVS (Transient Voltage Suppression) diodes, then it also provides signal-side surge protection.
This type of power strip, which combines dual protection for both power and signal lines, is especially valuable in environments prone to frequent thunderstorms or where sensitive electronic equipment is in use. It offers reliable protection against surge currents caused by lightning, helping to safeguard end devices from unexpected damage.
Should I Get Power Strip with Surge Protector
Whether you should purchase a surge-protected power strip mainly depends on your electrical environment and the types of devices you connect.
If you live in an area prone to frequent thunderstorms and use valuable or voltage-sensitive electronics such as computers, televisions, gaming consoles, audio systems, printers, routers, or surveillance equipment, it is highly recommended to choose a power strip with surge protection.
These devices are particularly vulnerable to sudden voltage spikes caused by lightning strikes, power grid switching, or motor startups. Without effective surge protection, they are at high risk of damage or premature failure, which can significantly shorten their lifespan.
However, relying solely on a surge-protected power strip is not enough. For example, in a typical apartment, it is highly recommended to install a DIN rail surge protector inside the distribution panel or power control box (such as a PZ30 panel) as the first line of defense. These devices offer significantly higher surge absorption capacity, such as:

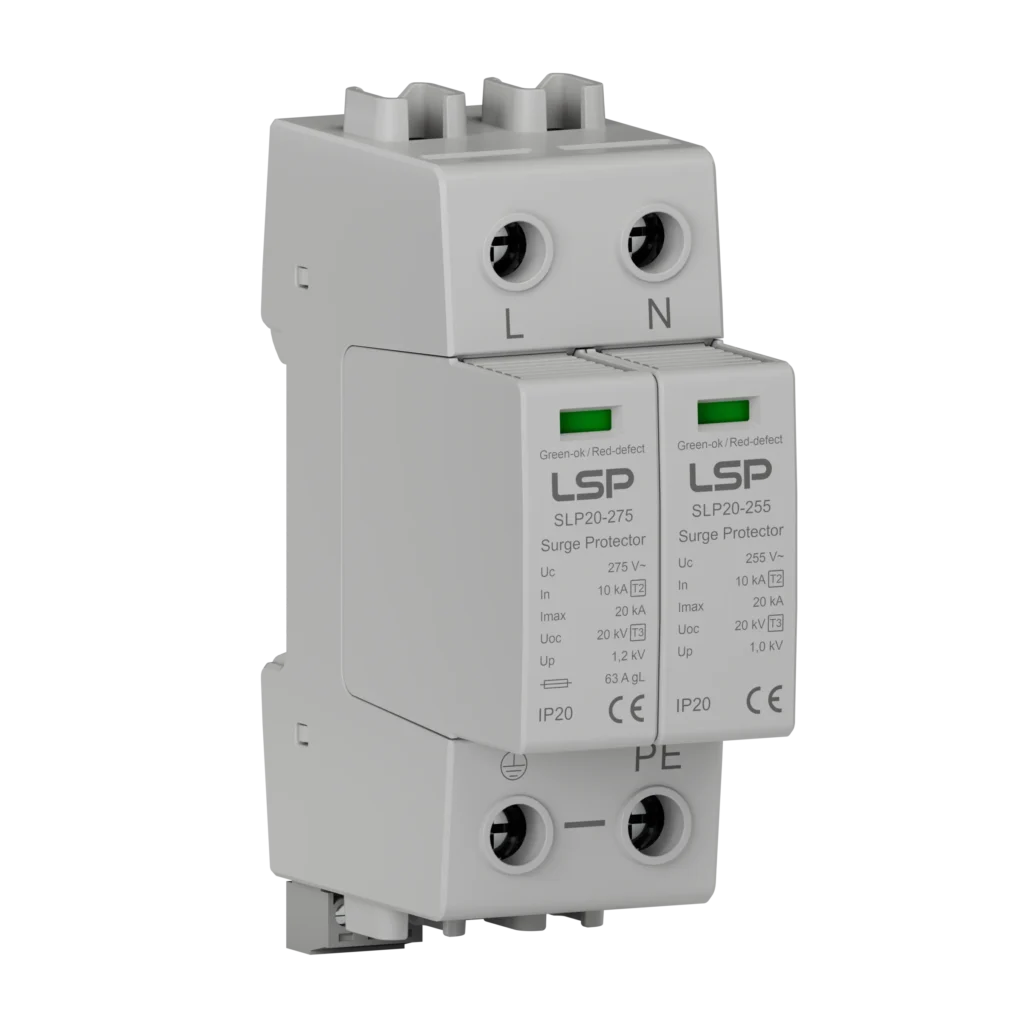

- Type 2+3 Surge Protector SLP20-275/1S+1 (Nominal discharge current In = 10kA, Maximum discharge current Imax = 20kA)

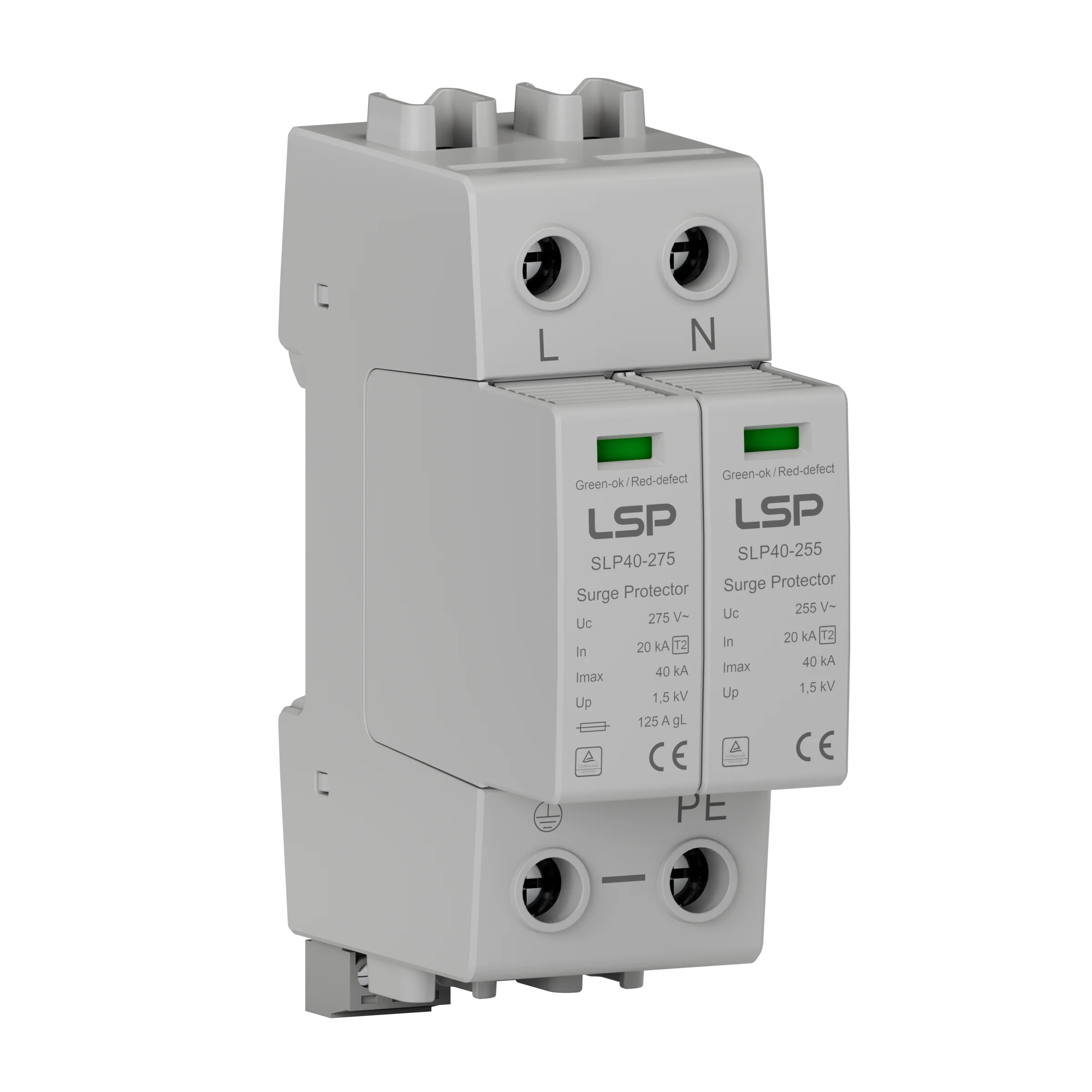

- Type 2 Surge Protector SLP40-275/1S+1 (In = 20kA, Imax = 40kA)
It is critical to understand that all surge protection devices require proper grounding. Without a reliable grounding system, the surge protector cannot effectively divert lightning currents to the earth, rendering the protection ineffective.
For a surge-protected power strip, the grounding conductor is typically the middle prong of the three-prong plug, and the corresponding middle hole on the wall outlet must be reliably grounded. Only when the grounding path is clear and intact can the lightning surge current be safely directed to the earth, achieving effective protection.
Similarly, the DIN rail surge protectors installed in the distribution panel or PZ30 box must be securely grounded. When lightning strikes, devices like the SLP20-275/1S+1 or SLP40-275/1S+1 act as the frontline protectors by absorbing and discharging the majority of the surge current. The surge-protected power strip at the end further filters any residual surge, providing multi-level protection to comprehensively ensure the safe operation of connected equipment.
Grounded Power Strip vs Surge Protector
In the market, there are generally two types of power strips: two-prong power strips and three-prong power strips with grounding. The key difference between them lies in whether they provide a grounding function.
Two-prong power strips lack a grounding wire and contain only the live and neutral wires. When using such power strips, if a connected device experiences a leakage current, there is no ground wire to safely discharge the current, resulting in a significant electric shock risk. This risk is especially serious for devices with metal housings or high-power equipment, where safety hazards are more pronounced.
In contrast, three-prong grounded power strips have a three-prong plug and three corresponding outlets, with the grounding wire as the middle prong. When a device experiences leakage or electrical faults, the leakage current can be safely directed to the ground through this grounding wire, greatly improving electrical safety.
Furthermore, a surge-protected power strip is based on a grounded power strip but additionally integrates surge protection components such as MOV (Metal Oxide Varistor), TFMOV (Thermally Fused MOV), and GDT (Gas Discharge Tube). These components absorb and safely discharge surge currents caused by events like lightning strikes or power grid switching through the grounding wire, effectively protecting connected electronic devices.
It is important to emphasize that the effectiveness of a surge-protected power strip depends heavily on whether the grounding pin (the middle hole) of the wall socket it plugs into is properly grounded. Without a reliable ground connection, even a surge-protected power strip cannot safely discharge surge currents, rendering its protection ineffective.
Power Strip with Surge Protection (USB, Type C)
Modern surge-protected power strips are commonly equipped with USB charging ports, and some high-end models even include Type-C ports to meet the charging needs of various digital devices. Whether it’s a USB or Type-C interface, both are considered part of the power output circuit.
Therefore, as long as the power strip integrates surge protection components such as MOV (Metal Oxide Varistor), TFMOV (Thermally Fused MOV), or GDT (Gas Discharge Tube) in its power lines, the USB and Type-C ports will also benefit from the same surge protection. This ensures safe and stable charging for connected mobile devices, even during power surges or lightning events.
