What Is an ATS Panel?

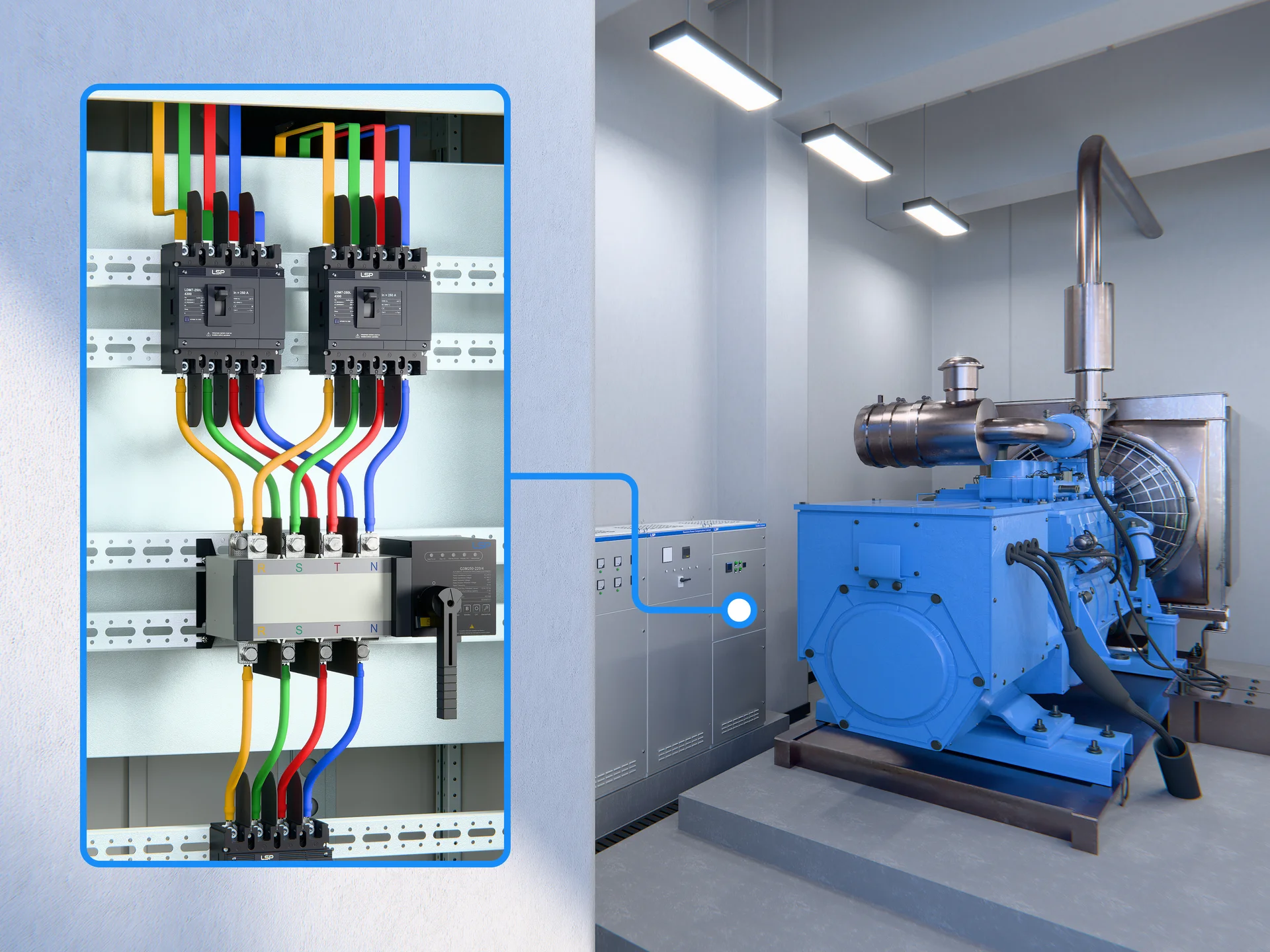

An automatic transfer switch panel is a self-acting electrical distribution component designed to switch electrical load connections between primary and backup power supplies. Upon detecting utility voltage failure, phase loss, or severe voltage drops, the transfer switch panel disconnects the primary utility supply line and connects an alternate power source such as a standby generator or energy storage inverter. Mechanical or electromechanical interlocks within the switch prevent simultaneous connection of both sources, eliminating hazardous backfeed conditions into the public utility grid.
Transfer switch panels are manufactured in PC Class and CB Class configurations. PC Class transfer switches utilize dedicated contactor mechanisms capable of making and withstanding short-circuit currents without built-in overcurrent protection. CB Class transfer switches incorporate circuit breaker mechanisms that provide both load switching and overcurrent protection.
How Does an ATS Panel Work in a Solar and Generator Hybrid System?
Normal Operation With Solar and Grid Power
During standard grid-tied conditions, the utility line provides reference voltage and frequency to the hybrid power system. Photovoltaic panels generate direct current that the hybrid inverter converts into alternating current to supply active site loads. Any excess solar generation is routed to recharge the battery bank or exported to the utility grid according to local net metering regulations.
The automatic transfer switch panel remains locked in its primary position, connecting utility power and grid-synchronised solar output to the main electrical panel. Internal control circuits continuously monitor utility voltage thresholds, phase symmetry, and frequency stability across incoming conductors without interrupting current flow to downstream loads.
What Happens When Grid Power Fails?
When a grid blackout or severe voltage sag occurs, safety regulations mandate that grid-tied solar inverters instantly cease exporting power to prevent energizing downed utility lines. The automatic transfer switch panel detects the loss of utility potential within milliseconds.
Upon verifying utility outage conditions, the transfer switch panel disengages its primary contact mechanism. Disconnecting utility power creates an isolated island within the building wiring system, preparing the internal distribution network to accept alternative backup supply safely.
How the Battery Supports the Load During an Outage
Immediately following utility grid disconnection, the hybrid inverter switches to off-grid forming mode, drawing direct current from the battery bank. The inverter constructs a local AC reference grid, allowing the battery to power critical circuits without interruption.
If sunshine is available during the outage, the hybrid inverter regulates solar photovoltaic generation to supply connected loads while routing residual power into battery storage. The transfer switch panel remains in its backup isolation position, isolating the site microgrid from the external utility grid.
How the Generator Starts and Provides Backup Power
If an extended utility blackout occurs during periods of low solar irradiance or high electrical consumption, battery voltage eventually reaches a preprogrammed state of charge minimum limit. To prevent deep battery discharge and system shutdown, the hybrid inverter closes an internal dry contact relay.
This relay signal triggers the standby generator automatic start controller. The generator engine cranks, starts, and accelerates to nominal operational speed, generating stable AC output voltage and frequency. Sensing units on the generator input terminals of the transfer switch verify that generator power meets specified voltage and frequency tolerances.
How the ATS Transfers the Load Between Power Sources
Once generator supply parameters stabilize, the automatic transfer switch panel initiates its mechanical transfer sequence. The switch mechanism operates through open transition or delayed transition modes depending on load sensitivity.
In open transition designs, the switch breaks connection with the primary source before making connection with the generator supply, introducing a brief millisecond interruption. In delayed transition designs, an adjustable center-off delay allows inductive motor loads to decay residual voltage before connecting to generator power. Mechanical interlocks physically prevent simultaneous closure onto both sources.
What Happens When Grid Power Returns?
When public utility grid power is restored, the monitoring logic within the automatic transfer switch panel initiates a retransfer timer. The switch waits for a programmed delay period, typically two to thirty minutes, to confirm that utility grid voltage and frequency remain stable.
Once stability is confirmed, the transfer switch executes a retransfer sequence back to the primary utility source. Following load transfer, the hybrid inverter opens its dry contact relay, signaling the standby generator to enter an unloaded cooldown cycle before shutting off completely. Solar inverters re-synchronize with the restored grid reference.
How Does the ATS Coordinate Solar, Battery, and Generator Power?
How Solar Power Supplies the Load During Normal Operation
During daylight hours, solar photovoltaic modules convert sunlight into direct current electricity. The hybrid inverter converts this energy into regulated alternating current power to feed active building loads directly.
Because solar energy is utilized at the point of generation, site power consumption from the utility grid drops significantly. The transfer switch panel remains passively connected to the utility line, serving as a closed conductor path while monitoring power quality parameters.
How Battery Storage Supports Backup Loads
When utility power fails during nighttime or cloudy conditions, battery storage becomes the primary power reservoir. The hybrid inverter draws high-current DC from lithium iron phosphate or lead-acid battery banks, boosting and converting it to clean sine-wave AC voltage.
The transfer switch panel isolates the building wiring from the dead utility grid, allowing the battery-inverter system to power critical distribution circuits safely without risk of backfeeding electrical workers outside the building.
When Should the Generator Start?
Generator starting logic depends on preconfigured operational parameters programmed within the hybrid inverter control interface. Rather than starting immediately upon utility grid failure, generator activation is delayed until battery reserve thresholds are breached.
Typical trigger parameters include low battery voltage limits, low state of charge percentages, or prolonged peak load demands exceeding inverter continuous discharge ratings. Deferring generator activation reduces fuel consumption, engine wear, and operational noise.
How the Generator Supports Low-Battery Conditions
When battery storage falls to critical levels during a prolonged blackout, the hybrid inverter sends an automatic start command to the generator. The engine cranks, initializes, and provides stable AC output to the secondary input of the transfer switch panel.
Once the transfer switch transfers load to the generator, generator power feeds both the active building loads and the hybrid inverter battery charging circuit. The generator runs continuously until the battery reaches its bulk charge target, after which the inverter removes the start signal to stop the engine.
How the ATS and Hybrid Inverter Communicate
Coordination between the transfer switch panel and the hybrid inverter relies on combined hardware relays and digital communication protocols. Dry contact signal wires connect the inverter auxiliary terminals to the generator auto-start controller.
Simultaneously, auxiliary control switches inside the transfer switch panel send status feedback to the hybrid inverter. This feedback confirms whether the mechanical transfer switch occupies the utility position or generator position, allowing the inverter to adjust internal charge rates and anti-islanding parameters accordingly.
Why Generator and Solar Inverter Compatibility Matters
Connecting a standby generator into a hybrid power architecture requires strict frequency and voltage compatibility between the generator alternator and the solar hybrid inverter. Standard portable generators often produce unstable frequency variations and harmonic distortion that cause hybrid inverters to reject generator power.
Inverters require clean AC power to synchronize internal charging circuits. Utilizing inverter-grade generators or automatic transfer switch panels equipped with voltage-frequency sensing relays ensures smooth power transfer without tripping inverter protection codes.
How to Choose an ATS Panel for a Solar and Generator Hybrid System
Determine the System Voltage
Selecting the correct automatic transfer switch panel requires defining the nominal AC system voltage of the facility. Residential systems in North America standardly operate on split-phase 120/240 Volt AC service, whereas commercial and industrial facilities operate on three-phase system voltages such as 208Y/120V, 480Y/277V, or 400V European standard systems.
The transfer switch insulation rating and voltage sensing control modules must match the nominal operating system voltage to ensure accurate threshold detection and safe phase insulation.
Select the Correct Current Rating
The transfer switch panel continuous current rating must match or exceed the upstream main service breaker rating or maximum load demand. Standard continuous ratings for transfer switch panels include 100A, 200A, 400A, 600A, and 800A up to 4000A for industrial installations.
Additionally, engineers must verify the withstand current rating (WCR) of the transfer switch panel. The WCR indicates the maximum short-circuit fault current the switch can safely endure until upstream protective fuses or circuit breakers clear the fault.
Single-Phase vs Three-Phase Configuration
Single-phase transfer switch panels feature two switching poles for line conductors, suitable for single-phase or split-phase residential hybrid installations.
Three-phase transfer switch panels feature three or four switching poles designed to handle balanced or unbalanced motor, pump, and heavy industrial loads. Industrial solar and generator installations require three-phase transfer switch panels with phase-rotation monitoring logic to prevent motor reversal upon power transfer.
Determine the Generator and Inverter Capacity
The capacity of both the standby generator and the hybrid solar inverter dictates transfer switch sizing and load management requirements. If generator capacity is smaller than peak building load, the transfer switch panel must integrate load-shedding modules to disconnect non-essential heavy loads prior to transfer.
Similarly, the continuous output rating of the hybrid inverter dictates whether the transfer switch panel feeds the whole building service or specific isolated subpanels.
Choose the Number of Poles and Neutral Switching
Selecting between 2-pole, 3-pole, or 4-pole transfer switch panels depends on facility grounding design and transformer connections. In systems where the generator neutral is bonded to the generator frame, a switched neutral pole (3-pole for single-phase, 4-pole for three-phase) is required to prevent dual ground-neutral loops.
Switched neutral transfer switch panels disconnect the neutral conductor from the utility grid simultaneously with phase conductors during transfer, maintaining single-point ground fault protection compliance.
Consider ATS Transfer Time
Transfer speed is a critical specification when selecting an automatic transfer switch panel for sensitive electronic loads, server rooms, and industrial control systems. Standard open transition transfer switches feature transfer times ranging from 30 to 100 milliseconds, which may cause sensitive computers or hybrid inverters to reboot.
Fast static transfer switches or specialized high-speed electromechanical switches achieve transfer times under 16 milliseconds, preserving continuous operation of IT equipment without power disruption.
Check Generator Start and Stop Control
The transfer switch panel must include reliable engine control terminal blocks, including 2-wire auto-start contacts, auxiliary microswitches, and status LED indicators.
Control logic should allow configurable engine exercise timers, engine warm-up delays (typically 20 to 60 seconds), and post-transfer cooldown delays. These controls allow the generator engine to stabilize oil pressure and temperature before taking on full electrical load.
Check Inverter and Communication Compatibility
Modern solar hybrid installations rely on digital communication networks such as RS485, Modbus RTU, or CAN bus between system components.
Choosing an automatic transfer switch panel equipped with compatible communication modules allows remote monitoring systems to track switch position, voltage levels, frequency metrics, and alarm conditions in real time via centralized energy management software.
Select the Appropriate Enclosure and Installation Environment
The physical enclosure rating protects internal switch contactors and electronic control boards against environmental exposure. Indoor installations typically utilize NEMA 1 or IP20 rated steel enclosures.
Outdoor solar and generator installations require weather-tight enclosures rated NEMA 3R, NEMA 4X, or IP65. Outdoor enclosures must withstand ultraviolet radiation, heavy rain, dust ingress, and extreme ambient temperatures while preventing moisture condensation.
Verify Applicable Standards and Certifications
Safety standards ensure the transfer switch panel meets rigorous manufacturing, endurance, and short-circuit testing protocols. Key certifications include UL 1008 (standard for transfer switch equipment), IEC 60947-6-1 (automatic transfer switching equipment), and CE marking.
In addition, surge protection components integrated into the transfer switch panel must comply with IEC 61643-11 and UL 1449 standards. Manufacturers such as LSP provide certified surge protective devices engineered to protect transfer switch electronics against transient surge voltages.
Below is a summary of essential standards and certifications for hybrid power ATS selection:
Standard / Certification | Scope & Purpose | Target Application |
|---|---|---|
UL 1008 | Safety standard for transfer switch equipment | North American residential & commercial ATS |
IEC 60947-6-1 | Low-voltage switchgear: automatic transfer switching | International & European industrial ATS panels |
NEMA 3R / IP65 | Weatherproof enclosure ingress protection rating | Outdoor solar, generator, and utility installations |
UL 1449 / IEC 61643-11 | Surge protective device performance standards | Lightning and transient overvoltage protection |
IEEE 1547 | Interconnection standard for distributed energy resources | Grid-tied solar hybrid & microgrid compliance |
ATS Panel Applications for Solar and Generator Hybrid Systems
Residential Solar and Generator Backup Systems
Residential hybrid installations combine rooftop solar arrays, lithium battery storage banks, and automatic standby generators. The transfer switch panel automatically shifts home power circuits between grid supply, battery energy, and generator backup during severe weather blackouts.
By prioritizing solar and battery storage energy first, home owners minimize generator noise and fuel consumption while enjoying continuous power for heating, refrigeration, and medical devices.
Commercial Solar and Generator Backup Systems
Commercial properties such as retail centers, office buildings, and agricultural facilities install hybrid solar systems to lower peak demand charges and secure operational continuity.
Commercial automatic transfer switch panels manage heavy multi-phase loads, coordinating with building management systems to execute automated load-shedding routines when running on auxiliary generator power during grid disruptions.
Industrial Solar and Generator Hybrid Systems
Industrial manufacturing plants utilize high-capacity transfer switch panels rated from 800A to 4000A to manage complex power networks comprising utility feeders, megawatt-scale solar arrays, battery storage systems, and heavy diesel generators.
Industrial transfer switch panels incorporate PC Class high-withstand contactors capable of handling extreme inductive motor inrush currents and short-circuit fault levels while preventing costly factory downtime.
Remote and Off-Grid Solar Power Systems
Off-grid installations in remote locations lack utility grid connections altogether. In these microgrid architectures, the primary power supply comes from solar photovoltaic generation backed up by industrial battery banks.
The automatic transfer switch panel operates between the primary off-grid hybrid inverter output and an auxiliary backup diesel generator. When extended overcast conditions drain battery reserves, the transfer switch panel automatically engages the diesel generator to supply site loads and restore battery charge.
Telecom and Communication Backup Power Systems
Cellular towers, data repeater sites, and satellite communication stations require continuous uptime. Telecom power systems utilize DC hybrid power units combined with AC automatic transfer switch panels.
The transfer switch panel guarantees uninterrupted AC supply to critical transmission amplifiers and cooling units, seamlessly shifting from solar storage power to standby generator power during long-duration commercial utility outages.
Critical Load and Emergency Power Systems
Healthcare facilities, emergency response centers, and water treatment infrastructure operate life-safety and critical emergency power distribution systems governing emergency lighting, fire pumps, and life-support equipment.
These installations demand certified UL 1008 emergency-rated transfer switch panels equipped with dual bypass-isolation mechanisms. The bypass feature permits manual maintenance on the primary transfer switch without interrupting continuous power delivery to critical safety loads.
Conclusion
A panel automatic transfer switch plays a critical role in maintaining reliable power availability in solar and generator hybrid power systems. By automatically managing power transfer between the utility grid, solar energy system, battery storage, and backup generator, an ATS panel can help reduce power interruptions and ensure that essential loads continue to receive stable power when the primary power source is unavailable.
LSP is a professional manufacturer specializing in surge protective devices (SPDs), automatic transfer switches (ATS), and other low-voltage electrical protection and power distribution products. With manufacturing experience and technical expertise in electrical protection and switching solutions, LSP provides reliable products for residential, commercial, and industrial applications. Welcome to contact LSP for ATS solutions, product selection support, OEM/ODM services, and customized requirements.
FAQs About Solar and Generator ATS Panels
Can an ATS Work With Solar and a Generator?
Yes, an automatic transfer switch works with solar and generator hybrid systems to manage power routing. The transfer switch isolates utility grid power during blackouts and safely connects standby generator power to electrical loads. Hybrid inverters regulate solar photovoltaic arrays and battery storage, while the transfer switch manages physical source selection.
Can I Connect Solar, Battery, and Generator to the Same ATS Panel?
You can connect solar, battery storage, and generator sources to the same automatic transfer switch panel using appropriate multi-source wiring configurations. In typical installations, the hybrid inverter manages solar array input and battery storage charging, feeding power into the primary input of the transfer switch panel.
Does a Solar System Need an Automatic Transfer Switch?
Grid-tied solar systems without battery storage do not require an automatic transfer switch because they shut down automatically during utility grid outages for safety. However, solar hybrid systems equipped with backup generators require a transfer switch to isolate the utility grid and prevent backfeeding.
Can an ATS Switch Directly Between Solar and Generator Power?
Direct switching between solar photovoltaic power and generator supply is managed through an integrated hybrid inverter system rather than a standalone automatic transfer switch unit. Solar inverters require grid reference voltage to produce AC output, making direct transfer switch operation complex.
What Size ATS Do I Need for a Solar Generator System?
Selecting transfer switch panel sizing requires matching main utility breaker ratings or maximum continuous load requirements of targeted electrical circuits. Residential applications standardly utilize two hundred ampere transfer switch panels, while commercial installations require four hundred amperes or higher continuous current ratings.
