Understanding Overvoltages in Electrical Systems
Types of Overvoltages (Transient vs Temporary)
Electrical systems face two main types of overvoltages: transient and temporary. Transient overvoltages appear suddenly and last for a very short time, often less than a millisecond. These events usually result from switching operations or indirect lightning surges. Temporary overvoltages, on the other hand, last longer—sometimes several seconds or even minutes. They often occur due to faults in the power system, such as a broken neutral or sudden load changes.
Tip: Identify the type of overvoltage before selecting an overvoltage protection device. This step ensures the chosen solution matches the risk.
Common Sources of Overvoltages
Several sources can cause overvoltages in electrical systems. Some of the most common include:
Switching operations: Large motors or transformers switching on or off can create voltage spikes.
Induced lightning surges: When lightning strikes near a power line, it can induce a surge in the system.
Faulty wiring or grounding: Poor connections or damaged cables can lead to unexpected voltage rises.
Grid disturbances: Sudden changes in the power grid, such as load shedding or faults, can result in temporary overvoltages.
A table below summarizes these sources and their typical effects:
Source | Type of Overvoltage | Typical Duration |
|---|---|---|
Switching Operations | Transient | Microseconds |
Induced Lightning Surge | Transient | Microseconds |
Faulty Wiring | Temporary | Seconds to Minutes |
Grid Disturbances | Temporary | Seconds to Minutes |
Risks to Electrical Equipment and Systems
Overvoltages can damage sensitive equipment and disrupt operations. Transient overvoltages may destroy electronic components, trip circuit breakers, or cause data loss. Temporary overvoltages can overheat wiring, damage insulation, or shorten the lifespan of motors and transformers. In severe cases, these events may lead to fire hazards or complete system failure.
To reduce these risks, electrical systems use several types of overvoltage protection devices:
Surge protective devices (SPDs): Devices designed to limit transient overvoltages and divert surge currents to the grounding system.
This category includes various technologies and applications, such as low-voltage SPDs and surge arresters used in higher-voltage systems.Voltage relays: Detect abnormal voltages and disconnect the load if necessary.
Circuit breakers and fuses: Interrupt excessive current flow during faults, offering basic protection.
How Different Overvoltage Protection Devices Work
Transient Overvoltage Protection Mechanisms
Transient overvoltages often result from switching operations or induced lightning surges. Devices designed for these events must react quickly and handle high energy levels. The most common technologies include metal oxide varistors (MOVs), gas discharge tubes (GDTs), and hybrid combinations.

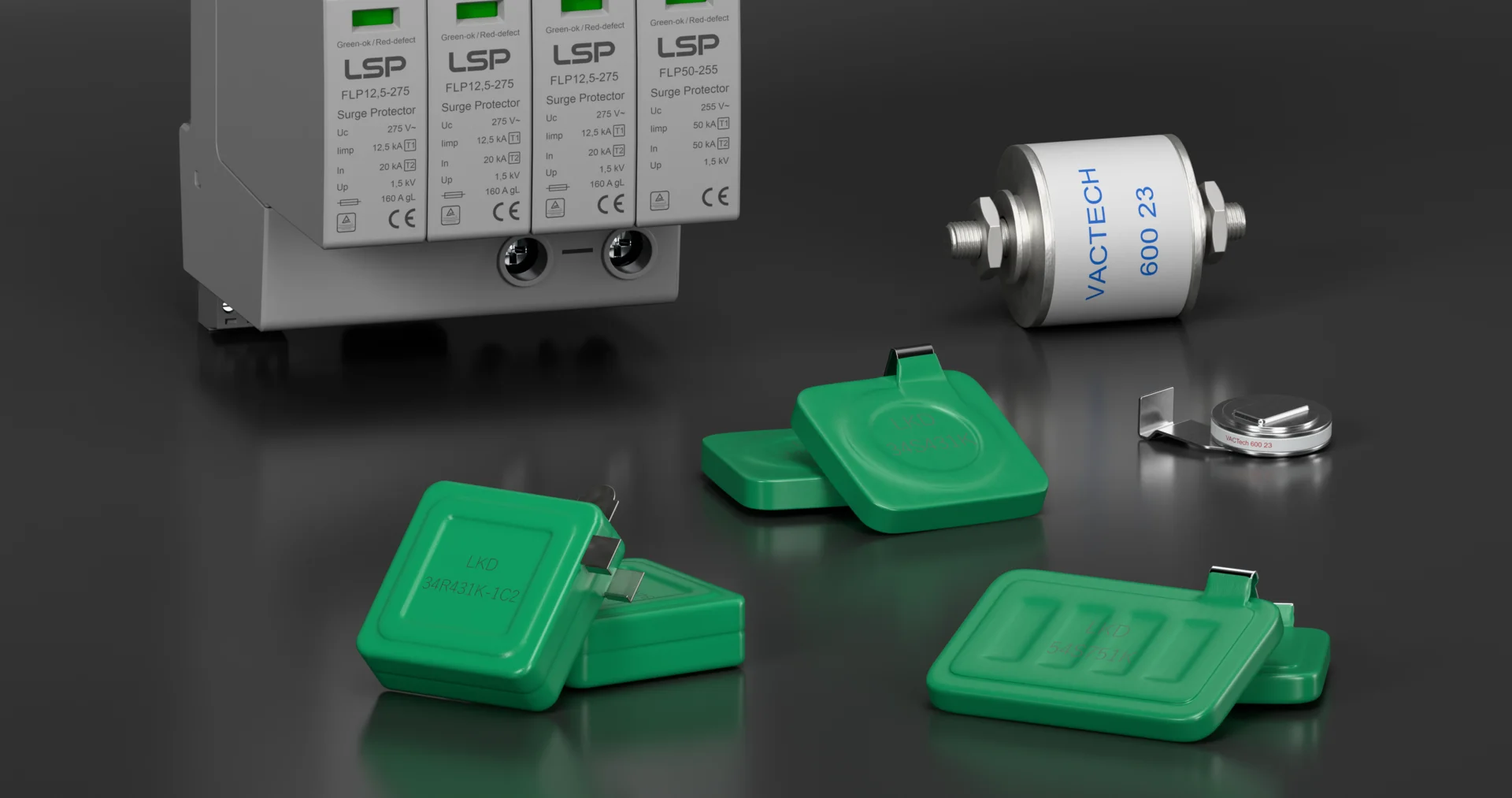

MOV / GDT / Hybrid Technologies
MOVs use a ceramic material that changes resistance when exposed to high voltage. When a transient surge occurs, the MOV will clamp the overvoltage and divert the overcurrent to the grounding system. This action protects sensitive equipment from damage. GDTs contain an inert gas that ionizes under high voltage, creating a path for the surge current to flow safely to ground. Hybrid devices combine MOVs and GDTs to provide both fast response and high energy handling.
Response Time and Energy Handling
Response time measures how quickly a device reacts to a surge. MOVs respond in nanoseconds, making them ideal for fast transients. GDTs have a slightly slower response but can handle larger energy surges. Hybrid devices balance speed and energy handling. The energy handling capacity determines how much surge energy the device can safely transfer to the grounding system without damage. Proper selection ensures the overvoltage protection device matches the risk level in the installation.
Temporary Overvoltage Protection Mechanisms
Temporary overvoltages last longer than transients and require different protection strategies. Devices for these events focus on detection and safe disconnection.
Voltage Detection
Voltage detection circuits monitor the system voltage in real time. When the voltage exceeds a preset threshold, the device recognizes a temporary overvoltage condition. This feature helps prevent overheating and insulation breakdown in connected equipment.
Disconnection and Reconnection Logic
Once the device detects a temporary overvoltage, it disconnects the load from the power supply. This action prevents damage to equipment. After the voltage returns to a safe range, the device can automatically reconnect the load. This logic ensures continuous protection and minimizes downtime.
A table below summarizes the main mechanisms:
Mechanism | Main Function | Typical Device Type |
|---|---|---|
MOV/GDT | Clamp transient overvoltages with fast response， divert surge energy to ground | SPD (Type 1, Type 2, Type 3) |
Voltage Detection & Disconnection | Monitor voltage levels and disconnect the load during temporary overvoltages | Voltage Relay |
A well-chosen overvoltage protection device ensures both transient and temporary events do not harm electrical systems or equipment.
Comparison of Overvoltage Protection Devices
Protection Against Transient Overvoltages
Transient overvoltages can damage sensitive electronics and disrupt operations. To protect against these fast, high-energy events, users should select devices that react quickly and can handle large surges. Surge protective devices (SPDs) play a key role here. Type 1 SPDs, installed at the main service entrance, use Iimp to indicate their impulse current capability. These devices clamp the overvoltage and transfer the overcurrent to the grounding system during events like switching operations or induced lightning surges. Type 2 SPDs, marked by In and Imax, are suitable for distribution boards and provide further protection deeper in the system. Type 3 SPDs, identified by Uoc, protect sensitive loads at the equipment level.
Surge arresters also help by providing a direct path for surge currents to ground, especially in high-voltage installations. For most commercial and residential systems, SPDs remain the primary choice for transient protection.
For best results, users should install SPDs at multiple points in the system, such as the service entrance, distribution board, and near critical loads.
Protection Against Temporary Overvoltages
Temporary overvoltages last longer than transients and require a different approach. Voltage relays monitor the system voltage and disconnect the load if the voltage exceeds safe limits. This action prevents overheating and insulation damage. Circuit breakers and fuses also provide basic protection by interrupting excessive current flow during faults, but they do not respond to all types of overvoltages.
A table below summarizes which devices protect against each type of overvoltage:
Device Type | Transient Overvoltage | Temporary Overvoltage |
|---|---|---|
SPD /Surge Arrester | ✅ | ❌ |
Voltage Relay | ❌ | ✅ |
Circuit Breaker | ❌ | ✅ |
Fuse | ❌ | ✅ |
Response Speed and Protection Level
Response speed is critical for transient protection. SPDs with metal oxide varistors (MOVs) respond in nanoseconds, making them ideal for fast surges. Gas discharge tubes (GDTs) react slightly slower but can handle higher energy. Hybrid devices combine both technologies for balanced performance. Voltage relays, on the other hand, detect overvoltages within milliseconds to seconds, which suits temporary events.
Protection level refers to the maximum voltage a device allows before it activates. Users should select the right device based on the risk level and installation location.
When choosing an overvoltage protection device, users should consider the type of overvoltage, the required response speed, and the protection level needed for their system.
Typical Installation Locations
Choosing the right installation location for each overvoltage protection device ensures effective protection for electrical systems. Each device type works best in specific parts of the system. Understanding these locations helps users maximize safety and equipment lifespan.
1. Surge Protective Devices (SPDs):
Type 1 SPD (Iimp): Install at the main service entrance. This location protects the entire installation from high-energy surges, such as those caused by switching operations or indirect lightning surges. The device clamps the overvoltage and transfers the overcurrent to the grounding system before it reaches distribution circuits.
Type 2 SPD (In/Imax): Place in distribution boards. This device provides secondary protection for branch circuits and sensitive equipment. It handles residual surges that pass through the Type 1 SPD.
Type 3 SPD (Uoc): Mount close to sensitive loads, such as computers or control panels. This device offers fine protection at the equipment level, guarding against low-energy surges.
2. Surge Arresters:
Use in high-voltage systems, often at substations or on overhead lines. These devices provide a direct path for surge currents to ground, protecting transformers and large infrastructure.
3. Voltage Relays:
Install in control panels or distribution boards. Voltage relays monitor system voltage and disconnect loads during temporary overvoltages. This placement ensures quick response to abnormal voltage conditions.
4. Circuit Breakers and Fuses:
Place at the start of each circuit or near the load. These devices interrupt excessive current flow during faults, offering basic protection for wiring and connected equipment.
Note: Always follow IEC guidelines and local regulations when selecting installation points for overvoltage protection devices.
The table below summarizes typical installation locations for each device:
Device Type | Typical Location | Main Purpose |
|---|---|---|
SPD Type 1 (Iimp) | Main service entrance | Protects entire installation from high surges |
SPD Type 2 (In/Imax) | Distribution board | Protects branch circuits and equipment |
SPD Type 3 (Uoc) | Near sensitive loads | Protects individual devices |
Surge Arrester | Substation, overhead line | Protects high-voltage infrastructure |
Voltage Relay | Control panel, distribution board | Disconnects load during temporary overvoltage |
Circuit Breaker/Fuse | Circuit start, near load | Interrupts current during faults |
To ensure full protection, users should coordinate the installation of these devices throughout the electrical system. Start at the service entrance with a Type 1 SPD, add Type 2 SPDs at distribution points, and finish with Type 3 SPDs near sensitive equipment. Place voltage relays and circuit breakers where they can quickly detect and respond to abnormal conditions.
By following these guidelines, users can create a layered defense against both transient and temporary overvoltages. This approach helps maintain system reliability and protects valuable assets.
How to Choose the Right Overvoltage Protection Device
Type of Overvoltage to Be Protected Against
Selecting the right overvoltage protection device starts with identifying the type of overvoltage present in the system. Transient overvoltages, such as those caused by switching operations or induced lightning surges, require fast-acting devices. Temporary overvoltages, which last longer and often result from grid disturbances or wiring faults, need devices that can detect abnormal voltage levels and disconnect the load.
A simple checklist helps users determine the risk:
Review recent electrical events in the facility.
Check for history of switching operations or lightning-induced surges.
Inspect for wiring faults or grid instability.
Tip: Matching the device to the overvoltage type ensures effective protection and reduces unnecessary downtime.
System Voltage and Earthing Arrangement
System voltage and earthing arrangement play a critical role in device selection. Each electrical system operates at a specific voltage level, such as 230V or 400V. The earthing arrangement, like TN, TT, or IT systems, affects how the device interacts with the grounding system.
Users should:
Identify the nominal voltage of the installation.
Confirm the earthing arrangement by consulting system diagrams or technical documentation.
Choose a device rated for both the voltage and earthing type.
Devices must comply with IEC standards for voltage and earthing compatibility. This step prevents misapplication and ensures reliable operation.
Coordination with Other Protective Devices
Proper coordination with other protective devices ensures that each overvoltage protection device works together to provide complete system protection. When users install multiple devices, such as SPDs, voltage relays, circuit breakers, and fuses, each device must operate in the correct sequence. This approach prevents unnecessary tripping and maximizes equipment safety.
Step-by-step guide for effective coordination:
Identify the Protection Layers
Start by mapping out the electrical system. Place Type 1 SPD (Iimp) at the service entrance, Type 2 SPD (In/Imax) at distribution boards, and Type 3 SPD (Uoc) near sensitive loads. Add voltage relays and circuit breakers at key points to detect and isolate faults.Match Device Ratings and Response Times
Select devices with compatible ratings. For example, ensure the SPD at the distribution board can handle the residual surge current that passes through the service entrance SPD. Choose voltage relays that detect temporary overvoltages quickly but do not react to brief transients.Devices with different response speeds must work in harmony. Fast-acting SPDs clamp the overvoltage, while relays and breakers disconnect only during sustained events.
Set Proper Discrimination Levels
Adjust the settings so that only the device closest to the fault or surge operates. For example, set the Type 3 SPD to activate at a lower voltage than the Type 2 SPD. This method protects sensitive equipment without triggering upstream devices unnecessarily.Ensure Safe Disconnection and Reconnection
Use voltage relays with clear disconnection and reconnection logic. After a temporary overvoltage, the relay should reconnect the load only when the voltage returns to a safe range. This step prevents repeated interruptions and protects equipment.Follow IEC Coordination Guidelines
Reference IEC standards for coordination between SPDs and other devices. These guidelines help users select compatible devices and set correct installation distances.
Checklist for Coordination Success:
Map all device locations and functions.
Verify device ratings and response times.
Set discrimination levels to prevent false trips.
Test the system after installation.
By following these steps, users can create a reliable, layered defense against both transient and temporary overvoltages. Proper coordination extends equipment life and ensures uninterrupted operation.
Installation, Coordination, and Maintenance Considerations
Coordination Between Protection Devices
Effective coordination between protection devices ensures that electrical systems remain safe and reliable. Each device type offers unique strengths and works best in specific scenarios. Surge protective devices (SPDs) clamp the overvoltage and transfer the overcurrent to the grounding system. Voltage relays disconnect loads during temporary overvoltages. Circuit breakers and fuses interrupt current flow during faults.
A layered approach provides the highest level of protection. Place Type 1 SPDs (Iimp) at the service entrance to handle high-energy surges. Install Type 2 SPDs (In/Imax) at distribution boards for branch circuit protection. Use Type 3 SPDs (Uoc) near sensitive equipment for fine protection. Voltage relays and circuit breakers should be positioned to respond to abnormal voltage or current conditions.
Device Type | Strengths | Best-Use Scenario |
|---|---|---|
SPD Type 1 (Iimp) | Handles high-energy surges | Service entrance |
SPD Type 2 (In/Imax) | Protects branch circuits | Distribution board |
SPD Type 3 (Uoc) | Safeguards sensitive equipment | Near critical loads |
Voltage Relay | Detects temporary overvoltages | Control panels, distribution boards |
Circuit Breaker/Fuse | Interrupts fault current | Circuit start, near loads |
Coordination ensures that each device activates only when necessary. This approach prevents nuisance tripping and maximizes equipment safety.
Installation Best Practices
Proper installation of protection devices increases system reliability and safety. Follow these best practices to achieve optimal results:
Assess the Electrical System
Review the system voltage and earthing arrangement. Identify locations for each device type based on risk and equipment sensitivity.Select Appropriate Devices
Choose SPDs rated for the system voltage and earthing type.Ensure Correct Positioning
Install devices as close as possible to the point of risk. Minimize cable lengths between SPDs and protected equipment to reduce voltage drop during surges.Follow IEC Standards
Reference IEC guidelines for installation distances and coordination. Ensure all devices comply with relevant standards for safety and performance.Label and Document Installations
Clearly label each device and maintain documentation for future reference. This step helps with troubleshooting and maintenance.
Checklist for Installation Success:
Confirm device ratings match system requirements.
Position devices according to risk level.
Minimize cable lengths for SPDs.
Label all devices and keep records.
Inspection and Replacement
Regular inspection and timely replacement of protection devices maintain system integrity. Devices such as SPDs and voltage relays may degrade over time due to repeated surge events.
Visual Inspection:
Check status indicators on SPDs. A green window shows normal operation. A non-green color signals the need for replacement.Functional Testing:
Test voltage relays and circuit breakers to ensure proper operation. Verify that devices disconnect and reconnect loads as intended.Scheduled Maintenance:
Inspect all devices at least once a year. Replace any device that shows signs of wear, damage, or abnormal operation.
Maintenance Task | Frequency | Action Required |
|---|---|---|
Visual Inspection | Monthly | Check status indicators |
Functional Testing | Annually | Test device operation |
Device Replacement | As needed | Replace faulty or worn devices |
Regular maintenance extends the life of protection devices and ensures continuous safety for electrical systems.
A well-planned approach to installation, coordination, and maintenance helps users select and maintain the right overvoltage protection device for any application.
LSP Overvoltage Protection Device Solutions
LSP Approach to Overvoltage Protection
LSP began operations in 2010, focusing on the development and manufacturing of advanced surge protective devices. The company invests in research and development to create solutions that address the challenges posed by transient and temporary overvoltages. LSP engineers design products that clamp the overvoltage and transfer the overcurrent to the grounding system, ensuring the safety and longevity of electrical installations. The company operates state-of-the-art test facilities and follows controlled processes to guarantee consistent product performance.
LSP’s commitment to innovation drives the continuous improvement of its product range. The team prioritizes measurable reliability and practical protection for a wide variety of electrical systems. LSP’s mission centers on providing dependable solutions that safeguard installations from lightning-induced surges and switching events.
Product Coverage and Application Scenarios
LSP offers a comprehensive lineup of surge protective devices for both AC and DC power systems. The product range includes:
Type 1 SPDs (Iimp) for main service entrances
Type 2 SPDs (In/Imax) for distribution boards
Type 3 SPDs (Uoc) for sensitive equipment
DC SPDs for photovoltaic and energy storage systems
Data surge protectors for communication lines
PoE surge protectors for network equipment
LED surge protectors for lighting systems
These devices serve industrial machinery, commercial buildings, renewable energy projects, and residential installations. LSP’s solutions help prevent costly downtime and equipment damage by providing layered protection at every level of the electrical system.
Certifications and Quality Assurance
LSP places a strong emphasis on quality and reliability. The company’s products hold certifications from TUV, CB, and CE, and meet ISO 9001 standards. Each overvoltage protection device undergoes rigorous testing, including lightning impulse and thermal stability assessments, to ensure consistent performance. LSP uses premium components such as metal oxide varistors and gas discharge tubes, along with flame-retardant materials and robust metal parts.
The company backs its products with a five-year warranty and provides comprehensive support services. LSP’s dedication to customer satisfaction and global service ensures that clients receive tailored solutions for their specific needs.
Reliability in surge protection remains LSP’s guiding principle.
FAQ
What is the main purpose of an overvoltage protection device?
An overvoltage protection device protects electrical systems by clamping the overvoltage and transferring the overcurrent to the grounding system. This action prevents damage to equipment during transient or temporary overvoltage events.
How does a surge protective device (SPD) work?
A surge protective device (SPD) detects a surge, clamps the overvoltage, and diverts the overcurrent to the grounding system. This process protects sensitive equipment from transient events like switching operations or induced lightning surges.
Where should users install a Type 1 SPD (Iimp)?
Users should install a Type 1 SPD (Iimp) at the main service entrance. This location ensures the device can clamp high-energy surges before they reach the distribution circuits.
Can a single device protect against all types of overvoltages?
No single device protects against all types of overvoltages. Users should combine SPDs, voltage relays, and circuit breakers to create a layered defense for both transient and temporary overvoltages.
How often should users inspect overvoltage protection devices?
Users should visually inspect overvoltage protection devices monthly. Annual functional testing helps ensure proper operation. Replace any device that shows abnormal status or wear.
What is the difference between Type 2 SPD (In/Imax) and Type 3 SPD (Uoc)?
Type 2 SPD (In/Imax) protects distribution boards and branch circuits from residual surges. Type 3 SPD (Uoc) provides fine protection for sensitive equipment at the load level.
Do overvoltage protection devices require maintenance?
Yes, overvoltage protection devices require regular inspection and timely replacement. Scheduled maintenance helps maintain system reliability and ensures ongoing protection.
How do users choose the right overvoltage protection device for their system?
Users should identify the type of overvoltage risk, check system voltage and earthing arrangement, and select devices rated for those conditions. Proper installation location and coordination with other protective devices are also important.
