Overload Protection vs Surge Protection – A Complete Guide

What Is Overload Protection?- Understanding Its Role Compared to Surge Protection

Overload protection is a critical safety measure in electrical systems, designed to prevent current from exceeding the rated capacity of equipment or wiring. Compared with surge protection, overload protection focuses on avoiding overheating, fire hazards, and equipment damage. Simply put, when the load on electrical devices exceeds their design limits, overload protection devices —including MCBs and fuses— automatically disconnect the circuit to safeguard both the wiring and connected equipment.

Causes of Overload – Understanding Electrical Current Abnormalities

Overload can occur due to several situations, including:

• Simultaneous use of multiple high-power appliances causes the total current to exceed the circuit capacity.
• Continuous full-load operation of motors, compressors, or other equipment, especially during startup or prolonged operation.
• Internal equipment faults that increase current without causing a direct short circuit.
• Aging wiring or loose connections, which increase resistance and lead to localized overheating and excessive current.
• Excessive use of high-draw appliances on a single circuit (e.g., air conditioners, kitchen appliances).
• Defective appliances that consume more current than intended.

These conditions can result in cable overheating, insulation damage, and even fire. Therefore, timely overload protection is essential for both home and industrial applications.

Common Overload Protection Devices — MCBs, Fuses, and Relays

Miniature Circuit Breaker (MCB): Monitors current and trips the circuit if it continuously exceeds the rated value, providing reliable overload protection.

Thermal Relay: Mainly used for motor protection by sensing temperature changes to prevent coil burnout due to overload.

Electronic Overload Protection Module: Used in advanced equipment to digitally set and control overload thresholds with high precision.

Fuse: A simple device that melts its internal wire when the current exceeds safe levels, disconnecting the circuit.

How Overload Protection Works

At its core, overload protection relies on the thermal effect of electricity—excess current heats conductors. Protection devices monitor temperature or sustained current and disconnect the circuit when dangerous conditions persist.

• Most MCBs and overload devices include a time delay, avoiding false trips during normal inrush currents (like motor startup).
• Circuit breakers often combine:
  • Thermal trip units for overloads
  • Magnetic trip units for short-circuit protection
• Fuses provide one-time protection via a metal filament that melts under excessive current.

These devices are the primary guardians of electrical safety, ensuring wiring remains protected in both residential and industrial installations, complementing surge protection measures like SPDs or surge protectors.

Surge Protection Guide – Safeguarding Electronics Against Voltage Spikes

Surge protection plays a vital role in modern electrical safety by protecting sensitive electronics from transient overvoltage events. In discussions around overload protection vs surge protection, surge protection vs overload protection, or surge vs overload protection, the distinction between these two types of protection is crucial.

A surge (also called a transient voltage or voltage spike) is a very short-duration, high-voltage pulse, typically lasting only microseconds. These spikes—caused by lightning, grid switching, or the on/off cycling of large appliances—can damage electronic components, degrade insulation, and reduce equipment lifespan.

Unlike overload conditions, which involve sustained excessive current, surges are instantaneous high-voltage events. Without proper surge protection, even small but repeated internal surges can accumulate damage over time, leading to premature failure of sensitive electronics.

Surge protectors detect abnormal voltage rises and safely divert excess energy to ground, shielding devices such as TVs, computers, routers, and home appliances from transient overvoltage.

Causes of Voltage Surges – External & Internal Sources

Surges originate from both external and internal sources. Understanding these sources is essential when comparing surge protection vs overload protection or overload vs surge protection.

External Surge Sources

• Lightning induction: Natural lightning discharges induce extremely high transient voltages.
• Utility grid switching: Reconfiguration or switching by power companies creates steep voltage fluctuations.

Internal Surge Sources

• On/off operation of inductive loads: Appliances such as refrigerators, washing machines, and air conditioners generate reverse voltage (back EMF) when de-energized.
• Large motor startup or shutdown: Causes sudden changes in current and voltage within household circuits.
• Small but repeated internal surges: Over time, these degrade microprocessors and electronic circuits, leading to early equipment failures.

Common Surge Protection Components – MOV, GDT, TVS Explained

To effectively protect equipment in systems often compared as surge protector vs overload protection or overload protector vs surge protection, SPDs use several key components:

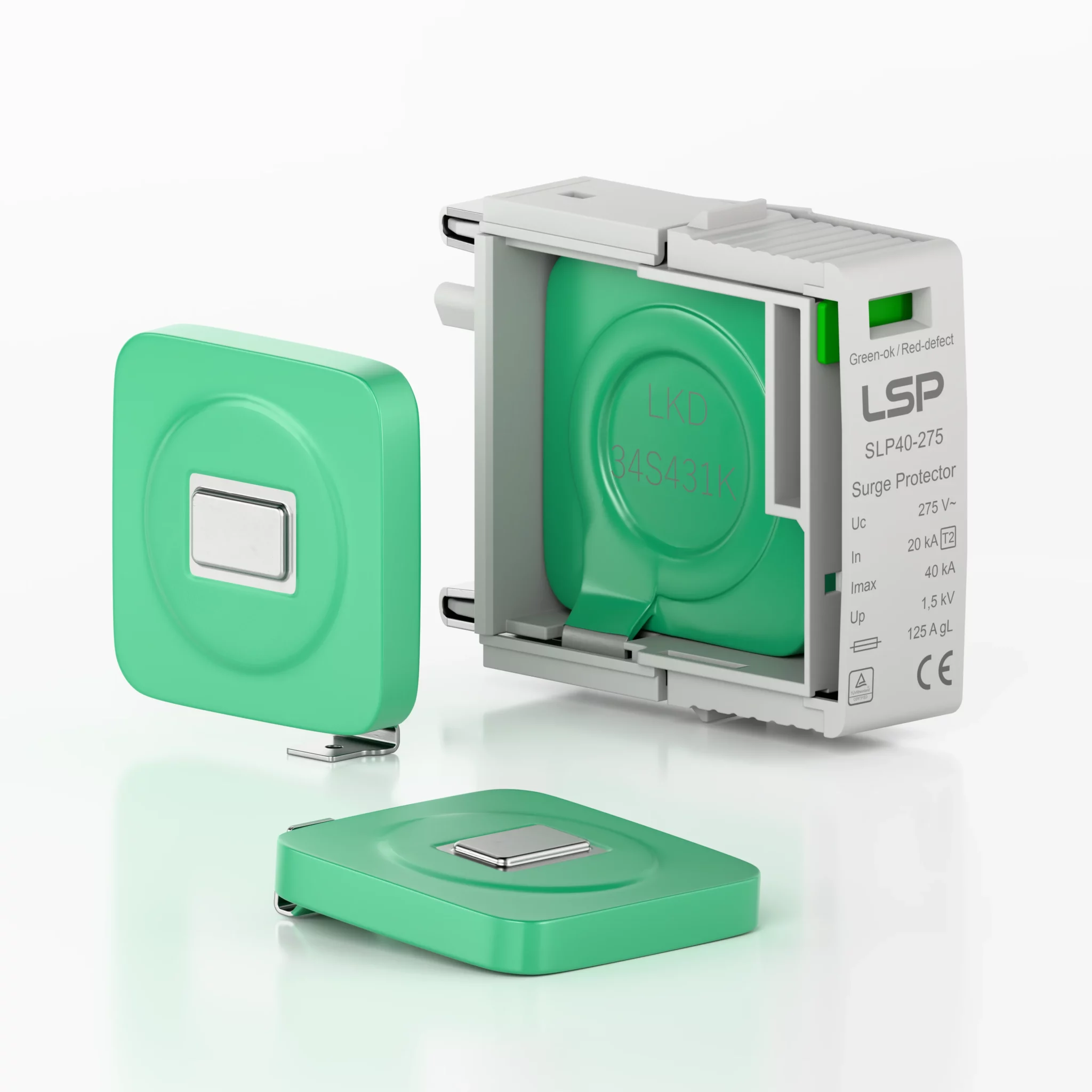

• Metal Oxide Varistor (MOV): The most widely used component. MOVs remain inactive under normal voltage but respond within nanoseconds when voltage exceeds safe levels, clamping the surge and redirecting energy to ground.
• Gas Discharge Tube (GDT): Activates when voltage surpasses a defined threshold, creating a low-impedance path for surge current to flow safely to ground.
• Transient Voltage Suppression Diode (TVS): Offers the fastest response among SPD components, ideal for sensitive electronics requiring tight voltage regulation.

How Surge Protection Works – SPD Principles and Operation

Surge Protective Devices (SPDs) are connected in parallel with electrical lines. Their operation, crucial in understanding overload protection vs surge protection, follows these steps:

1. Normal Conditions: SPD remains in a high-impedance state and does not affect regular circuit operation.
2. Surge Occurrence: When voltage exceeds a preset clamping level, the SPD component (MOV, GDT, TVS) switches to low impedance and instantly diverts the surge current to ground.
3. Return to Normal: After the surge passes, the SPD automatically returns to high-impedance mode, ensuring uninterrupted operation of connected equipment.

This rapid response—often in microseconds or nanoseconds—prevents destructive voltage from reaching sensitive circuits, complementing overload protection measures like MCBs or fuses in a comprehensive electrical safety system.

Overload Protection vs Surge Protection – Electrical Safety Explained

In the realm of electrical safety, both surge protection and overload protection are critical. However, their working principles, protection targets, and triggering mechanisms differ fundamentally.

Working Principles – Overload Protection vs Surge Protection

Surge protection is designed to guard against short-duration high-voltage or surge current events, such as those caused by lightning strikes or utility grid switching. Surge protector devices incorporate key components like Metal Oxide Varistors (MOVs), Gas Discharge Tubes (GDTs), and Transient Voltage Suppression (TVS) diodes. These components respond rapidly to transient overvoltages, safely redirecting excess energy to ground and shielding connected equipment.

Overload protection, by contrast, deals with situations where the current continuously exceeds the rated capacity of the circuit or device. Devices like circuit breakers or fuses monitor current levels and disconnect the circuit once the limit is surpassed, preventing overheating, equipment burnout, and potential fire hazards.

This technical comparison highlights the fundamental distinction between overload and surge protection: one mitigates long-duration current excess, while the other suppresses instantaneous voltage spikes.

Protection Targets and Trigger Conditions — Overload Protection vs Surge Protection

Surge protection primarily safeguards sensitive electronic equipment and its power interfaces. Commonly protected devices include televisions, computers, communication systems, and EV chargers. Trigger conditions for surges often include lightning-induced transients, grid switching events, or electrostatic discharges. These sudden voltage spikes can severely damage circuits if left unchecked.

Overload protection, on the other hand, focuses on electrical wiring and load-bearing devices like motors, lighting systems, and heating equipment. Triggers include continuous overcurrent from long-term full-load operation, equipment faults, or aged wiring with increased resistance. Overload protectors disconnect the circuit in time to prevent insulation failure, wire overheating, or fire.

In essence, surge vs overload protection boils down to the type of anomaly: surge protection addresses sudden voltage anomalies, while overload protection handles prolonged current excess. Both are crucial for overall electrical safety, but operate under entirely different mechanisms.

Technical Implementation-Overload Protection vs Surge Protection

The table below highlights the key differences between surge protector devices and overload protection mechanisms such as MCBs and fuses:

Dimension / Feature	Surge Protection / SPD	Overload Protection / MCB / Fuse
Primary Threat	Instantaneous voltage spikes	Excessive, sustained electric current
Common Causes	Lightning strikes, power grid switching, large appliance cycles, electrostatic discharges	Too many devices on one circuit, faulty appliance, long-term full-load operation, aged wiring
Core Components	MOV, GDT, TVS, TSS	Bimetallic strip, thermal sensor, tripping mechanism
Response Time	Nanosecond level	Milliseconds to seconds
Reset / Recovery Capability	Mostly self-recoverable	MCB resettable, fuses replaceable
Protection Principle	Diverts or clamps surge voltage to ground	Interrupts path of overcurrent
Typical Applications	Precision electronics, power ports, grid interfaces, TVs, computers, EV chargers	Lighting systems, motors, heating equipment, main power circuits
Protects Against	Damage to sensitive electronics, circuit boards, power interfaces	Electrical fires, insulation failure, wire overheating
Trigger Conditions	Transient overvoltage from external/internal surges	Continuous overcurrent, equipment faults, overloaded circuits

One practical example is the deployment of a three-stage surge protection system in intelligent buildings:

• Type 1 surge protector at the main service entrance absorbs direct lightning strikes or overvoltages coupled from power lines due to lightning surges.
• Type 2 surge protector at distribution boards suppresses induced lightning surges.
• Type 3 surge protector at terminal outlets filters surges not fully absorbed by upstream surge protectors for delicate devices.

This is complemented by electronic circuit breakers configured with overload thresholds such as Imax ≤ 6kA, enabling precise overload protection in coordination with surge protector layers.

Synergistic Application – Overload Protection vs Surge Protection

Modern electrical protection systems employ a coordinated “clamp-and-disconnect” strategy:

• First Layer – Surge Protection: Surge protectors release transient energy and reduce voltage to safe levels below the withstand capability of the equipment.
• Second Layer – Overload Protection: Devices like MCBs or RCBOs monitor current and interrupt abnormal sustained loads, preventing overheating.
• Third Layer – UPS Systems: Ensure a clean sine-wave power supply while eliminating harmonics and bridging short outages.

This layered architecture improves system reliability while reducing maintenance costs.

Surge Protection – Why Every Electrical System Needs SPDs to Guard Against Voltage Spikes

In today’s digital age, electronic devices permeate every corner of our lives and industries. However, the threat of voltage surge spikes (surges) is often underestimated. Installing professional-grade surge protection devices (SPD) is no longer optional—it is a critical measure for electrical safety, equipment longevity, and overall system reliability.

Three Key Reasons Surge Protection Cannot Be Ignored

1. Lightning and External Surge RisksNatural lightning strikes generate extremely high current pulses, causing instantaneous overvoltages that travel through power lines, communication networks, and even metal pipelines. These voltage spikes can exceed device insulation limits, resulting in equipment damage, fire hazards, and serious safety risks.
2. Power Grid Disturbances and Hidden SurgesFluctuations from grid switching, back-EMF of large motors, substation operations, or harmonic resonance from nonlinear loads induce harmful transient overvoltages. Studies indicate that nearly 68% of electronic equipment failures are linked to such power disturbances.
3. Compliance with International StandardsGlobal electrical codes now require certified surge protection devices in many applications:
   1. IEC 60364-4-443: Surge protector requirements for buildings
   2. NEC Article 285 (U.S.): Certified SPDs at critical distribution points
   3. GB/T 18802: Mandatory surge protection testing in China

Surge Protection vs Overload Protection – Complementary, Not Interchangeable

It’s important to recognize that surge protection and overload protection are fundamentally independent and complementary systems. One cannot substitute the other.

Function Boundary:

• Overload protection deals with sustained overcurrent, typically through thermal or magnetic tripping.
• Surge protection counters microsecond-scale voltage spikes using nonlinear components to divert excess energy.

Protection Targets:

• Overload devices protect conductors from overheating,
• Surge devices shield semiconductors and sensitive electronics from voltage breakdown.

Synergistic Operation:

• In a well-designed system, overload protectors (like MCBs) serve as the front-line defense against prolonged current surges,
• Surge protectors deliver fine-tuned suppression of voltage transients at later stages.

This creates a “coarse filtering + fine tuning” dual-protection strategy.

Technical Insight:

Modern smart distribution systems even integrate both protections digitally. Hybrid protectors with real-time energy feedback can monitor current anomalies and dynamically adjust voltage clamping, delivering customized surge + overload protection for sensitive loads.

Comprehensive Electrical Protection – Overload Protection, Surge Protection, and Short-Circuit Protection

Short-Circuit Protection – Definition and Core Function

Short-circuit protection addresses extreme conditions where abnormally low-impedance connections occur between conductors. Scenarios include insulation failure, foreign object contact, or direct line-to-line/ground faults. In such cases, current can instantly spike to several thousand amps, triggering catastrophic outcomes if not interrupted.

Implementation and Key Features

• Protection Devices: Circuit breakers or fuses with high-speed interruption capability.
• Response Time: Millisecond-level reaction, faster than other protection mechanisms.
• Focus Area: Prevent cable overheating, arc flashes, fire hazards, and permanent equipment damage.

Example: A standard MCB in a residential distribution box can trip within 0.01 seconds during a short-circuit event—effectively preventing electrical fires.

Surge Protection – The Precision “Voltage Stabilizer” for Electronics

Definition and Core Value:

Surge protection targets transient overvoltages lasting microseconds, often caused by lightning, utility switching, or inductive load toggling. While their total energy may be limited, their steep rise and high amplitude can lead to semiconductor breakdowns, system crashes, and data loss.

Surge protectors use nonlinear elements to divert dangerous energy to ground without interrupting the power supply.

• Key Technical Metrics:
  • Max discharge current (Imax)
  • Let-through voltage (residual voltage)
  • Response time (in nanoseconds)
• Typical Applications:
  • Server rack inputs in data centers
  • I/O ports in industrial control systems
  • Gateways in smart homes and IoT networks

Test results show that installing IEC-compliant surge protectors can reduce lightning-related equipment failure by over 90%.

Multi-Dimensional Comparison – Short-Circuit Protection vs Surge Protection vs Overload Protection

Dimension	Short-Circuit Protection	Surge Protection	Overload Protection
Physical Nature	Excessive current causing thermal/magnetic effects	Sudden voltage spike from transient events	Continuous overcurrent beyond rated capacity
Activation Threshold	Instantaneous fault-level current	Voltage spike superimposed on system voltage	Prolonged current exceeding design limits
Duration	Until cleared/reset	Microseconds	Seconds to minutes
Energy Handling	Circuit shutdown	Diverts surge energy to ground	Interrupts overcurrent
Protection Focus	Personnel safety, fire prevention	Sensitive electronics, semiconductors	Wiring, motors, devices
Standards	GB/T 10963	IEC 61643	IEC 60898 / GB/T 10963

Selecting the Right Protection – Overload vs Surge Protection for Home, Office, and Industrial Applications

Selecting the right surge protection and overload protection devices is critical for ensuring electrical safety and stable equipment performance in homes, offices, and industrial settings. Proper selection should consider environmental factors, system architecture, equipment criticality, and potential electrical risks.

Recommendations for Household Appliances – Balancing Safety and Convenience

Everyday Usage – Power Strips & Wall Sockets

For home use, it’s best to choose multi-function power strips that combine both surge protection and overload protection. These combo units can handle both transient voltage spikes (from lightning or grid fluctuations) and excessive current caused by overloads.

• With MCB: Indicates overload protection—the strip cuts off power if too much current flows.
• With surge protector module: Provides surge protection—diverts excess voltage from spikes.

Tip: Check product specs. Don’t rely on vague “protected” labels—look for both surge and overload protection clearly indicated.

Dedicated Protection for High-Power Appliances

Appliances like refrigerators, air conditioners, and water heaters are more prone to overload risks due to aging wires or continuous heavy usage. Use sockets or dedicated circuit breakers with built-in overload protection.

For sensitive electronics such as TVs, computers, or NAS drives, add small surge protectors or use sockets with built-in surge protection modules to prevent damage from voltage spikes.

Office and Commercial Settings – Building System-Level Reliability

Dedicated Protection for Critical Equipment

Offices, retail spaces, and low-voltage control rooms host numerous sensitive devices like servers, printers, and communication systems. These devices are highly vulnerable to voltage anomalies. Connect them to dedicated surge protectors and regularly inspect the surge protector status for aging.

Integrated Electrical Protection Systems

In main or sub-distribution panels, install circuit breakers (MCBs) to handle basic overload and short-circuit protection. Complement these with surge protectors to suppress transient surges from lightning or grid-side disturbances, creating a layered protection architecture.

Minimizing Downtime Risks

In commercial environments, uptime is vital. Both surge damage and overload trips can cause data loss or business interruptions. A well-designed protection combo mitigates such risks effectively.

Industrial and Commercial Facilities – Strategic Protection Planning

Tiered Protection Topology

Following IEC 60364, build a 3-level surge protection system:

• Type 1 surge protector at the main service entrance to discharge lightning-induced energy
• Type 2 surge protector in distribution panels for inductive surge suppression
• Type 3 surge protector at the load end (devices), providing precise voltage clamping

Special Protection for Critical Assets

For high-precision equipment like CNC machines or industrial robots, apply hybrid protection:

• Use electronic overload relays to monitor motor current profiles
• Add signal isolating transformers and high-speed surge protectors in control circuits to block electromagnetic interference and voltage fluctuations

Smart Operation & Maintenance

Deploy power quality analyzers and IoT gateways to track THD, residual current, and other metrics in real-time. Using cloud-based platforms, predict failure points and dynamically adjust thresholds and maintenance cycles—transforming from reactive repairs to predictive maintenance.

Professional SPD Selection

Selecting the right Surge Protective Device (SPD) is critical for ensuring system reliability and protecting sensitive equipment. A professional-grade approach considers type, application, and environmental conditions.

• Application-Specific Considerations:
  • PV & ESS Systems: Require DC-rated SPDs designed for the unique high-voltage characteristics of solar arrays, ensuring protection of central inverters and associated control systems.
  • Telecom & 5G Base Stations: SPDs with extremely fast response times and low clamping voltages are essential to protect sensitive data lines, transceivers, and control electronics.
  • Industrial Automation: Motors, variable frequency drives (VFDs), and other inductive loads generate repetitive transient surges. SPDs must be robust, durable, and able to withstand harsh electrical environments.

• Beyond Datasheets: A professional SPD strategy extends beyond product specifications. Consider the following:
  • Customization & Certification: Tailor SPDs to project needs, and ensure compliance with TUV, CE, CB certifications.
  • Supply Chain Reliability: Partner with manufacturers offering predictable lead times and stable production.
  • Long-Term Warranty: Five-year or more coverage to minimize operational risk.
  • Flexible Policies: No-MOQ or scalable orders provide agility for both small and large projects.

In essence, professional SPD selection is about creating a layered, coordinated defense that integrates seamlessly with existing overload protection and overall system safety architecture.

Product Recommendations and Configuration Examples – Overload Protection vs Surge Protection

Choosing the right surge protector vs overload protection based on usage scenarios is key to a safe and reliable electrical system. Below is a practical guide for matching products to real-world needs.

Product Overview Table – Function Comparison and Selection Guide

Product Type	Core Function	Hybrid Design Compatibility	Typical Application Scenarios	Selection Tips
Overload Protection Power Strip	Automatically cuts off excessive current to prevent wiring overheating	Some models include USB charging ports or child safety locks	Living rooms, office desks	Prefer models with LED status indicators for real-time feedback
Surge Protection Circuit Breaker	Clamps transient high voltage to protect downstream devices	Installed separately in the distribution board	Industrial automation lines, data center racks	Check I<sub>max</sub> surge withstand rating (key indicator of surge protector performance)
2-in-1 Protection Device	Combines overload and surge protection for dual-layer safety	A rising market trend	Smart home hubs, commercial display panels	Ensure compliance with IEC 61643-11 standard
Single-Outlet Overload Protector	Precisely controls current on a single circuit to avoid cascading trips	Often cascaded with surge protectors to form multi-level protection	Power supplies for medical devices and precision instruments	Match with equipment’s inrush current curve for optimal protection

Real-World Protection Scenarios – From Workshop to Living Room

Case 1: Industrial Workstation Setup

Use an extension cord with overload protection to ensure a safe power supply to angle grinders. Equip oscilloscopes with built-in surge protector to defend against electromagnetic pulses and transient overvoltage that may damage precision instruments.

Case 2: Smart Home Hub Protection

A voice assistant speaker is connected to a premium hybrid power strip featuring both surge protection and overload protection. This ensures stable power delivery while guarding sensitive electronics against sudden voltage fluctuations.

Conclusion – Building a Scientific Overload Protection vs Surge Protection Defense System

In electrical safety, overload protection and surge protection serve distinct, non-interchangeable roles. Understanding the principles and synergy between them is essential for effective risk mitigation.

• Overload protection reacts to abnormal current, preventing overheating or fire caused by excessive load.
• Surge protection shields devices from voltage spikes, such as those caused by lightning or grid switching.

Only when both are implemented together—active current control + passive voltage suppression—can a robust protection framework be achieved.

User-Focused Recommendations:

• Homeowners: Ensure your circuit breaker prevents fires (overload protection) and your valuable electronics are connected to a certified surge protector (surge protection), not just a basic power strip.
• Professionals: For critical infrastructure in PV systems, telecom, or industrial facilities, apply a multi-layered surge protection strategy while verifying the integrity of overload protection. Partner with specialist manufacturers offering certified SPDs, strong technical support, and a dependable supply chain.

Choosing the right electrical protection strategy doesn’t just protect equipment—it’s a fundamental part of building a safe, resilient, and reliable power system.

FAQ Frequently Asked Questions (FAQ) – Overload Protection vs Surge Protection

Q1: Can I choose between overload protection and surge protection?

A: No. They address different issues—overload protection deals with current buildup; surge protection tackles voltage spikes.

The correct approach is to set dual protection parameters based on the load profile. For example, temporary inrush current during motor startup should be tolerated by a delay-type circuit breaker, while transient voltage surges should be handled by a surge protector.

Q2: What does overload protection mean?

A: It refers to the automatic disconnection of a circuit when the current exceeds rated limits, preventing overheating, damage, or fire hazards.

Q3: What is the difference between surge protection and overcurrent protection?

A: Surge protection is designed to suppress short-lived high-voltage spikes, primarily to protect electronics. Overcurrent protection (including overload and short circuit protection) stops excessive current from flowing, which could cause fires or equipment failure.

Q4: Is surge protection better than overload protection?

A: No. Neither is better—they are complementary. Only when used together can they offer complete protection.

Q5: Can short-circuit protection replace surge protection?

A: No. Short-circuit protection only addresses extremely high current from direct faults (e.g., wire contact). It doesn’t react to voltage spikes. Tests show that common 8/20μs surge waves can damage sensitive electronics without triggering a circuit breaker, proving that both layers are necessary.

Q6: How do I know if I need a surge protector?

A: Use this checklist:

• You live in a region with more than 20 thunderstorm days annually.
• Your building height exceeds the surrounding terrain by over 50 meters.
• You operate high-value devices (e.g., servers > $5,000 per unit).
• You’ve experienced unexplained multiple device failures before.

Q7: Which is better for home use: surge protector vs overload protection?

A: For home use, choose power strips with both surge and overload protection. This safeguards your devices and the wiring infrastructure.

Q8: How to choose a reliable power strip for home use?

A: Look for units with both a circuit breaker and a surge protector module. Also, prioritize models with an LED indicator, so you can easily verify whether the protection is active and working properly.
