Introduction: Why a Lightning Protection System Is Incomplete Without Internal Surge Protection
A lightning protection system cannot be considered complete if it relies solely on external measures. While air terminals, down conductors, and grounding systems are essential for safely intercepting lightning strikes and preventing structural damage or fire, they address only part of the overall risk posed by thunderstorms. Modern lightning protection system design must account not only for direct strikes, but also for the electrical disturbances that threaten the internal operation of a facility.
In facility design and electrical engineering, it is a common misconception that an external lightning protection system alone can fully protect a building. External components are effective at managing the physical discharge of lightning energy to earth, but they do not protect the sensitive electrical and electronic systems that modern buildings depend on. Power distribution networks, data lines, control circuits, and communication systems remain highly vulnerable to transient overvoltages generated during lightning events.
Industry data and meteorological studies, including findings referenced by organizations such as the American Meteorological Society, consistently show that a large proportion of lightning-related damage does not result from direct lightning attachment. Instead, damage is often caused by induced and conducted surges that enter buildings through power and signal lines. These surges can propagate rapidly through internal wiring, stressing insulation and damaging equipment such as servers, programmable logic controllers, security systems, and building automation devices.
For this reason, a lightning protection system is fundamentally incomplete if it does not address internal surge threats. Effective protection requires a coordinated approach that limits transient overvoltages before they reach sensitive equipment. Integrating internal surge protection into the overall lightning protection system allows designers to manage secondary lightning effects, improve system reliability, and align with recognized safety and design standards. This article presents a structured framework for understanding how internal surge protection fits into comprehensive lightning protection system design.
Beyond Direct Lightning Strikes: The Role of Surges and Internal SPD Protection
External lightning protection systems, while essential, are inherently limited by the physics of lightning. When a strike occurs, vast amounts of energy are released, and its impact extends well beyond the point of contact. Even a fully implemented external system cannot prevent secondary electrical disturbances that threaten the internal operation of a facility. These disturbances manifest as conducted surges and induced surges, both of which justify the use of internal surge protection devices (SPDs) as a critical component of a comprehensive lightning protection system.
Conducted surges occur when lightning current, either from a direct strike to a structure or from nearby strikes to utility lines, travels along conductive paths. In a direct strike scenario, the external lightning protection system directs most of the current to the earth termination system. However, this rapid current flow causes a sudden and significant ground potential rise (GPR) around the building. Incoming power, data, and communication lines, which reference remote grounding points, experience a potential difference that drives high-energy surge currents into the facility. Similarly, remote lightning strikes along utility lines can propagate directly as conducted surges into the building.
Induced surges, often associated with lightning electromagnetic pulses (LEMP), arise without any direct physical contact. The intense electromagnetic field generated by a lightning strike expands and collapses in microseconds, inducing high voltages and currents in nearby metallic conductors. This includes building power cables, data lines, external feeders, and extensive metallic systems such as plumbing and structural metalwork. Since this mechanism does not rely on direct conduction, an external lightning protection system offers little mitigation against it.
Both conducted and induced surges expose sensitive electronic equipment, designed for low and stable voltages, to thousands of volts within microseconds. The result may be immediate component failure or latent damage that degrades equipment performance and shortens its lifespan. Without internal surge protection, even a building with a complete external LPS remains highly vulnerable to such threats. Integrating SPDs into the facility ensures that both direct and secondary surge risks are effectively managed, safeguarding critical systems and maintaining operational reliability.

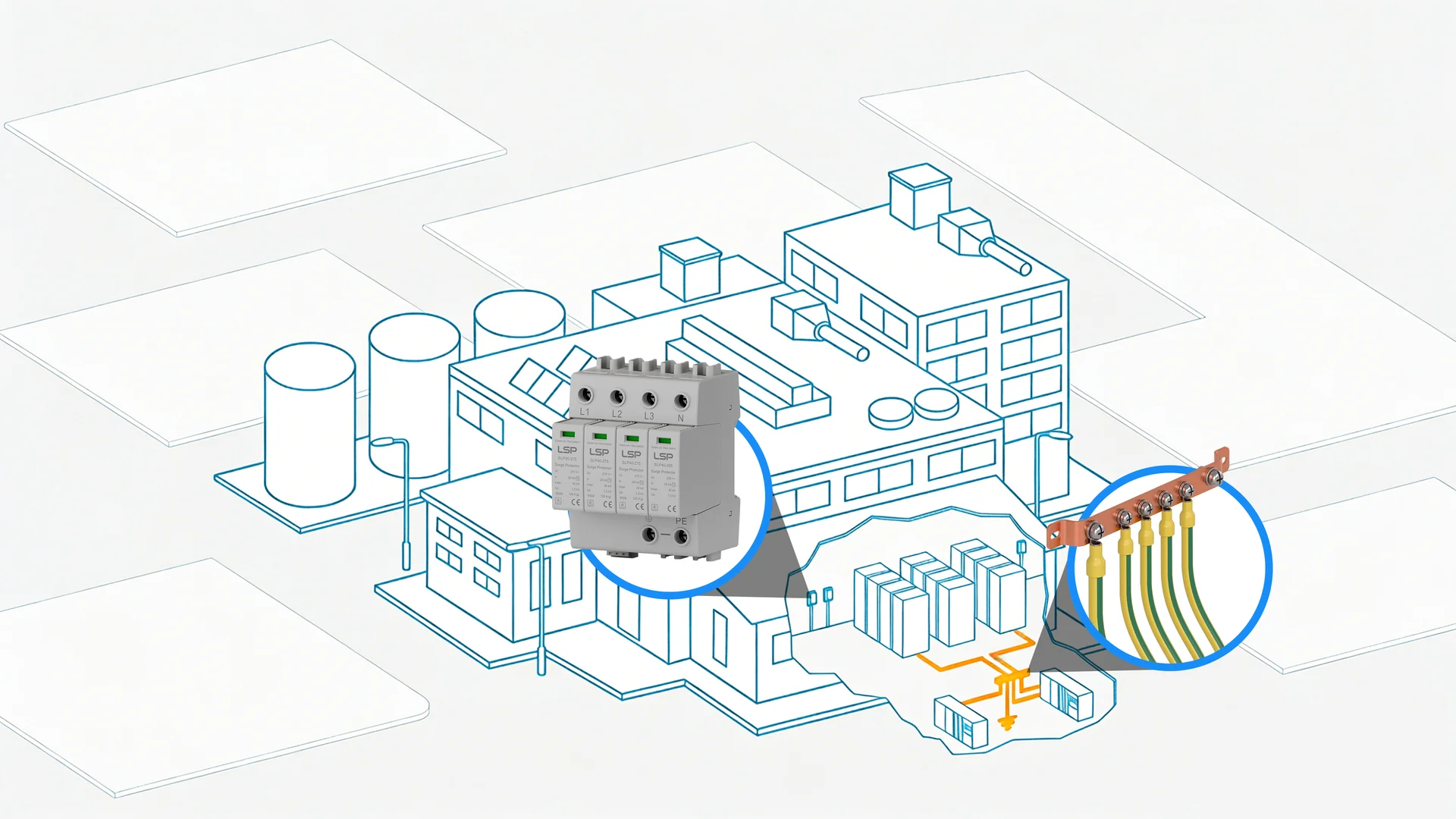

Strategic Integration of SPDs: Placement and Selection Framework for Lightning Protection Systems
A systematic and engineered approach is required to achieve an effective lightning protection system that mitigates transient overvoltage threats. This approach relies on a multi-layered, coordinated protection strategy aligned with international standards such as IEC 62305. The framework is built on three core principles: the concept of Lightning Protection Zones (LPZs), strategic placement of SPDs, and proper selection of SPDs according to type and application.
The LPZ Concept: Coordinating Zones for Internal Protection
The Lightning Protection Zone (LPZ) concept is central to designing an effective internal lightning protection system. It divides a facility into successive zones, each with progressively lower surge energy and electromagnetic field exposure:
- LPZ 0: Outermost zone, exposed to lightning and full LEMP. Subdivided into LPZ 0A (risk of direct strike) and LPZ 0B (protected from direct strike, but exposed to EM fields).
- LPZ 1: First interior zone; SPDs at the building boundary redirect most surge energy from incoming power and data lines.
- LPZ 2/3: Interior zones with more sensitive equipment (e.g., offices LPZ 2, data centers LPZ 3). SPDs at each interface reduce surges systematically to safe levels.
Strategic SPD Placement: From Service Entrance to Point-of-Use
SPD placement follows LPZ principles:
| Location | LPZ Boundary | Description |
| Main Service Entrance | 0B → 1 | Handles high-energy lightning currents; redirects most surge energy to ground. |
| Sub-Distribution Panels | 1 → 2 | Protects branch circuits supplying critical equipment; manages residual surge from main SPD. |
| Point-of-Use | 2 → 3 | Installed within 10 m of sensitive devices (servers, medical equipment) for low-level surge protection. |
Selecting the Right SPD: Understanding Type 1, 2, and 3 Surge Protectors
SPDs cannot be interchanged indiscriminately. Selection depends on type (per IEC standards) and intended LPZ placement:
- Type 1 SPD: High-capacity, at service entrance (LPZ 0B → 1), tested with 10/350 µs waveform for direct lightning current. Required for buildings with external LPS or overhead lines.
- Type 2 SPD: Sub-distribution panels (LPZ 1 → 2), tested with 8/20 µs waveform; protects branch circuits from residual or indirect surges.
- Type 3 SPD: Point-of-use (LPZ 2 → 3), low voltage protection (Up), downstream of Type 2; protects sensitive devices from residual surges.
Note: Description compressed by summarizing waveforms and removing repeated examples of equipment types.
Risk Assessment for Determining SPD Requirements in Lightning Protection Systems
A formal risk assessment is the essential first step in designing an effective lightning protection system before any SPD hardware is specified. Skipping this step can lead to either over-engineering (unnecessary cost) or under-engineering (insufficient transient overvoltage protection). The IEC 62305-2 standard provides a structured methodology to calculate the risk of damage from lightning strikes. This assessment identifies potential sources of damage and ensures the safety of building occupants while guiding the design of internal surge protection.
Key factors evaluated in this process include:
- Geographical lightning density (Ng) of the site.
- The type of incoming services (overhead or underground).
- The physical characteristics and exposure of the structure, including potential hazards from flammable or explosive materials.
- The presence and configuration of an external LPS.
- The importance and sensitivity of internal critical systems and equipment.
The outcome is a calculated risk value (R), which is compared against a tolerable risk level (RT). If R > RT, mitigation measures must be implemented, such as installing a coordinated SPD system at appropriate locations. This data-driven, scientific approach ensures that the design of the lightning protection system is proportional to the actual risk, providing a cost-effective yet robust solution for safeguarding sensitive equipment.
Once the required protection level has been determined through a formal risk assessment, proper installation becomes critical. Even high-quality SPDs can fail to provide adequate protection if installed incorrectly. Understanding common pitfalls ensures that the lightning protection system functions reliably and safeguards sensitive equipment from surges.
Common Pitfalls and Best Practices for SPD Installation in Lightning Protection Systems
Even the best-designed lightning protection system with high-quality SPDs can fail if installation practices are poor. The very short rise times of surge currents make installation details critical for performance. Effective protection depends not only on the quality of the SPDs but also on proper installation and selecting reputable manufacturers.
Common pitfalls to avoid include:
- Overlong Conductors: The pathway to an SPD should be as short and direct as possible. Each centimeter of wire adds inductance (L, measured in henries). During a fast-rising surge, the voltage drop across the conductor can be estimated by the formula V = L * di/dt, where di/dt is the rate of change of current in amperes per microsecond. This additional voltage can increase the effective clamping voltage of the SPD by hundreds or even thousands of volts, reducing its protective effectiveness. Best practice: keep lead lengths below 50 cm.
- Improper Coordination with Overcurrent Protection: SPDs must be coordinated with upstream overcurrent protection devices (OCPDs), such as circuit breakers or fuses. Incorrectly rated OCPDs can cause nuisance tripping during surges or fail to safely disconnect a worn-out SPD, creating a safety hazard.
- Bad Grounding Connections: SPDs redirect surge currents to ground. Long or high-resistance connections hinder this process, allowing surge energy to reach protected equipment. The bond to the main earthing terminal, often composed of copper-clad steel electrodes or rods, must be low-impedance, safe, and direct.
Best Practices for Effective SPD Installation:
- Plan conductor routes carefully to minimize length and avoid unnecessary bends.
- Ensure SPDs are installed in coordination with OCPDs and other protective devices.
- Test and verify grounding connections regularly to maintain low-impedance paths.
- Follow LPZ principles to systematically stage protection from the service entrance to point-of-use equipment.
- Use only SPDs from reputable manufacturers that comply with international standards (IEC).

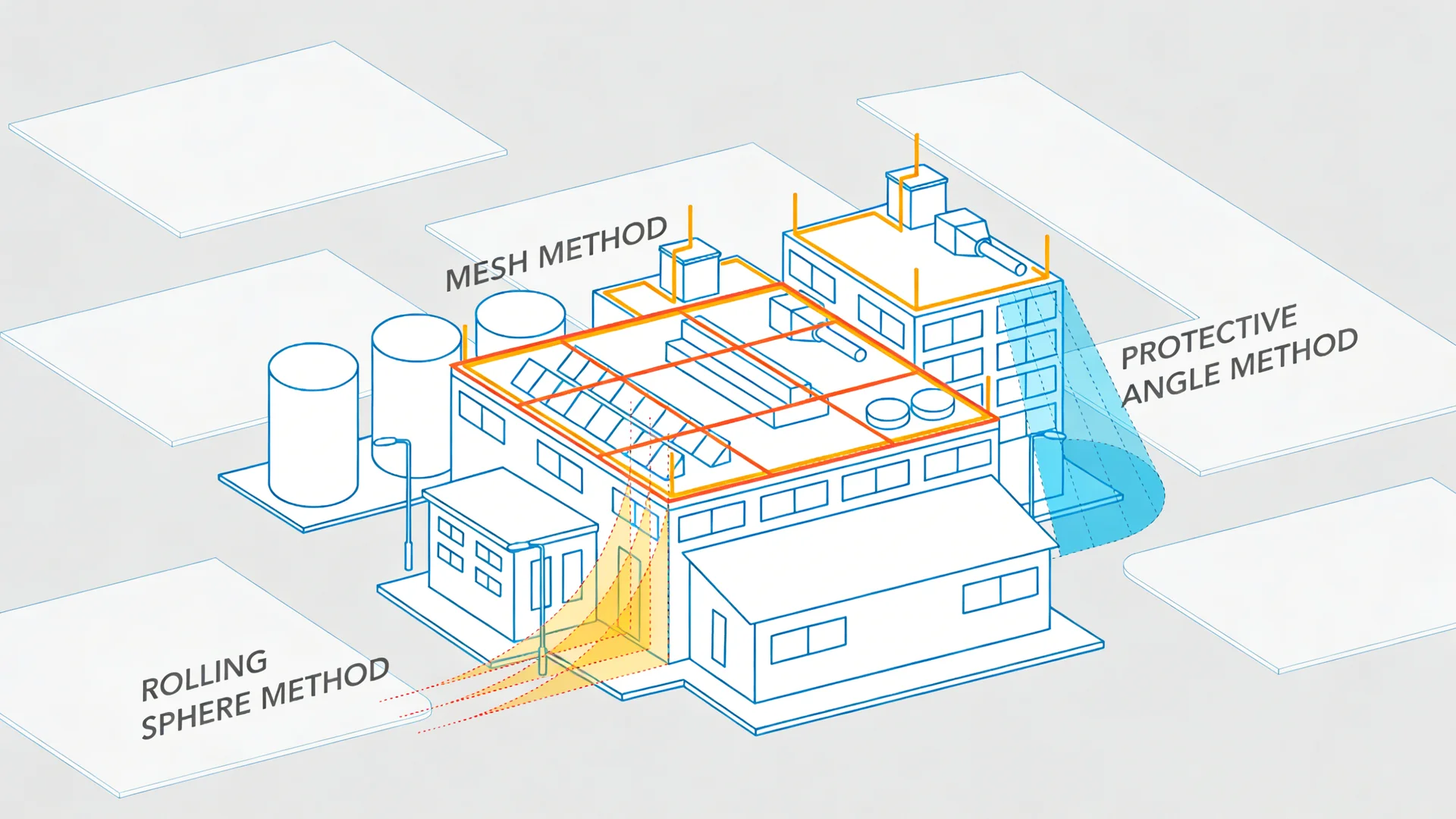

Key Takeaways for a Resilient and Fully Protected Lightning Protection System
Achieving a resilient lightning protection system requires a comprehensive, integrated approach. The system is not a collection of independent components, but a unified framework combining external and internal protection.
A complete Lightning Protection System should include:
- External LPS components (masts, air terminals) to safeguard the structure.
- A coordinated internal LPS with SPDs to protect sensitive equipment and critical systems.
- Internal SPDs installed systematically according to Lightning Protection Zones (LPZs) to dissipate surge energy in stages.
- Correct selection and placement of Type 1, Type 2, and Type 3 SPDs to ensure protection from the service entrance to point-of-use devices.
- High-quality installation practices, including short lead lengths and proper grounding, as outlined in standards such as IEC 62305.
- Risk assessment-based design to justify protection levels and optimize investment.
By integrating both external and internal measures, engineers can ensure operational continuity and safeguard the facility’s electronic systems against the full range of lightning-related threats.
Selecting a Trusted SPD Partner for Your Lightning Protection System
After completing the technical design and ensuring proper SPD placement, selection, and installation, the next critical step is choosing a trusted partner for SPD integration. A knowledgeable partner simplifies implementation, provides expert guidance, and ensures your lightning protection system operates reliably and effectively.
At LSP, integrating Surge Protective Devices (SPDs) is more than purchasing hardware-it is a strategic decision for safety and long-term reliability. Our team of expert engineers offers consulting, risk assessments, and SPD selection guidance, guaranteeing compliance with international standards.
When mastering lightning protection system design, SPDs are at the core. LSP combines world-class LKD MOVs, Vactech GDTs, and proprietary disconnection devices with a moisture-resistant design. Certified to IEC/EN 61643-11, TUV, CB, and CE, our products provide low residual voltage, robust lightning resistance, and a proven service life of over five years, ensuring ultimate protection for critical systems and sensitive equipment.
Choosing LSP means more than obtaining a high-quality SPD. You gain a trusted partner committed to your long-term success, offering a 5-year warranty, a 12-hour response time, and global support, including remote troubleshooting, spare parts, and repair services. From design and installation to long-term operation, LSP ensures your lightning protection system functions safely, efficiently, and with complete confidence.
FAQ: SPD Applications in Lightning Protection Systems
What role does an SPD play in a lightning protection system?
An SPD limits transient overvoltages, protecting internal electronic systems from conducted and induced surges caused by lightning.
How should SPDs be deployed according to Lightning Protection Zones (LPZ)?
SPDs are installed based on LPZ boundaries: Type 1 at the main service entrance, Type 2 at sub-distribution panels, and Type 3 near point-of-use devices.
Can I install only Type 2 SPDs without Type 1 at the main service entrance?
No. Type 1 SPDs handle high-energy direct lightning currents; using only Type 2 SPDs cannot manage all surge energy effectively.
What are common mistakes in SPD installation?
Excessively long leads, lack of coordination with overcurrent protection devices (OCPDs), and poor grounding can reduce SPD effectiveness. Keep lead lengths <50 cm, coordinate with OCPDs, and ensure low-impedance grounding.
How can I tell if an SPD is functioning properly?
Most SPDs have status indicators; green typically indicates normal operation. Regular inspection and testing are recommended.
Can SPDs protect against both direct lightning strikes and induced surges?
Yes. When Type 1, Type 2, and Type 3 SPDs are installed according to LPZ boundaries and properly coordinated, both direct and secondary surge risks can be effectively managed.
