Low Voltage Protection Devices: A Buyer’s Guide to Types, Selection, and Quality Evaluation

Ask any electrical procurement manager what keeps them up at night, and “surge damage” rarely makes the list — until a single lightning strike takes out a production line’s PLC, three VFDs, and the building’s security controller in the same afternoon. That’s when the question shifts from “do we need surge protection?” to “which one should we have bought six months ago?”

Low voltage protection devices — specifically Surge Protective Devices (SPDs) — sit at this exact intersection of invisible importance and costly neglect. They are not the most expensive component in an electrical installation. But when they fail, or when the wrong type is installed, the downstream cost dwarfs the SPD’s purchase price by orders of magnitude.

This guide is written for the buyer who needs to make a confident specification decision without becoming an electrical engineer first. We’ll cover what these devices are, how the three protection types work together, what actually happens inside an SPD, which standards carry real weight, how to select the right device for your specific application, and — most importantly — how to evaluate quality before you commit to a purchase order.

What Are Low Voltage Protection Devices? A Quick Tour of the Protection Family

In electrical engineering, “low voltage” means systems operating at 1,000 volts AC or below, or 1,500 volts DC or below — covering essentially every building, factory, solar installation, and commercial facility you’ll encounter in practice. Within this domain, protection devices fall into distinct families, each guarding against a different threat:

• Circuit breakers and fuses protect against overcurrent — too much current flowing through a healthy circuit. They are the emergency brakes.
• Residual current devices (RCDs / GFCIs) protect against earth leakage — current escaping to ground through a person or fault. They are the safety nets.
• Surge Protective Devices (SPDs) protect against transient overvoltage — a sudden, massive voltage spike lasting microseconds, caused by lightning strikes or switching operations. They are the lightning rods of the internal electrical system.

It’s this third category — SPDs — that we focus on here. Not because the others aren’t important, but because SPD selection involves the steepest knowledge gap between what a typical procurement specification covers and what actually determines device performance and safety.

To select an SPD correctly, you need to understand three things: the type classification system, the internal working mechanism, and the quality indicators that separate a device that will protect your equipment for a decade from one that might become a fire hazard in its second year.

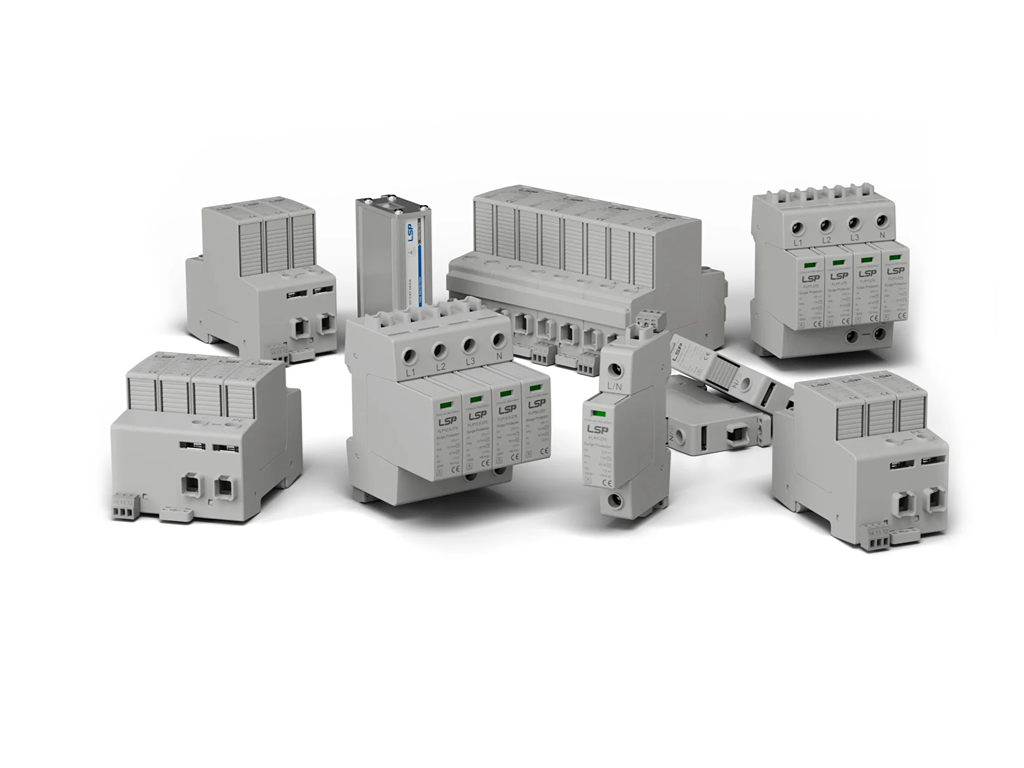

Type 1, Type 2, Type 3 SPDs: Classification, Waveforms, and Where Each Belongs

Think of SPD types as a building’s layered defense system. Type 1 is the outer city wall — it handles the largest, most violent attacks. Type 2 is the inner fortress gate — it handles what gets past the wall. Type 3 is the personal bodyguard standing right next to the VIP — it provides the final, closest-range protection. No single layer does the whole job; they work as a cascaded system.

Before you scan the comparison table, understand the three dimensions that actually matter for selection:

1. Installation location determines energy exposure: the closer you are to the power source, the more energy a surge carries, and the higher the SPD type number you need.
2. Test waveform tells you what kind of threat the device is rated for: 10/350 µs simulates a direct lightning strike (Type 1 domain), 8/20 µs simulates an induced surge or switching transient (Type 2 domain).
3. Cascading is not optional: Type 3 cannot work alone — it must sit behind at least a Type 2 device. Type 2 should ideally sit behind Type 1 in lightning-exposed installations.

A critical installation detail that many spec sheets omit: maintain at least 10 meters of cable length between a Type 1 and Type 2 SPD. This isn’t arbitrary — the cable’s natural inductance (~1 µH per meter) acts as a passive surge attenuator, giving the Type 1 device time to clamp before residual energy reaches the Type 2. In compact switchrooms where 10 meters isn’t feasible, use coordinated SPDs with built-in decoupling.

Inside a Surge Protection Device: MOVs, GDTs, and the Physics of Protection

An SPD isn’t a black box. Understanding the two core components inside it — and why their quality varies so dramatically — is what separates a purchasing decision based on a spec sheet from one based on actual protection capability.

The MOV: A Voltage-Sensitive Switch

The Metal Oxide Varistor (MOV) is the heart of nearly every Type 2 and Type 3 SPD. In normal operation — when the grid voltage sits at its standard 230V or 400V — the MOV behaves like an insulator. Its resistance is in the megohm range, and virtually no current flows through it. The SPD is invisible to the electrical system.

When a surge hits — when the voltage at the SPD’s terminals suddenly jumps to 1,000V, 2,000V, or higher — the MOV’s behavior inverts. Within nanoseconds, its resistance collapses to milliohms. It becomes a near-perfect conductor, shunting the surge current to ground and clamping the voltage at the protected equipment to a safe level. Once the surge passes, the MOV returns to its high-resistance state, and the system continues operating normally.

Think of it as a pressure relief valve on a boiler: normally sealed tight, but the instant internal pressure exceeds the threshold, it snaps open, vents the excess, and reseals — all without the boiler operator ever noticing.

Three parameters define an MOV’s quality: its varistor voltage (the threshold at which it “turns on”), its clamping voltage / residual voltage (Up — how much voltage reaches the protected equipment during a surge), and its nonlinear coefficient (α — how sharply it transitions from insulator to conductor). A high-α MOV switches faster, clamps tighter, and degrades more slowly.

The GDT: A Heavy-Duty Partner

Gas Discharge Tubes (GDTs) complement MOVs in higher-energy applications, particularly Type 1 and Type 1+2 devices. A GDT is slower to respond than an MOV — think microseconds instead of nanoseconds — but it can handle far more energy per surge event. In a well-designed SPD, the MOV catches the fast-rising edge of the surge while the GDT absorbs the bulk of the energy tail.

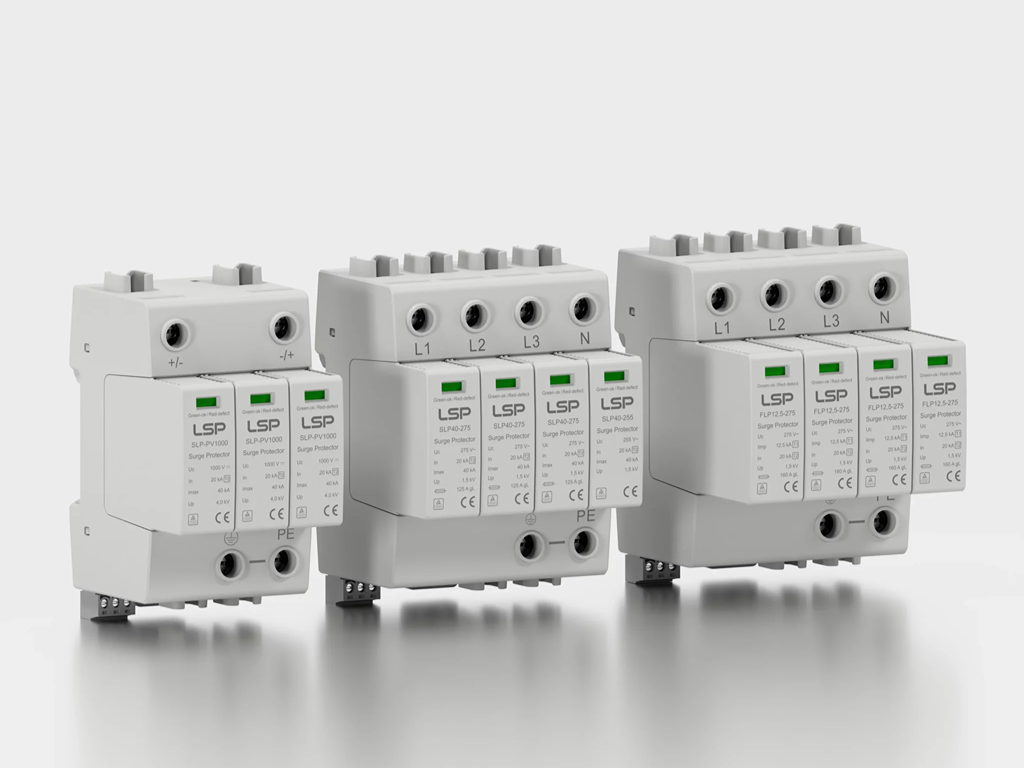

The most common configuration pairing an MOV with a GDT is the “3+1” arrangement popular in European TT and TN-S systems: three MOV-protected phase poles plus one N-PE pole built around a GDT. This configuration provides both fast clamping (from the MOVs) and high energy handling (from the GDT on the neutral-to-earth path).

The takeaway for procurement: the brand and specifications of the MOV and GDT inside an SPD are not interchangeable. Two devices that look identical from the outside can contain MOVs with entirely different tolerance grades, encapsulation quality, and endurance ratings. We’ll return to exactly how to check this in the quality evaluation framework below.

Standards and Certifications: IEC 61643, UL 1449, and Why the Logo Alone Isn’t Enough

Every SPD datasheet carries certification logos. CE. TUV. CB. But here’s a truth the industry rarely states plainly: a certification logo on a datasheet and a certification worth trusting are not the same thing.

Three standards form the backbone of SPD compliance worldwide:

The real difference between certifications comes down to what happens after the initial test:

• Self-declared CE marking: The manufacturer writes a declaration of conformity and stamps the logo. There is zero external verification. An SPD carrying only CE and nothing else has been certified by no one except its maker.
• CB Scheme certificate (IECEE): An independent, accredited laboratory tests the product once against the relevant IEC standard. This confirms the design is capable — but says nothing about whether production units match the tested sample.
• TÜV certification: The laboratory tests the product and conducts annual factory surveillance audits. TÜV inspectors verify incoming material inspection records, production process consistency, and critical component traceability. This is the only certification tier that detects the industry’s most common quality fraud: passing certification with premium components, then switching to cheaper alternatives for mass production.

For a buyer writing a procurement specification, the minimum defensible requirement is CB Scheme certification. For any installation where an SPD failure could cause equipment damage exceeding the SPD’s cost by 100x or more — which covers virtually every industrial and commercial application — TÜV certification with active factory surveillance is the standard that separates genuine quality commitments from paperwork exercises.

How to Choose the Right SPD for Your Application: A Scenario-by-Scenario Guide

Generic SPD selection guides tell you to match voltage and pick a discharge current. But the real question every project faces is contextual: given this specific installation, with these specific surge risks, what configuration actually protects the equipment?

Before diving into the four scenarios below, apply this three-step decision filter to any project:

Step 1 — Do you need Type 1? If the building has an external Lightning Protection System (LPS — air terminals, down conductors, earthing grid), or if the power feed arrives via overhead lines, the answer is yes. Full stop. Type 1 at the main service entrance is not optional in these conditions.

Step 2 — What Type 2 parameters? Determine the system voltage (230/400V three-phase is the global default for IEC markets) and the surge exposure level. Standard industrial environments call for In ≥ 20 kA, Imax ≥ 40 kA on the 8/20 µs waveform at each distribution board.

Step 3 — Where does Type 3 go? Map every piece of equipment with a microprocessor: PLCs, VFD controllers, building management system panels, security DVRs, server racks. Each one is a candidate for point-of-use Type 3 protection. If the cable run between the Type 2 SPD and the equipment exceeds 10 meters, Type 3 becomes mandatory — not optional — because the cable itself picks up induced surges along the way.

With the filter in hand, here is how it applies to four common project types.

SPD Selection for Solar PV Systems

A photovoltaic array is, by design, a large metal structure spread across a rooftop or field — which makes it an unintentional lightning collector. Add DC voltages routinely reaching 600V to 1,500V, plus an inverter packed with sensitive power electronics, and you have what surge protection engineers call a “triple-threat” scenario.

What to protect: DC side (between combiner box and inverter) and AC side (between inverter and grid connection).

DC side: Install a Type 1+2 DC SPD at the combiner box output, rated per IEC 61643-31. The critical parameter here is Ucpv — the maximum continuous DC operating voltage. It must exceed 1.2 times the PV string’s open-circuit voltage at standard test conditions (Voc STC). For a typical 1,000V DC system, that means Ucpv ≥ 1,200V. A common specification is Type 1+2, Imax 40 kA (8/20 µs), Up ≤ 4.0 kV.

AC side: Install a Type 2 SPD at the inverter’s AC output. Standard 275V AC rating with In 20 kA, Imax 40 kA covers the majority of installations. If the inverter feeds into a sub-distribution board more than 10 meters away, add a second Type 2 at that board.

One often-overlooked detail: the communication cable between the inverter and the monitoring system (RS485 or Ethernet) needs its own signal SPD. A surge that enters through the DC array, gets clamped by the DC SPD, but induces a spike on the adjacent data cable can still destroy the inverter’s communication board.

SPD Selection for Industrial Facilities

Industrial environments generate their own surges. Every motor start, VFD speed change, and capacitor bank switching event produces a transient overvoltage. In a factory with 20 motors cycling on and off throughout the day, the cumulative surge exposure can exceed that of a lightning-prone region — even if the facility itself never takes a direct strike.

Protection strategy — three-level cascade:

• Main incoming cabinet: Type 1+2 combined SPD, Imax ≥ 65 kA (8/20 µs). This handles both external lightning energy and the largest internal switching surges. For TT earthing systems, use a 3+1 configuration (three MOV poles + one GDT-equipped N-PE pole). For TN-S, use 4+0 (all MOV poles).
• Sub-distribution boards (per building wing or production zone): Type 2 SPD, In ≥ 20 kA, Imax ≥ 40 kA. Maintain at least 10 meters of cable between the main SPD and each sub-distribution SPD.
• Critical equipment cabinets: Type 3 SPD at the power inlet of every PLC cabinet, VFD panel, and automation controller enclosure. Target Up ≤ 1.0 kV — most industrial PLCs have a withstand voltage around 1.5 kV, and you want the SPD to clamp well below that threshold with margin to spare.

Power system configuration note: The SPD’s internal pole arrangement must match the site’s earthing system. Installing a 4+0 SPD on a TT system leaves the N-PE path unprotected — and in a TT system, transient voltage between neutral and earth can be the dominant failure mode. Always verify the earthing system before specifying the pole configuration.

The cost of getting this wrong isn’t theoretical. A single unplanned production stoppage in a medium-sized manufacturing facility averages well over $6,000 in downtime alone — before accounting for damaged equipment. One Type 2 SPD at each sub-distribution board costs a fraction of that number.

SPD Selection for Commercial Buildings

Commercial buildings — offices, retail spaces, hospitals, data centers — shift the protection priority from “equipment survival” to “business continuity.” A server room outage during trading hours, a fire alarm panel glitch that triggers a building evacuation, or a security system blackout during a break-in all trace back to the same root cause: surge-induced electronics failure.

Standard commercial building: Type 1 (if the building has external LPS) or Type 2 (if not) at the main switchboard. Type 2 SPDs at each floor distribution panel. Type 3 SPDs at the power inlet of any rack containing servers, network switches, or security DVRs.

Data center inside a commercial building: This is a special case within a case. In addition to the power-line SPDs described above, every rack PDU should incorporate Type 3 protection. Every copper Ethernet run between racks should pass through a signal SPD. The target Up for the final protection stage at the server level is ≤ 1.0 kV — modern server power supplies have surge withstand ratings typically around 1.5 kV, and the margin between “protected” and “fried” is a few hundred volts.

Life-safety and security systems: Fire alarm control panels, emergency lighting controllers, and access control systems deserve dedicated Type 3 SPDs even if the rest of the building follows a more basic protection scheme. The cost calculus changes when a protection failure means “building evacuation” rather than “replace a circuit board.”

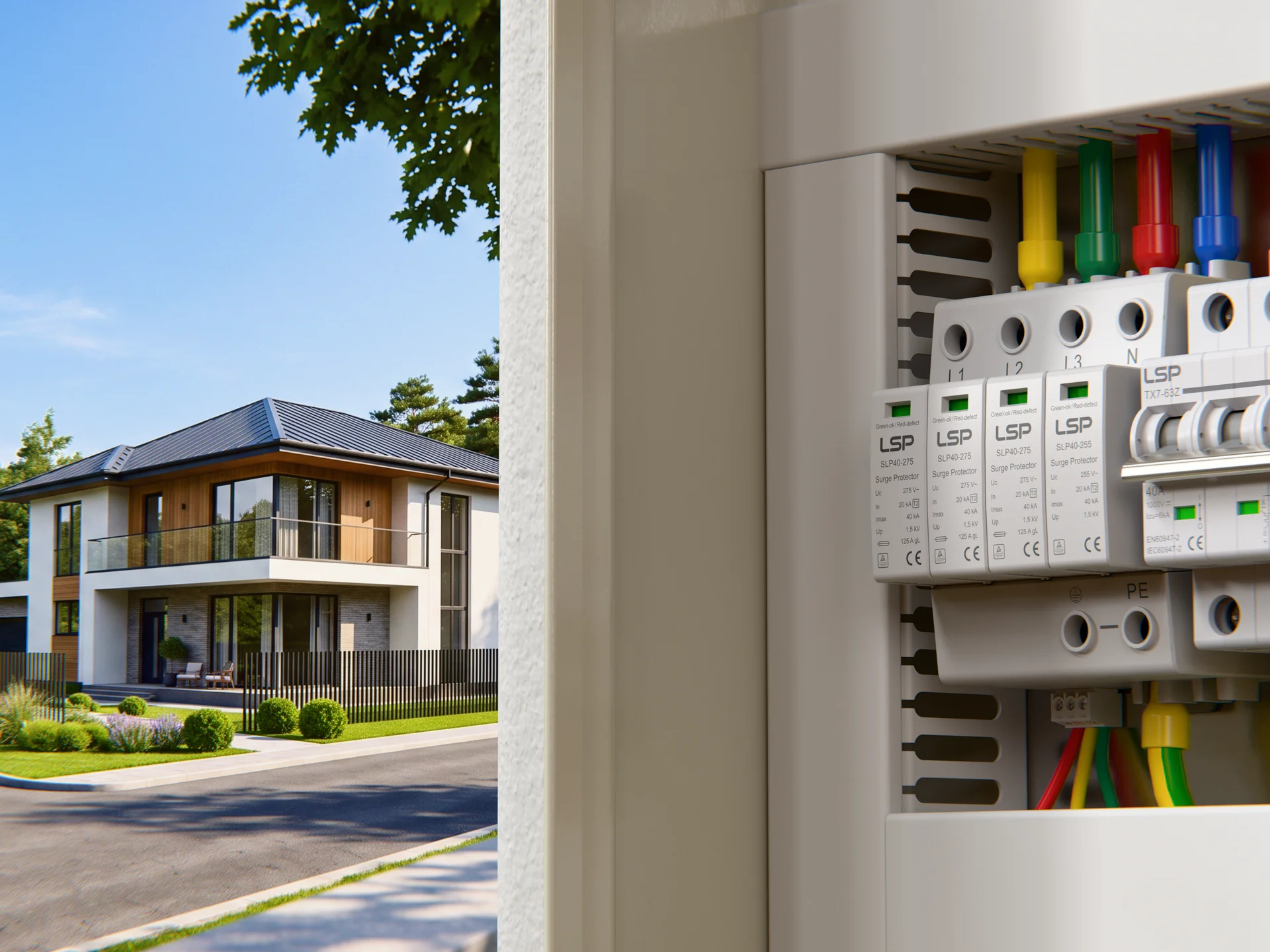

SPD Selection for Residential and Light Commercial

For single homes, villas, and small commercial units, the protection strategy simplifies — but the basic logic doesn’t change.

Standard residential (no external LPS, underground power feed): A single Type 2 SPD at the main distribution board — In ≥ 20 kA, 1+1 configuration for single-phase, 3+1 or 4+0 for three-phase depending on earthing system — provides adequate protection for appliances and basic electronics. Add Type 3 plug-in SPDs at the wall socket for home theater equipment and home office setups.

Villa or standalone house with external LPS (common in lightning-prone regions of Southeast Asia, Southern Africa, and parts of Eastern Europe): Upgrade to a Type 1+2 combined SPD at the main incoming point, Iimp ≥ 12.5 kA (10/350 µs). The external lightning protection system guarantees that the building will take strikes — the question is whether the internal SPD is rated to handle the energy that couples into the electrical wiring from those strikes.

Voltage reference: For the global 230V single-phase standard, specify Uc ≥ 275V AC. This provides headroom above the nominal 230V plus typical grid tolerance without being so high that the SPD fails to clamp effectively.

A Buyer’s Framework for Evaluating SPD Quality: 4 Checks Every Procurement Team Should Make

Here is the uncomfortable reality of the SPD market: two Type 2 devices rated at Imax 40 kA, both carrying CE marks, both installed in DIN-rail housings that look nearly identical from the outside — can have a 10x difference in factory price. The difference is not in the plastic shell you can see. It is in four internal dimensions that a procurement specification can and should address.

This framework gives you the exact questions to ask suppliers, the acceptable answers, and the red-flag responses that should disqualify a vendor before you ever request a quotation.

Check 1: MOV Core Quality — What’s Actually Inside the Device

The MOV is the single component that most determines an SPD’s real-world protection performance and service life. When evaluating a supplier, ask these three questions:

Question 1: “Which brand of MOV do you use, and what is the tolerance grade?”

An acceptable answer names a specific, traceable brand: LKD (Taiwan), Littelfuse (USA), TDK/Epcos (Germany/Japan). It also specifies ±10% tolerance — meaning the MOV’s breakdown voltage is controlled within a tight band around its nominal value, ensuring predictable protection behavior. A red-flag answer says “high-quality domestic MOVs” without naming a brand, or offers no tolerance specification at all. An MOV sorted to ±20% — or, worse, unsorted — will trigger at inconsistent voltage levels, potentially failing to protect during marginal surges or degrading prematurely from nuisance triggering.

Think of it this way: global top-10 SPD manufacturers select their MOVs from the same shortlist of brands. When a supplier sources from the same suppliers as the industry leaders, they are making a quality commitment that starts at the component level.

Question 2: “Is the MOV epoxy-sealed or bare-chip?”

Look for an MOV disc with a visible colored epoxy coating — typically blue or green. This encapsulation layer provides moisture resistance (critical in humid environments like Southeast Asia or coastal installations), electrical insulation between the MOV body and adjacent components, and mechanical protection during transport. A bare MOV disc — the gray ceramic surface exposed — costs less but degrades significantly faster in real-world conditions, particularly in humid climates where moisture ingress accelerates leakage current and shortens service life from years to months.

Question 3: “Can you provide incoming MOV inspection reports?”

A quality-focused manufacturer tests every batch of incoming MOVs on a three-parameter tester before they enter production. The three parameters — nonlinear coefficient (α), leakage current (I_leak), and residual voltage (Up) — collectively tell you whether the MOVs match their datasheet specifications and whether batch-to-batch consistency is maintained. A manufacturer who cannot or will not share these reports is either not testing at all, or testing and finding results they’d rather not show.

Testing as a signal: The industry-standard endurance test for Type 2 MOVs applies the 8/20 µs current impulse waveform: 20 kA nominal discharge current, 10 impulses (5 positive, 5 negative), followed by 40 kA maximum discharge current, 2 impulses (1 positive, 1 negative). An MOV that maintains stable parameters — no significant drift in residual voltage or leakage current — after this sequence has at least a 5-year service life under normal conditions. An MOV that shows parameter shift after 2 or 3 impulses will likely fail within 2 years.

From the field: Some manufacturers take a different approach to MOV quality. LSP, for example, uses Taiwan-sourced LKD-brand MOVs — the same brand adopted by several global top-10 SPD manufacturers — with ±10% tolerance grading, epoxy encapsulation, and incoming full-batch three-parameter inspection. Their MOVs are specified to withstand the complete 8/20 µs test sequence (In 20 kA × 10 + Imax 40 kA × 2) without parameter degradation. For procurement teams building a quality benchmark, requesting these same specifications from any supplier — named MOV brand, ±10% or tighter, epoxy-sealed, incoming inspection reports — sets a floor that eliminates the bottom tier of the market before price even enters the conversation. For a deeper dive into how component choice affects final device pricing, see SPD price and quality tiers explained.

Check 2: Certification Depth — What the Logo Actually Means

We covered the theory of certification tiers earlier. Here’s how to apply it as a practical verification checklist:

1. Ask for the original certificate document, not a photocopy. Cross-check the product model number on the certificate against the model number in the quotation. A mismatch — or a supplier who claims the certificate is “being renewed” — is a stop sign.
2. Identify the certification type. A TÜV certificate will reference an active factory surveillance contract and an audit schedule. A CB certificate will reference a single test report number from an IECEE-accredited lab. A CE declaration of conformity will reference the manufacturer’s own internal documentation. The difference in the paperwork is as stark as the difference in what it represents.
3. Ask the supply-chain question: “Are the MOVs used in your certified test samples the same brand and batch as the MOVs used in production?” If the answer is yes, and the supplier has TÜV factory surveillance, this is verifiable — the TÜV auditor checks exactly this. If the supplier has only CB or CE certification, the honest answer is “you have to take our word for it.” The less honest answer — which is industry-standard practice among budget manufacturers — is to pass certification with premium MOVs and then ship production units with whatever was cheapest that month.

Check 3: Manufacturing Precision — What the Eye Can See (If You Know Where to Look)

Manufacturing quality in SPDs isn’t about clean solder joints — though those matter too. It’s about the engineering decisions embedded in the production process that determine whether the device performs consistently across thousands of units.

Ask this specific question: “Do your Type 2 and Type 1+2 SPDs use different soldering temperatures?”

This sounds niche. It is the single most revealing manufacturing question you can ask an SPD supplier.

The low-temperature solder joint is the SPD’s disconnection mechanism. It must melt and release during a lightning impulse — disconnecting the MOV from the circuit once it has absorbed its rated energy. But it must NOT melt during a thermal stability test, where continuous current flows for 2-3 days simulating normal operation heating. These two requirements pull in opposite directions. Type 2 SPDs, with lower discharge currents, need a lower solder melting point — around 140°C — for reliable disconnection. Type 1+2 SPDs handling higher continuous currents need a higher melting point — 160°C to 190°C — to avoid nuisance disconnection during normal operation.

A manufacturer who uses the same soldering temperature for all SPD types is running a single-process, public-mold assembly line — optimized for cost and throughput, not for protection performance. A manufacturer who specifies different solder temperatures per product type is engineering each device for its specific protection duty.

Also check the internal metalwork thickness if you can get a teardown photo or sample. The terminal pins that plug into the DIN-rail base carry the full surge current. Quality manufacturers use pins around 8 mm wide × 0.8 mm thick. That’s roughly 45% more cross-sectional area than the industry-common 4-7 mm × 0.5-0.6 mm. When tens of thousands of amps flow through that pin in microseconds, that extra cross-section is the difference between a clean current path and a bottleneck. A bottleneck generates localized heat, arc damage, and — in the worst case — explosive failure of the plastic housing at the pin entry point.

Check 4: Disconnection Safety — The Difference Between a Safe Failure and a Fire

Every SPD is designed to fail. That’s not a design flaw — it’s the fundamental operating principle. An SPD protects downstream equipment by absorbing surge energy that would otherwise destroy it. At some point — after dozens or hundreds of surge events, or after a single event that exceeds its maximum rating — the SPD’s internal components degrade to the point where the safest action is to disconnect from the circuit entirely.

The difference between a safe failure and a dangerous one comes down to the disconnection mechanism.

In a properly designed SPD, when the MOV reaches end-of-life, a spring-loaded disconnection plate — triggered by the melting of a precisely calibrated low-temperature solder joint — physically separates the MOV from the live circuit. An independent arc-extinguishing chamber surrounds the separation point, ensuring that any electrical arc formed during disconnection is immediately quenched. The device fails open. A visual indicator window turns from green to red. The circuit continues operating, now without surge protection but also without a fire hazard.

In a poorly designed SPD, the disconnection is incomplete. The solder joint softens but doesn’t fully release. A thin filament of solder remains — what engineers sometimes call a “cold filament”: the joint breaks but a microscopic thread of solder keeps conducting. Current continues to flow through this near-microscopic bridge. It heats up. The plastic housing, if made of inexpensive non-flame-retardant material, begins to soften and deform. Eventually, it ignites.

This is why SPD fires happen. Not because of the surge itself — because of what the SPD’s internal mechanism did or didn’t do in the milliseconds after the surge ended.

What to check as a buyer:

• Ask about the arc-extinguishing chamber: Is there a dedicated physical barrier (a barrier or arc isolation plate) that inserts between the contacts at the moment of disconnection? Can the supplier show a diagram or teardown photo of this mechanism?
• Ask about the housing material: Is it PA6 with 30% glass fiber reinforcement (PA6+GF30%)? Has it passed the glow wire test per IEC 60695-2-11? Flame-retardant housing is not a premium feature — it’s the minimum standard for any SPD installed inside a building.
• Check the warranty period: Industry standard is 2 years. A manufacturer offering a 5-year warranty is signaling confidence in their disconnection mechanism’s reliability and their MOV’s endurance. The warranty is not a guarantee against failure — it’s a statement about the manufacturer’s own expectation of product lifespan.

From the field: The disconnection mechanism is where R&D investment is most visible — and where public-mold, cost-optimized SPDs cut the deepest corners. LSP’s disconnection device, for instance, is the result of three years of development: a flat-tripping design adapted from Phoenix Contact’s compact SPD architecture, with an independent arc-extinguishing chamber, a green isolation plate that physically severs the solder connection, and a PA6+GF30% flame-retardant housing verified by glow-wire testing. The 5-year warranty that backs this design is not a marketing promise — it’s a direct reflection of what the engineering team believes the mechanism can deliver. For those who want to see the mechanism in action rather than read about it, this teardown video shows the internal structure of a surge protection device and how the disconnection sequence works. For a broader view of how different manufacturers approach these design challenges, the global SPD manufacturer comparison provides context on the competitive landscape.

What to Do Next

You now have a framework you can put to work immediately. You know the three type classifications and where each belongs. You understand what happens inside the device — not as a black box, but as an engineered system with measurable quality indicators. You can read a certification for what it actually verifies rather than what the logo implies. You can match an SPD configuration to your specific project type, from a solar farm to a factory floor. And you have four concrete quality checks that work whether you’re buying from a European brand or a Chinese manufacturer.

Here’s how to apply it:

• If you’re writing a procurement specification, incorporate the four quality checks into your RFQ. Suppliers who can answer all four with specific, verifiable information are in a different tier from those who deflect or generalize.
• If you’re evaluating existing installations, walk the site with the type-by-location logic from the selection guide and identify gaps — especially Type 3 points near sensitive equipment and missing DC-side protection on PV systems.
• If you’re comparing quotations, use the certification depth check (TÜV vs CB vs CE) as your first filter. It alone eliminates a large portion of the market’s quality variance before you get into component-level comparisons.

Surge protection is one of those rare procurement categories where a 20% increase in unit cost can buy a 200% increase in protection reliability — if you know what to ask for. The questions in this guide are designed to help you ask for exactly that.
